Forklift Fork Sizes: Why 10% Wear Costs You 20% Capacity

Forklift fork sizes matter—using the wrong forks risks failures and injuries. A Class IV fork with 2.5” thickness isn’t overkill; it prevents overload disasters. The right forks ensure stability, protect loads, and extend equipment life. This guide covers ITA classes, taper styles, and specialized designs for safe, efficient lifting.

Standard forklift fork dimensions are expressed as thickness × width × length (T×W×L). Common sizes range from 1.25-2.5″ thickness, 4-6″ width, and 36-72″ length. The most popular configuration is 1.5″×4″×42″, suitable for Class II carriages handling loads up to 5,500 lbs.

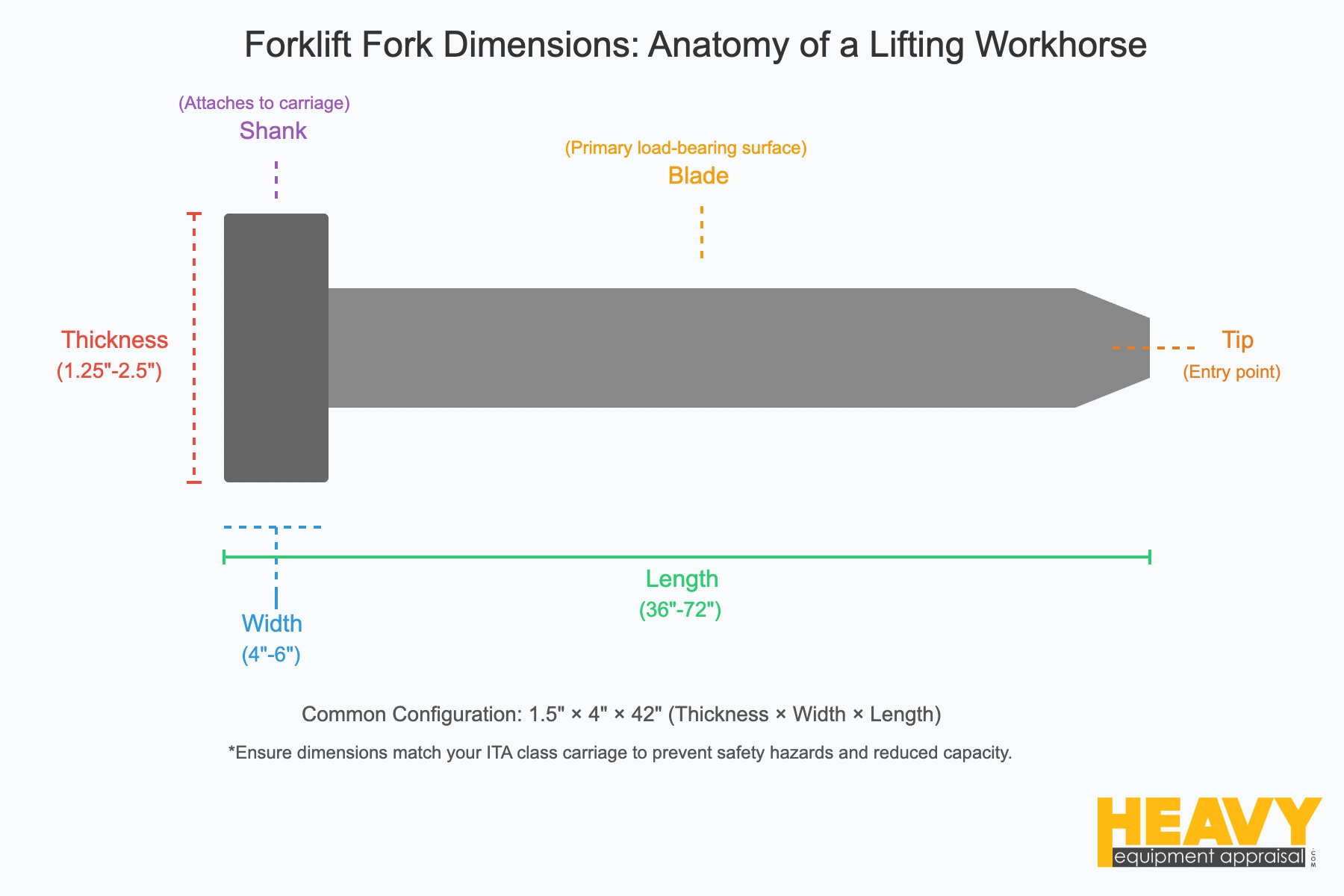

Standard Forklift Fork Sizes and Dimensions

Forklift forks are not universally sized; they come in various dimensions to accommodate the diverse needs of different loads and forklift types. The most common type of forklift forks are those that adhere to the standards set by the Industrial Truck Association (ITA).

These ITA forks are designed for interchangeability, ensuring compatibility across different forklift brands and models, which simplifies maintenance and replacement.

The dimensions of forklift forks are typically expressed in the order of thickness (T) x width (W) x length (L). For example, 1 ½" x 4″ x 42″ represents a common forklift fork size.

Let's break down these measurements:

Thickness (T)

This refers to the thickness of the fork blade, measured along the shank, which is the vertical portion of the fork that attaches to the carriage. Common thicknesses range from 1.25 inches to 2.5 inches. The thickness of the fork significantly impacts its strength and durability, with thicker forks generally able to handle heavier loads.

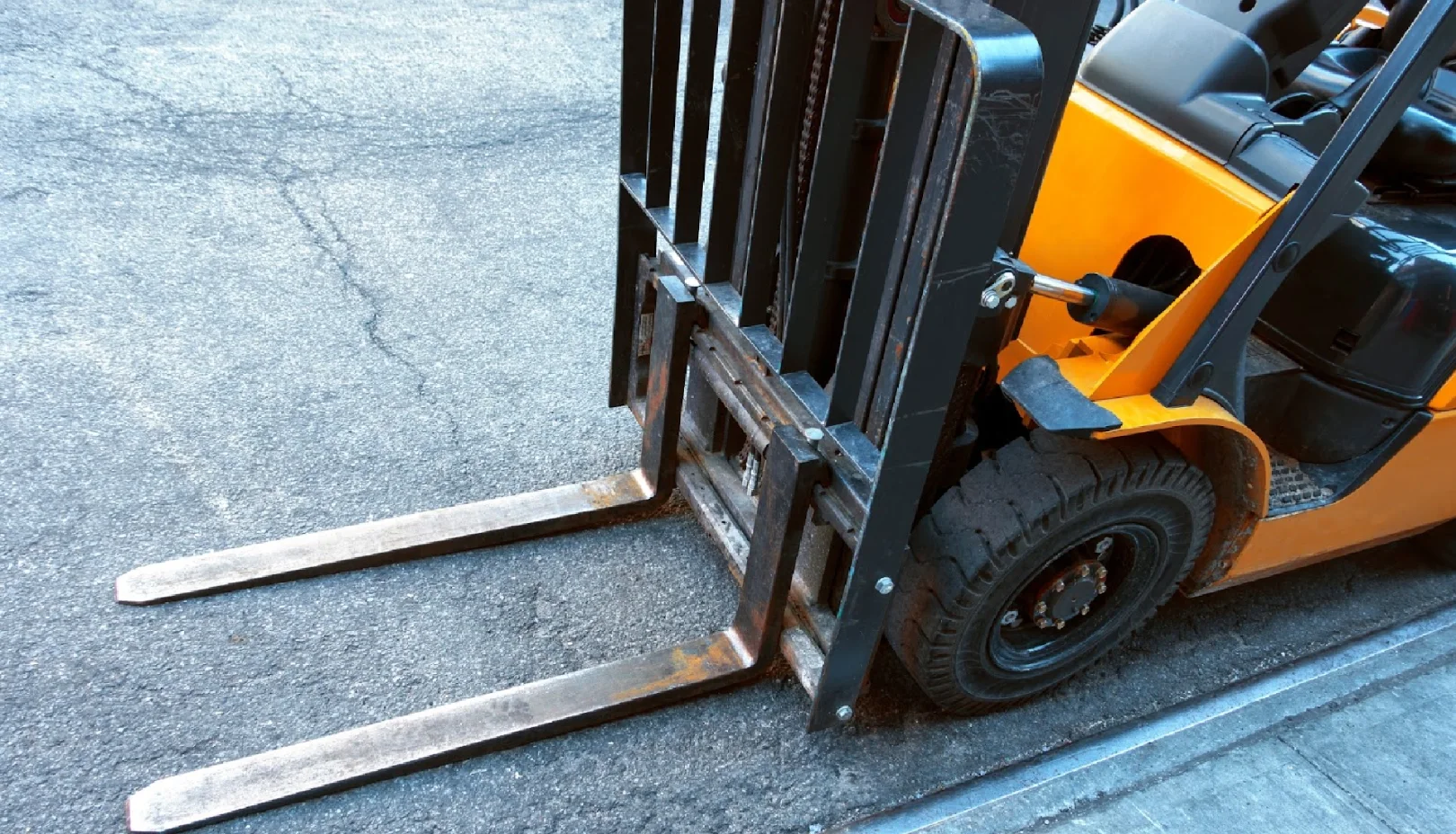

Width (W)

This is the measurement of the fork blade from side to side. Standard widths typically fall between 4 and 6 inches. The width of the fork affects its stability and the types of loads it can handle. Wider forks provide more support for wider loads but may be less maneuverable in tight spaces.

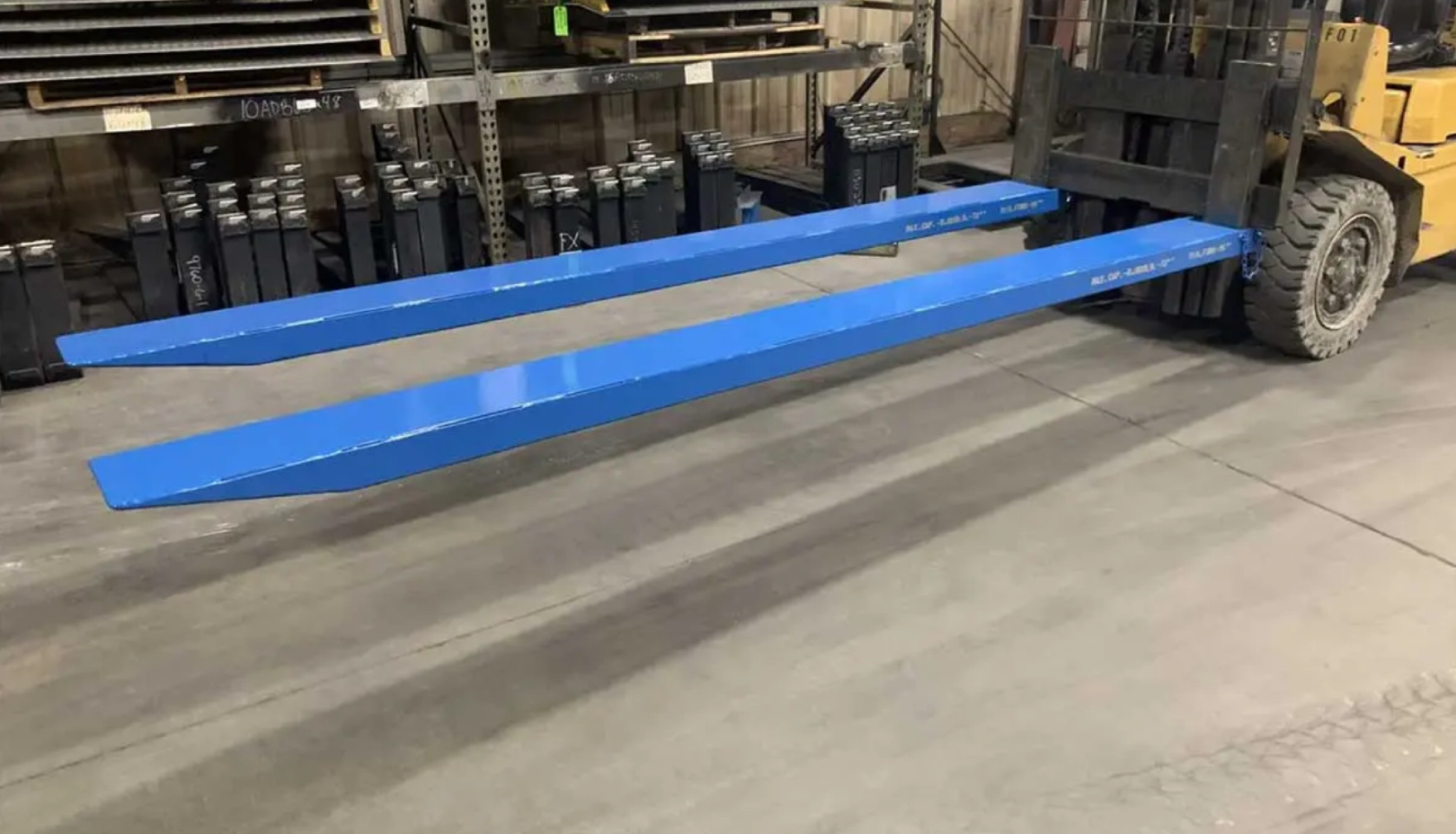

Length (L)

This dimension represents the length of the fork blade from the tip to the base of the shank. Standard lengths range from 36 to 72 inches, with 42 inches being a common choice for many applications. The length of the fork should be sufficient to support the load adequately without extending too far beyond it, which could pose a hazard.

In addition to these basic dimensions, forklift forks also have different taper styles. The taper refers to the angled shape of the fork blade, which can be:

• Standard Taper: The forward-facing 50% of the fork is angled towards the tip.
• Full Taper: The entire length of the fork blade is tapered.
• Full Top Taper & Polish: The top surface of the fork blade is fully tapered and polished.
• Full Bottom Taper & Polish: The bottom surface of the fork blade is fully tapered and polished.
• Two-Stage Taper & Polish: The fork blade has a two-stage taper with polished surfaces.

The taper style affects how easily the forks can slide under loads and how much support they provide. For example, fully tapered forks are often used for handling lumber or other materials that require a smoother entry.

Furthermore, forklift forks have different tip styles, which are the shapes of the fork's ends. These include:

• Flat Tip with Slanted Sides: This is the most common tip style for forks up to 7 inches wide. It provides a good balance of strength and ease of entry.
• Pointed Tip: This tip is typically used for block forks, which are designed for handling bricks and concrete blocks.
• Flat Tip: This tip style is common on forks 7 inches or wider. It provides a larger surface area for supporting wider loads.

While these dimensions and styles provide a general framework, it's important to note that specific sizes and capacities can vary within each ITA class. The table below provides examples of forklift fork dimensions and their corresponding capacities:

*Fork capacity exceeds carriage capacity.

Forklift Classes and Carriage Types

The table above shows different classes of forks, but what do these classes signify? Ever wonder why you can't just slap any fork onto any forklift?

graph TD
    classDef class1 fill:#e6f7ff,stroke:#1890ff,stroke-width:1px
    classDef class2 fill:#f6ffed,stroke:#52c41a,stroke-width:1px
    classDef class3 fill:#fff7e6,stroke:#fa8c16,stroke-width:1px
    classDef class4 fill:#fff1f0,stroke:#f5222d,stroke-width:1px
    classDef class5 fill:#f9f0ff,stroke:#722ed1,stroke-width:1px

    CarriageHeight("CARRIAGE HEIGHT<br>Determines ITA Class") --> Class1("CLASS I<br>13 inches<br><2,200 lbs")
    CarriageHeight --> Class2("CLASS II<br>16 inches<br>2,200-5,500 lbs")
    CarriageHeight --> Class3("CLASS III<br>20 inches<br>5,500-10,998 lbs")
    CarriageHeight --> Class4("CLASS IV<br>25 inches<br>11,000-17,600 lbs")
    CarriageHeight --> Class5("CLASS V<br>28.66 inches<br>17,602-24,198 lbs")

    Class1 --> Thickness1("Typical Thickness:<br>1.25 inches")
    Class2 --> Thickness2("Typical Thickness:<br>1.25-1.75 inches")
    Class3 --> Thickness3("Typical Thickness:<br>1.75-2 inches")
    Class4 --> Thickness4("Typical Thickness:<br>2-2.5 inches")
    Class5 --> Thickness5("Typical Thickness:<br>2.5+ inches")

    Thickness1 --> Warning1("DANGER ZONE:<br>10% wear = 20% capacity loss")
    Thickness2 --> Warning2("DANGER ZONE:<br>10% wear = 20% capacity loss")
    Thickness3 --> Warning3("DANGER ZONE:<br>10% wear = 20% capacity loss")
    Thickness4 --> Warning4("DANGER ZONE:<br>10% wear = 20% capacity loss")
    Thickness5 --> Warning5("DANGER ZONE:<br>10% wear = 20% capacity loss")

    class Class1 class1
    class Class2 class2
    class Class3 class3
    class Class4 class4
    class Class5 class5
    class Warning1,Warning2,Warning3,Warning4,Warning5 fill:#ffccc7,stroke:#f5222d,stroke-width:2px

Here's why:

Forklift forks are categorized into ITA classes based on the height of the carriage, the part of the forklift to which the forks attach. The carriage height determines the class of the forks, and each class has a specific load capacity range.

Here's a breakdown of the ITA forklift carriage classes:

• ITA Class 1: Carriage height: 13 inches; Forklift capacity: Less than 2,200 lbs.
• ITA Class 2: Carriage height: 16 inches; Forklift capacity: 2,200 to 5,500 lbs.
• ITA Class 3: Carriage height: 20 inches; Forklift capacity: 5,500 to 10,998 lbs.
• ITA Class 4: Carriage height: 25 inches; Forklift capacity: 11,000 to 17,600 lbs.
• ITA Class 5: Carriage height: 28.66 inches; Forklift capacity: 17,602 to 24,198 lbs.

It's important to select forks that are compatible with the carriage class of your forklift to ensure safe and efficient operation. Think of it like trying to put truck tires on a compact car – technically you might get them to attach, but you're asking for trouble down the road.

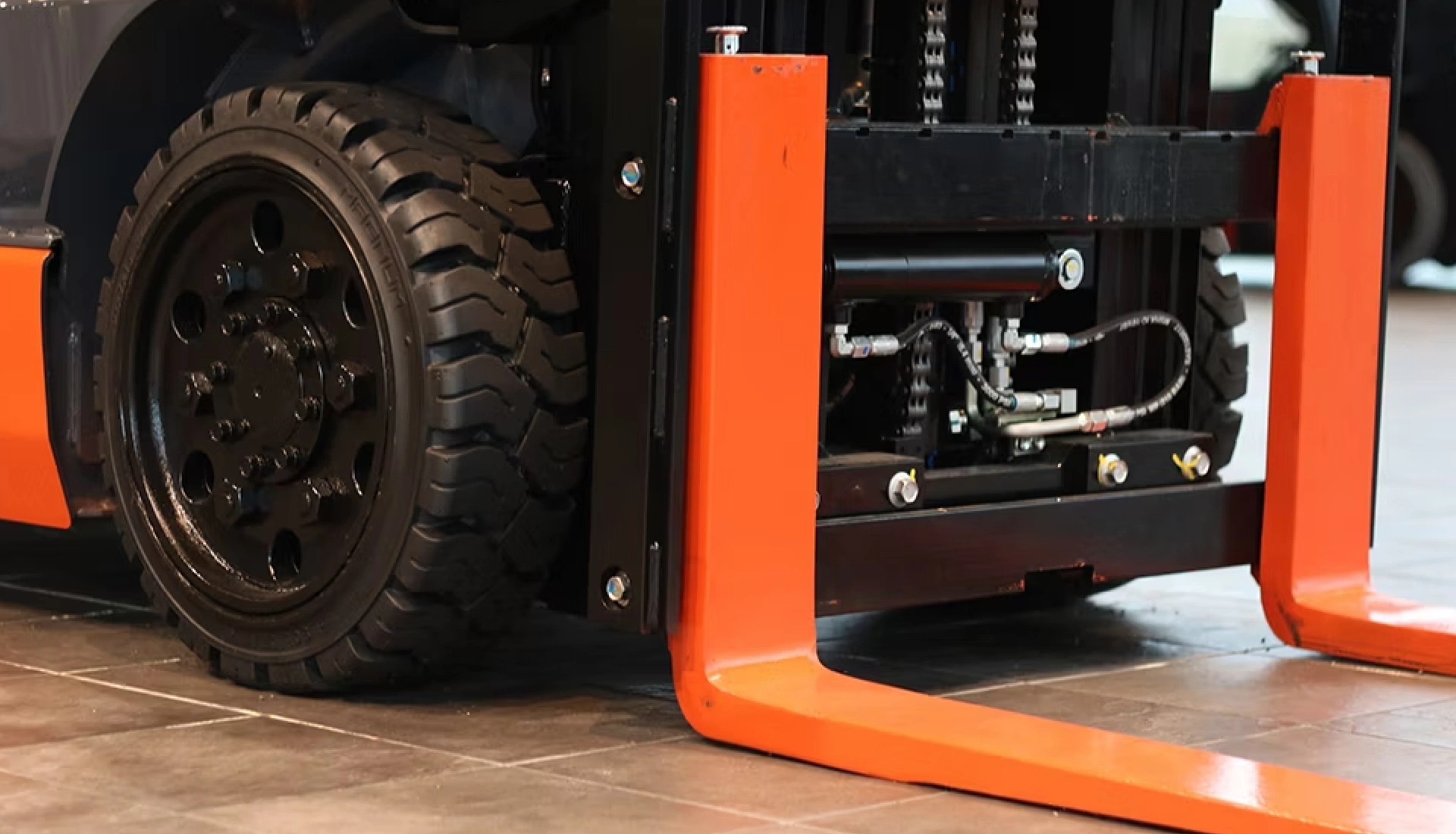

Types of Forklift Forks

Beyond the standard ITA forks, a wide variety of specialized forklift forks cater to specific applications and material handling needs. These specialized forks offer enhanced functionality and efficiency for tasks that go beyond standard pallet handling.

Some of the common types include:

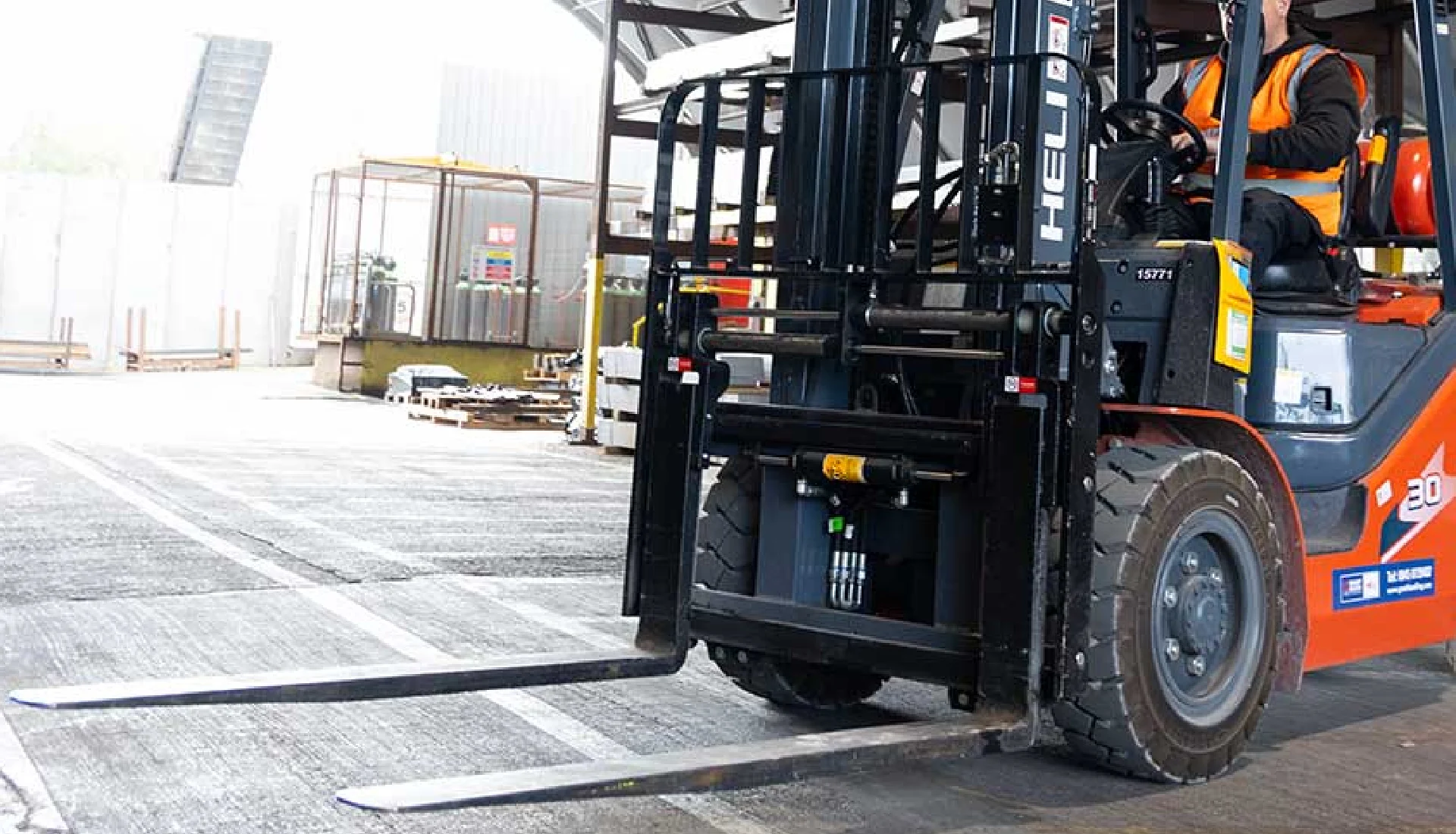

Stainless Steel Forks

Ideal for environments with strict hygiene standards, such as food processing and pharmaceutical industries, these forks are resistant to corrosion and bacteria, making them easy to clean and maintain. Think of them as the surgical instruments of the forklift world – pricier, but essential when cleanliness matters.

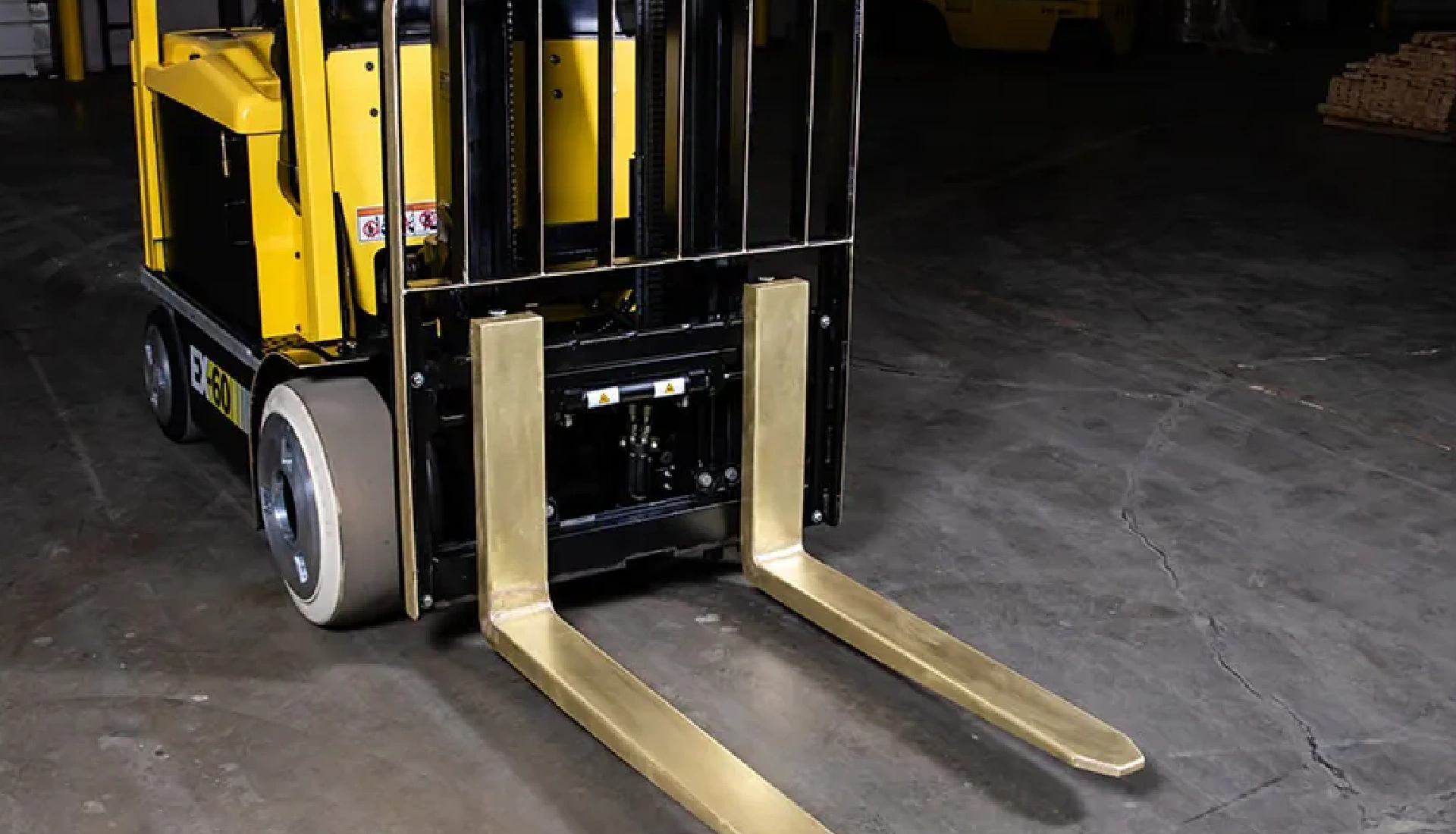

Spark-Retardant Forks

Essential in hazardous locations where flammable materials are present, these forks are designed to prevent sparks that could ignite volatile substances. They are often used in chemical plants, oil refineries, and other environments where fire safety is paramount. One spark in the wrong place can turn a routine lift into a catastrophe.

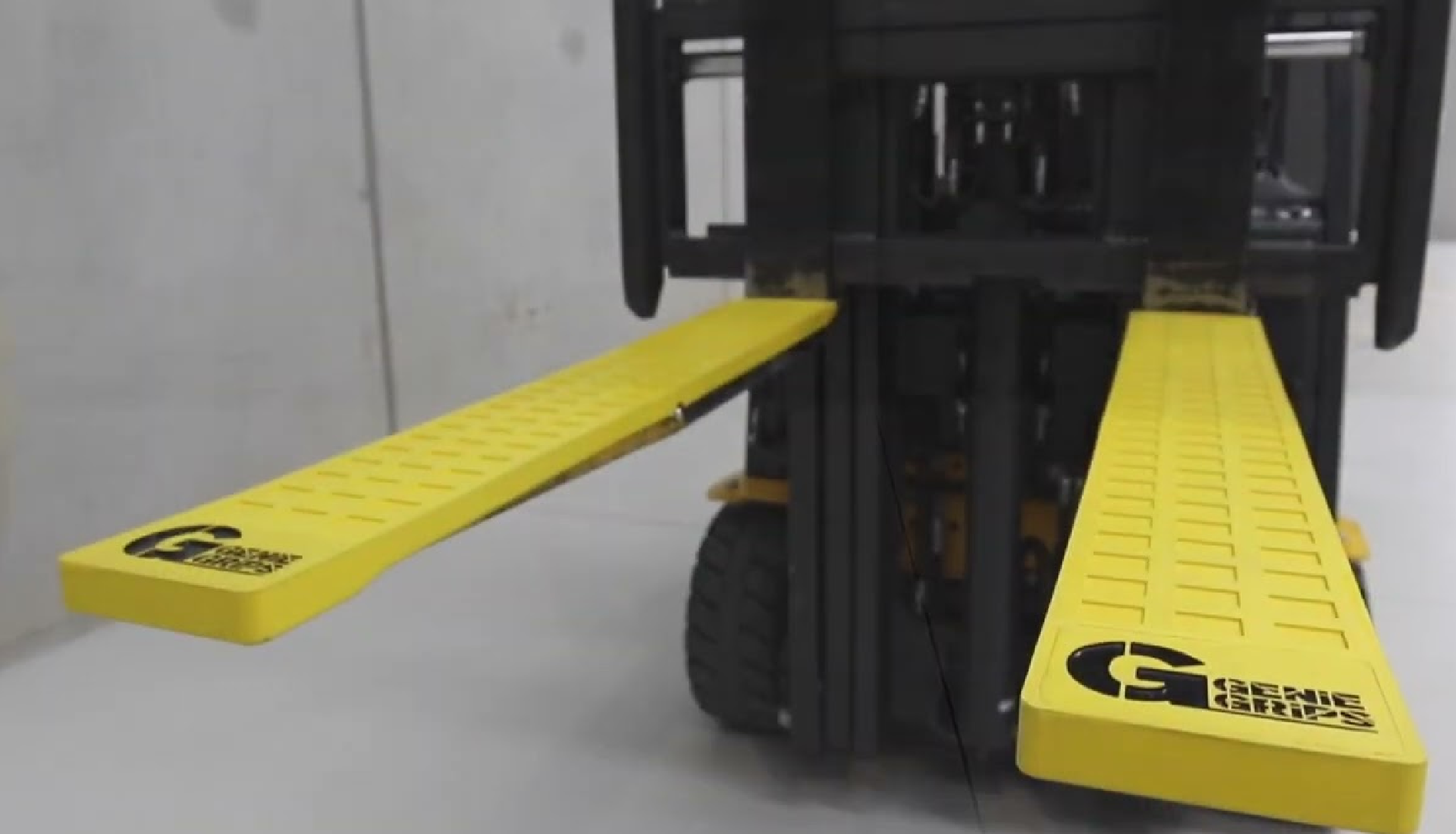

Anti-Slip Forks

These forks feature a rough coating to enhance grip and prevent slippage when handling loads, particularly useful for slippery plastic pallets or loads with smooth surfaces. Ever tried moving a refrigerator on a wet tile floor? Same principle.

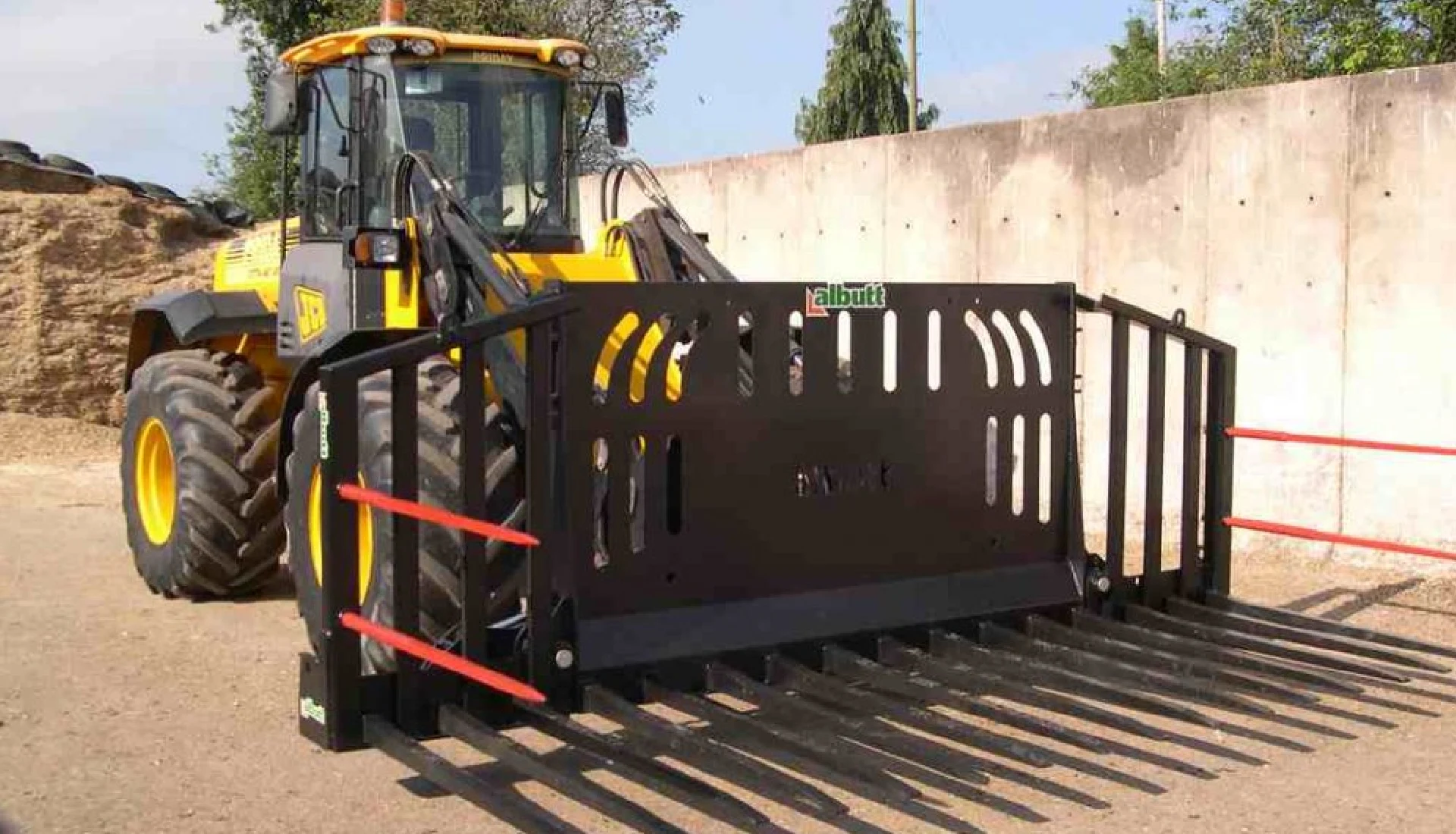

Folding Forks

Designed for confined spaces or when transporting the forklift, these forks fold up when not in use, increasing maneuverability in tight areas or allowing the forklift to fit through narrow doorways. Perfect for those "just barely fits" situations.

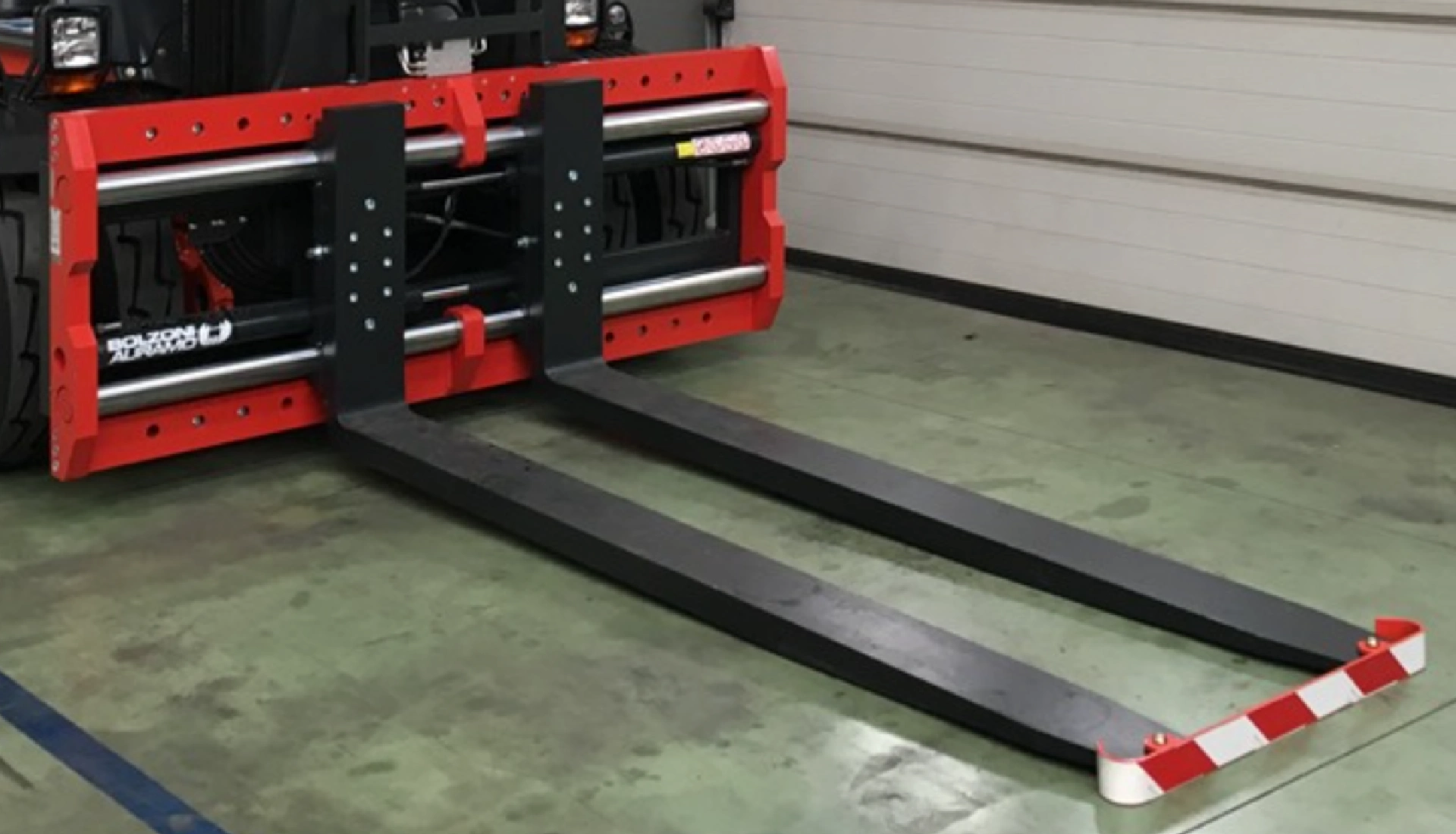

Bolt-On Forks

Attached to the carriage with bolts instead of hooks, these forks offer greater stability and reduced movement during operation, making them suitable for applications where precision and secure load handling are critical. Less wiggle means more confidence when moving delicate loads.

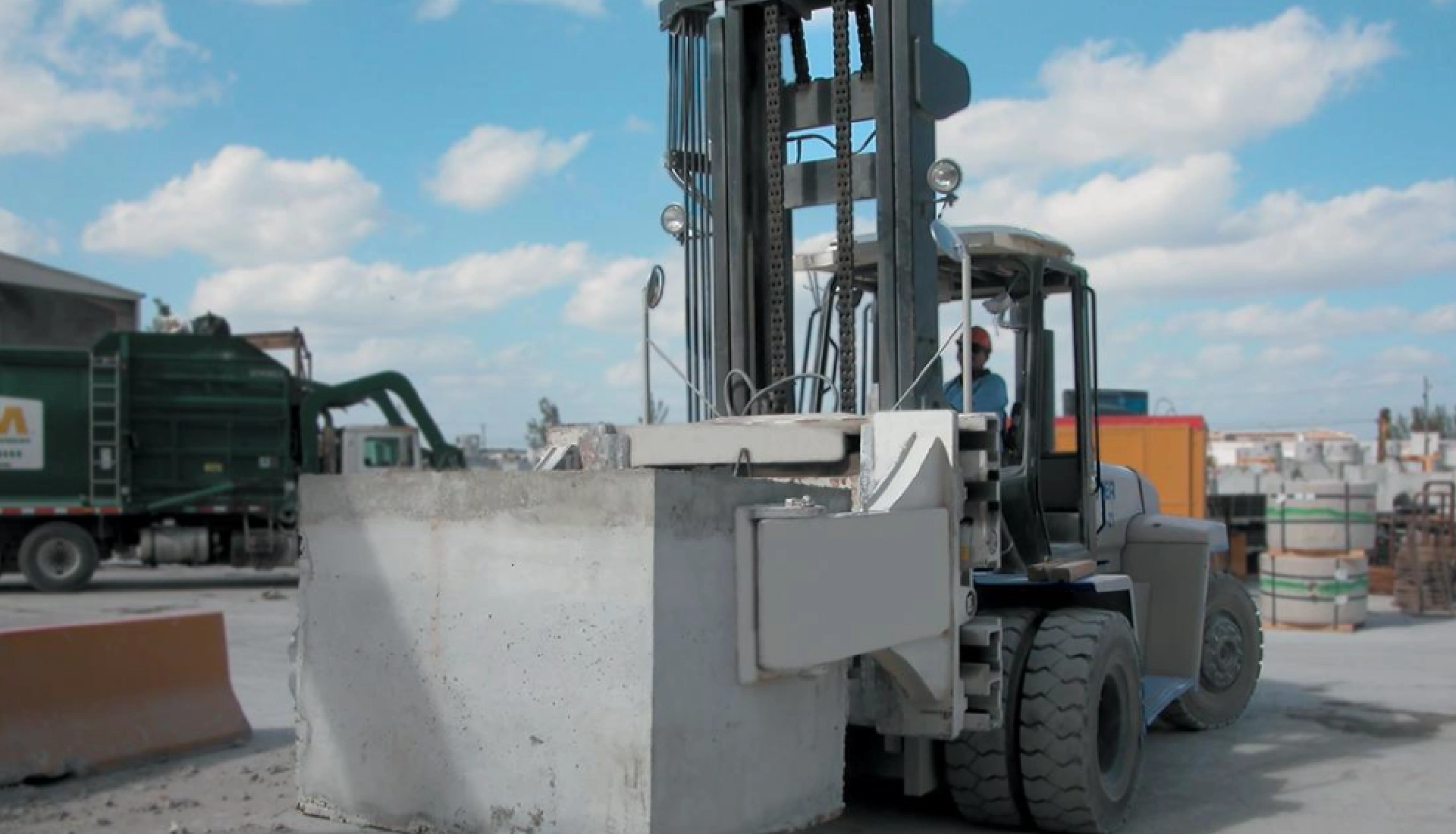

Concrete Block Forks

Specifically designed for lifting and moving concrete blocks, these forks come in sets to handle varying load widths and configurations, ensuring safe and efficient handling of heavy and potentially unstable loads. Because no one wants to see a 2-ton concrete block slide off standard forks.

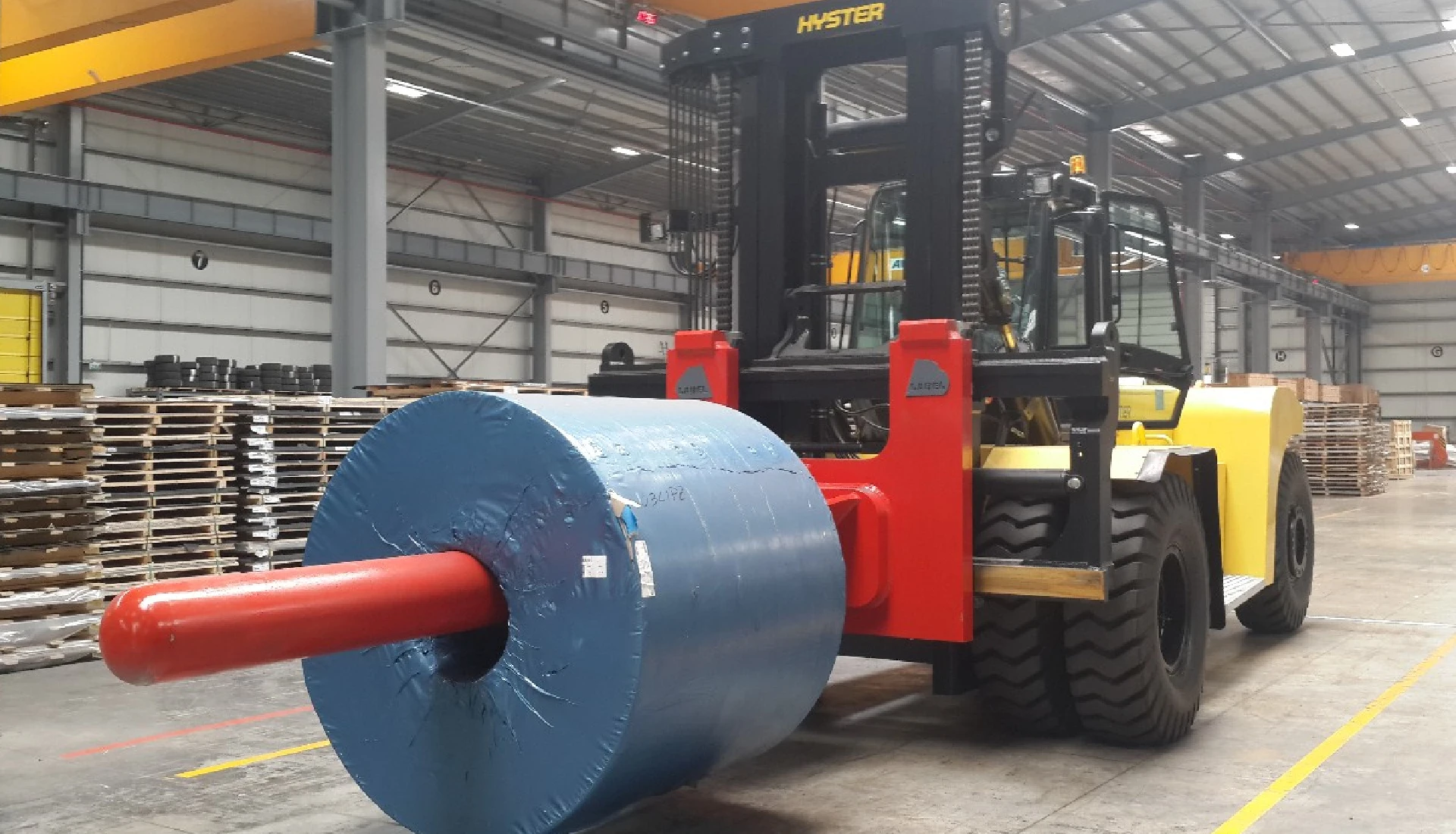

Coil Forks

Used for handling coiled materials like cable reels and steel coils, these forks have a curved design to cradle the load securely, preventing damage to the coils and ensuring stability during transport. Like a custom-made cradle for your valuable coiled materials.

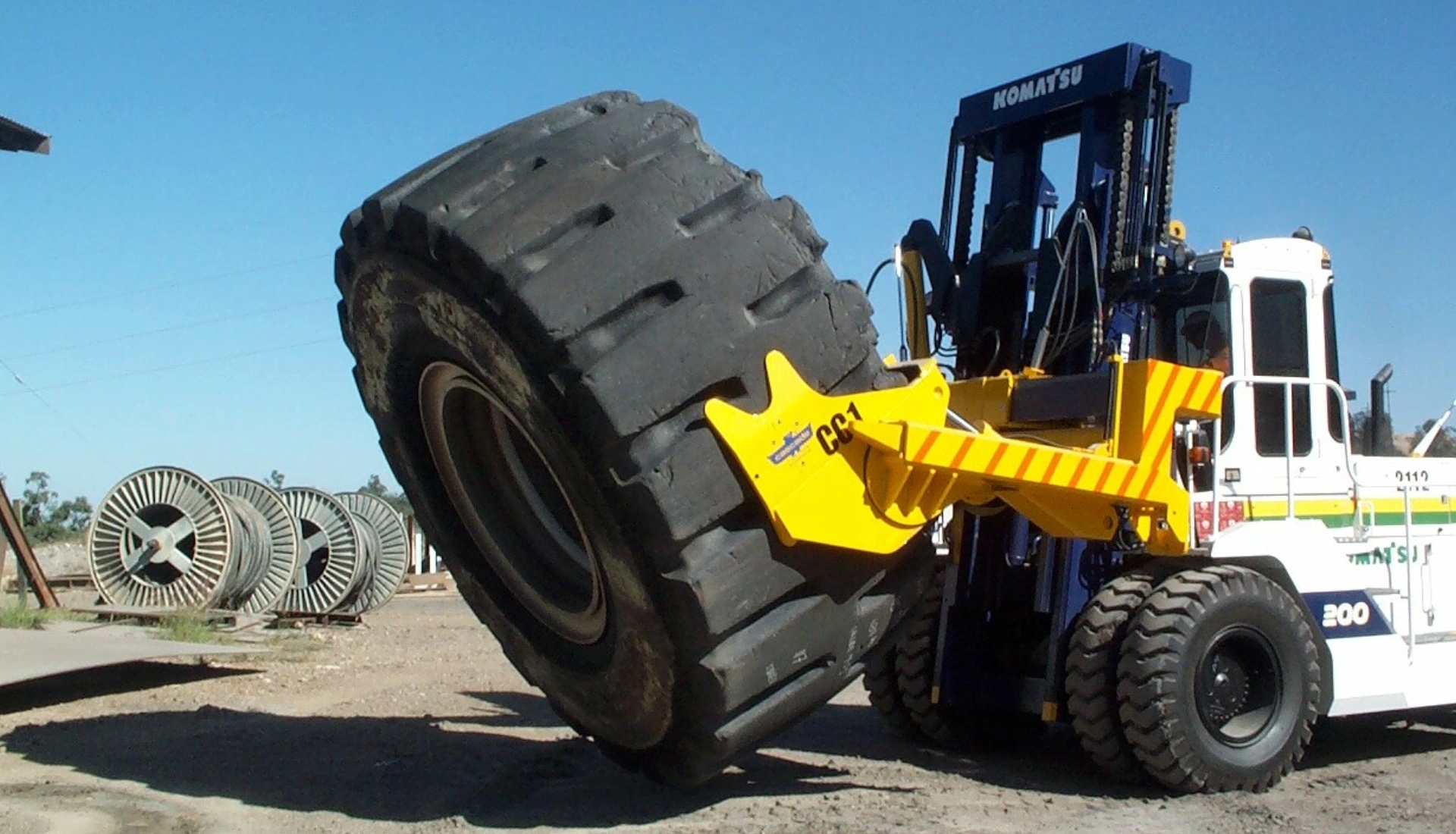

Tire Forks

These forks have chamfered edges to facilitate lifting and moving tires of various sizes without damaging the tire sidewalls. A small design change that makes a huge difference in tire warehouses.

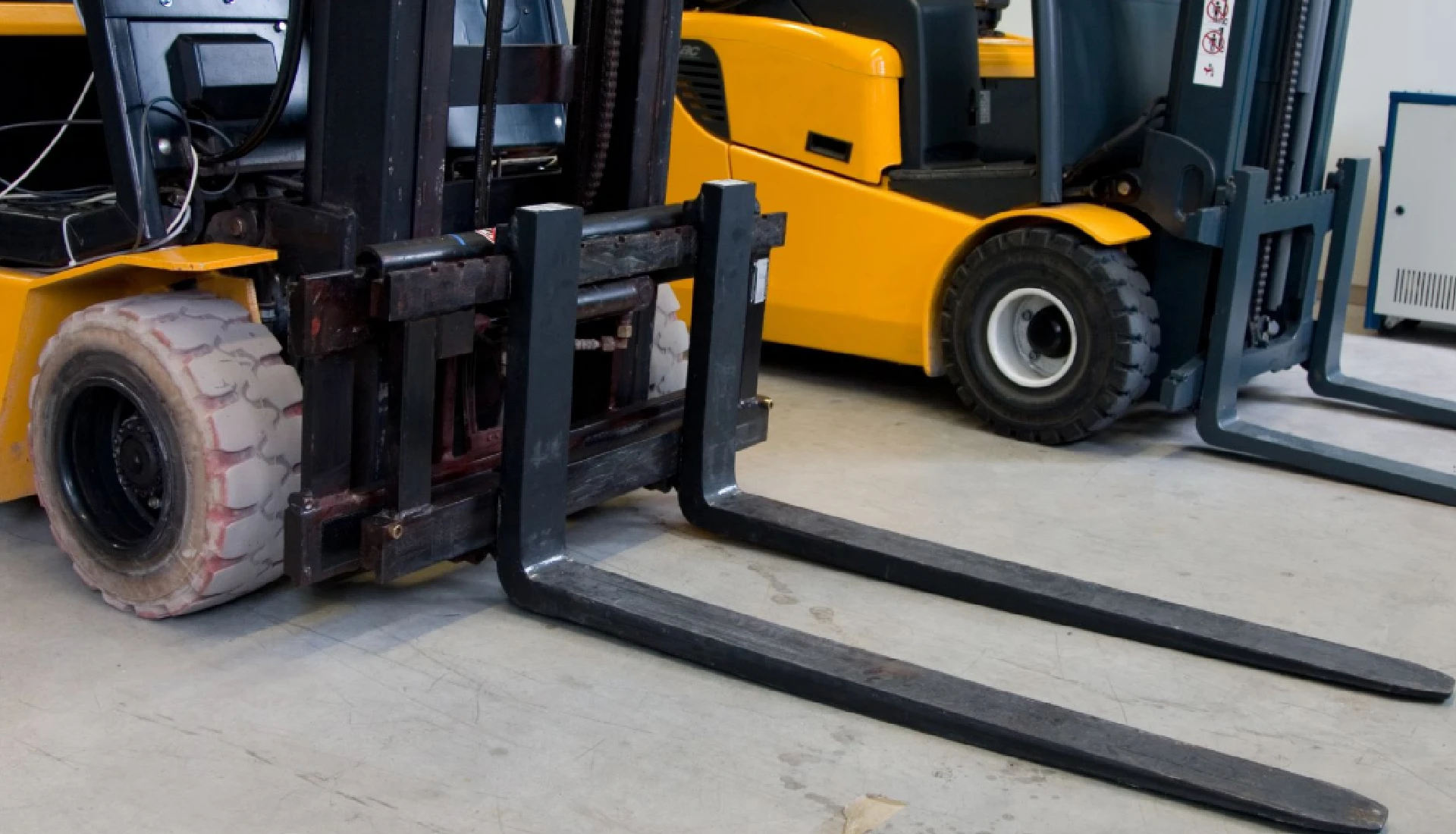

Offset/Inset Forks

These adjustable forks allow for wider or narrower positioning than the standard carriage width, providing flexibility in handling different loads and adapting to varying aisle widths. The versatility champions of the fork world.

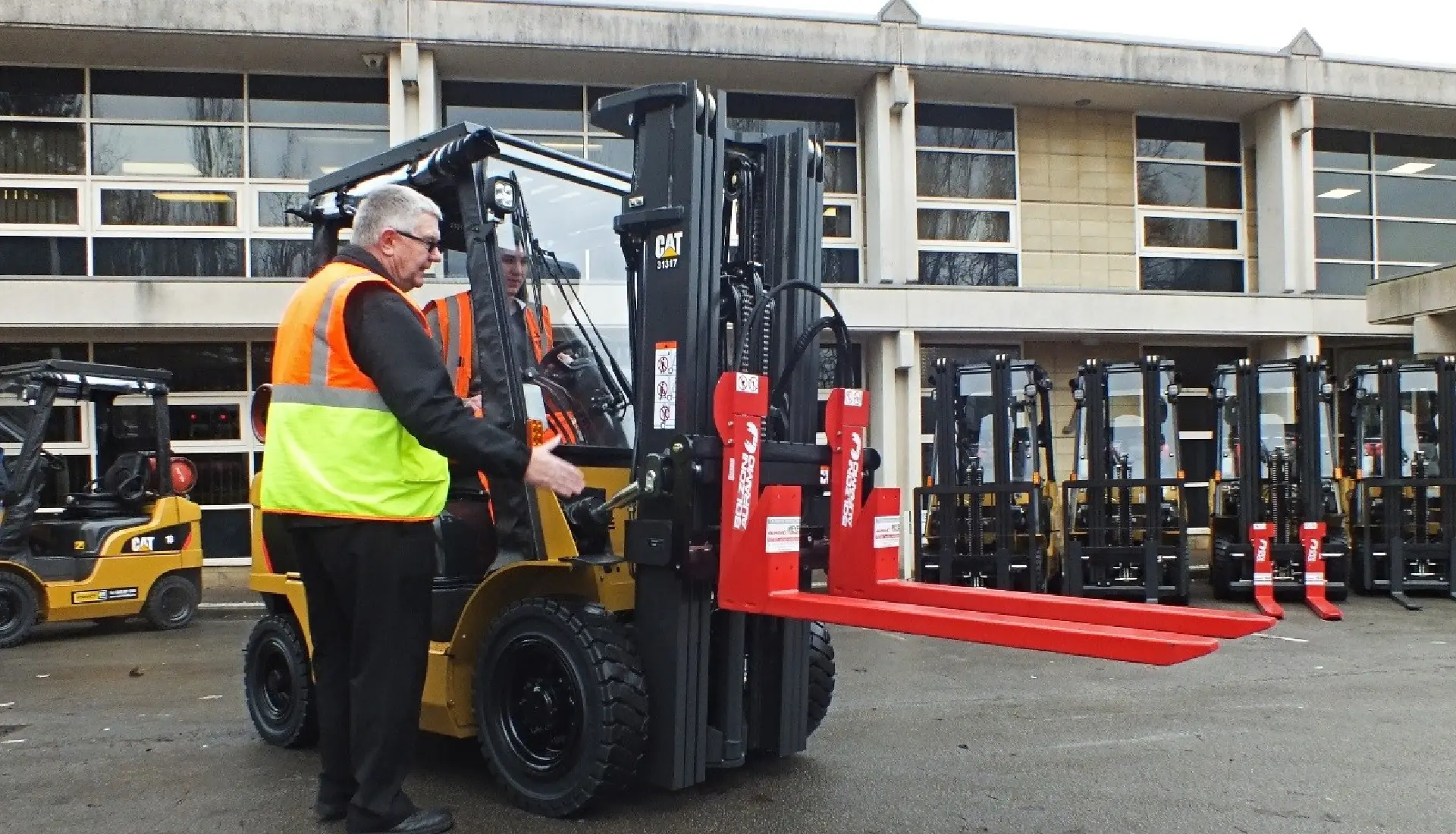

Forklift Fork Attachments

While the forks themselves are essential for lifting, various attachments can be added to enhance their functionality and versatility. These attachments expand the capabilities of a forklift, allowing it to handle a wider range of tasks and improve efficiency.

Some common forklift fork attachments include:

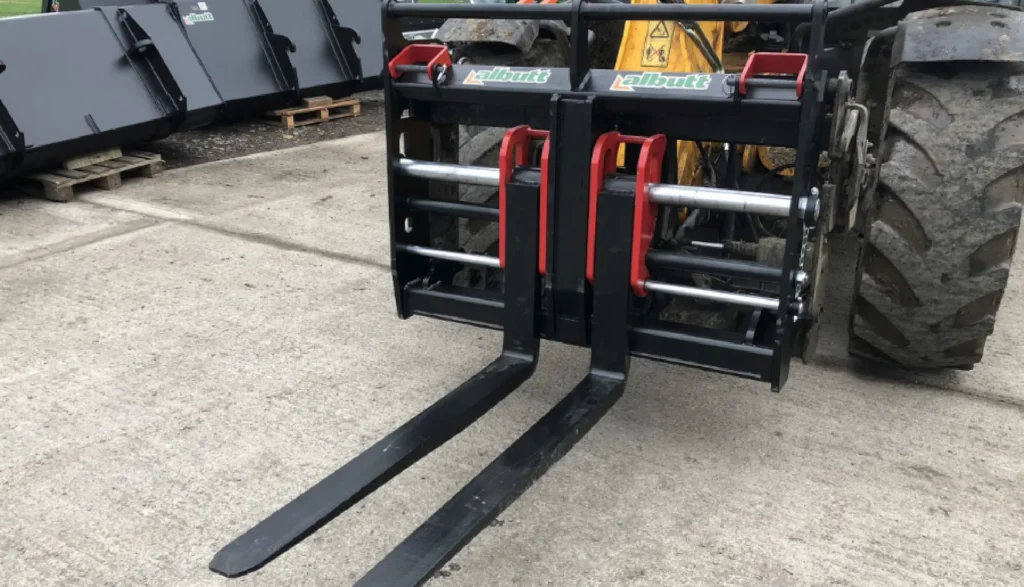

Fork Positioners

These hydraulic attachments allow the operator to adjust the spacing of the forks without leaving the forklift cab, improving efficiency and reducing the time required to handle different load sizes. A real time-saver when you're handling loads of different widths throughout the day.

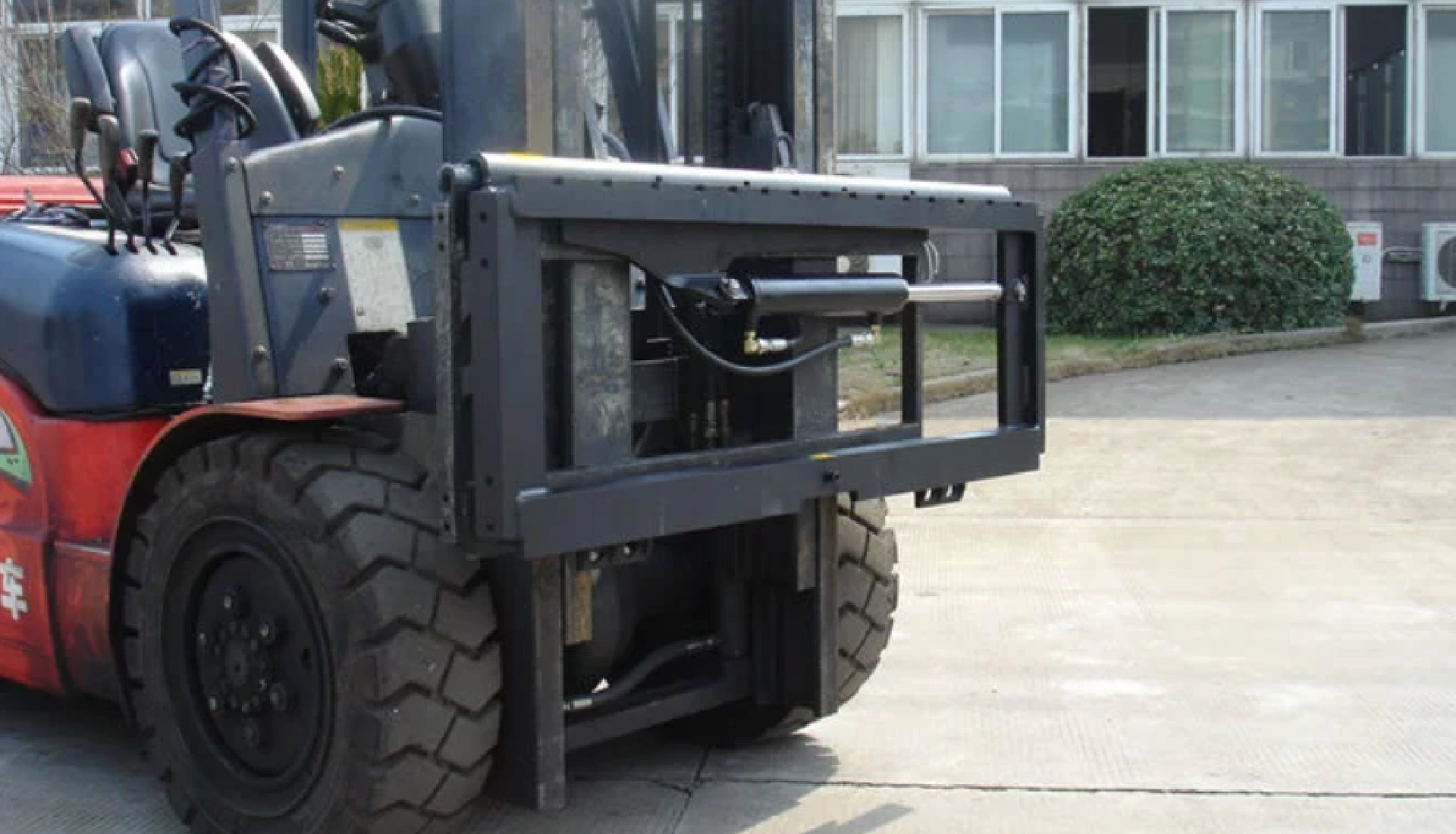

Sideshifters

These attachments enable lateral movement of the forks, allowing for precise positioning of loads in tight spaces or when loading and unloading trucks. Inch-perfect placement without the need to reposition the entire forklift? Yes, please.

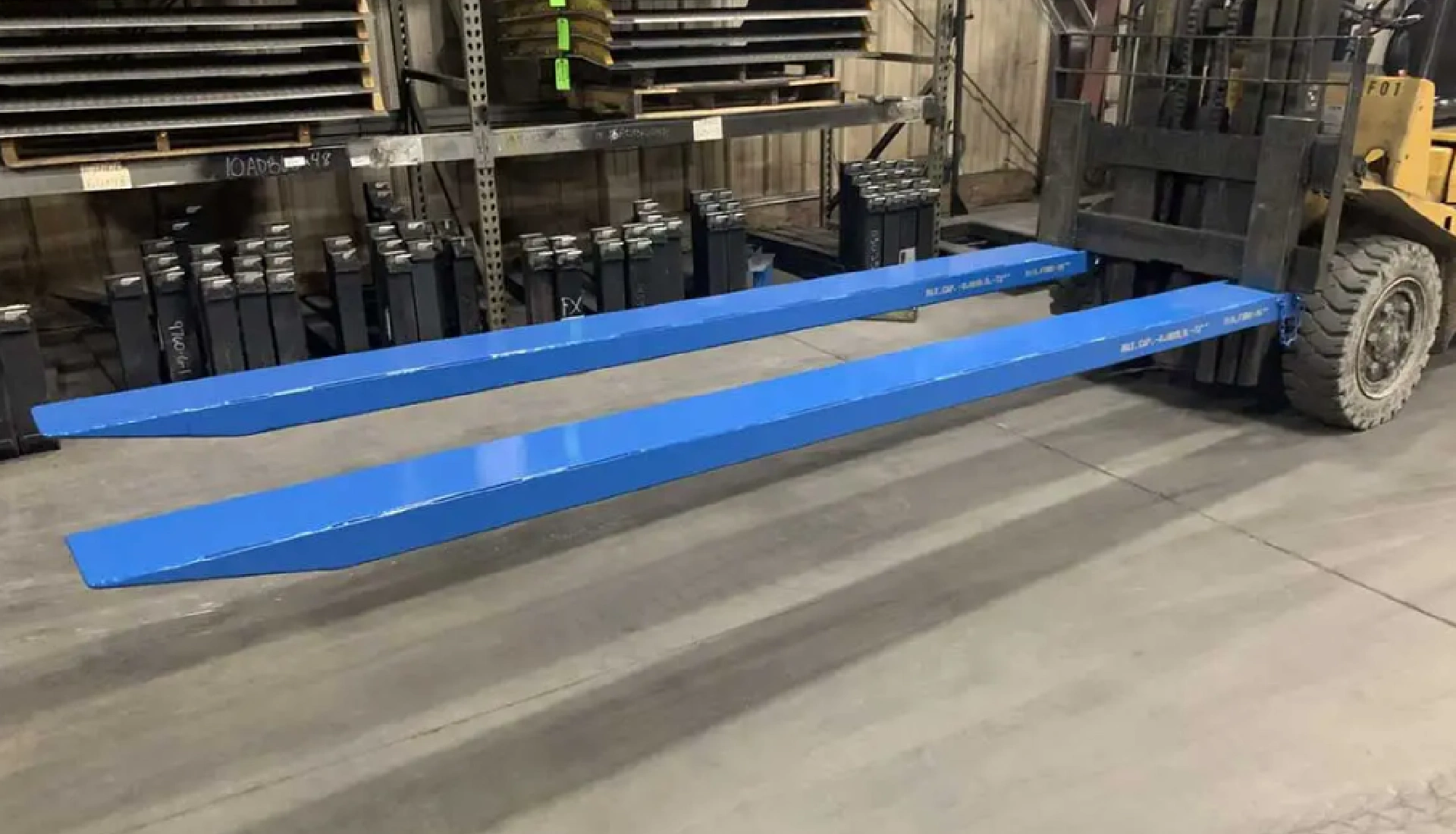

Fork Extensions

These extensions slide over the existing forks to increase their length, enabling the handling of longer loads that exceed the standard fork length. Like having an extendable arm when you need to reach just a little bit further.

Factors Determining Appropriate Fork Size and Dimensions

Choosing the correct forklift fork size and dimensions is paramount for safe and efficient material handling. Several factors influence this decision, and careful consideration of these factors is essential to optimize forklift performance and prevent accidents. These factors include:

Load Capacity: The forks must have a load capacity equal to or greater than the maximum weight of the intended loads. Overloading can lead to fork failure, potentially causing the load to drop and resulting in damage, injury, or even fatalities. This isn't an area where "close enough" cuts it – exceed the capacity, and you're gambling with safety.

Load Center: This refers to the horizontal distance from the vertical face of the forks to the center of gravity of the load. The load center significantly affects the forklift's stability and lifting capacity. As the load center increases, the lifting capacity decreases, and the risk of the forklift tipping forward increases. It's crucial to position loads correctly on the forks to maintain the center of gravity within safe limits. Physics doesn't negotiate on this one.

Load Dimensions: The length and width of the forks should be appropriate for the dimensions of the load. Forks that are too narrow may cause the load to slip, while excessively long forks can hinder maneuverability and pose a safety hazard, potentially striking objects or people. You wouldn't haul a refrigerator in a sports car or deliver pizza on a flatbed truck – same principle applies here.

Material Type: The type of material being handled influences the choice of forks. For example, delicate materials may require specialized forks with padding or a unique blade design to prevent damage. Similarly, heavy or unevenly distributed loads may require forks with greater thickness or width for added support. What works for pallets of bricks won't necessarily work for stacks of glass or coils of sheet metal.

Operating Environment: The environment in which the forklift operates also plays a role. For instance, corrosive environments necessitate stainless steel forks to prevent rust and degradation, while hazardous locations require spark-resistant forks to minimize the risk of fire. Ever seen what salt water does to standard steel forks in just a few months? Not pretty, and definitely not safe.

Cost of Forklift Forks

The cost of forklift forks can vary considerably based on several factors, including the type of fork, size, material, and brand. Standard ITA forks typically range from a few hundred dollars to over a thousand dollars per pair. For example, a pair of Class 2 forks with dimensions 1.50 x 4 x 72 inches can cost around $922.

Specialized forks, such as those made of stainless steel or with added features like anti-slip coatings, tend to be more expensive due to the higher cost of materials and manufacturing processes.

For instance, stainless steel clad forks can cost significantly more than standard steel forks. You'll pay a premium, but in the right environment, they'll outlast standard forks by years.

Replacing worn or damaged forks is crucial for safety and maintaining operational efficiency. The cost of replacement will depend on the extent of the damage and the type of fork being replaced. Approximate cost ranges for replacing different types of forks include:

• Standard ITA forks: $457 to $1,563 per pair
• Replacement forks for specific forklift brands (e.g., Raymond): $360 to $380 each

Regular inspections and proper maintenance can help extend the lifespan of forks and minimize replacement costs. Think of it like changing the oil in your car – spend a little on regular maintenance, or a lot on premature replacement. Your call.

Forklift Fork Performance

The performance of forklift forks is critical for safe and efficient load handling. Several factors influence fork performance, and understanding these factors is essential for selecting the right forks and ensuring their longevity. These factors include:

Strength and Durability: Forks are typically made from high-strength steel to withstand heavy loads and resist bending or breaking. The thickness and width of the forks contribute to their overall strength, with thicker and wider forks generally offering greater load-bearing capacity. The most common materials used for forklift forks are:

• 1045 to 1060 steel
• 4140 or 4340 steel
• A572 Grade 50 steel

Wear and Tear: Over time, forks can wear down due to regular use, improper handling, or collisions. Factors that can contribute to fork wear and tear include:

• Everyday wear and tear from regular use
• Collisions with walls and columns
• Improper forklift chain tension
• Overloading the forks beyond their capacity
• Using improper forklift attachments
• Exposure to harsh environments (e.g., corrosive substances, extreme temperatures)

Worn forks can compromise load capacity and stability, increasing the risk of accidents. It's crucial to monitor forks for signs of wear, such as thinning, cracks, or bends, and replace them when necessary. A 10% reduction in fork surface area can result in a 20% reduction in safe lifting capacity. That math should get your attention – small wear leads to big risk.

Material and Construction: The type of steel and the construction method used in manufacturing the forks affect their strength and durability. Forged forks, for example, are known for their robustness and higher load-bearing capacity compared to standard forks. The difference between a good fork and a great fork often comes down to metallurgy and manufacturing process.

Safety Standards: Adhering to safety standards, such as those set by OSHA and ANSI, ensures that forks meet specific requirements for design, testing, and maintenance. These standards help ensure the safety of operators and prevent accidents. Standards exist for a reason – they're written in response to real-world incidents that no one wants to repeat.

Forklift Fork Markings: Forklift forks have markings that provide important information about their capacity, class, and other specifications. These markings are crucial for ensuring that the forks are used correctly and within their safe operating limits. Regular inspections should include checking the legibility of these markings. When these stamps wear off, you're operating blind – know your forks' limits or risk exceeding them.

Usage Rates and Lifespan

The usage rates of forklift forks vary depending on the intensity of operations, the types of loads handled, and the operating environment.

Frequent use, heavy loads, and harsh conditions can contribute to faster wear and tear. For example, in a busy warehouse where forklifts are constantly moving heavy pallets, the forks will experience more wear and tear than in a lighter-duty application.

A fork moving 50+ loads per hour in a cold storage facility is going to age faster than one handling 10 loads per shift in a climate-controlled warehouse.

In Australia, the consumption of self-propelled fork-lift trucks with non-electric motors decreased by 14.7% to 14,000 units in 2024.

This data suggests a potential shift in forklift usage patterns, possibly influenced by factors such as the adoption of electric forklifts or changes in warehouse operations.

The average lifespan of a set of forklift forks is difficult to determine precisely, as it depends on various factors. However, regular inspections and proper maintenance can significantly extend their lifespan.

Generally, a well-maintained forklift can last between 10,000 to 20,000 operating hours. This translates to approximately 5 to 10 years of service, assuming an average usage of 2,000 hours per year. I've seen forks last 15+ years in light-duty applications with conscientious operators, and I've seen others fail catastrophically after just months of abuse.

It's crucial to monitor forks for signs of wear, such as thinning, cracks, or bends, and replace them when necessary to ensure safety and optimal performance. Regular inspections should include:

• Checking for obvious cracks, especially in the heel and welds
• Ensuring the blade and shank are straight
• Verifying the fork angle is within the allowed tolerance
• Checking that the fork tips are at the same height
• Inspecting the condition of the positioning lock, if present
• Looking for excessive wear and tear on any part of the fork

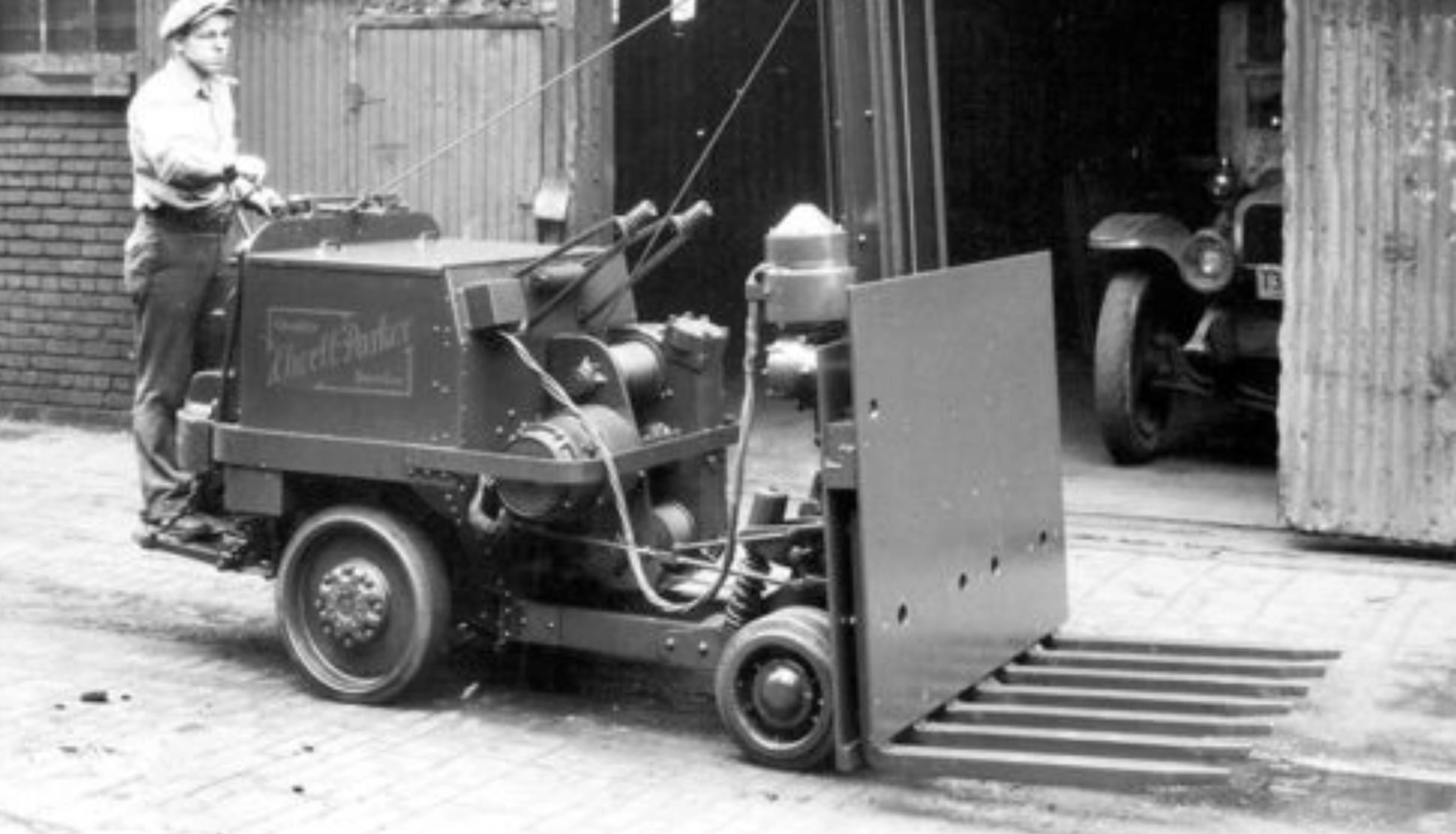

Historical Timeline of Forklift Fork Development

The evolution of forklift forks has been driven by the need for increased efficiency, safety, and versatility in material handling. Over the years, forklift forks have undergone significant transformations, adapting to changing industry needs and incorporating new technologies.

Some of the major milestones in forklift fork design and technology include:

Early 20th Century: The introduction of the first forklift trucks with basic lifting mechanisms marked the beginning of a revolution in material handling. These early forklifts, while rudimentary compared to modern versions, demonstrated the potential for mechanized load carrying. Think of them as the Model T of the material handling world – revolutionary but primitive by today's standards.

1920s: The incorporation of hydraulics for increased lifting power was a significant advancement in forklift technology. Hydraulic systems allowed for smoother lifting and lowering of heavier loads, expanding the capabilities of forklifts and improving efficiency. This was the equivalent of moving from hand-cranked car windows to power windows – suddenly, tasks became much easier.

WWII: The widespread use of forklifts in the war effort led to further development and standardization. The demands of wartime logistics highlighted the importance of efficient material handling, and forklifts played a crucial role in moving supplies and equipment. Nothing drives innovation like necessity, and war created plenty of necessity.

1950s-60s: The addition of safety features like load backrests and operator cages significantly improved the safety of forklift operations. Load backrests helped prevent loads from falling backward, while operator cages, also known as overhead guards, protected drivers from falling objects. Safety features that seem obvious now were revolutionary additions at the time.

1954: A British company named Lansing Bagnall developed the first narrow-aisle electric-reach truck. This innovation allowed for more efficient use of warehouse space by enabling forklifts to operate in narrower aisles and reach greater heights. Suddenly warehouses could get much taller and much tighter – a game-changer for storage efficiency.

1980s: A focus on ergonomics led to improvements in operator comfort and productivity. Ergonomic designs, such as adjustable seats and controls, reduced operator fatigue and strain, leading to increased efficiency and reduced risk of injuries. The industry finally recognized that comfortable operators are productive operators.

1990s: Implementation of emission standards addressed environmental concerns associated with forklift operations. These standards encouraged the development of cleaner-burning engines and the adoption of electric forklifts, reducing harmful emissions and promoting sustainability. The green revolution reached the warehouse floor.

21st Century: Advancements in automation, AI, and specialized fork designs for diverse applications continue to shape the future of forklift technology. Automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) are being increasingly used in warehouses and factories, improving efficiency and reducing the need for human operators.

Safety features like automatic braking systems, stability control, and operator restraint systems have become standard in modern forklifts, further enhancing operator safety.

Furthermore, the development of multi-stage hydraulic systems and guardian stability systems has led to increased efficiency and safety in handling heavy loads. We've gone from basic lifting devices to intelligent machines that can sometimes operate with minimal human intervention.

Conclusion

Forklift forks—those two metal prongs you barely notice until they fail—make or break your operation. Choose wisely and your materials flow smoothly; choose poorly and you're writing incident reports. The difference between appropriate and inappropriate forks isn't academic—it's the gap between efficiency and catastrophe.

A 10% reduction in fork thickness means 20% less load capacity—math that doesn't favor anyone squeezing life from worn equipment. Unlike wine, forks don't improve with age. Daily visual checks and regular documented inspections aren't bureaucratic overhead; they're insurance against failure when you can least afford it.

Tomorrow's forks will be smarter than today's, with embedded sensors reporting load weights and warning operators of unsafe conditions before they become problems. The fork might be ancient technology, but in the warehouse, its evolution is just getting interesting.
