15 Forklift Types to Navigate Tight Spaces & Handle Awkward Loads

Ever wondered how warehouses stack goods sky-high or construction sites lift massive beams? The answer lies in the diverse world of forklifts. From versatile counterbalance models to specialized telehandlers, let’s explore the key forklift types that power various industries:

• Counterbalance Forklifts: The most common type, used for a wide range of lifting and transporting tasks.
• Reach Trucks: Ideal for maximizing vertical storage space in warehouses with narrow aisles.
• Order Pickers: Designed for efficient picking operations in warehouses.
• Side Loaders: Best for handling long and awkward loads like lumber and pipes.
• Telescopic Handlers: Versatile machines used in construction and agriculture for lifting and reaching high places.
• Specialized Forklifts: Cater to unique needs like explosion-proof or cold storage environments.

Narrow aisles cramping your warehouse? Rough terrain slowing down your construction site? Or perhaps hazardous materials demand specialized handling?

Break free from these constraints and discover the forklift innovations designed to conquer any challenge. Your path to optimized material handling starts below…

Forklift Types: From Warehouse to Rough Terrain

Forklifts are made for different work places. Warehouse forklifts work well on smooth floors inside. Outdoor forklifts handle tough terrains. This makes them useful in many industries.

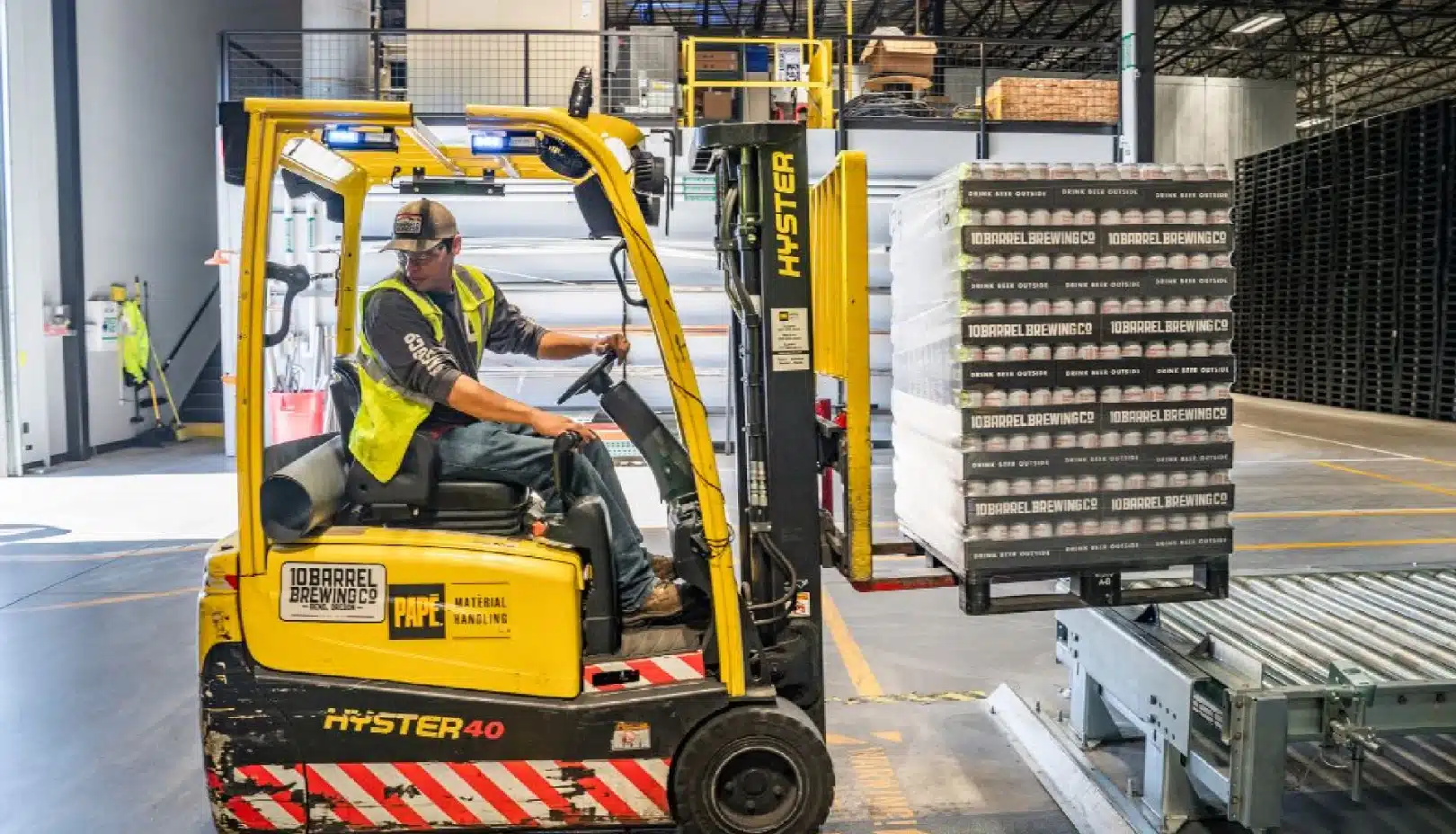

In warehouses, electric counterbalance trucks are common. They can lift loads up to 5,000 lbs. For tight spaces, three-wheel models are better at moving around.

Reach trucks help use high shelves by reaching up. This lets them store pallets in tight spaces.

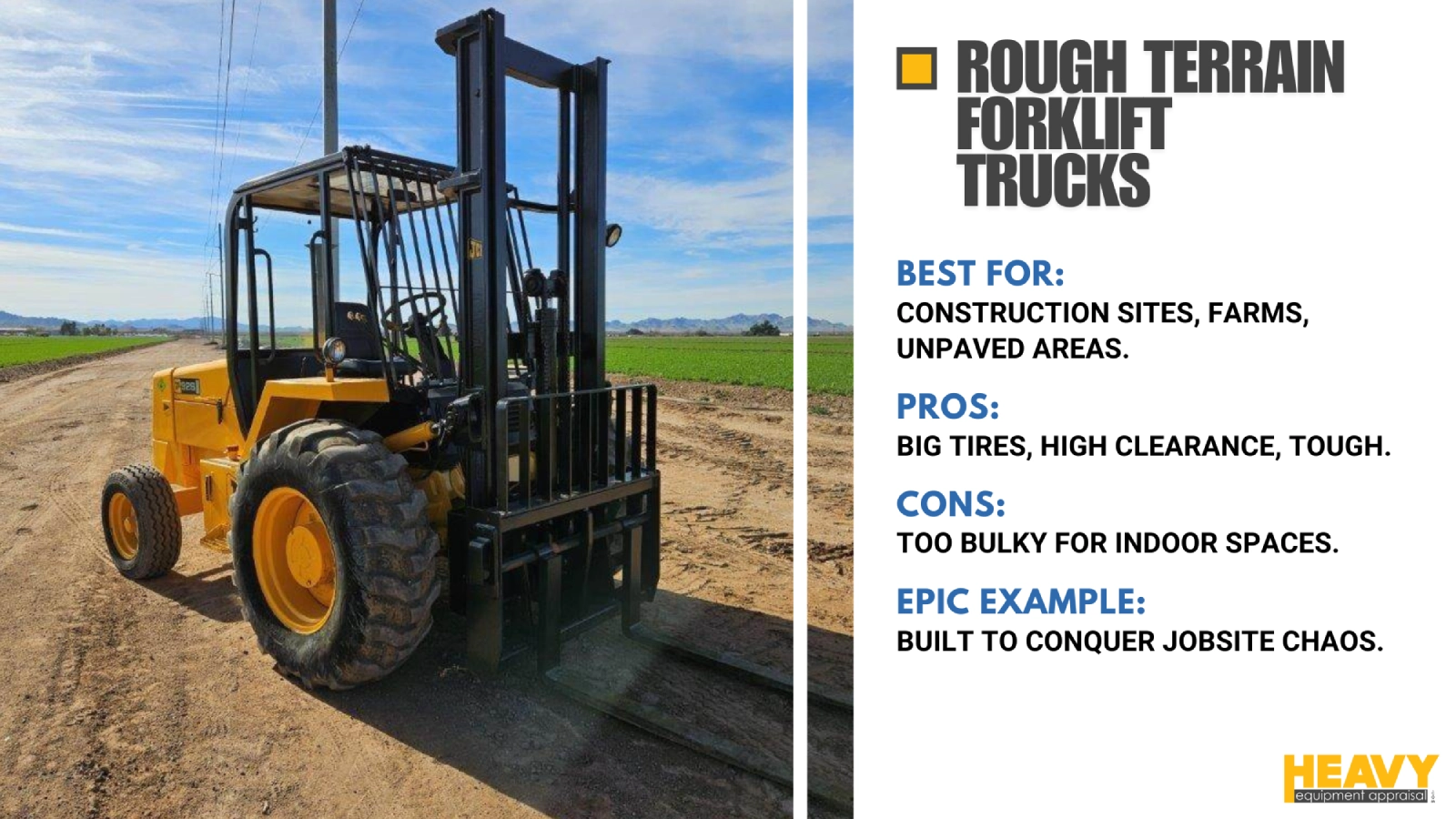

Outdoor forklifts, like rough terrain models, are for construction sites. They can go through mud and carry loads up to 3 tonnes. Their big, strong wheels help them stay stable on rough ground.

Side loaders are great for long items like timber. Telescopic handlers are useful in farming and building, with different attachments for various jobs. Pedestrian-operated lift trucks make moving pallets in warehouses easy.

Forklift Type	Environment	Max Load Capacity	Key Feature
Warehouse Forklift	Indoor	5,000 lbs	Smooth operation
Rough Terrain Forklift	Outdoor	6,000 lbs	All-terrain capability
Telehandler	Versatile	5,500 lbs	19 ft lift height
Side Loader	Narrow aisles	Varies	Long load handling

Understanding Forklift Classifications

Forklift classifications are key to finding the right equipment for the job. The industry has seven main categories, each for different tasks and places.

Electric Forklifts: Classes I, II, and III

Classes I, II, and III cover electric forklifts, loved for being green and versatile. Class I includes rider trucks for various warehouse jobs. They come with stand-up and sit-down options.

Class II is for narrow aisle trucks, great for small spaces and picking orders. Class III has hand-operated or hand-rider trucks for moving light loads.

Internal Combustion Forklifts: Classes IV and V

Classes IV and V are for internal combustion forklifts. Class IV trucks have cushion tires for both indoor and outdoor use. They’re versatile.

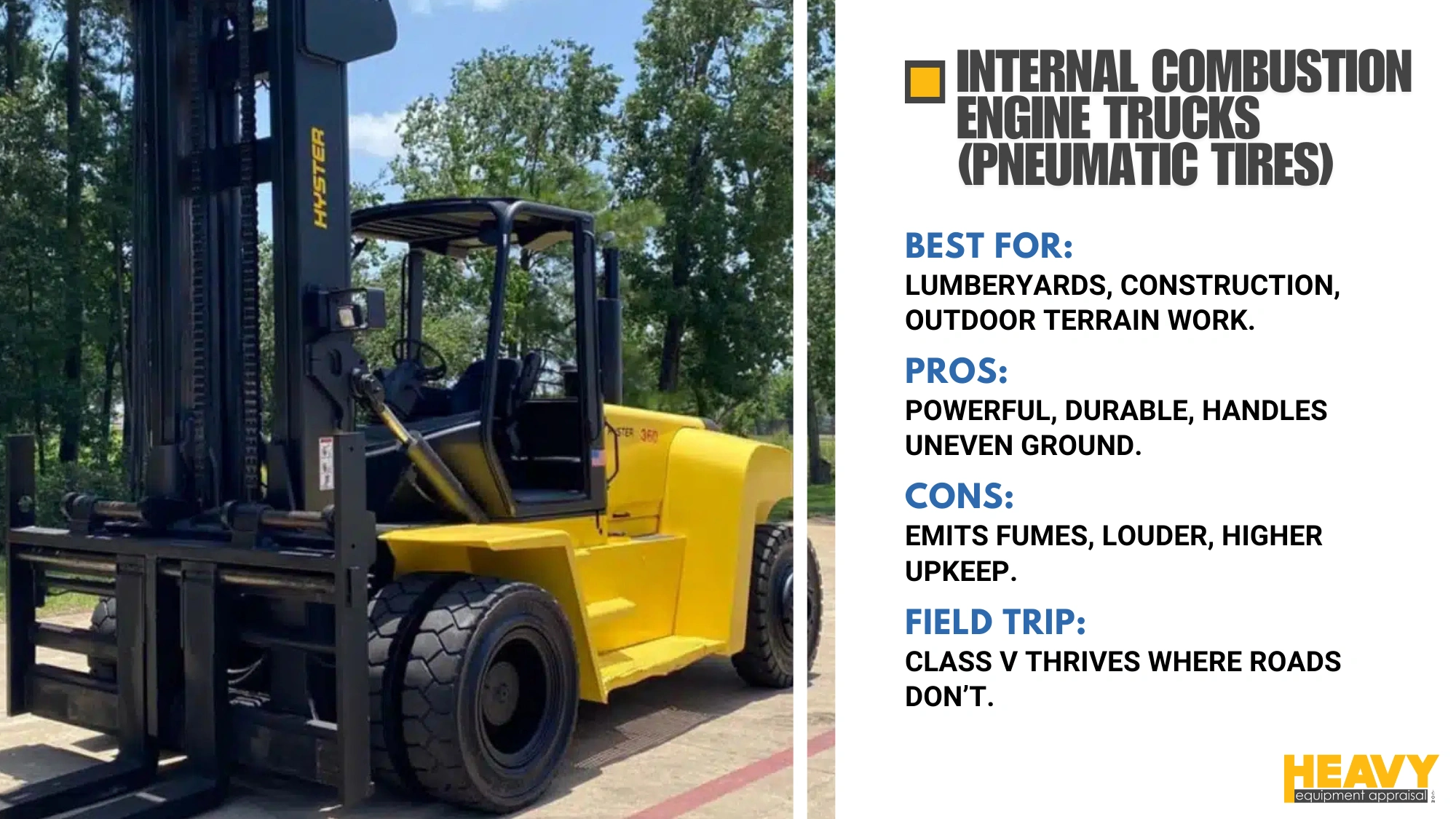

Class V models have pneumatic tires for moving on different grounds and carrying heavy loads.

Specialized Classes: VI and VII

Class VI includes electric and IC engine tow tractors for pulling loads. Class VII is for rough terrain forklifts, perfect for outdoor and construction sites.

Class	Type	Key Features	Common Applications

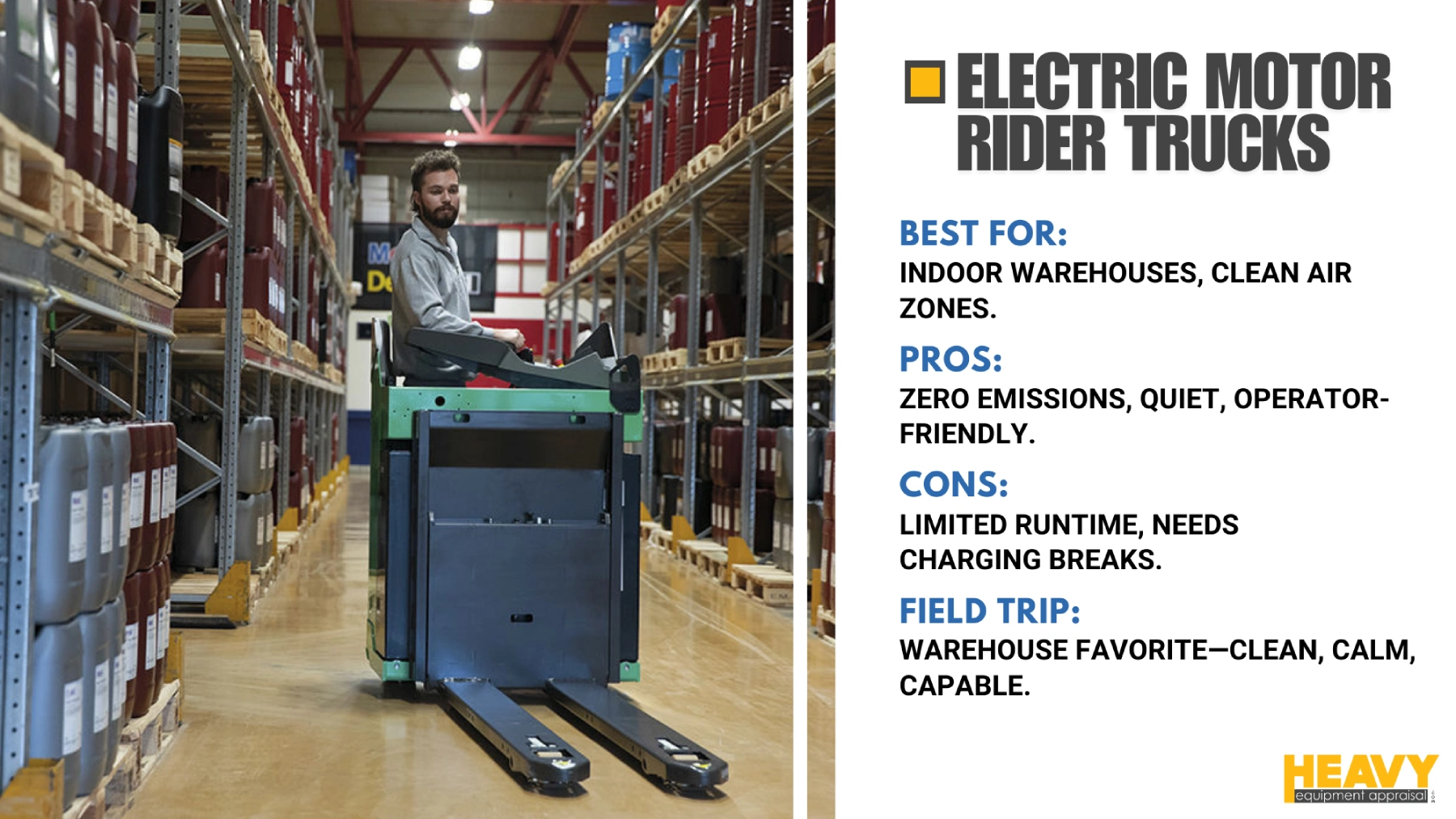

I	Electric Motor Rider Trucks	Quiet operation, low maintenance	Warehouses, indoor facilities

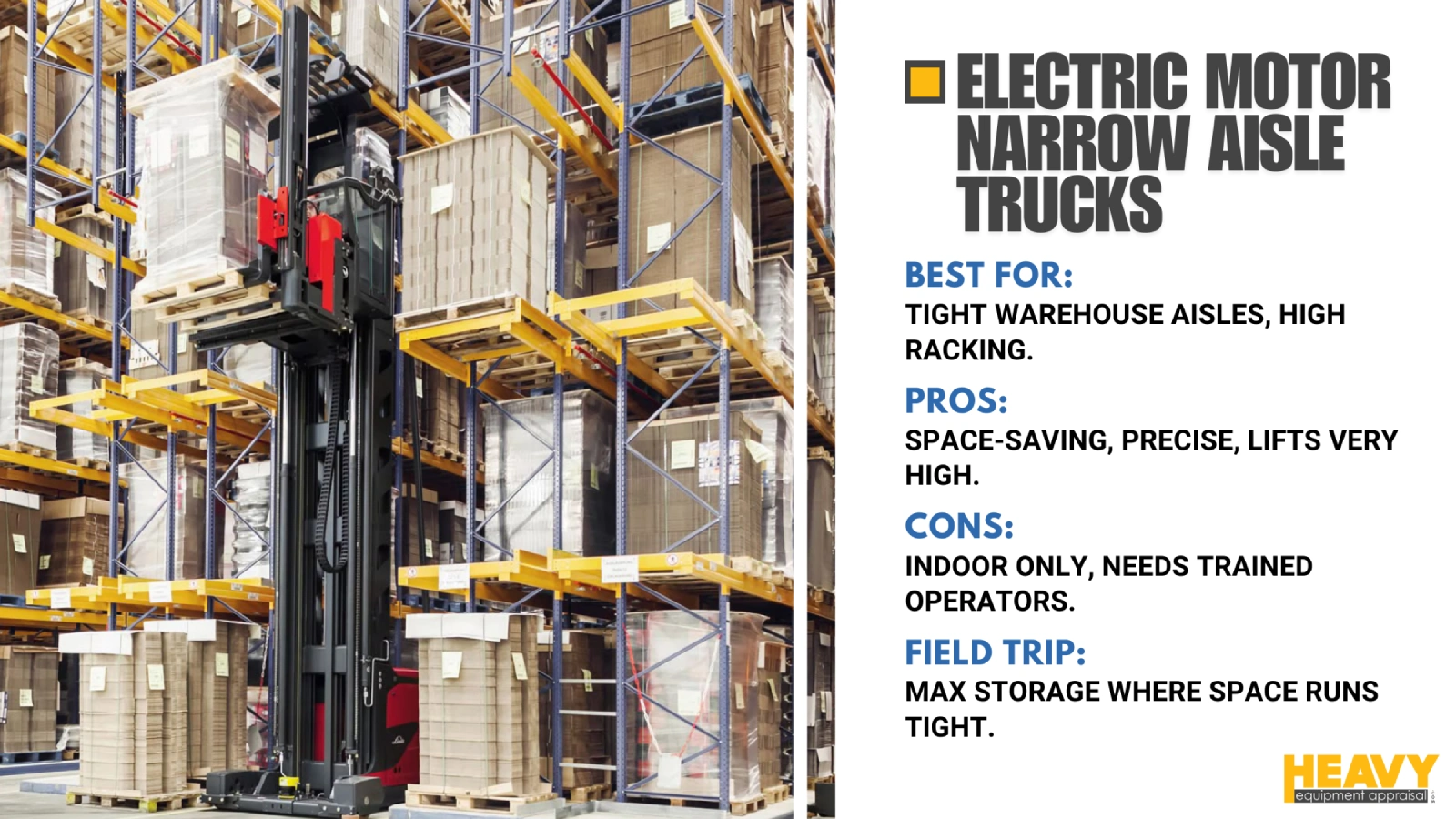

II	Electric Motor Narrow Aisle Trucks	Space-efficient, high maneuverability	Tight spaces, order picking

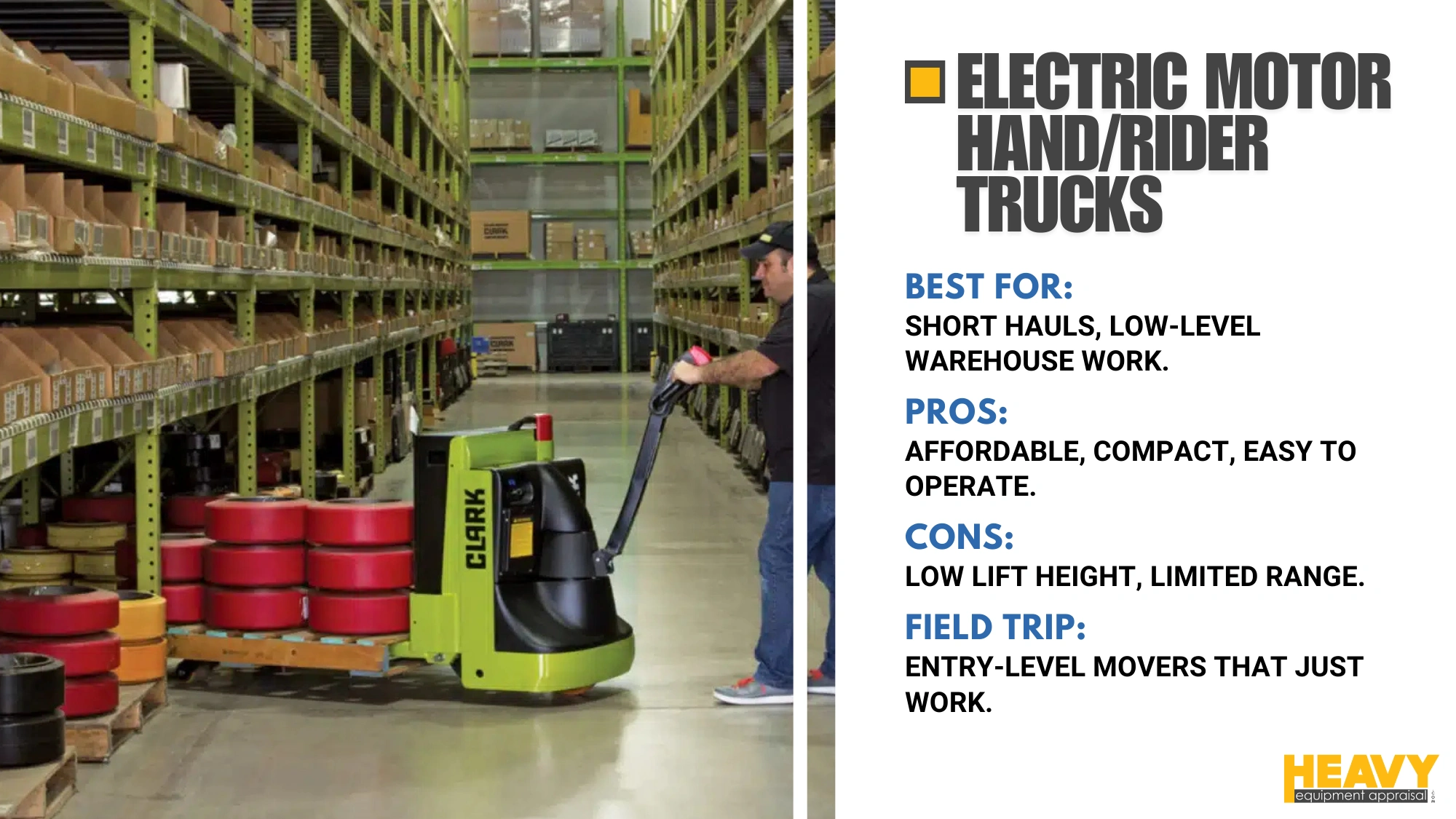

III	Electric Motor Hand Trucks	Low-lift, hand-operated	Short-distance material transport

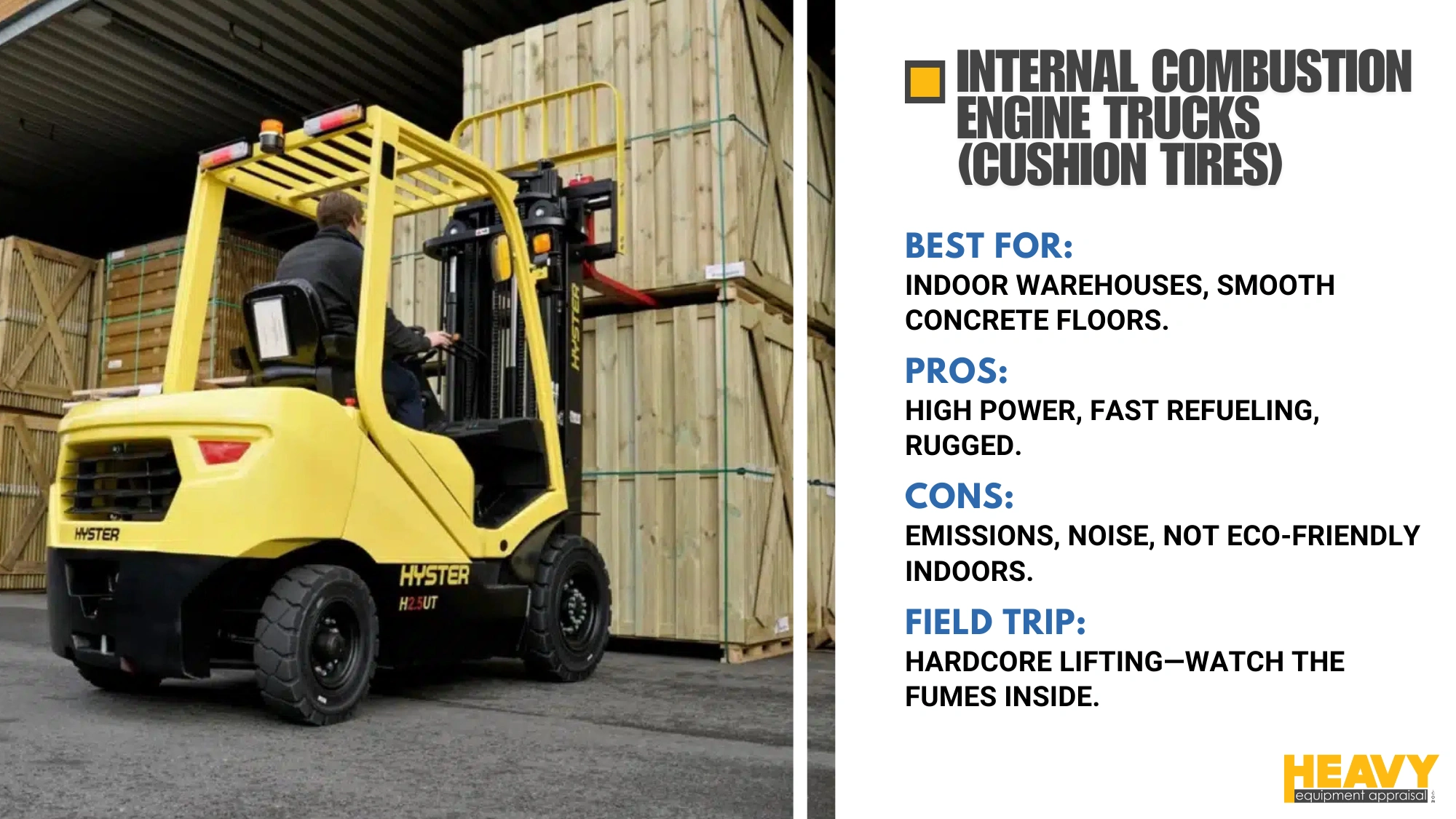

IV	IC Engine Trucks (Cushion Tires)	Indoor/outdoor use, solid tires	Versatile applications
V	IC Engine Trucks (Pneumatic Tires)	All-terrain capability	Outdoor and rugged environments

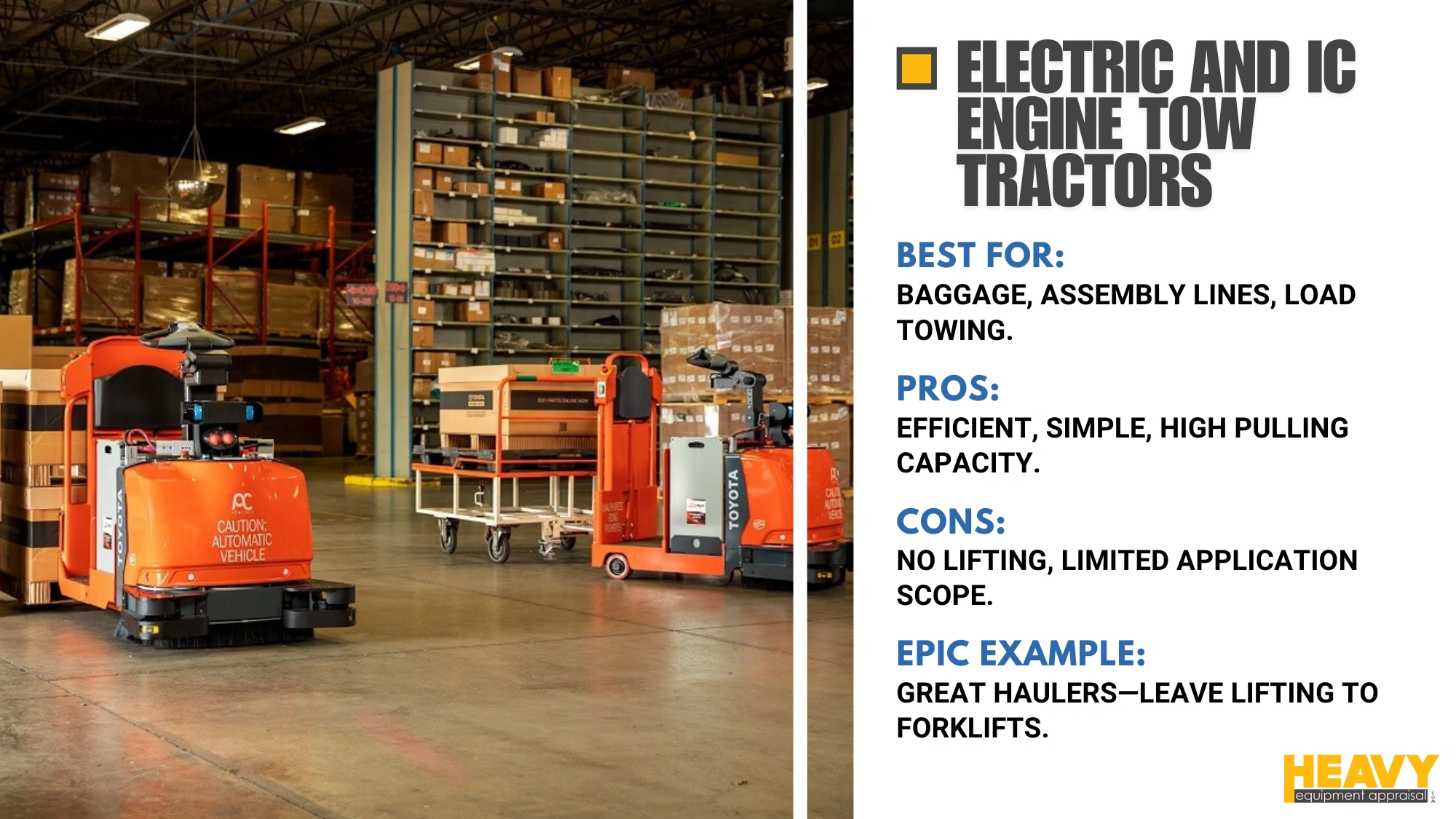

VI	Electric and IC Engine Tow Tractors	Pulling capacity	Heavy-duty towing tasks
VII	Rough Terrain Forklifts	Designed for uneven surfaces	Construction sites, outdoor use

Knowing about forklift classifications helps businesses pick the right equipment. This choice boosts efficiency and safety in moving materials.

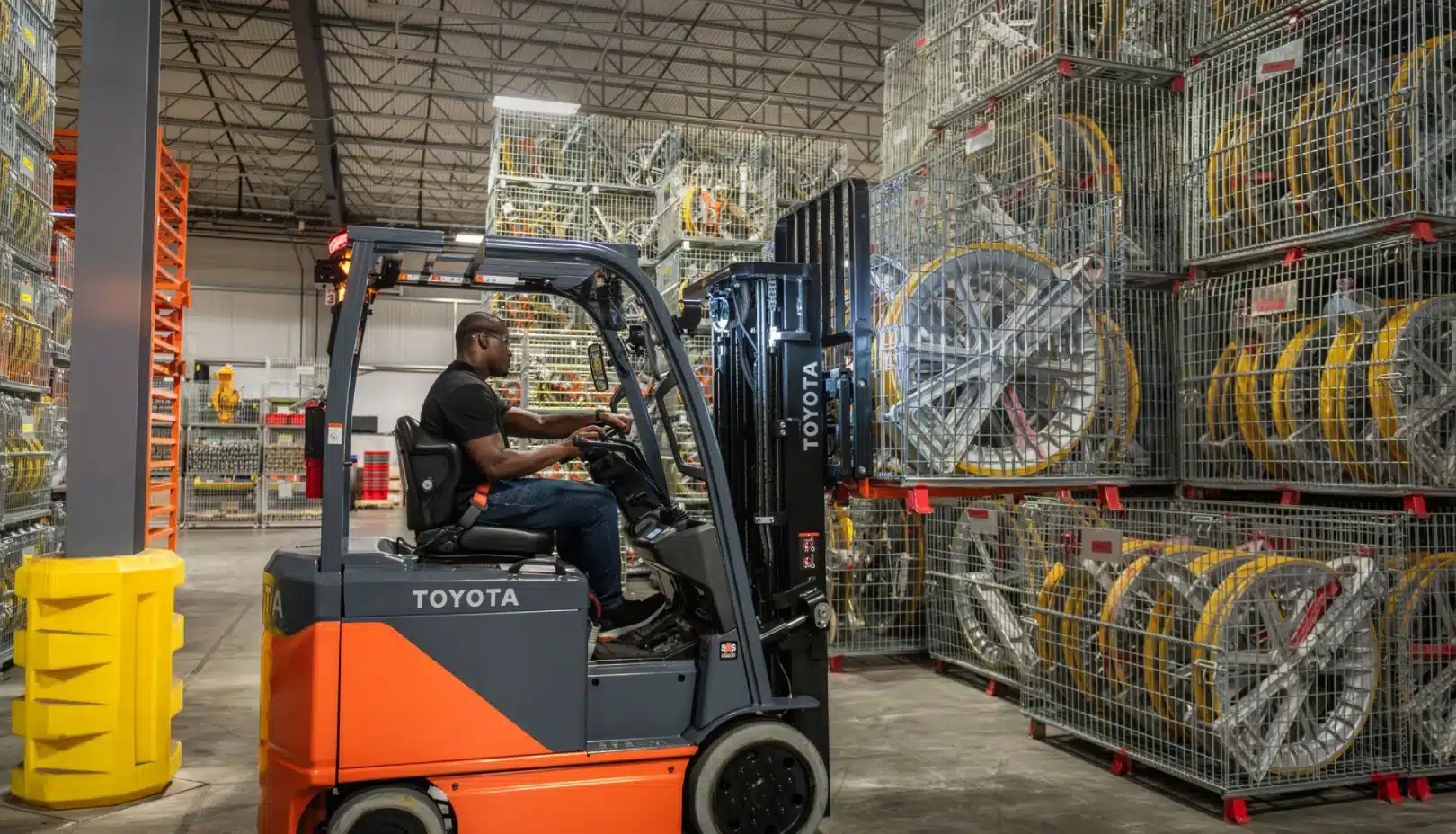

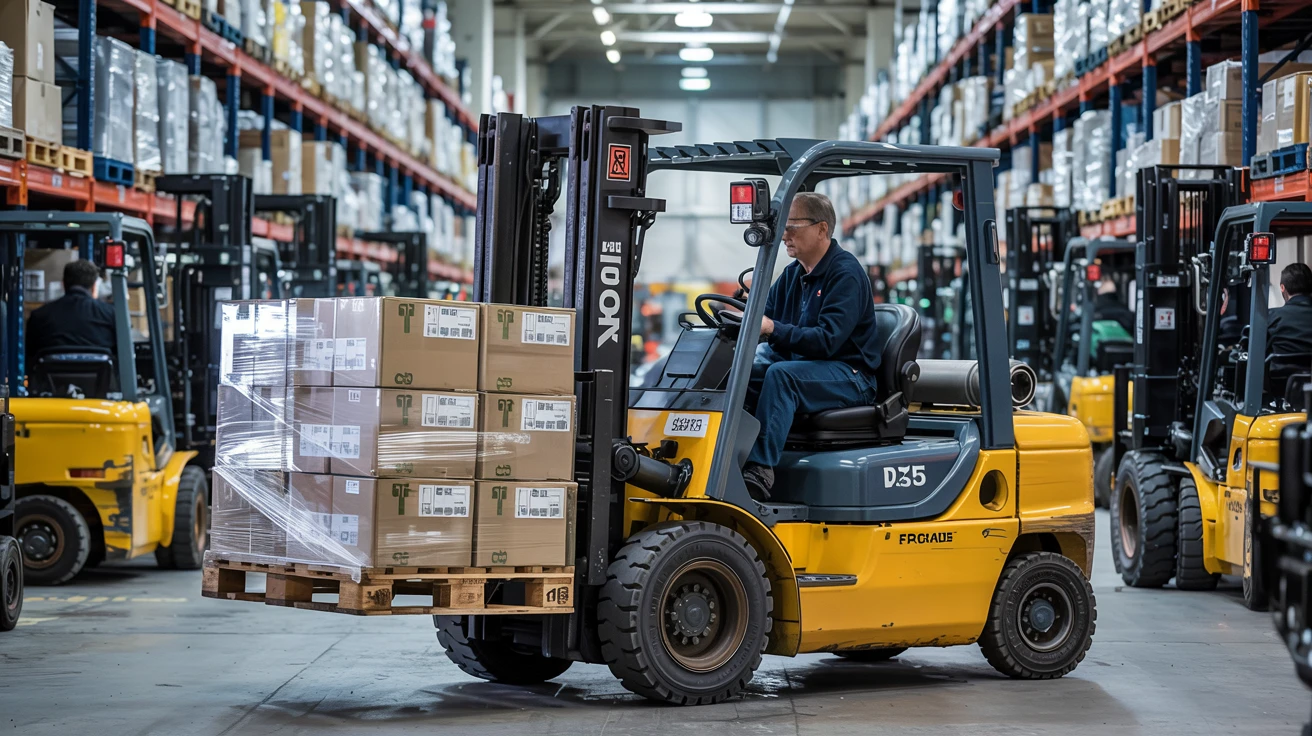

Counterbalance Forklifts: The Versatile Workhorses

Counterbalance forklifts are the top choice in many industries. They are the core of moving materials around. They can lift and move everything from pallets to heavy machines with ease.

These forklifts are known for their weight balance. A heavy part at the back helps keep the load steady on the forks. This lets them lift and move loads of all sizes and shapes easily.

Electric counterbalance forklifts are becoming more popular because they save money and are good for the environment. They have low running costs and don’t harm the planet. IC counterbalance forklifts, with their engines, are great for outdoor tasks and heavy work.

Counterbalance forklifts are versatile in what they can lift. They can lift loads from 3,000 to 18,000 pounds. This makes them perfect for many jobs, from simple warehouse tasks to big port operations.

In the field of moving materials, counterbalance forklifts are key. They are flexible and come in electric and IC types. This means there’s a forklift for almost any lifting job.

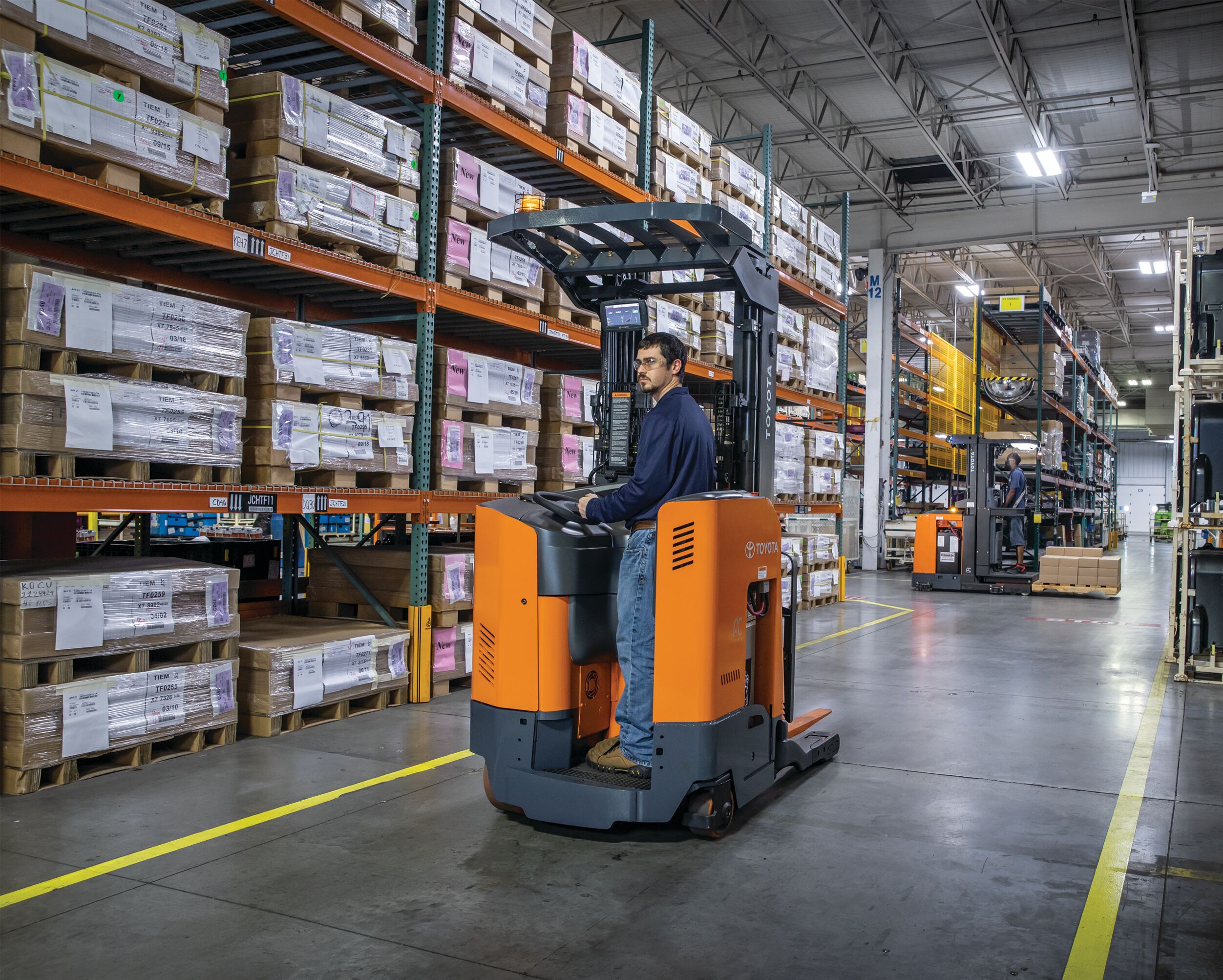

Reach Trucks: Maximizing Vertical Storage Space

Reach trucks are changing the game in warehouse efficiency. These narrow aisle forklifts are great at using vertical space. They lift loads over 30 feet high. They’re perfect for warehouses with tall racks.

Single Reach vs. Double Reach Configurations

There are single reach and double reach trucks. Single reach trucks are standard, while double reach trucks can reach further. Both types help use vertical space well. Double reach trucks are better for deep racks.

Applications in Warehouses and Distribution Centers

In warehouses and distribution centers, reach trucks are key for storing and getting pallets from high racks. They’re used in retail, e-commerce, manufacturing, and cold storage. They handle pallets with care, reducing damage risk.

Advantages of Reach Trucks in Narrow Aisles

Reach trucks have big benefits in narrow aisles:

• They make the most of space in high-density storage.
• They lift loads higher than regular forklifts.
• They place pallets with precision.
• They use vertical space well.

Feature	Reach Truck	Standard Forklift
Lift Height	Over 30 feet	Up to 20 feet
Aisle Width	Narrow (8-10 feet)	Wide (12-14 feet)
Vertical Storage	Excellent	Good
Precision	High	Moderate

Reach trucks cost more at first but save space and work well in vertical storage. They need special training but perform great in narrow aisles.

Order Pickers: Enhancing Efficiency in Picking Operations

Order pickers are key in warehouse forklift operations. They change how orders are fulfilled and picked. These machines make inventory management and order processing faster.

Most order pickers run on electric power, using 24, 36, or 48-volt systems. They fit into narrow aisles, some as narrow as 6 feet wide. The Toyota 6-series order picker, for instance, is 40 to 56 inches wide, showing its flexibility.

Linde Material Handling makes order pickers for different warehouse needs. Their V Modular picker can reach up to 12 meters high and goes as fast as 13 kilometers per hour. It has safety features like sensors that stop movement unless both hands are on the control panel and side barriers that kick in at over 1.2 meters.

Using efficient order fulfillment methods cuts down on product damage and speeds things up. Warehouses use various picking methods, like zone picking, batch picking, and wave picking. These depend on the business type, product mix, and warehouse layout.

Improvement Area	Solution	Benefit
Product Placement	Prioritize high-demand items	Reduced picking time
Warehouse Layout	Optimize for efficient movement	Improved order fulfillment speed
Technology	Implement AS/RS and inventory software	Enhanced accuracy and efficiency
Equipment	Invest in order picker forklifts and lifters	Increased productivity in picking operations

Side Loaders: Handling Long and Awkward Loads

Side loader forklifts are a big deal for moving long loads. They’re great at handling lumber, pipes, and other long items. They lift loads from the side, which is perfect for tight spaces.

Benefits for Lumber and Pipe Handling

Side loaders are a dream for lumber handling. They can carry long boards without needing a lot of space to turn. For pipes, they provide stability and precision. This makes stacking and getting pipes out of storage easy.

Comparison to Traditional Forklifts

Side loaders beat traditional forklifts for long loads. They turn on a dime and fit into tight spots easily. Here’s how they stack up:

Feature	Side Loader	Traditional Forklift
Load Orientation	Sideways	Front-facing
Best for Long Loads	Yes	No
Aisle Width Needed	Narrow	Wide
Visibility	Excellent	Limited

Specialized Applications in Manufacturing

In manufacturing, side loaders are key for certain jobs. At steel plants, they move metal beams with ease. In plastic factories, they handle long extrusions. These machines make tasks faster and use space better.

Side loader forklifts can lift from 3 to 80 tonnes, meeting many industrial needs. They come in electric and diesel versions, fitting different settings. Picking the right side loader helps companies manage long loads better.

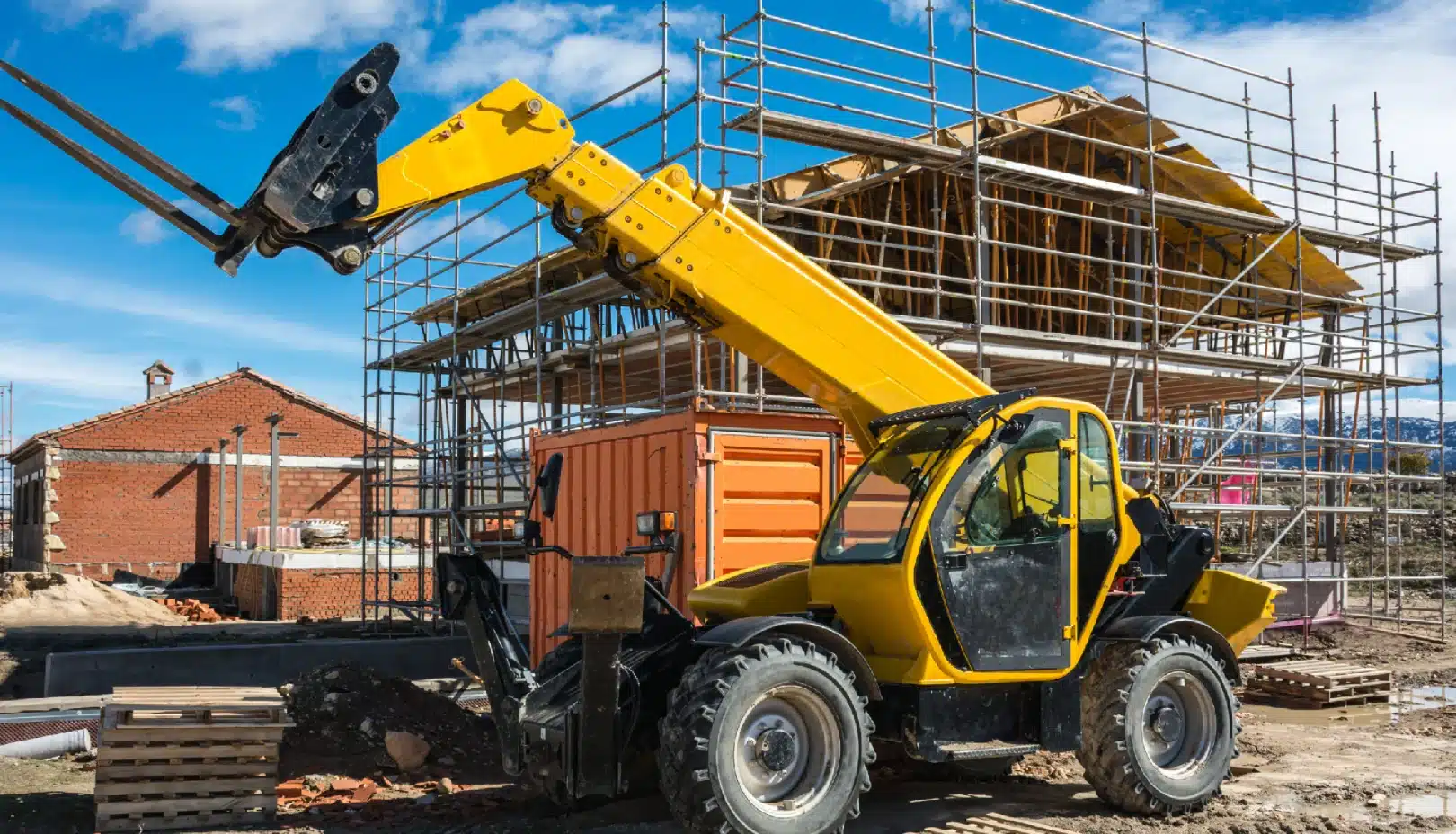

Telescopic Handlers: Versatility in Construction and Agriculture

Telescopic handlers, also known as telehandlers, are key machines in construction and farming. They have a boom that can stretch up to over 50 feet high. These machines can lift heavy loads from 4,000 to 15,000 pounds, with some strong models lifting up to 90,000 pounds.

In construction, telehandlers are great for moving materials, reaching high places, and using different attachments. They make projects run smoother, increase work speed, and save money. In farming, they help stack hay bales, move feed, and handle equipment with great precision and strength.

Since their start in 1977, telehandlers have grown a lot. Now, top brands like Caterpillar, JCB, and Bobcat make them in standard, compact, and high-reach types. Some can turn 360 degrees for better flexibility. They can lift from 5,500 to 12,000 pounds and reach up to 55 feet high, meeting many needs.

Keeping safe while using telehandlers is very important. Operators need to finish a five-hour course to use them safely and well. As technology gets better, telehandlers are getting more remote control, automation, and safety features. This makes them essential in construction and farming.

Electric vs. Internal Combustion Forklifts: Choosing the Right Power Source

Choosing the right forklift power source is key for efficient work. Electric forklifts and internal combustion (IC) forklifts each have their own benefits. These benefits affect the environment, costs, and how well they work in different places.

Environmental Considerations

Electric forklifts are the top choice, making up 69% of all forklifts sold. They don’t produce emissions and are quiet, perfect for indoor use. IC forklifts, on the other hand, use diesel, propane, or compressed natural gas. They have more power but make emissions and noise.

Operational Cost Comparison

Electric forklifts are cheaper to run. It costs $2-3 to charge an electric forklift, while refueling IC forklifts costs $35-65. Over five years, an electric forklift can save up to $30,000 on energy costs. Electric forklifts also cost less to maintain because they have fewer parts.

Forklift Type	Energy Cost	Maintenance Cost
Electric	$2-3 per charge	Lower
IC (Diesel/Propane)	$35-65 per refuel	Higher

Performance in Different Work Environments

IC forklifts are best for outdoor use and tough weather. They last longer and have more power, ideal for heavy-duty jobs. Electric forklifts work great indoors but need to be charged often. Hybrid forklifts offer both electric and IC benefits but are pricier.

Deciding between electric and IC forklifts depends on your specific needs, environmental concerns, and cost over time. Electric forklifts are better for being eco-friendly and saving money. But IC forklifts have their own benefits in certain tough environments.

Specialized Types of Forklifts for Unique Industrial Needs

The world of industrial forklifts is full of specialized machines. They are made for different environments and tasks. This makes them safer and more efficient in various sectors.

Explosion-Proof Forklifts

In places where flammable gases or dust are a risk, explosion-proof forklifts are key. They have sealed parts and anti-static materials. This prevents sparks and keeps them safe in places like chemical plants or oil refineries.

Cold Storage Forklifts

Cold storage forklifts are needed for places with extreme cold. They have special lubricants, sealed electronics, and heated cabs. These machines are vital for keeping food and pharmaceuticals at the right temperature.

Very Narrow Aisle (VNA) Trucks

VNA trucks help make the most of small spaces. They work in aisles as narrow as 6 feet. This lets warehouses store more items. VNA trucks can lift loads up to 32 feet high, combining reach trucks and order pickers in one.
