Forklift Sizes: 7 Classes Compared by Dimensions & Capabilities

The biggest mistake in warehouse planning? Buying Class V pneumatic forklifts for indoor use, then struggling with tight aisles. Forklift sizes matter—not just capacity per dollar but specs that match material flow, storage strategy, and surface conditions. This guide bypasses marketing to provide the key dimensions that determine whether a forklift is an MVP or a bottleneck.

Forklift sizes span from compact Class III units with 45″ turning radiuses to massive Class VII machines requiring 180″ to turn. Standard counterbalance models typically measure 4′ wide by 8′ long with 3,000-6,500 lb capacities, while specialized units range from 30″ narrow-aisle machines to 15,000+ lb monsters for container handling.

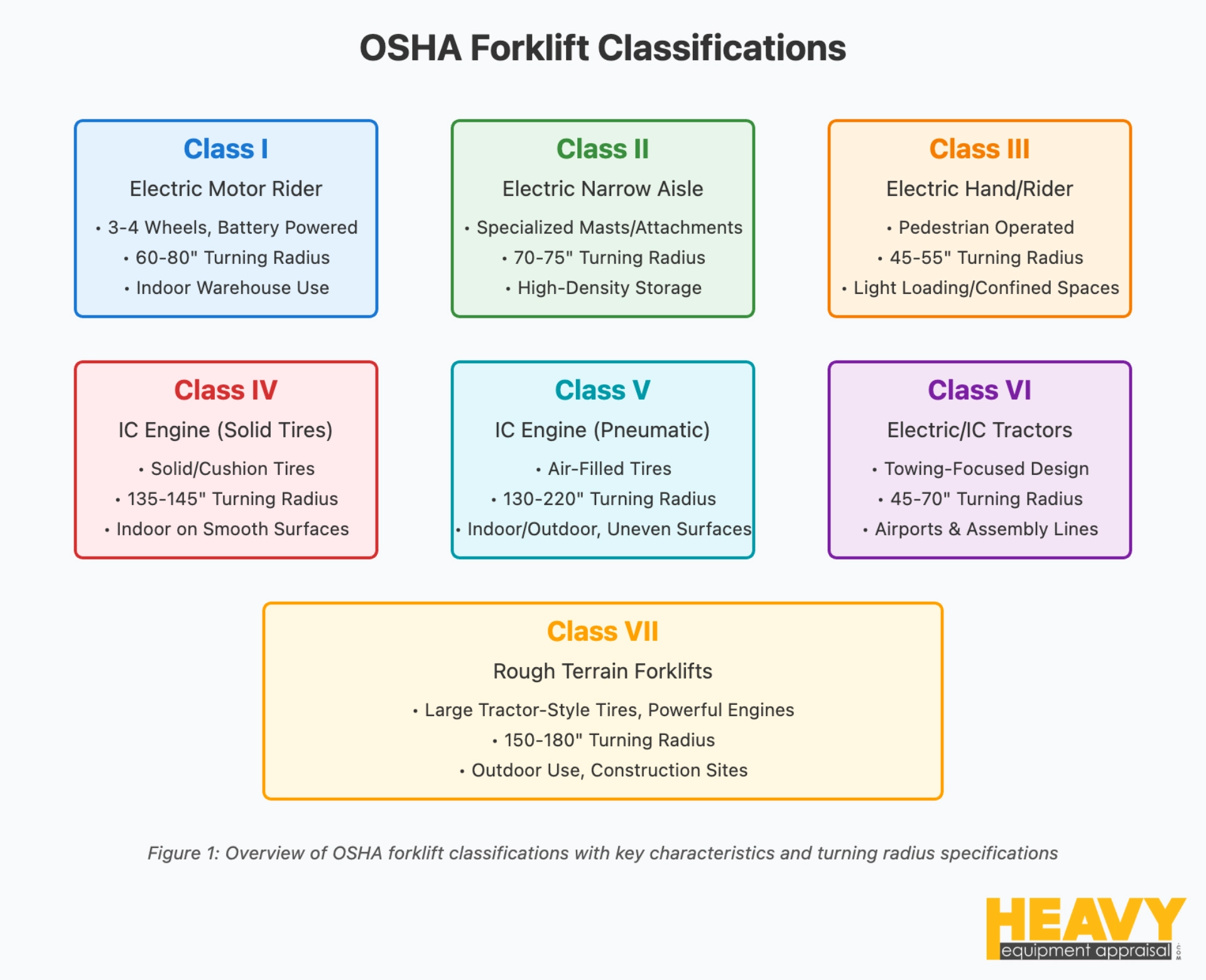

Forklift Classifications and Types

OSHA doesn't just classify forklifts for the fun of it. Their seven-class system serves a vital purpose - ensuring operators get training specific to their equipment and matching the right machine to the right job.

Think of it as OSHA's way of preventing a Class I electric from attempting to navigate a muddy construction site, or a Class VII rough terrain beast from trying to squeeze through retail store aisles.

Beyond these classifications, you'll find numerous specialized forklift types designed for specific applications:

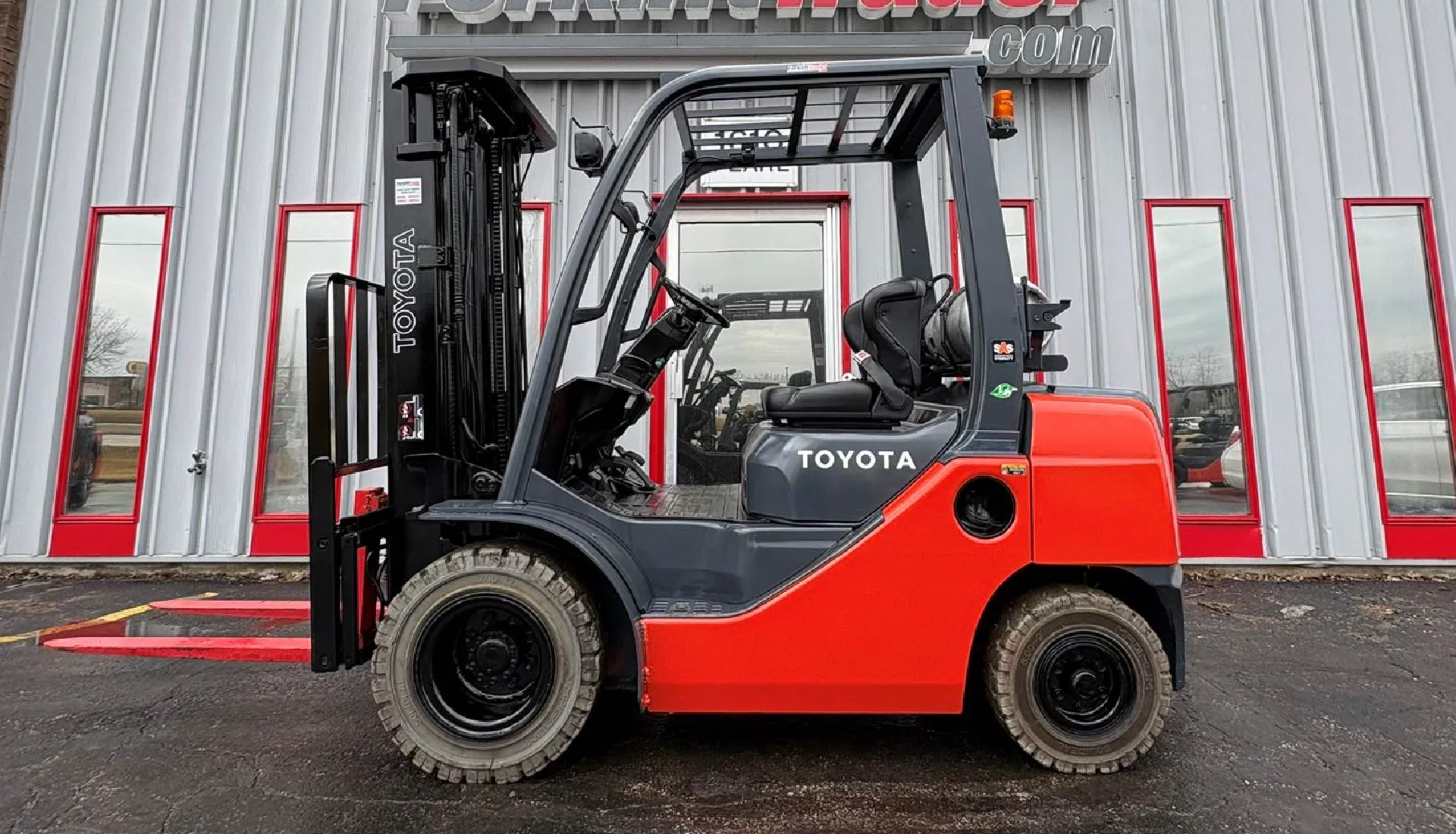

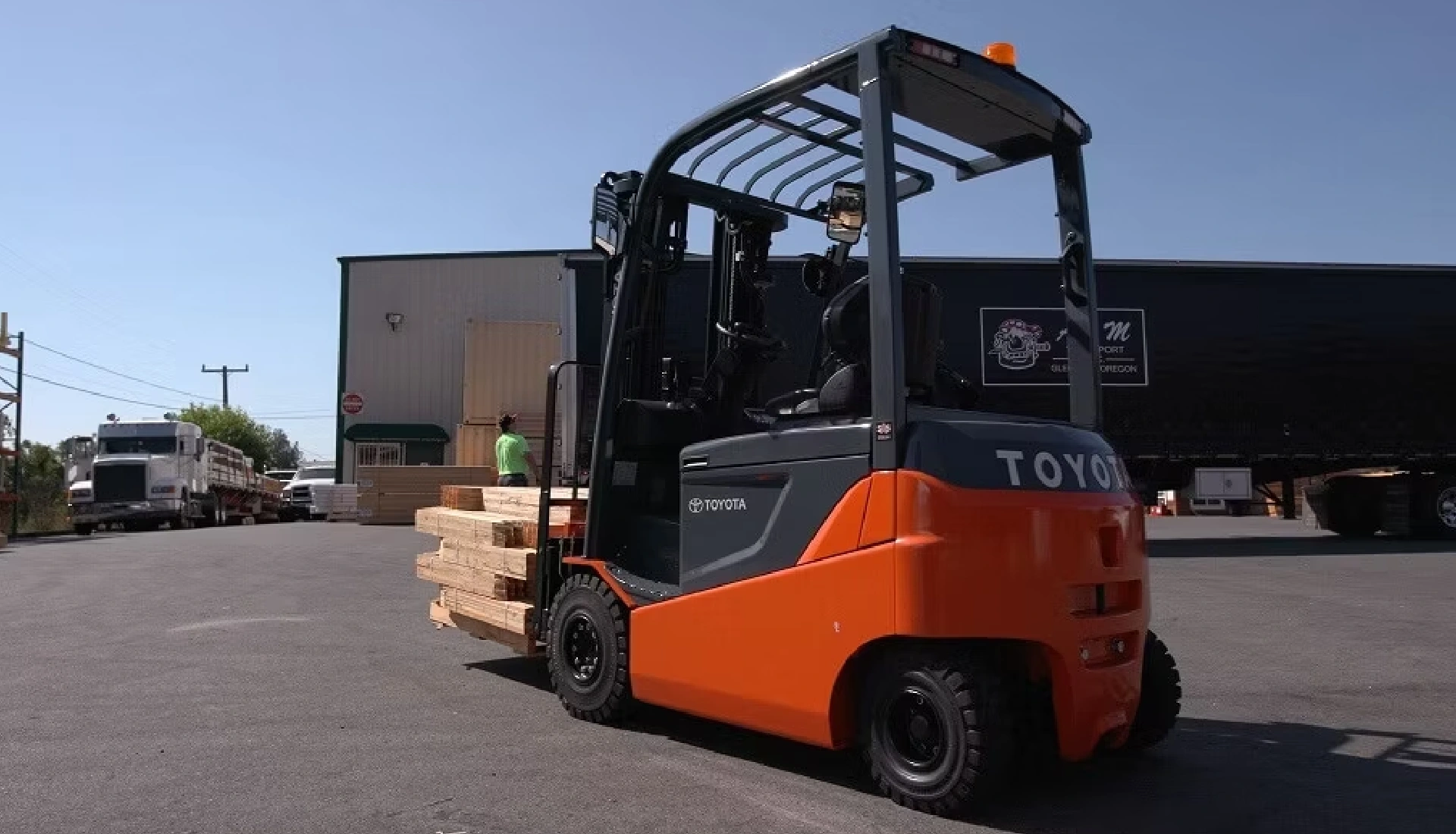

Standard Electric Counterbalance Forklifts

The versatile all-rounders of warehouses and distribution centers, handling general pallet movement and stacking duties.

Reach Trucks

The vertical specialists that maximize storage density by accessing high shelving in narrow aisles. When floor space comes at a premium, these are often the answer.

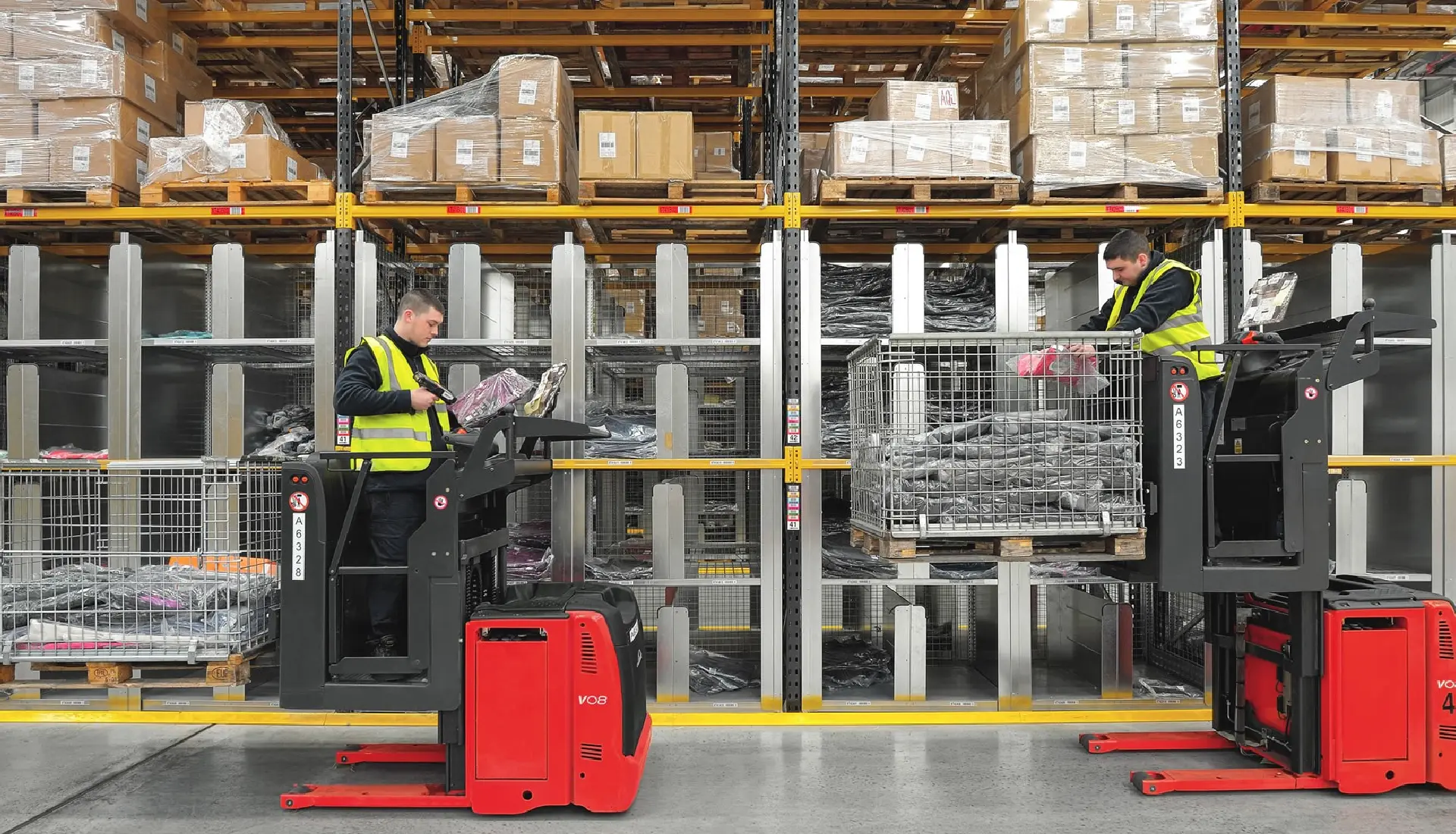

Order Pickers

Built specifically for picking individual items from storage racks, frequently featuring elevated operator platforms that rise with the forks for precision selection.

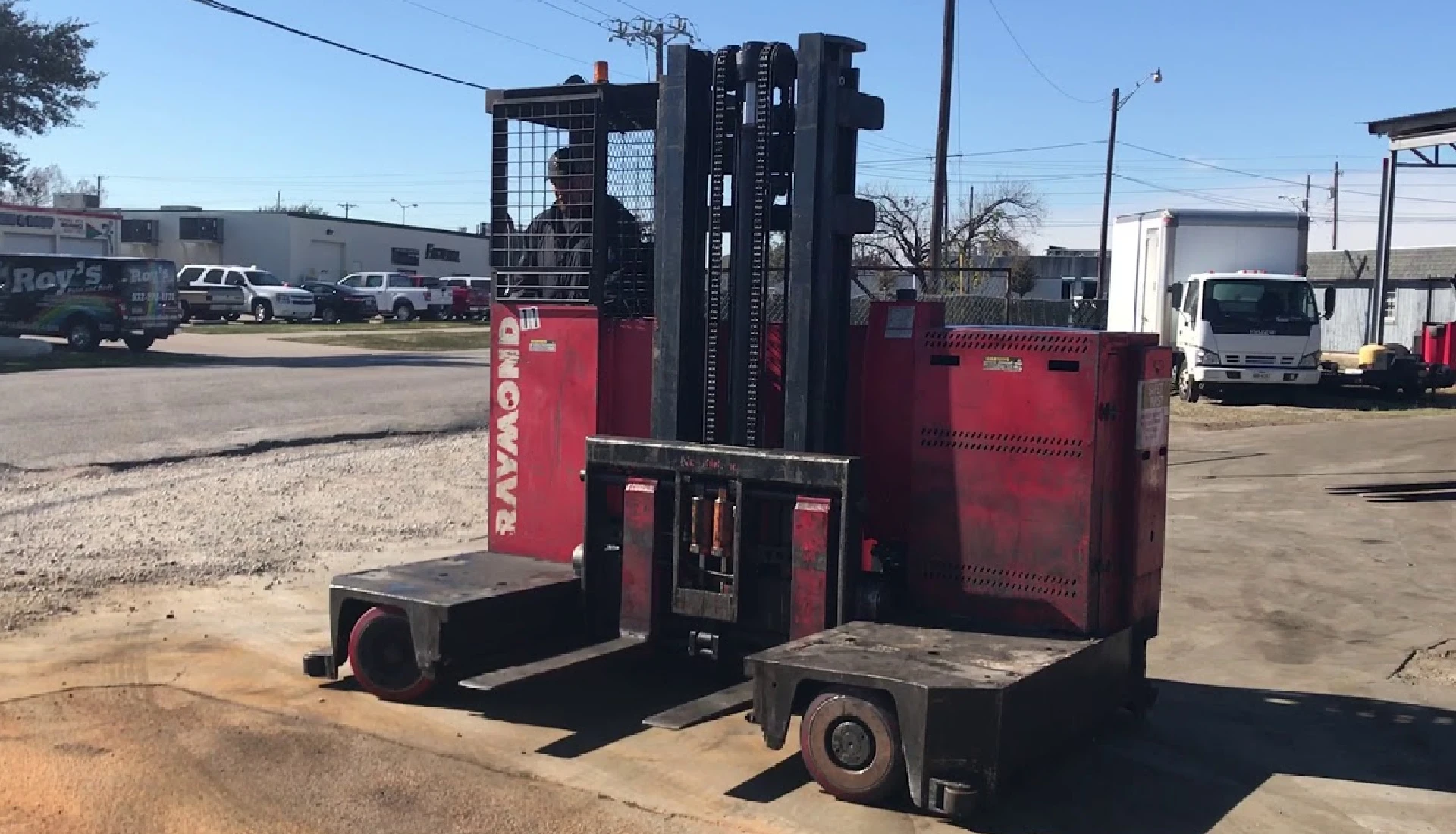

Side Loaders

The long-load specialists. When you're handling lumber, piping, or structural steel, these side-access units prevent the awkward "wide load" challenges of standard forklifts.

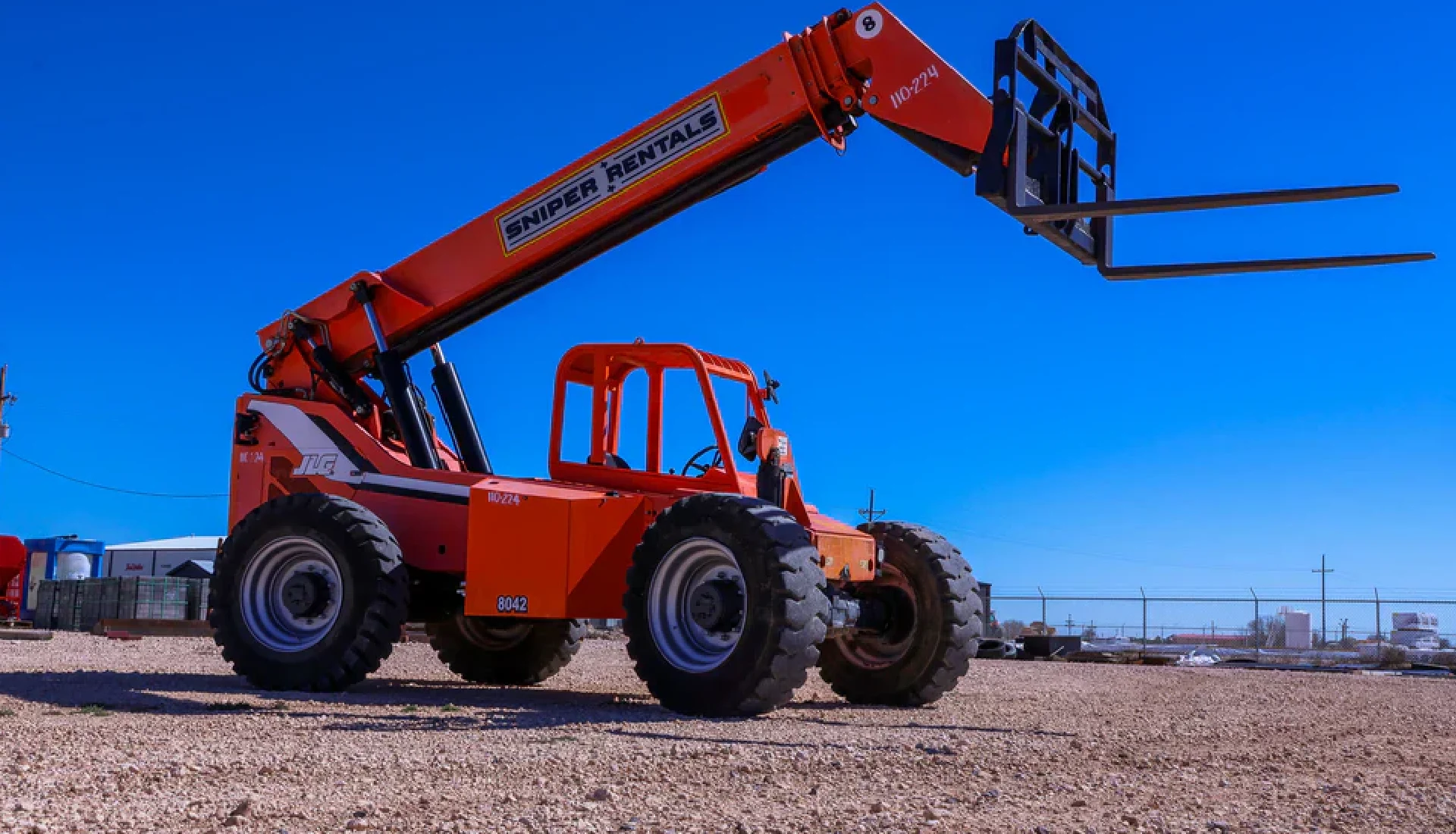

Telehandlers

The Swiss Army knives of material handling, combining forklift and crane functionality with an extendable boom for versatile lifting and placement across multiple heights and distances.

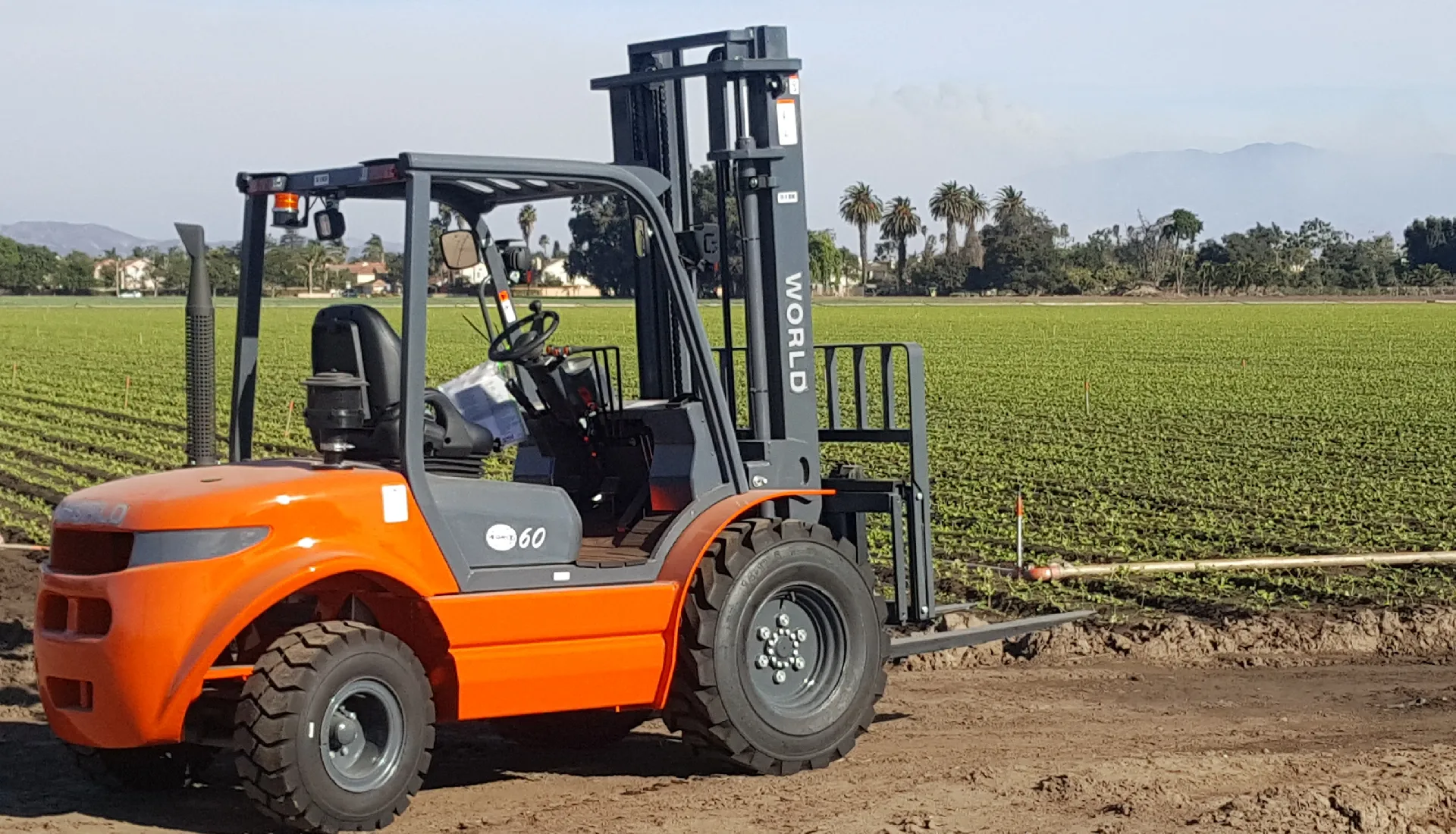

Rough Terrain Forklifts

Built tough for outdoor use where smooth concrete is nowhere to be found. Construction sites and lumberyards depend on these rugged performers.

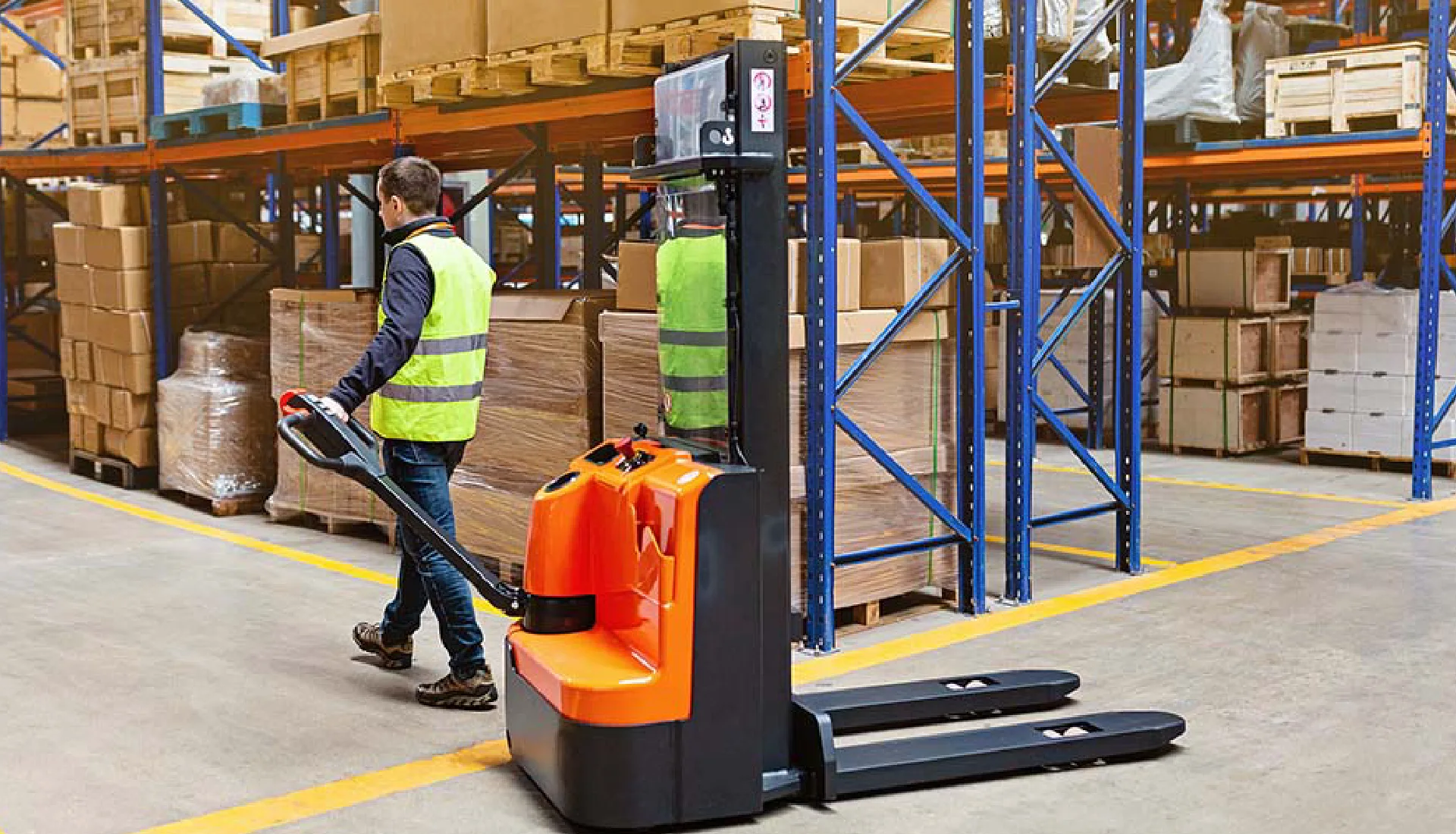

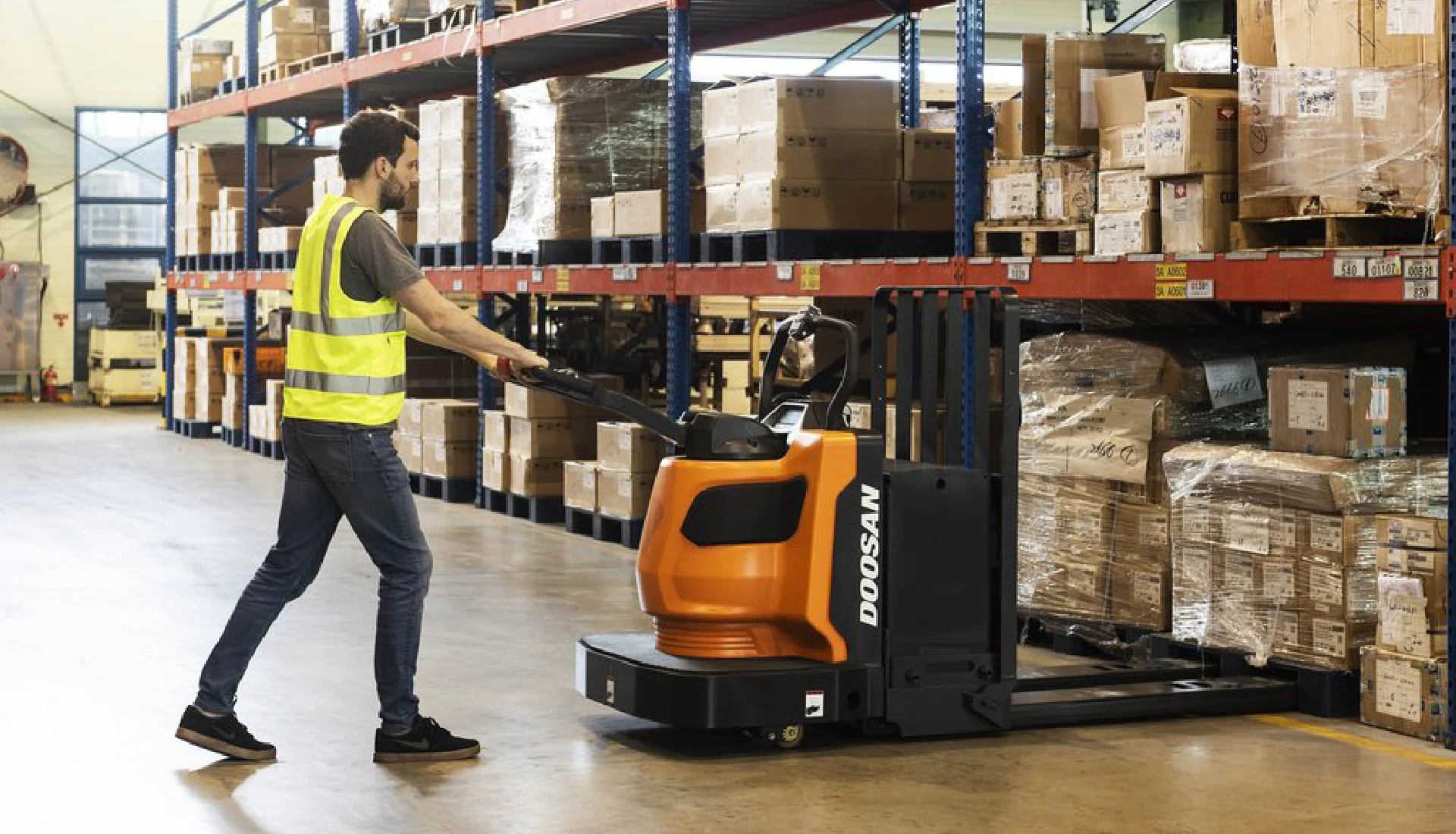

Pallet Jacks

The simplest form of the species, designed for short-distance pallet transport in warehouses, retail environments, and loading areas.

Walkie Stackers

Pedestrian-operated units that offer stacking capabilities in smaller warehouses and storerooms where space efficiency matters.

When selecting the right size for your application, don't overlook the overall dimensions (length and width) and whether your primary operating environment is indoor, outdoor, or a combination of both. The perfect forklift isn't just about lifting capacity—it's about fitting your specific space constraints and surface conditions.

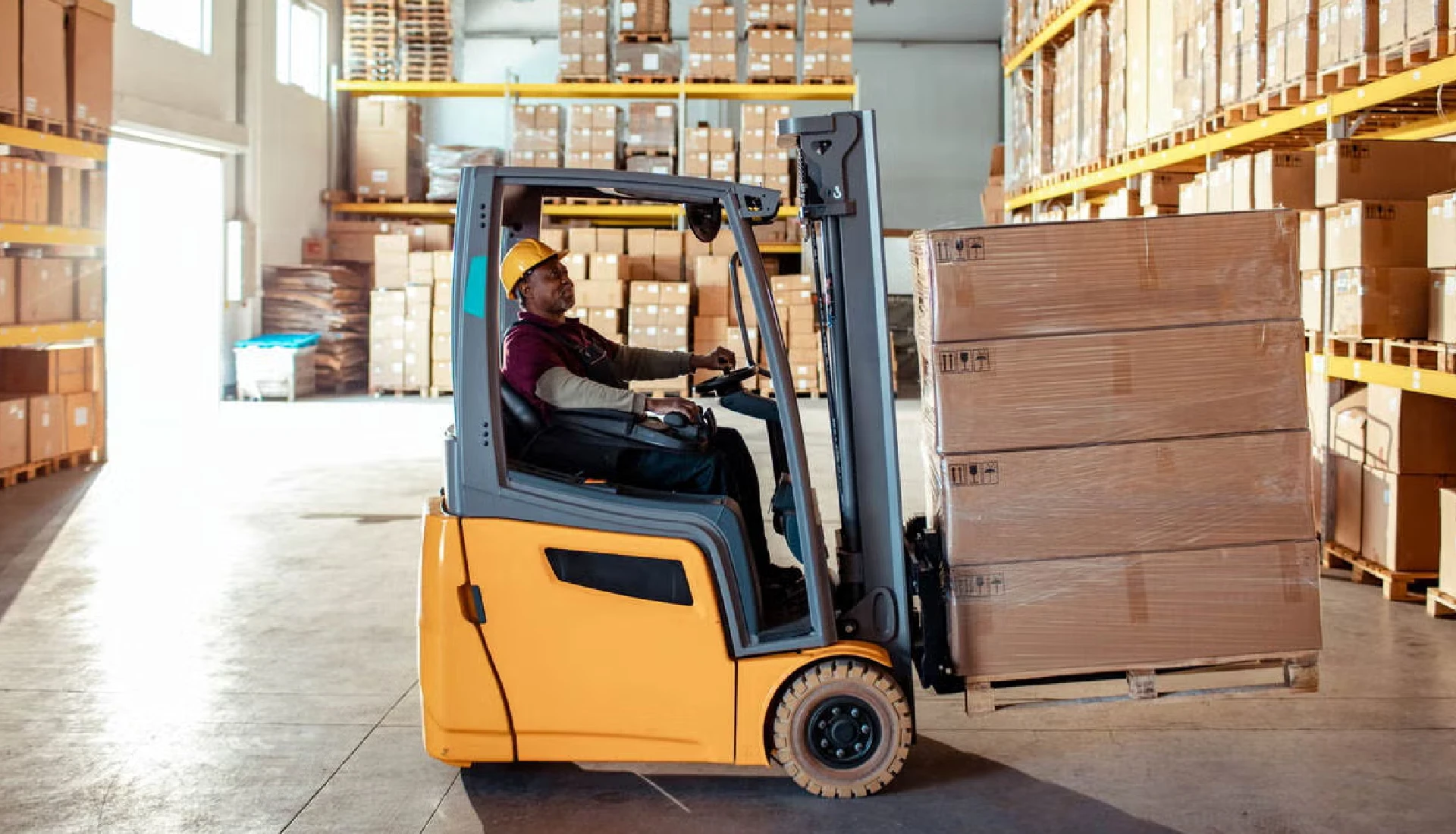

Forklift Capacity

Ever seen the load capacity sticker on a forklift and wondered if that's really a hard ceiling, or more of a "suggestion"? Let me save you some time (and potentially an OSHA violation): it's definitely a hard ceiling. But that number isn't as straightforward as it seems.

graph TD
    A[Forklift Capacity]
    B[Lifting Height]
    C[Load Center]
    D[Attachments]
    E[Forklift Class/Type]
    F[Load Shape/Placement]

    A -->|Decreases as| B
    A -->|Decreases as| C
    A -->|Reduced by| D
    A -->|Varies by| E
    A -->|Affected by| F

    style A fill:#f5f5f5,stroke:#333,stroke-width:2px
    style B fill:#e3f2fd,stroke:#1976d2,stroke-width:2px
    style C fill:#e8f5e9,stroke:#388e3c,stroke-width:2px
    style D fill:#fff3e0,stroke:#f57c00,stroke-width:2px
    style E fill:#ffebee,stroke:#d32f2f,stroke-width:2px
    style F fill:#e0f7fa,stroke:#0097a7,stroke-width:2px

    classDef default font-family:Arial,font-size:14px

Forklift capacity—the maximum weight a unit can safely lift and transport—isn't just a static figure stamped on the data plate. It's influenced by several critical factors that operators need to understand:

Lifting Height: The higher you go, the less weight you can safely handle. Physics doesn't negotiate on this point. Raise that load up to maximum height, and you're working with significantly reduced capacity compared to keeping it low.

Load Center: This is the distance from the vertical face of the forks to the load's center of gravity. The further out your load's center of gravity sits, the less weight the forklift can safely handle. Want to maximize capacity? Keep that load center distance to a minimum.

Attachments: Those specialized attachments might solve specific handling challenges, but they come with a trade-off. Most attachments reduce the forklift's overall lifting capacity by altering the load center and adding their own weight to the equation.

Forklift Class and Type: Different classes and types come with their own capacity ranges, designed for their intended applications. A Class VII rough terrain unit has a vastly different capacity profile than a Class III hand truck.

Load Shape and Placement: Irregularly shaped loads or improper placement on the forks can dramatically affect a forklift's effective capacity by shifting the center of gravity in unexpected ways.

Looking at that internal combustion range—3,000 to a whopping 158,500 pounds—shows just how diverse the forklift family really is. From handling a single pallet of bottled water to moving shipping containers, there's a forklift rated for the job.

The golden rule of forklift capacity? Never, ever overload. An overloaded forklift is a tipping hazard waiting to happen, putting both the operator and nearby personnel at serious risk.

When in doubt about whether your load exceeds capacity, especially when factoring in height and load center, always err on the side of caution or consult the manufacturer's load chart for your specific model.

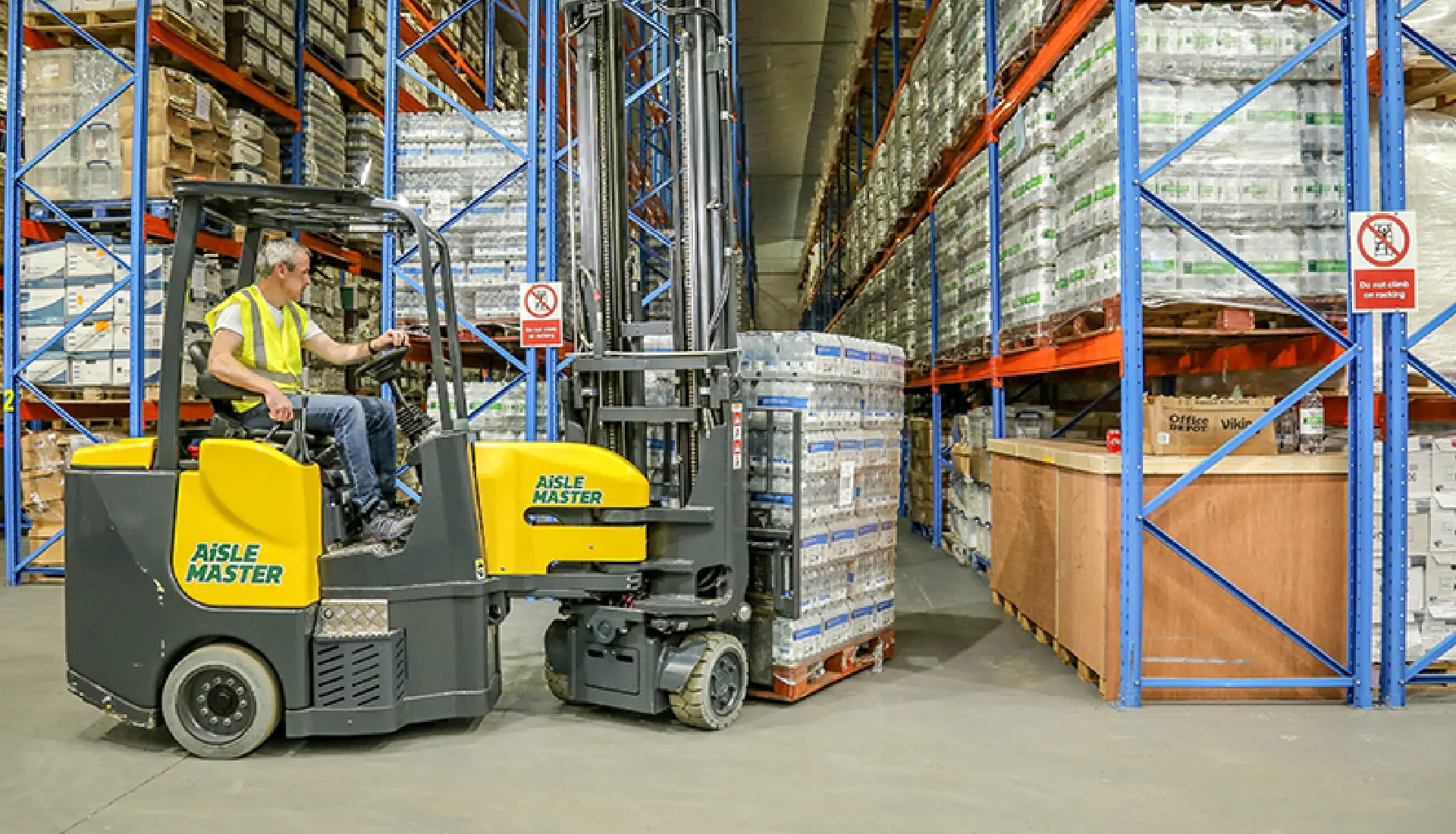

Forklift Turning Radius

"What's the turning radius on this thing?" It's a question that separates the warehouse planning pros from the rookies. Nothing derails efficiency faster than discovering your new fleet can't actually navigate the aisles you've designed.

The turning radius—the minimum space needed for a complete turn—is often overlooked until it's too late.

Several key factors determine how tight a forklift can turn:

Wheelbase: The distance between front and rear axles is directly proportional to turning radius. Longer wheelbase? Expect a wider turn. This is basic physics that no amount of operator skill can overcome.

Forklift Type: Three-wheel electric forklifts generally deliver a tighter turning radius than their four-wheel counterparts. This design advantage makes them particularly valuable in space-constrained environments.

Load: It's not just about the forklift itself. The weight and distribution of the load affect maneuverability and turning capability. Heavier loads typically require more careful navigation and wider turns.

Right Angle Stacking Width: This crucial measurement indicates the minimum space needed for a 90-degree turn with a standard load. If you're designing warehouse aisles, this number should be highlighted in your planning documents.

Notice the dramatic difference between Class III's nimble 45-55 inches and Class VII's substantial 150-180 inches. That's not a minor distinction—it's the difference between navigating retail back rooms versus open construction sites.

When planning a new facility layout or evaluating whether your current space can accommodate a different class of forklift, the turning radius should be a primary consideration, not an afterthought.

Add a safety buffer to the manufacturer's specified turning radius to account for operator variation and unexpected obstacles.

Remember that the tightest theoretical turn on the spec sheet assumes perfect conditions and expert operation—real-world scenarios often demand more space.

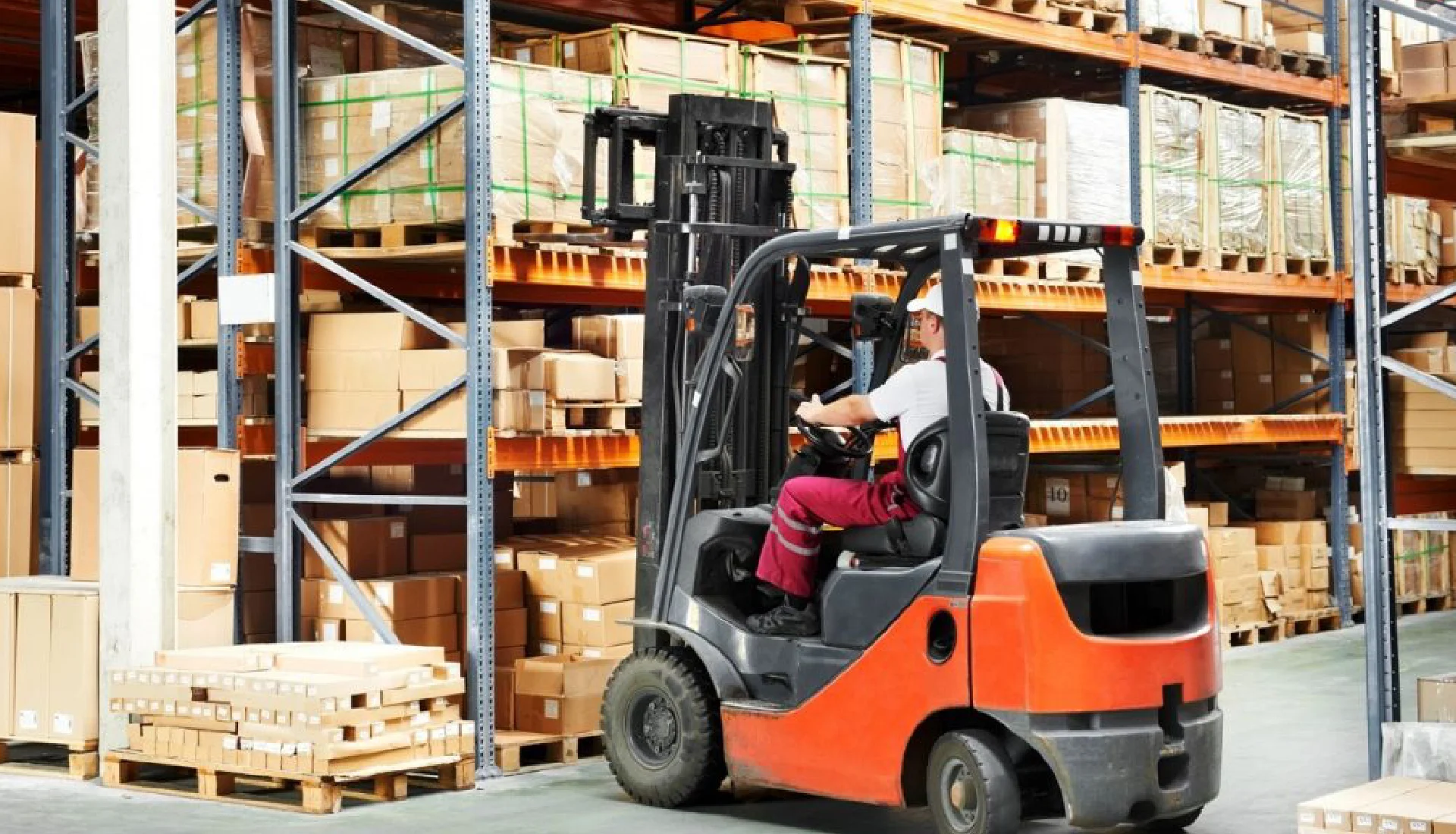

Forklift Lift Height

Warehouse real estate isn't getting any cheaper, which explains why so many operations are racing toward the ceiling. Maximum lift height—how high a forklift can safely raise its load—has become a critical specification that can make or break vertical storage strategies.

Several factors determine just how high you can safely go:

Mast Type: The mast is the vertical assembly that allows the forks to rise and lower. Different configurations offer varying lift heights:

• Two-Stage Mast (Duplex): Offers free lift (the ability to raise loads without increasing overall height) and extends for respectable lift heights. This is your entry-level option for modest vertical storage.
• Three-Stage Mast (Triplex): Provides significantly greater lift heights than duplex masts but comes with a trade-off—it may reduce load capacity due to its impact on the load center. When you need that extra reach but still want a manageable machine, this is often the sweet spot.
• Four-Stage Mast (Quad): The high-rise champion, offering maximum vertical reach. The downside? All those additional rails and hydraulic lines create notable visibility challenges for operators. These are specialized tools for specific applications.

Forklift Type: Different forklift designs prioritize different capabilities. Reach trucks specifically target high-lift operations, while standard pallet jacks offer minimal lift functionality.

Load Capacity: There's an inverse relationship between load weight and maximum lift height. The heavier the load, the more restricted your lifting capability becomes, even with the same machine.

Look at the range within Class V alone—225 to 525 inches. That's a difference of 25 feet of vertical reach within the same classification! When warehouse operators talk about "growing up instead of out," they're banking on these high-reach capabilities.

Selecting the appropriate lift height isn't just about reaching the top shelf; it's about optimizing your entire storage strategy. While reach trucks excel in the vertical game, other specialized equipment like order pickers with rising operator platforms also play crucial roles in maximizing vertical space utilization.

Remember: maximum lift height and safe lift height with a full-capacity load are not the same thing. Always consult your specific model's load chart to understand how height and capacity interact for your particular machine.

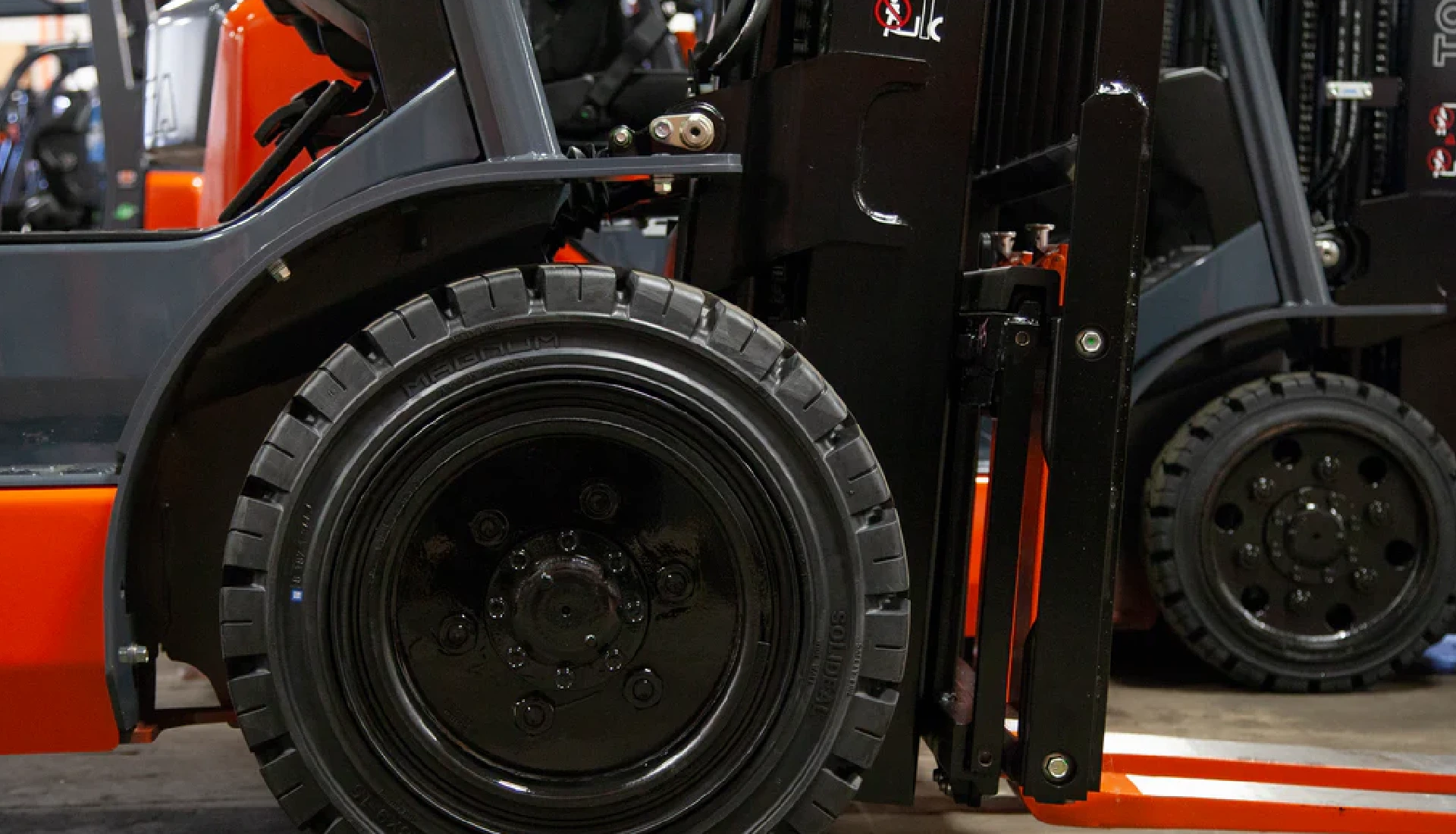

Forklift Tires

The humble forklift tire doesn't get much glory, but put the wrong rubber under your machine and you'll learn quickly just how critical this component really is.

Forklift tires aren't just about moving from A to B—they're about stability, load capacity, surface protection, and operator comfort.

Two main tire types dominate the forklift world, each with distinct characteristics suited to specific environments:

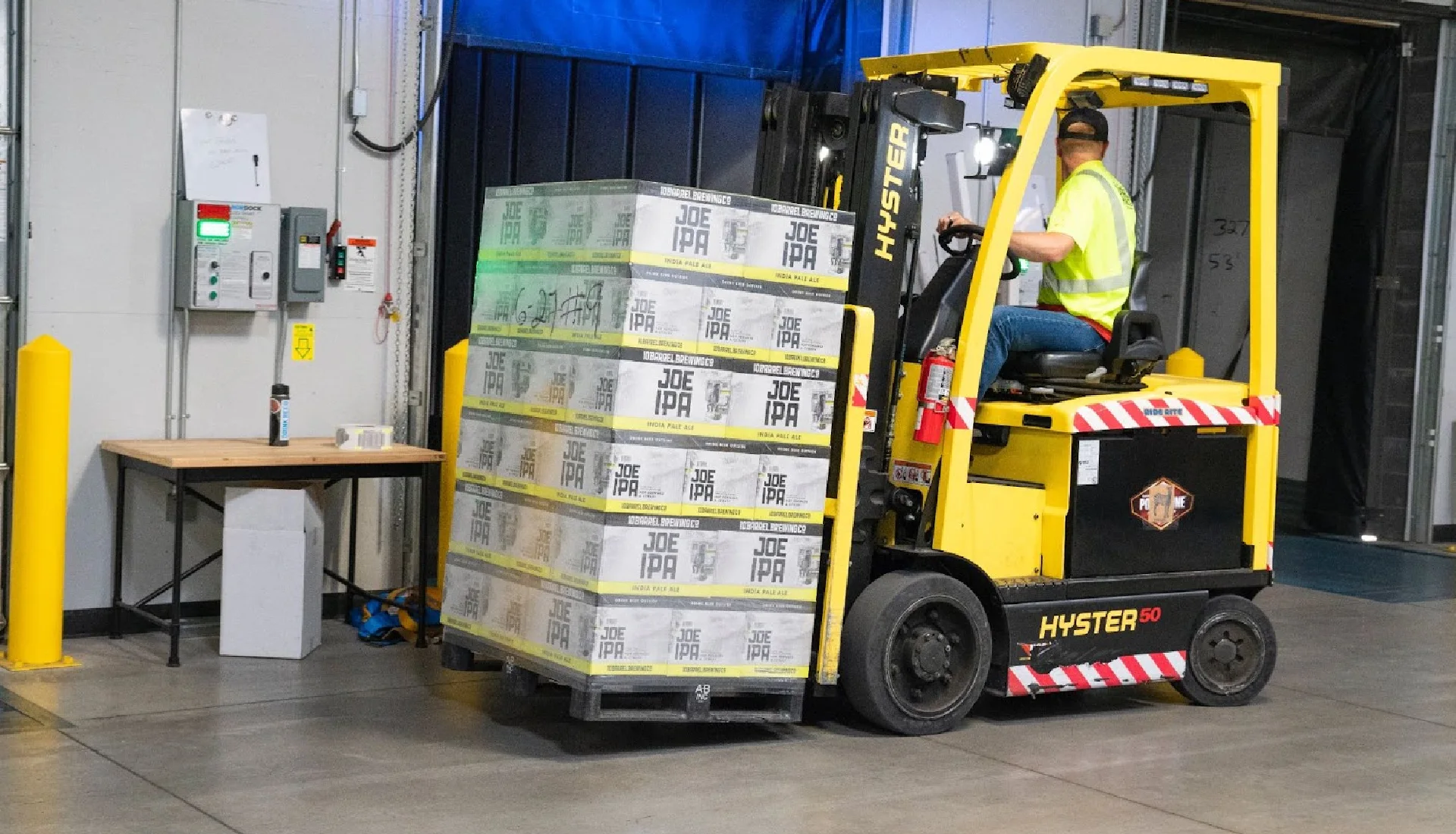

Solid Rubber Tires

The indoor specialists. These tires excel on smooth, flat concrete surfaces where durability matters more than cushioning. They offer excellent traction in controlled environments, resist punctures that would sideline pneumatic options, and provide the stability needed for precise load handling.

You'll find these on most warehouse units where floor conditions are predictable and controlled.

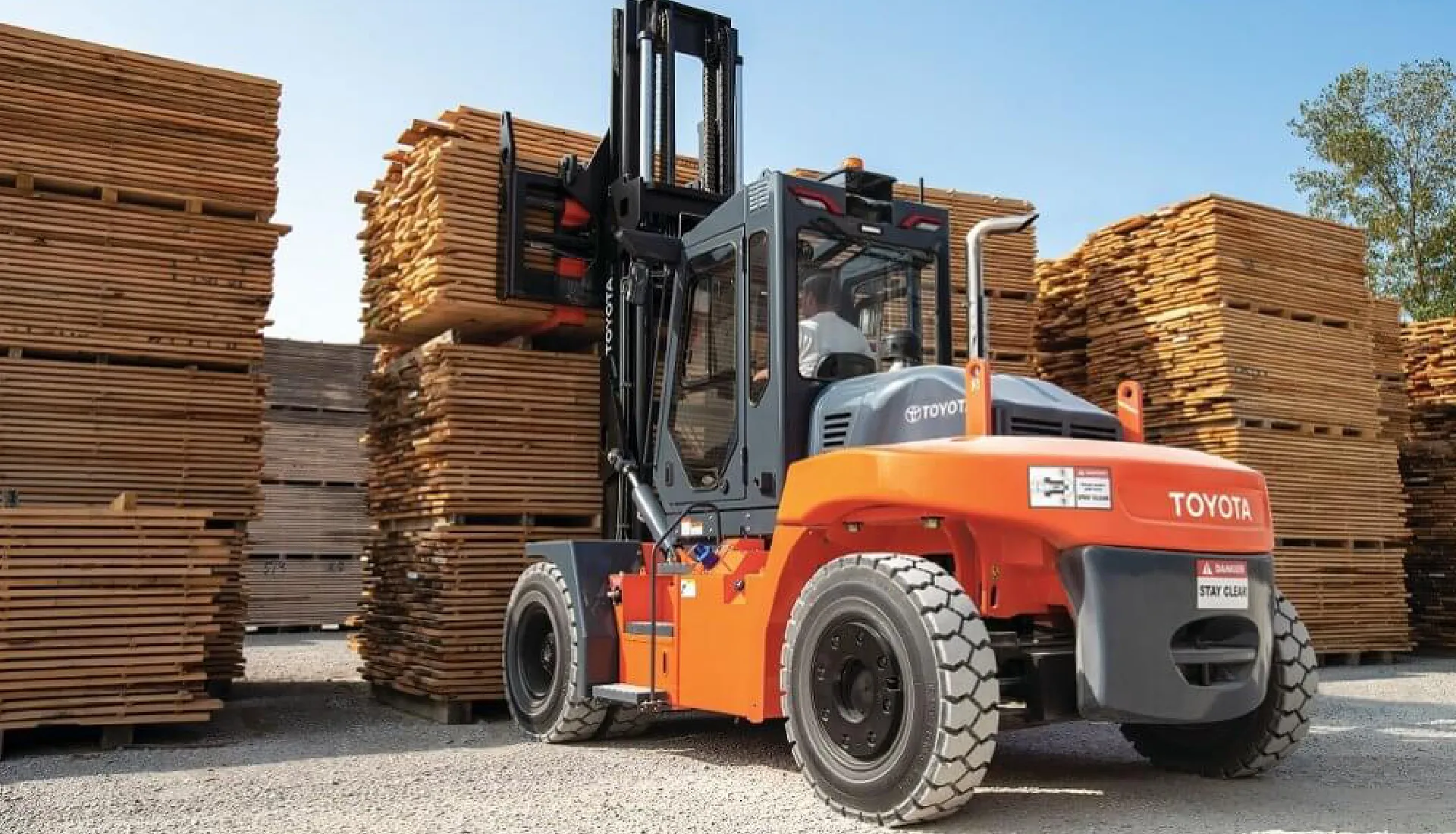

Pneumatic Tires

The all-terrain performers. Filled with air like conventional vehicle tires, pneumatics deliver superior shock absorption and cushioning, making them ideal for outdoor applications and rough surfaces.

The additional cushioning isn't just about operator comfort—it translates to better traction in variable conditions and improved load stability when traversing uneven ground. They can also enhance a forklift's rated capacity and performance in challenging environments.

The tire choice has far-reaching implications for your operation. Solid tires on rough outdoor surfaces will transmit every bump and dip directly to the machine and operator, potentially damaging both. Conversely, pneumatic tires in high-precision indoor applications might introduce unwanted bounce and flexibility when stability is paramount.

Some operations require the best of both worlds, which has led to the popularity of solid pneumatic (or cushion) tires—solid rubber tires with small air pockets engineered into the design to provide some shock absorption without the puncture risk.

When evaluating forklift specifications, don't relegate tire type to a secondary consideration. For applications involving frequent transitions between indoor and outdoor environments, tire selection can be as important as engine type or lift capacity in determining overall productivity and equipment longevity.

Forklift Cost

"How much does a forklift cost?" ranks right up there with "how long is a piece of string?" in terms of questions with wildly variable answers. The price range is vast, influenced by numerous factors that go well beyond the basic lift capability.

Key price determinants include:

New vs. Used: The new-versus-used debate extends well beyond the initial price tag. Used forklifts come with significant discounts but potentially higher maintenance costs. The age and usage hours dramatically impact both price and reliability.

That 12,000-hour unit might look like a bargain until you're paying for major component replacements within months of purchase.

Capacity and Lift Height: Bigger, higher-reaching machines command premium prices. Each increment in capacity and vertical reach adds to the bottom line, reflecting the additional engineering, materials, and capability.

Fuel Type: Electric forklifts often carry higher upfront costs than comparable internal combustion models, but the equation isn't that simple. While the initial purchase price might be higher, electrics typically offer lower operational costs.

However, don't forget to factor in battery replacement cost (roughly every 5 years) and charging infrastructure when calculating total ownership costs.

Features and Technology: Today's premium forklifts offer advanced features like telematics systems, operator-assist technology, and enhanced safety systems. Each bell and whistle adds to the price tag, though many provide ROI through improved safety or productivity.

Let's get specific with some real-world examples:

Standard Counterbalance Forklifts (3,000-6,500 lbs capacity): $20,000 – $45,000

• Toyota 8FGU25: $32,000 – $38,000
• Hyster H50XT: $28,000 – $35,000
• Yale GP050VX: $30,000 – $36,000

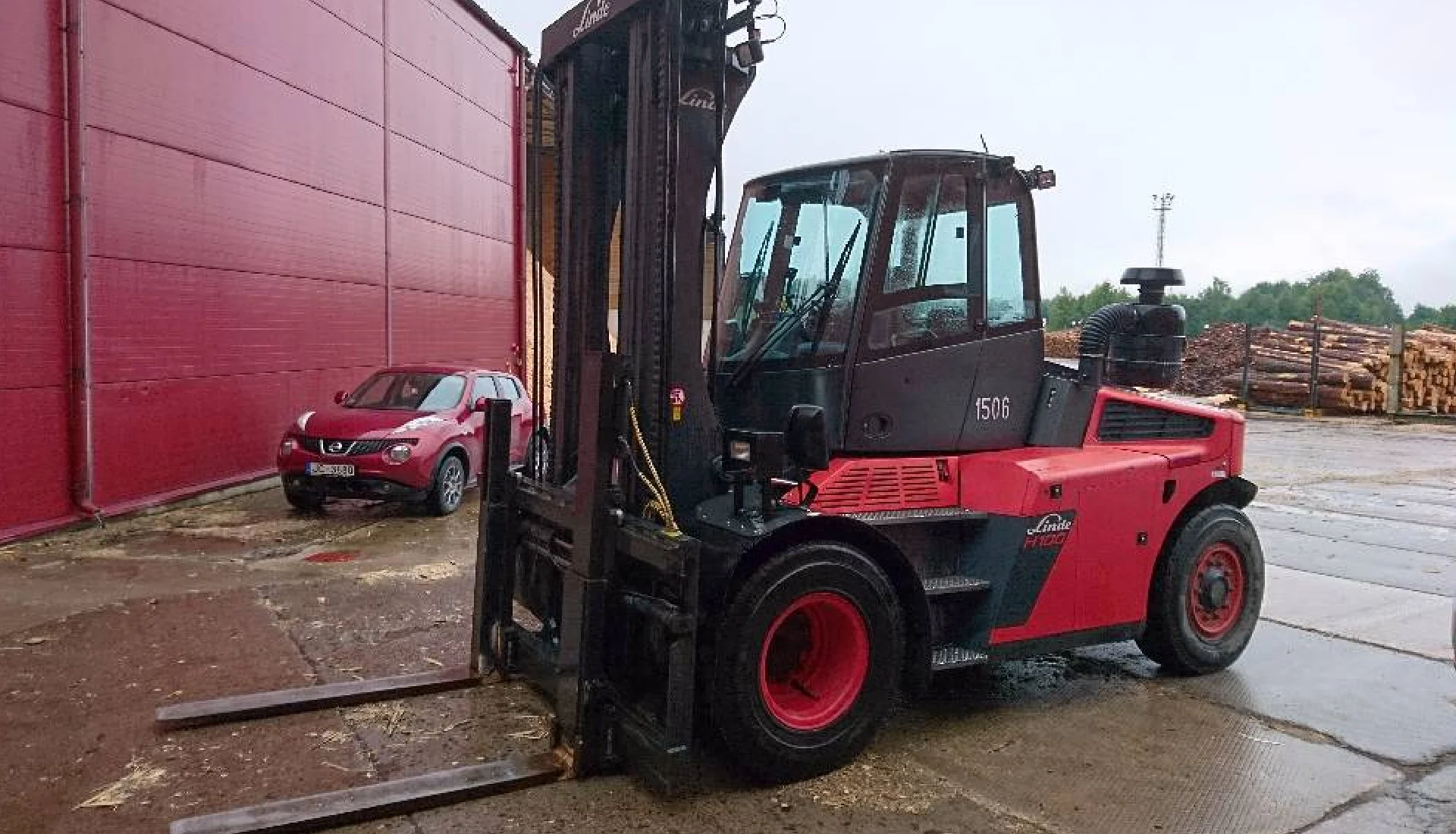

High-Capacity Forklifts (10,000+ lbs): $60,000 – $100,000+

• Caterpillar DP100N: $75,000 – $90,000
• Linde H100D: $80,000 – $95,000
• Kalmar DCG100-6: $85,000 – $100,000

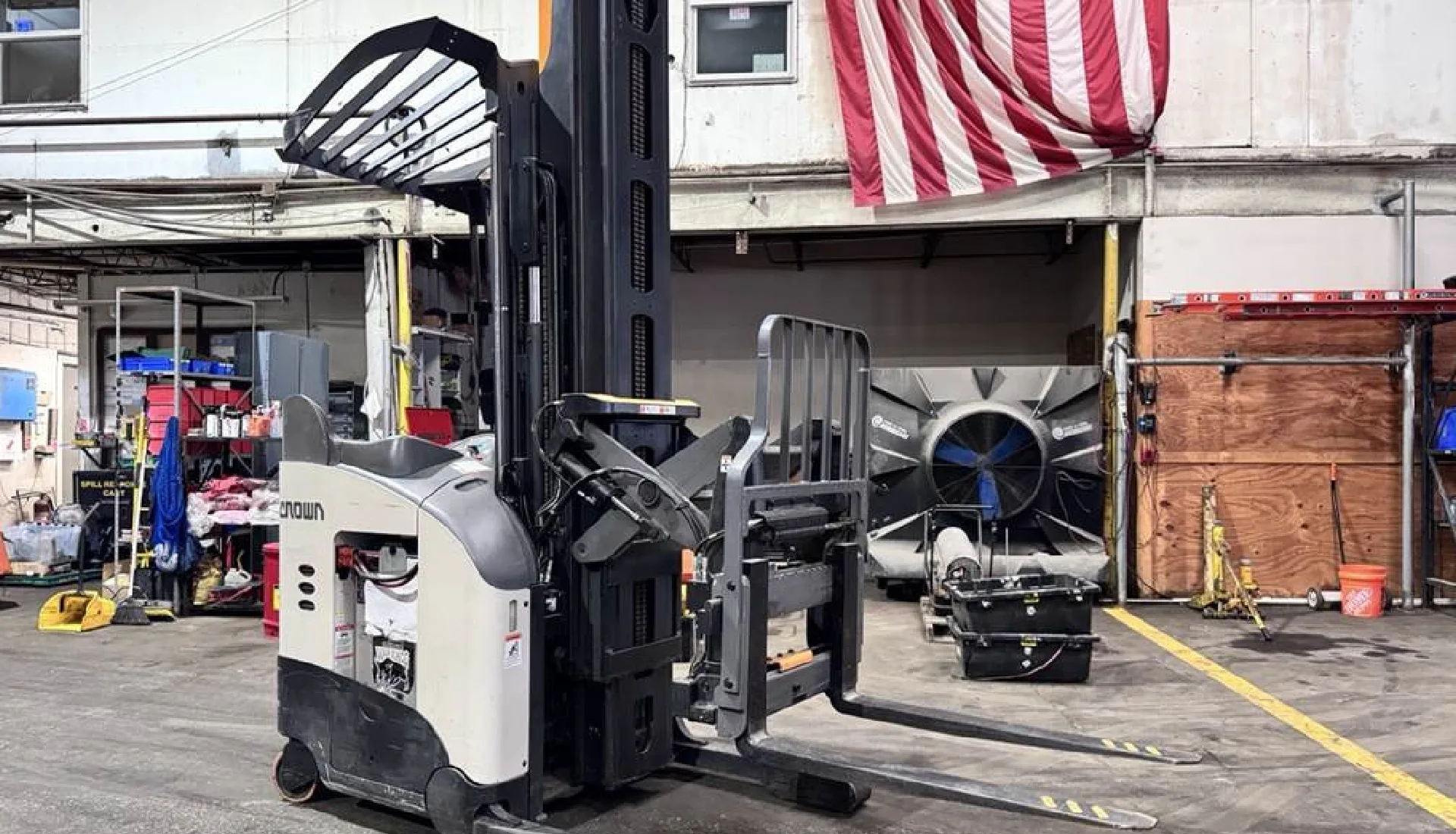

Electric Reach Trucks: $30,000 – $55,000

• Crown RM 6000: $40,000 – $50,000
• Raymond 7500: $35,000 – $45,000
• Jungheinrich ETR 340: $38,000 – $48,000

Smart buyers look beyond the sticker price to consider the total cost of ownership. Fuel/energy costs, maintenance requirements, parts availability, service intervals, and even resale value all factor into the true cost equation.

A slightly higher upfront investment in a more reliable brand or fuel-efficient model often pays dividends over the equipment's lifecycle.

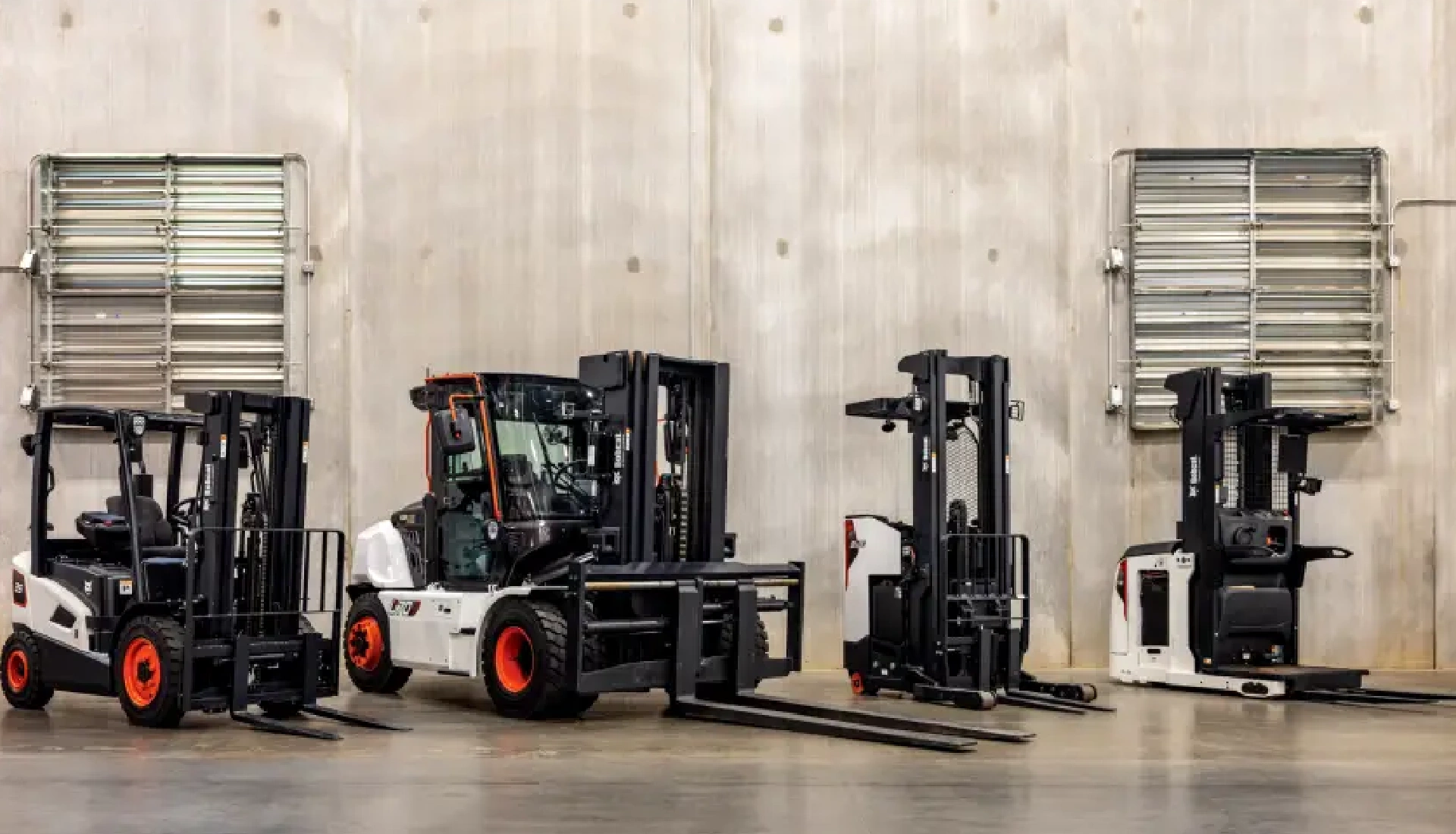

Forklift Applications

Matching the right forklift to your specific application isn't just about efficiency—it's about avoiding the costly mistake of putting a square peg in a round hole. Different industries and environments demand specialized equipment designed for their unique challenges.

Let's talk real-world applications. Retail distribution centers typically rely heavily on electric counterbalance and reach trucks for their indoor operations. The clean, emission-free operation keeps air quality high while navigating the densely packed storage areas that characterize modern distribution facilities.

Manufacturing facilities often require a mix of equipment. Internal combustion forklifts might handle outdoor yard operations and receiving, while electric units manage indoor production floor material movement.

The nature of the manufactured goods—from lightweight consumer products to heavy industrial components—further dictates capacity requirements.

Construction sites present unique challenges that demand specialized equipment. Rough terrain forklifts with pneumatic tires navigate unpaved surfaces while telehandlers offer the versatility to place materials at varying heights and distances without repositioning the base unit.

Food and beverage operations, particularly in cold storage environments, require specialized cold-weather packages to maintain performance in refrigerated and freezer areas. Battery performance, hydraulic fluid viscosity, and operator comfort all factor into these specialized applications.

The key to application matching is understanding not just what you're moving, but where you're moving it, under what conditions, and with what space constraints. A forklift that excels in one environment might be practically useless in another, regardless of its lifting capacity or technical specifications.

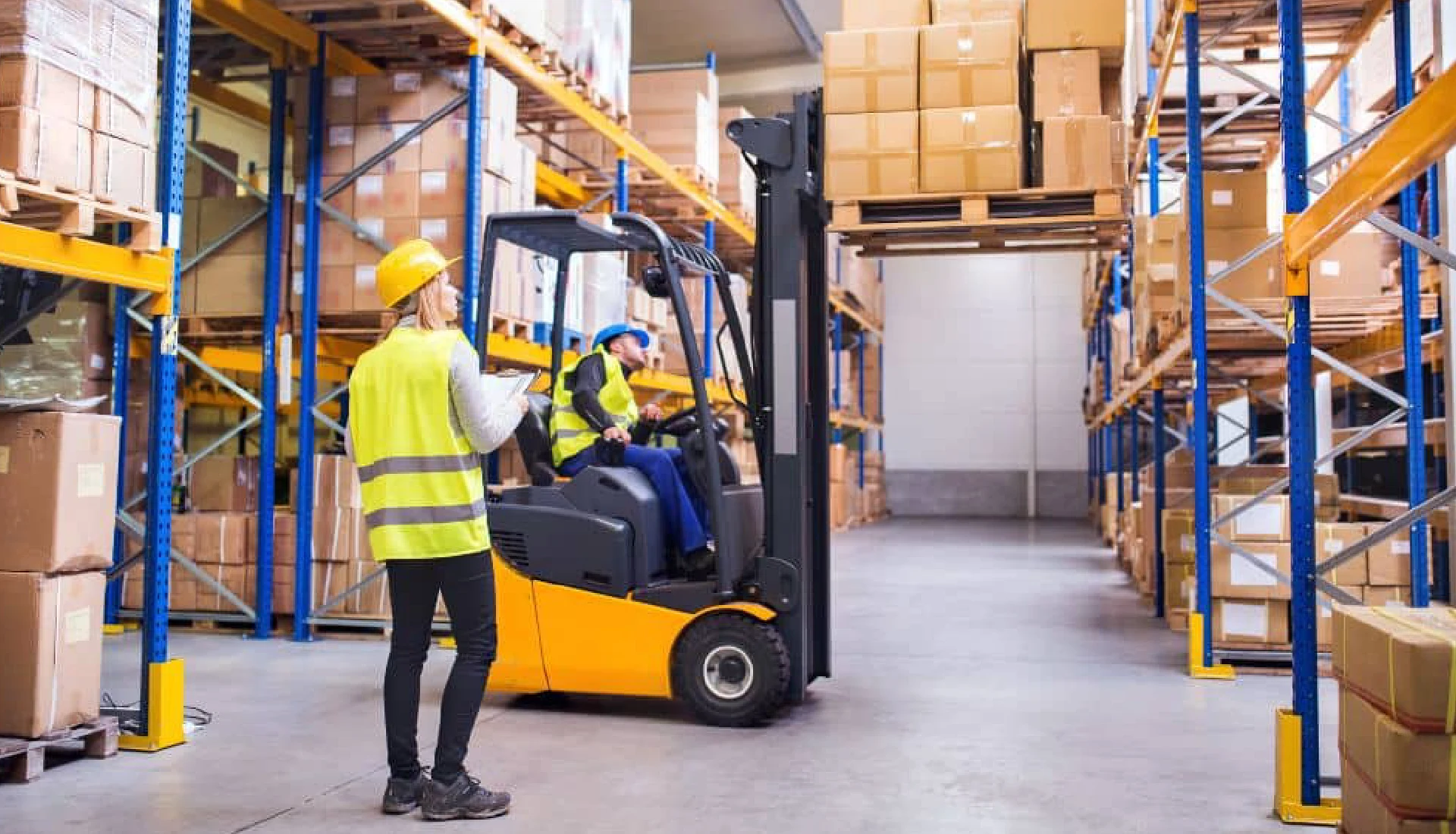

Forklift Safety Considerations

Let's be blunt: forklifts are incredibly useful tools that can also be incredibly dangerous when misused. A 10,000-pound machine carrying another 4,000 pounds of material demands respect. Safety isn't just a regulatory checkbox—it's fundamental to productive operations.

Key safety elements that demand attention include:

Training and Certification: This isn't optional or just a good idea—it's federal law. OSHA requires all operators to be trained and certified on the specific class of equipment they'll be operating.

Different forklift classes present unique safety challenges: a sit-down counterbalance operates fundamentally differently from a stand-up reach truck or an order picker. Class-specific training ensures operators understand the unique stability profiles, control systems, and hazards associated with their equipment.

Load Handling: Proper load handling techniques prevent the most common and dangerous forklift accident: tipping. Understanding load centers, capacity limitations, and the physics of load movement isn't academic—it's practical knowledge that prevents injuries and equipment damage.

A load that shifts unexpectedly during transport or elevation can quickly transform a routine task into an emergency situation.

Visibility: Maintaining clear sightlines is crucial, especially when navigating confined spaces with pedestrian traffic. Blind spots are inevitable with certain loads and equipment designs, making established traffic patterns and communication protocols essential.

Many facilities implement mirror systems at intersections and designated pedestrian walkways to minimize interaction risks.

Speed Management: Forklift speed may seem modest compared to highway vehicles, but even a few miles per hour can be excessive in tight quarters. The physics are simple: faster speeds create greater stopping distances and reduce reaction time.

Most modern forklifts include programmable speed limiters that can be adjusted for different facility areas or operator experience levels.

Maintenance: Regular inspections and preventive maintenance aren't just about equipment longevity—they're critical safety measures. Braking systems, steering components, hydraulics, and lifting mechanisms all require systematic inspection and maintenance.

Many serious accidents result from deferred maintenance that could have been addressed proactively.

The statistics are sobering: OSHA estimates that forklifts are involved in roughly 35,000 serious injuries and 85 fatal accidents annually in the United States alone. Nearly 70% of these incidents could be prevented with proper training, equipment maintenance, and workplace protocols.

Smart operations prioritize safety culture alongside productivity metrics. The most efficient warehouse isn't the one that moves the most pallets per hour regardless of risk—it's the one that maintains high productivity while ensuring every operator goes home safely at the end of each shift.

Conclusion

The wrong forklift announces itself daily—scraping racks, struggling with loads, and draining budgets. The right one simply disappears into your operation, letting product flow while operators focus on actual work.

I've seen costly mistakes both ways: premium Class V units with 130"+ turning radiuses jammed into 120" aisles, and budget 3,000 lb units straining under 2,800 lb loads. Both decisions created inefficiencies that compounded daily.

Remember: as your operation evolves, so should your equipment strategy. Smart facilities reassess their fleet regularly against changing product dimensions and material flows. Get these specifications right, and you're not buying equipment—you're investing in operational flexibility that compounds with every pallet moved.
