What Is a Backhoe Loader? 7 Key Insights Beyond the Basics

The industry loves specialized equipment, but the 70-year evolution of the backhoe loader shows that integration often wins. From Holopainen’s first swing frame to JCB’s millionth unit, these hydraulic powerhouses prove that combining digging and loading isn’t just convenient—it’s transformative. This deep dive covers everything from four-bar linkages to extendable dipper sticks, equipping you with the technical knowledge to make smarter decisions.

But first, what is a backhoe loader?

A backhoe loader is a versatile construction machine that combines a front loader for lifting and a rear backhoe for digging. It features a cab mounted on a tractor chassis and is commonly used for excavation, loading, trenching, and material handling on small to mid-sized job sites.

History of Backhoe Loaders

You know how every industry has those "why didn't I think of that?" inventions? The backhoe loader is construction's version of that story.

timeline
    title Evolution of Backhoe Loaders
    section Early Innovations
        1947 : Swing Frame Invention
              : Holopainen & Handy develop first backhoe swing frame
        1948 : First All-Hydraulic Backhoe
              : Mounted on Ford Model 8N tractor
        1948 : JCB Enters Market
              : First European hydraulic loader
    section Market Growth
        1952 : Integrated TLB
              : Wain-Roy mounts backhoe on tractor-loader
        1953 : 180° Slew Capability
              : JCB introduces backhoe with 180° rotation
        1957 : Factory Warranty
              : J.I. Case introduces first factory-warrantied backhoe
    section Modern Advancements
        1970 : Four-Wheel Drive
              : Hy-Dynamic adds 4WD to backhoe loaders
        2000s : Extendable Models
              : Telescopic arms increase digging depth to 17-18 feet
        2020s : Electric Models
              : Zero-emission backhoes with comparable performance
        2025 : JCB Milestone
              : Production of one-millionth backhoe loader

It all kicked off in the late 1940s when folks were getting tired of digging holes by hand. In 1947, two guys with unpronounceable names - Vaino J. Holopainen and Roy E. Handy Jr. (try saying that five times fast) - created the backhoe swing frame.

This wasn't just another attachment; it was the first time a hydraulic arm could swing side to side, turning what used to be a one-position wonder into something actually useful on cramped job sites.

By 1948, they'd bolted one of these contraptions onto a Ford Model 8N tractor and sold it to Connecticut Light and Power. The utility company probably thought they were getting ripped off at the time, but they'd just purchased what would become construction equipment history.

Around the same time, John Pilch (finally, a name I can pronounce after a couple beers) invented the four-bar linkage. It doesn't sound sexy, but this mechanism is why modern backhoe buckets can rotate more than 180 degrees. Next time you see one curl under and scoop a perfect load, thank John.

In 1952, Holopainen and Handy formed Wain-Roy Corporation and mounted a backhoe on a Frank G. Hough tractor-loader. This created one of the first honest-to-goodness integrated machines - what we now call a tractor-loader-backhoe (TLB). No more bolt-on attachments that looked like afterthoughts.

Meanwhile, across the pond, JCB was doing their own thing. They launched Europe's first hydraulic loader in 1948, followed by a backhoe with 180° slew in 1953. They became so dominant in the UK that people there don't even say "backhoe loader" - they just say "JCB," much like we say "Kleenex" instead of "tissue." Marketing folks dream of that kind of brand recognition.

The turning point for the American market came in 1957 when J.I. Case introduced the first factory-warrantied backhoe loader. This was huge - it meant you weren't just buying some Frankenstein machine cobbled together in someone's shop. You were getting something a real company would stand behind when it inevitably broke down.

By 1970, Hy-Dynamic had added four-wheel drive to their backhoe loaders. If you've ever tried to move a standard backhoe through mud, you know exactly why this was a game-changer.

Fast forward to 2025, and JCB celebrated building their one-millionth backhoe loader. One million machines, all based on that simple idea of putting a digger on the back of a loader. Not a bad legacy for Holopainen and Handy, names most operators can't pronounce but use their invention every single day.

What is a Backhoe Loader? Key Components Explained

Let's break down what makes up these machines that cost more than most people's houses but somehow still end up coated in mud within hours of delivery.

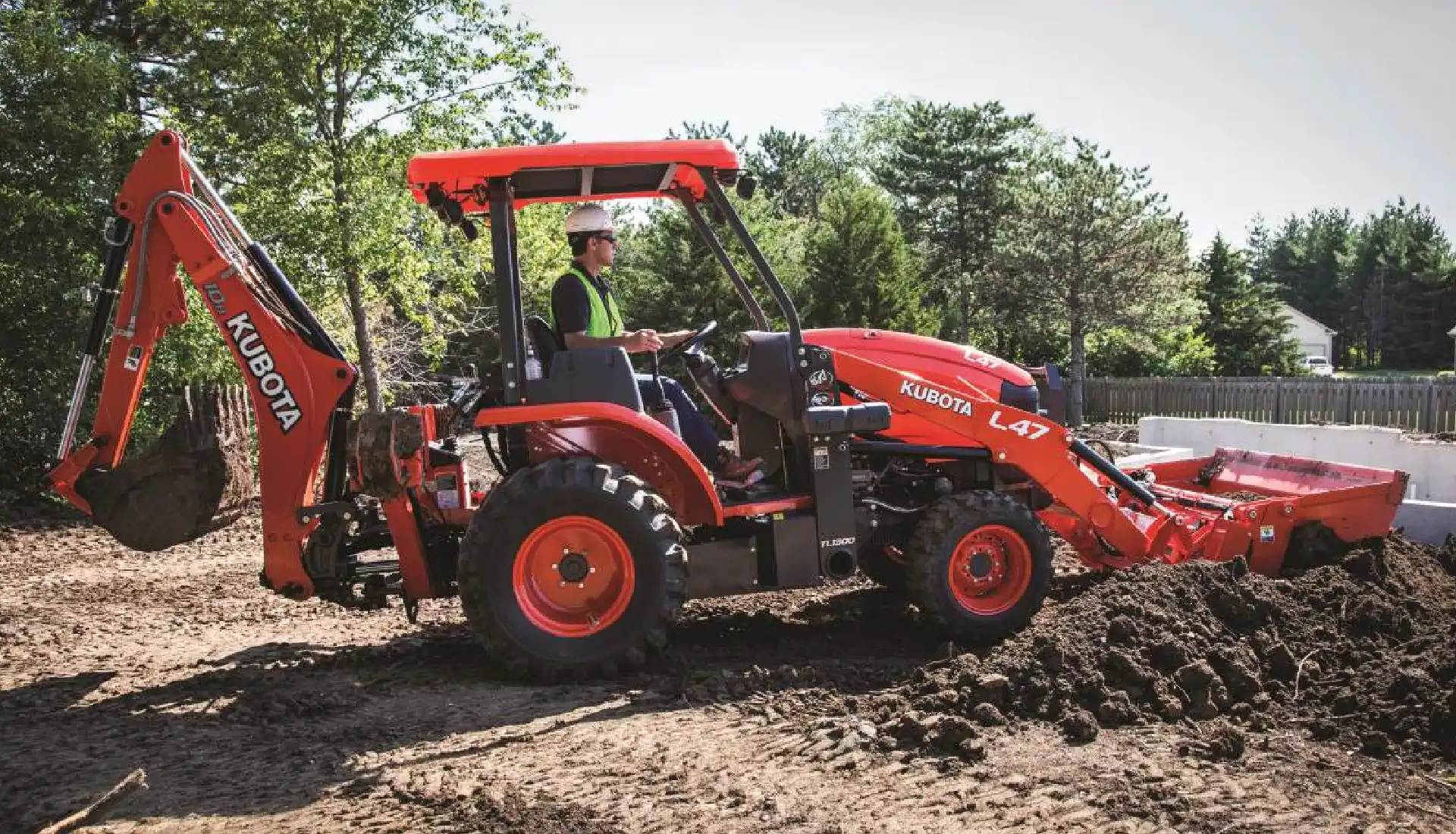

Tractor

This is the guts of the operation – the engine, transmission, and main frame all in one package. Think of it as the torso that connects all the limbs. Without a solid tractor section, you've just got expensive hydraulic arms attached to something that'll fold like a lawn chair the first time you dig into hardpan.

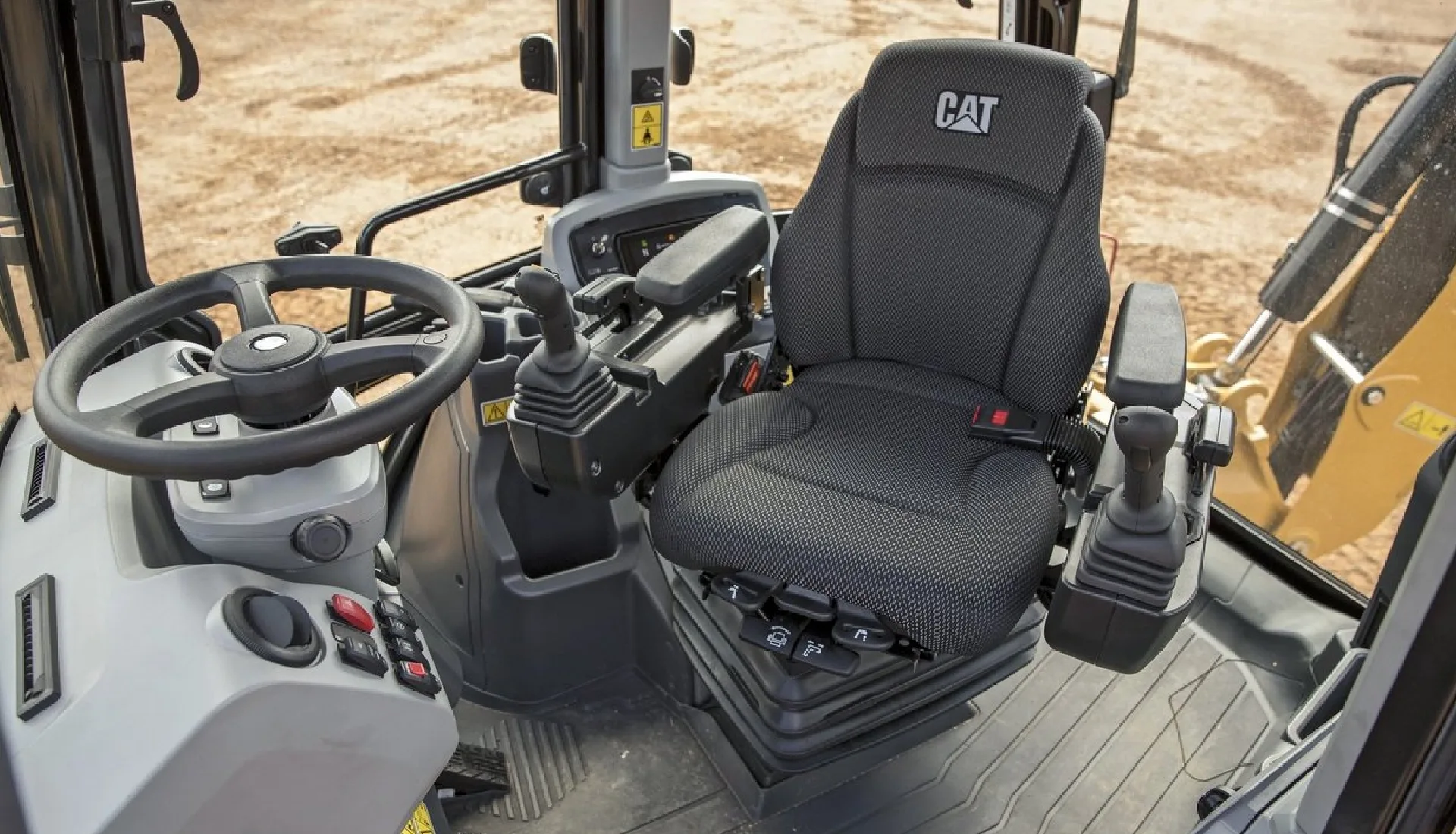

Cab

Remember those old-school backhoes where the seat was basically a metal pan with a thin cushion, exposed to rain, snow, and whatever else Mother Nature threw at you? Yeah, those days are gone.

Modern cabs are climate-controlled comfort zones with air-suspension seats that make your living room recliner feel like a wooden stool. The new JD and Cat models even have touchscreens that would make your smartphone jealous.

I've seen operators who won't leave their cab for lunch breaks – that's how comfortable they've become.

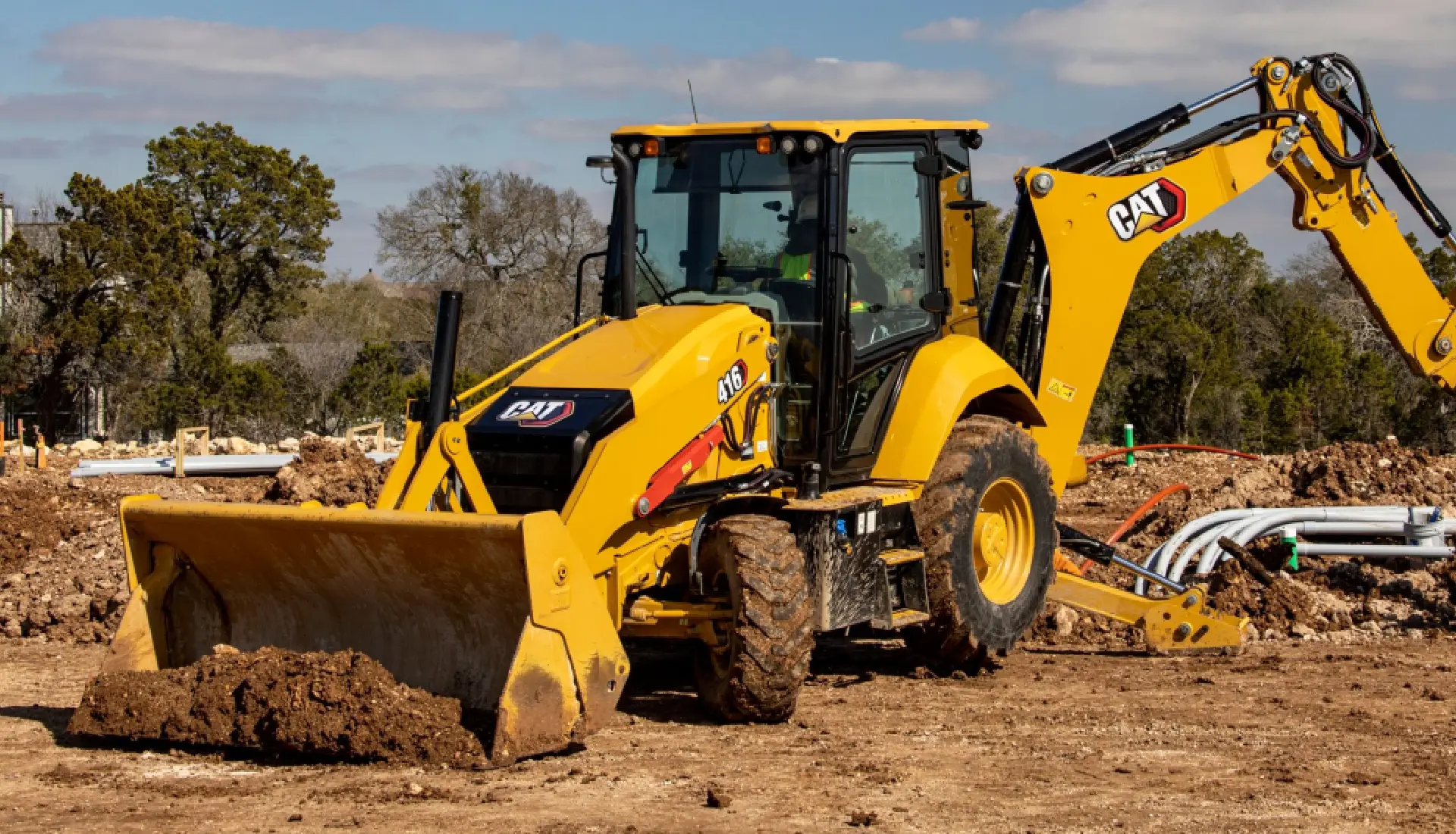

Front Loader

The business end at the front – that big hydraulic arm with a bucket for scooping, lifting, and carrying. It's what transforms a backhoe from just another excavator into something that can actually move material around the site.

Pro tip: Get the quick-attach front bucket system. It costs more upfront but will save you hours of aggravation the first time you need to switch from a standard bucket to forks.

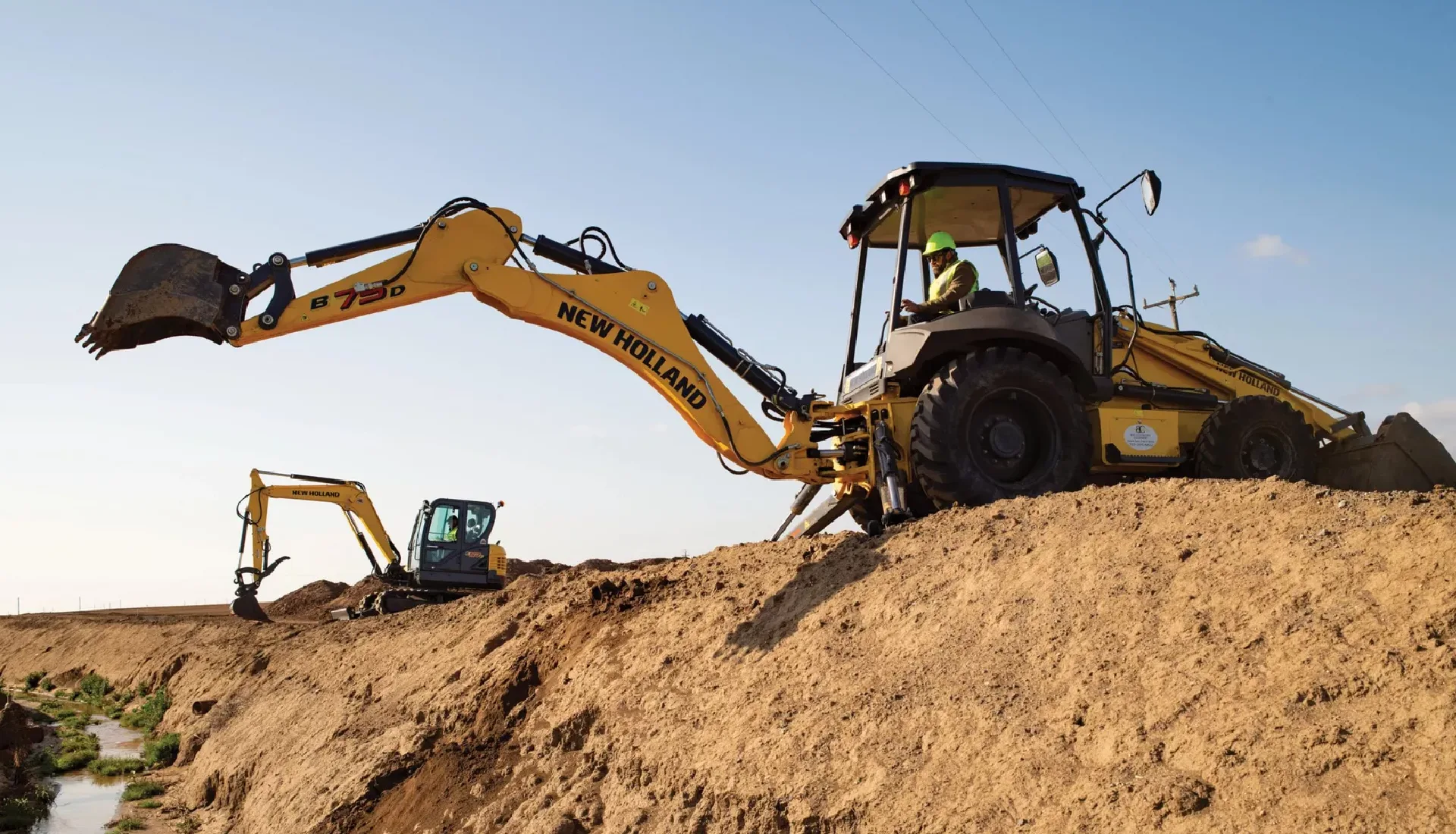

Backhoe

The namesake rear component with its articulated boom, stick, and bucket for digging. It's what separates the machine from being just another front-end loader. The hydraulic system here is like the circulatory system of the whole machine – when it's working right, you don't notice it.

When it's not? Everyone on the jobsite knows it by the colorful language coming from the operator's cab.

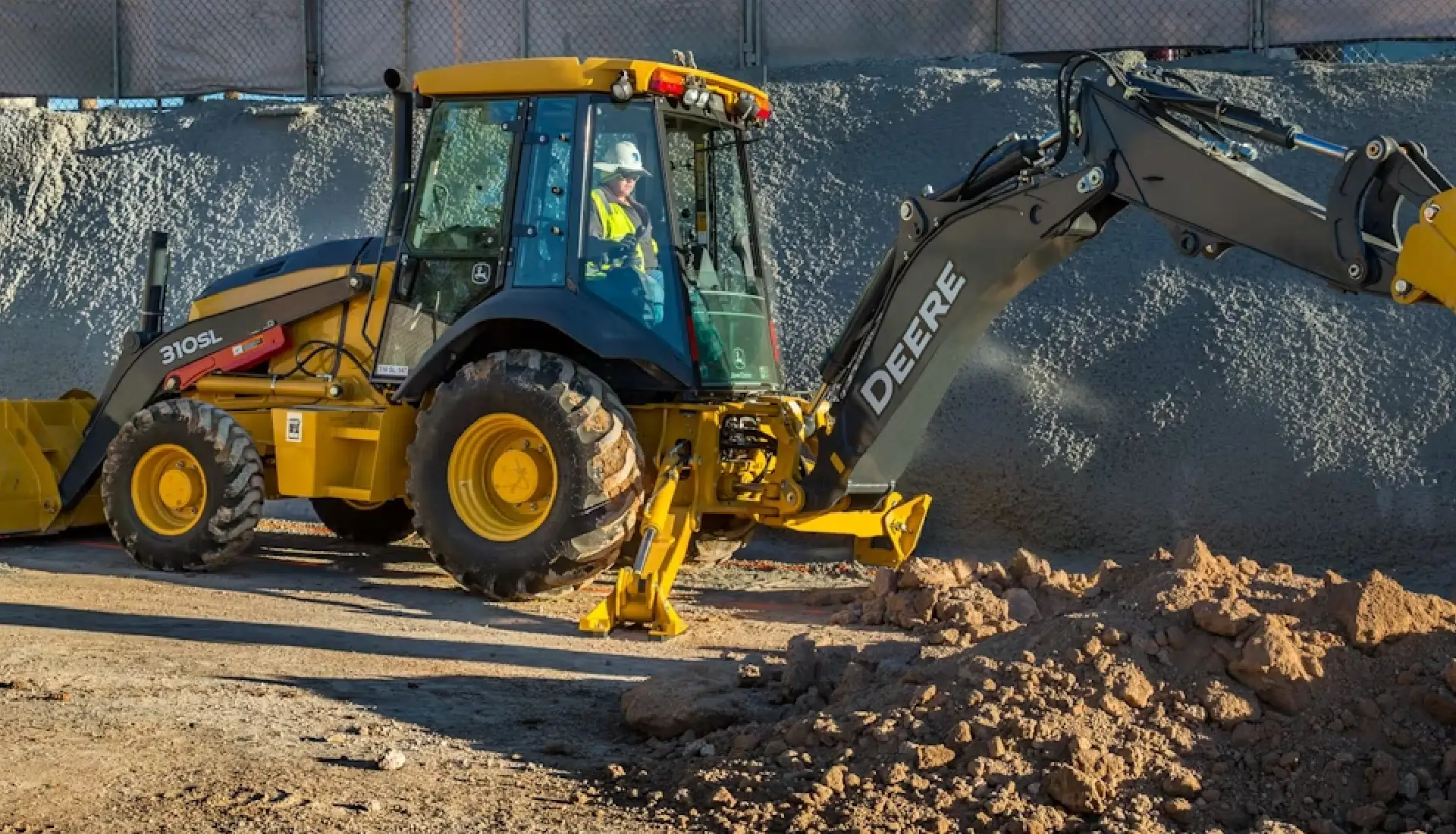

Stabilizers

Those legs that fold down when you're digging. Operators call them outriggers, mechanics call them stabilizers, and rental companies call them "the things customers keep bending." Whatever you call them, they keep the whole machine from tipping over when you're digging at full extension.

I've seen cocky operators try to work without deploying them. They usually only do it once.

How a Backhoe Loader Works

Ever wonder how a 120-pound operator can make a 15,000-pound machine dance like it's auditioning for America's Got Talent? It's all about the hydraulics, baby.

The secret sauce is pressurized hydraulic fluid pumping through the system like liquid muscle. When you push those levers in the cab, you're not directly moving anything – you're directing hydraulic fluid to the right cylinders. It's basically a fluid-based game of Simon Says, where your small movements get amplified into massive force.

Here's the physics in plain English: when you move a control lever, it pushes a small piston a long way. That small piston forces hydraulic fluid to a bigger piston, which moves a shorter distance but with much more force. It's the same principle that lets a 98-pound mechanic lift a car with a hydraulic jack.

This multiplication of force is what lets backhoes dig through rocky soil that would make a team of laborers with shovels quit and find new careers. It's also why hydraulic leaks are such a big deal – lose that pressure, and suddenly, your mighty earth-mover becomes an overpriced lawn ornament.

And that distinctive backhoe sound everyone recognizes from two blocks away? That's the hydraulic pump working overtime, especially when the operator is trying to do multiple functions at once. It's the mechanical equivalent of someone trying to pat their head and rub their stomach while hopping on one foot – possible, but it takes some serious coordination.

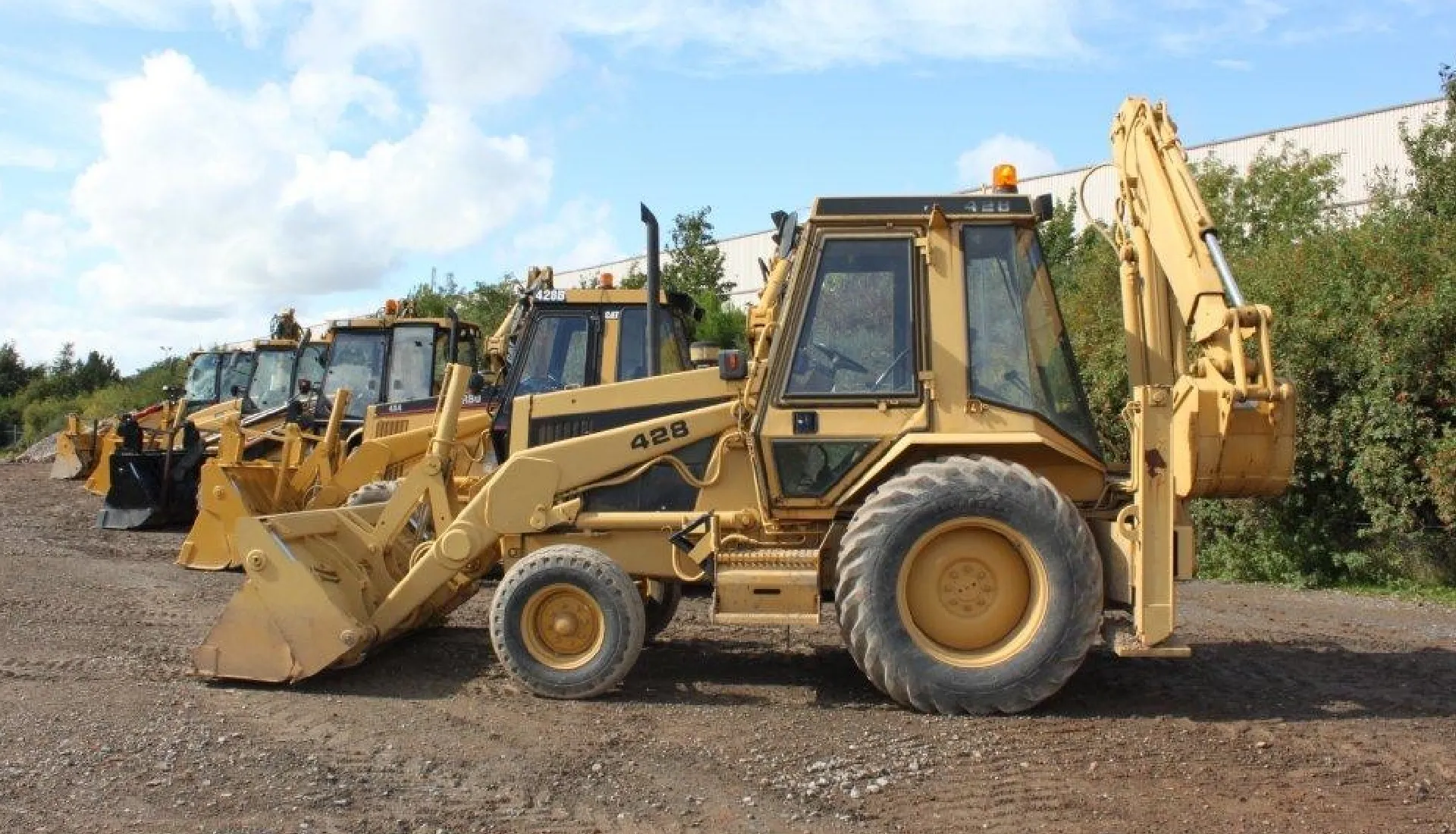

Types of Backhoe Loaders

Not all backhoes are created equal. Here's the family breakdown for backhoe loader types.

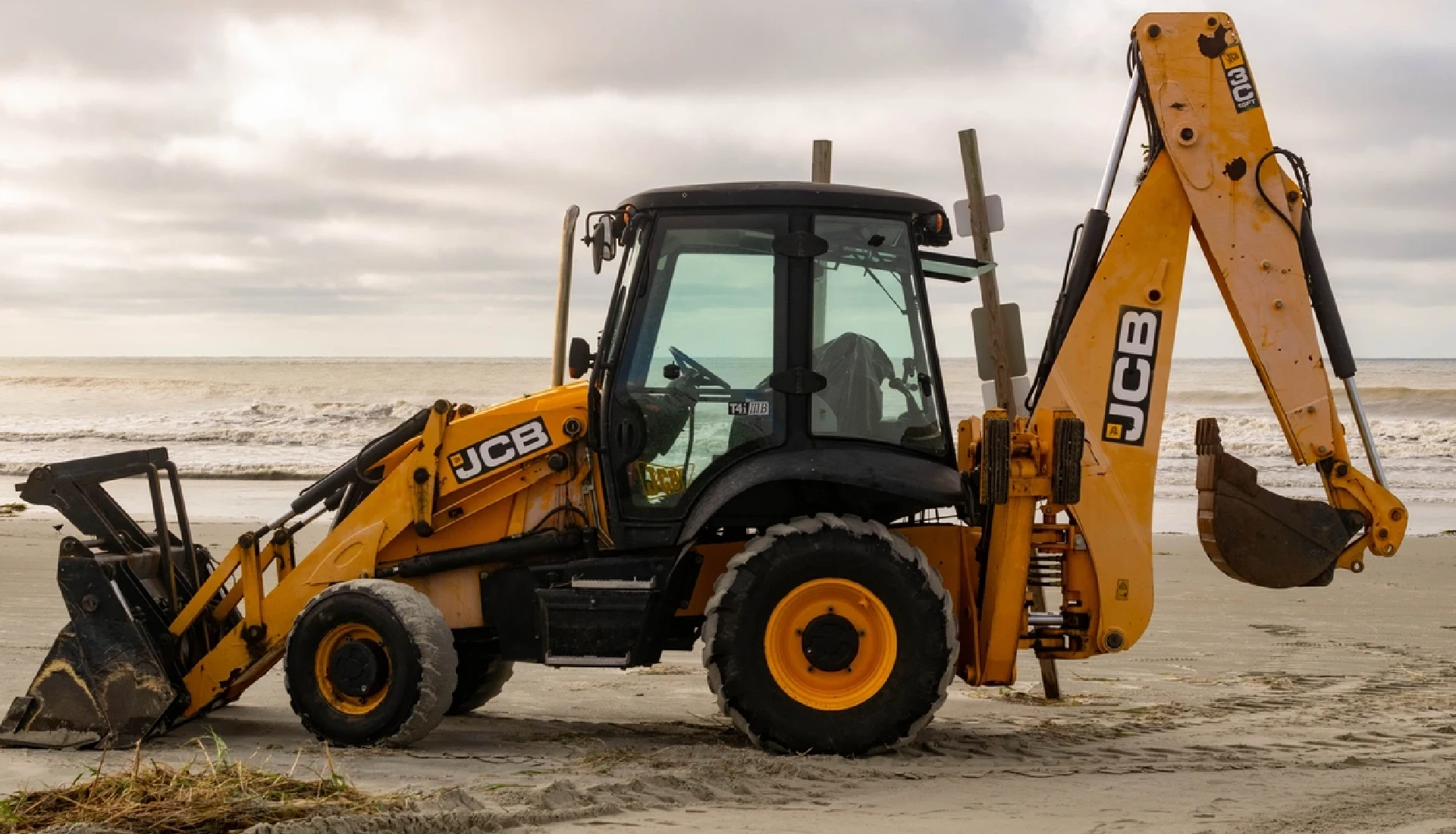

Standard Backhoe Loaders

These are the Toyota Camrys of the construction world – everybody's got them, they do most jobs decently, and they hold their value surprisingly well. They feature the classic front loader and rear backhoe combo that handles everything from digging foundations to moving gravel piles.

About 70% of what you see on job sites falls into this category.

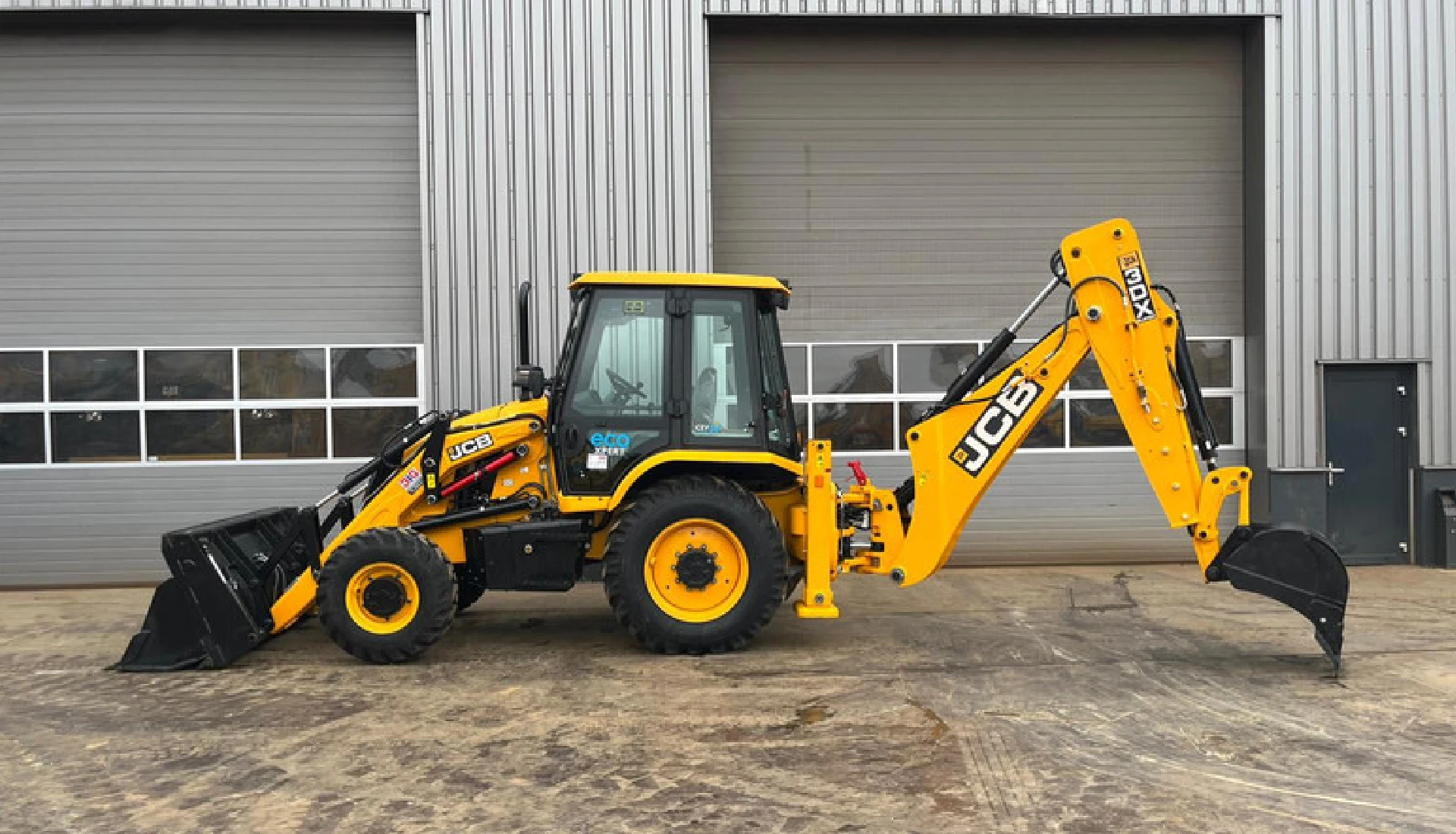

Extendable Backhoe Loaders

Think of these as standard backhoes that went to the gym and got telescopic arms. That extendable stick pushes the digging depth from the standard 14-16 feet to a much more impressive 17-18 feet.

Sales reps love to push these models, and yes, that extra reach is handy – but ask yourself if you need it often enough to justify the $30K premium. If you're only digging the occasional deep trench, you might be better off renting an excavator for those specific jobs.

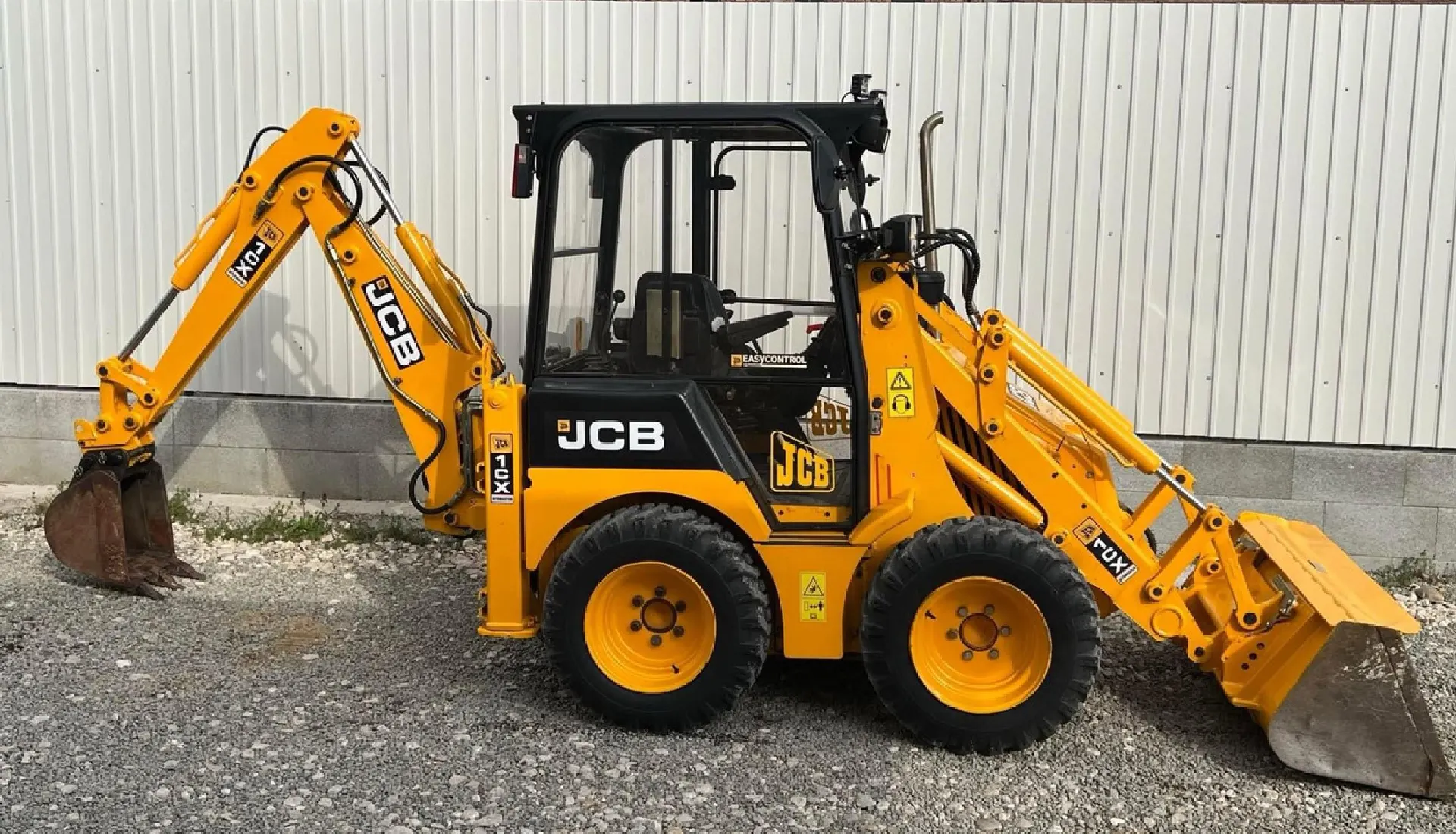

Mini Backhoes

These compact units are perfect for residential work where you need to snake between houses or dig in fenced backyards. They sacrifice some digging depth (usually maxing out around 8-10 feet) but can get into spaces where a standard backhoe would be knocking over fences and flattening flower beds.

I watched a landscape crew try to use a standard backhoe in a townhouse complex once – it was like watching someone try to parallel park a school bus in downtown Manhattan.

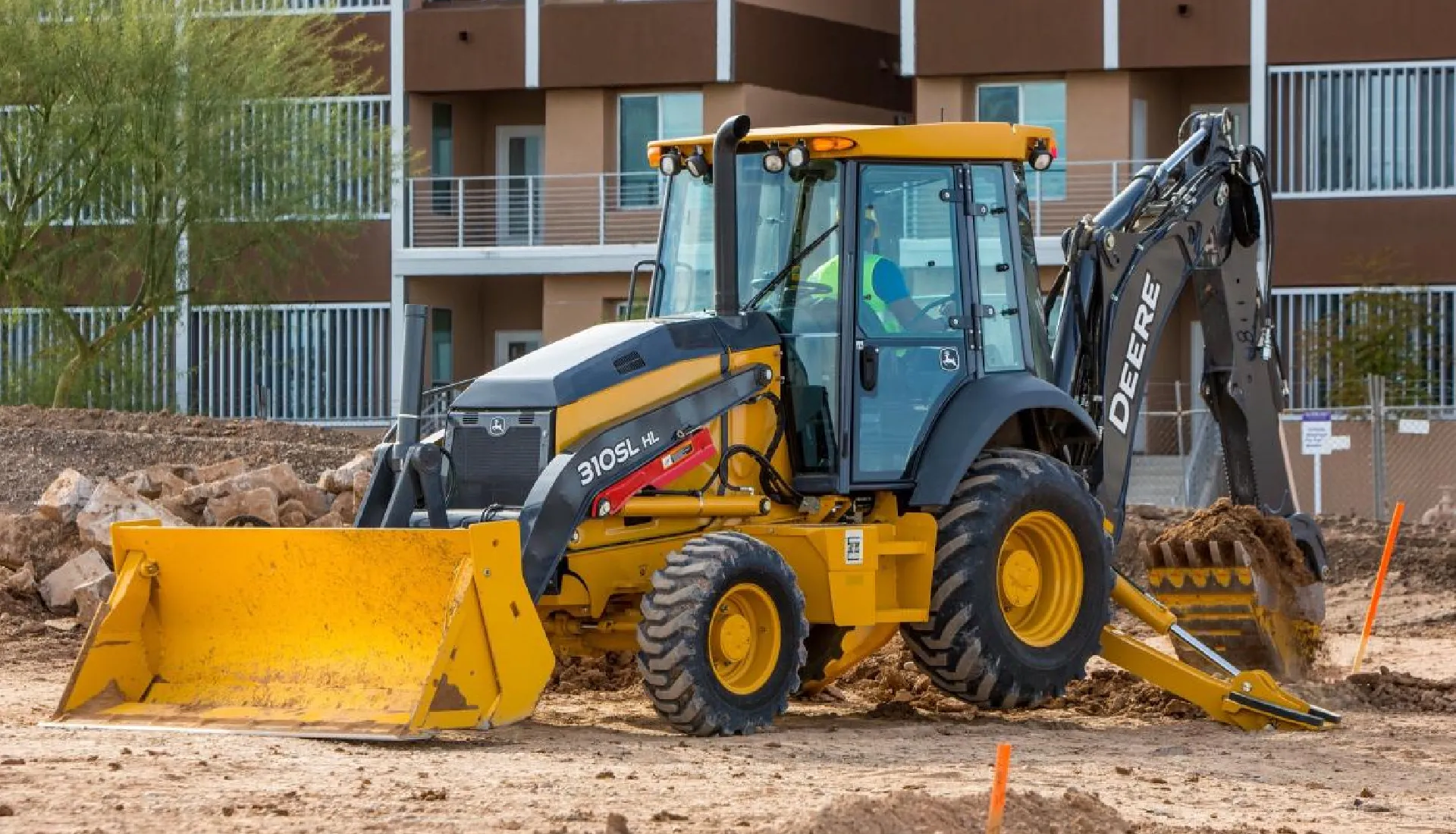

Specialized Backhoe Loaders

These come with attachments that make them shine for specific jobs – hydraulic thumbs for grabbing irregular objects, breakers for busting concrete, or augers for drilling perfect post holes. They're like the Swiss Army knives of the backhoe world, but remember that every attachment you add is another thing that can break right when you need it most.

Some models also feature "crab steering," which lets the front and rear wheels turn independently. This gives you side-to-side movement without having to do that awkward three-point turn dance in tight spaces. It costs more upfront but makes operators look like parallel parking savants.

Cost of Backhoe Loaders

"How much does a backhoe loader cost?" It's like asking how much a house costs – the answer always starts with "it depends." Let's break down what you're really looking at.

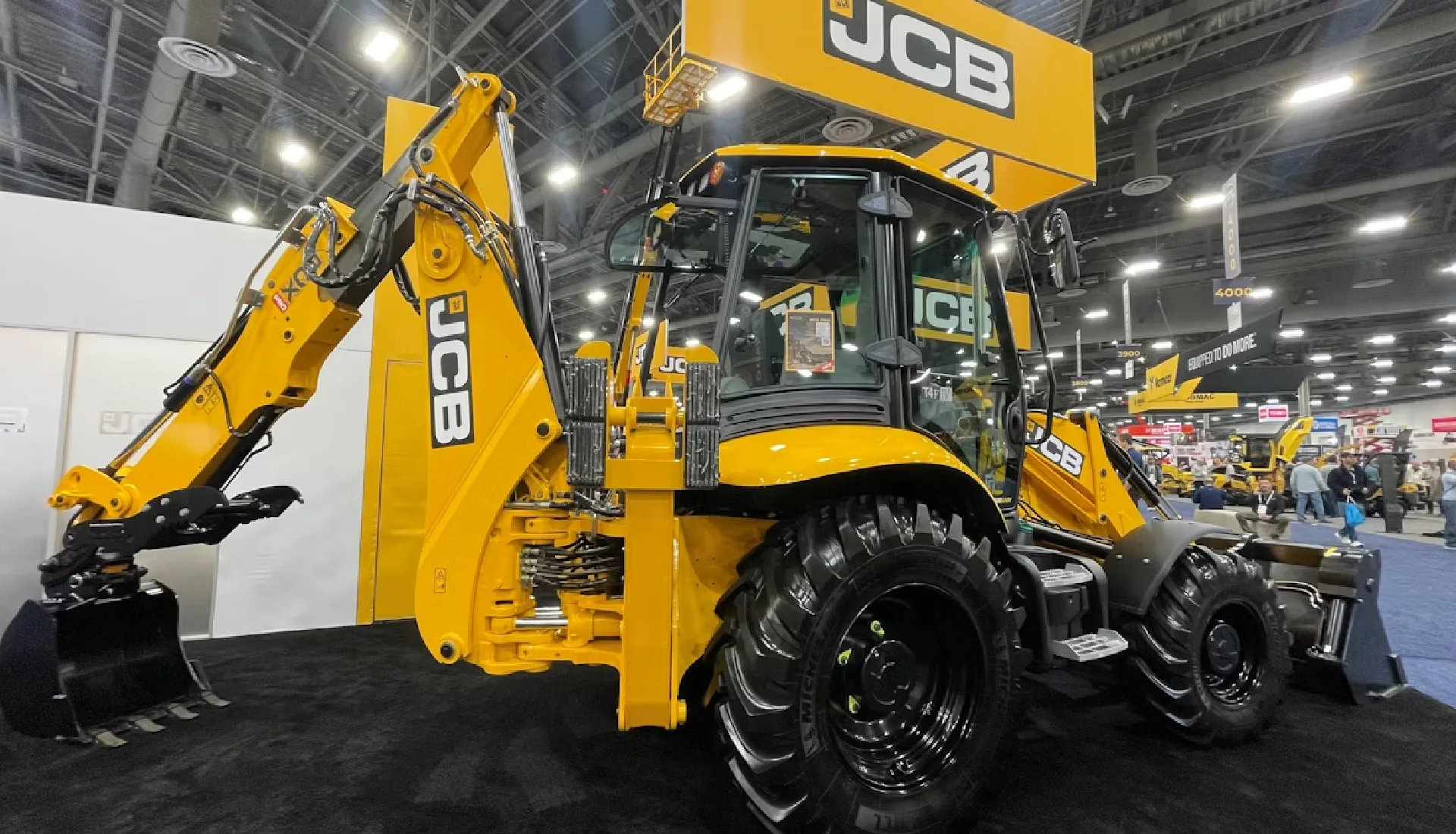

New Backhoe Loaders

Standard models will set you back anywhere from $30,000 to $250,000. That's a huge range, right? The $30K version is like getting the base model economy car – it'll do the job, but you won't get heated seats or satellite radio. That $250K model? It's got all the bells and whistles plus a digging capacity that'll make your competitors drool.

Compact backhoes start around $15,000, which sounds great until you realize they can't dig deep enough for many commercial applications. It's like buying a pickup truck that can't actually haul anything heavier than your groceries.

All those fancy attachments and accessories they try to upsell you on? They'll add anywhere from $500 (for a basic set of forks) to $25,000 (for a high-end hydraulic hammer attachment) to your bill. The salesperson conveniently leaves that part out until you've already fallen in love with the base model.

Mini backhoes can be had for as low as $4,000, making them attractive for small operations. But remember – that super-affordable $4K unit probably has the digging power of an enthusiastic golden retriever. The serious heavy-duty models can easily clear $150,000.

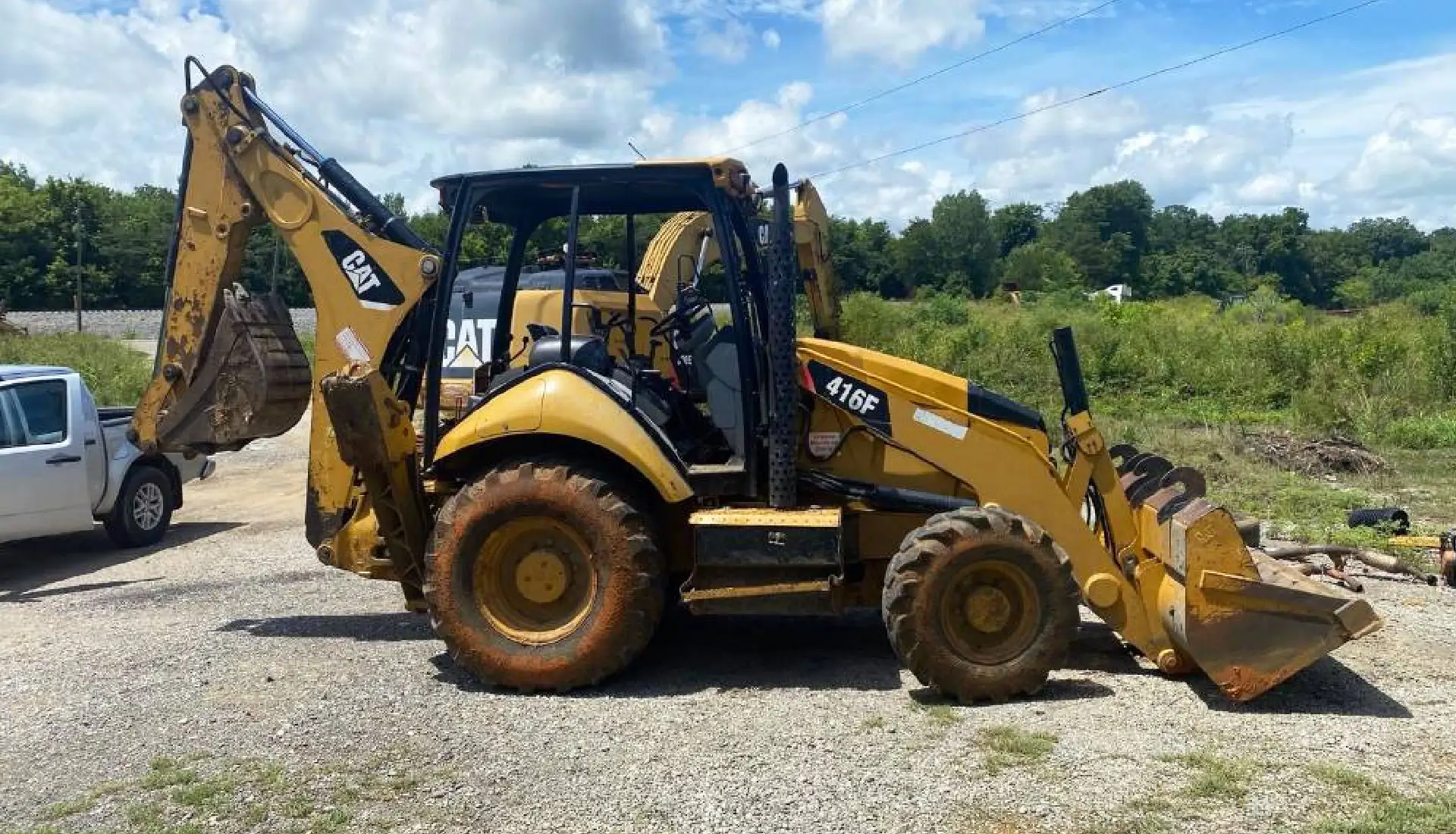

Used Backhoe Loaders

Quality used machines (emphasis on "quality") typically run between $15,000 and $100,000. The sweet spot is usually a 3-5-year-old machine with 2,000-4,000 hours on it – broken in but not broken down.

You can find compact used backhoes for as low as $1,000. But here's a universal truth: any piece of heavy equipment priced at $1,000 is going to cost you $10,000 in repairs within the first year. It's basically a parts donor at that point.

When shopping used, hours matter more than age, and maintenance records matter more than hours. I'd take a well-maintained 5,000-hour machine over a neglected 2,000-hour unit any day of the week.

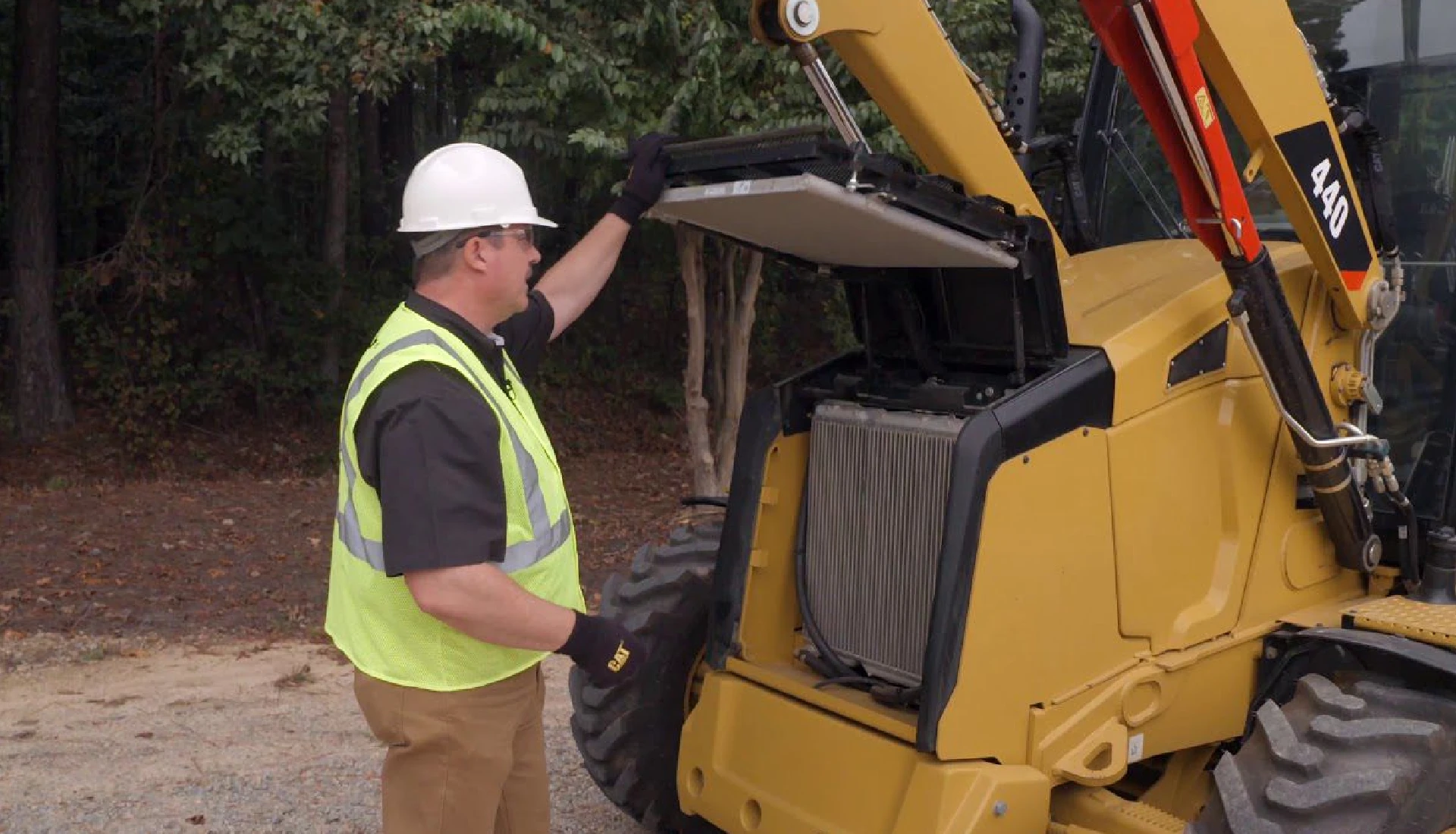

Operating Costs

The sticker price is just the beginning of your relationship with a backhoe loader. Expect to spend several thousand dollars annually on fuel, maintenance, and repairs. A typical mid-sized backhoe will burn through about $30-50 in diesel during an 8-hour shift – and that's before you've changed a single filter or replaced a hydraulic line.

Budget about 15% of your purchase price annually for operating costs. So that $100K backhoe? Plan on $15K a year to keep it running properly. Skimp on maintenance, and you'll pay twice as much in emergency repairs.

Performance of Backhoe Loaders

Let's talk about what these machines can actually do when you get them on-site and dirty:

Digging Depth: Standard backhoe loaders will get you down about 14 to 16 feet. Compact models tap out around 8 to 10 feet – fine for water lines, not so great for deep sewer connections. Spring for that extendable dipper stick, and you're looking at 17 to 18 feet of reach. For perspective, that's deep enough to bury a giraffe standing up (not that you should).

Worth noting: every manufacturer lists their max digging depth in perfect conditions – flat ground, dry soil, and an operator who knows what they're doing. In real life with wet clay and an operator who learned on YouTube last week? Subtract about 15%.

Lifting Capacity: The numbers here depend on which end you're using and how far out you're reaching. The JCB 3CX, for example, can lift about 3479kg with the loader. That's roughly the weight of a Ford F-250 pickup. Not too shabby for a machine that can also dig a swimming pool.

Remember though – these are static lift capacities. Try to drive while carrying that maximum load, and you'll get a quick lesson in tipping points and center of gravity. I've seen more than one operator try to carry too much across uneven ground. The machine rocks, the load shifts, and suddenly, everyone on site is having a very bad day.

Bucket Capacity: Most loader buckets hold about 1 cubic yard of material. In practical terms, that's roughly 1.5 tons of gravel or enough dirt to fill the bed of a standard pickup truck. Manufacturers love to list bucket capacity in heaped cubic yards, which assumes you've got a perfect mound above the rim. In the real world?

You're rarely filling to perfect heap capacity unless you're moving super dry material.

Fuel Efficiency: Here's something the brochures don't emphasize – how thirsty these machines get. Most burn between 2 and 5 gallons per hour, depending on how hard you're working them. Some newer models, like the Mahindra EarthMaster, sip as little as 1.2 gallons per hour (4.5 liters), which is pretty impressive.

Idle time is the silent killer here. I audited a site where they were burning almost 30% of their fuel budget while machines sat idling during breaks and discussions. Modern machines have auto-idle features, but operators love to override them because they don't want to wait for warm-up after lunch.

Usage Rates of Backhoe Loaders

Where exactly are these machines earning their keep? Pretty much anywhere something needs to be dug up, moved around, or both.

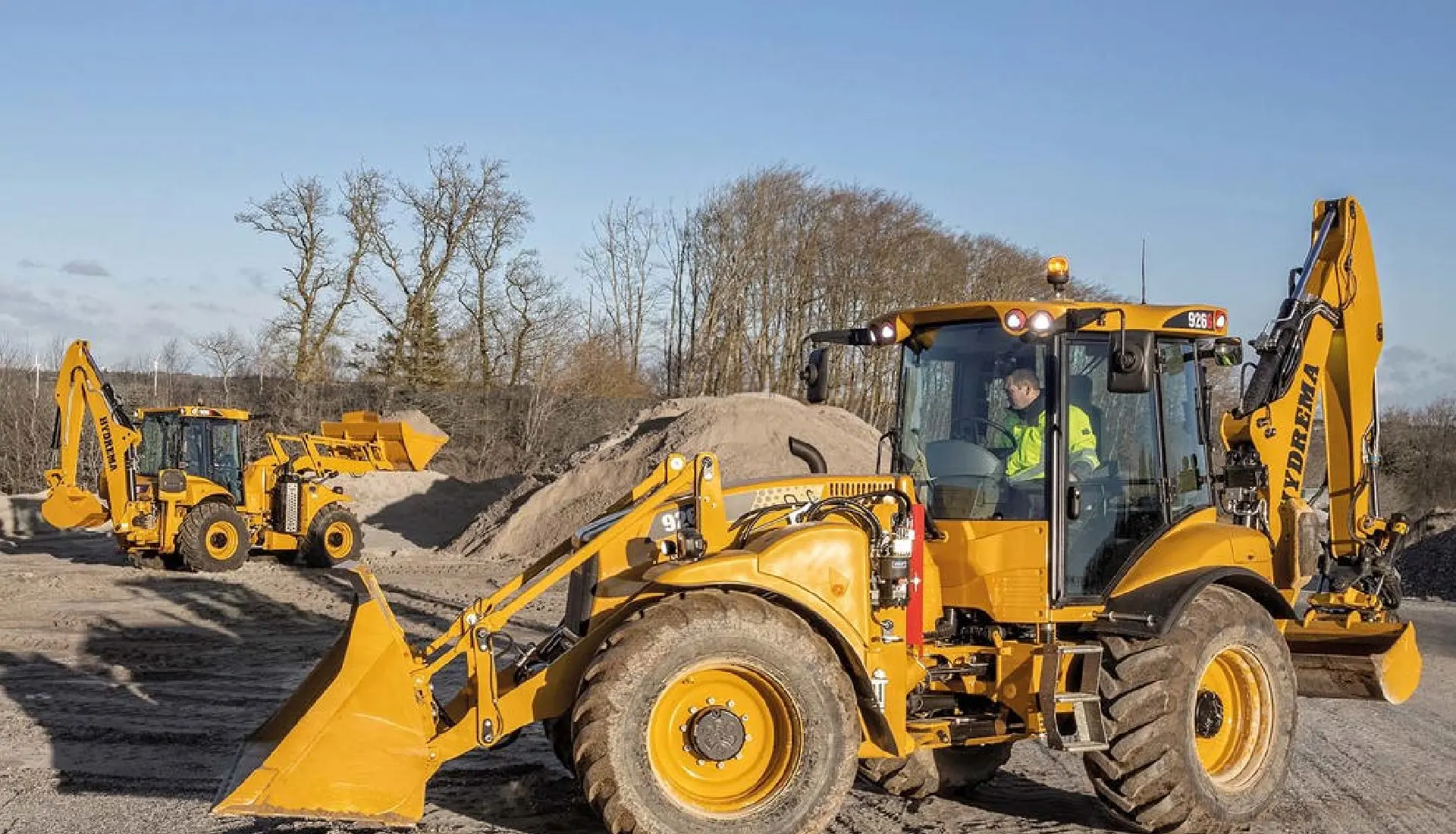

Construction

This is the obvious one. Backhoes dig foundations and trenches and excavate for everything from swimming pools to basements. They hold about 38% of the equipment market share in U.S. construction, which tells you just how essential they are.

On mid-sized residential projects, a good backhoe operator is often the difference between finishing on schedule and explaining to homeowners why their kitchen remodel is taking an extra month.

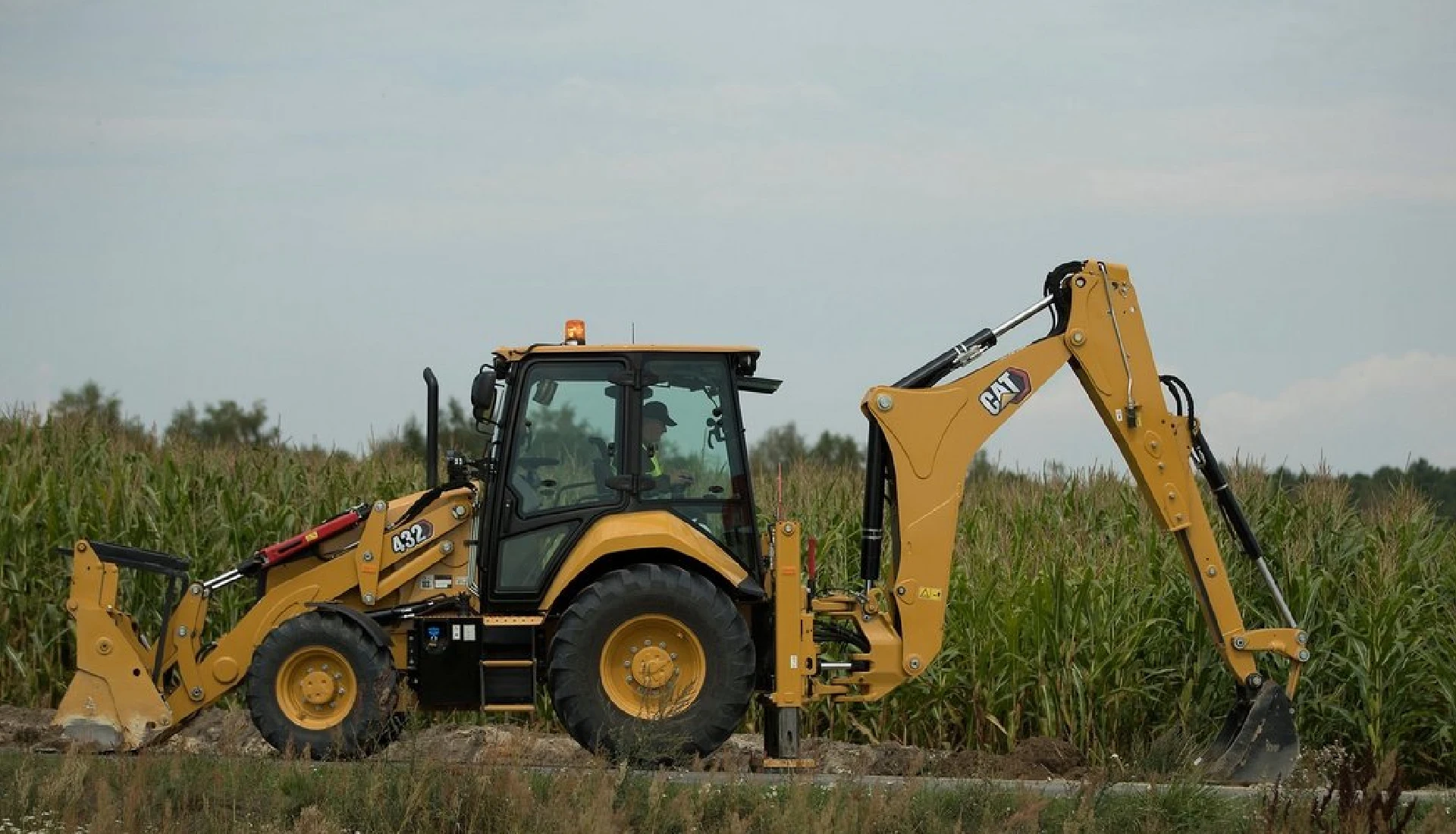

Agriculture

Farmers have figured out that these machines are perfect for digging irrigation trenches, cleaning out barn waste (a polite way of saying "moving mountains of manure"), and clearing land. A buddy of mine farms 800 acres and swears his 15-year-old Case backhoe has paid for itself five times over just in labor savings during fence installation.

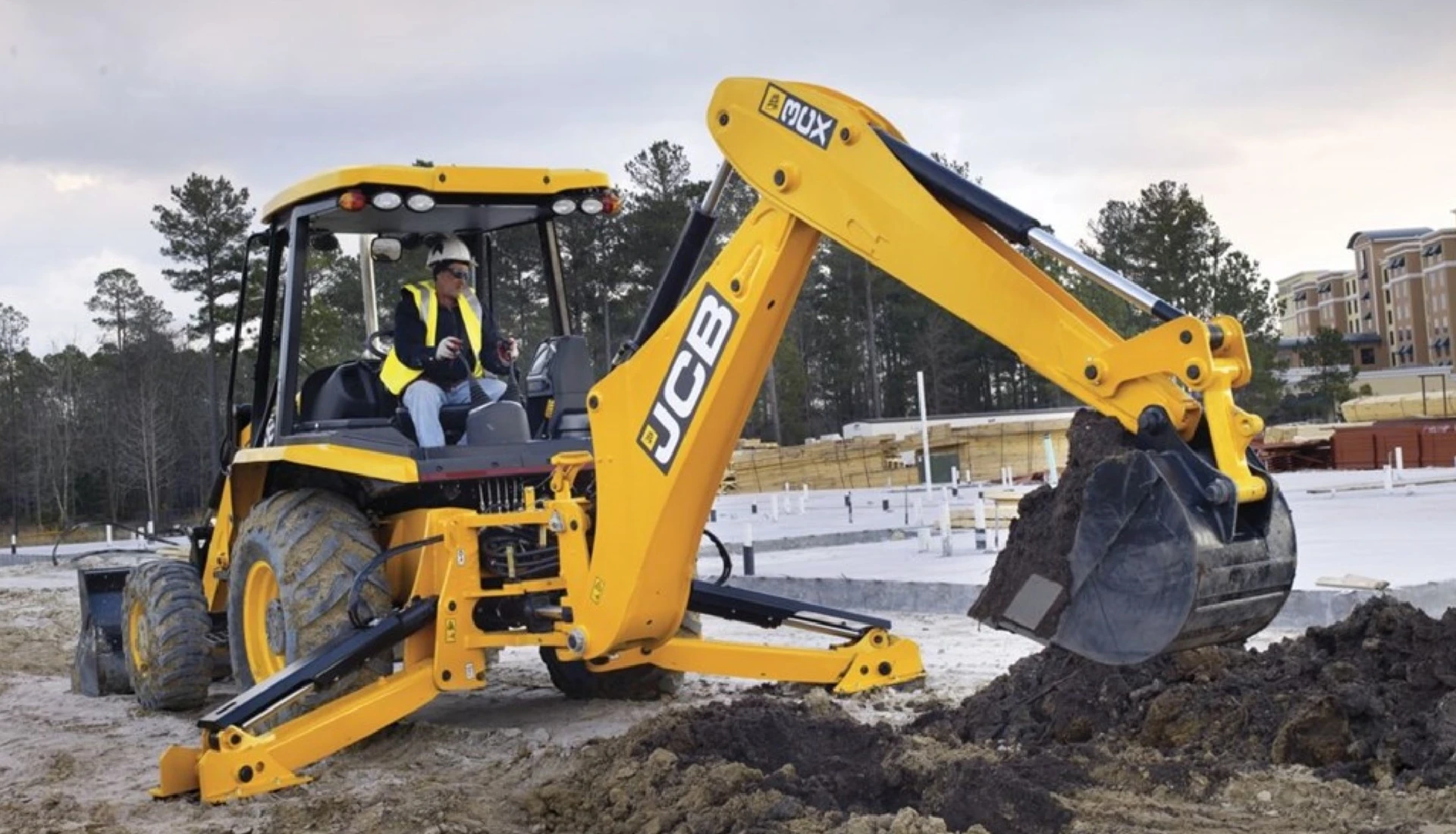

Landscaping

Ever wonder how those massive mature trees appear in new developments? Backhoes dig the holes, then help position the trees. They're also the go-to for grading work, digging water features, and installing those enormous landscape boulders that homeowners associations seem to love putting at subdivision entrances.

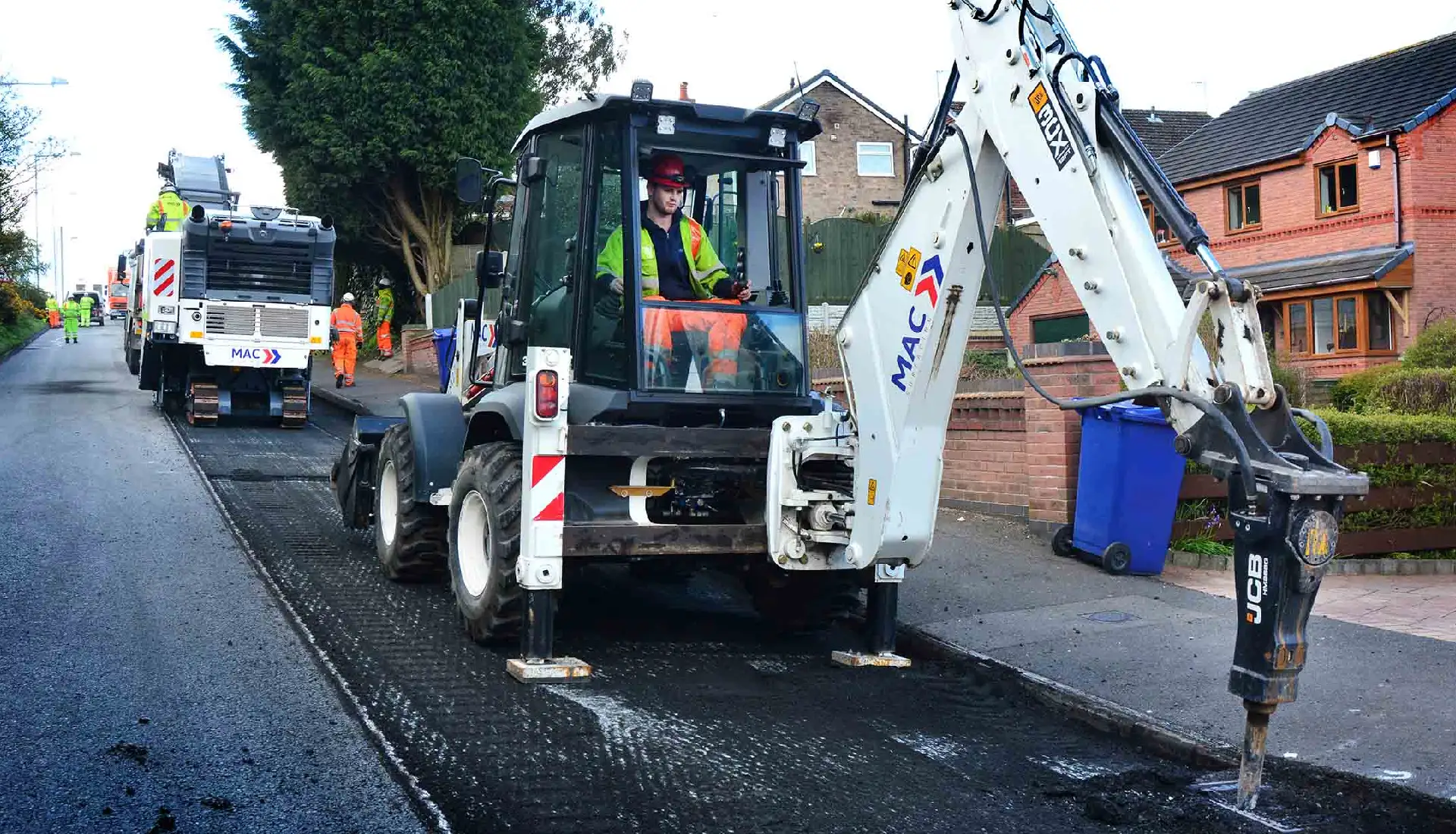

Road Maintenance

Municipal crews use backhoes for everything from filling potholes to clearing drainage ditches and repairing water main breaks. In smaller towns, the backhoe is often the public works department's most valuable player – cheaper than specialized equipment that would sit idle most of the time.

The beauty of backhoe loaders is their adaptability. One day, they're digging trenches; the next, they're loading trucks, and the day after, they're lifting pallets of material into place. It's this flexibility that keeps them in demand even when more specialized equipment is available. Jack of all trades, master of none? Maybe, but sometimes that jack is exactly what you need.

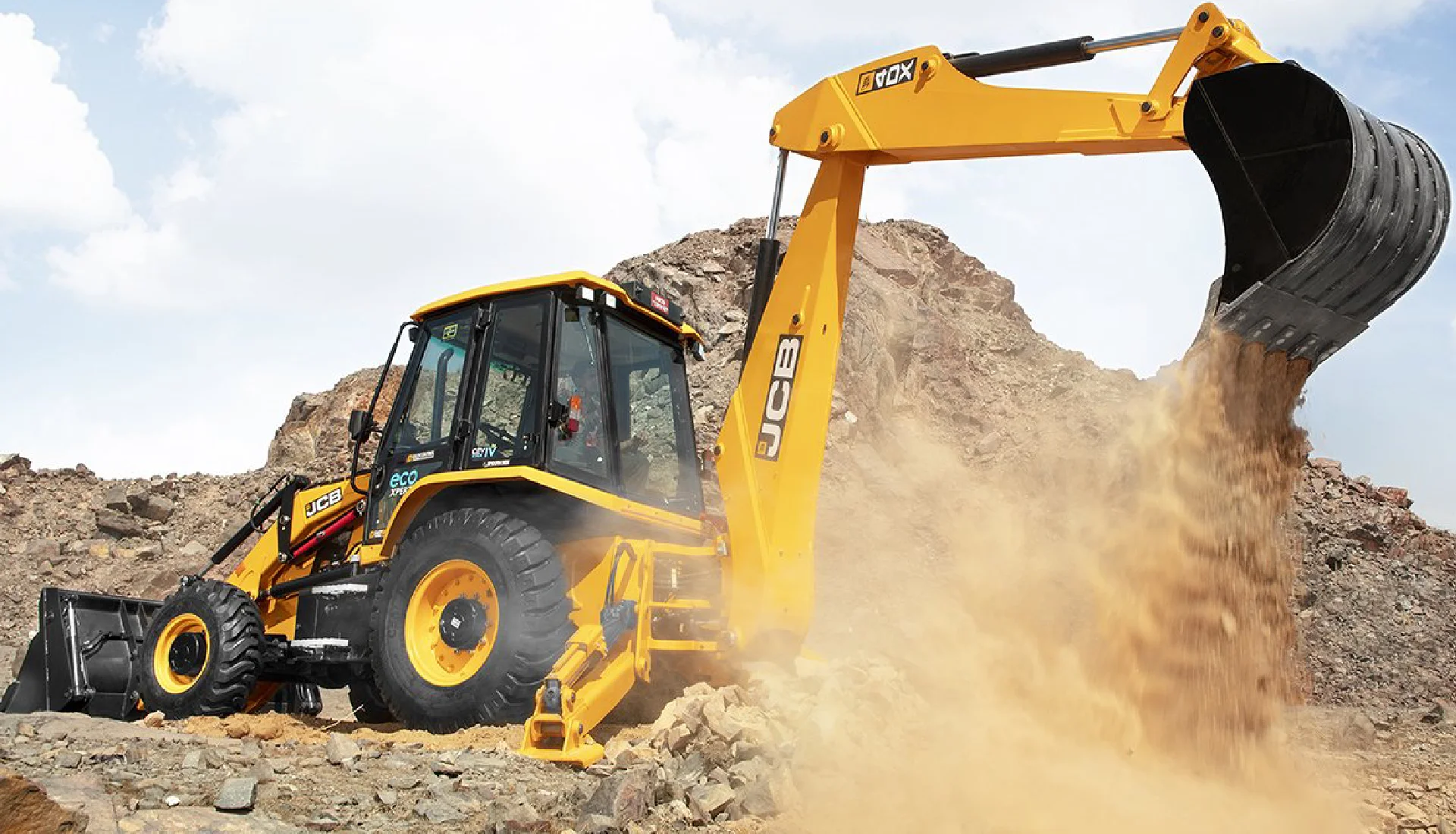

Environmental Impact of Backhoe Loaders

Let's not sugarcoat it – traditional diesel backhoes aren't exactly winning environmental awards. They've got a few issues worth noting:

Conventional backhoes pump out diesel exhaust all day long, contributing to air pollution. Ever stand downwind of an older Tier 2 engine on a cold morning? That black smoke isn't just atmospheric ambiance for your job site. It's a cocktail of particulates that make environmentalists and respiratory therapists equally nervous.

Then there's the noise factor. Standard backhoes operate at around 85-95 decibels – somewhere between a blender and a motorcycle. Try running one in a residential neighborhood at 7 am, and you'll quickly learn about noise ordinances from angry neighbors in bathrobes.

I once had a project shut down for three days because we started digging 30 minutes before the local noise restrictions were lifted. Expensive lesson.

The environmental impact goes beyond emissions and noise. Every time a backhoe breaks ground, there's potential for soil erosion. Clearing land can contribute to habitat loss and deforestation if not managed properly. You're basically rearranging nature, and nature tends to have opinions about that.

But here's the good news – the industry isn't ignoring these issues. Manufacturers have been working on solutions, and they're making real progress:

Electric and hybrid backhoe loaders are no longer just concept machines gathering dust in R&D labs. JCB, Case, and others now offer electric models that can work a full 8-hour shift on a single charge.

They produce zero emissions on site and cut noise levels by about 50%. The first time you operate one is bizarre – you can actually have a normal conversation while digging, no shouting required.

These eco-friendlier options come with a higher upfront cost (about 20-30% more than comparable diesel models), but the operational savings are starting to make sense, especially in areas with strict emissions regulations or for companies with sustainability commitments.

Plus, you can bid on those "green construction" projects that specifically require low-emission equipment.

The reality? We're in a transition period. The old-school diesel backhoes aren't disappearing overnight, but the electric revolution is gaining momentum. Five years from now, don't be surprised if the roar of diesel engines at construction sites is increasingly replaced by the gentle whir of electric motors.

Safety Features of Backhoe Loaders

Let's talk about staying alive and intact while operating these 15,000-pound machines with hydraulic arms that can crush concrete:

graph TD
    %% Main safety node
    SAFE["BACKHOE SAFETY - THE STUFF THAT KEEPS YOU ALIVE"]

    %% Critical physical safety features - RED
    SAFE --> ROPS[/"ROPS - The Roll Cage"/]
    ROPS --> ROPS_FACT["Keeps you alive when\neverything goes sideways"]

    SAFE --> SEAT[/"Seatbelt System"/]
    SEAT --> SEAT_FACT["Most ignored feature\ndespite being most critical"]

    SAFE --> STAB[/"Stabilizers/Outriggers"/]
    STAB --> STAB_FACT["Skip deployment = guaranteed\ntipover at full extension"]

    %% Secondary physical systems - BLUE
    SAFE --> BWS["Backup Warning System"]
    BWS --> BWS_FACT["That annoying beeping\nprevents crushed coworkers"]

    SAFE --> GUARD["Guards & Shields"]
    GUARD --> GUARD_FACT["Keep all your fingers\nwhere they belong"]

    %% Human factor - YELLOW
    SAFE --> OP["Operator Practices"]
    OP --> INSPECT["Pre-operation Inspection"]
    OP --> AWARE["Situational Awareness"]
    OP --> PRACTICE["Proper Digging Technique"]

    INSPECT --> INSPECT_FACT["90% of failures show\nwarning signs first"]
    AWARE --> AWARE_FACT["Can't avoid what\nyou don't see"]
    PRACTICE --> PRACTICE_FACT["Prevents cave-ins\nand tipovers"]

    %% Styling classes
    classDef critical fill:#ff6b6b,stroke:#333,stroke-width:2px,color:white,font-weight:bold
    classDef secondary fill:#4ecdc4,stroke:#333,stroke-width:1px
    classDef operator fill:#ffe66d,stroke:#333,stroke-width:1px
    classDef fact fill:#f7f7f7,stroke:#333,stroke-width:1px,font-style:italic,font-size:14px

    %% Apply styles
    class ROPS,SEAT,STAB critical
    class BWS,GUARD secondary
    class OP,INSPECT,AWARE,PRACTICE operator
    class ROPS_FACT,SEAT_FACT,BWS_FACT,STAB_FACT,GUARD_FACT,INSPECT_FACT,AWARE_FACT,PRACTICE_FACT fact
    class SAFE critical

Rollover Protective Structure (ROPS): That cage around the cab isn't there for style points. It's designed to keep you from becoming one with the earth if the machine decides to do a somersault. I knew a guy who rolled a backhoe down a 30-foot embankment.

The machine was totaled, but he walked away with just a bruised ego and a new appreciation for seatbelts. Speaking of which...

Seat Belt: The most ignored safety feature in the industry. It's amazing how many operators think ROPS will save them while they bounce around inside the cab like a ping pong ball. The seatbelt keeps you inside that protective cage during a rollover instead of being ejected through the window.

It's pretty simple math: Stay inside ROPS = probably okay. Get thrown out = probably not okay.

Backup Warning System: That annoying beeping sound when backing up? It's saved countless lives. You'd think a 15,000-pound bright yellow machine would be hard to miss, but construction sites are noisy, people wear ear protection, and workers get focused on their tasks.

That beeping noise is the difference between an ordinary Tuesday and a lifetime of guilt for an operator.

Stabilizers: Those outrigger legs aren't optional accessories – they're what keeps your machine from tipping over when you're fully extended and digging at maximum depth. Yet, at least once a month, I see someone trying to dig without deploying them because they're "just doing a quick hole."

Fun fact: Tipping over sideways happens quickly, too.

Guards and Shields: All those metal plates covering moving parts aren't there to make maintenance more annoying (though they do). They're keeping you from finding out exactly how many fingers you can lose in a pinch point. Leave them on.

Beyond the equipment features, there's the human factor. The best safety system is an operator who does pre-shift inspections, stays aware of their surroundings, and follows best practices for digging, lifting, and transporting.

I've investigated enough backhoe accidents to see the pattern: about 90% come down to someone taking shortcuts. Didn't check ground conditions. Didn't deploy stabilizers fully. Carried a load too high while driving over uneven ground. Dug too close to an undercut edge.

The safest backhoe in the world is only as safe as the person operating it. But when used properly, modern machines have enough built-in protection to keep most mistakes from becoming tragedies.

Conclusion

Backhoe loaders have earned their place on job sites through decades of refinement, proving their versatility across tasks that would otherwise require multiple machines. The integrated design isn’t a compromise—it’s the industry standard because it works.

Choosing the right backhoe isn’t just about brand or size; it’s about matching digging depth and hydraulic capacity to your needs. A 14-16 ft. depth covers 90% of jobs, while an extendable unit’s extra reach only justifies its cost if it saves frequent excavator rentals.

Electric and hybrid models are no longer just buzzwords—they’re practical, offering full 8-hour shifts while sidestepping emissions and noise restrictions. Paired with proper training (yes, stabilizer legs and seatbelts matter), today’s backhoes deliver on their promise: doing two jobs with one machine without compromise.
