Backhoe Sizes Explained: Mini vs. Mid-Size vs. Large Models Compared

Backhoe selection isn’t about engine bragging rights—it’s about matching digging depth to project needs and lifting capacity to material handling. A mid-size JCB 3CX with a 14-foot digging depth may outperform a 17-foot Caterpillar 450 when factoring in transport, urban maneuverability, and a $100K price gap.

This guide breaks down the technical specs, real-world applications, and cost considerations that matter when choosing between mini, mid-size, and large backhoe sizes.

Backhoe sizes vary by class: compact models range from 6 to 9 feet in dig depth, standard models dig 12 to 14 feet, and large backhoes reach up to 17 feet. Operating weights range from 6,000 to 25,000 pounds. Size affects digging depth, power, and transport needs.

Comparing Backhoe Sizes

Backhoe loaders generally fall into three main categories, and yes, it's all about size and digging depth:

graph TD
    subgraph "Backhoe Size Comparison"
    A[Mini Backhoe] --> A1[Digging Depth: 7-11 ft]
    A --> A2[Weight: < 15,432 lbs]
    A --> A3[Price: $15K-$80K new]
    A --> A4[Best for: Residential & tight spaces]

    B[Mid-Size Backhoe] --> B1[Digging Depth: 13-18 ft]
    B --> B2[Weight: 15,432-20,000 lbs]
    B --> B3[Price: $80K-$150K new]
    B --> B4[Best for: General construction & versatility]

    C[Large Backhoe] --> C1[Digging Depth: >18 ft]
    C --> C2[Weight: >20,000 lbs]
    C --> C3[Price: $100K-$250K new]
    C --> C4[Best for: Heavy-duty construction & deep excavation]
    end

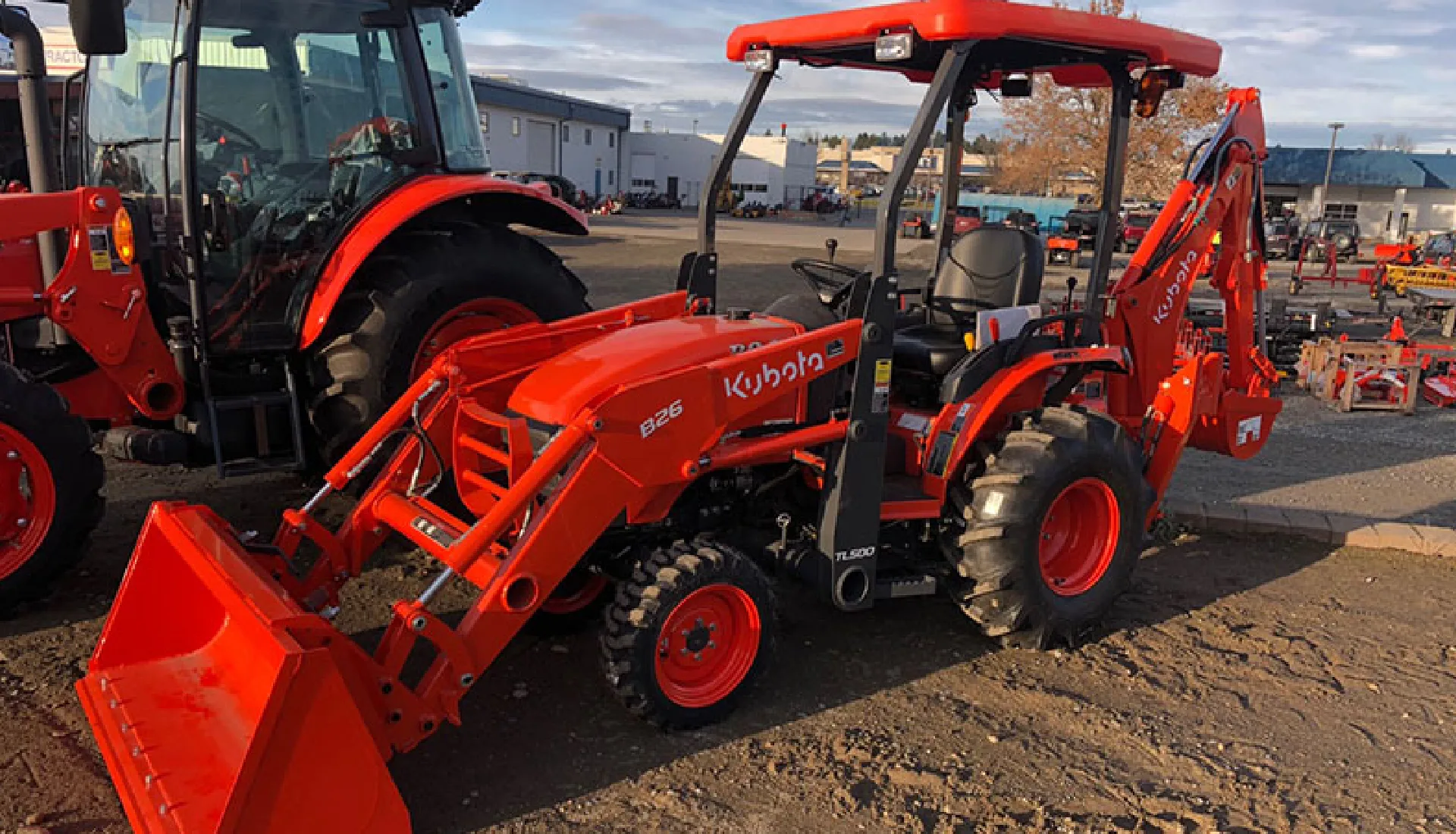

Mini Backhoes

These are the compact performers of the backhoe world—perfect for residential jobs and those tight spaces where a full-size machine would be like trying to parallel park a bus in downtown traffic. Mini backhoes typically dig between 7 to 11 feet down and weigh less than 15,432 pounds.

What they sacrifice in raw power and digging depth, they make up for with maneuverability and a smaller footprint. They're the go-to for landscaping, light excavation, and urban projects where space is at a premium and you need to avoid tearing up finished surfaces.

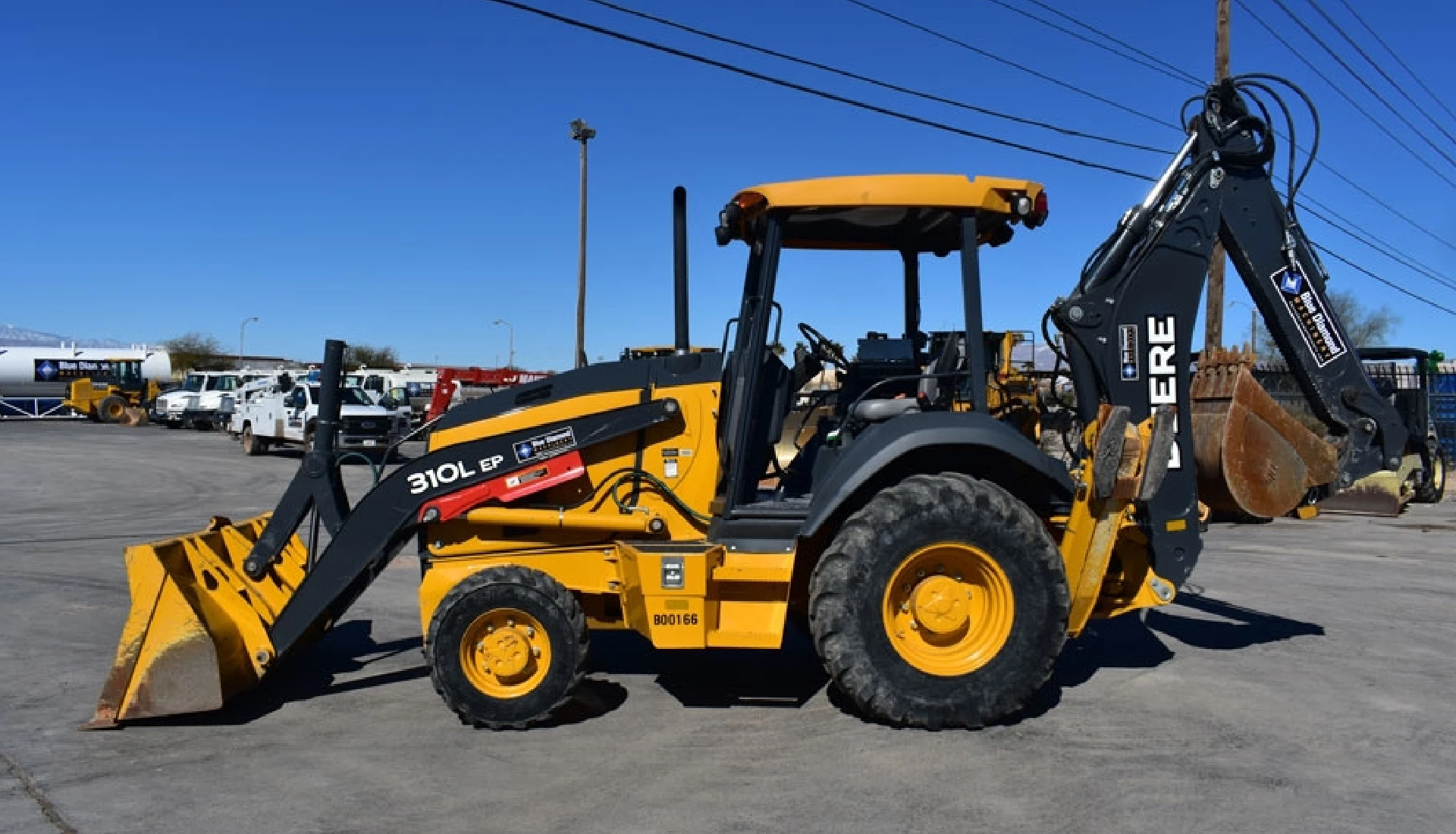

Mid-Size Backhoes

These are the industry standard—the machines most contractors picture when someone says "backhoe." Mid-sizers hit the sweet spot between power and maneuverability, typically digging 13 to 18 feet down and weighing between 15,432 to 20,000 pounds.

They're versatile enough to handle everything from general construction to road maintenance and agricultural work. Need to dig foundations, trench for utilities, or move some serious material around?

A mid-size backhoe can handle it while still being nimble enough to navigate most job sites without becoming a logistical nightmare.

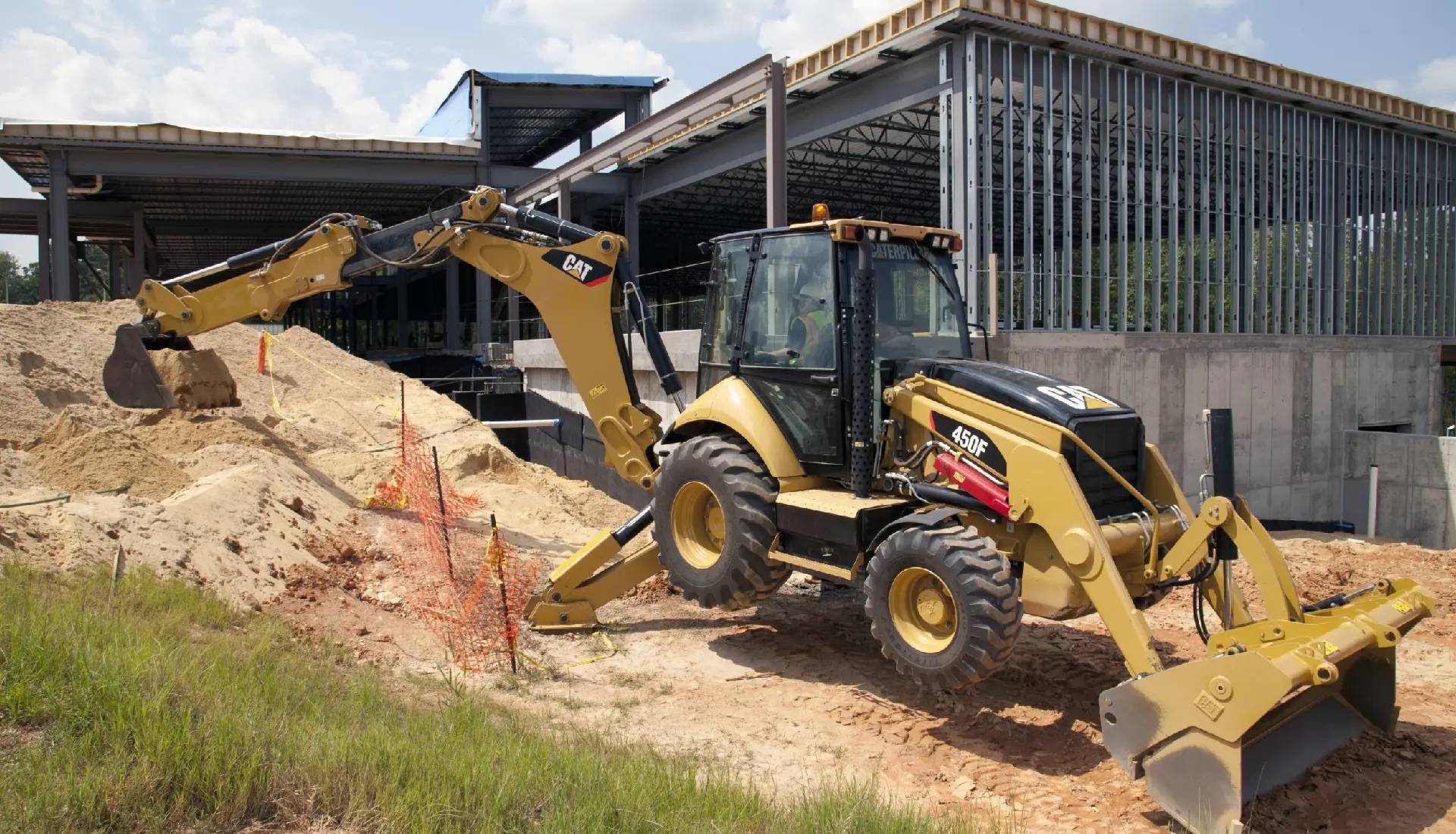

Large Backhoes

When the job calls for serious muscle, large backhoes step up to the plate. These heavy-hitters dig deeper than 18 feet and tip the scales at over 20,000 pounds. They're the machines you want for demanding construction projects, mining operations, and large-scale excavation where depth and lifting capacity matter more than fitting into tight spaces.

Their increased size and weight provide the stability and power needed for handling substantial loads and digging those extra-deep trenches.

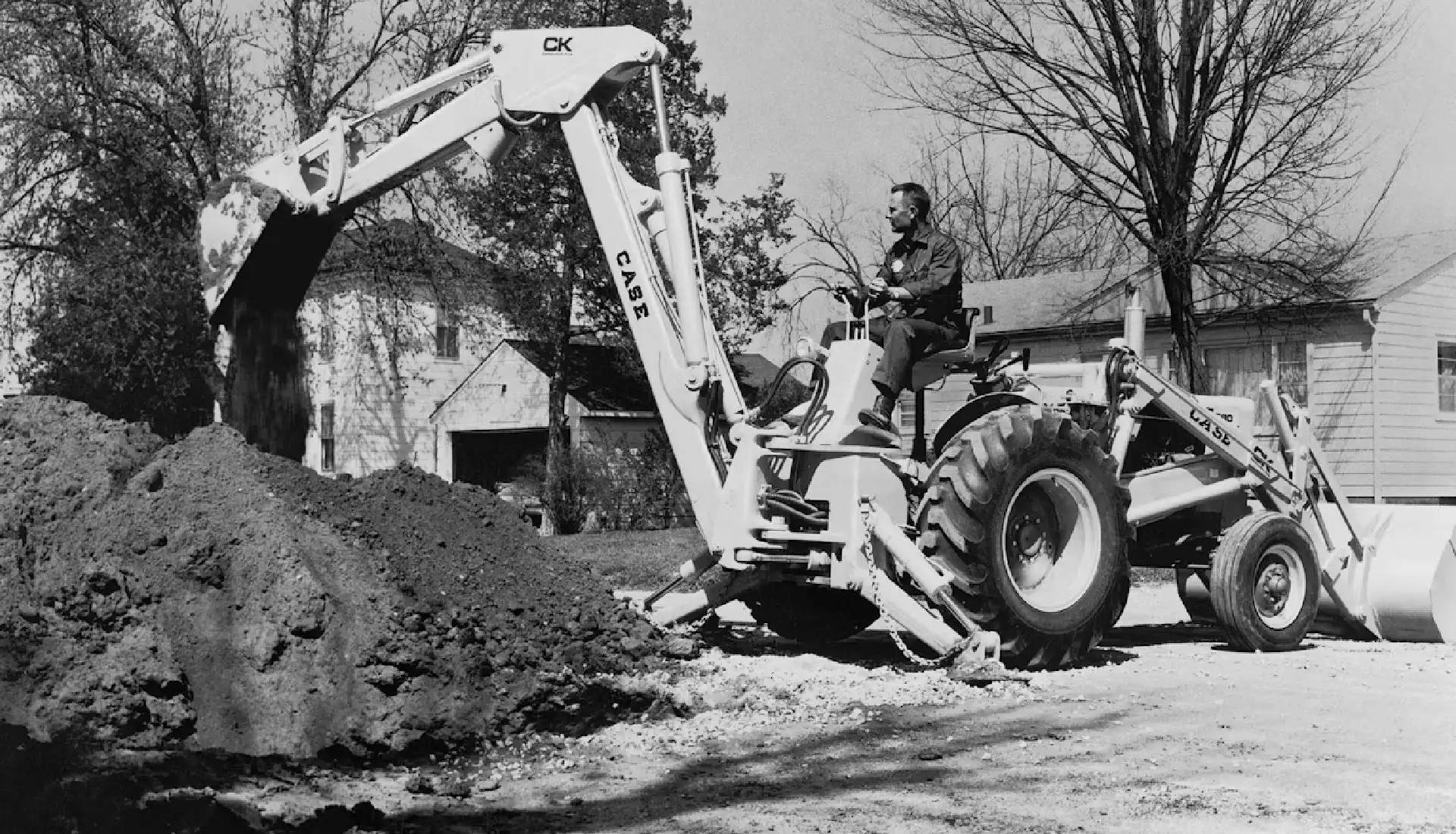

Historical Developments

The backhoe's evolution is a classic tale of necessity driving innovation. While manufacturers initially focused on building bigger, stronger machines for heavy-duty applications, recent years have seen a shift toward more compact, versatile models that can handle a wider range of tasks.

Ever wonder when backhoes actually became a thing? The story starts in 1947 when Vaino Holopainen and Roy Handy Jr. invented the backhoe swing frame. This wasn't just some minor tweak—it allowed the digging arm to swing sideways, completely transforming how material could be dumped. Talk about a game-changer.

Fast forward to 1948, and the Wain-Roy Corporation sells the first all-hydraulic backhoe mounted on a Ford Model 8N tractor. If you've ever operated those old cable-operated machines, you know exactly why this hydraulic system was revolutionary.

1957 marks the year Case developed the first integrated tractor backhoe loader, while JCB introduced their dedicated backhoe loader with permanently attached excavator and loader components. These weren't just machines anymore—they were purpose-built tools that helped define modern construction equipment.

The 1970s brought another major leap: four-wheel drive systems courtesy of Hy-Dynamic. Suddenly these machines could tackle terrain that would have bogged down earlier models, expanding their usefulness across construction, agriculture, and just about everywhere else people needed to dig holes.

Look at the arms on modern backhoes from Caterpillar and John Deere, and you'll notice they've adopted a curved shape similar to excavators. This isn't just for looks—it significantly improves maneuverability and digging precision.

The trend toward compact models isn't just about manufacturers trying to sell more machines. It's driven by real needs: increased maneuverability in tight spaces, easier transport between job sites, and minimizing damage to finished surfaces.

These smaller units excel in urban environments and residential projects where space comes at a premium and clients aren't exactly thrilled about having their landscaping torn up.

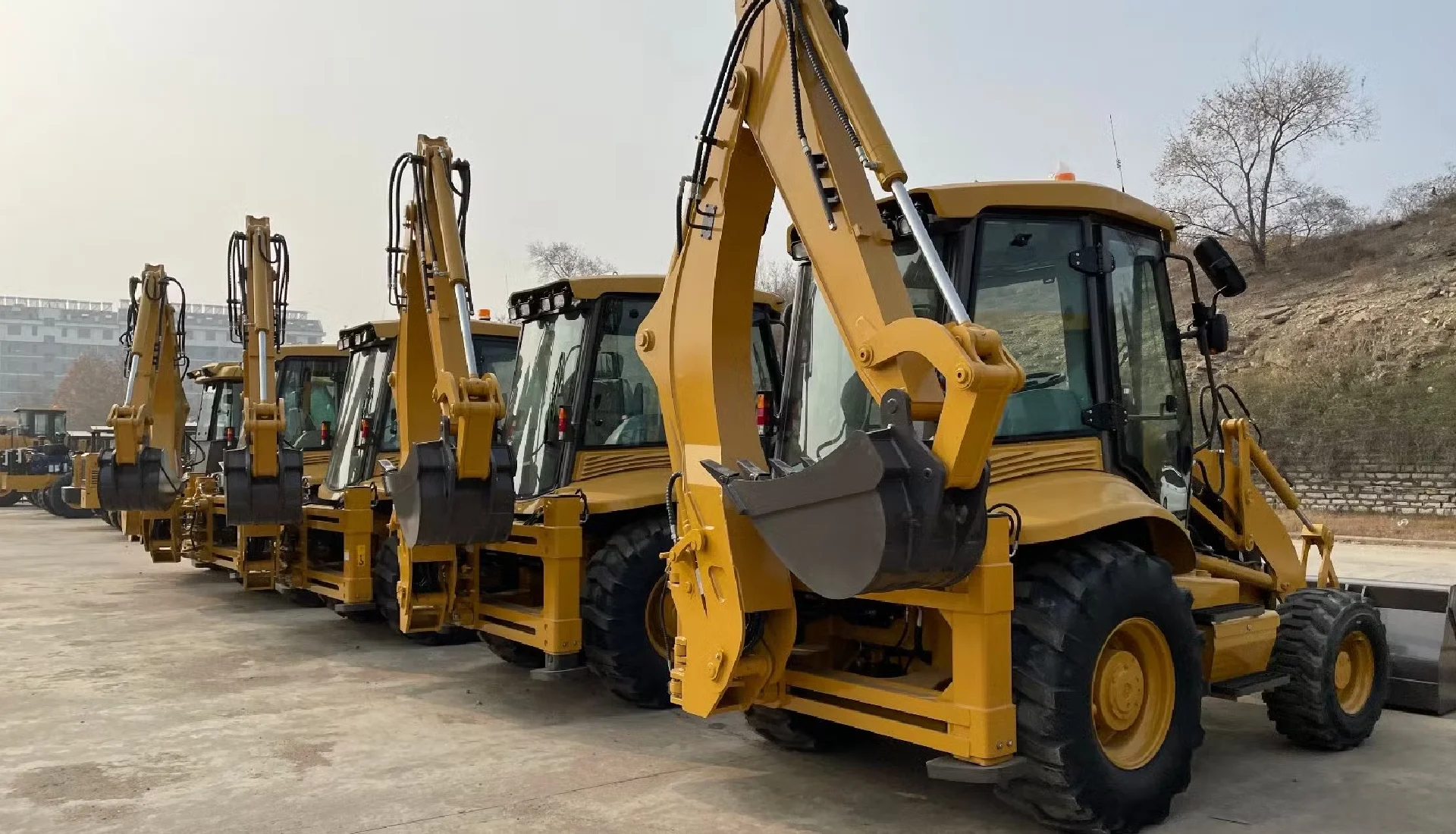

Cost Ranges

"How much does a backhoe cost?" might sound like a straightforward question, but the answer depends on size, features, condition, brand reputation, and whether you're looking at a machine that comes with all the bells and whistles.

New backhoes can run anywhere from $30,000 to $250,000, while quality used machines typically range from $15,000 to $100,000. If you're eyeing compact models, expect to shell out around $15,000 new or as little as $1,000 for a well-used unit (though at that price point, prepare for some quality time with your mechanic).

Here's a breakdown of what you can expect to pay:

Let's talk about the costs that don't show up on the price tag. Regular maintenance will set you back between $2,000 and $4,000 for every 2,000 hours of operation. Insurance isn't cheap either—plan on spending $1,200 to $3,000 annually to keep your investment protected.

Not ready to commit to ownership? Renting is always an option, and the rates vary based on machine size and how long you need it:

Performance Metrics

When evaluating backhoes, there are several key performance metrics that separate the contenders from the pretenders:

Digging Depth: This is the maximum depth your backhoe can dig down—a critical factor when deciding which machine fits your typical projects. Whether you're excavating foundations, trenching for utilities, or digging irrigation channels, your required depth will guide this choice.

Reach: Think of this as your backhoe's wingspan—the maximum horizontal distance the arm can extend. Good reach means less repositioning of the machine, saving you time and fuel. It's particularly important when working around obstacles or accessing hard-to-reach areas.

Lifting Capacity: How much weight can the backhoe safely lift? This matters tremendously when you're loading trucks, placing pipes, or moving those massive concrete structures that always seem heavier than the specs indicated.

Bucket Capacity: This determines how much material you can move in a single scoop. A larger bucket might seem better, but it's all about matching capacity to your machine's power and the materials you're typically handling.

Operating Weight: The machine's weight affects everything from transport requirements to ground pressure and stability. Heavier isn't always better—especially when you're working on softer ground or need to minimize surface damage.

Engine Power: Measured in horsepower (hp), this indicates your backhoe's ability to handle demanding tasks. Mini backhoes typically pack 20-60 hp engines, mid-sizers run 50-100 hp, and the large models can exceed 300 hp.

These metrics don't exist in isolation—they influence each other. A machine with greater digging depth often needs longer reach and higher lifting capacity to maintain stability and efficiency when operating at maximum extension.

Don't forget that real-world conditions dramatically affect performance. That backhoe that performed beautifully on level ground might struggle on sloped terrain.

The machine that sailed through summer jobs might face challenges in freezing conditions. And even the best-spec'd backhoe won't perform to its potential without a skilled operator at the controls.

Usage Rates

Backhoe loaders earn their keep across multiple industries, with each size category finding its niche in different applications:

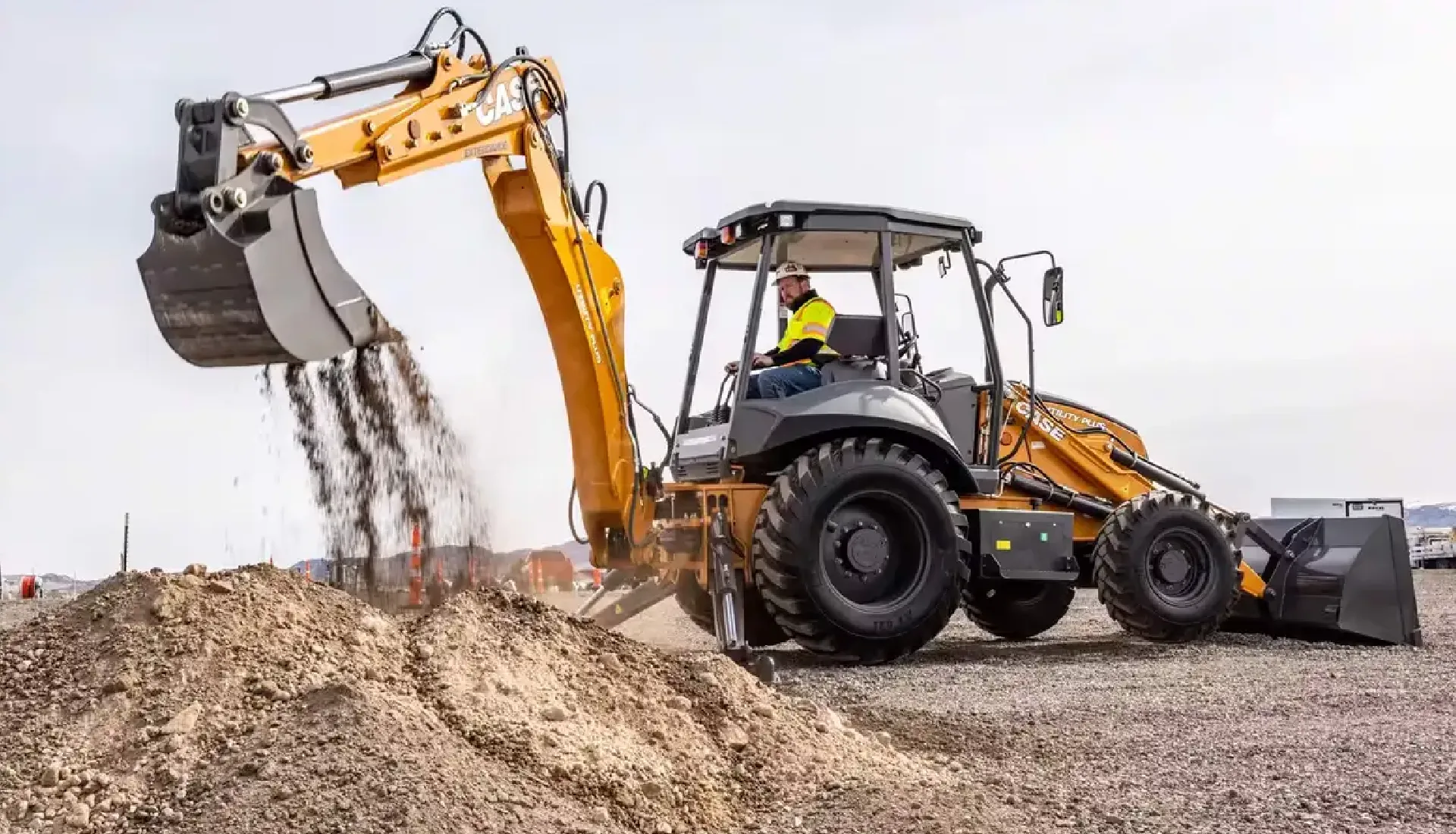

Construction

The industry where backhoes truly shine:

• Mini Backhoes: Perfect for digging utility and drainage trenches up to 10 feet deep, precision grading, and demolishing smaller structures without collateral damage.
• Mid-Size Backhoes: The go-to for trenching pipes and cables at 8-12 feet, digging residential and small commercial foundations, and general site prep that requires a balance of power and precision.
• Large Backhoes: These tackle the heavy lifting—foundations for larger structures, expansive excavation projects, and moving materials that would make smaller machines struggle.

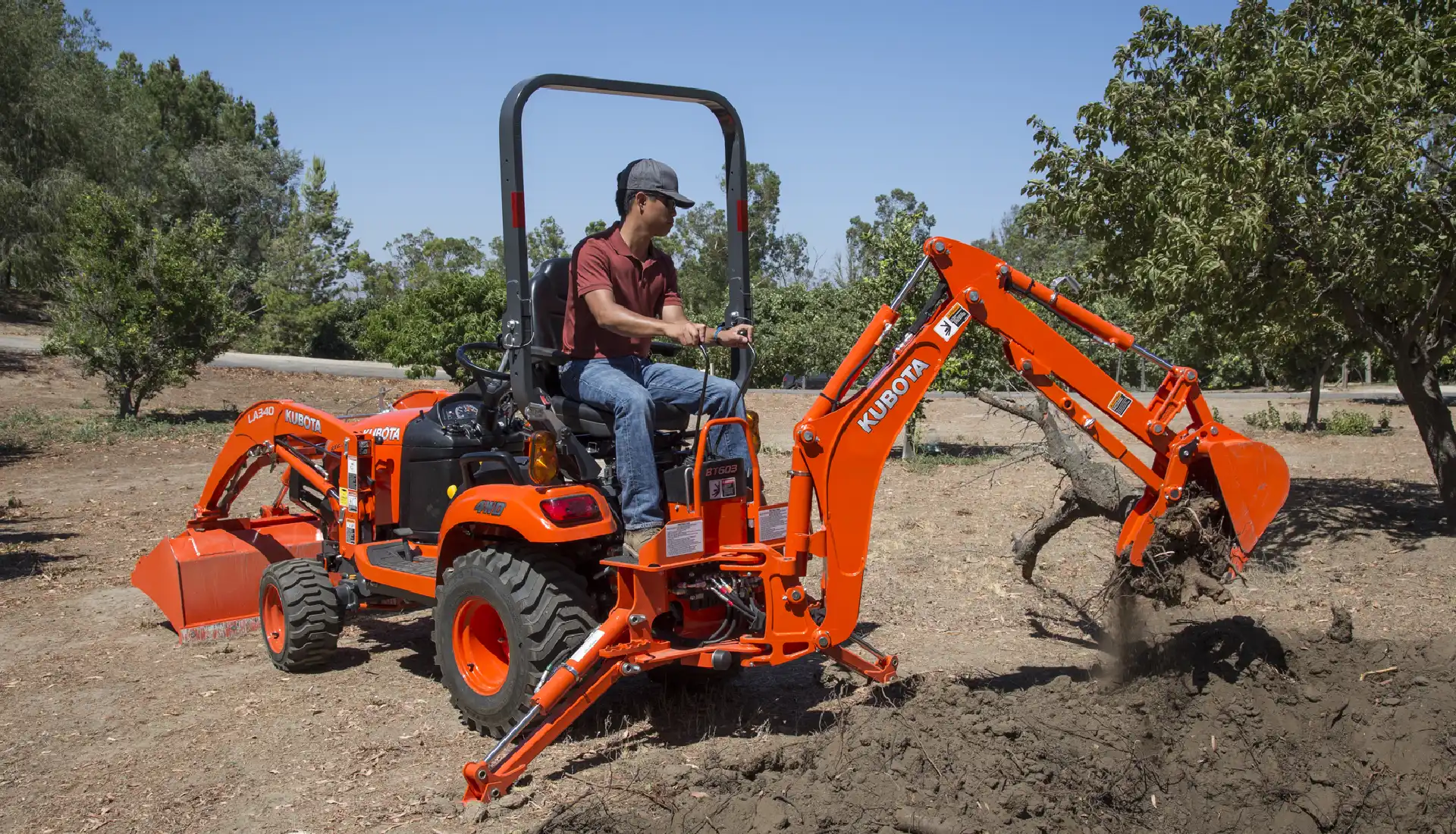

Landscaping

From backyard makeovers to commercial installations:

• Mini Backhoes: Ideal for clearing land, extracting stubborn stumps and rocks, and prepping ground for landscaping features without destroying the surrounding area.
• Mid-Size Backhoes: These handle grading and leveling larger parcels, digging holes for substantial tree plantings, and installing irrigation systems efficiently.
• Large Backhoes: When you need to move serious amounts of soil and debris, clear land for development, or construct substantial retaining walls, these machines deliver.

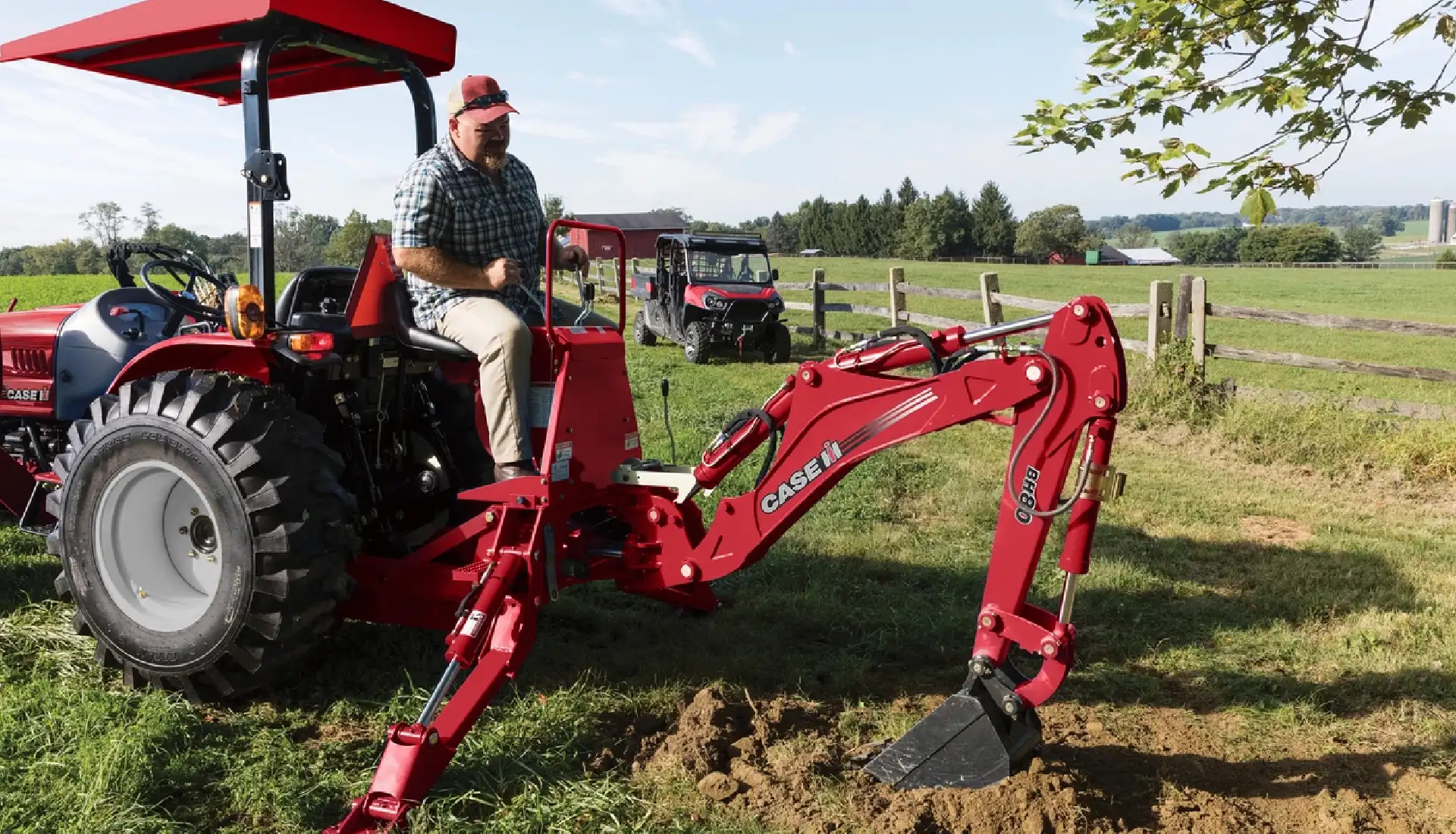

Agriculture

Farm applications where versatility pays dividends:

• Mini Backhoes: Farmers use these for digging modest irrigation channels, removing field obstacles, and handling lighter materials around the farm.
• Mid-Size Backhoes: Perfect for digging irrigation trenches, mucking out barns (not the most glamorous job, but someone's got to do it), and preparing land for crop planting.
• Large Backhoes: These tackle heavier agricultural tasks like moving feed and equipment, digging ponds or reservoirs, and clearing larger parcels for planting.

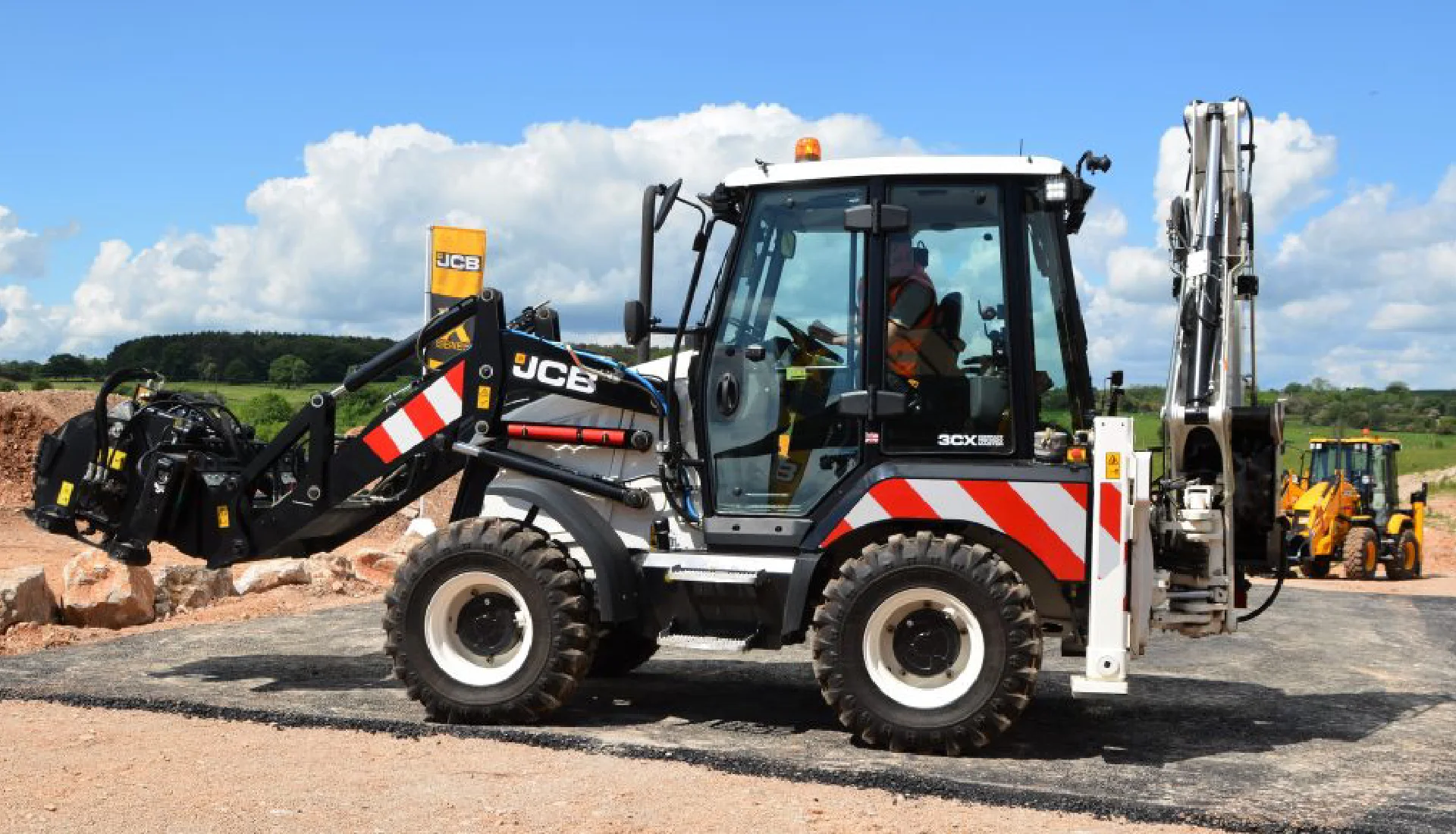

Road Maintenance

Keeping infrastructure in working order:

• Mini Backhoes: These navigate tight spaces for sidewalk and curb repairs, filling potholes and clearing debris from roadsides without blocking traffic.
• Mid-Size Backhoes: The standard for roadway repairs, pothole filling, and snow removal operations where maneuverability matters.
• Large Backhoes: When you need to break up substantial pavement sections, excavate for major road construction, or handle heavier materials, these machines have the muscle.

The right backhoe size for your operation depends on more than just preference—project scale, required digging depth, terrain challenges, and material volume all factor into making the smart choice rather than the impressive one.

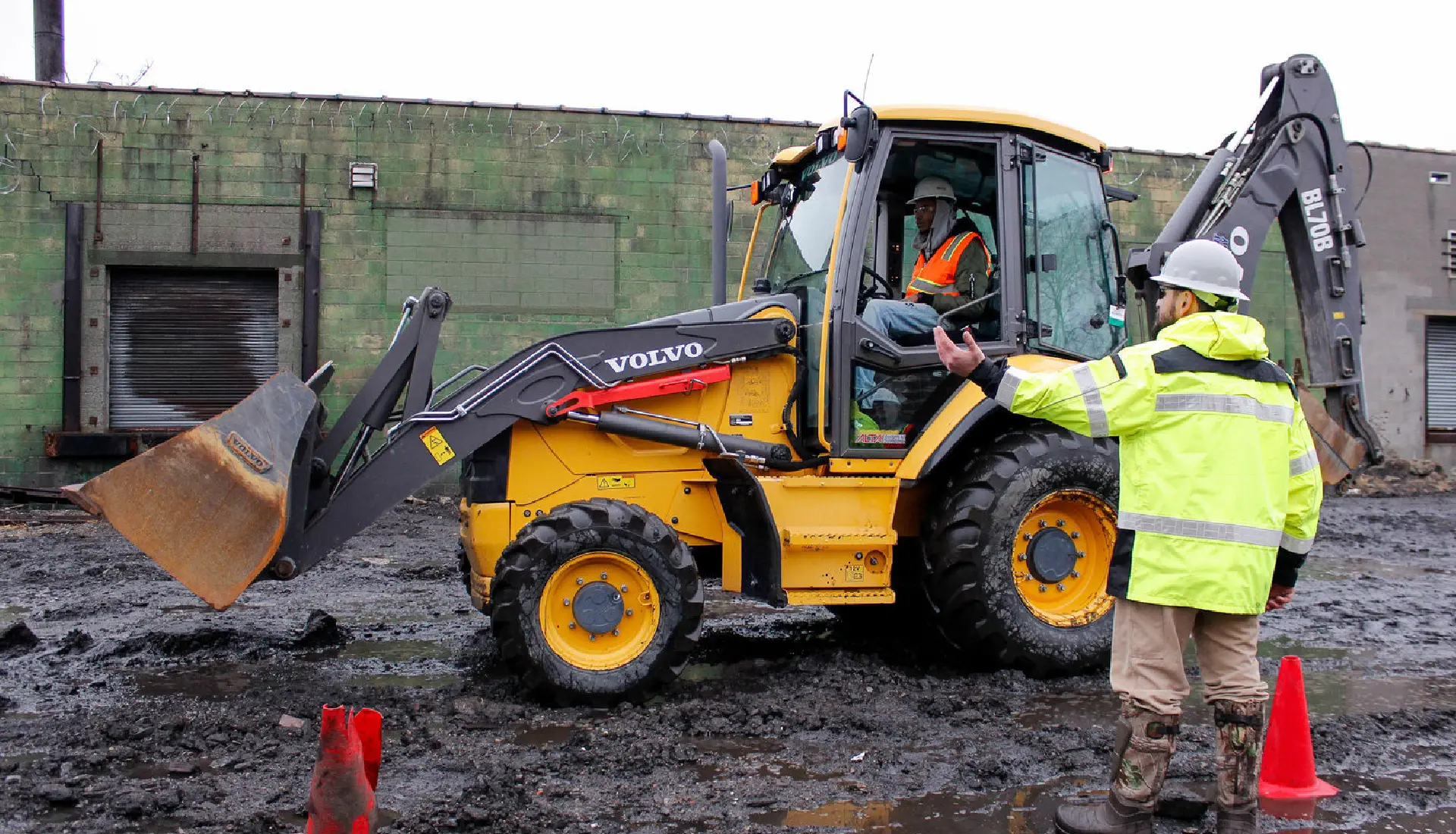

Relevant Considerations

When selecting a backhoe, there are several factors that separate a good match from an expensive mistake:

Type of Work: What will you actually be doing with this machine day-to-day? The required digging depth, reach, and lifting capacity depend entirely on your typical projects. That foundation for a multi-story building demands significantly more capability than landscaping a residential yard.

Terrain: Where will your backhoe operate? Uneven or sloping ground demands a machine with a wider wheelbase and lower center of gravity for stability. What looks great on paper might be a liability on a hillside.

Operator Experience: Let's be honest—operator skill varies widely. Less experienced operators often find smaller backhoes with simpler controls more manageable and safer. There's no shame in matching the machine to the operator rather than forcing the issue.

Budget: What can you actually afford? The trick is balancing initial cost against capabilities and potential return on investment. Sometimes, spending more upfront saves substantial money over the machine's lifetime—other times, it's just spending more.

Attachments: Will you need specialized attachments like augers, hammers, or grapples? Some attachments demand higher hydraulic flow and engine power, potentially pushing you into a larger machine category even if your digging needs don't require it.

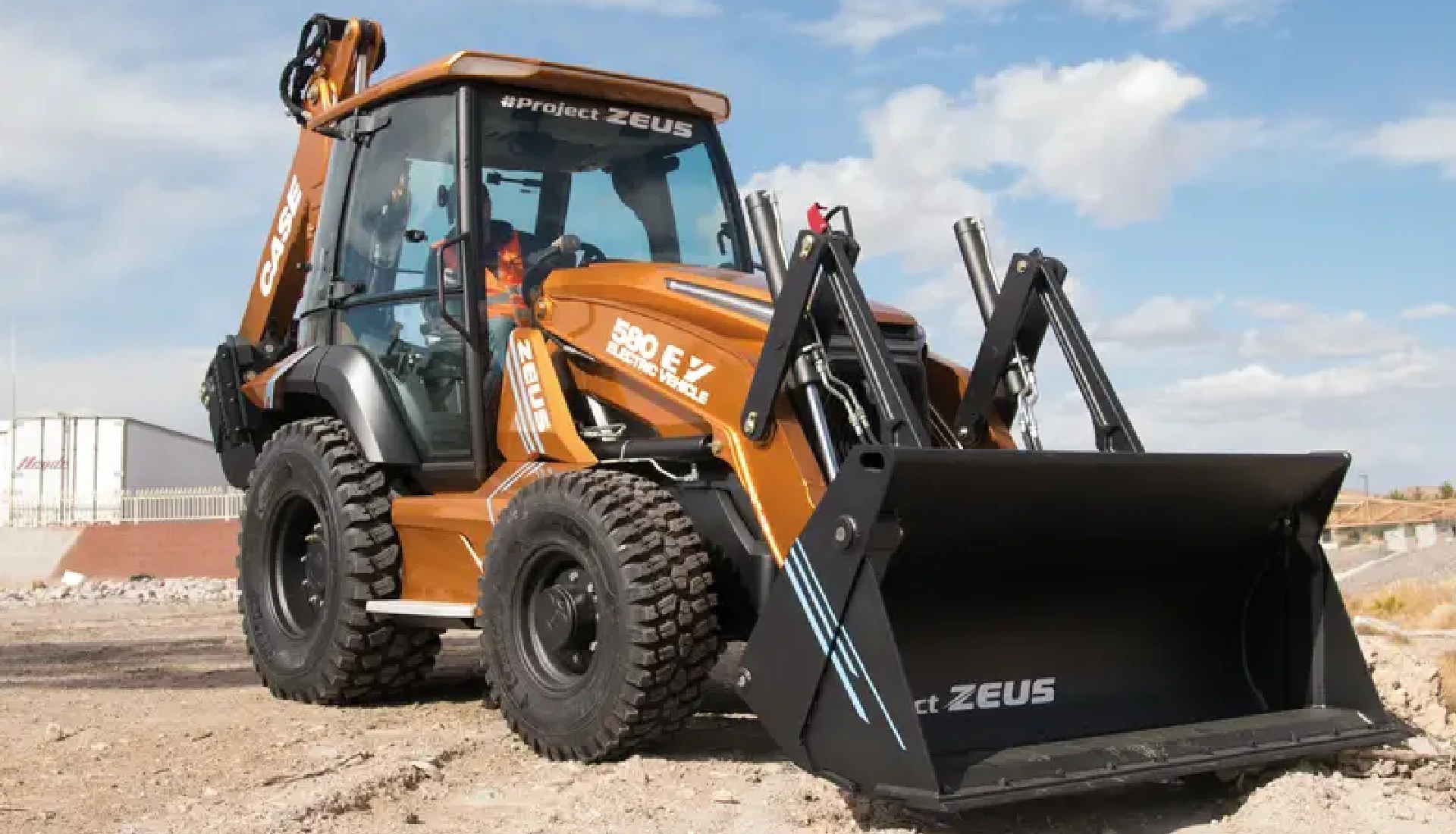

Current Trends and Future Outlook

The backhoe market isn't static—manufacturers are constantly tweaking and evolving their designs to meet changing demands. Here's what's happening right now:

Side-Shift Booms: Ever tried digging right up against a wall with a standard backhoe? Side-shift booms let operators work closer to obstacles without constantly repositioning the machine. It's a game-changer for urban work and confined spaces where every inch matters.

Pilot Controls: Remember those mechanical controls that gave your forearms a workout by lunch? Pilot controls offer more intuitive operation with less effort. They're becoming the standard because they reduce operator fatigue and improve precision—especially during those long days when fatigue starts setting in.

All-Wheel Steering: This feature dramatically improves maneuverability on crowded job sites. Being able to navigate tight spaces without a 15-point turn saves time and prevents those awkward moments when you're blocking everyone else's work.

Electric and Hydrogen-Powered Models: The industry is finally getting serious about alternatives to diesel. Electric and hydrogen-powered backhoes promise reduced emissions, lower operating costs, and—let's be honest—a better chance at winning bids for environmentally conscious projects.

Environmental Impact: Construction equipment has traditionally been a significant emissions contributor. The trend toward electric and hybrid models isn't just marketing—it reflects growing recognition that sustainable construction practices aren't optional anymore.

The outlook for backhoe loaders remains strong across multiple sectors. The continued demand for machines that can tackle diverse tasks efficiently is driving innovation in automation, telematics, and operator assistance systems.

These technologies won't replace skilled operators, but they will make those operators more productive and their machines more capable of adapting to whatever the next job throws at them.

Conclusion

Backhoes remain the multi-tool of equipment—not perfect at everything, but capable of many tasks. Choosing the right size isn’t about the biggest machine; it’s about matching projects, ground conditions, operator skill, and cost.

The old “buy the biggest you can afford” mindset is gone. Today’s decisions weigh purchase price against lifetime value, factoring in maneuverability, transport, fuel, and maintenance. Sometimes, a mid-size backhoe that gets used beats a larger one that sits idle.

As manufacturers push cleaner power and smarter controls, backhoes aren’t fading—they’re evolving. In a world obsessed with specialization, their versatility remains invaluable.
