Tractor Hitch Systems in US Agriculture: A Comprehensive Analysis

Ever wonder what really makes a tractor worth its salt? Forget horsepower ratings and fancy cabs for a minute. The true magic happens at the business end – those hitch systems that turn your expensive diesel-guzzler into something actually useful on the farm.

I've spent two decades watching farmers try to connect implements that have no business being together, and let me tell you – understanding hitches matters more than most folks realize. They're the unsung heroes that bridge your tractor to that bewildering collection of implements gathering dust in your machine shed.

From breaking ground in spring to hauling in crops come harvest, a solid hitch system transforms one power unit into a solution for damn near everything you need to do between fence lines. And that's not hyperbole – that's agriculture.

In this breakdown, we're digging into the three hitch systems you'll actually encounter across America's farmland. Not the oddball proprietary stuff that died out decades ago, but the setups you'll find on working farms today. We'll cover how they're built, what they actually do, why they evolved this way, the numbers that matter, and where each one shines or falls short.

Remember when every manufacturer had their own connection system and switching brands meant replacing half your implements? That nightmare ended with standardization, which might sound boring until you calculate how many thousands it's saved you.

This quiet revolution created a world where implements from different makers play nice with tractors from competitors – something your grandfather probably wishes he had back when Brand X only worked with Brand X.

Interoperability isn't sexy dinner conversation, but it's been one of the biggest efficiency boosters in modern farming. Let's dive into the systems that make it possible.

Three-Point Hitch

Mechanical Design and Components

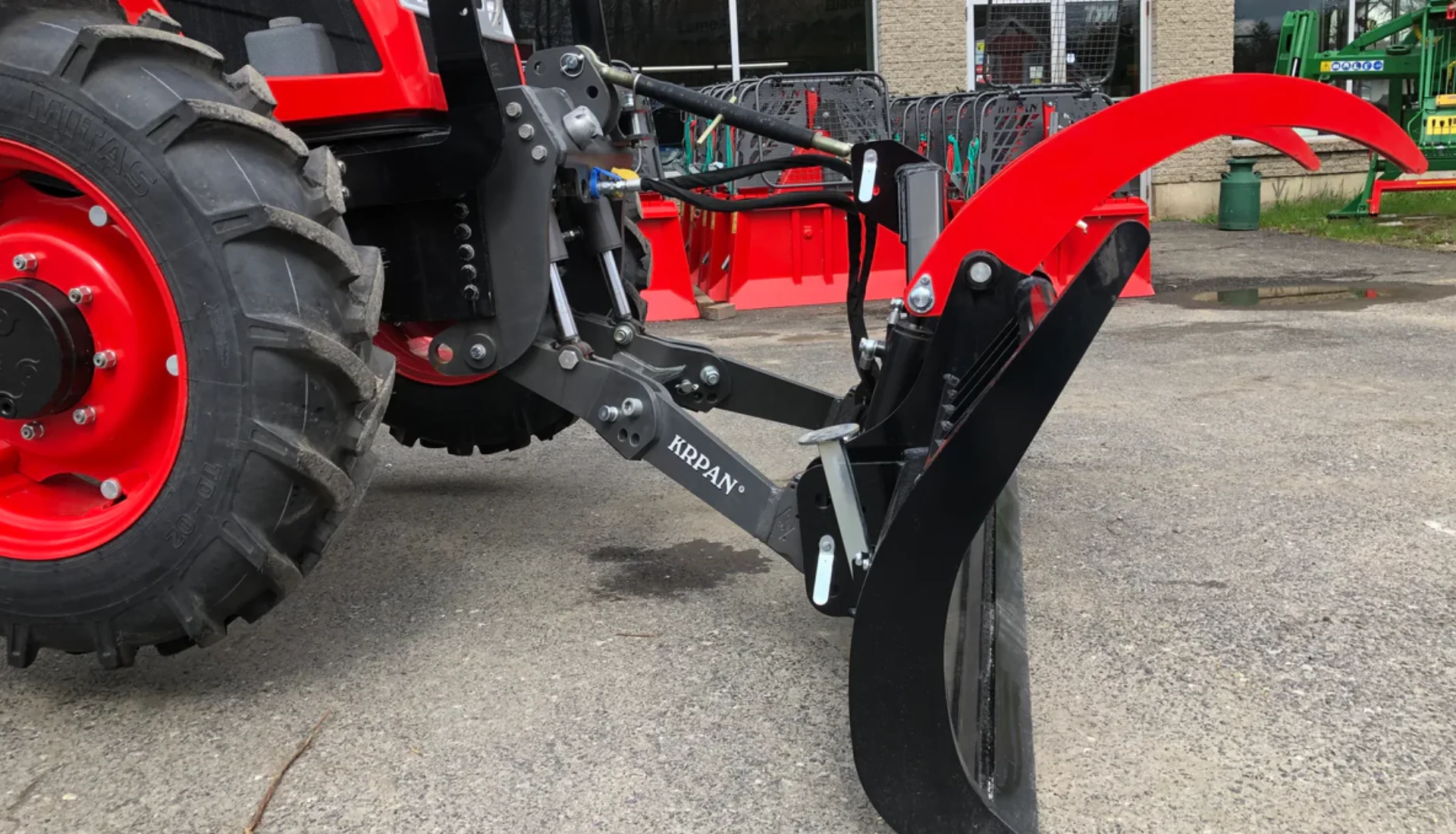

If you've been around tractors for more than five minutes, you've seen a three-point hitch. They're about as common as cupholders in pickup trucks, and for good reason. This system is basically agricultural royalty – the connection method that changed everything.

graph TD
    subgraph "Three-Point Hitch Components"
        TopLink["Top Link:<br>- Adjusts implement angle<br>- Oppositely threaded screws<br>- Not hydraulically powered<br>- Hinged to tractor body"]

        LowerArms["Lower Lift Arms:<br>- Hydraulically powered<br>- Hinged to tractor frame<br>- Control implement height<br>- Support implement weight"]

        Stabilizers["Stabilizer Assembly:<br>- Tie rods & chains<br>- Limits lateral sway<br>- Maintains implement alignment"]

        HydSys["Hydraulic System:<br>- Raises/lowers implement<br>- Draft control sensing<br>- Position control<br>- Operated from cab"]
    end

    style TopLink fill:#d4f1f9,stroke:#333
    style LowerArms fill:#d4f1f9,stroke:#333
    style Stabilizers fill:#d4f1f9,stroke:#333
    style HydSys fill:#d4f1f9,stroke:#333

Picture this: a triangular setup with three movable arms – two beefy lower lift arms and one upper link that everyone just calls the "top link." Got it? Congratulations, you understand the basic geometry that revolutionized farming.

Those two lower arms aren't just hanging out back there looking pretty – they're hinged to your tractor frame and move in an arc that'd make your high school geometry teacher proud.

They're muscle-powered by your tractor's hydraulic system, giving you the ability to raise, lower, and sometimes tilt whatever implement you've hitched up. Modern rigs control all this from the cab with fancy electronic systems, but the principle hasn't changed since your grandpa was complaining about fuel prices.

Now, that top link? It's the unsung hero of the operation. Also hinged to the tractor body, it's usually not hydraulic-powered but instead features oppositely threaded screws at each end – a brilliantly simple design that lets you lengthen or shorten it by just spinning the thing. Want to adjust your implement angle? Give that top link a twist. Engineering doesn't always need to be complicated to be effective.

Ever hooked up an implement and had it swing side-to-side like a drunk sailor? That's why we have those stabilizer chains and adjustable tie rods – they keep everything tracking straight and true. Without them, you'd plow a path that looks like your signature after too many beers at the county fair.

From an engineering perspective, the three-point setup is actually the most straightforward method for rigidly joining two separate bodies in a statically determinate way. I know that sounds like engineer-speak, but it basically means it's the simplest way to make sure your implement stays exactly where you want it, doing exactly what you want it to do.

The geometry is actually critical here. The "attachment triangle" formed by your lower arms and top link needs to match up with the corresponding triangle on your implement, or you're going nowhere fast.

That's why we standardized these dimensions into categories – so you don't end up trying to hook your massive 12-row planter to your lawn tractor by "making it work."

Functionality

So what does the three-point hitch actually do besides look impressive at equipment shows? Its primary job is deceptively simple: securely attach implements to your tractor while letting the tractor bear some or all of the implement's weight.

But here's where it gets interesting. The three-point setup transfers the implement's weight and working resistance directly to your drive wheels. If you've ever been stuck spinning tires with a heavy towed implement, you'll appreciate why this matters.

That weight transfer substantially enhances traction – it's like having built-in ballast that adjusts automatically. The difference between this and older drawbar systems is night and day, especially in slick conditions.

Want to transport your implement down the road? Need to turn around at the headland? Just hit the hydraulic controls, and up it goes. Working depth not quite right? Tweak the hydraulics for a perfect cut. Some modern systems even let you tilt implements laterally – a godsend on hillsides where keeping things level feels like trying to balance your checkbook while riding a roller coaster.

If you've got a modern tractor, it probably has draft control – the feature farmers didn't know they needed until they tried it. This clever bit of engineering automatically senses resistance as your implement drags through the soil.

Hit a tough spot? The system lifts slightly to reduce load. Moving into lighter soil? It lowers back down. All this happens automatically, keeping your tractor running in its sweet spot without bogging down or wasting fuel.

There's also a safety angle here that deserves mention. The three-point geometry actually helps prevent your tractor from doing an unplanned wheelie (or worse, flipping backward) if your implement catches on something immovable. That safety feature alone has probably saved more lives than we can count.

Categories of Three-Point Hitches

Not all three-point hitches are created equal, and thank goodness for that. Imagine trying to run a massive chisel plow with the same hitch that handles your garden tiller. Something would break, and it wouldn't be the soil.

graph TD
    TPH[Three-Point Hitch Categories] --> Cat0[Category 0]
    TPH --> Cat1[Category 1]
    TPH --> Cat2[Category 2]
    TPH --> Cat3[Category 3]
    TPH --> Cat4[Category 4]

    Cat0 --> HP0[Up to 20 HP]
    Cat0 --> Pin0[5⁄8 inch Pins]
    Cat0 --> Space0[20 inch Spacing]
    Cat0 --> Lift0[~500 lb Capacity]

    Cat1 --> HP1[20–50 HP]
    Cat1 --> Pin1[3⁄4–7⁄8 inch Pins]
    Cat1 --> Space1[28 inch Spacing]
    Cat1 --> Lift1[1,500–2,500 lb Capacity]

    Cat2 --> HP2[40–125 HP]
    Cat2 --> Pin2[1–1 1⁄8 inch Pins]
    Cat2 --> Space2[34 inch Spacing]
    Cat2 --> Lift2[3,500–5,500 lb Capacity]

    Cat3 --> HP3[80–225 HP]
    Cat3 --> Pin3[1 1⁄4–1 7⁄16 inch Pins]
    Cat3 --> Space3[40 inch Spacing]
    Cat3 --> Lift3[6,000–9,000 lb Capacity]

    Cat4 --> HP4[180+ HP]
    Cat4 --> Pin4[1 3⁄4–2 inch Pins]
    Cat4 --> Space4[48 inch Spacing]
    Cat4 --> Lift4[20,000+ lb Capacity]

    style Cat0 fill:#f9f9f9,stroke:#333,stroke-width:1px
    style Cat1 fill:#f9f9f9,stroke:#333,stroke-width:1px
    style Cat2 fill:#f9f9f9,stroke:#333,stroke-width:1px
    style Cat3 fill:#f9f9f9,stroke:#333,stroke-width:1px
    style Cat4 fill:#f9f9f9,stroke:#333,stroke-width:1px

To keep everyone playing nicely together, three-point hitches are classified into categories based on size, spacing, and lifting capacity. These categories, numbered 0 through 4, correspond to increasing tractor horsepower and implement size. Think of it as tractor weight classes, from flyweight to heavyweight.

Specifications of Three-Point Hitch Categories

*Note: Maximum lift capacity can vary by tractor model. Spacing for Category 1 is also sometimes listed as 26". Categories 3N and 4N exist with narrower lower hitch spacing.

Because farmers are nothing if not resourceful, there are also "N" (narrow) variants floating around out there. These use the pin sizes of a specific category but with the lower hitch spacing of the next smaller category.

They're often paired with quick hitches, letting larger tractors connect to smaller utility implements without a mismatch meltdown.

Some sub-compact tractors in the 20-45 HP range feature "limited" category 1 hitches. They've got the same pin diameters as standard category 1 but sit lower to the ground with reduced lifting height and width.

This right-sizing approach ensures your implements match your tractor's capabilities – preventing that sad moment when you realize your compact tractor can technically connect to that massive rotary cutter but can't actually lift it off the ground.

Without these standards, we'd be back in the dark ages of agriculture where Brand X only worked with Brand X, and switching equipment lines meant selling half your implements at a loss.

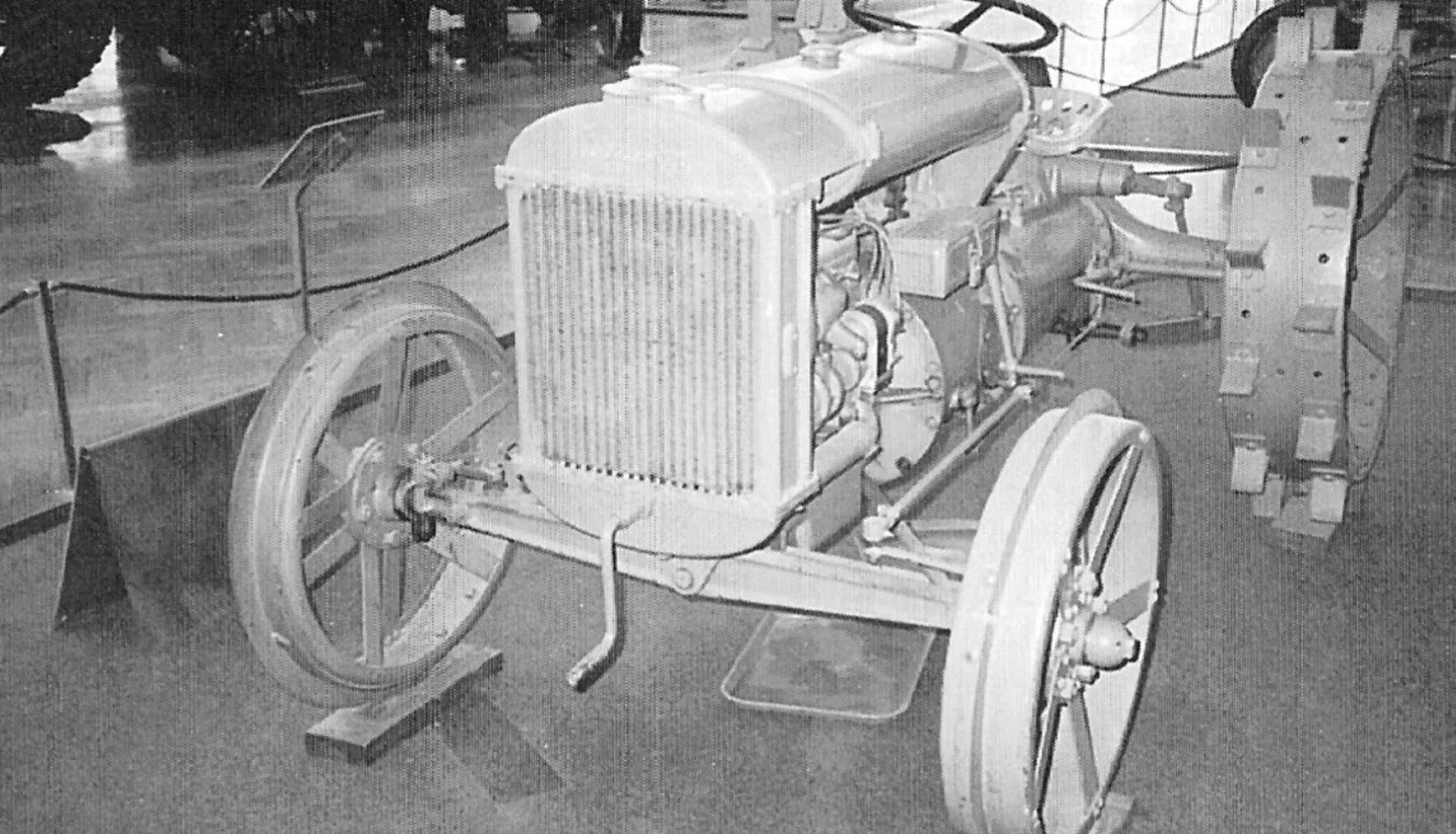

Historical Evolution in the US

The three-point hitch wasn't always the standard bearer of implement attachment. Its American debut came in 1939 with the Ford 9N tractor, featuring Harry Ferguson's revolutionary design.

This relatively lightweight and affordable tractor shocked everyone by outperforming heavier, more expensive competitors – all thanks to the magic of weight transfer through that three-point hitch.

The Ferguson system, including both the hitch and purpose-built implements, became the talk of farm country throughout the 1940s. Success breeds competition, so other manufacturers like International Harvester and Allis-Chalmers developed their own hitch systems.

Classic American innovation, right? Sure, except it created a compatibility nightmare. Farmers found themselves locked into brand ecosystems that made switching tractors about as practical as switching kidneys.

The big change came in the 1960s when patents started expiring. Manufacturers finally agreed to standardize on the three-point hitch design – a rare moment of solidarity that has saved farmers countless headaches and dollars ever since. Today, virtually every tractor manufacturer uses some version of the standardized three-point hitch.

For the history buffs out there: before the three-point hitch with draft control became ubiquitous, farmers made do with mechanical lifts (introduced around 1927) and basic hydraulic lifts (1934).

But these earlier systems lacked the integrated draft control that made the Ferguson system revolutionary. It's like comparing a flip phone to a smartphone – they both make calls, but one does a whole lot more.

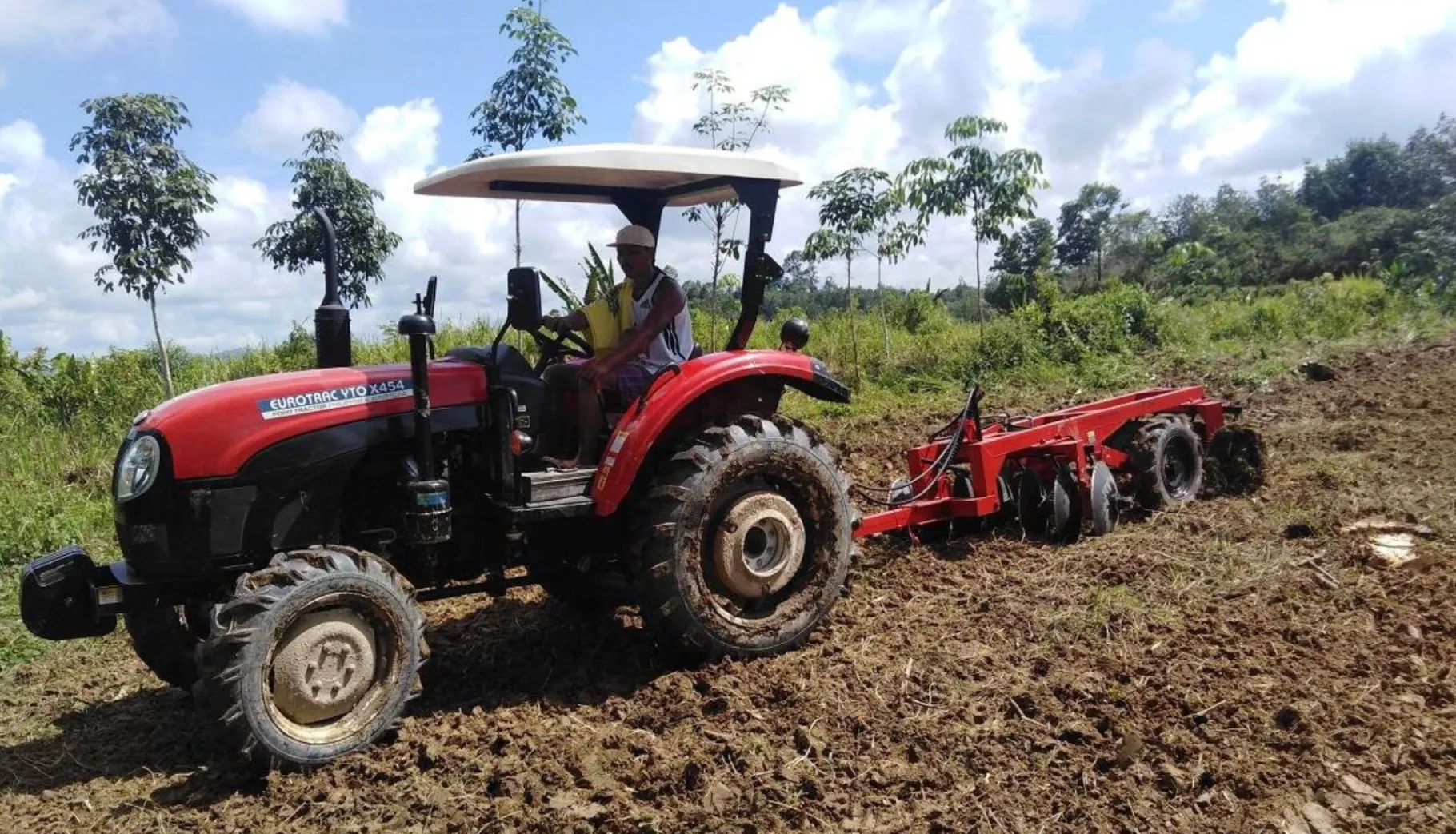

Typical Applications

So where does the three-point hitch shine? Pretty much everywhere, which explains its dominance.

It handles soil preparation like a champ, giving precise control for plows, cultivators, and harrows. For planting and seeding, it maintains consistent depth for accurate seed placement. When it's time for fertilizer or pest control, three-point mounted spreaders and sprayers deliver the goods with precision.

Managing hay? The three-point hitch accommodates mowers, rakes, and balers without breaking a sweat. Need to dig fence post holes? A three-point mounted auger makes quick work of it. And for general utility tasks, rear blades for grading and moving materials hook right up.

With specialized attachments, you can even use your three-point hitch for towing trailers and other implements that traditionally connect to drawbars. It's the Swiss Army knife of implement connections – versatile enough to handle almost anything while being precise enough for tasks requiring finesse.

The real magic of the three-point hitch lies in how quickly you can swap implements. Pull a few pins, disconnect hydraulics if needed, and you're ready for the next task.

This adaptability has transformed productivity, allowing one tractor to perform dozens of specialized functions that once required separate dedicated machines – or a lot more manual labor and colorful language.

Drawbar Hitch

Mechanical Design and Components

If the three-point hitch is agriculture's sophisticated youngster, the drawbar is its no-nonsense grandparent – simple, reliable, and still getting the job done after all these years. This is farming's original hitch system, and it hasn't gone anywhere despite flashier alternatives.

At its core, a drawbar is just a sturdy steel bar attached to the rear of your tractor, often built right into the transmission housing because subtlety was never agriculture's strong suit. It features a hole or clevis at the business end where your implement's tongue connects.

That's it. No hydraulics, no complex geometry – just a solid connection point that's been pulling implements since tractors replaced horses.

Drawbars come in a few flavors to suit different needs. Fixed drawbars are your basic, unmovable steel bar – nothing fancy, but they'll outlast your tractor with zero maintenance.

Adjustable drawbars give you options for length or height, usually with regular, short, and extended positions. When a salesperson talks about "versatility" with adjustable drawbars, they mean you can move a pin between three holes. Revolutionary? No. Practical? Absolutely.

Some tractors come equipped with swinging or floating drawbars, which allow lateral movement of the hitch point. If you've ever worked hillsides, you understand why this matters – it helps maintain the center line of pull even when your tractor and implement are doing their best to head in slightly different directions. It's like having a mediator between two stubborn parties.

Modern tractors typically come with a factory-installed clevis – that U-shaped fitting that cradles your implement's tongue like it's a precious egg. This simple addition saves countless hours of fiddling with misaligned holes and bent pins.

On the implement side, trailer drawbars come in several designs themselves. Straight drawbars are just a single bar extending from the front of the trailer – simple and serviceable for light-duty applications. A-frame drawbars use two bars converging into an "A" shape, providing better stability and strength distribution.

These are common on heavier agricultural trailers where loads can shift dynamically. Composite drawbars add lateral supports to the single-bar design, reinforcing the chassis connection for those implements that seem to find every rut in the field.

For the real equipment nerds: agricultural trailer drawbars come in either hinged or rigid varieties. Hinged drawbars move freely in the vertical plane and don't transfer vertical load to the towing coupling – you'll find these on dog trailers and converter dollies.

Rigid drawbars can't pivot vertically and are designed to transfer some vertical load to the tractor – these are your typical tag and pig trailers. The distinction matters when you're trying to distribute weight properly across your setup.

The beauty of the drawbar lies in its fundamental simplicity. No complex hydraulics to fail, no electronic sensors to malfunction – just solid steel doing what steel does best.

Functionality

So what does a drawbar hitch actually do? Its primary job is providing the pulling force (or draft) needed to move a drawn implement or trailer. Sounds simple, but there's more happening than meets the eye.

During operation, your drawbar isn't just experiencing a straight backward pull – it's also dealing with side and vertical loads as your implement bounces, turns, and reacts to field conditions. It's like trying to walk a determined dog on a leash – the forces aren't always going in the direction you'd prefer.

The length of your drawbar significantly affects trailer balance and weight distribution. Too short, and you might not have enough clearance between tractor and implement. Too long, and you lose effective control while putting excess strain on the connection. It's a Goldilocks situation – you want it just right.

Safety deserves special mention here. Hitching to the drawbar (versus higher, unauthorized points) is absolutely critical for maintaining tractor stability. The drawbar is deliberately positioned below your tractor's center of gravity for a reason. Hook up too high, and you create what engineers call a "high angle of pull" but what farmers call "oh no, the front end is lifting!"

That's the precursor to a rear rollover, which is exactly as dangerous as it sounds. The old-timer at the coffee shop who insists on proper drawbar hitching isn't being fussy – he's seen what happens when people get creative with connection points.

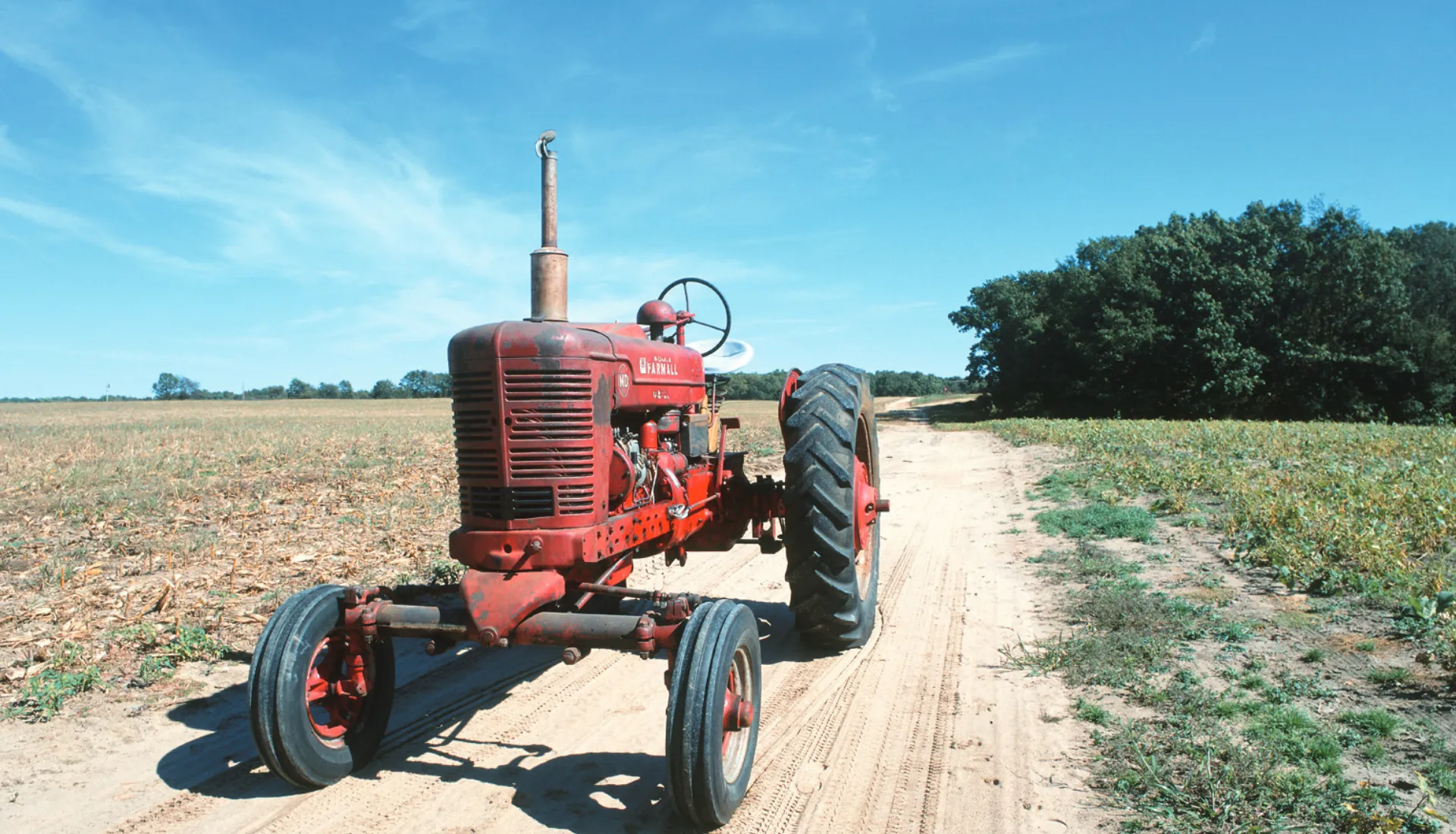

Historical Development in the US

Before the three-point hitch became ag's golden child, the drawbar was the only game in town. In early U.S. agricultural mechanization, virtually every implement connected via some version of a drawbar.

Those vintage photos of your grandfather on his first tractor? He was pulling everything – tillage tools, planting equipment, harvesting machinery – with a drawbar setup.

Even after the three-point hitch gained dominance for mounted implements, the drawbar kept its essential role for towing trailers and equipment not designed for three-point mounting.

Its importance is reflected in how we historically rated tractors – the Nebraska Tractor Test Laboratory focused on measuring drawbar horsepower as a key performance metric. When your grandfather bragged about his tractor's "65 drawbar horsepower," he was referencing its actual working capacity in the field, not just engine output.

While the three-point hitch gets more attention in engineering circles, drawbar design has seen its own evolution. Modern drawbars feature improved safety measures, quicker attachment methods, and higher weight ratings to handle the increasingly massive implements farmers are pulling these days.

The fact that drawbars remain standard equipment on even the most advanced tractors speaks to their enduring utility.

Technical Specifications

Understanding drawbar specs isn't just for equipment nerds – it's essential for safe operation. The drawbar category and corresponding pin diameter directly relate to your tractor's power take-off (PTO) horsepower rating.

Try to pull a 20-ton grain cart with an undersized drawbar, and you'll quickly understand why these specifications matter.

For context, Class II drawbars (commonly found on lighter-duty vehicles but sometimes used in agricultural applications) have weight capacities up to 3,500 lbs. But that's child's play in modern farming.

Agricultural-specific adjustable drawbar hitches often feature gross trailer weight (GTW) ratings from 12,000 to 20,000 lbs., depending on the specific design.

Some specialized drawbar hitches, like those air-cushioned models designed to smooth out the ride (and save your back on rough terrain), typically handle GTW capacities around 12,000 lbs.

The maximum vertical load a drawbar can safely handle also varies based on the tractor's PTO power rating – another reason not to mix and match equipment categories without doing your homework.

These aren't just numbers in a manual that nobody reads – they represent the difference between a productive day in the field and an expensive, potentially dangerous equipment failure. Know your ratings, and respect them even when you're in a hurry.

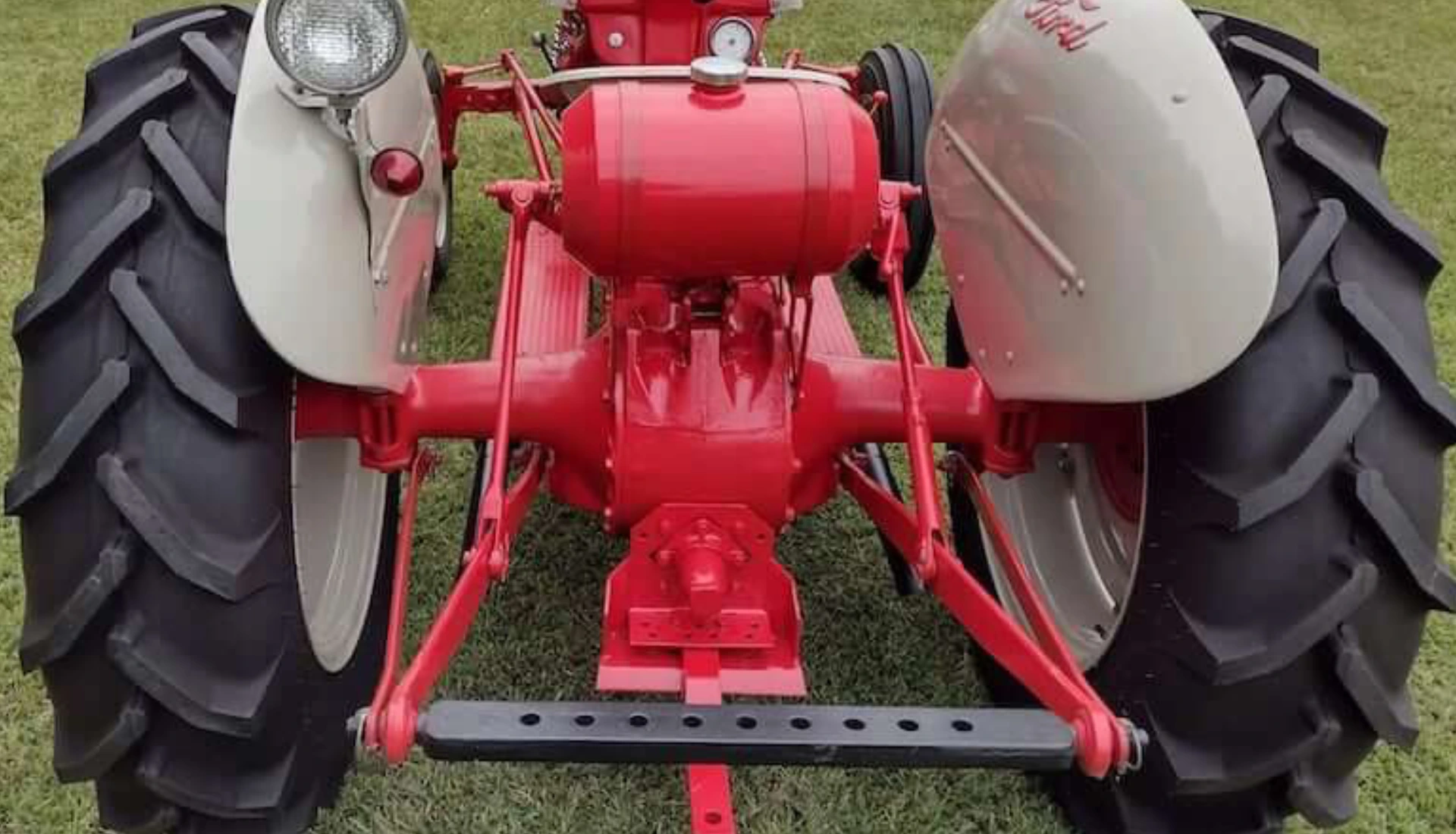

Typical Applications

Despite being the elder statesperson of hitch technology, the drawbar remains essential in modern farming. Its primary domain is pulling wheeled implements and trailers – those farm wagons, livestock trailers, and flatbeds that transport everything from seed to harvest.

Certain harvesting equipment, like hay wagons, anhydrous tanks, and specialized farm wagons, are still predominantly designed for drawbar connection. While most tillage implements have migrated to three-point hitches, some older or larger implements hold fast to drawbar attachment – partly from tradition, partly from practical necessity given their size and weight.

The drawbar excels in situations where you don't need precise implement positioning or when dealing with heavy loads primarily supported by their own wheels. It's like having a reliable farm hand – not flashy, but consistently gets the job done without complaint.

In some operations, you'll even find front-mounted drawbars on trucks or tractors for maneuvering trailers in tight spots – try backing a grain trailer into a narrow shed, and you'll appreciate having connection options at both ends.

The continued relevance of the drawbar hitch isn't about nostalgia – it's about having the right tool for specific jobs where simplicity, strength, and reliability matter more than precision control.

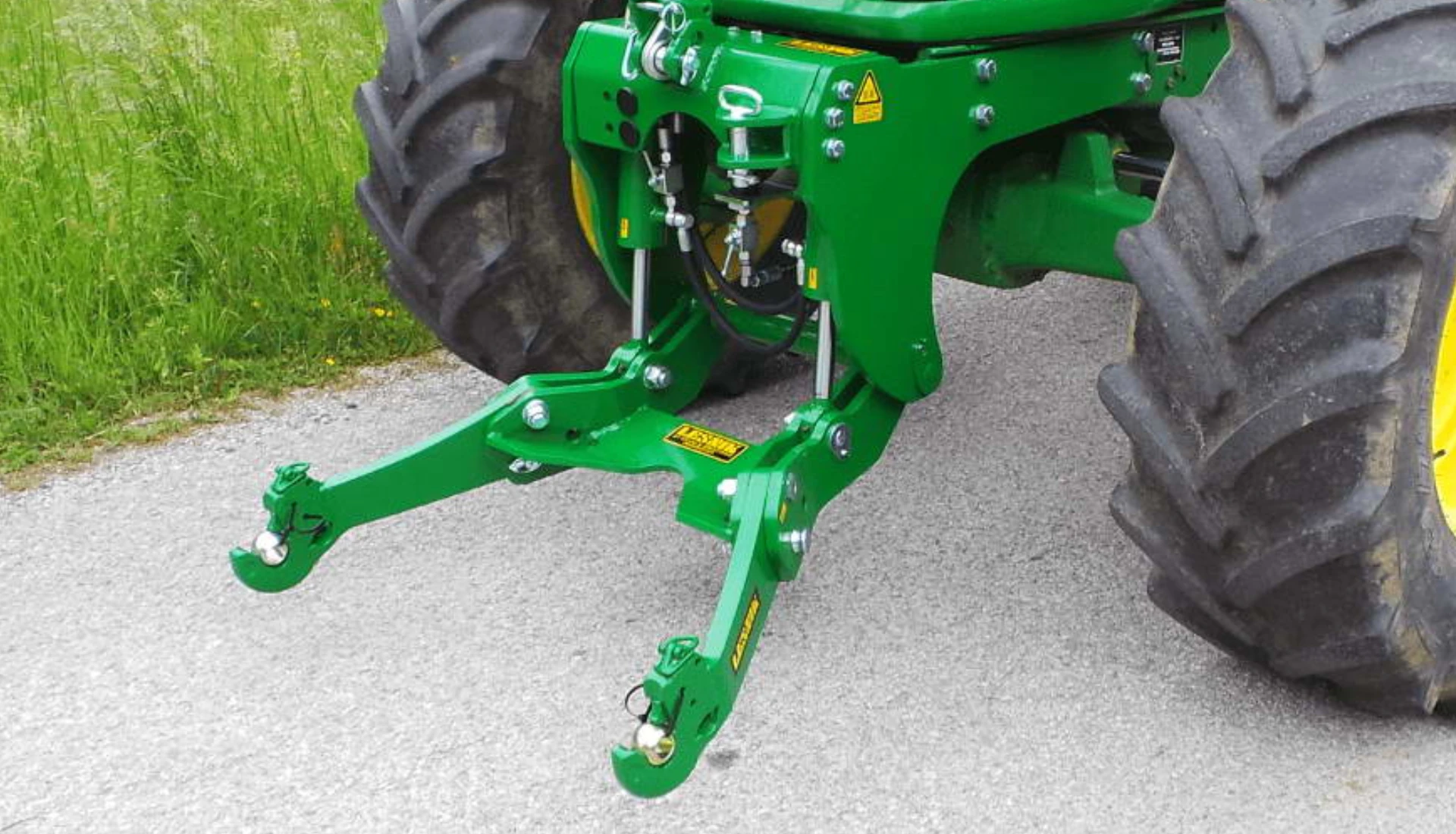

Front Hitch

Mechanical Design and Components

If the three-point hitch is agriculture's MVP and the drawbar is the reliable veteran, then the front hitch is the up-and-coming star that's changing how we think about tractor functionality.

Once considered a specialty item, front hitches have steadily migrated from "nice to have" to "why doesn't every tractor come with this?" territory.

Mounted where your tractor greets the world, front hitches provide that crucial connection point that turns your tractor's hood into productive real estate instead of just something to lean on while you're thinking about fuel prices.

These systems typically integrate with your tractor's hydraulic system, letting you raise and lower front-mounted implements with the same precision you expect from your rear three-point.

Most front linkages include hydraulic receptacles right up front, saving you from running hoses all the way from the back of the tractor – a convenience you'll appreciate after spending an afternoon wrestling with hydraulic connections that are just a foot too short.

The options list for front hitches reads like a comfort package on a luxury car. Want hitch dampening kits? They'll absorb shocks during transport with front-mounted implements, making your cab ride less like a mechanical bull at the county fair.

Need weight carriers? They'll accommodate ballast weights for better stability and traction, especially when you've got something heavy hanging off the back. Looking for electronic control systems? The cutting-edge options allow for precision implement positioning and automatic height adjustment based on ground conditions.

Manufacturers have finally caught on to the front hitch revolution, with many now offering factory-installed systems on newer models. Trust me on this one – a factory integration typically runs circles around that aftermarket setup that looks like it was bolted on during a lunch break.

The clean integration means better hydraulic routing, proper frame reinforcement, and a design that doesn't interfere with access for service points.

Functionality

So what's the big deal about front hitches? Their primary job is connecting implements at the front of your tractor, but the real value lies in what this enables.

The game-changer is running operations simultaneously with both front and rear implements. Picture this: a front-mounted mower-conditioner working in perfect harmony with a rear-mounted rake, covering two operations in a single pass. In an era where fuel isn't getting cheaper and weather windows aren't getting longer, this capability is like finding an extra day in your week.

Front hitches excel at carrying ballast weights, too. Instead of hanging static weights on your front end, you can use that same mounting point for functional implements when appropriate.

The improved balance from proper front-weighting makes a night-and-day difference when operating heavy rear implements – better traction, reduced soil compaction, and more efficient power utilization. Your fields and fuel budget will both thank you.

For certain tasks – like mowing roadside ditches or clearing snow – a front-mounted implement gives you vastly better visibility than constantly looking over your shoulder at a rear implement. Anyone who's done a full day of backward-glancing knows exactly what I'm talking about – that special kind of neck pain that no amount of ibuprofen seems to touch.

The operation typically happens right from your tractor cab, usually working through the same hydraulic controls you're already familiar with. This integration means raising, lowering, and adjusting front implements without leaving your seat – a feature whose value multiplies with every degree the outside temperature diverts from 70°F.

Types of Front Hitches

Front hitches aren't one-size-fits-all, which is why manufacturers offer several varieties to match different operational demands and tractor models.

Standard front hitches handle your everyday applications where the load is primarily centered – your basic weight carriers or smaller implements. They're the Toyota Camry of front hitches – nothing flashy, but reliably gets the job done.

Premium front hitches step up to handle more demanding applications, including those awkward offset loads where the weight isn't evenly distributed. They're built heavier, with reinforcement in all the right places.

For those who push equipment to its limits, heavy-duty front hitches feature beefier frames, reinforced lower links, and sometimes include push bars to handle significant front forces. These are for the operators who view equipment specifications as "starting suggestions" rather than hard limits.

Some advanced systems incorporate a Powerfold feature – allowing you to hydraulically fold the hitch up into a transport position when not in use. This increases ground clearance and reduces overall length for road transport or navigating tight spaces. It's like having a retractable hitch that disappears when you don't need it.

Another specialized type is the front hitch with an intercoupler system. This clever design enables your front-mounted implement to follow ground contours from side to side, maintaining consistent working depth across the entire width even on uneven terrain.

If you've ever watched one side of your implement digging in while the other barely scratches the surface, you understand why this matters.

The variety reflects agriculture's diversity – from the hobby farmer with a compact utility tractor to the large-scale operator running multiple 400+ horsepower machines, there's a front hitch configuration engineered for your specific needs.

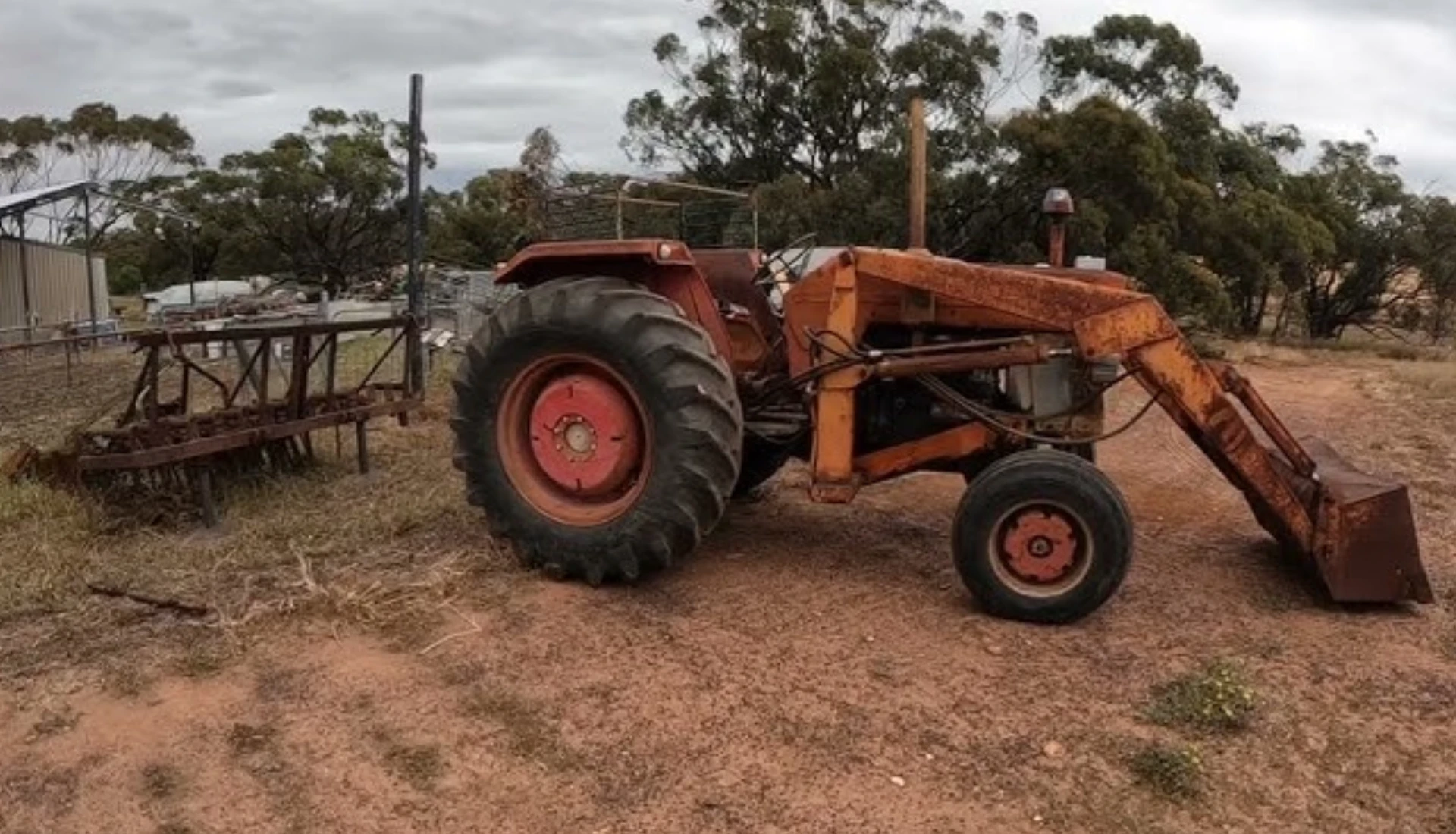

Historical Introduction and Growth in the US

Front hitches aren't new technology – the concept emerged in the 1970s and gained significant traction in Europe through the 1990s and 2000s.

By the 2010s, European tractors routinely featured front hitches as standard equipment, while American manufacturers were still largely treating them as premium add-ons.

However, this perspective has shifted dramatically in recent years. American farmers, never ones to ignore practical efficiency gains, have increasingly recognized the benefits of front-mounted implements.

As operations face tighter margins and more compressed seasonal windows, the ability to handle multiple tasks in a single pass has become less of a luxury and more of a competitive necessity.

The trend is clearly visible in equipment offerings – more new tractors in the US market now come with front hitch options direct from the factory, and the range of front-mounted implements continues to expand. It's a classic case of good ideas eventually finding their way across the agricultural landscape, regardless of where they originated.

Technical Specifications

When shopping front hitches, the spec sheet matters more than the sales pitch. Front lift capacity – the maximum weight the hitch can safely support – is perhaps the most critical number to understand.

This capacity varies significantly depending on the type and category. Basic front hitches might handle 1000-2000 lbs, suitable for ballast weights and lighter implements. Step up to heavy-duty versions, and you're looking at lift capacities around 5000 kg (11,000 lbs) or even exceeding 6400 kg (14,000 lbs) on the beefiest models.

That's the difference between carrying a snow blade and mounting a substantial mower-conditioner.

Like their rear counterparts, front hitches come in categories (such as Category 3N) that indicate compatibility with implements of corresponding size. This categorization ensures your attachment points match up correctly and that the hitch is robust enough to handle operational forces without turning your front end into an impromptu stress-testing facility.

Matching these specifications to your needs isn't just about avoiding disappointment – it's about safety and equipment longevity. A front hitch that's properly sized for your implements will perform reliably season after season, while an undersized unit stretched beyond its limits becomes a costly lesson in false economy.

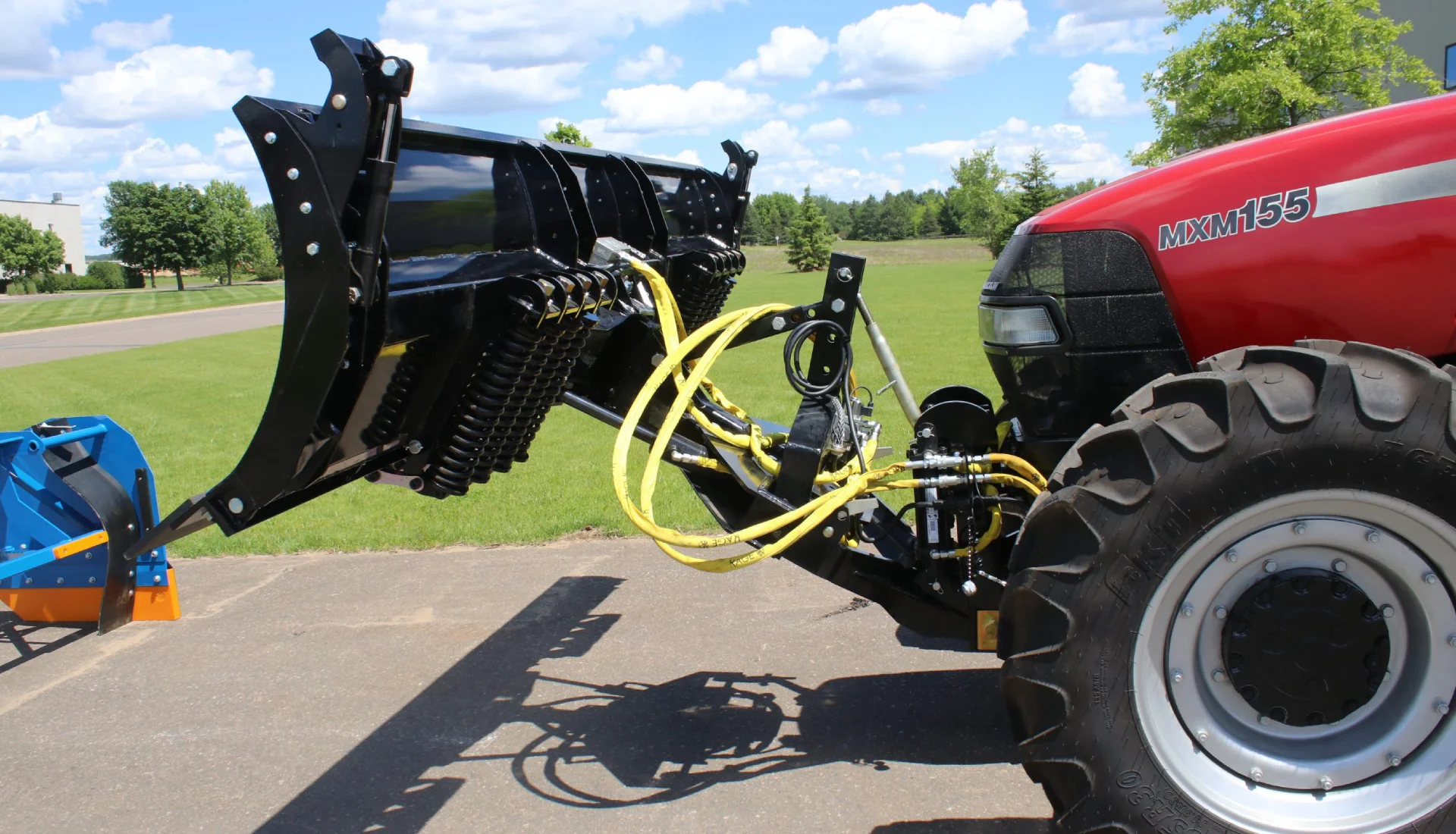

Typical Applications

The versatility of front hitches is what has driven their increasing adoption. One common application is simply mounting ballast weights – transforming static weight into dynamic management of tractor balance and traction. This alone justifies the investment for many operations running heavy rear implements.

Front hitches also excel at carrying tanks or hoppers for liquid fertilizers or seeds, expanding your capacity without requiring a separate tender vehicle for frequent refills. In tillage operations, front-mounted cultivators working ahead of rear planting equipment can prepare seedbeds and plant in a single pass – a significant time and fuel saver during the critical planting window.

Conservation tillage practices often employ front-mounted crimper rollers to terminate cover crops while preparing for no-till planting from the rear. For livestock operations, front blades handle silage management, while snow removal becomes infinitely more efficient with front-mounted blowers that don't require you to drive over the snow before clearing it.

Specialized front ploughs, mowers, shredders, and rotary tillers bring implements forward where visibility is best. Many of these work in conjunction with a front PTO – another feature that was once exotic but is increasingly common on modern tractors.

The diverse implement options highlight how front hitches have evolved from novelty to necessity for operations focused on maximizing efficiency and productivity. When a single pass can accomplish what once required multiple trips across the field, the return on investment becomes crystal clear.

Comparative Analysis

Let's cut through the sales brochures and get real about how these three hitch systems stack up against each other.

If you're trying to decide where to invest your equipment dollars, this comparison might save you from an expensive case of buyer's remorse.

Comparison of Different Types of Tractor Hitches

Advantages and Disadvantages

The three-point hitch shines when precision matters. Need exact depth control for that expensive new planter? The three-point has you covered. Its ability to transfer implement weight to your drive wheels is like having on-demand traction enhancement – something you'll appreciate when conditions turn marginal.

The standardization across manufacturers means you can hook virtually any implement to any compatible tractor without an engineering degree or custom fabrication.

But it's not all sunshine and rainbows. The three-point system brings complexity that can mean more maintenance headaches and potential failure points. Ever tried hooking up a PTO shaft, hydraulic connections, and three attachment points while fighting a stubborn implement that refuses to line up?

Then you know the three-point connection process can sometimes inspire creative language not suitable for the dinner table.

And while standard on most modern tractors, a good three-point setup with all the bells and whistles adds cost to your machine.

The drawbar hitch is farming's reliable old friend – simple, strong, and surprisingly capable despite its basic design. It excels at heavy towing jobs where the implement is mainly supported by its own wheels.

There's beauty in its simplicity: fewer moving parts mean fewer things to break down at the worst possible moment. And generally, the drawbar represents the most economical option, both in initial cost and long-term maintenance.

However, that simplicity comes with tradeoffs. A drawbar gives you minimal control over implement orientation – no hydraulic adjustments for working depth or angle. It also doesn't transfer weight to your drive wheels like a three-point system, potentially leaving you with traction issues in challenging conditions.

And despite its simple appearance, there are significant safety considerations – improper hitching (especially to points higher than the drawbar) can create dangerous instability that has flipped many a tractor.

The front hitch is the efficiency multiplier in this trio. Being able to run operations at both ends of your tractor simultaneously is like getting a free pass on field work – accomplish in one pass what used to take two. It dramatically improves tractor balance when running heavy rear implements, reducing compaction and improving handling.

For operations like mowing or snow removal, the visibility advantage of front-mounting is impossible to overstate – you'll see exactly what you're cutting instead of guessing based on what you've already passed over.

The downsides? Front hitches typically represent an additional investment beyond your base tractor purchase, sometimes a substantial one for factory-integrated systems with full hydraulic control.

The selection of front-mounted implements, while growing, still doesn't match the variety available for rear hitches. And not all tractor models accommodate front hitches equally well – some require significant modification or compromise operator access and visibility.

Prevalence and Usage Rates

In today's agricultural landscape, the three-point hitch reigns supreme as the most prevalent implement attachment system. Its standardization and versatility have made it essentially mandatory equipment for any modern tractor.

Walk around any equipment dealer lot, and you'll be hard-pressed to find a new agricultural tractor without a three-point hitch – they're as standard as steering wheels at this point.

The drawbar hitch maintains its widespread presence despite being the oldest technology of the three. Its essential role in towing trailers and certain types of agricultural equipment ensures its continued relevance.

The fact that implement manufacturers continue developing drawbar-compatible equipment speaks to its enduring utility – sometimes the simplest solution really is the best one for specific applications.

Front hitches represent the growth segment in this market. While not yet as ubiquitous as their rear counterparts, their adoption curve has steepened significantly in recent years. This growth is directly tied to increasing pressure for operational efficiency – farmers looking to maximize productivity in limited time windows see front hitches as a way to effectively add hours to their working day by combining operations.

The increasing availability of front hitches as factory options (rather than aftermarket add-ons) signals manufacturer recognition of this shift. Ten years ago, you might have had to special order a tractor with a front hitch; today, many higher-horsepower models come with the mounting points pre-installed, if not the complete system.

While precise usage statistics across US agriculture are difficult to pin down, the market trajectory is clear: three-point hitches remain the gold standard for mounted implements, drawbar hitches continue handling towing duties they've mastered for generations, and front hitches are rapidly moving from "nice to have" to "necessary equipment" for operations focused on maximizing efficiency per pass across their fields.

Conclusion

American agriculture relies on three hitch systems, each excelling in its role without compromise. The three-point hitch revolutionized farming by combining control, weight transfer, and standardization, ensuring precise seed placement and effortless implement lifting. Today, a tractor without one is barely considered agricultural equipment.

The drawbar hitch is farming’s steadfast workhorse—pure steel, no frills, just raw pulling power. When moving heavy loads on wheels, nothing beats its simplicity and reliability. No sensors, no fine-tuning—just a pin through a hole, unchanged since your grandfather’s time.

Front hitches maximize efficiency, transforming idle space into functional real estate. They allow multitasking in the field, crucial when weather windows shrink. Choosing the right hitch isn’t just technical; it’s about stretching equipment dollars and maximizing productivity when every hour and every dollar count.

FAQ
