Skid Steer Sizes: Matching Frames to Job Requirements

Contrary to dealer hype, the highest-horsepower skid steer often destroys ROI in smaller operations. Our analysis of performance metrics across skid steer sizes/dimensions and frame sizes reveals that proper classification—not raw power—determines productivity in specific applications.

Skid steer sizes vary by model but typically range from 36 to 84 inches wide and 6 to 12 feet long. Heights range from 6 to 7.5 feet. Compact models are ideal for tight spaces, while larger units provide more lift and reach for heavy-duty tasks.

Size Classes of Skid Steer Loaders

Skid steer loaders fall into three distinct size categories based on rated operating capacity (ROC), horsepower, and weight:

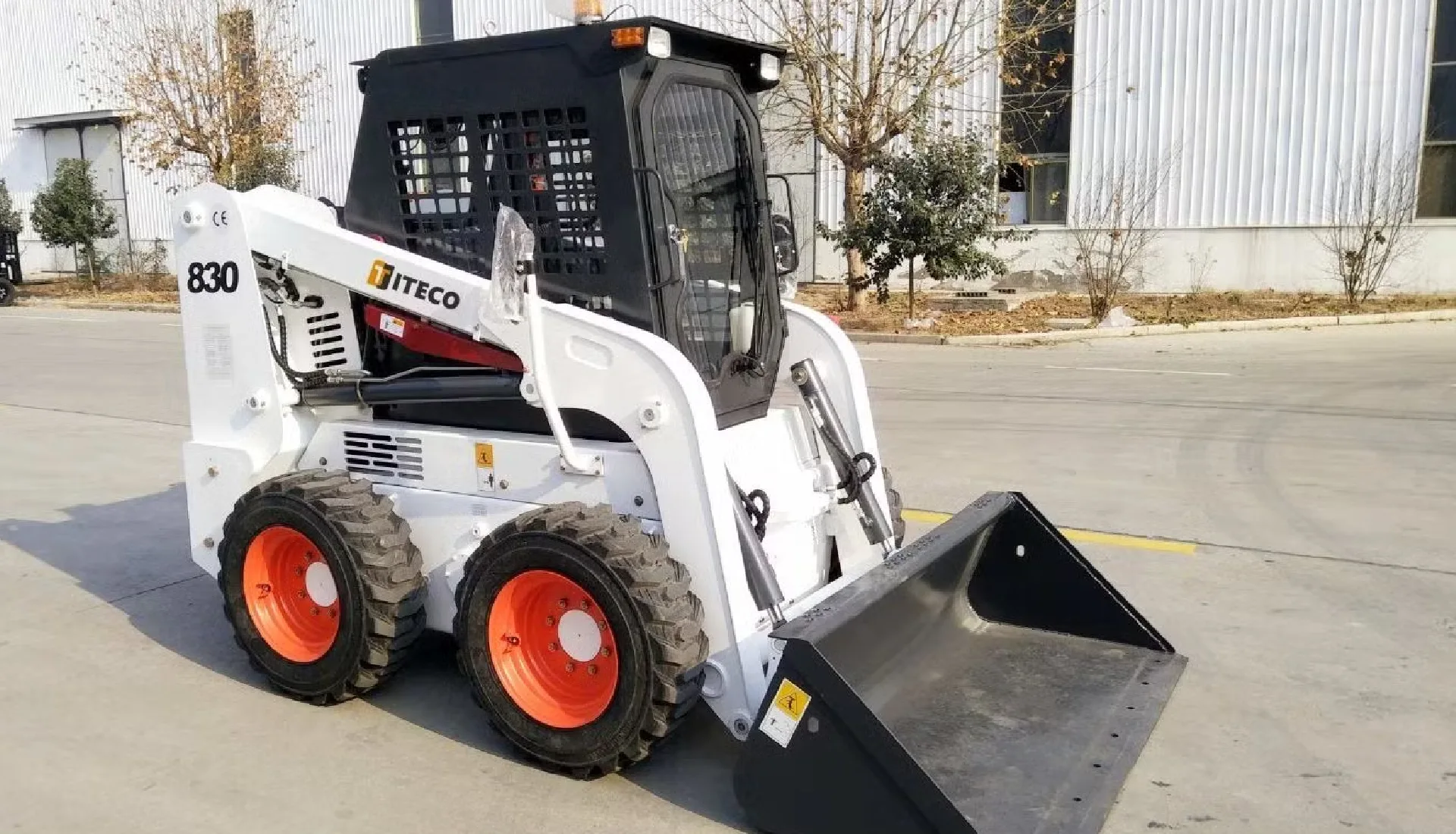

Small Frame

These compact units have an ROC up to 1,750 lbs and typically deliver 50 hp or less. They excel in landscaping, residential construction, and tight-space applications where maneuverability matters more than raw power. The John Deere 316GR and GEHL R105 represent this class perfectly.

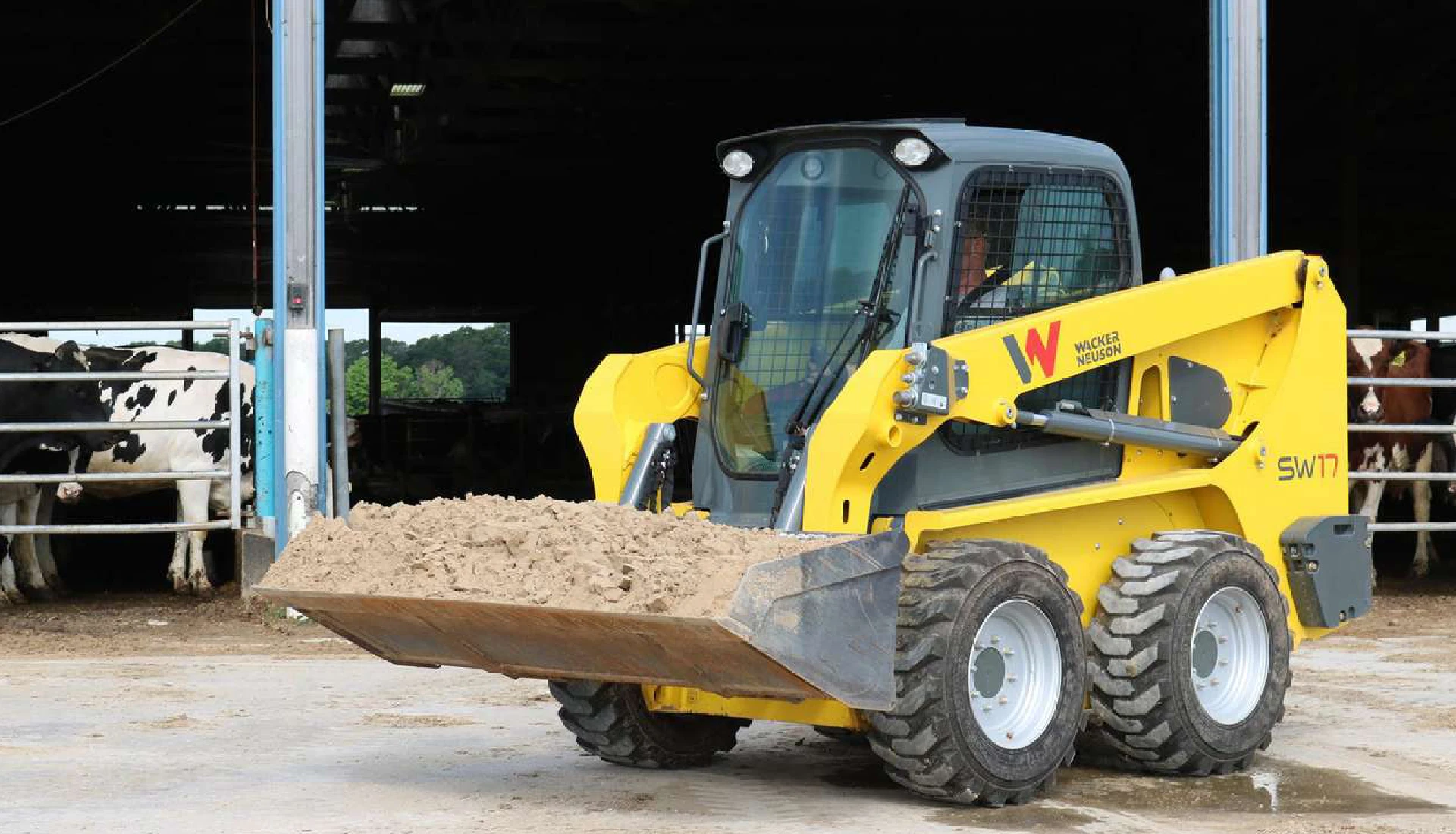

Medium Frame

With an ROC between 1,750 and 2,200 lbs and engines providing 50 to 70 hp, these machines hit the sweet spot between power and maneuverability. They handle diverse construction and landscaping tasks efficiently. The John Deere 320G exemplifies this balanced category.

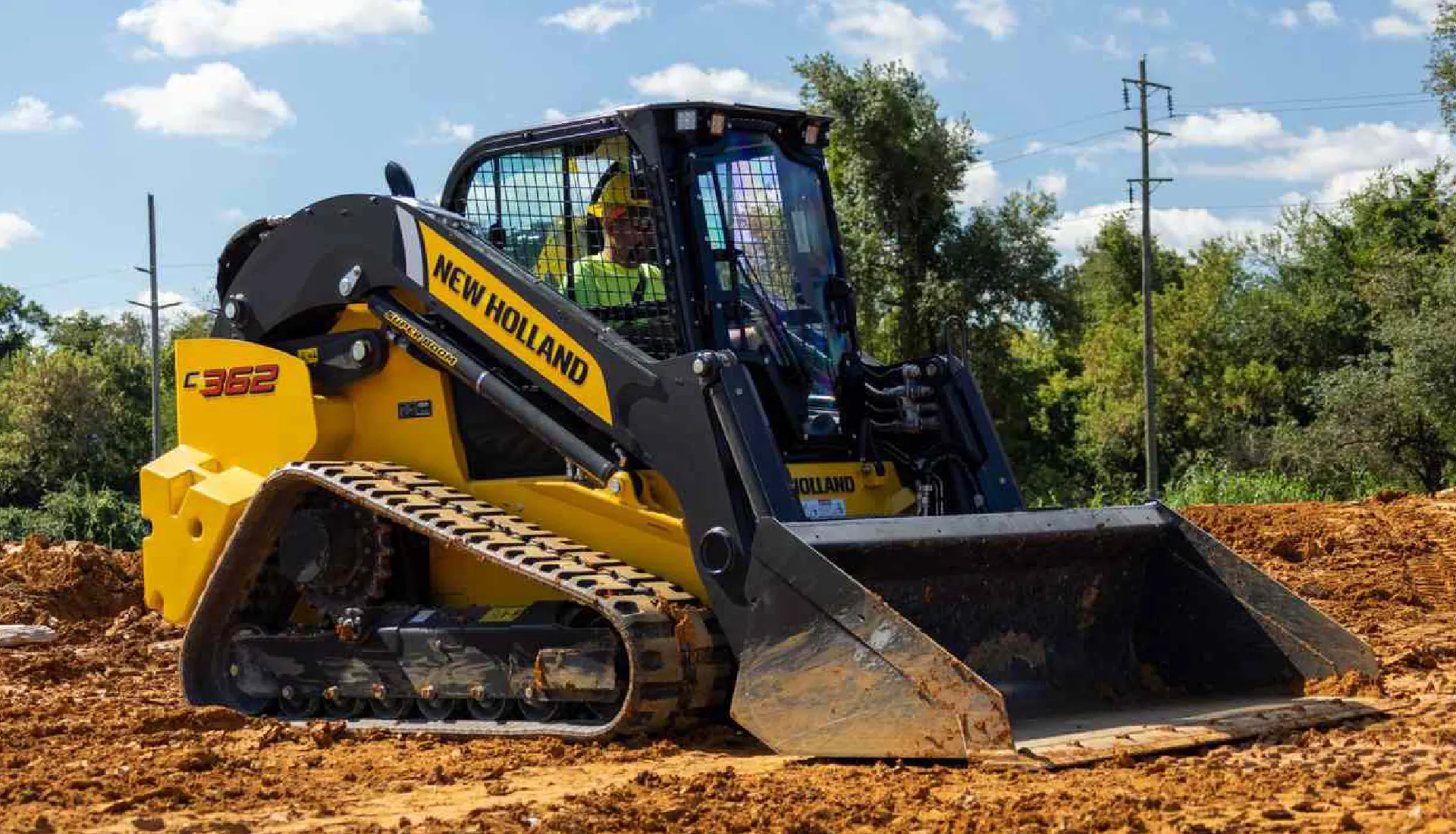

Large Frame

These powerhouses feature an ROC exceeding 2,200 lbs and horsepower above 70 hp. Built for demanding applications like grading, excavation, and large-scale demolition, they maximize productivity when raw power matters. The John Deere 330G and GEHL R260 demonstrate what this class can deliver.

Dimensions and Weight

The dimensions and weight of skid steer loaders vary significantly based on size class and specific model. Here's what the numbers tell us:

Small Frame Skid Steers

Medium Frame Skid Steers

Large Frame Skid Steers

It's important to note that these are general ranges. Actual dimensions and weight can vary based on manufacturer, model, and attached implements. For example, the Bobcat S70, a small frame skid steer, measures just 35.5 inches wide, making it perfect for tight-access applications.

Contrast this with the CASE TV620B, a large frame compact track loader (tracked skid steer variant) weighing in at 16,100 lbs—one of the heaviest in its class.

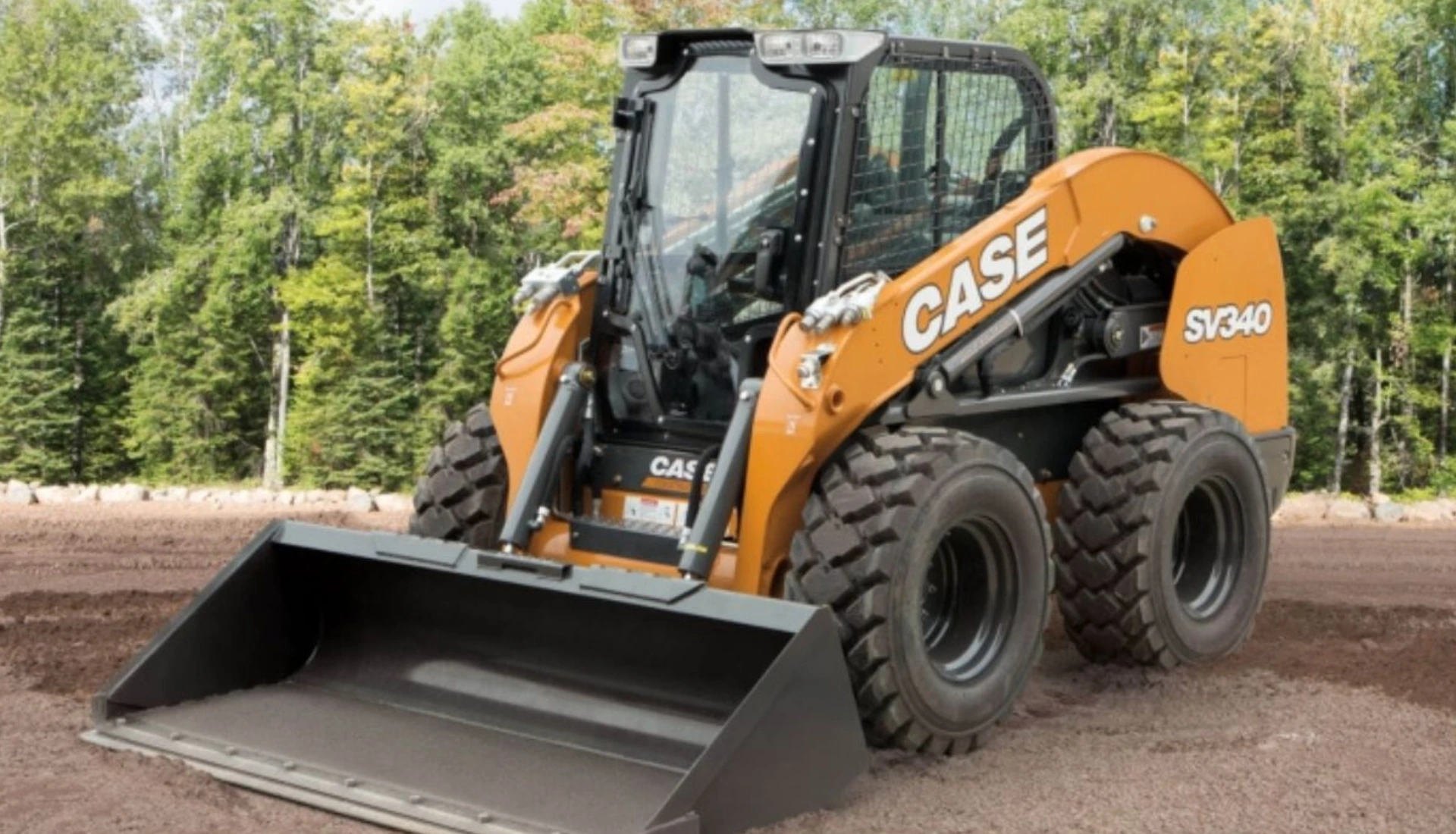

Applications

The different size classes of skid steer loaders serve distinct application needs across industries:

Small Frame Skid Steers

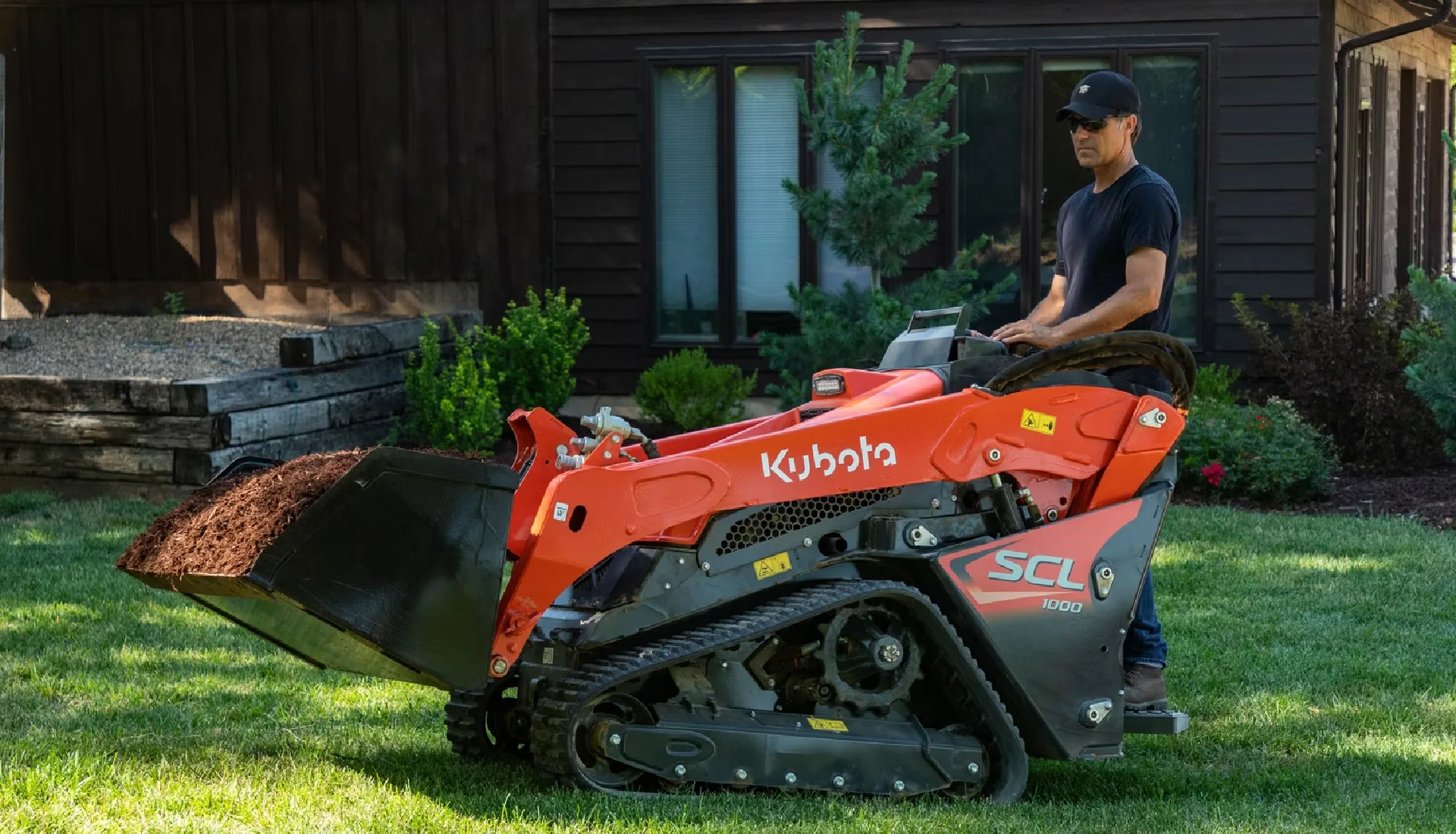

Landscaping

Their compact dimensions and maneuverability make small frame skid steers perfect for landscaping operations. They navigate around obstacles and excel in confined spaces like residential yards and gardens. Common applications include:

• Grading and leveling: Preparing ground for lawns, garden beds, and landscape features
• Digging and trenching: Installing irrigation systems, drainage solutions, and planting trees
• Material transport: Moving soil, mulch, gravel, and other landscaping materials efficiently
• Tree and stump removal: Clearing vegetation and preparing sites for new plantings

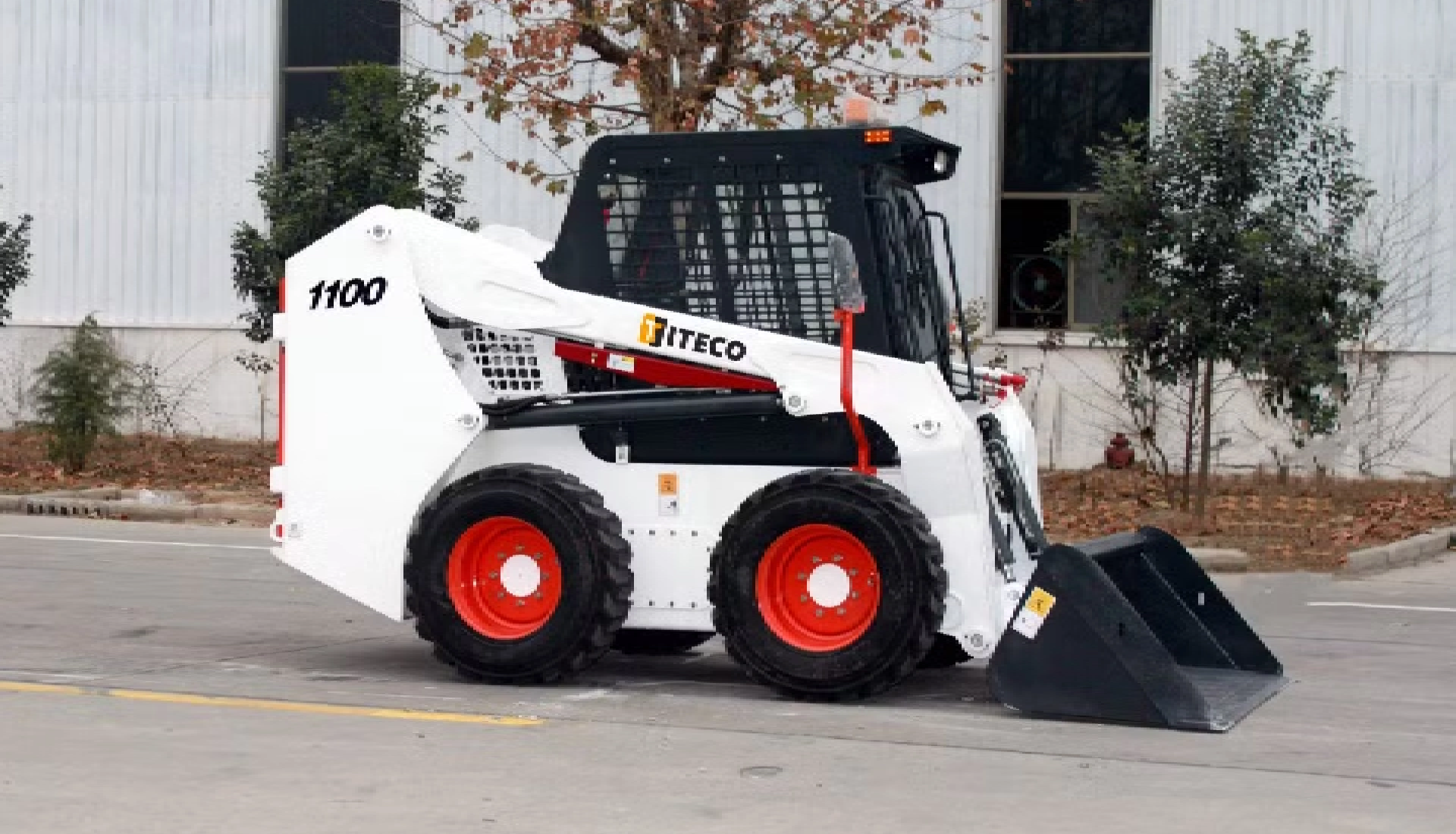

Residential Construction

Their compact footprint allows access to confined spaces, making them valuable for residential projects. Key uses include:

• Interior demolition: Removing walls, flooring, and materials during renovations
• Light excavation: Digging foundations for small structures or utility lines
• Material handling in tight areas: Moving materials where larger machines simply can't fit

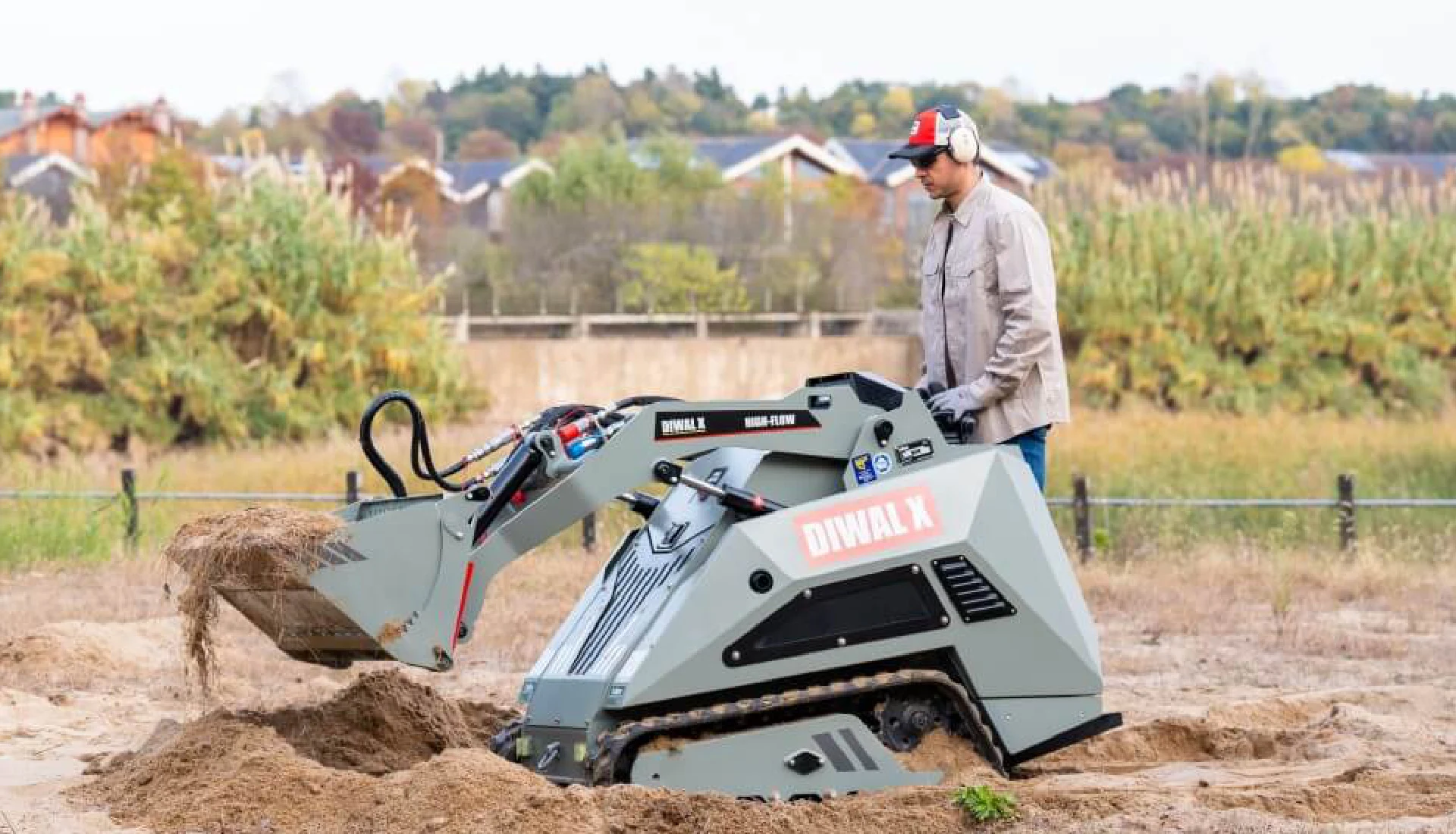

Agriculture

Small skid steers handle various agricultural tasks effectively:

• Barn and stable cleaning: Removing manure and bedding materials
• Hay bale transport: Moving feed for livestock operations
• Light-duty material handling: Transporting feed, fertilizer, and farm supplies

Medium Frame Skid Steers

Construction

Medium frame skid steers balance power and maneuverability, making them versatile construction assets for:

• Site preparation: Clearing and leveling ground for construction projects
• Debris removal: Clearing construction waste efficiently
• Grading and leveling: Fine-tuning ground levels for foundations
• Material handling: Moving construction materials like bricks, concrete blocks, and lumber

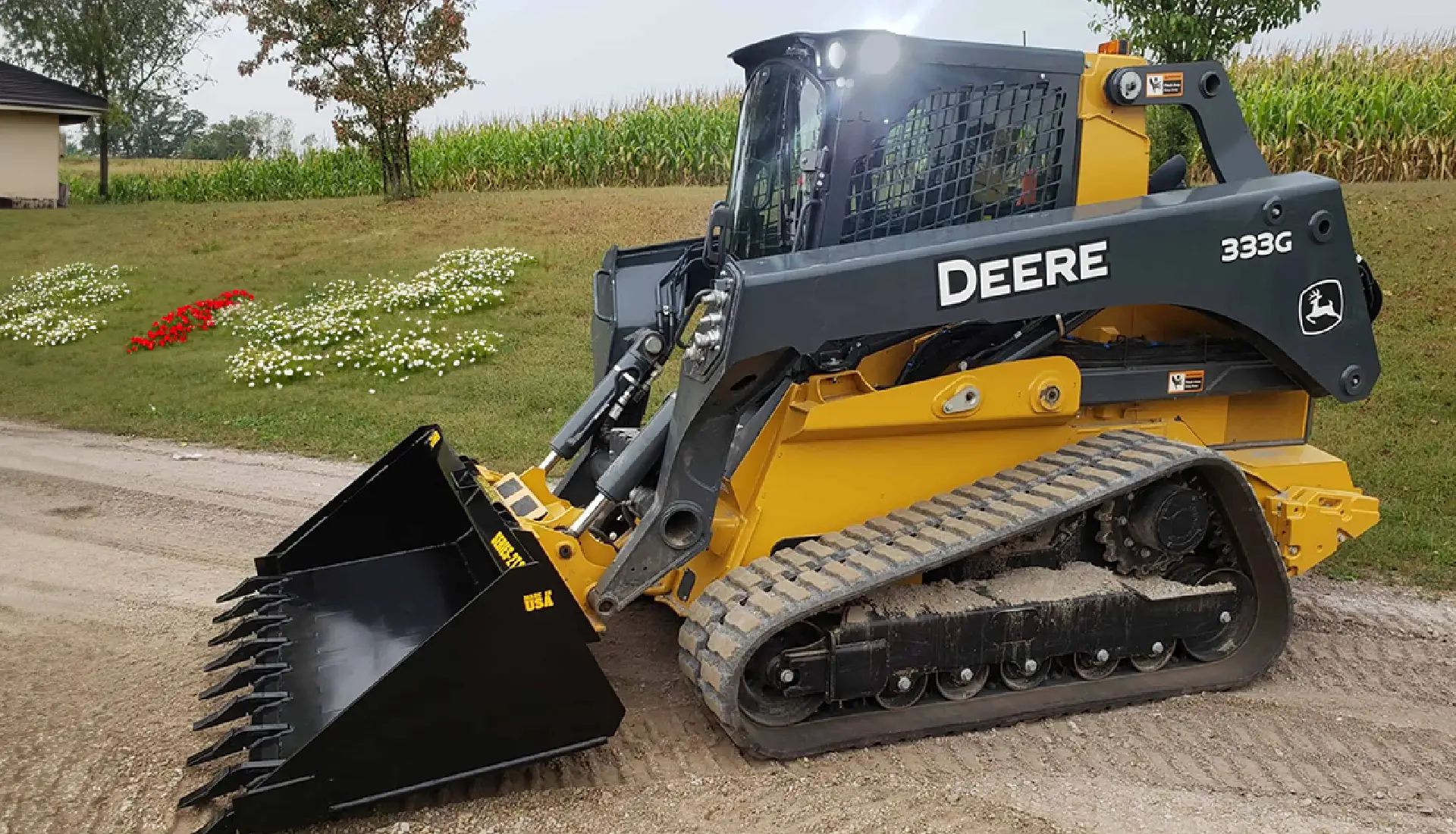

Landscaping

They tackle more demanding landscaping tasks than their smaller counterparts:

• Larger-scale grading: Preparing expansive areas for landscaping features
• Heavy material transport: Handling substantial quantities of soil, mulch, or stone
• Tree and stump removal: Clearing larger vegetation with enhanced power

Snow Removal

With the right attachments, skid steers efficiently clear snow from parking lots, driveways, and sidewalks. Snow pushers, blades, and blowers allow operators to quickly move large volumes of snow, while salt spreaders help improve traction on icy surfaces. Their compact size and maneuverability make them ideal for both residential and commercial snow removal, even in tight or obstructed areas.

Large Frame Skid Steers

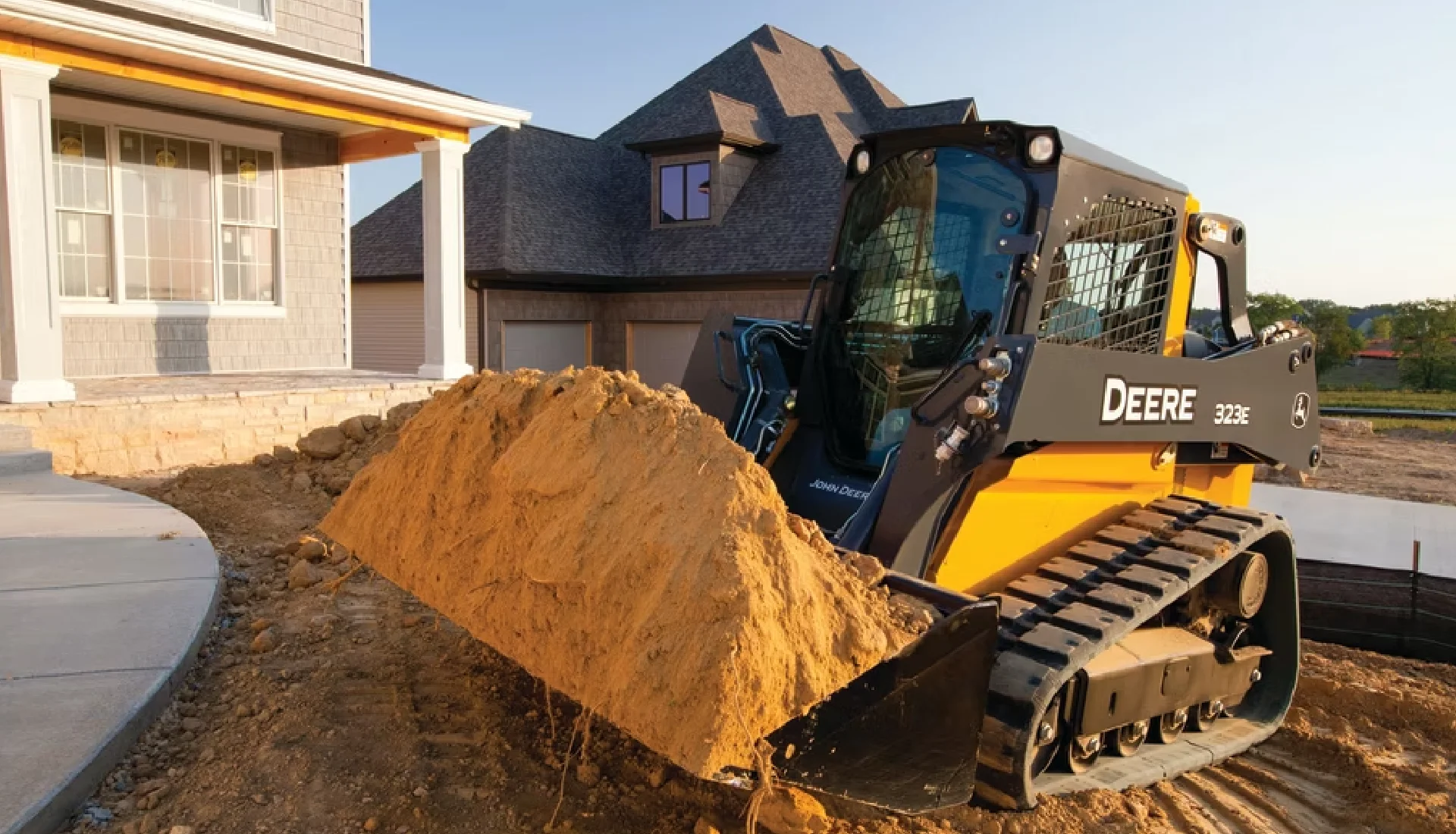

Heavy Construction

Large frame skid steers deliver maximum lift capacity and horsepower for demanding applications:

• Grading and excavation: Moving significant earth volumes and preparing building sites
• Drilling: Installing fence posts, foundations, and structural elements
• Demolition: Breaking concrete and removing debris from demolition sites
• Road construction: Building and maintaining roads and infrastructure

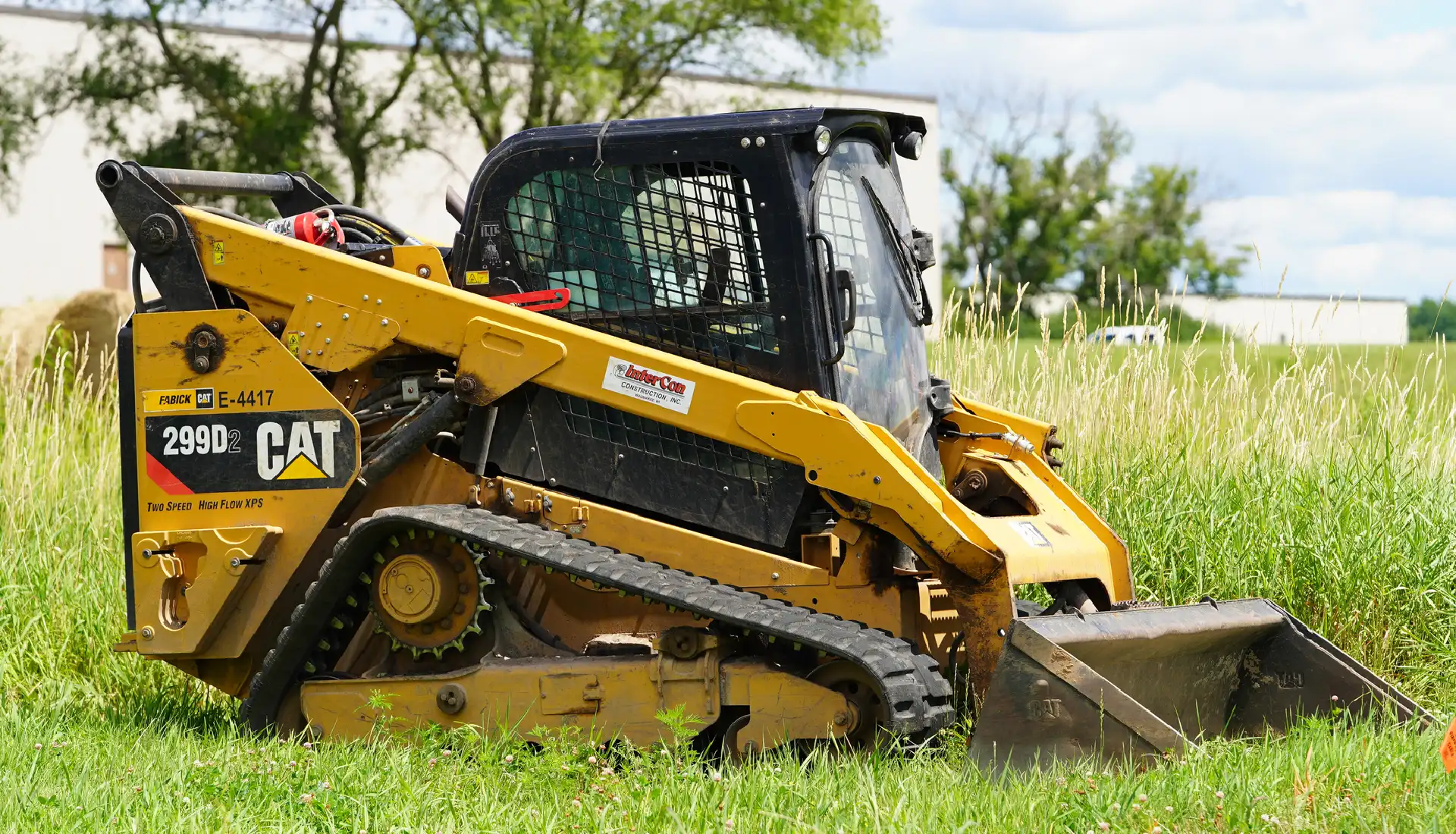

Agriculture

They handle challenging agricultural tasks effectively:

• Land clearing: Removing trees, brush, and vegetation from fields
• Fence installation: Setting posts and constructing extensive fencing
• Hay and feed management: Moving large bales and distributing feed to livestock

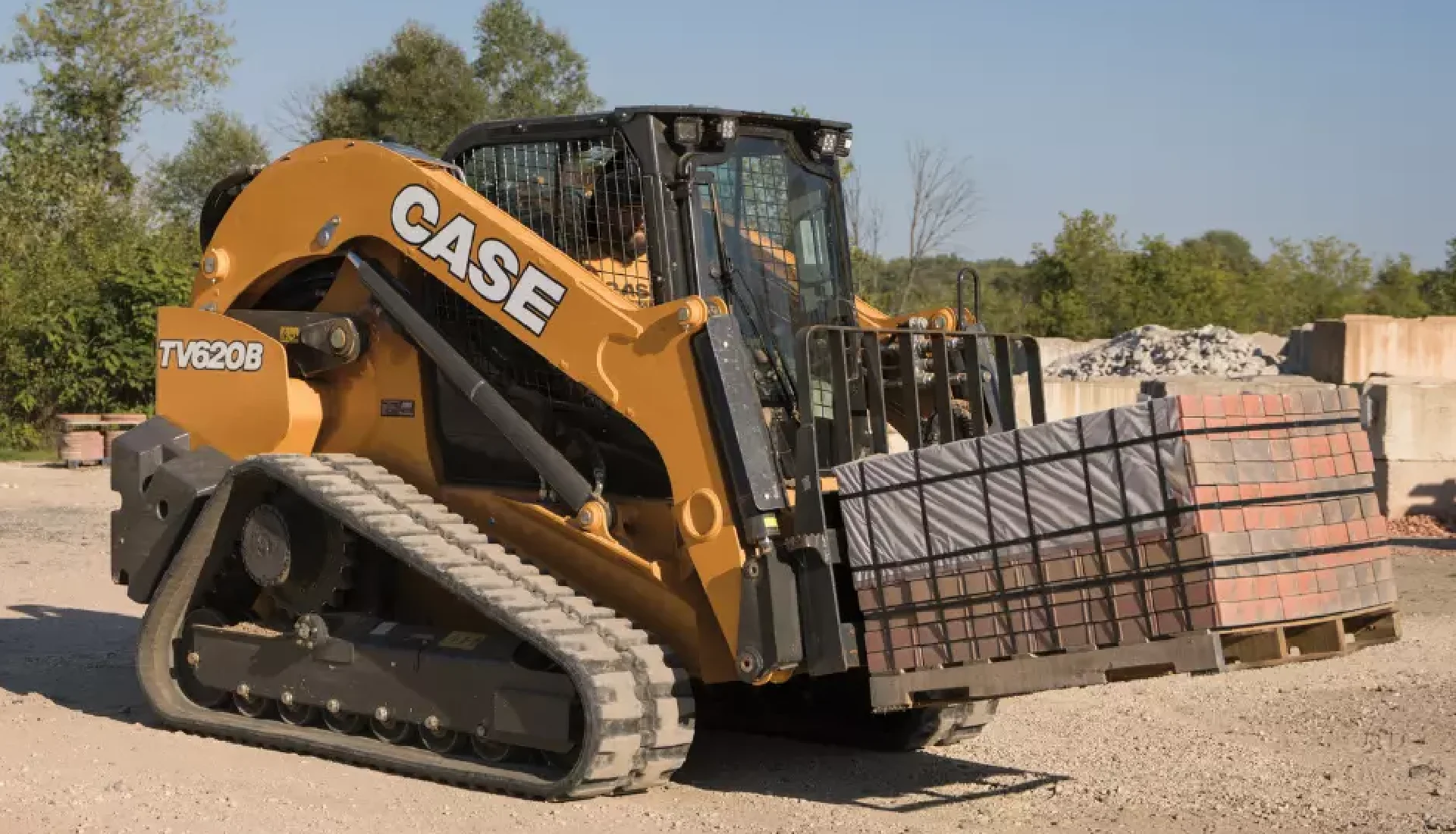

Material Handling

Large-frame skid steers excel at lifting and transporting heavy materials in warehouses, industrial sites, and construction zones. With pallet forks, grapple buckets, and hydraulic lifts, these machines efficiently move pallets, stacks of lumber, and bulk materials. Their versatility and lifting capacity make them essential for loading, unloading, and organizing materials in demanding work environments.

Lift Mechanisms

flowchart TD
    subgraph "Lift Mechanism Comparison"
    A[Skid Steer Lift Mechanisms]
    A -->|Radial Lift| B[Arc Movement Path]
    A -->|Vertical Lift| C[Straight Up-Down Path]

    B --> D[Greater Forward Reach at Mid-Height]
    B --> E[Better for Digging/Grading]
    B --> F[Optimal for Ground-Level Work]
    B --> G[Lower Manufacturing Cost]

    C --> H[Maximum Reach at Full Height]
    C --> I[Better for Truck Loading]
    C --> J[Optimal for Material Stacking]
    C --> K[Greater Stability with Heavy Loads]

    style A fill:#f9f9f9,stroke:#333,stroke-width:2px
    style B fill:#a6cff7,stroke:#333,stroke-width:1px
    style C fill:#f7d9a6,stroke:#333,stroke-width:1px
    style D,E,F,G fill:#d1e7ff,stroke:#333,stroke-width:1px
    style H,I,J,K fill:#ffe7c2,stroke:#333,stroke-width:1px
    end

Skid steer loaders use two primary lift mechanisms: radial lift and vertical lift.

Radial lift offers a simpler design with an arc-like lifting motion, making it ideal for digging and grading applications.

Vertical lift, on the other hand, provides greater reach at full height, making it better suited for loading high trucks and material handling. Understanding these functional differences is key to selecting the right machine for your specific application.

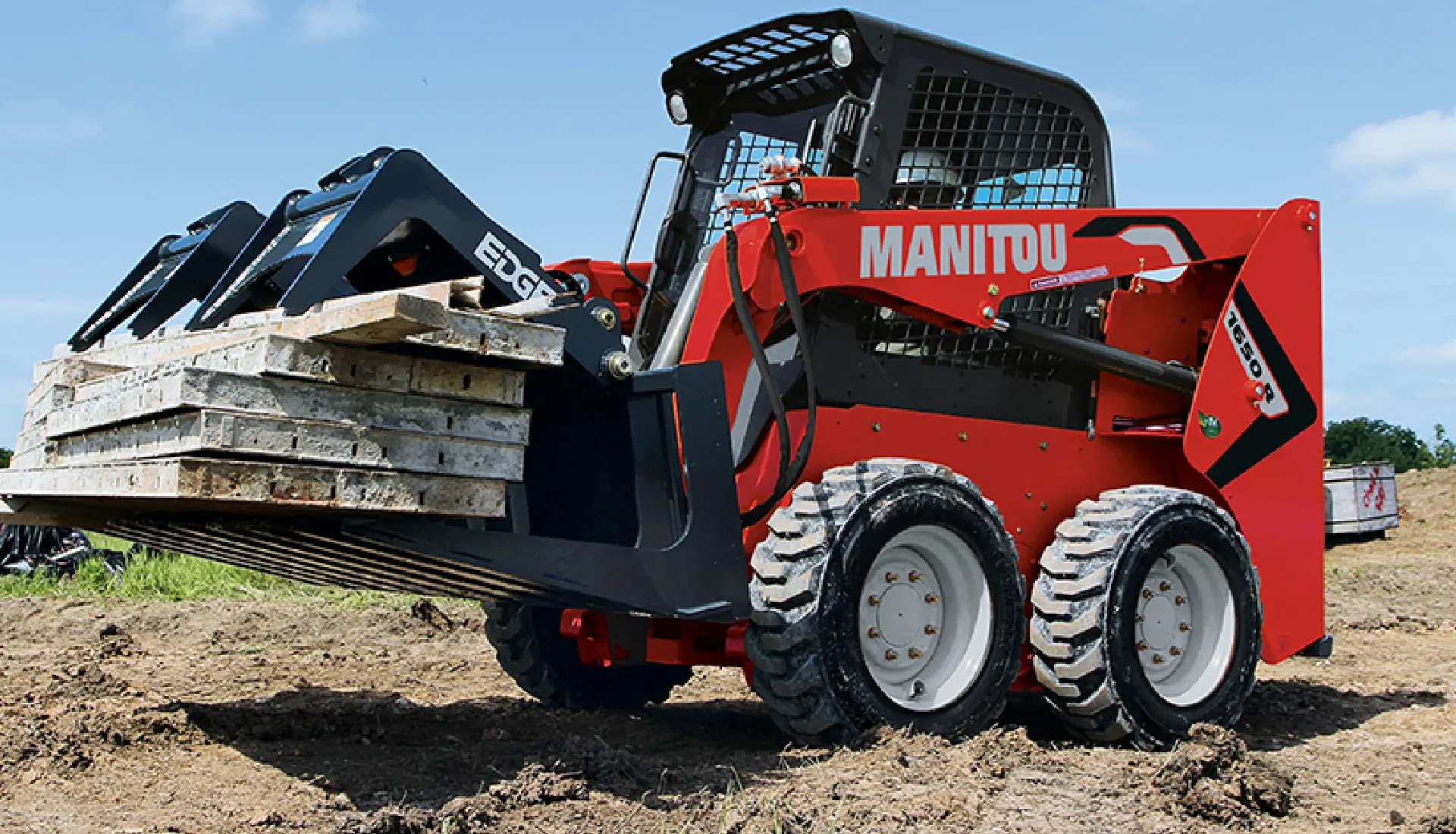

Radial Lift

In a radial lift system, the loader arms swing outward in an arc as they rise. This design delivers greater forward reach at mid-height, making it particularly effective for digging, grading, and material handling at lower levels. Radial lift skid steers typically excel in tasks that involve working with the ground or below eye level.

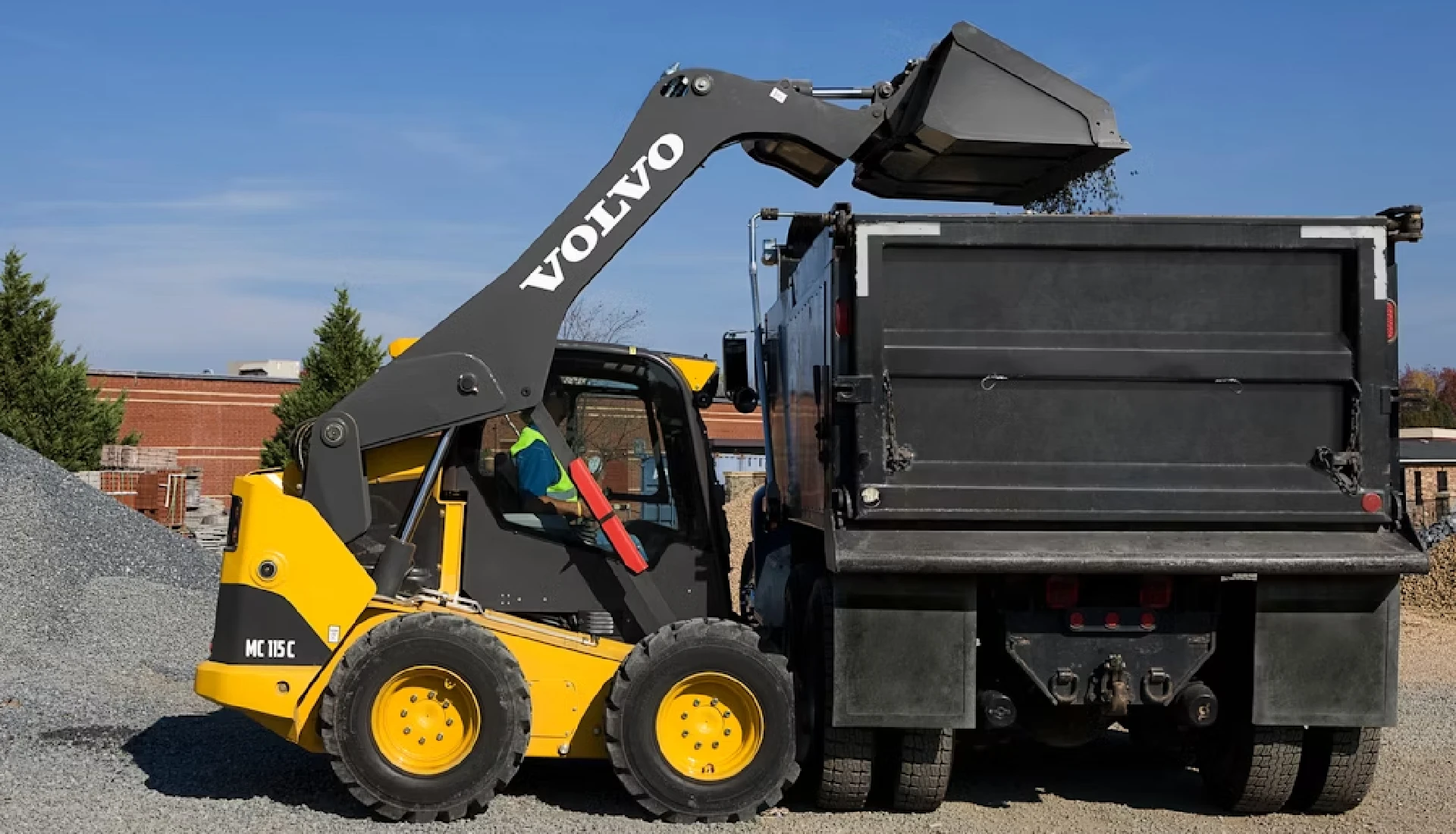

Vertical Lift

Vertical lift systems provide a straight up-and-down lift path. This configuration maximizes reach and lift height, making it ideal for loading trucks, stacking materials, and handling tasks above eye level. Vertical lift skid steers also offer enhanced stability when lifting heavier loads.

The choice between radial and vertical lift depends entirely on your typical applications. If most tasks involve digging, ground-level work, or material handling at lower heights, a radial lift machine will likely serve you better. For operations requiring higher lifting, truck loading, or material stacking, a vertical lift machine makes more sense.

Wheeled vs. Tracked Skid Steers

Skid steer loaders come in two main configurations: wheeled and tracked. Wheeled skid steers dominate on hard, flat surfaces like concrete and asphalt, offering superior speed and maneuverability in these conditions.

Tracked skid steers, also known as compact track loaders, excel on uneven, soft, or challenging terrain, with their tracks providing enhanced traction and stability where wheeled machines might struggle.

When deciding between wheeled and tracked skid steers, consider these key factors:

• Terrain: Wheeled skid steers perform best on hard, even surfaces, while tracked models thrive in uneven or soft terrain conditions.
• Cost: Tracked skid steers typically command a higher purchase price and increased maintenance costs due to inevitable track wear and replacement needs.
• Ground Disturbance: Wheeled skid steers can leave more significant marks on soft surfaces, while tracked versions distribute weight more evenly, minimizing surface damage.

Cost

Skid steer loader prices vary widely depending on size, features, brand, and attachments. Smaller models with basic features are more affordable, while larger, high-capacity units with advanced technology come at a premium. Here’s what the market currently shows:

Several key factors influence these costs:

• Brand: Premium manufacturers like Bobcat and John Deere often command higher prices for their reputation and perceived reliability.
• Attachments: Implements can significantly increase overall investment, ranging from $1,000 for basic attachments to $20,000 for specialized equipment.
• Condition: Used machine pricing varies dramatically based on age, operating hours, and overall maintenance history.
• Features: Advanced options like enclosed cabs, high-flow hydraulics, and telematics systems add substantial cost but deliver enhanced capability and operator comfort.

Performance Metrics

When evaluating skid steer loaders, several performance metrics deserve close attention:

Engine Power: Engine output significantly impacts performance capabilities. Current skid steers feature engines ranging from 50 to over 100 horsepower (HP). Your application requirements should dictate your power needs—heavy-duty operations like excavation or demolition demand higher horsepower for adequate torque and speed.

Modern engines with advanced fuel injection systems deliver improved efficiency and reduced emissions, meeting stringent environmental standards.

Rated Operating Capacity (ROC): ROC represents the maximum weight a skid steer can safely lift and transport. This crucial metric ranges from under 1,750 lbs in small frame models to over 2,200 lbs in large frame units. ROC directly determines a machine's suitability for specific tasks and compatibility with various attachments.

Lift Height: This measurement indicates the maximum height the loader arms can reach. Lift height varies with size and lift path design (radial or vertical). This metric becomes especially important for applications involving truck loading or material stacking.

Hydraulic Flow: Flow rate determines attachment speed and power, measured in gallons per minute (gpm). High-flow hydraulics are essential for demanding attachments like cold planers and other powered implements.

Conclusion

Selecting the optimal skid steer requires matching machine capabilities to operational demands. Focus on these key factors:

Size class determines your operational envelope—small frames for tight spaces, large frames for heavy lifting. Lift type should align with your typical working height—vertical for truck loading and stacking, radial for digging and ground engagement. Surface conditions dictate mobility choices—wheels for hard surfaces and speed, tracks for soft terrain and flotation.

Finally, match performance metrics (horsepower, hydraulic flow, lift capacity) to your specific tasks. The most expensive mistake in equipment is buying more—or less—machine than your operation requires.
