Parts of a Skid Steer: 8 Critical Components That Determine Performance

Most operators focus on skid steer attachment types when shopping, but real performance differences come from core components. That 100-horsepower engine may look impressive, but with undersized hydraulics pushing just 30 GPM, it’s like a Ferrari engine in a golf cart.

This breakdown of critical skid steer systems—parts of a skid steer like vertical vs. radial lift arms and variable displacement hydraulic pumps—helps you evaluate machines beyond the sales brochure:

A skid steer’s essential parts include the engine (50-100 HP diesel/gas), hydraulic system (11-50 GPM), bucket and attachments, cab with ROPS/FOPS protection, lift system (radial or vertical), specialized tires, drive motors, and axles. These components work together to provide the machine’s signature maneuverability and functionality.

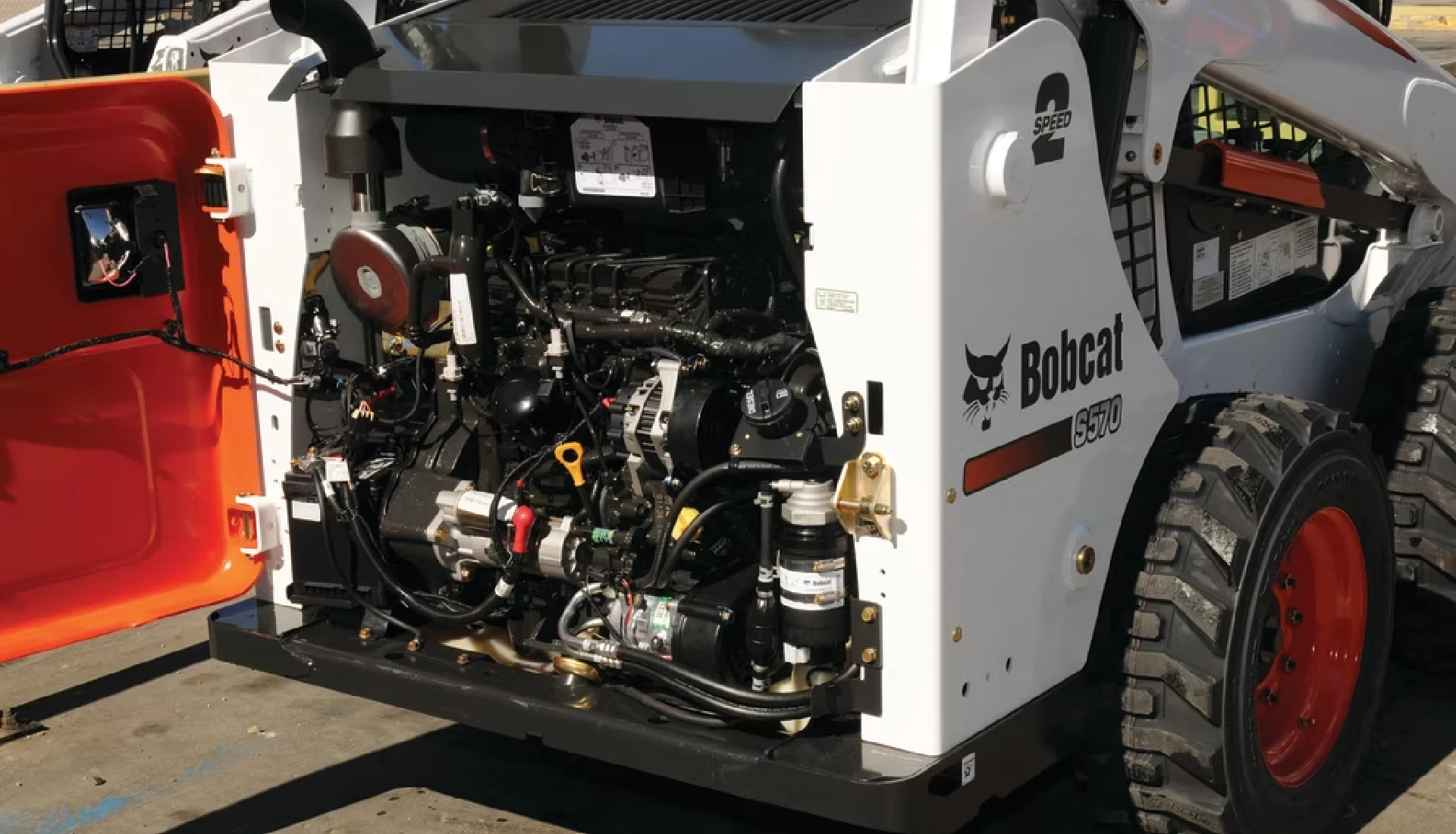

1. Engine and Fuel System

The engine is the heart of a skid steer loader, providing the power necessary for movement and operation of attachments. Modern skid steers typically utilize diesel or gasoline engines.

Diesel engines are favored for their durability, torque, and fuel efficiency, making them well-suited for heavy-duty applications such as excavation and demolition where continuous operation and high power output are required.

Gasoline engines, while generally less powerful, offer quicker startups and lower initial costs, making them a viable option for lighter-duty tasks and budget-conscious buyers.

There is also a growing demand for electric skid steers, driven by the need for reduced emissions and quieter operation in sensitive environments. However, the widespread adoption of electric skid steers is still in its early stages, with challenges related to battery technology and infrastructure needing further development.

The fuel system ensures the engine receives the correct fuel-air mixture for optimal combustion. Most skid steers employ direct injection systems, where fuel is injected directly into the combustion chamber, enhancing efficiency and power output. This precise fuel delivery optimizes combustion, leading to improved fuel economy and reduced emissions.

Cost

The cost of a new skid steer engine can range from approximately $2,000 to $43,780, depending on factors such as brand, horsepower, and emissions compliance. Rebuilt or remanufactured engines can offer a more cost-effective option, with prices typically lower than new engines.

Performance Metrics

Skid steer engines typically range from 50 to 100 horsepower, with some models exceeding 100 horsepower for demanding applications. Engine power is a crucial factor in determining the machine's overall performance, affecting its ability to handle heavy loads, operate attachments efficiently, and traverse challenging terrain.

Usage Rates

Compact construction equipment, including skid steers, generally consumes 0.5 to 1 gallon of fuel per hour during normal operation. However, factors like engine size, operating conditions, and operator behavior can significantly influence fuel consumption.

For example, operating a skid steer with a larger engine on hilly terrain or with heavy loads will result in higher fuel consumption compared to using a smaller engine on flat ground with lighter loads.

Historical Timelines

The development of fuel injection systems for diesel engines dates back to the late 19th century, with advancements in solid injection and metering methods occurring throughout the 20th century. These advancements have led to significant improvements in engine efficiency, power output, and emissions reduction.

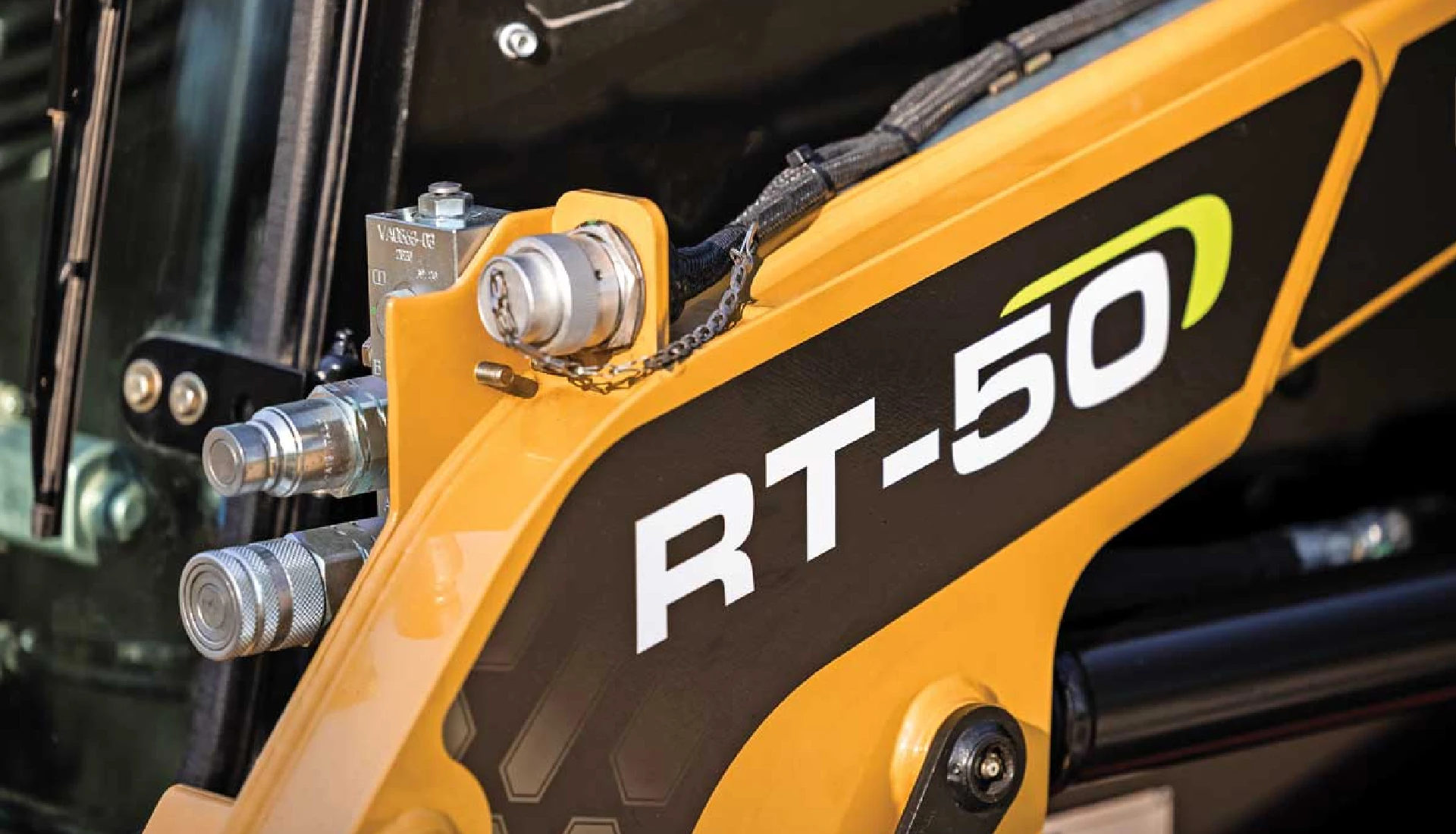

2. Hydraulic System

The hydraulic system is crucial for a skid steer's movement and attachment operation. It utilizes hydraulic fluid to transmit force and control various functions, such as lifting and lowering the arms, tilting the bucket, and operating specialized attachments. The hydraulic system allows the skid steer to perform a wide range of tasks with precision and efficiency.

Cost

Replacing a Bobcat hydraulic pump can cost between $1,500 and $3,500, including parts and labor. The cost can vary depending on factors such as the model of the skid steer, the type of hydraulic pump, and the labor rates in the area.

Performance Metrics

Standard-flow auxiliary hydraulic systems in skid steers range from 11 to 30 gallons per minute (gpm), while high-flow systems can deliver 30 to 50 gpm. High-flow hydraulics are essential for operating attachments that require high volumes of hydraulic fluid, such as forestry mulchers and asphalt mills.

Usage Rates

Skid steer hydraulic systems typically use three or four pumps to power the machine's movements and attachments. These pumps can be either variable displacement or fixed displacement. Variable displacement pumps adjust the amount of hydraulic fluid delivered based on the demand, improving efficiency and reducing energy consumption. Fixed displacement pumps deliver a constant flow of hydraulic fluid, regardless of the demand.

Historical Timelines

The evolution of hydraulic systems in skid steers is intertwined with the development of the machines themselves, with advancements in hydraulic technology enabling the use of increasingly complex and powerful attachments. These advancements have transformed skid steers from simple loaders into versatile tool carriers capable of performing a wide range of tasks.

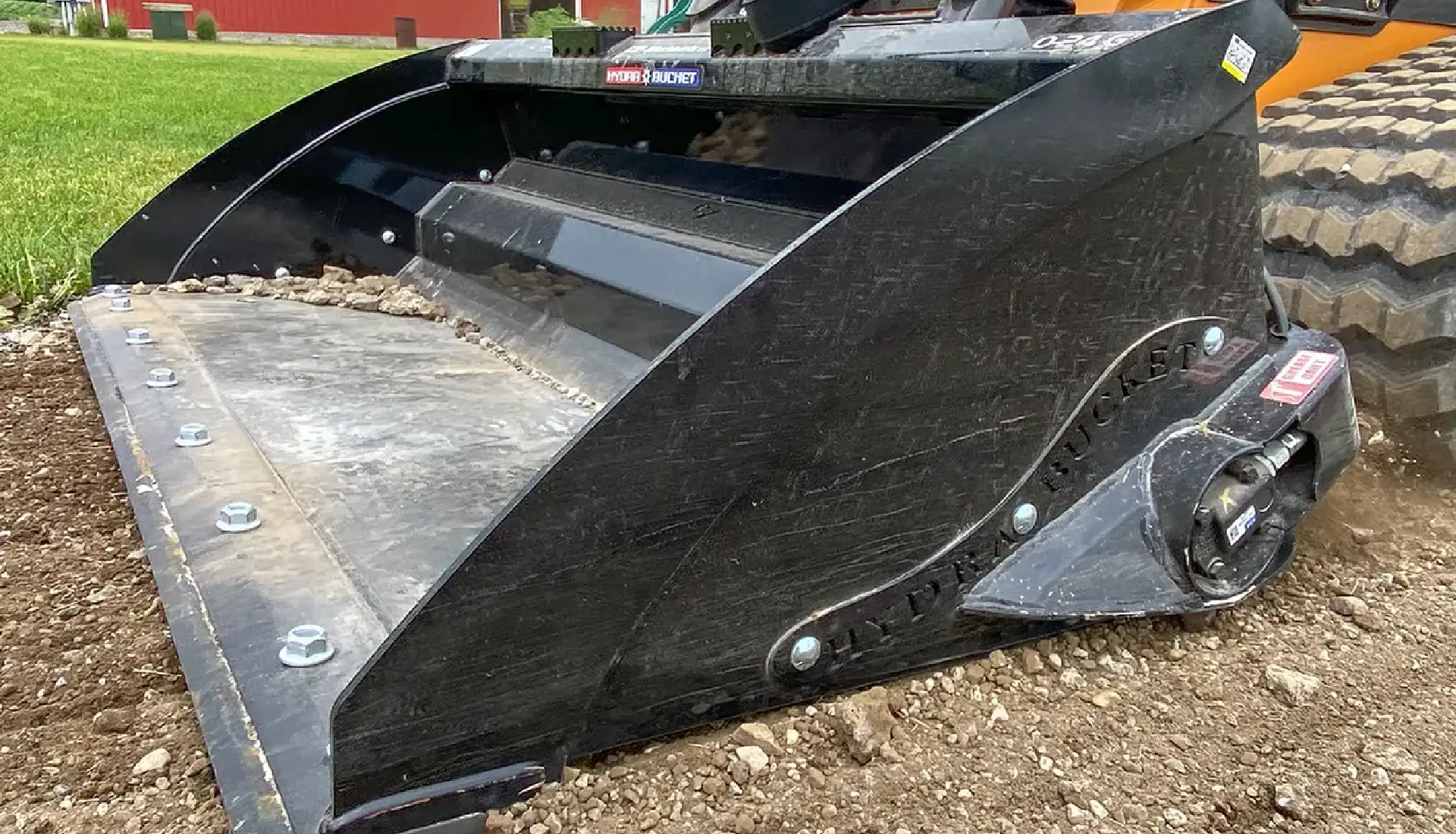

3. Bucket

The bucket is one of the most common and versatile attachments for a skid steer loader. It is used for various tasks, including loading, carrying, and dumping materials such as soil, gravel, and construction debris. The bucket's design and construction play a crucial role in its performance and efficiency.

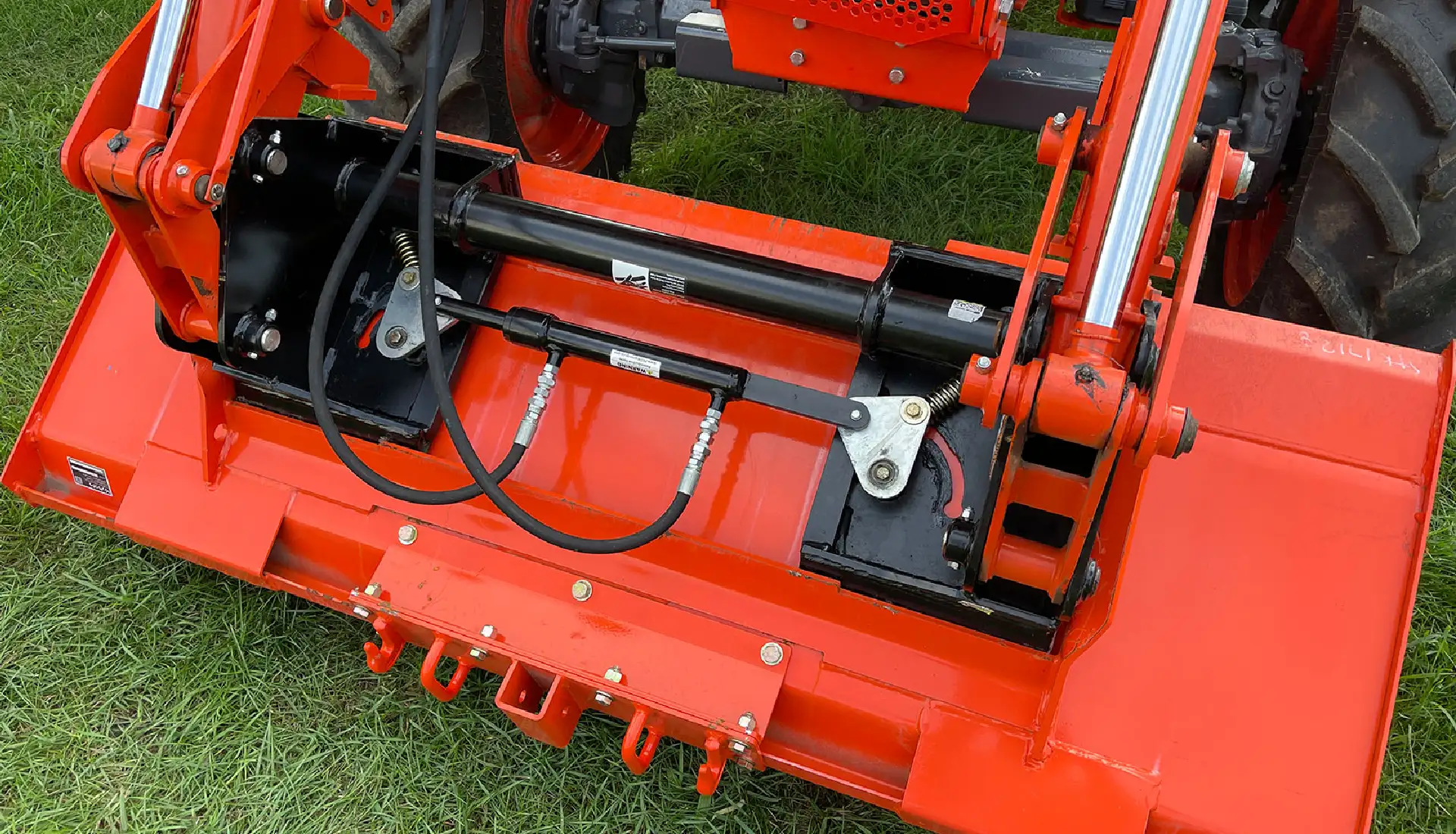

Bucket Coupler

The bucket coupler is a vital component that allows for quick and easy attachment and detachment of the bucket and other attachments. It provides a secure connection between the skid steer and the attachment, ensuring safe and efficient operation.

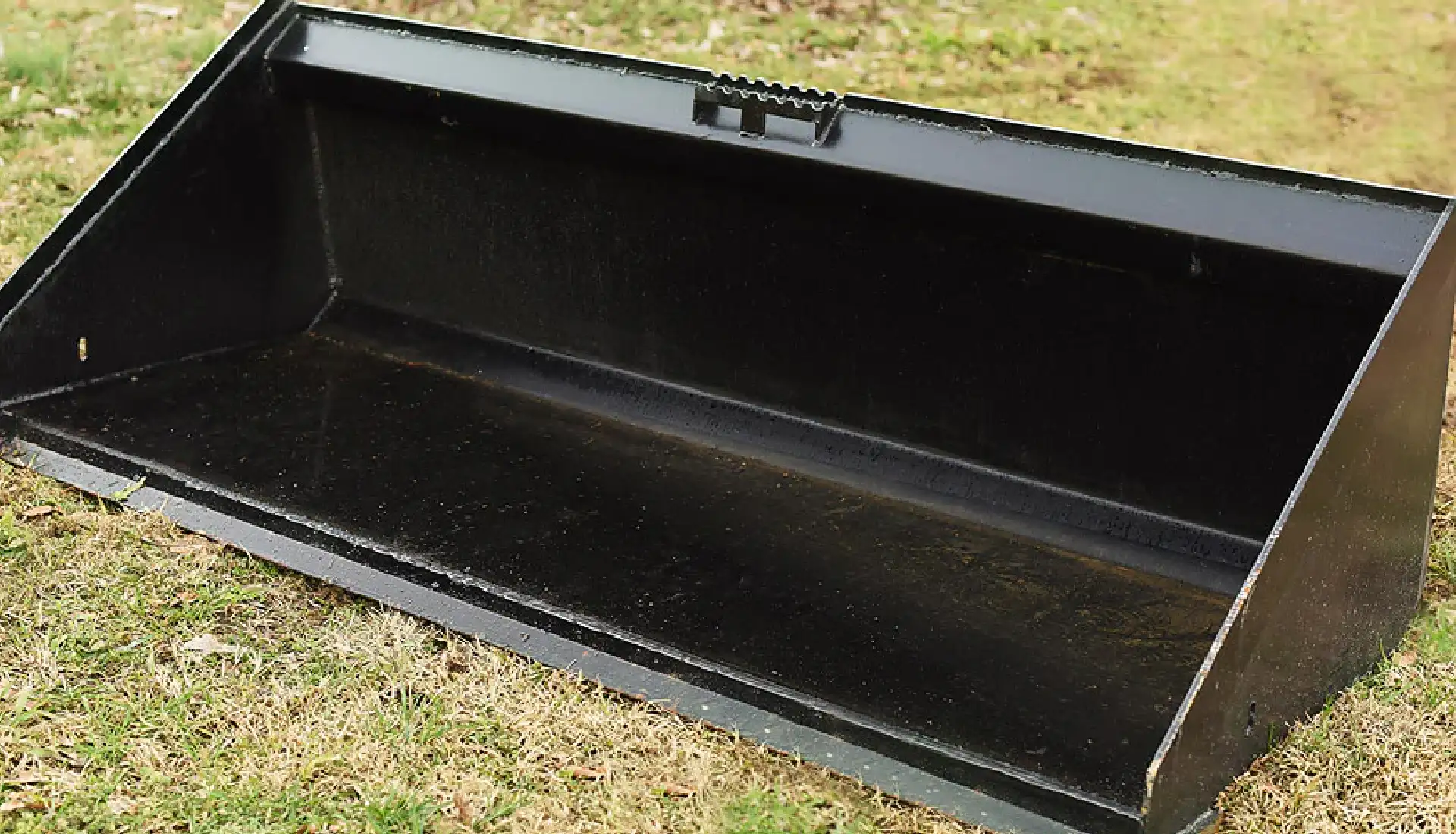

Types of Buckets

Skid steer loaders can utilize various types of buckets, each designed for specific applications. Some common skid steer bucket types include:

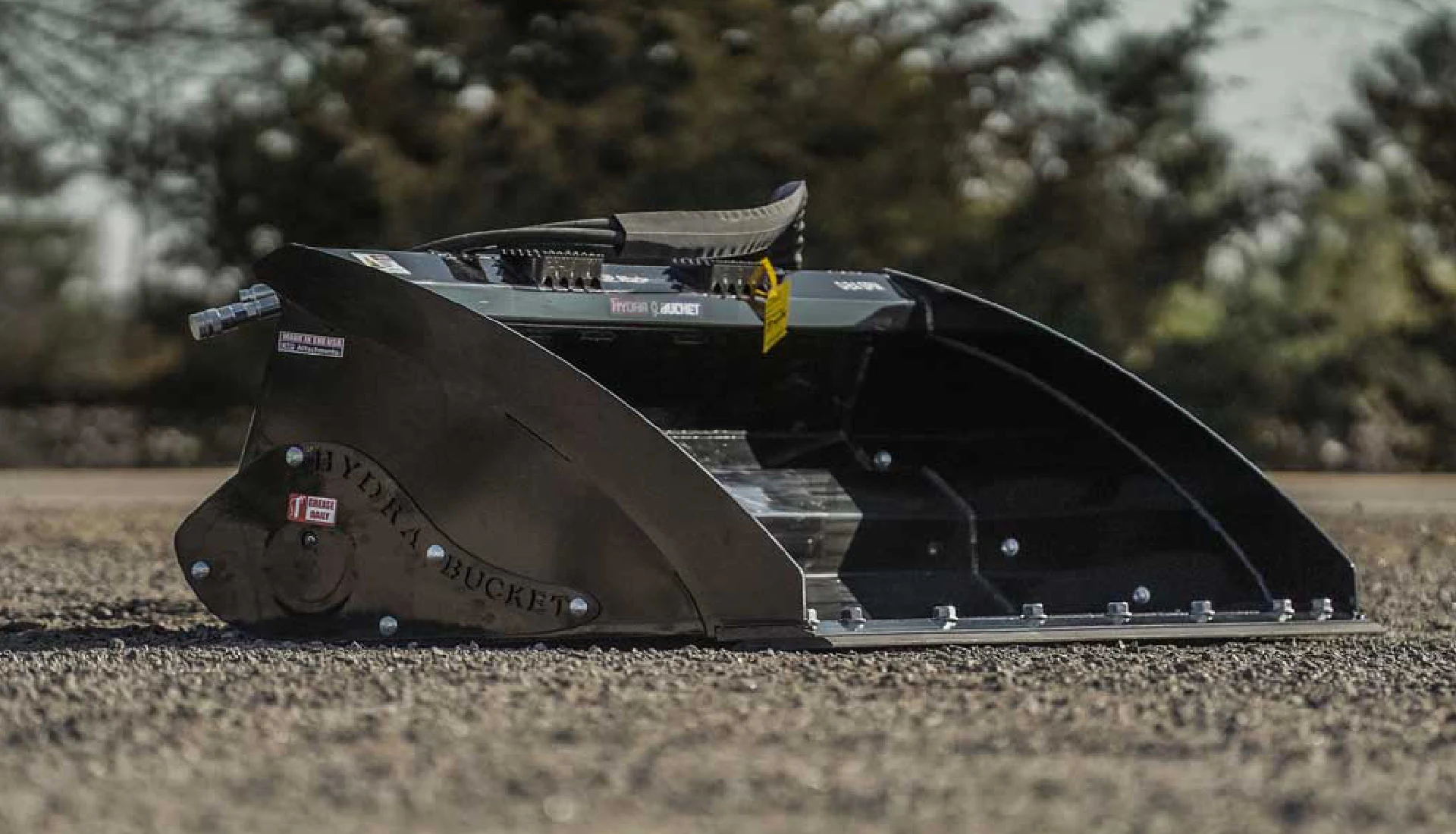

Standard Bucket

The most common type, used for general-purpose loading, carrying, and dumping of materials.

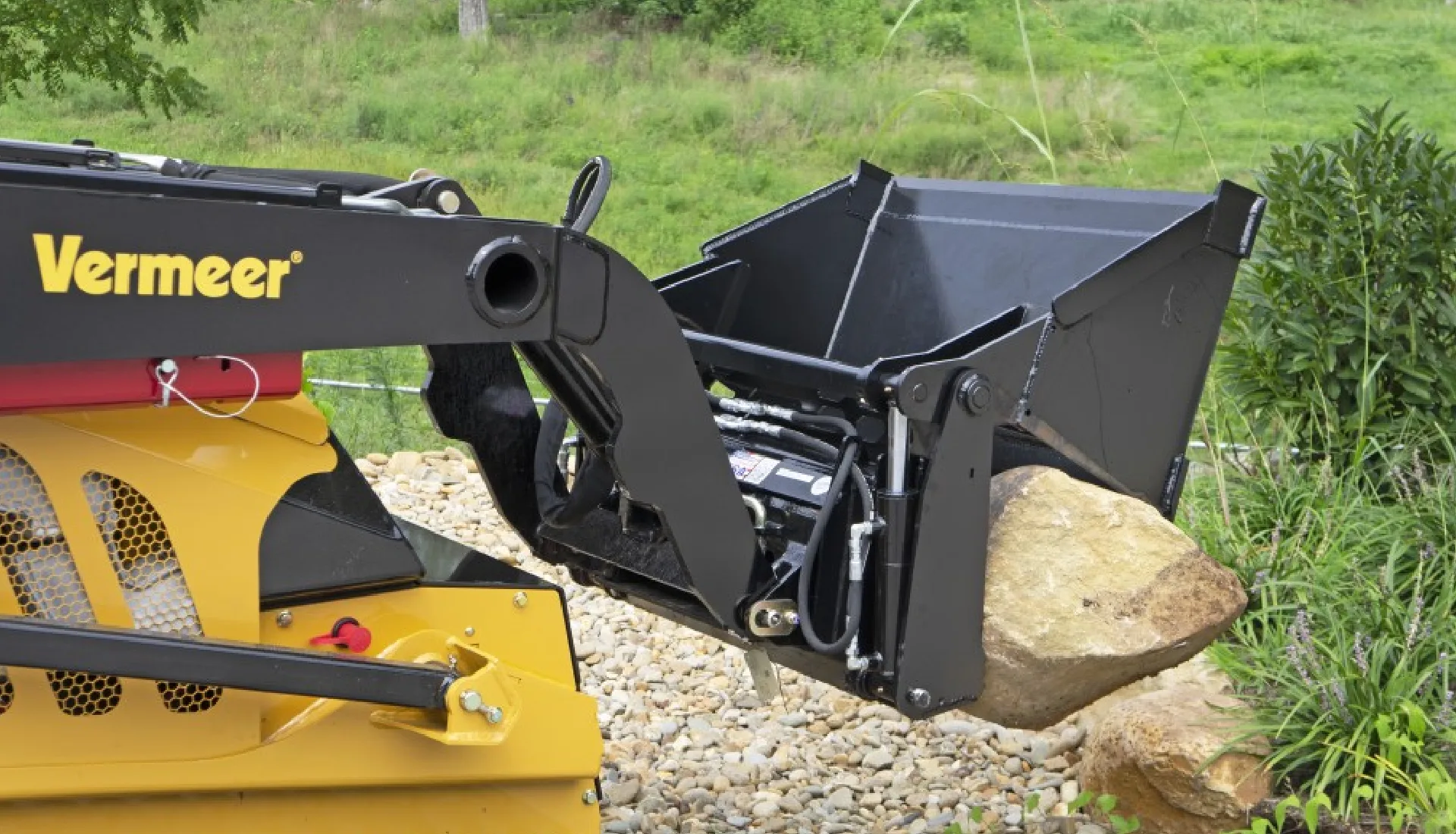

4-in-1 Bucket

A versatile bucket that can be used for dozing, grading, grabbing, and loading.

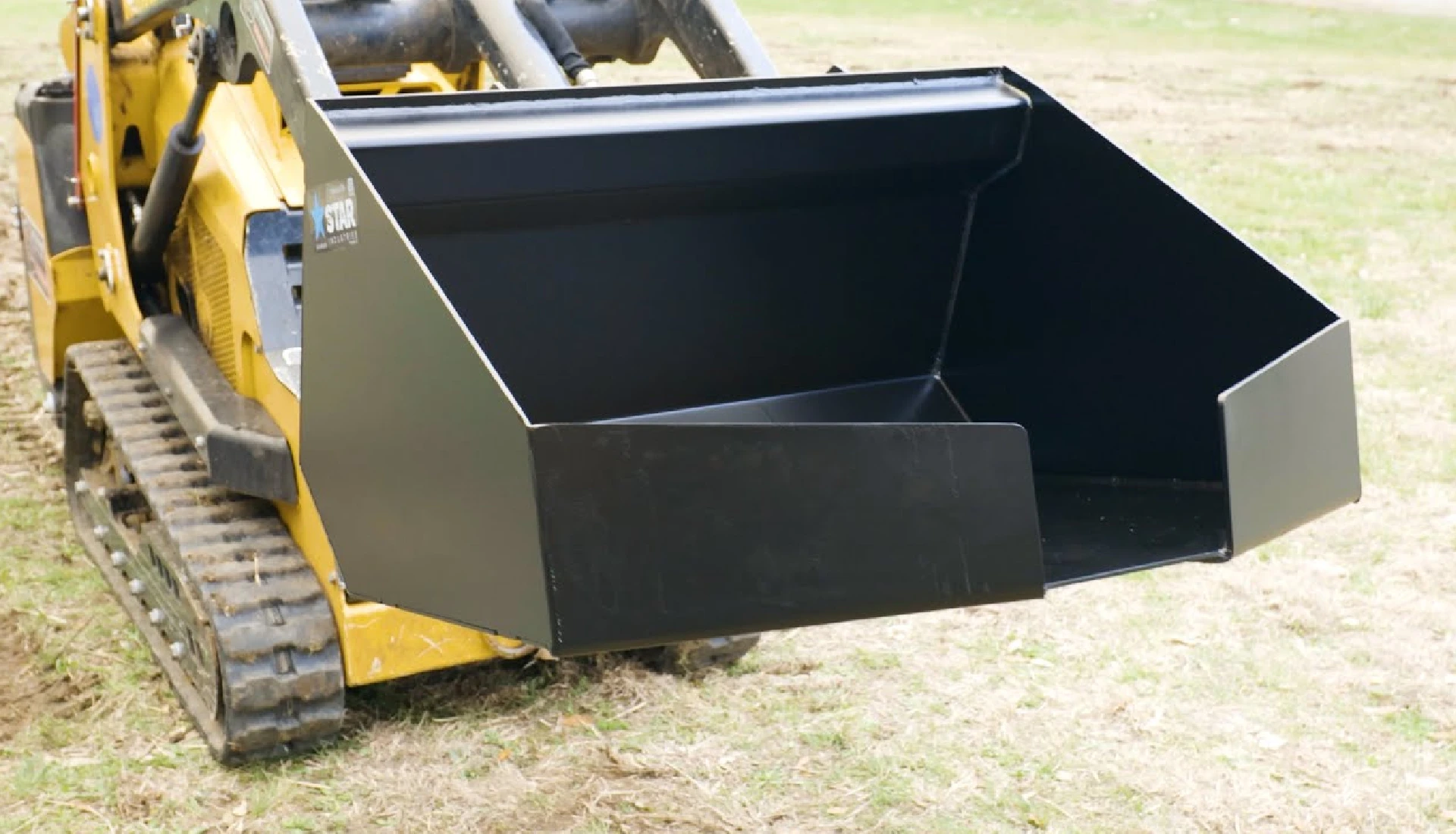

Concrete Bucket

Designed for handling and pouring concrete.

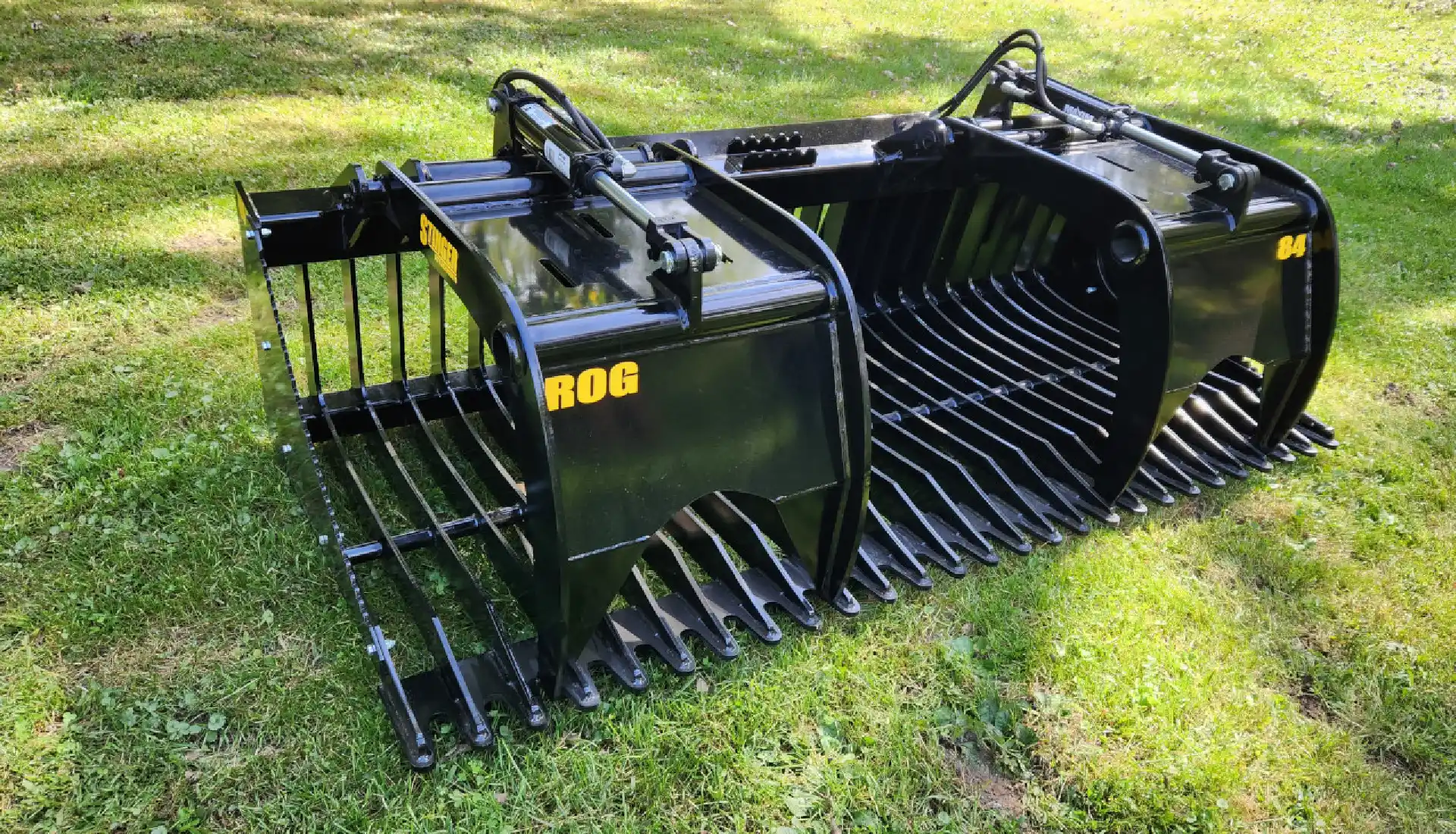

Grapple Bucket

Equipped with a grapple mechanism for grabbing and moving logs, rocks, and other irregular materials.

Cost

Skid steer buckets can range in price from around $500 to over $6,000, depending on the type, size, and features. Factors that influence cost include the bucket's capacity, construction materials, and any specialized features such as teeth or grapples.

Performance Metrics

The capacity of a skid steer bucket is measured in cubic feet, with both struck (level) capacity and heaped capacity considered. The dimensions of the bucket, including height, depth, and width, determine its capacity.

Usage Rates

The usage rate of a skid steer bucket depends on the material being handled. Different materials have different densities and weights, which affect the bucket's capacity and the amount of material that can be moved per cycle.

Historical Timelines

The first skid steer loaders were primarily used for cleaning turkey manure on farms, and the bucket has evolved alongside the machine to handle a wider range of materials and tasks. The development of different bucket types and sizes has increased the versatility and efficiency of skid steer loaders in various applications.

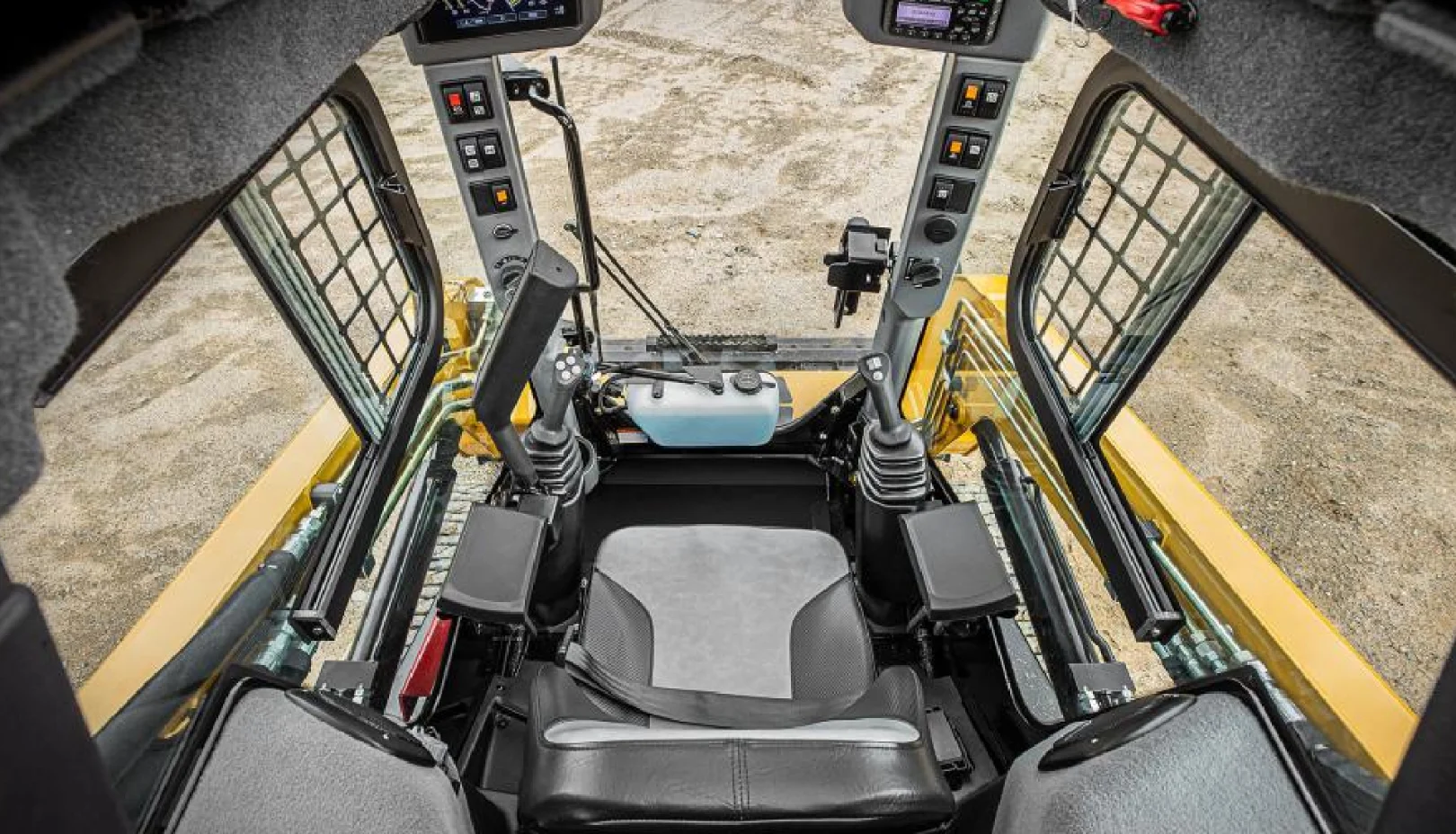

4. Cab

The cab is the operator's workspace, providing comfort, safety, and control over the skid steer. Modern cabs often feature ergonomic designs, climate control systems, and enhanced visibility for increased productivity and safety. The cab's design and features play a crucial role in operator comfort, safety, and overall productivity.

ROPS and FOPS

Skid steer cabs are equipped with Roll Over Protection Structure (ROPS) and Falling Object Protective Structure (FOPS) to ensure operator safety. ROPS provides protection in case of a rollover, while FOPS protects the operator from falling objects.

Cost

Skid steer cab enclosures can range from around $150 to over $2,000, depending on the features and model. Factors that influence cost include the type of enclosure, the materials used, and any additional features such as heating, air conditioning, or wipers.

Performance Metrics

Cab performance is influenced by factors such as size, ergonomics, visibility, and noise reduction. Larger cabs offer more operator space and comfort, while ergonomic designs minimize fatigue and improve control. Good visibility is essential for safe and efficient operation, especially in confined spaces or when working with attachments. Noise reduction features contribute to a more comfortable and less fatiguing work environment.

Usage Rates

The usage rate of a skid steer cab is directly related to the machine's operating hours. Cabs with comfortable features and good visibility contribute to increased operator productivity and reduced fatigue, allowing operators to work longer hours with greater efficiency.

Historical Timelines

Early skid steer loaders had open cabs, exposing operators to the elements. Over time, enclosed cabs with features like heating and air conditioning were introduced to improve operator comfort and safety. These advancements have made skid steer loaders more comfortable and safer to operate in various weather conditions and work environments.

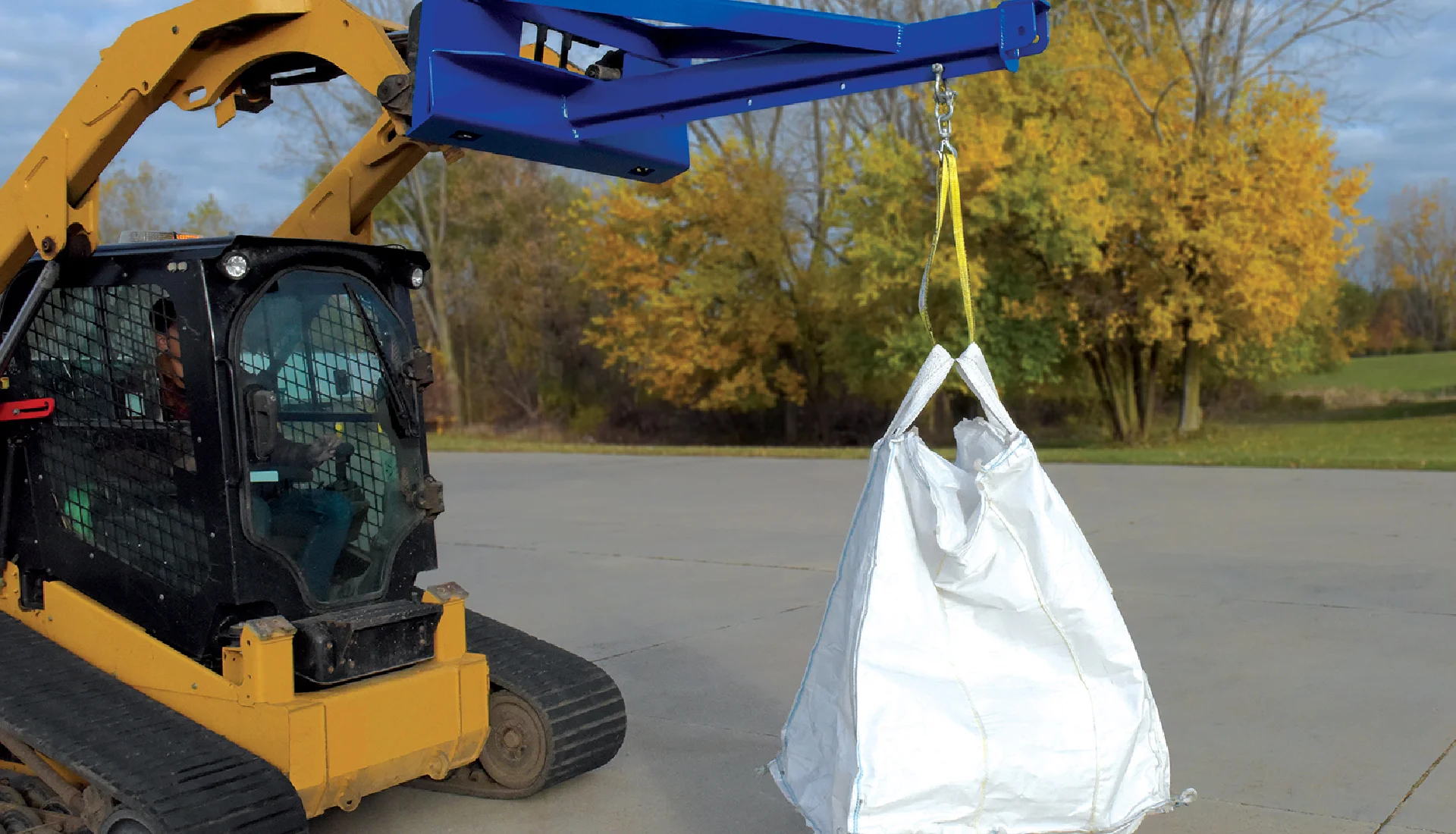

5. Lift System

The lift system is responsible for raising, lowering, and tilting the skid steer's arms and attachments. It is typically powered by a hydraulic system and plays a crucial role in the machine's overall functionality.

The lift system's performance and capacity determine the types of tasks the skid steer can perform.

Types of Lift Systems

Skid steer loaders utilize two main types of lift systems: radial lift and vertical lift.

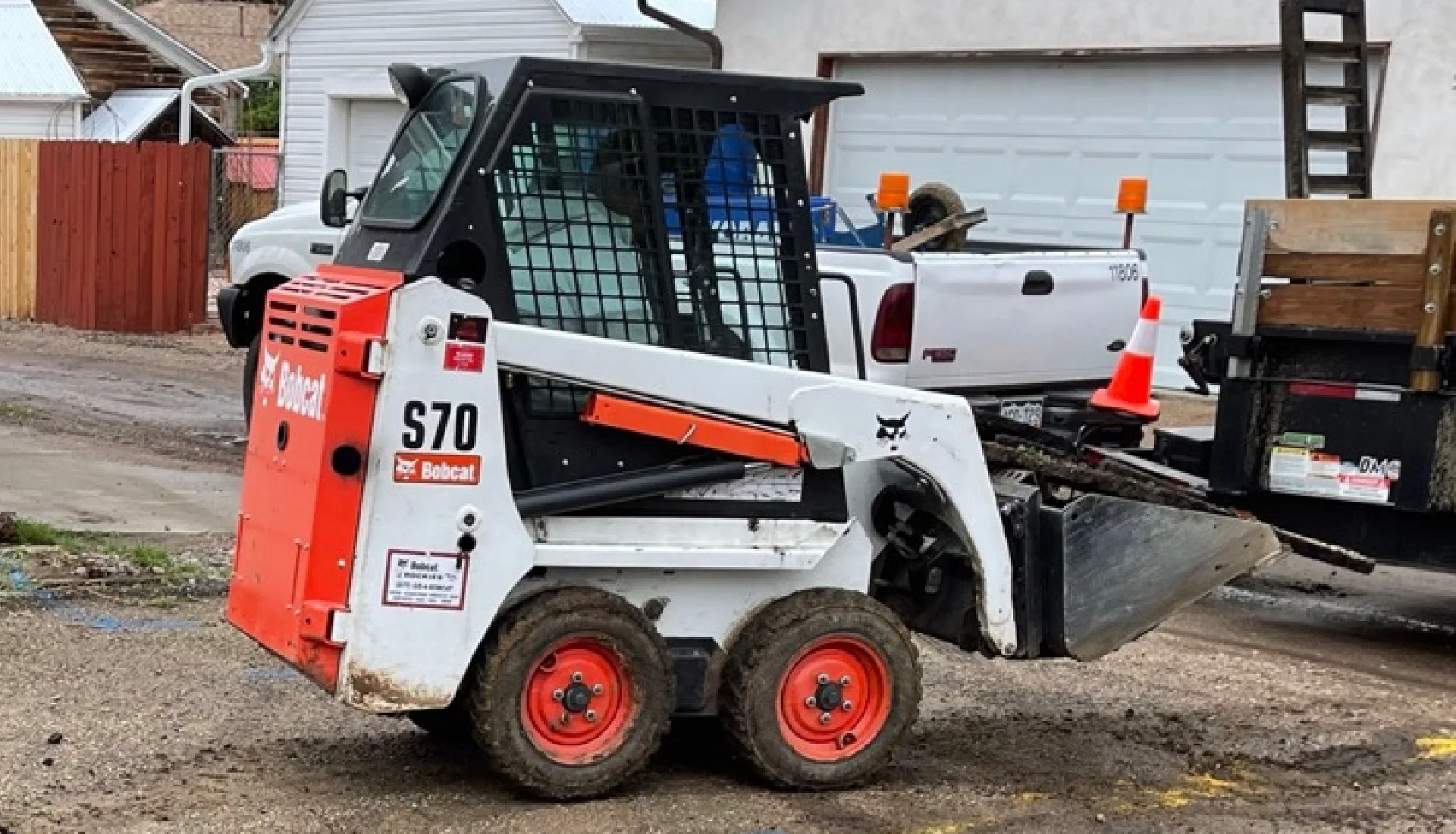

Radial Lift

In a radial lift system, the lift arms arc outward as they rise, providing a longer reach at mid-height. This is advantageous for tasks such as dumping materials over obstacles or reaching into trucks.

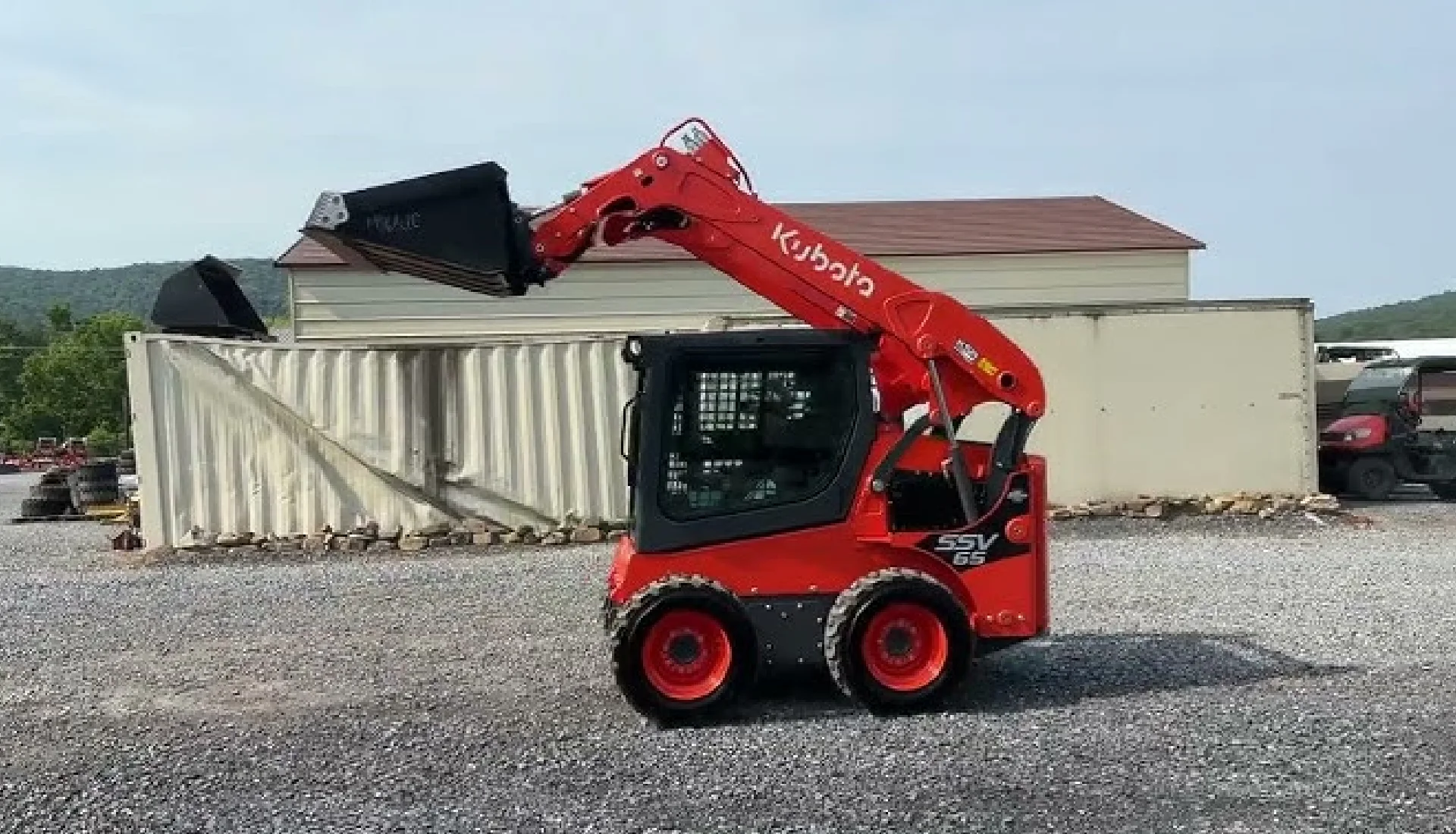

Vertical Lift

In a vertical lift system, the lift arms rise in a straighter path, providing greater lift height and reach at full height. This is beneficial for loading materials into high-sided trucks or stacking pallets.

Cost

The cost of a skid steer lift system can vary significantly depending on the type and complexity. For example, a specialized skid steer lift with a working height of 25 feet can cost around $21,900.

Performance Metrics

Key performance metrics for lift systems include lift capacity, lift height, and cycle times. Lift capacity refers to the maximum weight the skid steer can safely lift, while lift height determines how high the arms can raise. Cycle times refer to the time it takes to raise, lower, and tilt the lift arms, which can impact productivity.

Usage Rates

The usage rate of the lift system depends on the specific tasks being performed. Frequent lifting and tilting of heavy loads will result in higher usage rates compared to lighter-duty applications.

Historical Timelines

Early skid steer loaders had limited lift capacities and heights. Advancements in hydraulic technology and lift arm design have led to significant improvements in lift system performance, enabling skid steers to handle heavier loads and reach greater heights.

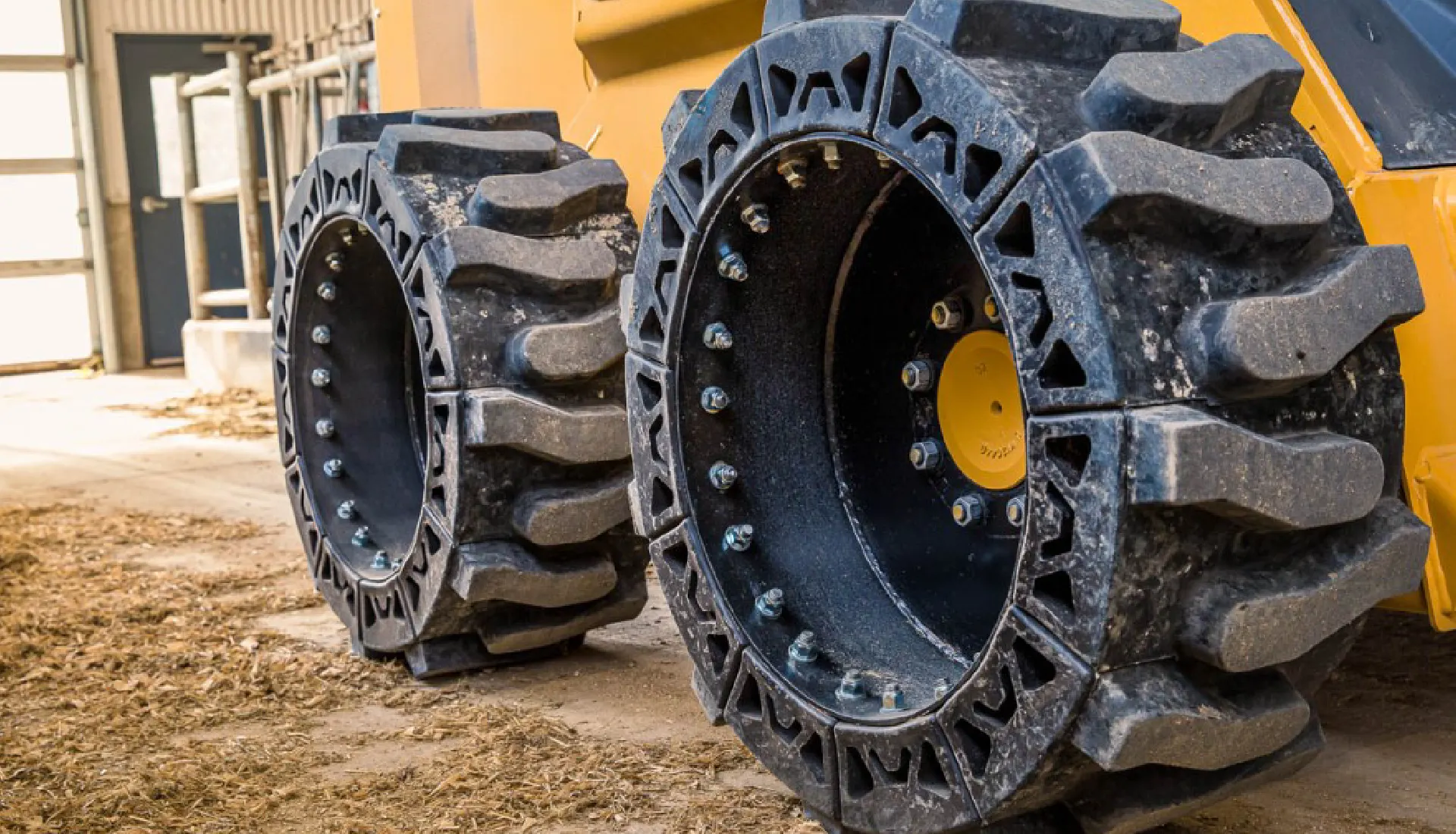

6. Tires

Skid steer tires are crucial for traction, stability, and maneuverability. They are typically selected based on the operating environment and application, with options including air-filled, solid, and flat-proof tires. The choice of tires can significantly impact the skid steer's performance and efficiency in different conditions.

Cost

The cost of skid steer tires varies depending on the type, size, and brand. Solid tires can cost between $200 and $800 each, while sets of 2-4 tires can range from $1,000 to $3,000.

Performance Metrics

Tire performance is influenced by factors such as size, tread pattern, and construction.

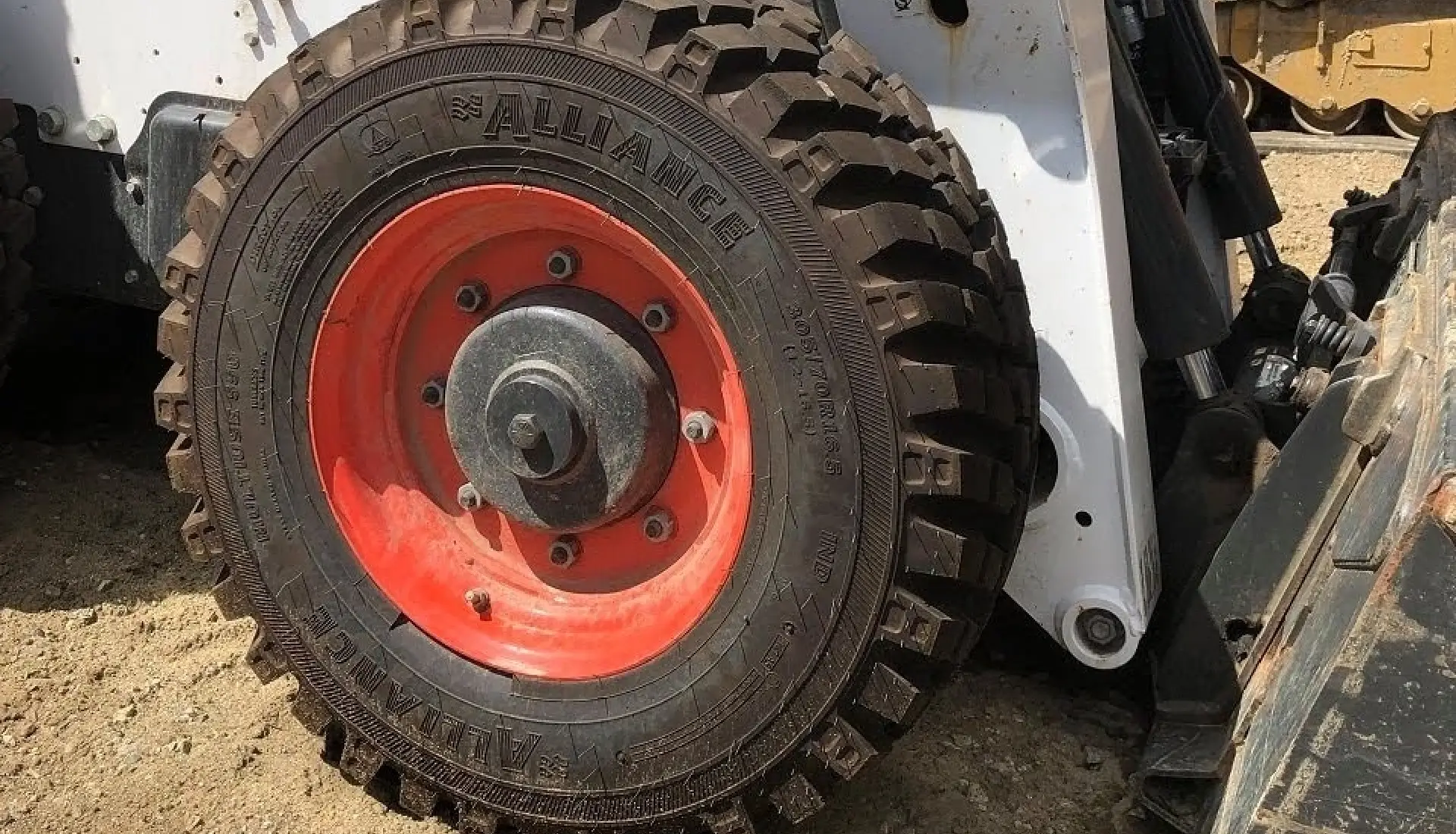

Bias-ply tires

Offer better stability and puncture resistance, making them suitable for rough terrain and applications where there is a risk of tire damage.

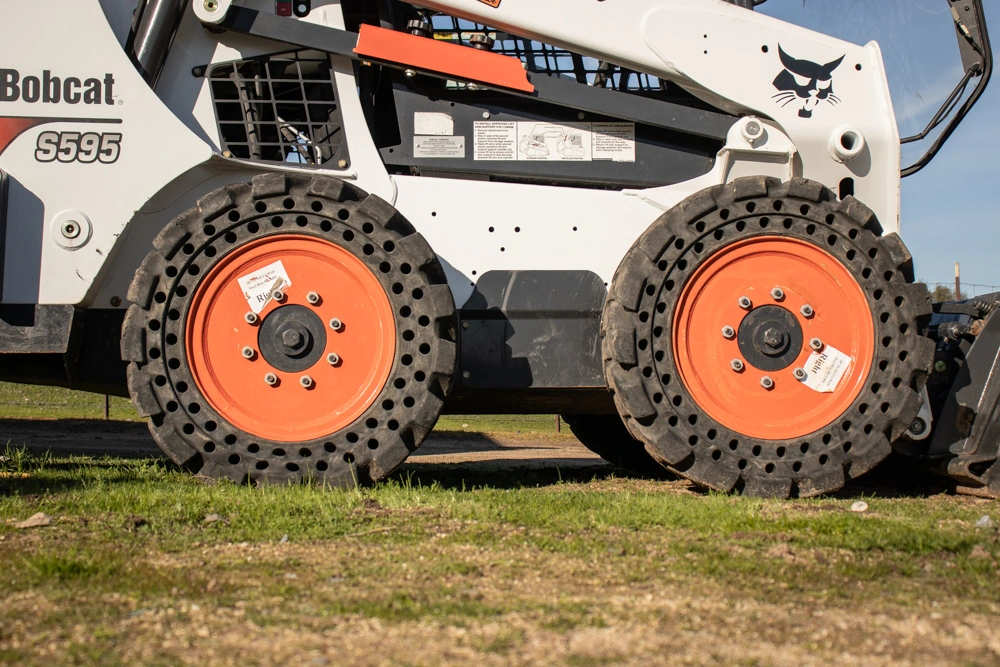

Radial tires

Provide improved traction and ride quality, resulting in better performance on hard surfaces and reduced operator fatigue.

Tread Patterns

Different tread patterns are available for skid steer tires, each designed for specific surfaces and applications.

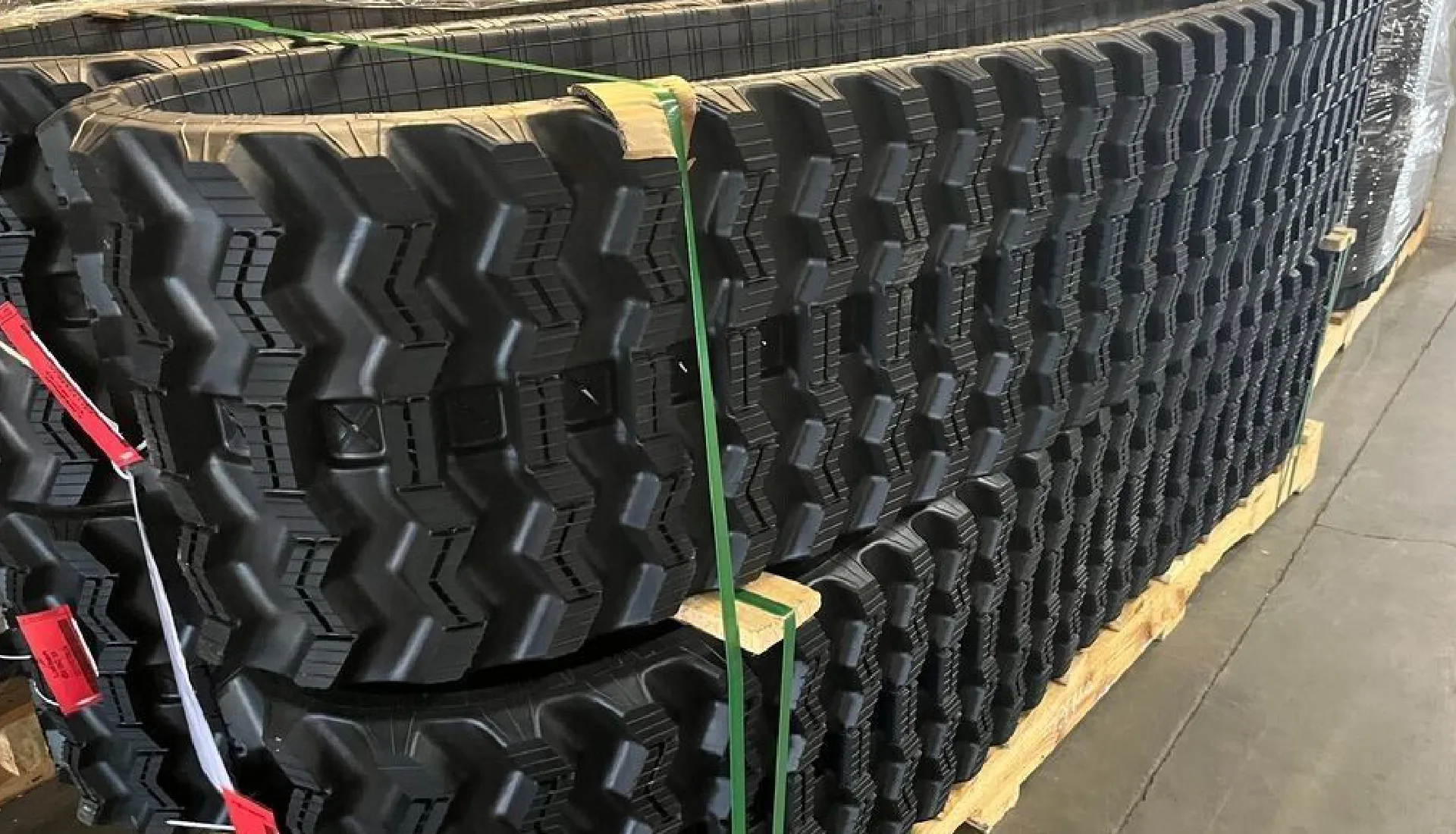

Zigzag type, non-directional patterns

Zigzag, non-directional tread patterns provide consistent traction, stability, and even wear in all directions, making them ideal for various terrains. Their design enhances grip, reduces slippage, and ensures reliable performance in demanding conditions.

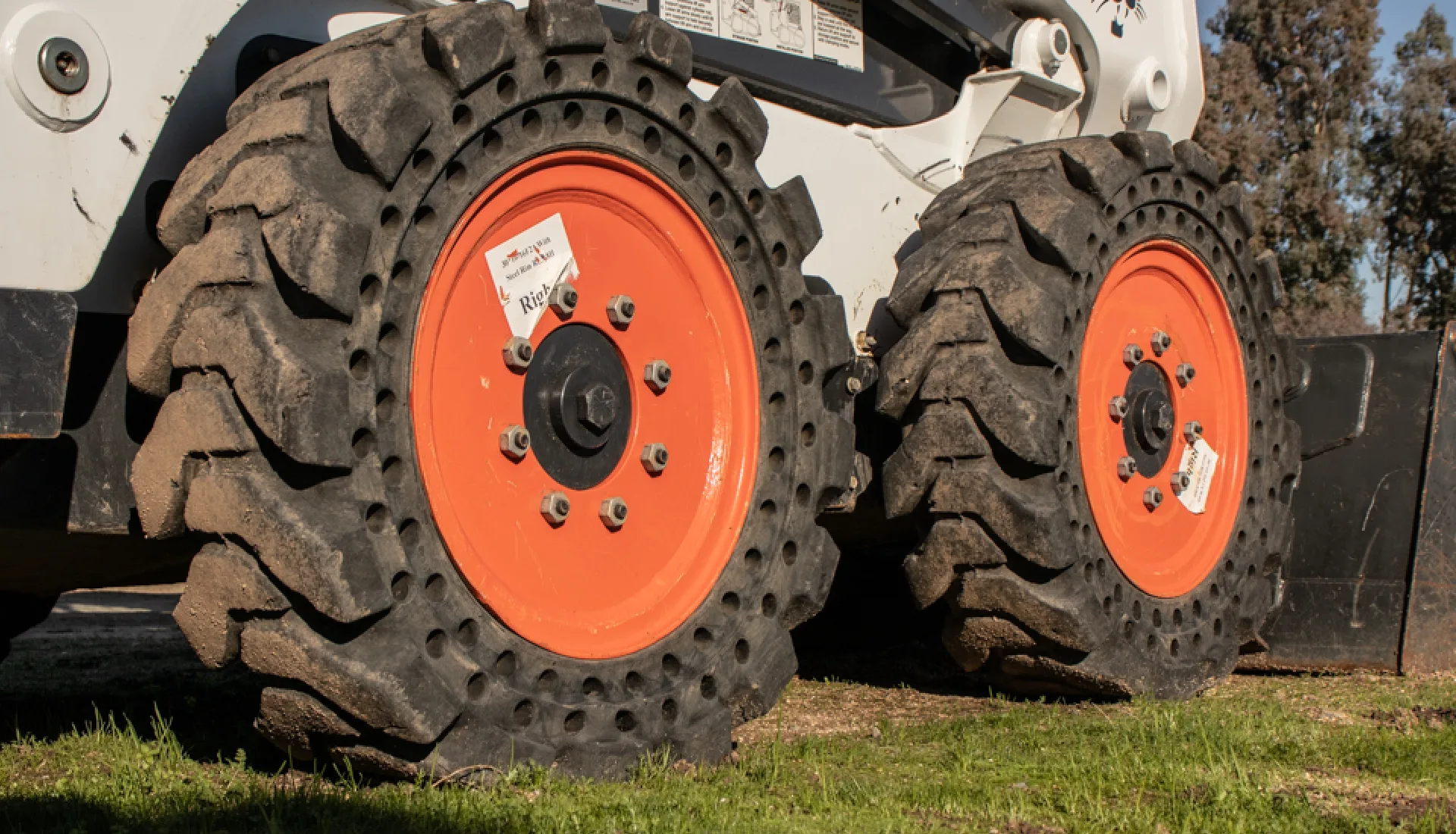

Directional lug type tread patterns

Directional lug tread patterns offer enhanced traction, self-cleaning capabilities, and efficient forward movement. Their design maximizes grip on soft or uneven terrain, reducing slippage and improving overall performance.

Tire Maintenance

Proper tire maintenance is essential for maximizing tire lifespan and reducing operating costs. This includes:

• Checking inflation pressure regularly: Maintaining the correct inflation pressure ensures optimal tire performance and prevents premature wear.
• Avoiding mixing different tire types: Mixing tires with different tread depths, patterns, or constructions can lead to uneven wear and reduced performance.

Usage Rates

The lifespan of skid steer tires depends on factors like operating conditions, application, and maintenance. General contractors operating on a mix of surfaces may get 600 to 800 hours of tire life, while those working primarily on dirt may get 800 to 1,200 hours. Proper tire selection and maintenance can significantly extend tire life and reduce operating costs.

Historical Timelines

Early skid steer loaders had three wheels, with two drive wheels and a rear caster wheel. The transition to four-wheel drive occurred in 1960 to improve stability and performance on rough terrain. This change marked a significant advancement in skid steer design, enabling them to operate effectively in a wider range of conditions.

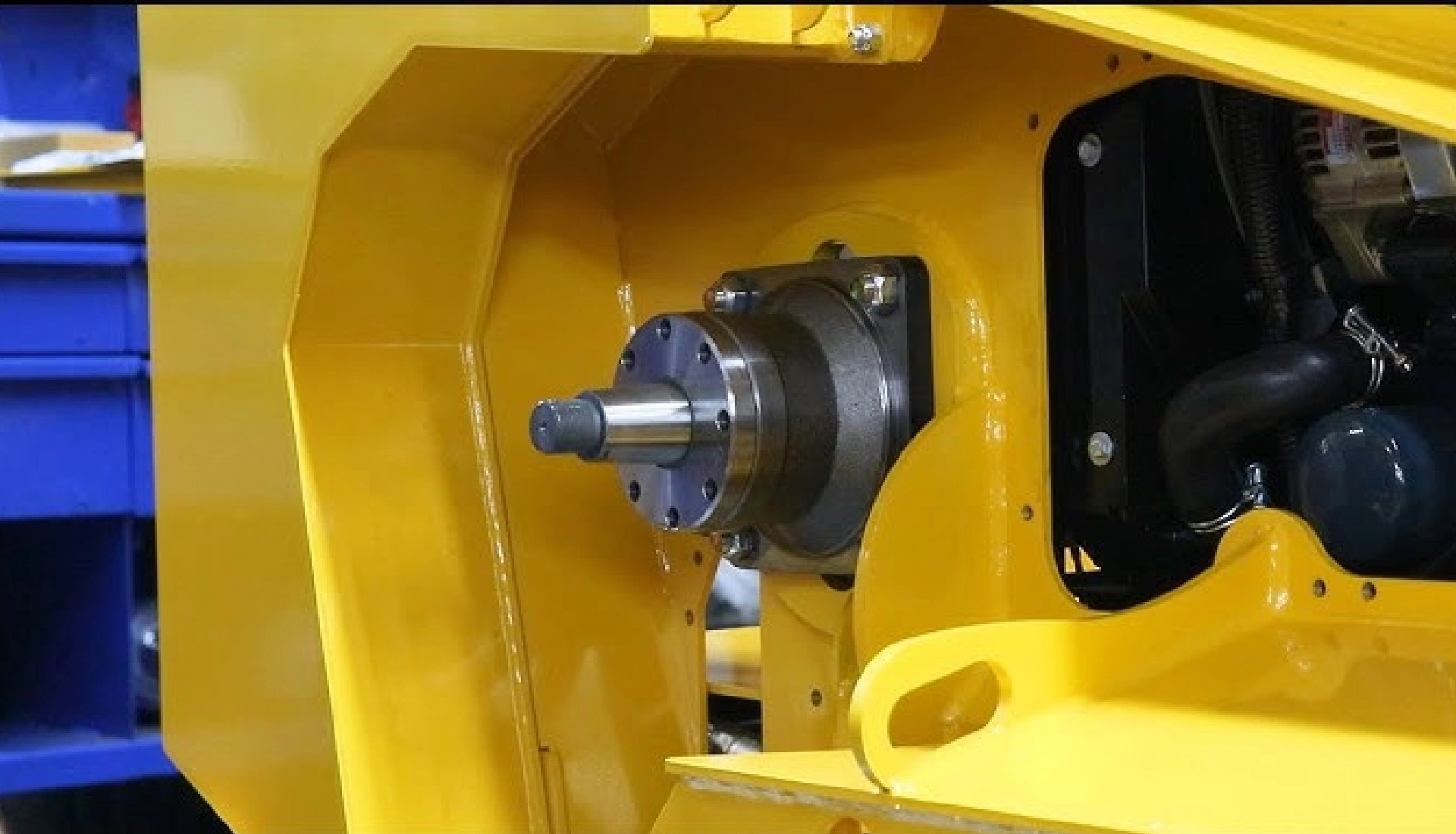

7. Drive Motor

The drive motor provides the power to propel the skid steer loader. It is typically a hydraulic motor that converts hydraulic fluid power into mechanical energy to drive the wheels or tracks. The drive motor's performance and efficiency directly impact the skid steer's speed, maneuverability, and overall productivity.

Types of Drive Motors

Skid steer loaders can utilize different types of drive motors, including hydraulic and electric motors.

• Hydraulic Motors: Hydraulic motors are the most common type, known for their high power output, efficiency, and durability. They provide consistent torque, smooth operation, and reliable performance in demanding applications.
• Electric Motors: Electric motors are gaining popularity in electric skid steers for their quiet operation, energy efficiency, and zero emissions. They provide instant torque, low maintenance, and an eco-friendly alternative to hydraulic systems.

Cost

A hydraulic drive motor for a Case skid steer loader can cost around $5,850. The cost can vary depending on the brand, model, and specifications of the drive motor.

Performance Metrics

Drive motor performance is evaluated based on factors such as power output, efficiency, and durability. High-performance motors contribute to increased productivity and reduced fuel consumption. Durability is essential for withstanding the demanding conditions that skid steers often operate in.

Usage Rates

The usage rate of a skid steer drive motor is directly related to the machine's operating hours and the intensity of use. Regular maintenance, including checking gear oil levels, is essential for optimal performance and longevity.

Historical Timelines

The development of skid steer drive motors has progressed alongside advancements in hydraulic technology, with a focus on improving efficiency, smoothness, and reliability. These advancements have contributed to the overall performance and productivity of skid steer loaders.

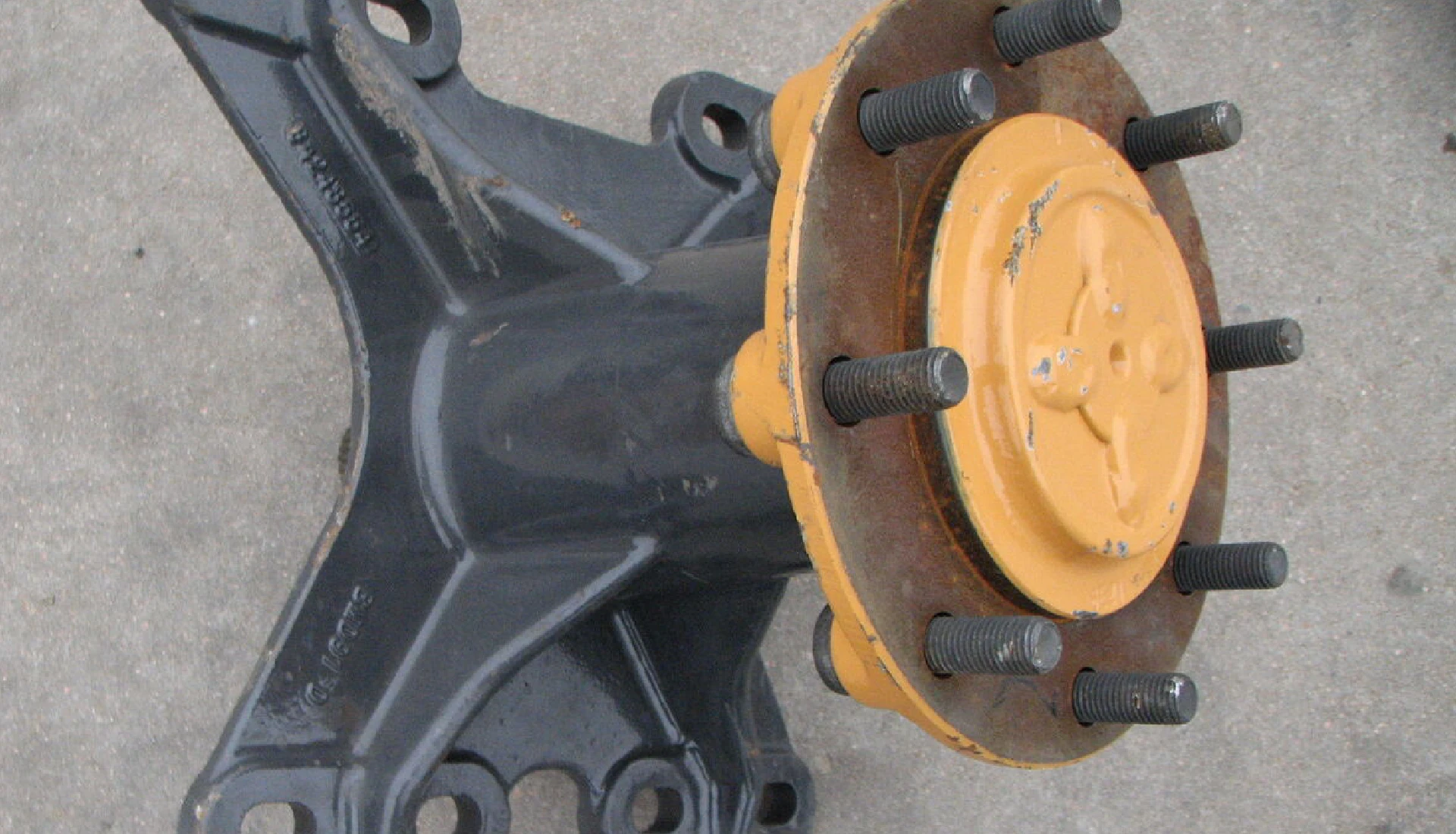

8. Axle

The axle connects the drive system to the wheels or tracks of the skid steer loader. It plays a critical role in transferring power and ensuring the machine's mobility. The axle's strength and durability are essential for withstanding the stresses and strains of skid steer operation.

Cost

The cost of a skid steer axle can vary depending on the make and model. For example, an axle assembly for a New Holland skid steer can cost around $1,125, while an axle drive shaft for a Case skid steer can cost around $428.50.

Performance Metrics

Axle performance is influenced by factors such as load capacity, durability, and ground clearance. Axles are designed to withstand the weight of the machine and its attachments, as well as the forces encountered during operation. Ground clearance is important for navigating uneven terrain and obstacles.

Usage Rates

The usage rate of a skid steer axle is dependent on the operating conditions and the types of tasks performed. Frequent operation on rough terrain or with heavy loads can increase wear and tear on the axle components.

Historical Timelines

The evolution of skid steer axles is closely linked to the development of the machines themselves, with advancements in design and materials improving durability and performance.

Skid Steer Sizes and Dimensions

Skid steer loaders come in a variety of sizes, each designed for specific applications and operating environments. Understanding the different size categories and their respective characteristics is crucial for selecting the right machine for the job.

Skid steers are typically classified into three main size categories based on their rated operating capacity (ROC), horsepower, and weight:

The dimensions of a skid steer, including its wheelbase and width, also play a significant role in its maneuverability and suitability for different applications.

Smaller skid steers with shorter wheelbases are more maneuverable in tight spaces, while larger skid steers with wider wheelbases offer greater stability and lifting capacity.

Operating Costs

Operating a skid steer loader involves various costs, including fuel consumption, tire wear, and maintenance requirements. Understanding these costs is essential for making informed decisions about machine selection and operation.

Fuel Consumption: Fuel costs can be a significant factor in skid steer operating expenses, especially for machines used extensively. Factors that influence fuel consumption include engine size, operating conditions, and operator behavior.

Tire Wear: Tire wear is another significant operating cost, with tire replacement costs varying depending on the type of tire and usage patterns. Proper tire selection and maintenance can help extend tire life and reduce costs.

Maintenance: Regular maintenance is crucial for ensuring the optimal performance and longevity of a skid steer loader. Maintenance costs include regular servicing, replacement of wear parts, and potential repairs.

Rental Costs: Renting a skid steer can be a cost-effective option for short-term projects or occasional use. Rental costs vary depending on the size, model, location, rental duration, and needed attachments.

Technological Advancements

Modern skid steer loaders are incorporating advanced technologies to improve performance, efficiency, and safety. These technologies include:

flowchart TB
    A[Technological Advancements in Skid Steers] --> B[Telematics]
    A --> C[Automation]
    A --> D[Electric Drivetrains]

    B --> B1[Real-time Location Tracking]
    B --> B2[Maintenance Monitoring]
    B --> B3[Fuel Efficiency Analysis]

    C --> C1[Automated Grading]
    C --> C2[Load Management]
    C --> C3[Safety Systems]

    D --> D1[Zero Emissions]
    D --> D2[Reduced Noise]
    D --> D3[Lower Maintenance]

    classDef main fill:#6495ED,stroke:#333,stroke-width:2px
    classDef secondary fill:#90EE90,stroke:#333,stroke-width:1px
    classDef tertiary fill:#FAFAD2,stroke:#333,stroke-width:1px

    class A main
    class B,C,D secondary
    class B1,B2,B3,C1,C2,C3,D1,D2,D3 tertiary

Telematics: Telematics systems provide real-time data on equipment performance, location, and maintenance needs. This data can be used to optimize machine utilization, schedule maintenance proactively, and improve overall efficiency.

Automation: Automation technologies are being integrated into skid steers to enhance precision, reduce operator fatigue, and improve safety. These technologies include automated grading systems, which use sensors and GPS technology to guide the machine and ensure consistent results.

Conclusion

Let's cut to the chase - skid steers are marvels of engineering with more moving parts than most operators ever consider. Each component we've covered doesn't just exist in isolation; they create a symphony of hydraulics, mechanics, and electronics that makes these machines the go-to solution across countless job sites.

Understanding what makes these machines tick isn't just for mechanics and fleet managers. When you know the real costs, performance expectations, and maintenance reality of each critical system, you make smarter decisions about which machine to buy, when to repair versus replace, and how to maximize return on investment.

The differences between a bargain-basement skid steer and a premium model often come down to the quality of these essential parts we've dissected. And trust me, those differences become painfully obvious about 500 hours into ownership.

Whether you're building a fleet or operating a single machine, this knowledge translates directly to your bottom line. Because in this industry, equipment knowledge isn't academic – it's money in the bank.
