Parts of a Forklift and Their Function: 5 Critical Components

Forklifts do more than just lift—they impact efficiency and safety. The difference between a counterbalance forklift with a triplex mast and a reach truck with a quad mast isn’t just jargon—it’s thousands in costs and potential risks.

This guide breaks down the parts of a forklift and their functions, from hydraulic systems to mast configurations, cutting through the marketing to show their real-world impact.

A forklift has key parts, including mast (lifts and lowers loads), forks (support and carry loads), carriage (holds forks and attachments), counterweight (balances weight), power source (electric battery or internal combustion engine), and tires (provide traction and stability). The operator cabin contains controls for maneuvering.

1. Chassis

The chassis is the base frame of a forklift and serves as the foundation for all other components. Think of it as the forklift's skeleton – everything else hangs off this critical structure.

It typically consists of the following parts:

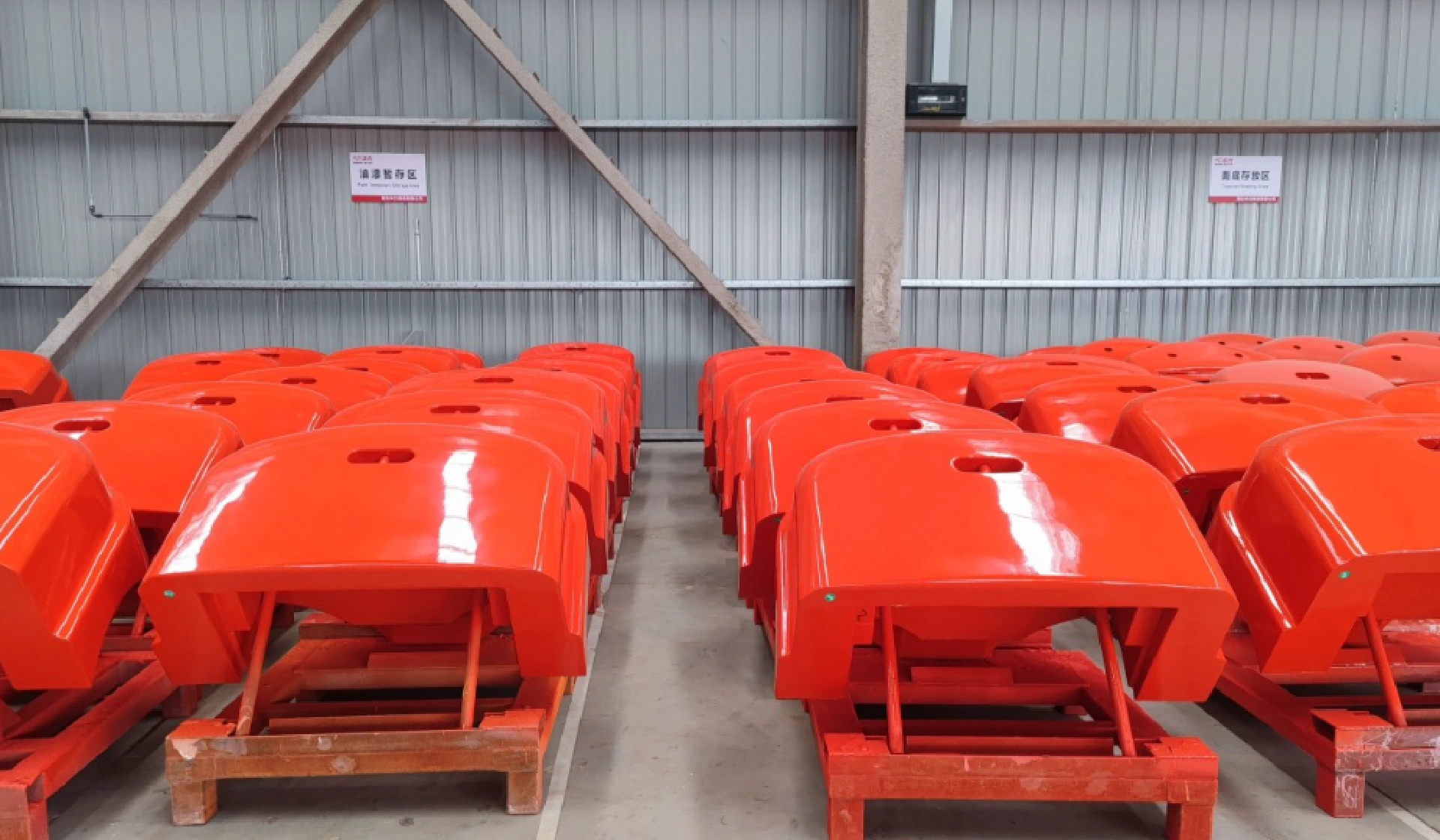

Counterweight

A heavy mass located at the rear of the forklift, the counterweight provides stability by counterbalancing the weight of the load being lifted. It prevents the forklift from tipping forward when carrying heavy loads.

The counterweight plays a critical role in forklift safety by preventing tipovers, which can cause serious injuries and damage. Counterweights can be made of cast iron, concrete, or lead, and their size varies depending on the forklift's lifting capacity.

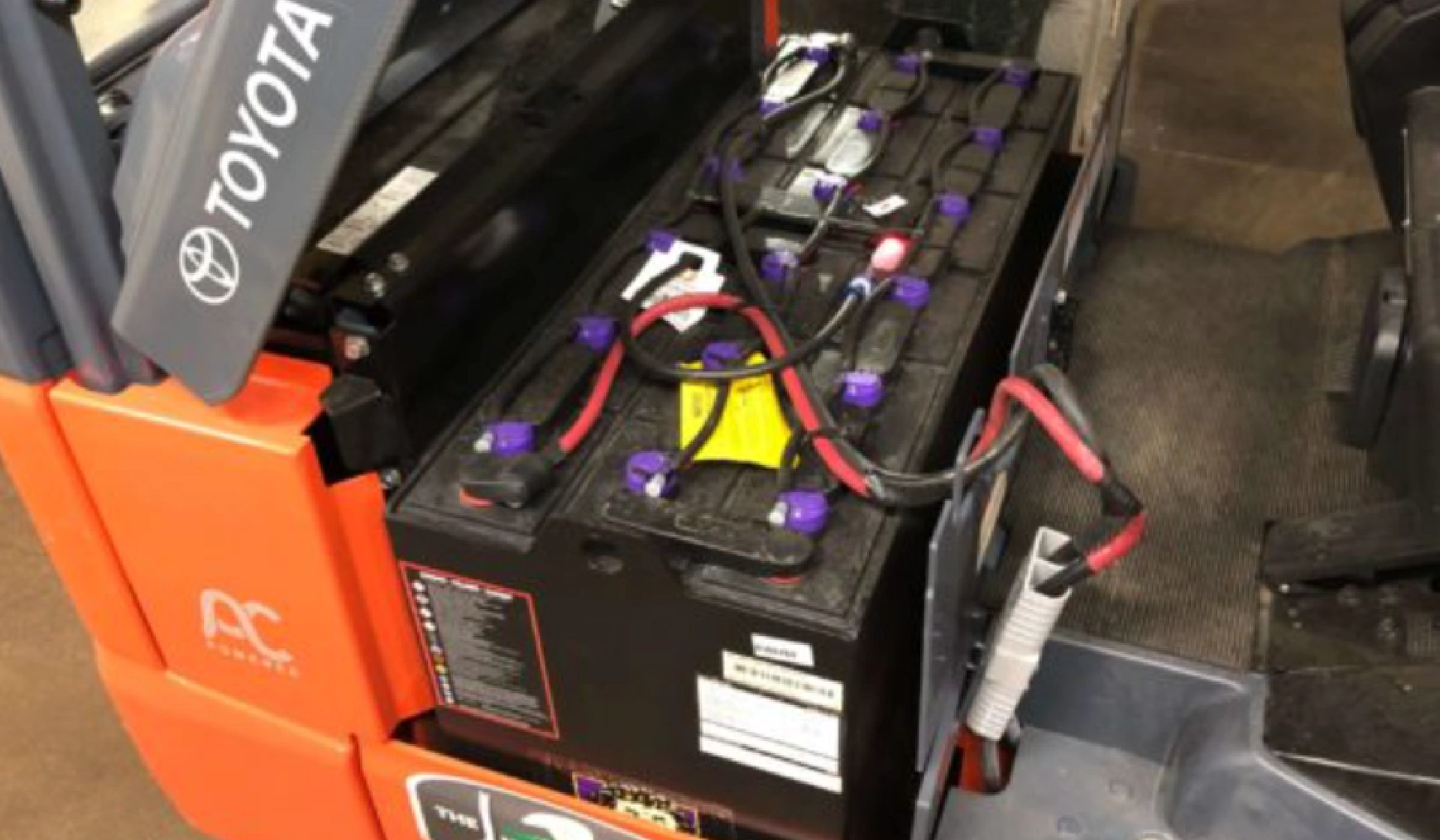

Engine/Battery Compartment

This compartment houses the forklift's power source. Internal combustion (IC) forklifts have engines that run on gasoline, diesel, or propane, while electric forklifts have (expensive) batteries. The location of the engine or battery compartment can vary depending on the forklift's design.

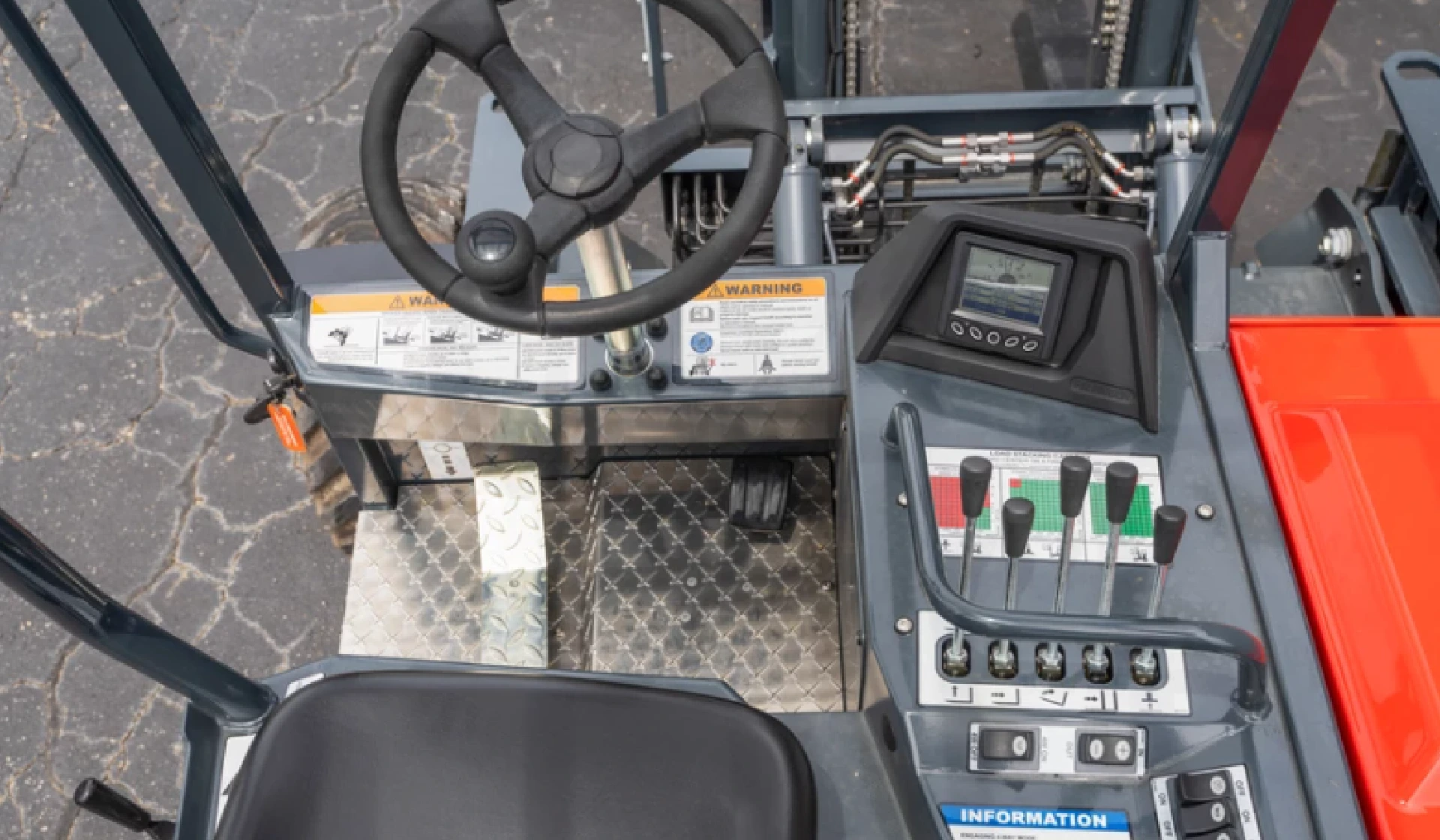

Operator Compartment

This is where the operator sits and controls the forklift. It includes the seat, steering wheel, pedals, levers, and instrument panel. The cab is the central part of the forklift and houses the steering wheel, brake and gas pedals, mast controls, and gauges. It is also where the safety devices are located.

The operator compartment also contains the controls for driving the forklift and manipulating the load. These include the steering wheel, accelerator and brake pedals, and levers for controlling the lifting, lowering, and tilting of the forks. The operator compartment may be open or enclosed, depending on the working environment and safety requirements.

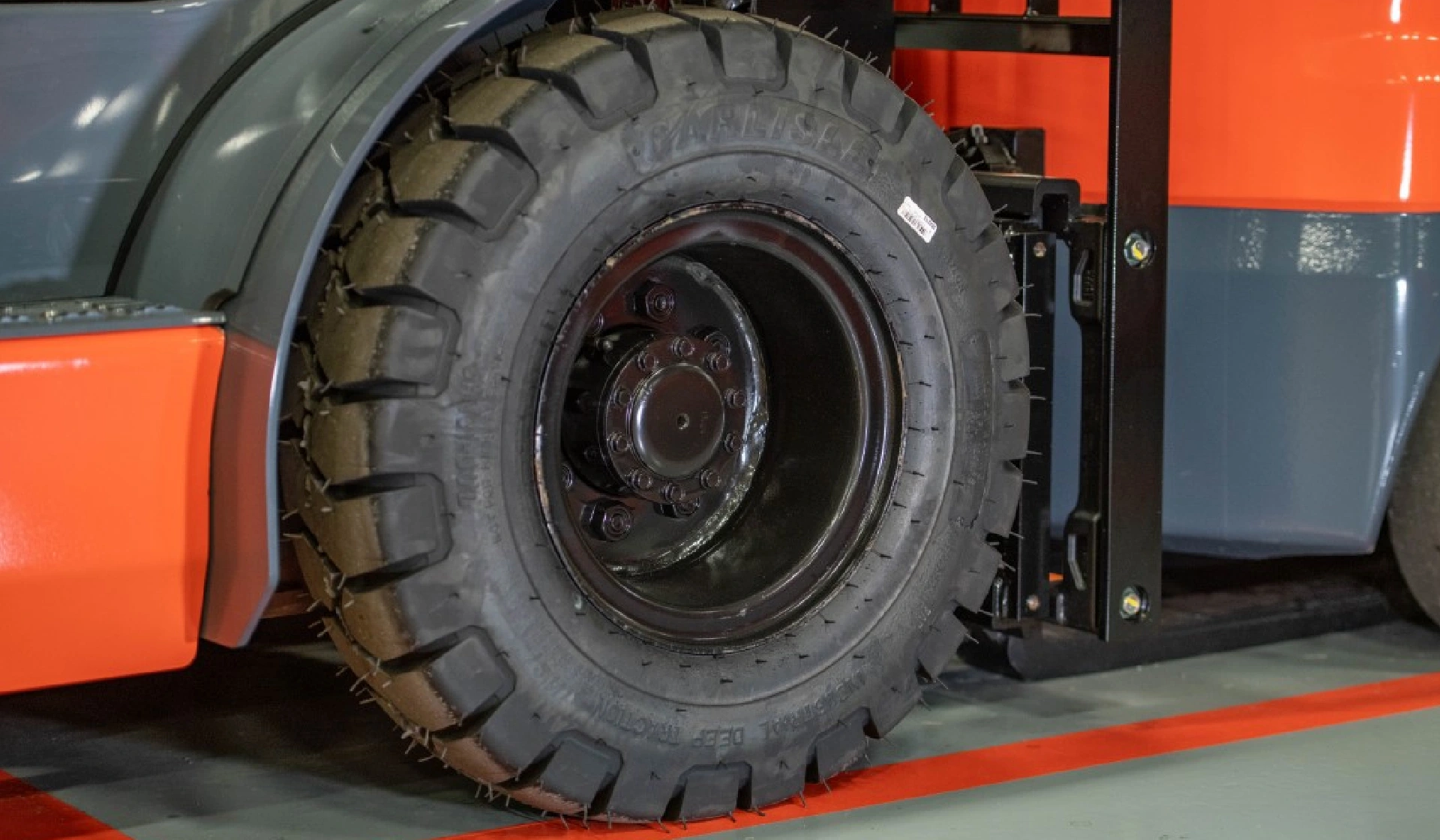

Wheels and Tires

Forklifts have two types of wheels: drive wheels and steer wheels. Drive wheels, located on the front axle, provide power for movement, while steer wheels, located at the rear, enable steering and maneuverability. Different types of tires are used depending on the operating environment.

Cushion tires are used indoors on smooth surfaces, while pneumatic tires are used outdoors on rough terrain.

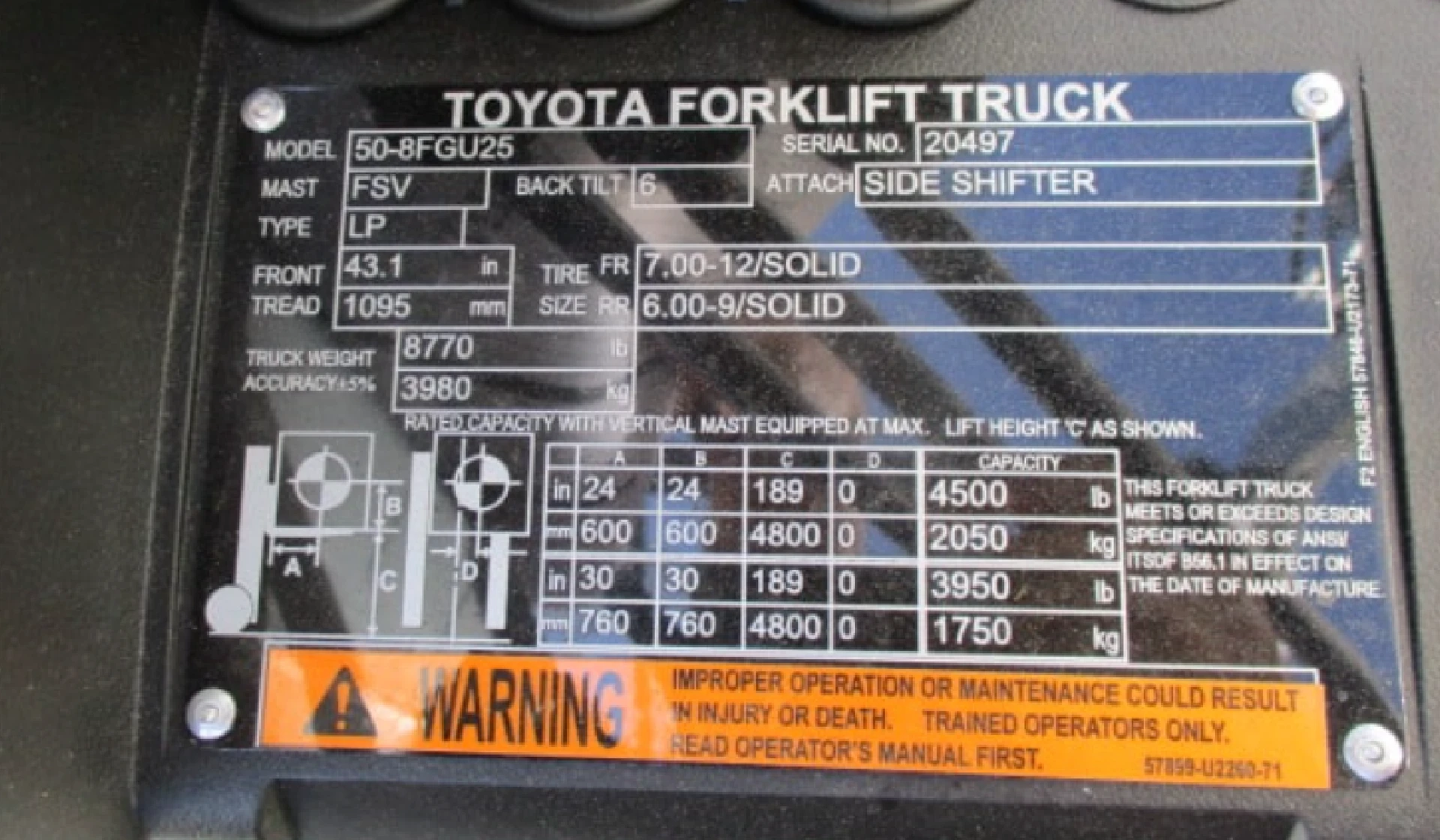

Nameplate

Forklifts also have a nameplate that displays important information about the machine's capabilities, such as load capacity and lift height.

2. Mast

The mast is the vertical structure at the front of the forklift that lifts and lowers the load. It consists of interlocking rails and is powered by hydraulic cylinders.

flowchart TD
    title["Forklift Mast Types Comparison"]
    style title fill:#f9f9f9,stroke:#333,stroke-width:1px

    title --> Simplex
    title --> Duplex
    title --> Triplex
    title --> Quad

    Simplex --> S_Desc["Single-stage mast
    Lowest lift height
    Best for outdoors or low clearance"]
    style S_Desc fill:#e6f7ff,stroke:#333,stroke-width:1px,border-radius:5px

    Duplex --> D_Desc["Two-stage mast
    Higher reach
    Free lift in outer section
    Good for loading/unloading trailers"]
    style D_Desc fill:#e6ffe6,stroke:#333,stroke-width:1px,border-radius:5px

    Triplex --> T_Desc["Three-stage mast
    Highest common reach
    Free lift + inner sections
    Common in warehouses"]
    style T_Desc fill:#ffe6e6,stroke:#333,stroke-width:1px,border-radius:5px

    Quad --> Q_Desc["Four-stage mast
    Extreme heights
    Shorter collapsed height
    Specialized applications"]
    style Q_Desc fill:#f9f0ff,stroke:#333,stroke-width:1px,border-radius:5px

    classDef default fill:#f9f9f9,stroke:#333,stroke-width:1px,color:#333
    classDef heading fill:#f0f0f0,stroke:#333,stroke-width:2px,color:#333,font-weight:bold

    class title heading
    class Simplex,Duplex,Triplex,Quad default

Ever wonder why some forklifts can reach higher than others? It's all about the mast design. Different types of masts offer varying lift heights and capabilities:

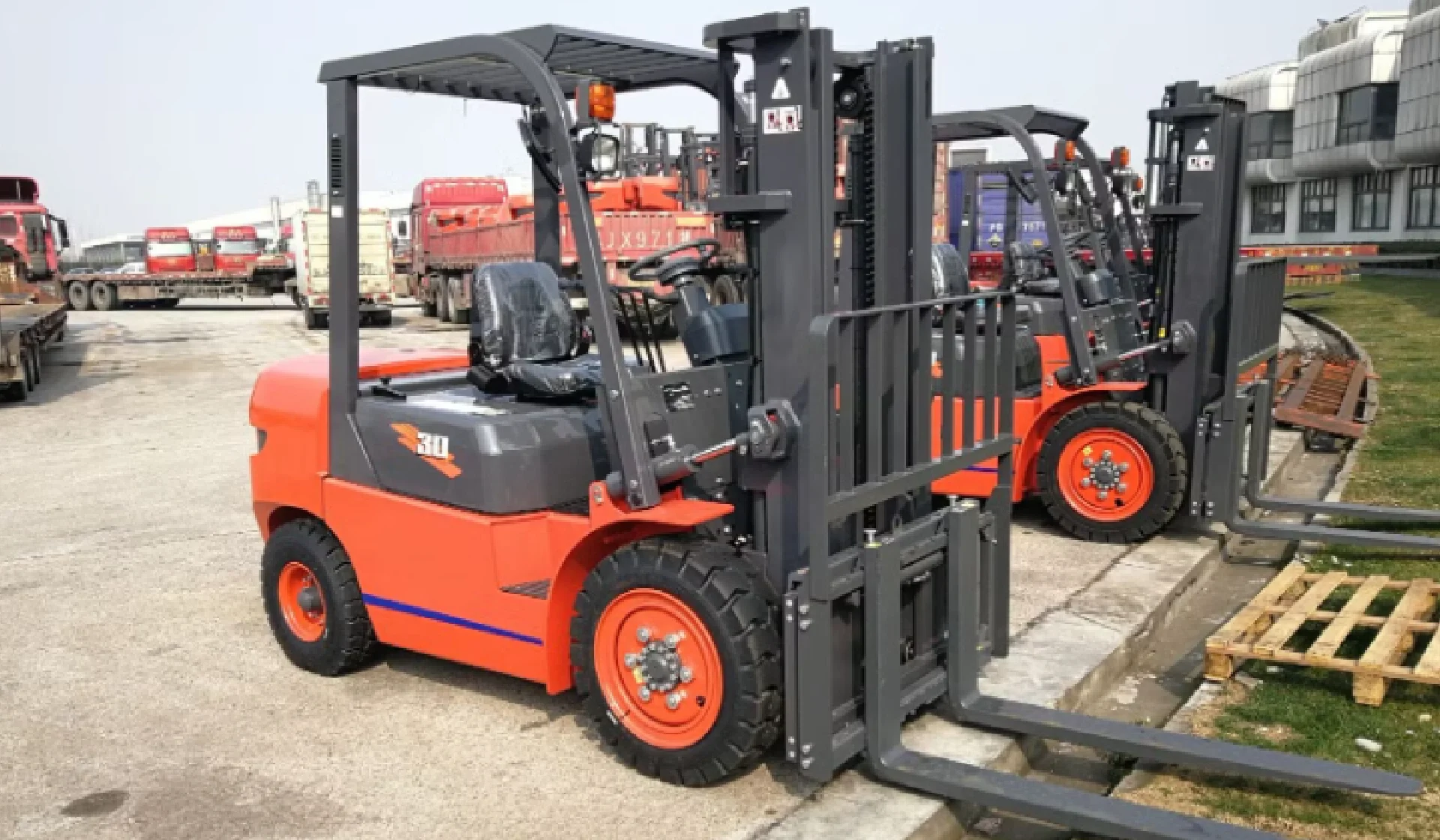

Simplex

A single-stage mast with the lowest lift height, best for outdoor applications or environments with limited vertical space.

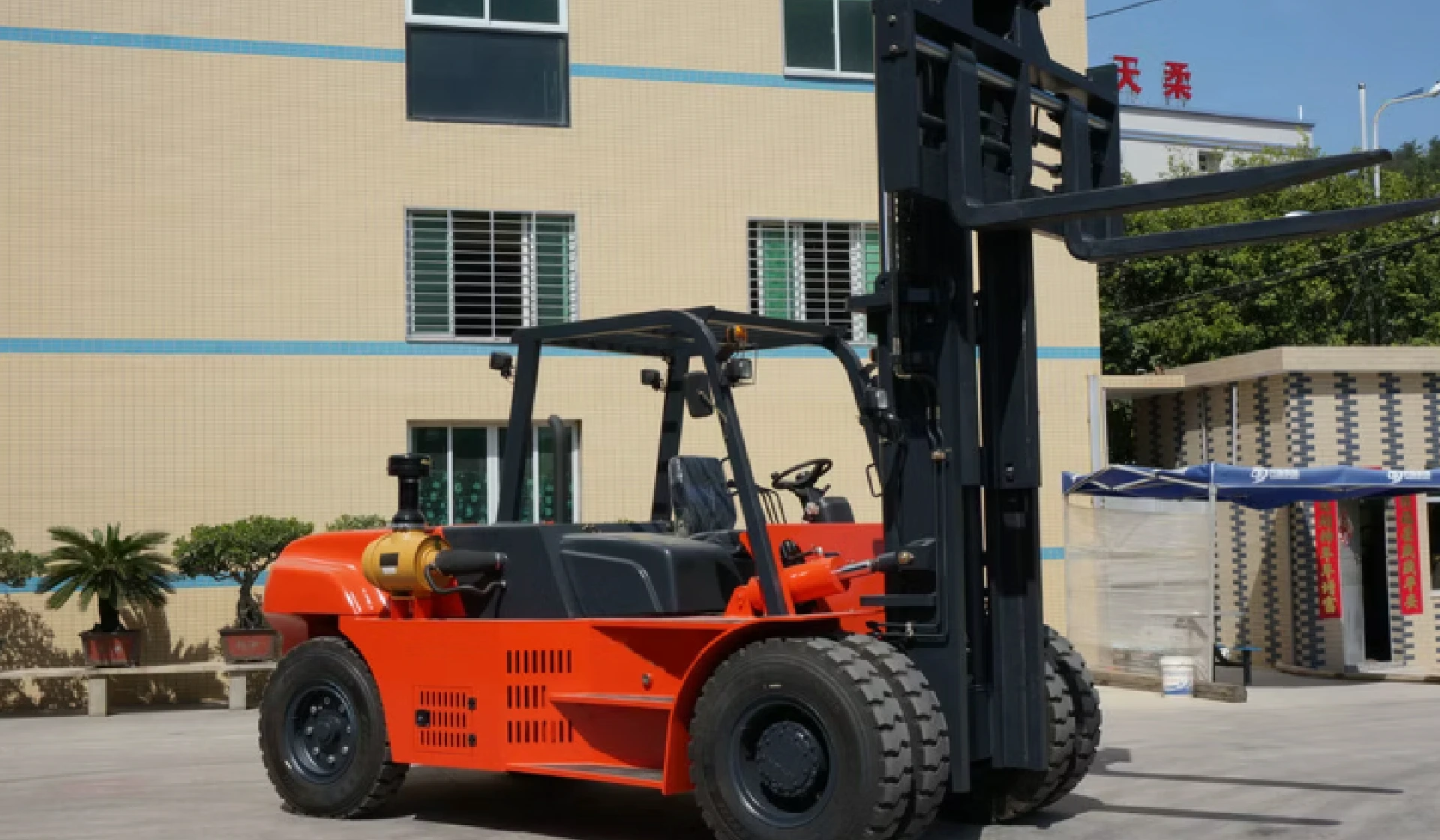

Duplex

A two-stage mast with a higher reach than a simplex mast. It has two sections, outer and inner, with the outer section offering free lift and the inner section elevating the forks and carriage. Duplex masts are suitable for loading and unloading trailers.

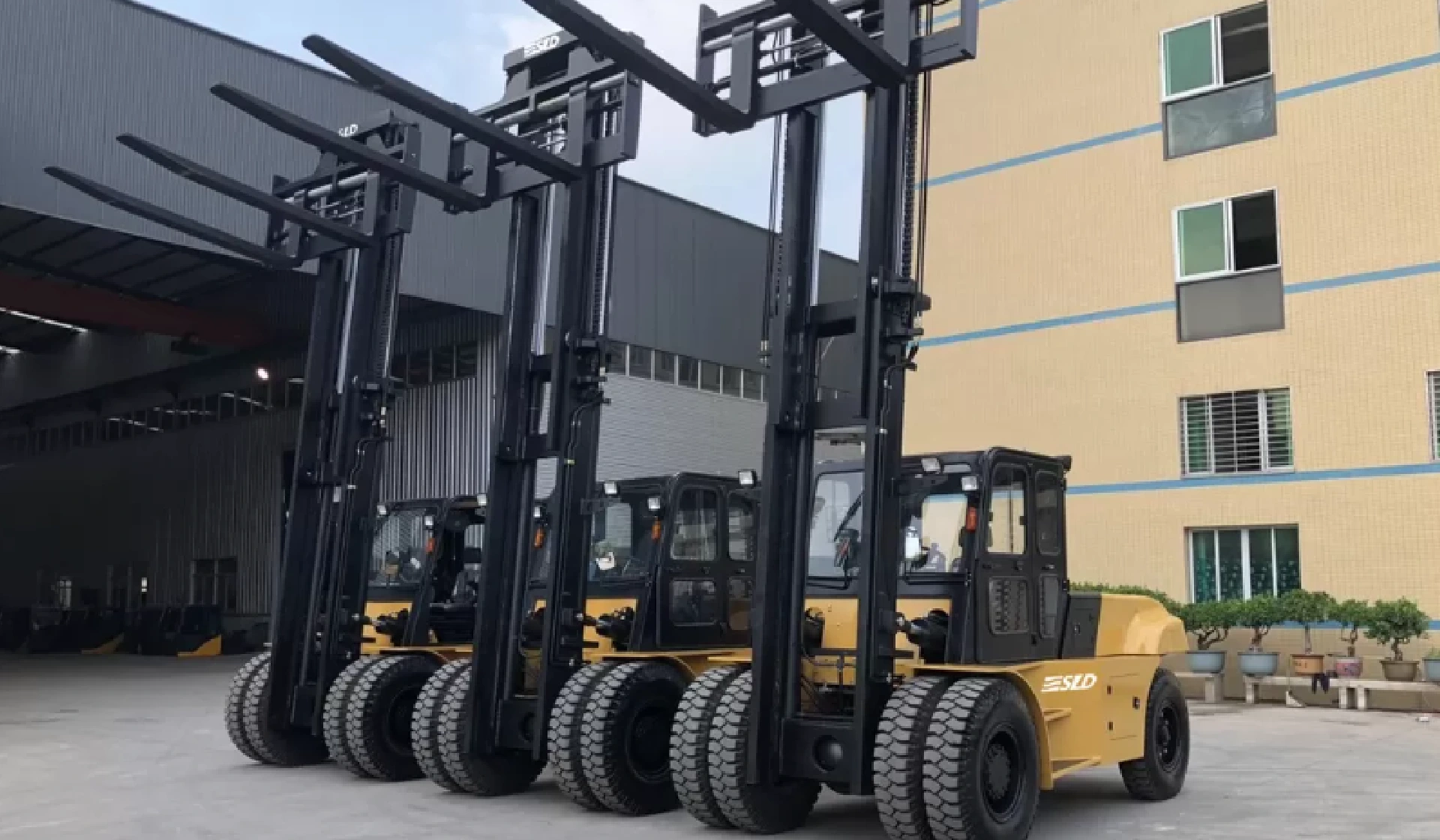

Triplex

A three-stage mast providing the highest reach among the common types. It has outer sections for free lift and inner sections for lifting or elevation, generally offering a greater lift height than the two-stage mast. Triplex masts are commonly used in general warehouse applications.

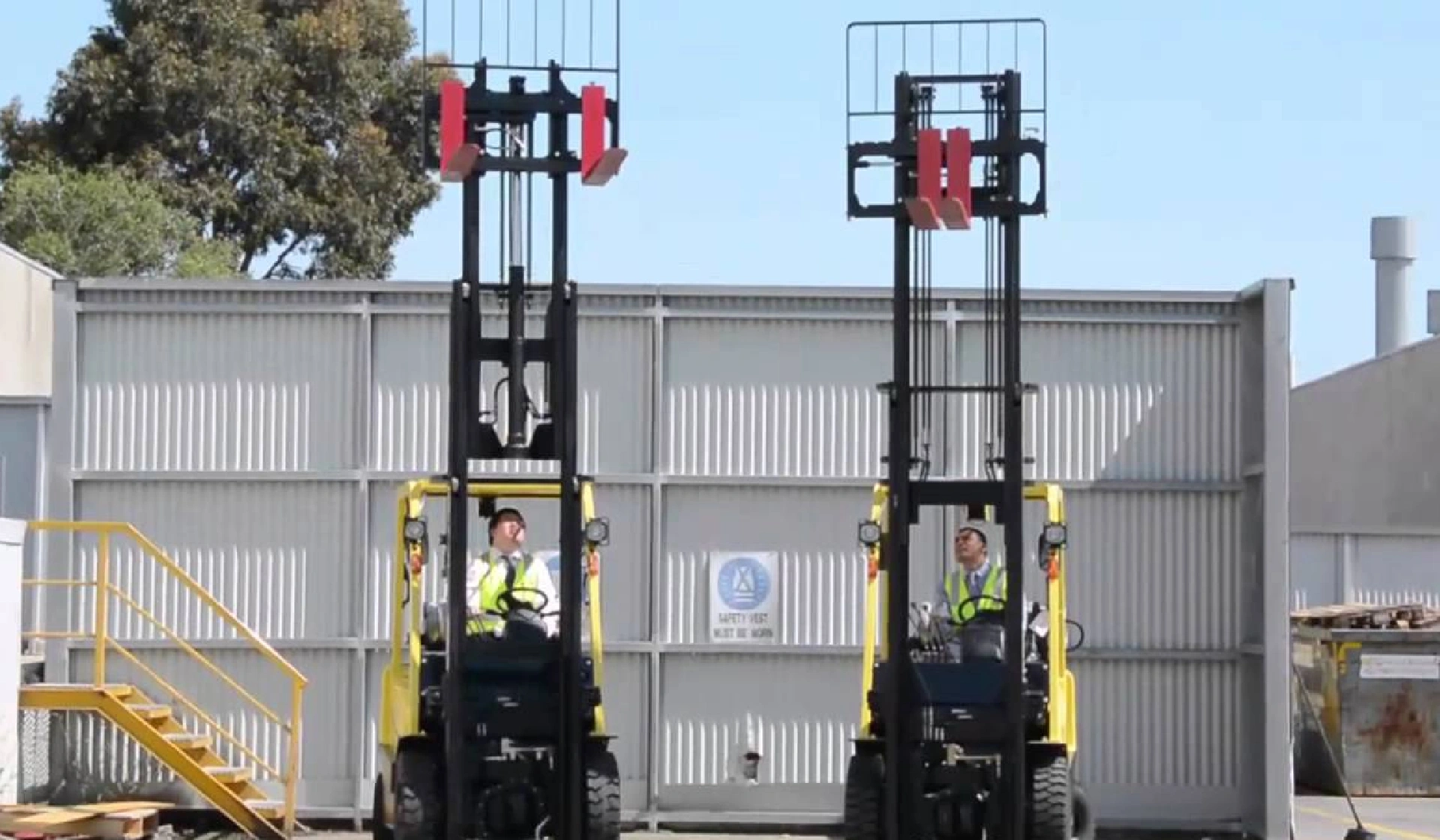

Quad

A four-stage mast suitable for extremely high stacking while maintaining a shorter collapsed height compared to the other mast types.

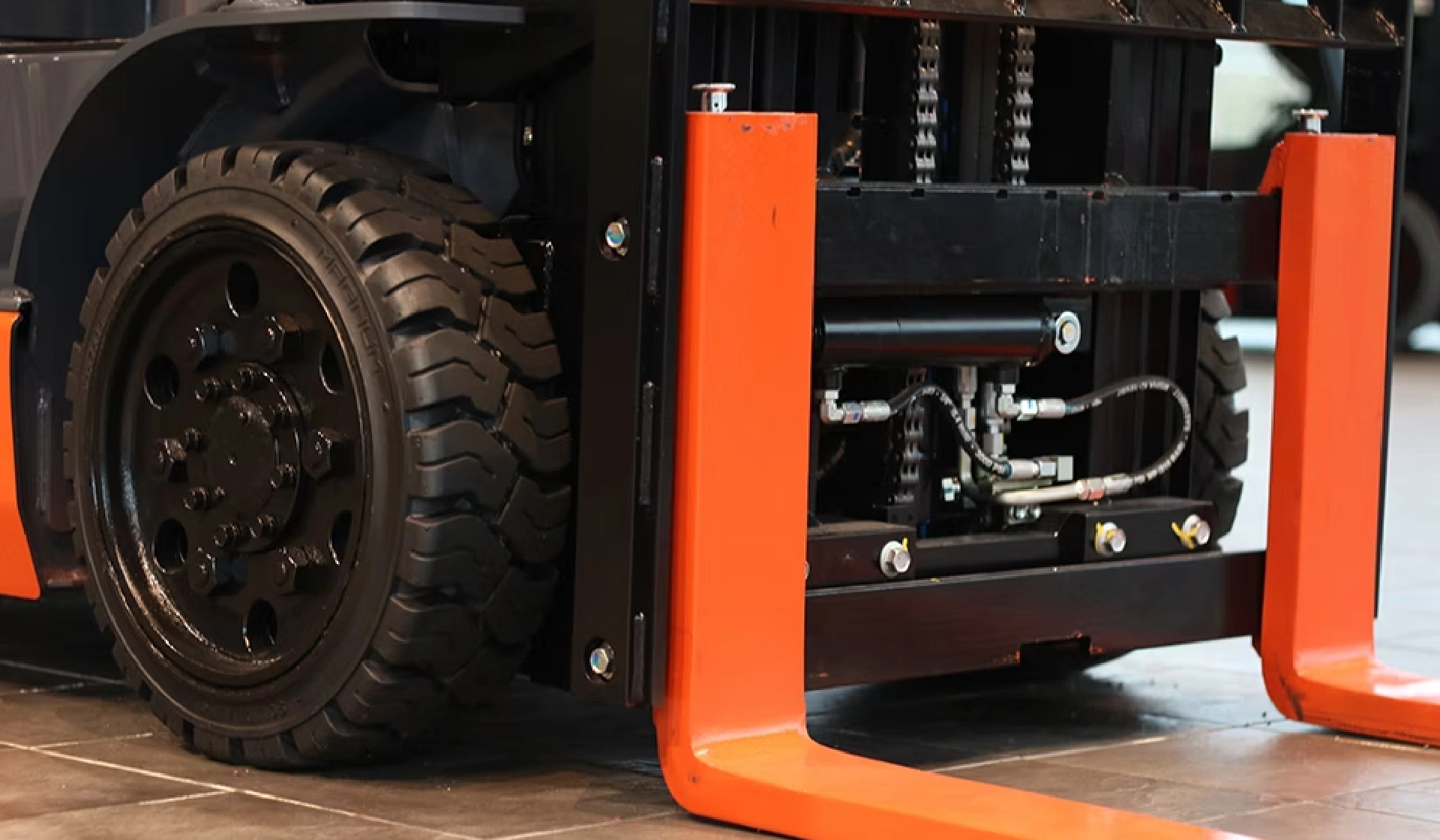

3. Carriage and Forks

The carriage is a platform attached to the mast that holds the forks. It moves up and down along the mast and can also tilt forward and backward to stabilize the load.

The forks are the two long, parallel prongs that slide under the load and lift it. Forklift forks come in different sizes, are made of strong steel and can be adjusted to fit different load sizes.

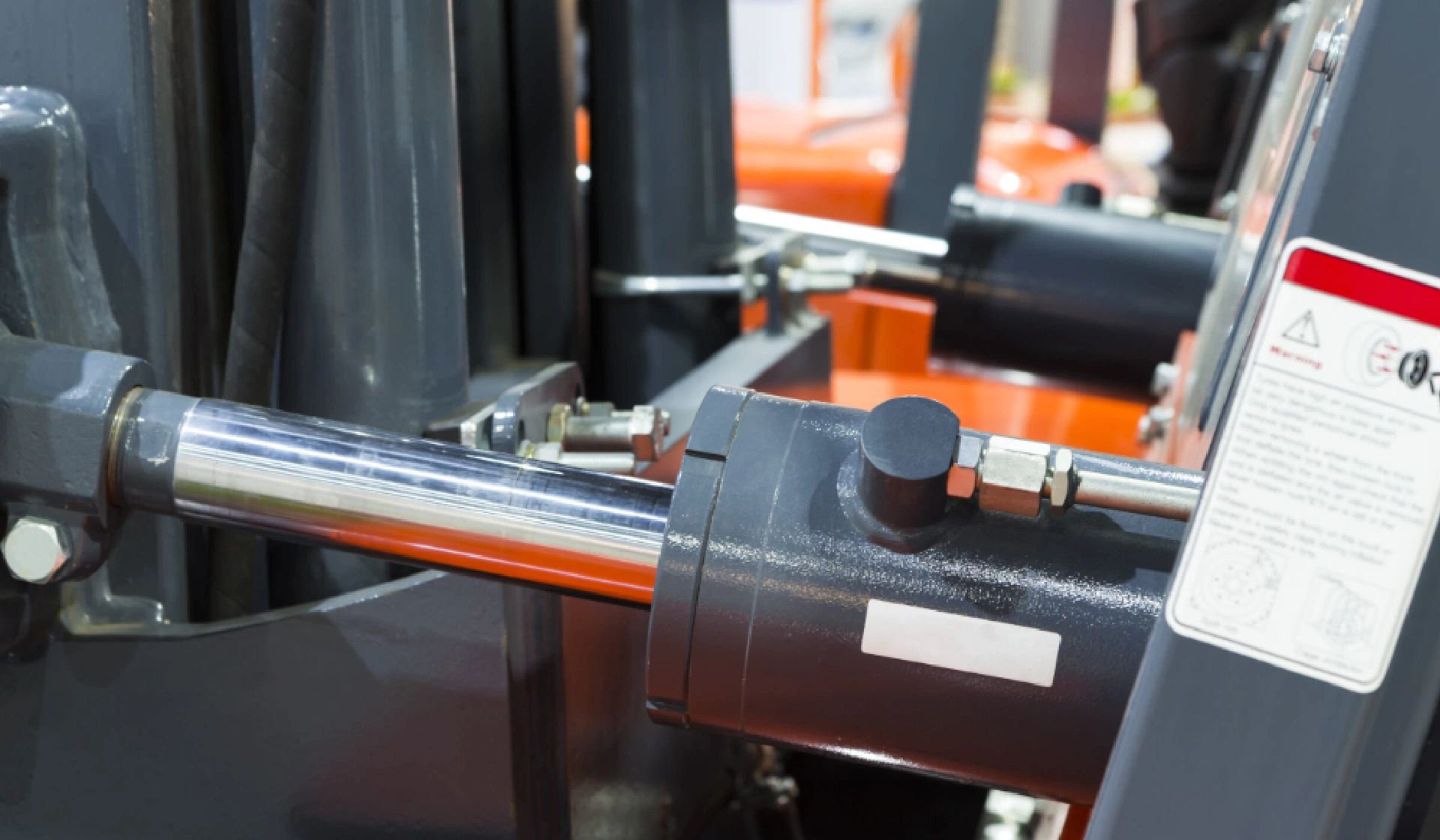

4. Hydraulic System

The hydraulic system is responsible for lifting and lowering the load, as well as tilting the mast and carriage. It consists of hydraulic cylinders, pumps, and control valves. The hydraulic lift cylinder raises and lowers the forks, while the tilt cylinder allows the mast to tilt forward or backward.

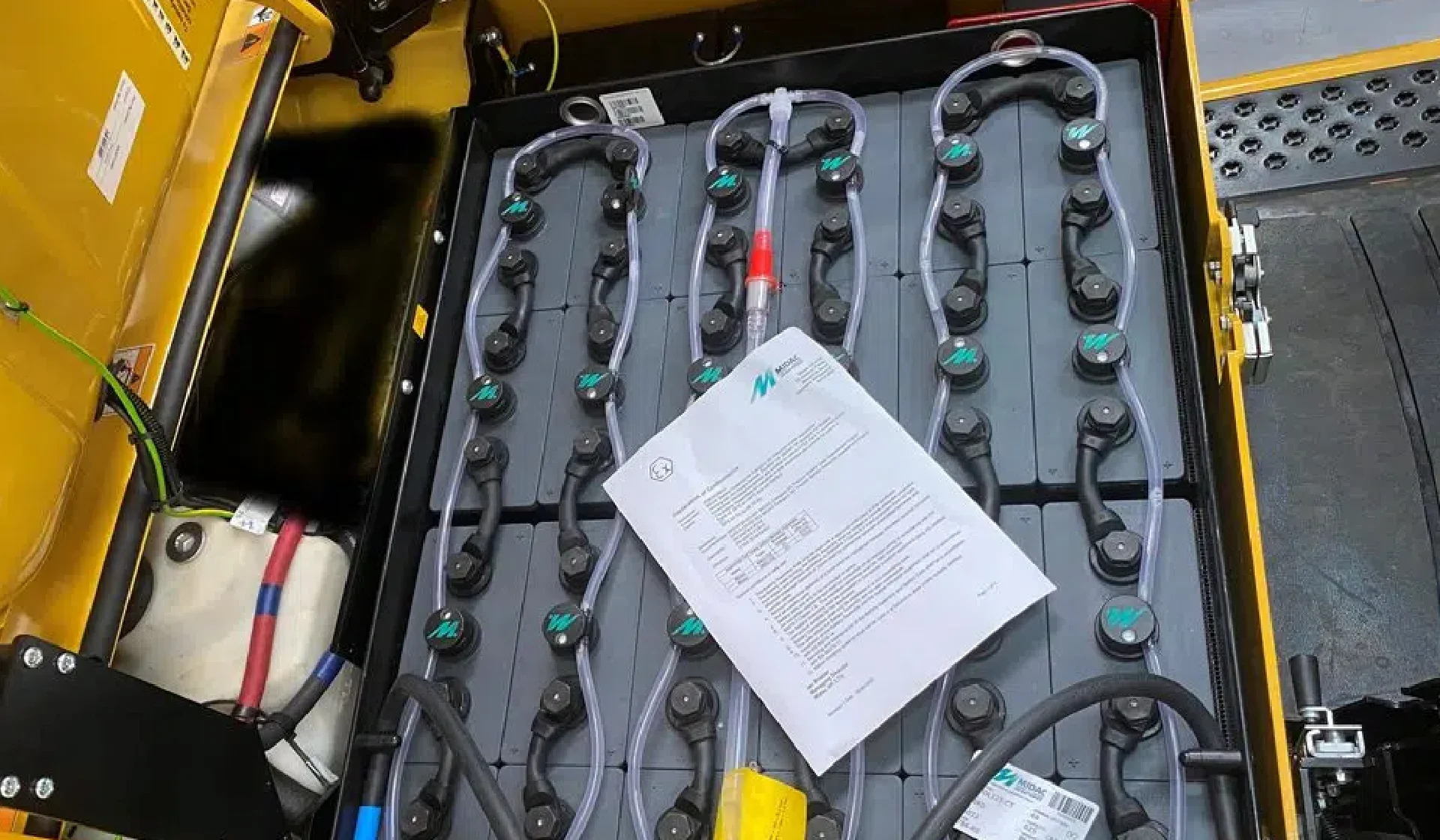

5. Power Source

Forklifts can be powered by either internal combustion engines or electric motors:

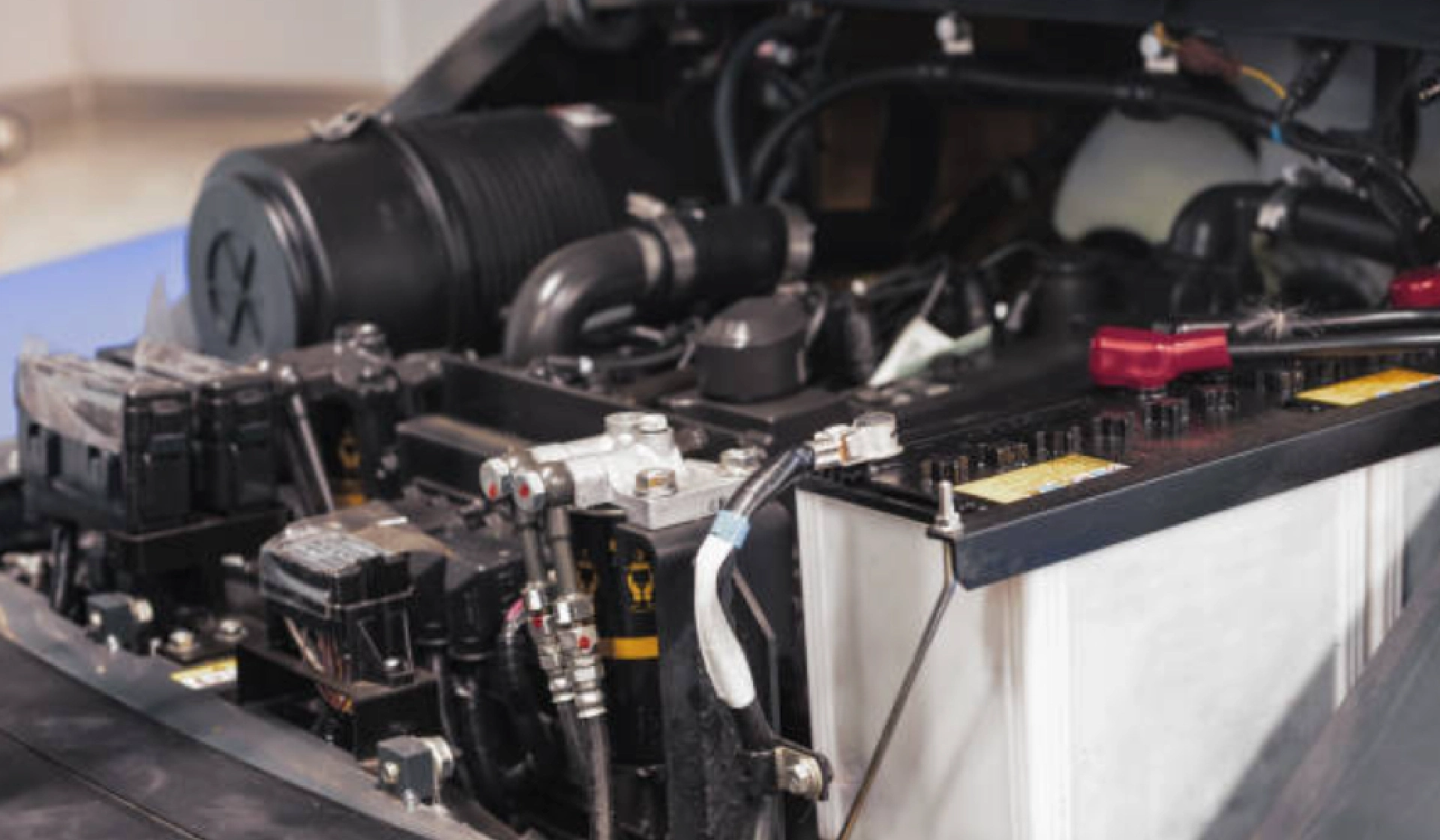

Internal Combustion Engines

These engines run on gasoline, diesel, or propane and are typically used in outdoor applications or where greater power is required.

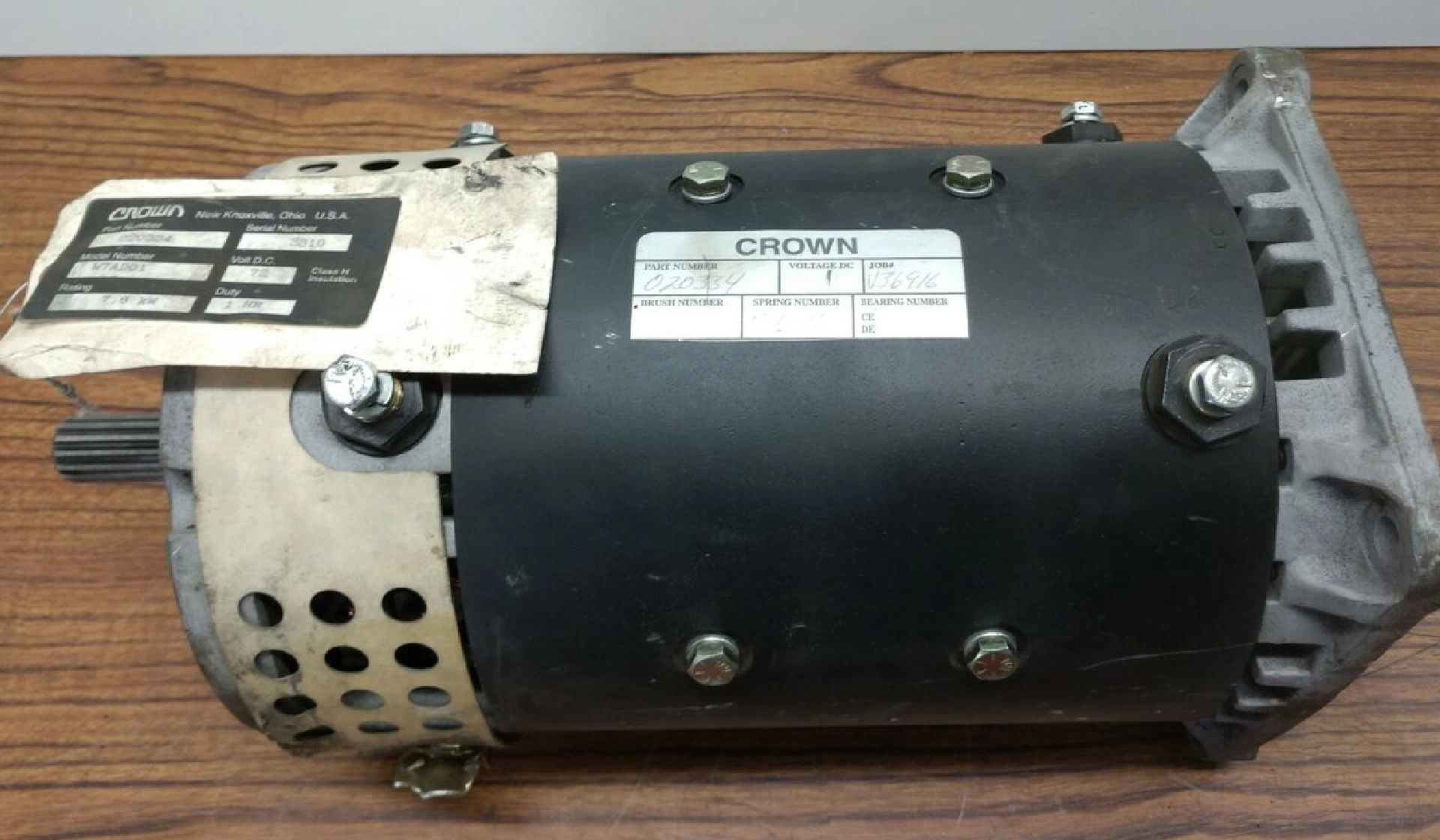

Electric Motors

Electric forklifts use rechargeable batteries and are preferred for indoor use due to their zero emissions and quiet operation. Electric forklifts utilize different battery types, each with its own performance characteristics.

Lead-acid batteries are a common and cost-effective option, while lithium-ion batteries offer higher energy density, faster charging times, and longer lifespans. The choice of battery depends on factors such as usage patterns, required runtime, and budget.

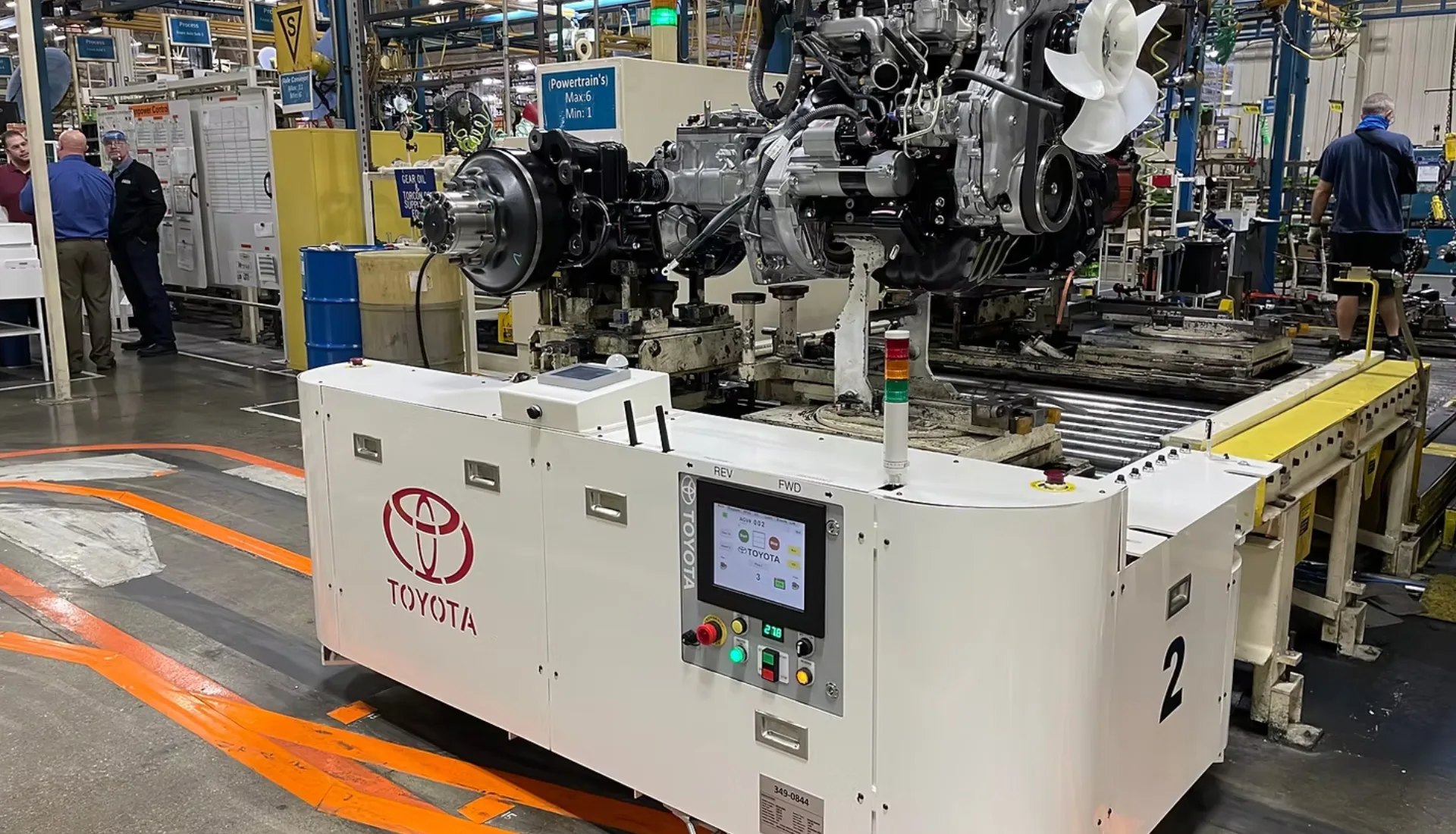

Powertrain

The powertrain of a forklift encompasses the components that generate and transmit power for lifting and moving. This includes the power source (engine or battery), transmission, hydraulic pump, lift cylinder, tilt cylinder, and lifting chain. The transmission works in conjunction with the power source to control speed and direction.

The hydraulic pump powers the lift and tilt functions by moving hydraulic fluid through the system. The lift and tilt cylinders enable the mast to raise, lower, and tilt, while the lifting chain facilitates the vertical movement of the carriage and forks.

Safety Features

Forklifts are equipped with various safety features to protect the operator and those working nearby.

flowchart TB
    classDef featureBox fill:#f0f8ff,stroke:#336699,stroke-width:2px,color:#333,font-weight:bold
    classDef functionBox fill:#fff8f0,stroke:#996633,stroke-width:1px,color:#333
    classDef benefitBox fill:#f0fff8,stroke:#339966,stroke-width:1px,color:#333,font-style:italic

    MainTitle["Forklift Safety Features & Their Functions"]
    style MainTitle fill:#f5f5f5,stroke:#333,stroke-width:1px,font-weight:bold

    MainTitle --> OperatorProtection
    MainTitle --> VisibilityFeatures
    MainTitle --> StabilityControls
    MainTitle --> WarningDevices
    MainTitle --> SmartSafety

    %% Operator Protection Group
    OperatorProtection["Operator Protection Features"]
    class OperatorProtection featureBox

    OperatorProtection --> OverheadGuard["Overhead Guard"]
    OverheadGuard --> OG_Function["Protects operator from falling objects"]
    OG_Function --> OG_Benefit["Reduces risk of severe injury by up to 80%"]

    OperatorProtection --> SeatBelt["Seat Belt/Operator Restraint"]
    SeatBelt --> SB_Function["Keeps operator inside cab during tip-over"]
    SB_Function --> SB_Benefit["Critical in tipping incidents - prevents crushing"]

    OperatorProtection --> LoadBackrest["Load Backrest Extension"]
    LoadBackrest --> LB_Function["Prevents load from shifting toward operator"]

    %% Visibility Features
    VisibilityFeatures["Visibility Enhancement"]
    class VisibilityFeatures featureBox

    VisibilityFeatures --> Lights["Safety Lights"]
    Lights --> Lights_Function["Blue spot lights, strobe lights, headlights"]
    Lights_Function --> Lights_Benefit["Reduces collision rates by up to 60%"]

    VisibilityFeatures --> Mirrors["Mirrors & Cameras"]
    Mirrors --> Mirrors_Function["Improves visibility for blind spots"]

    %% Stability Controls
    StabilityControls["Stability Systems"]
    class StabilityControls featureBox

    StabilityControls --> LSC["Load Stability Control"]
    LSC --> LSC_Function["Monitors mast angle & limits functions when unsafe"]

    StabilityControls --> SCS["Stability Control System"]
    SCS --> SCS_Function["Adjusts speed based on load height & turning angle"]
    SCS_Function --> SCS_Benefit["Prevents most common tip-over scenarios"]

    %% Warning Devices
    WarningDevices["Warning Devices"]
    class WarningDevices featureBox

    WarningDevices --> BackupAlarm["Backup Alarm"]
    BackupAlarm --> BA_Function["Audible warning when reversing"]

    WarningDevices --> Horn["Horn"]
    Horn --> Horn_Function["Manual warning at intersections"]

    %% Smart Safety
    SmartSafety["Smart Safety Technology"]
    class SmartSafety featureBox

    SmartSafety --> ProximitySensors["Proximity Sensors"]
    ProximitySensors --> PS_Function["Detects pedestrians/obstacles & alerts driver"]
    PS_Function --> PS_Benefit["Reduces collision incidents by up to 75%"]

    SmartSafety --> SpeedZoning["Automatic Speed Zoning"]
    SpeedZoning --> SZ_Function["Auto-reduces speed in designated areas"]

    SmartSafety --> AccessControl["Operator Access Control"]
    AccessControl --> AC_Function["Prevents unauthorized usage"]
    AC_Function --> AC_Benefit["Electronic checklist enforces pre-operation inspections"]

    %% Apply classes
    class OG_Function,SB_Function,LB_Function,Lights_Function,Mirrors_Function,LSC_Function,SCS_Function,BA_Function,Horn_Function,PS_Function,SZ_Function,AC_Function functionBox
    class OG_Benefit,SB_Benefit,Lights_Benefit,SCS_Benefit,PS_Benefit,AC_Benefit benefitBox

Examples of safety devices include seat belts to secure the operator, overhead guards to protect from falling objects, and alarms to alert pedestrians and other workers. Some key safety features include:

• Overhead Guard: A metal frame above the operator's head that protects them from falling objects.
• Load Backrest: Prevents the load from shifting backward and falling towards the operator.
• Seat Belt: Ensures the operator remains securely seated in the cab.
• Safety Lights and Horns: Provide visibility and audible warnings to alert others of the forklift's presence.

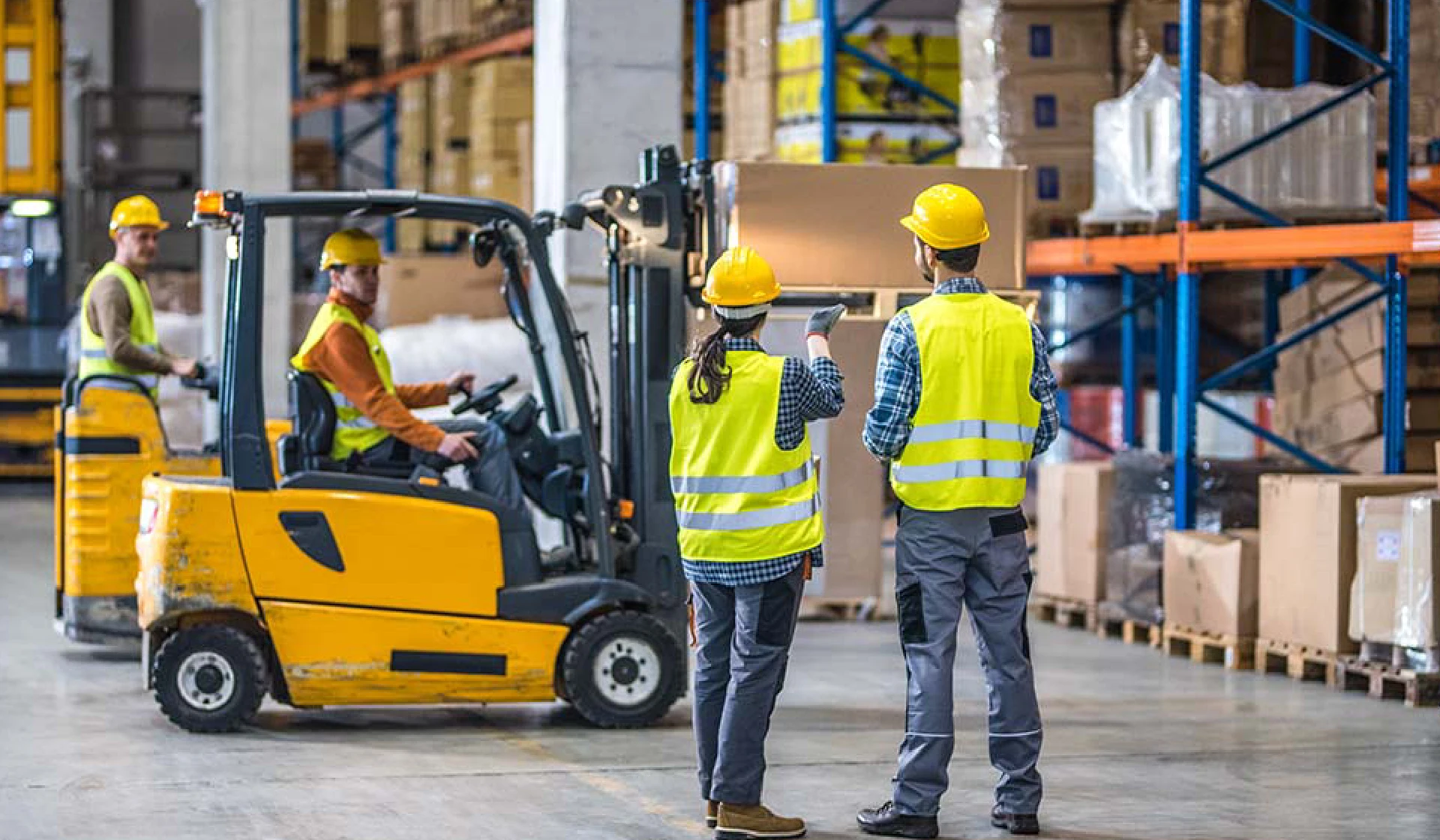

Forklift Safety

Forklift accidents are a significant concern, and understanding their causes is crucial for prevention. Common causes include operator inattention (fatigue, distraction, carelessness), inadequate training, lack of warning signs and signals, improper load creation, speeding, mechanical failures (worn brakes, leaks, damaged tires), and poor workplace design.

According to the U.S. Bureau of Labor Statistics, OSHA, NIOSH, and the National Safety Council, forklift accidents are a significant cause of workplace injuries and fatalities. Every year, numerous accidents occur, resulting in fatalities and injuries. A significant portion of these accidents involve pedestrians.

Operator training is paramount in forklift safety. Properly trained operators are more aware of potential hazards, understand safe operating procedures, and can react effectively in emergencies, significantly reducing the risk of accidents. The Occupational Safety and Health Administration (OSHA) has established standards for powered industrial trucks, including forklifts (29 CFR 1910.178).

These standards address various aspects of forklift safety, including operator training, maintenance, and workplace design. Adhering to these standards is crucial for minimizing risks and ensuring a safe working environment.

Costs

The cost of a forklift varies depending on several factors, including type, capacity, features, and whether it is new or used.

New Forklifts

New forklifts can range in price from $20,000 to over $45,000, depending on the type and features.

• Electric forklifts: $20,000 to $35,000, plus $2,500 to $5,000 for battery and charger.
• Internal combustion forklifts: $25,000 to $45,000.
• High-capacity forklifts (e.g., 35,000 lbs or more): Can exceed $100,000.
• Specialized models like telehandlers: $65,000 to $130,000.

Reach trucks, designed for narrow aisles and high stacking, typically have a weight range of 3,000 to 5,500 lbs and cost between $30,000 and $55,000 when new. They are commonly used in high-density warehouses and distribution centers.

Used Forklifts

Used forklifts can be a more affordable option, with prices ranging from $5,000 to $30,000. The price of a used forklift depends on factors such as age, condition, and usage hours.

Rental Costs

Renting a forklift can be a good option for short-term needs or for businesses that do not want to commit to purchasing a forklift.

• Daily rental rates: $150 to $500.
• Monthly rental rates: $1,150 to $4,368.

In addition to the initial purchase price, there are ongoing costs associated with owning and operating a forklift, such as maintenance, fuel, insurance, and operator training.

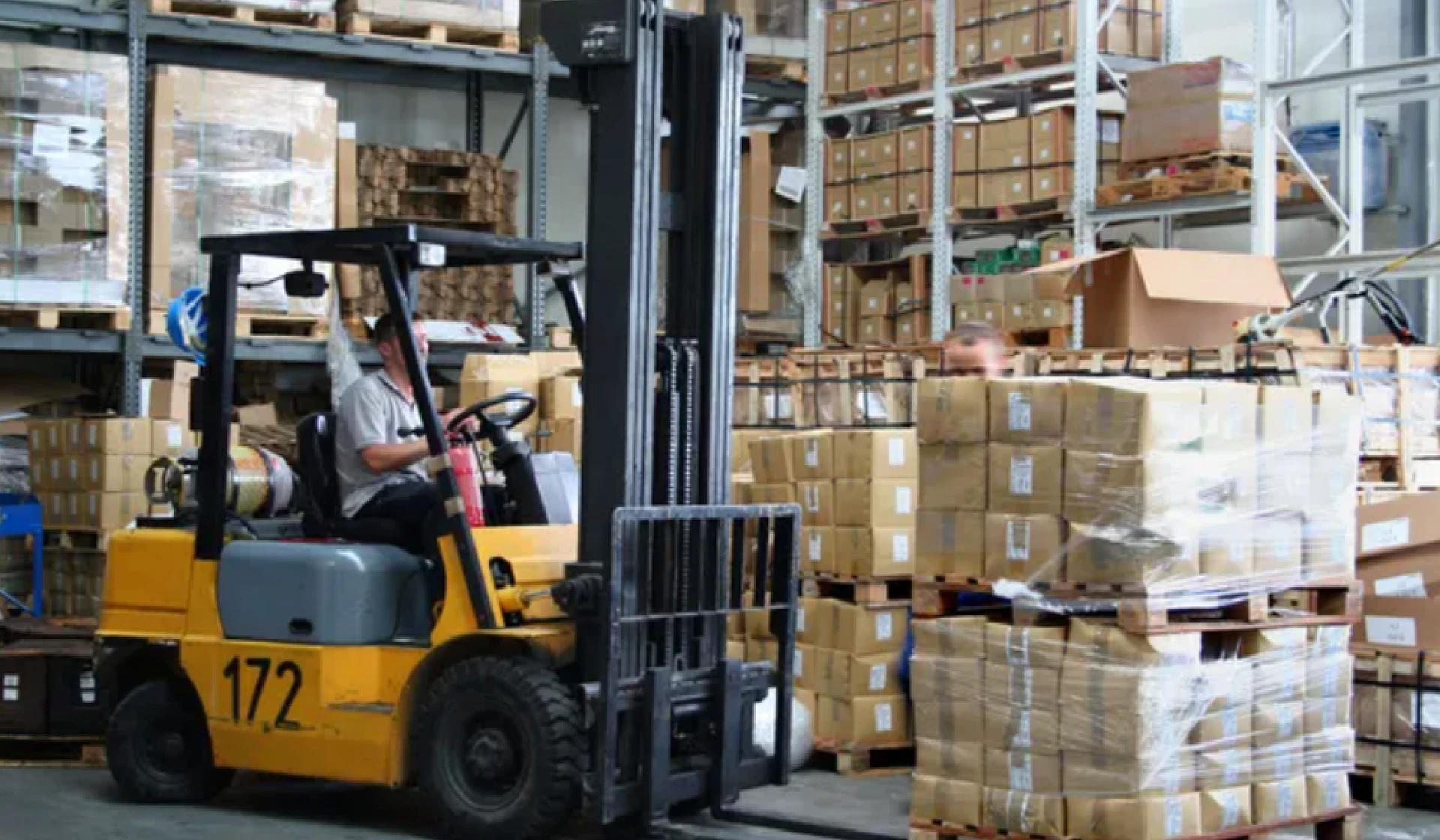

Performance Metrics

Several key performance indicators (KPIs) are used to measure the efficiency and effectiveness of forklifts:

• Utilization Rate: The percentage of time a forklift is in use.
• Maintenance Costs: The cost of maintaining and repairing a forklift.
• Fuel Consumption: The amount of fuel consumed by a forklift.
• Safety Incidents: The number of accidents or near misses involving a forklift.

Tracking these KPIs allows businesses to identify areas for improvement, such as reducing idle time, optimizing maintenance schedules, and promoting fuel-efficient driving practices. This can lead to significant cost savings and increased operational efficiency.

Usage Rates

Forklifts are used in a wide range of industries, with varying usage rates depending on the sector. Some of the most common industries that utilize forklifts include:

Retail and e-commerce: This sector is a significant consumer of forklifts, with usage rates projected to increase significantly in the coming years.

Construction: Forklifts play a vital role in moving materials on construction sites. It's important to note that forklift usage carries inherent risks, with construction, agriculture, forestry, and fishing being the sectors with the highest fatality rates, accounting for 65% of forklift-related deaths.

Manufacturing: Forklifts are essential for handling raw materials, moving products between production stages, and managing finished goods.

Warehousing: Forklifts are used extensively in warehouses for loading and unloading trucks, moving pallets, and storing goods.

The projected growth in forklift usage reflects the increasing demand for efficient material handling solutions across various industries. As businesses strive to improve productivity and streamline operations, the reliance on forklifts is expected to continue to rise.

Conclusion

Forklifts aren’t just tools—they’re the unsung heroes of industry, driving productivity from warehouses to construction sites. Understanding each component—counterweights, mast types, and power systems—isn’t just technical trivia; it’s the key to efficiency and avoiding costly downtime.

Safety remains a major concern. The statistics don’t lie—these powerful machines demand respect, proper training, and strict adherence to protocols. Smart businesses invest in training and safety features, reducing accidents, improving productivity, and cutting insurance costs.

As technology advances, forklifts are becoming smarter, cleaner, and more efficient. Electric models are gaining ground, tracking systems optimize fleet usage, and automation is on the rise. Businesses that make informed decisions on selection, maintenance, and operation will maximize their investment and stay ahead in an increasingly demanding market.
