Backhoe Tire Sizes Chart: Guide for Real-World Performance

Everyone talks about horsepower and hydraulics when speccing backhoes, but tire selection is often overlooked—despite being the foundation of performance. That 19.5L-24 may be standard, but choosing without considering terrain and application costs productivity.

This guide breaks down pneumatic vs. solid cushion options, bias-ply vs. radial construction, and why that small L-designation matters in backhoe tire sizes.

Common backhoe tire sizes range from 12.5/80-18 for front tires to 19.5L-24 or 21L-24 for rear tires. Tire size varies by model and manufacturer, with larger machines requiring wider and taller tires for stability and traction. Always match tire size to equipment specifications.

Types of Backhoe Tires

Backhoe tires come in two main flavors: pneumatic and solid cushion. The choice between them isn't just about budget – it's about where you're working and what you're doing.

flowchart TD
    A[Start Tire Selection] --> B{Primary Application?}
    B -->|Digging| C[Consider Traction & Stability]
    B -->|Loading| D[Consider Load Capacity]
    B -->|Grading| E[Consider Surface Contact]
    B -->|Transportation| F[Consider Fuel Efficiency]

    C --> G{Terrain Type?}
    D --> G
    E --> G
    F --> G

    G -->|Soft/Muddy| H[Deep Tread Lugs]
    G -->|Rocky/Uneven| I[Wide Treads]
    G -->|Paved Surface| J[Smooth Tread]
    G -->|Mixed Terrain| K[All-Terrain Pattern]

    H --> L{Distance Between Sites?}
    I --> L
    J --> L
    K --> L

    L -->|Minimal| M[Bias-Ply Tires]
    L -->|Significant| N[Radial Tires]

    M --> O{Risk of Punctures?}
    N --> O

    O -->|High| P[Solid Cushion]
    O -->|Moderate| Q[Semi-Pneumatic]
    O -->|Low| R[Standard Pneumatic]

    P --> S[Select Appropriate Size]
    Q --> S
    R --> S

    S -->|Front Tires| T["12.5/80-18, 11Lx16,
    340/80-18 or similar"]
    S -->|Rear Tires| U["19.5L-24, 17.5L-24,
    21L-24 or similar"]

    T --> V[Consider Load Rating & Inflation]
    U --> V

    V --> W[Final Selection]

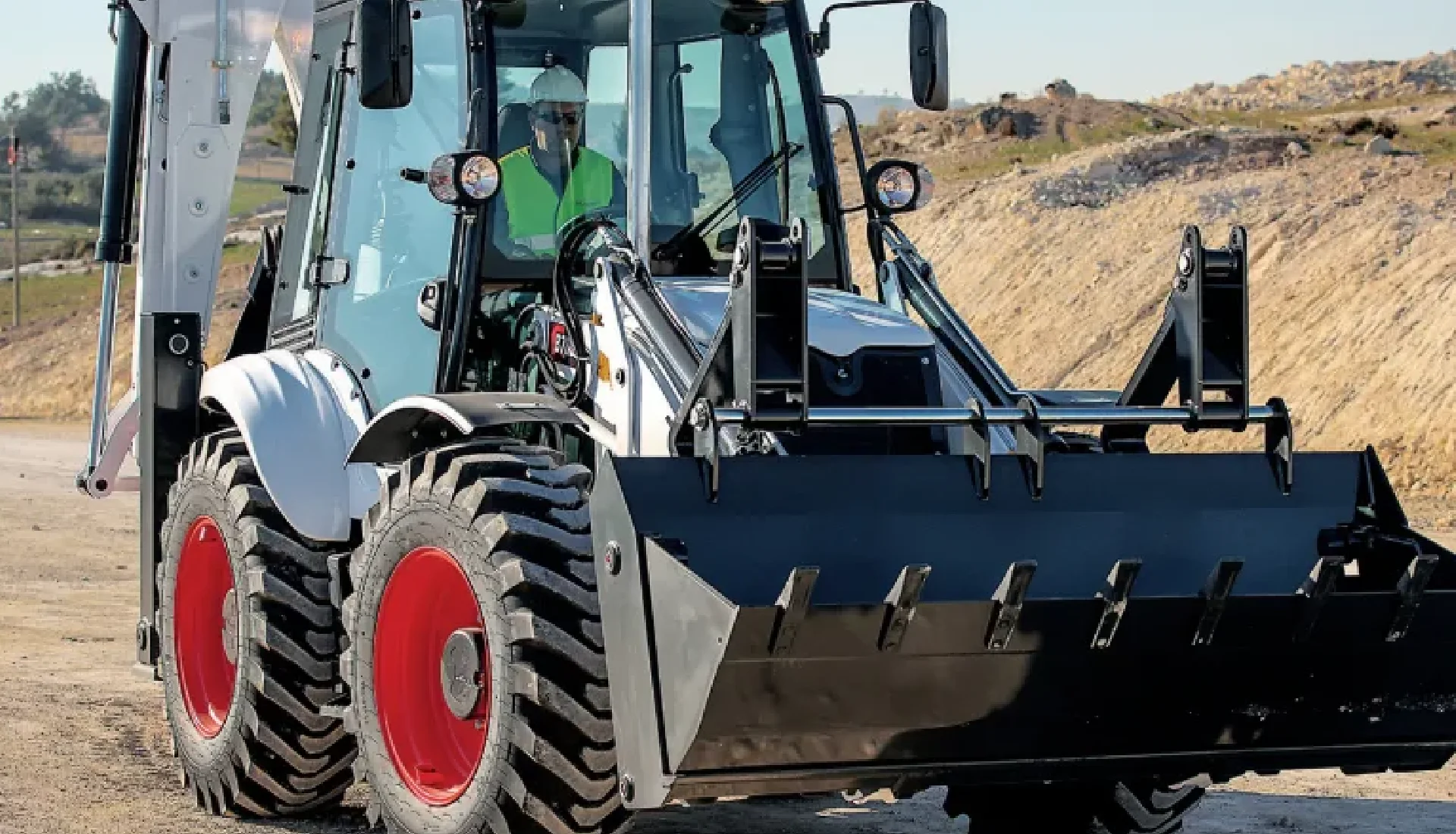

Pneumatic Tires

Pneumatic tires are your air-filled options that give you a cushioned ride when you're bouncing across uneven terrain. They split into two sub-categories that matter more than most operators realize.

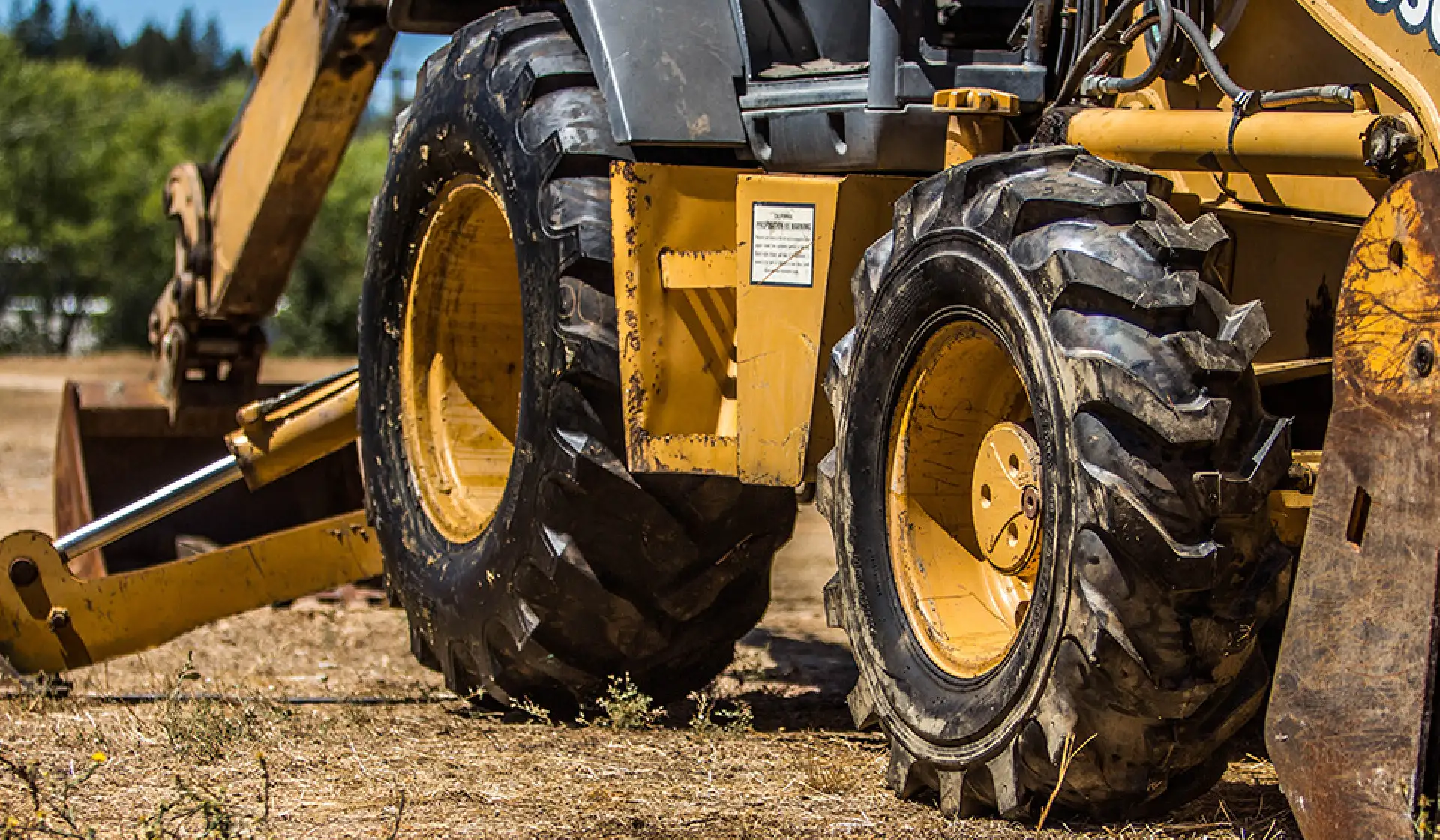

Bias-ply tires

These are the workhorses most backhoes roll out of the dealership wearing. Their crisscrossed internal plies deliver decent puncture resistance at a price point that doesn't make fleet managers flinch. The reinforced sidewalls handle debris without immediately going flat.

But let's be honest about their shortcomings – they compact soil more aggressively due to smaller footprints, burn more fuel, offer a ride quality that'll have your kidneys filing complaints by lunchtime, carry less weight than comparable radials, and wear unevenly when you're running them hot on pavement between job sites.

Radial tires

The new kids on the block with internal steel belts that laugh at punctures. If your backhoe spends significant time in road gear connecting multiple sites, these will pay for themselves before you hit the halfway point of their service life.

They run cooler, last longer, and won't shake your fillings loose on highway stretches.

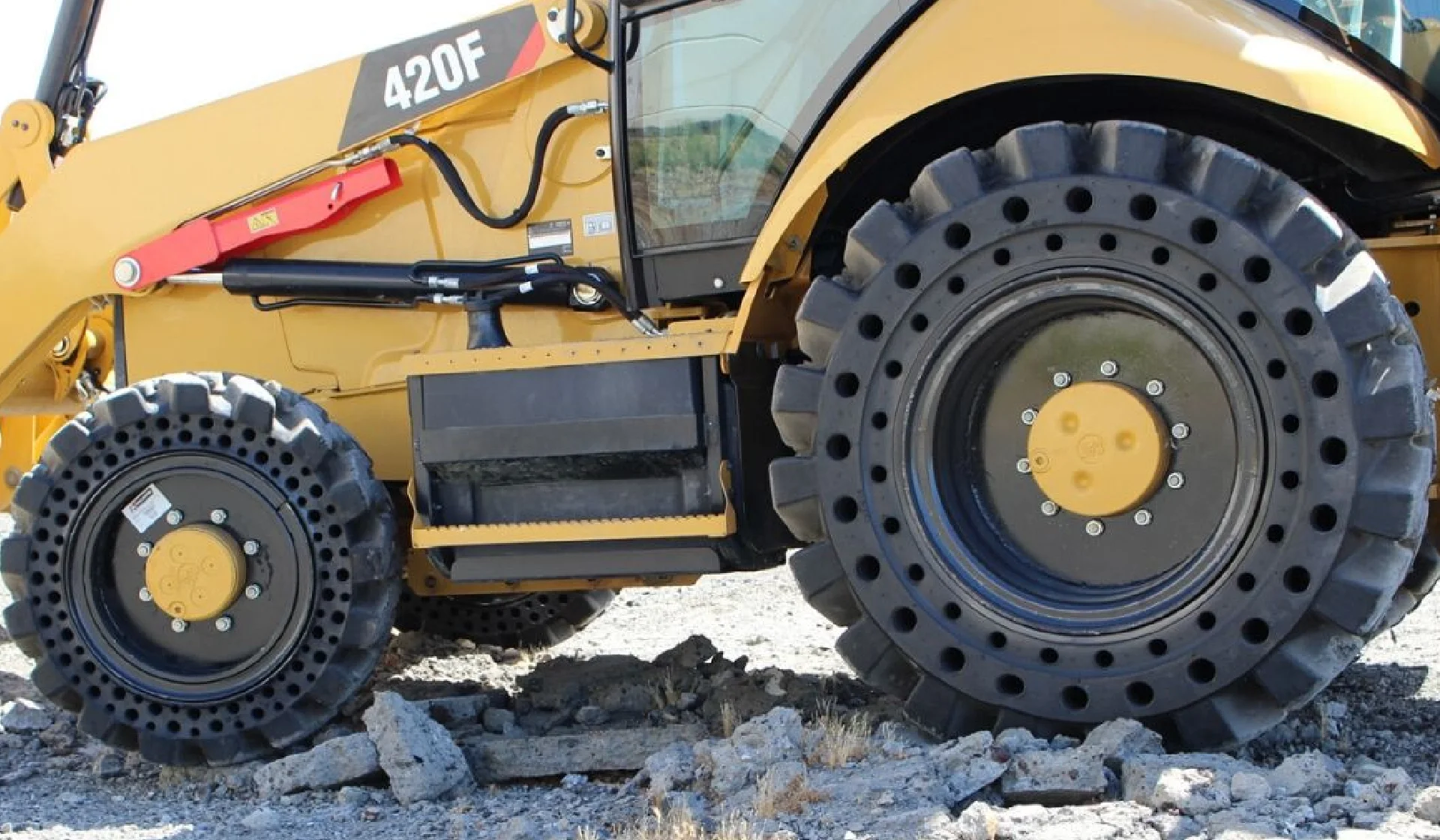

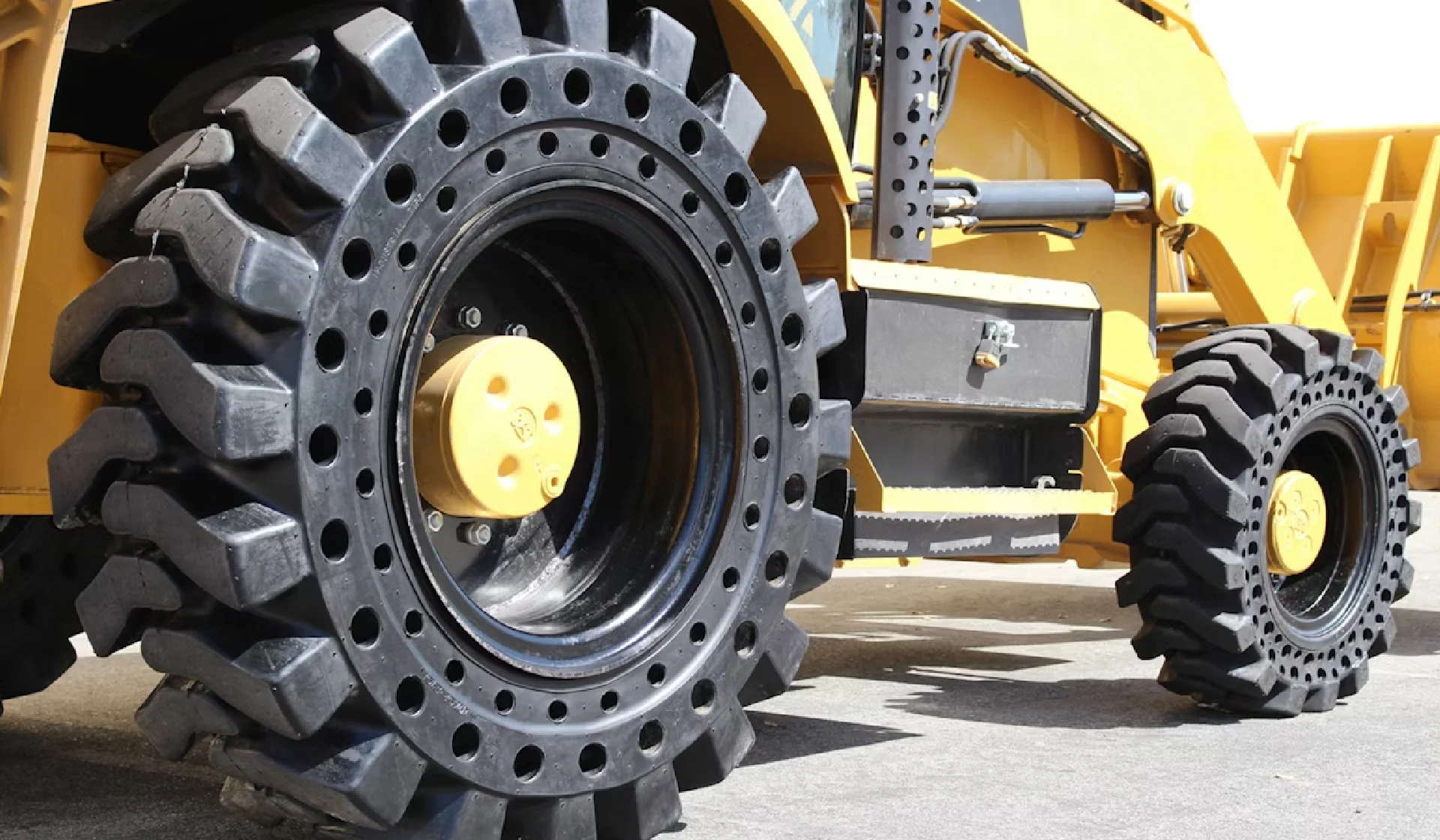

Solid Cushion Tires

Solid cushion tires are exactly what they sound like – solid rubber or polyurethane with zero chance of flats. They're the nuclear option for environments where punctures aren't just annoying; they're production killers.

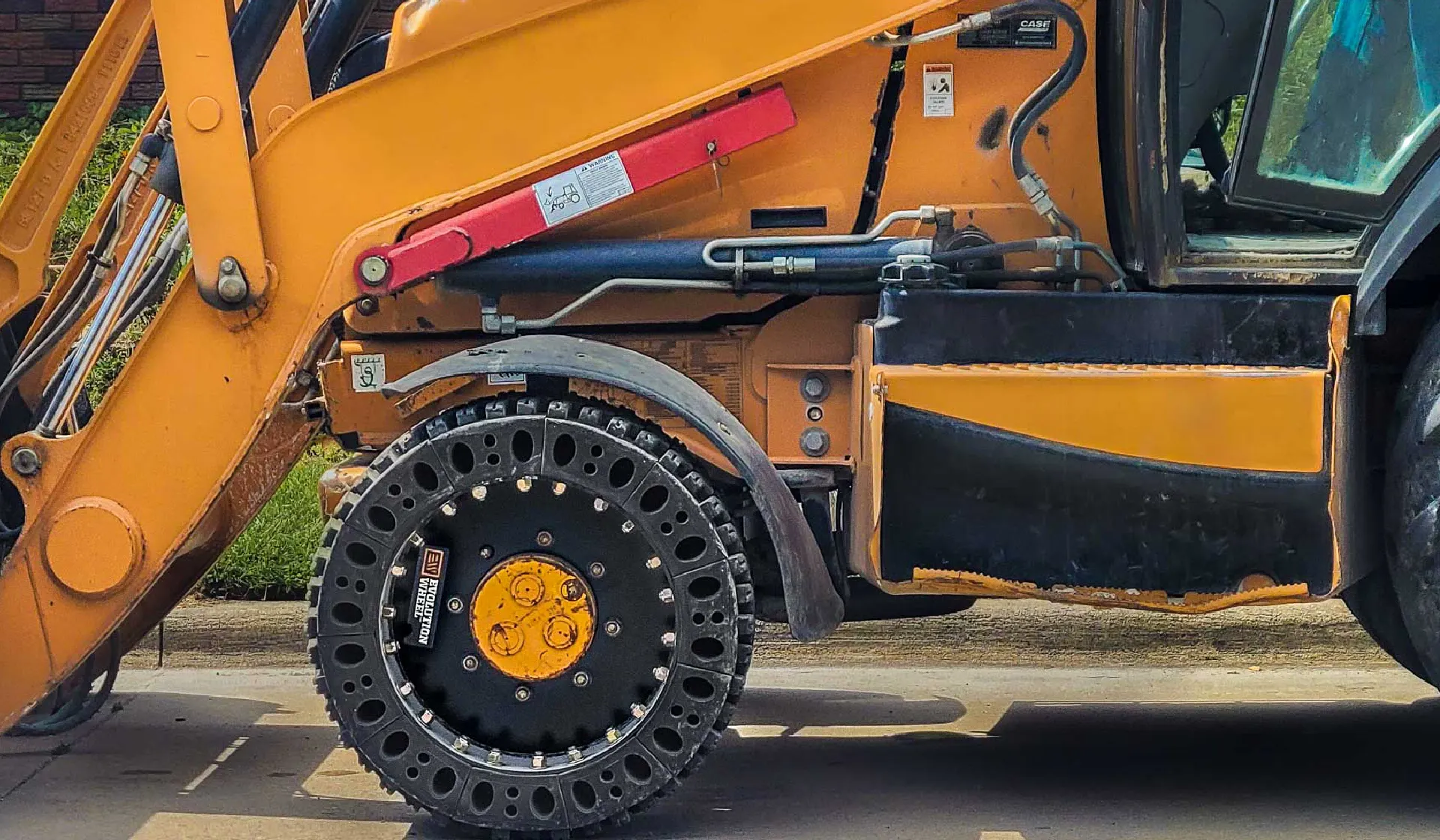

Solid construction tires

Maximum surface contact for paved surfaces where traction isn't the challenge but longevity is. You'll see these in industrial applications where the machine rarely leaves concrete or asphalt.

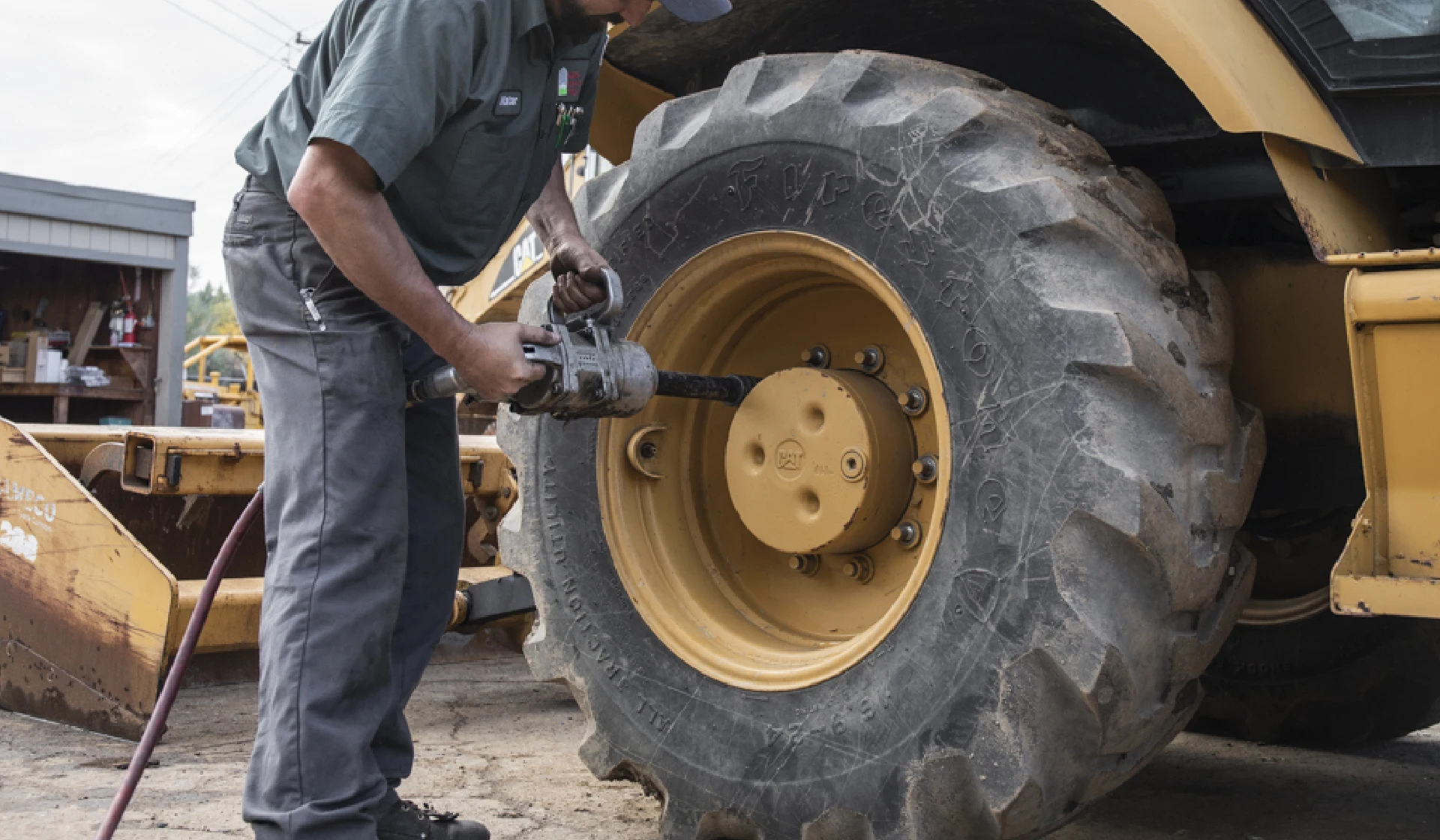

Semi-pneumatic tires

These hybrid designs include a middle cushioning layer that delivers a tolerable ride without the risk of flats. They're the compromise that makes sense when you need both durability and operator comfort.

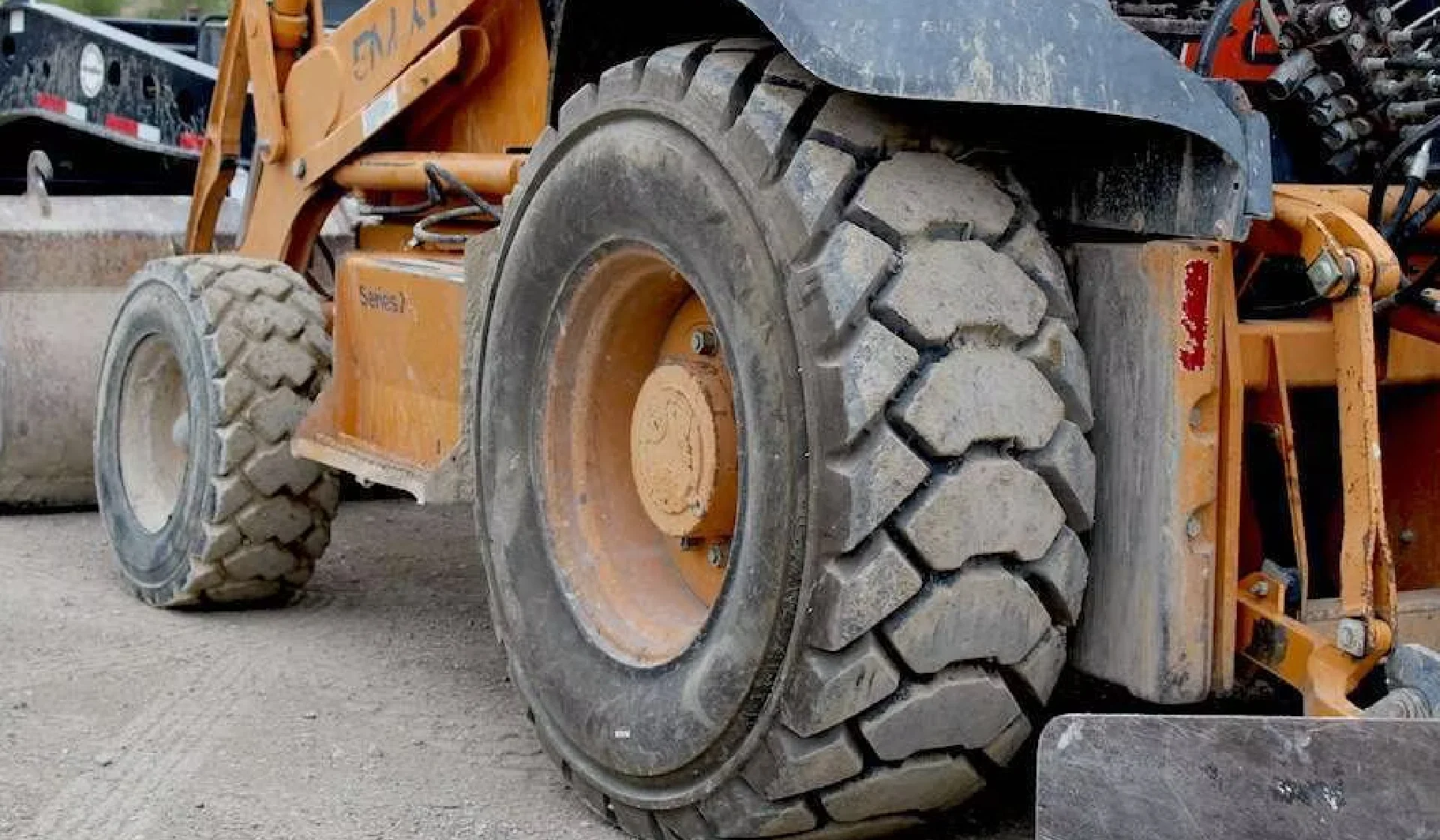

Common Backhoe Tire Sizes

Deciphering backhoe tire sizes feels like reading hieroglyphics until you understand the format. Each designation tells you three critical measurements: rim diameter, width, and aspect ratio. Miss any of those, and you're ordering the wrong rubber.

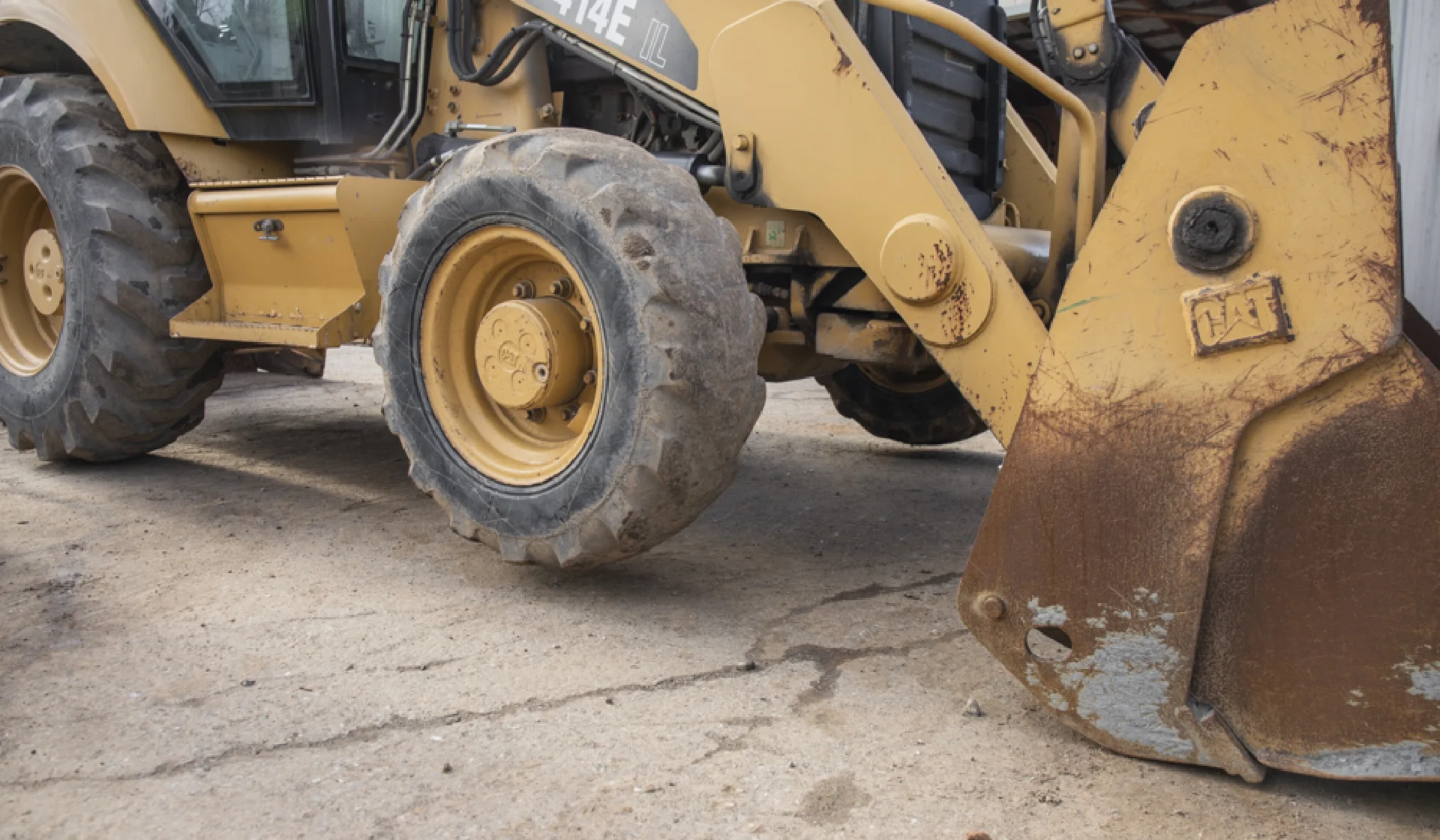

Front Tires

Let's talk front end first, where you'll typically see these sizes:

• 12.5/80-18 (standard on many mid-sized units)
• 11Lx16 (common on older or lighter models)
• 340/80-18 (metric equivalent that's gaining popularity)
• 14.5/75x16 (offers wider footprint for stability)
• 12x16.5 (popular crossover size with skid steers)
• 11L-15 (lightweight option for 2WD machines)
• 10-16.5 (compact models and utility backhoes)

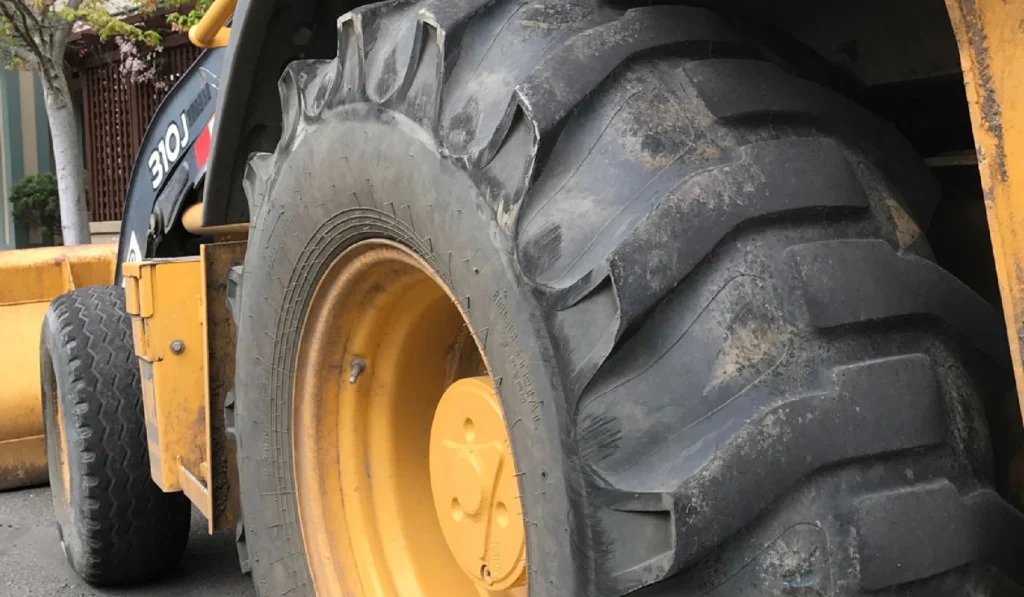

Rear Tires

On the business end of your backhoe, size matters even more:

• 19.5L-24 (the industry standard you'll see everywhere)
• 17.5L-24 (lighter duty option with less flotation)
• 21L-24 (heavy-duty option for serious digging)
• 460/70R24, 500/70R24, 540/70R24 (European metric equivalents gaining traction)

Here's something most dealers won't tell you: those "standardized" sizes aren't actually standard across makes and models. Your tire options will vary depending on whether you have a 2WD or 4WD machine and even between manufacturers with slightly different frame geometries.

That mysterious "L" designation you see in sizes like 19.5L-24? That stands for "Low Section Width" – which means the tire has a lower profile (less sidewall height) than its non-L counterpart would have. It's not just a random letter thrown in there.

The ubiquitous 19.5L-24 rear tire size has become the go-to for a reason: it delivers extra deep tread with wider, more aggressive lugs that bite into soil without immediately clogging up.

The larger contact area distributes the machine's weight better for stability (crucial when you've got the boom extended), resists punctures better than smaller alternatives, and holds up longer under the constant stress of bucket loading.

The reinforced sidewall construction means you won't deal with the classic "bulge of doom" after your first month of service.

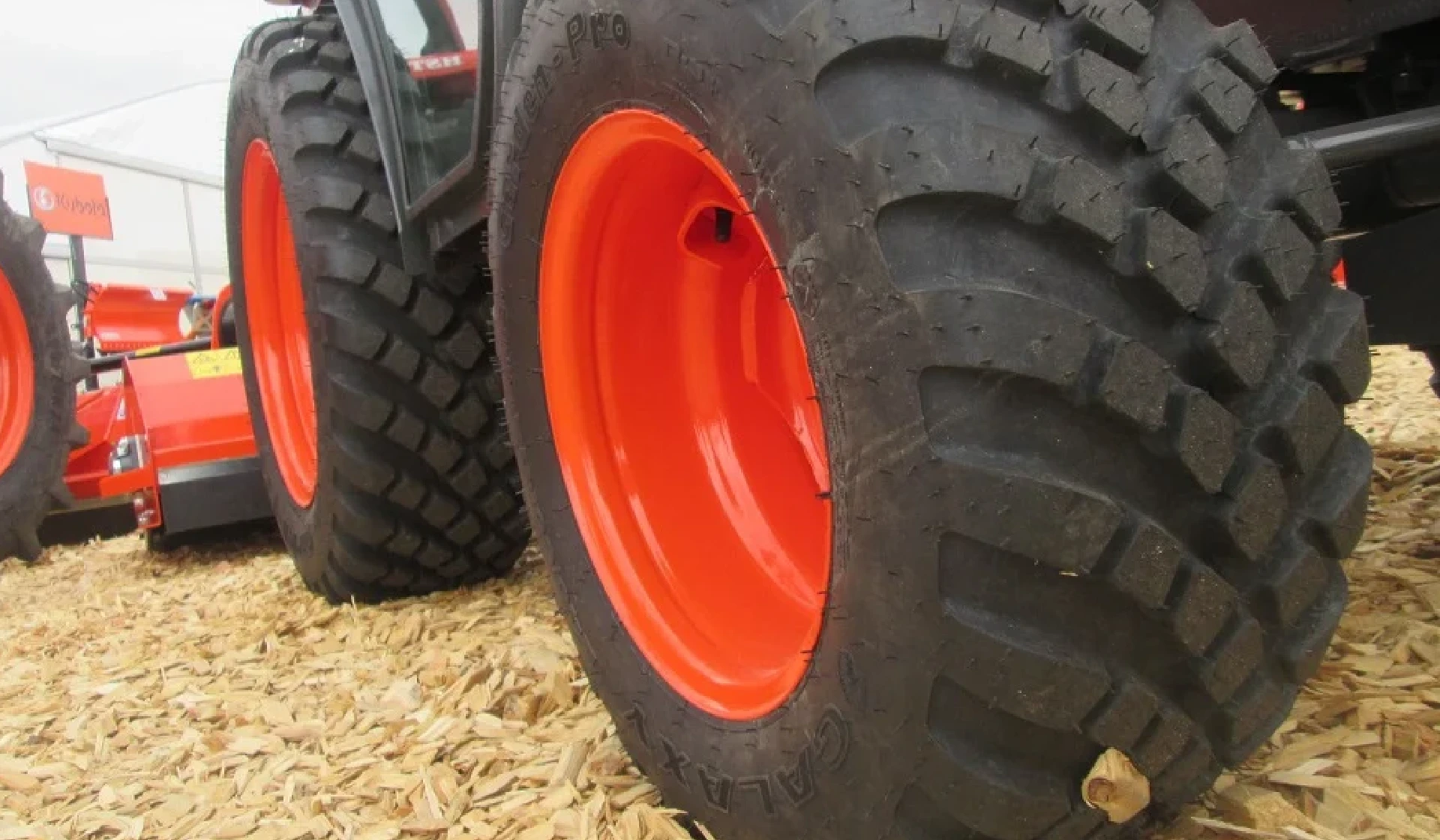

Tire Tread Patterns

Tread pattern isn't just about aesthetics – it's about matching your machine's footprint to the surface you're working on. Pick the wrong pattern, and you'll either be spinning wheels or wearing them out prematurely.

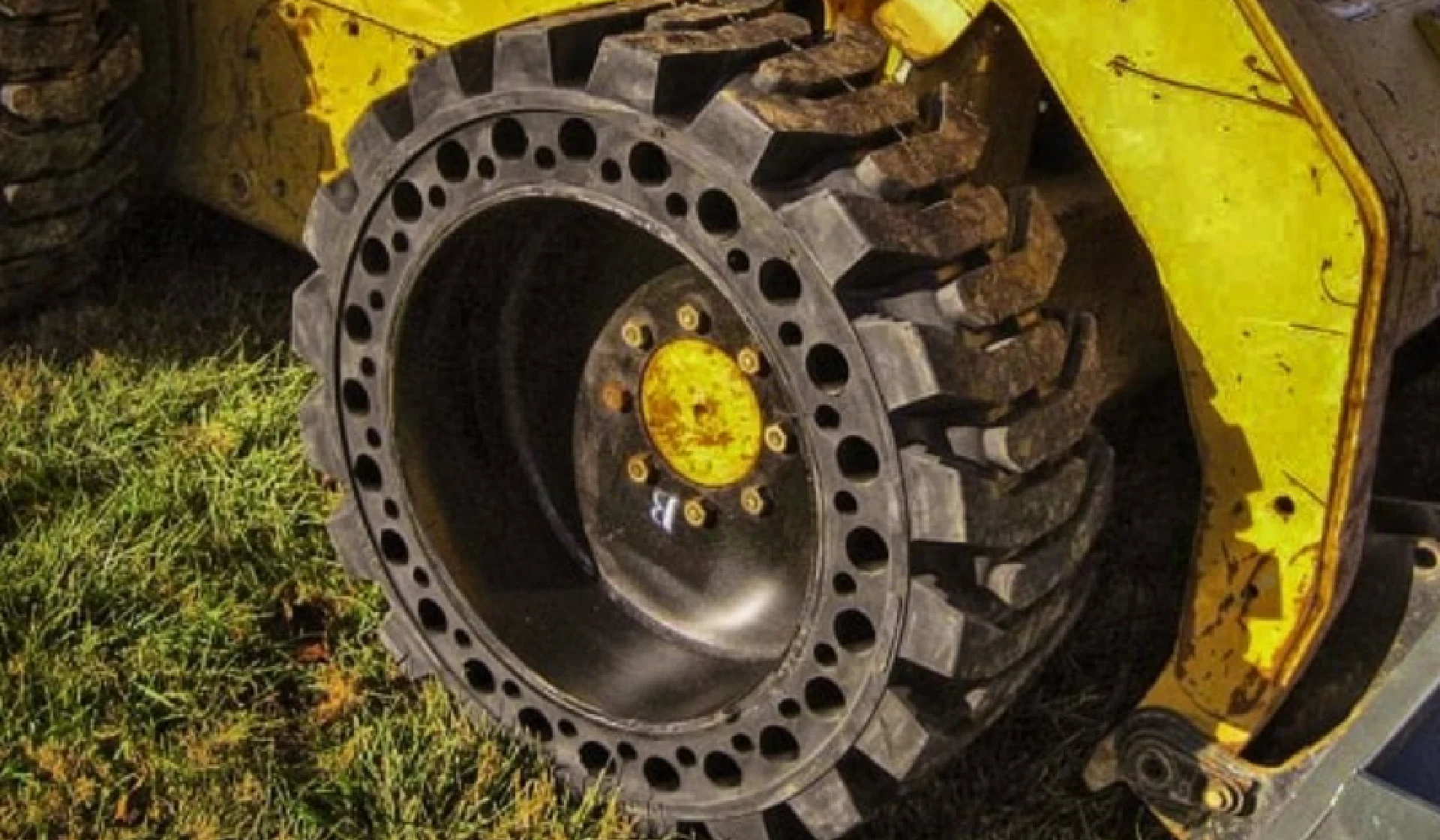

Solid surface

These are the slick-looking options with minimal tread depth and maximum rubber-to-road contact. They're designed to be pavement warriors and deliver excellent wear characteristics on asphalt and concrete. Put these on a muddy site, though, and you might as well be running on bowling balls.

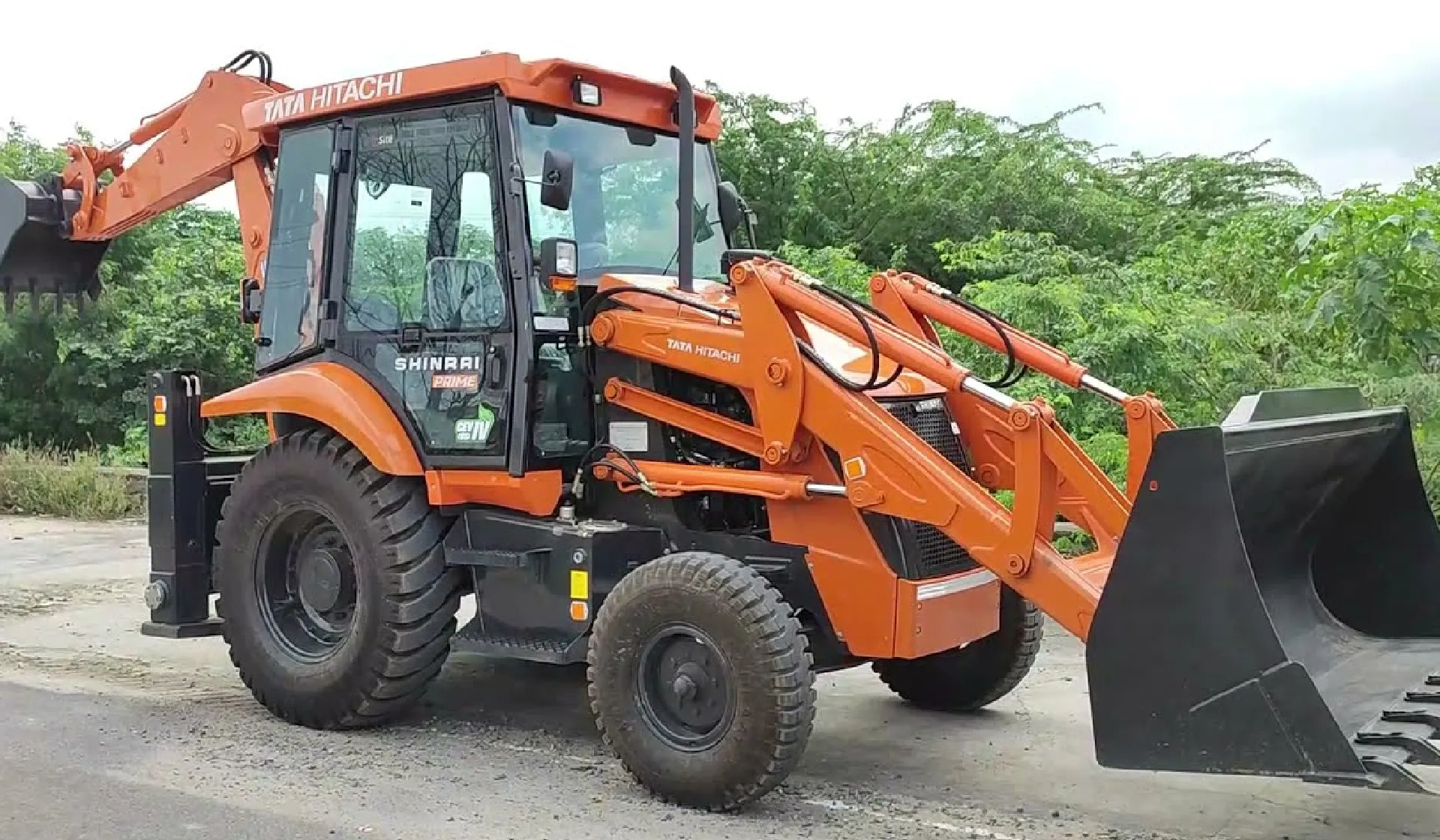

Rocky terrain

These wider-treaded beasts feature chunky, blocky patterns that handle the abuse of uneven surfaces without getting shredded. You'll see them conquering scrap yards and demolition sites where puncture resistance trumps ride quality. The spaces between lugs are designed to eject rather than trap debris.

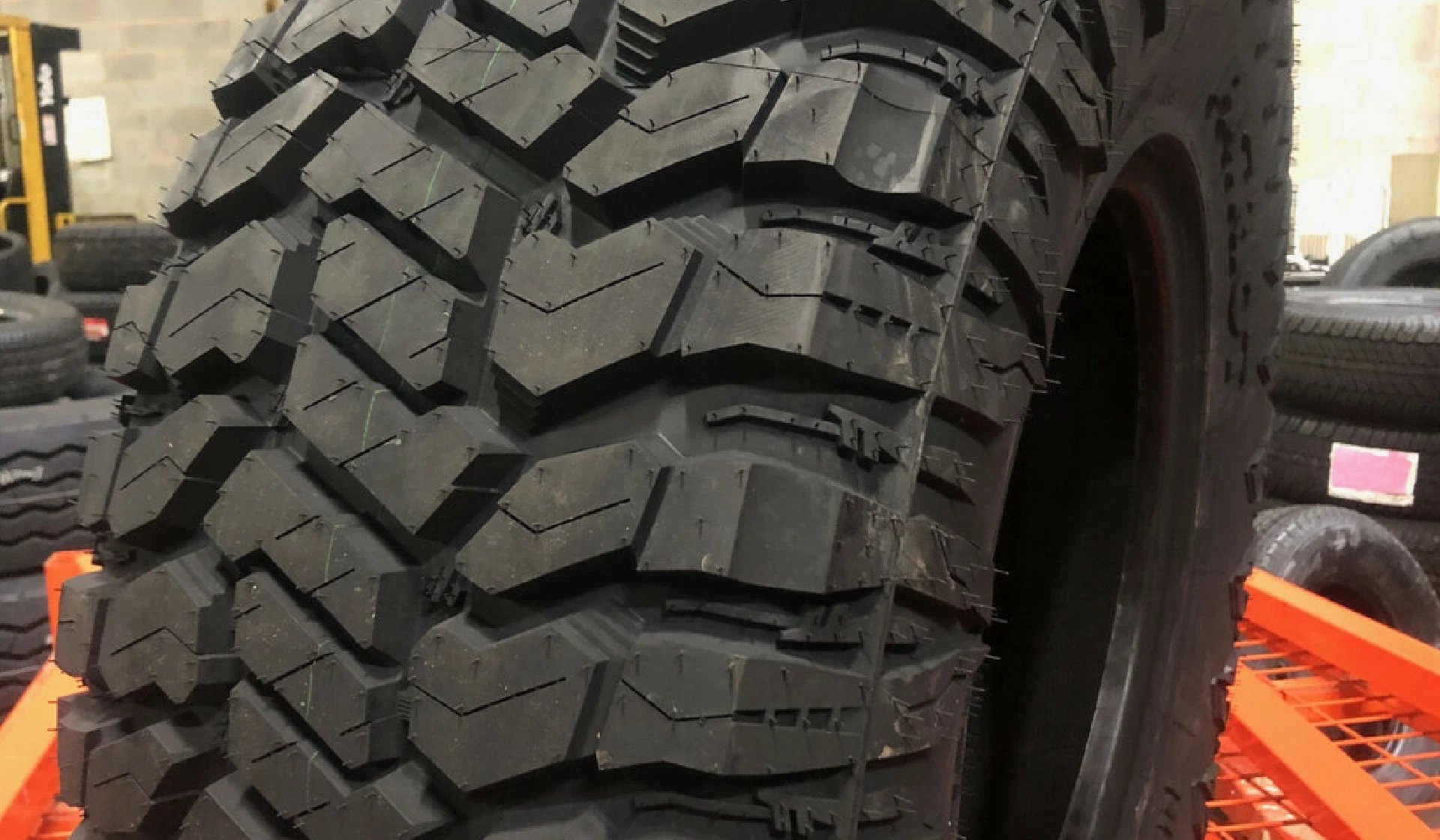

Dirt terrain

Deep-lugged patterns with aggressive self-cleaning designs that maintain traction in mud, snow, and loose sand. The substantial void ratio means less material actually touches the ground, but what does make contact digs in and holds. When the weather turns nasty and everyone else is spinning, these keep you moving.

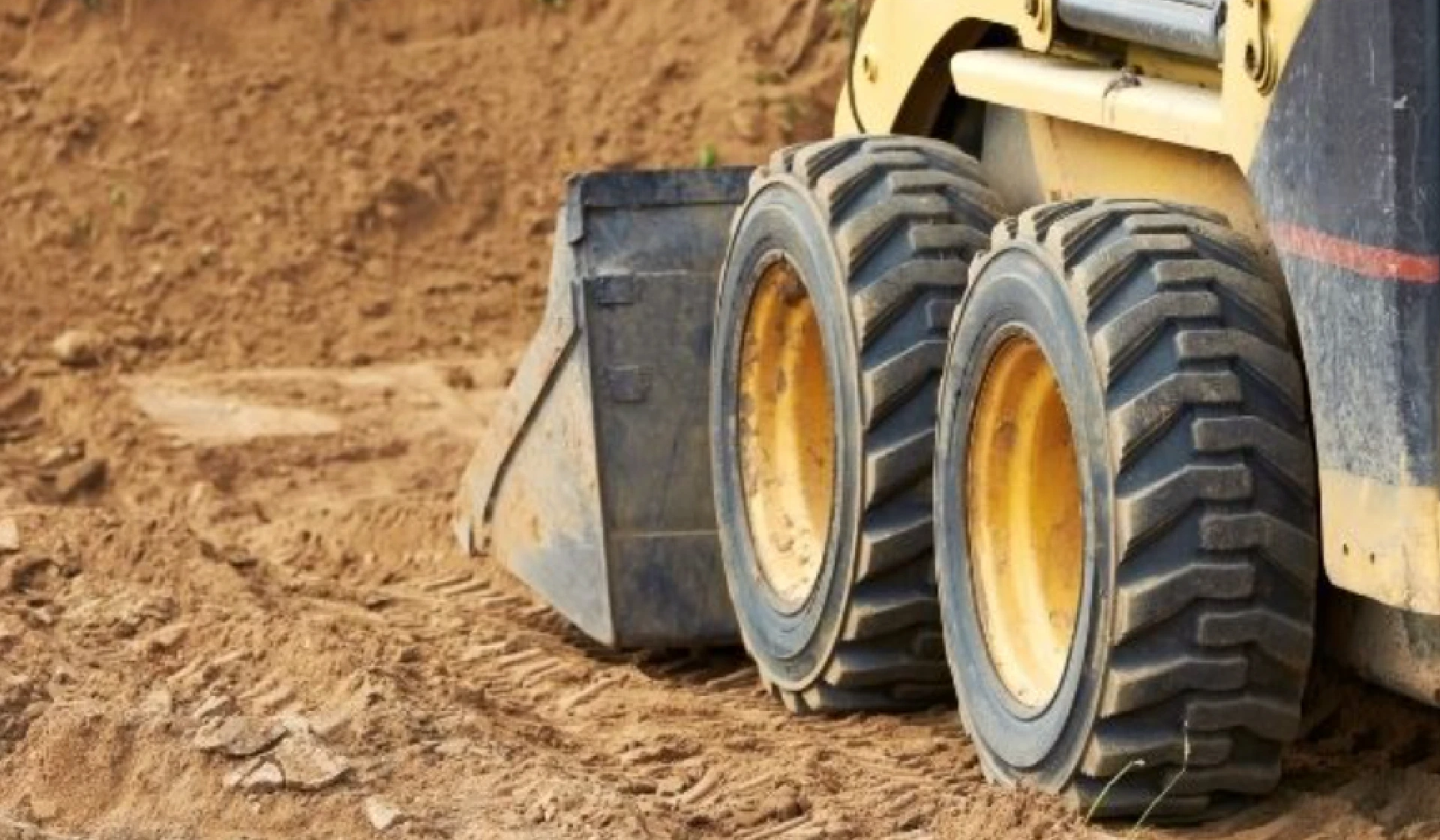

All-terrain

This compromise choice delivers acceptable performance across different surfaces. They won't excel anywhere, but they won't completely fail anywhere either. Think of them as the "jack of all trades, master of none" option – perfect for mixed-use applications or when you're not sure exactly where the machine will end up working.

Backhoe Tire Tread Patterns Visualized

Reading about tread patterns is one thing, but seeing them side by side puts everything in perspective. Visual comparisons let operators instantly grasp how different lug designs interact with various surfaces. The spacing, depth, and orientation of those lugs determine whether you'll get traction or frustration.

Most operators don't realize how dramatically tread pattern affects both performance and operating costs until they've experienced the wrong tire in the wrong application. That smooth-treaded tire that glides along pavement will become your worst enemy in wet clay.

Conversely, those aggressive lugs that bite into soft soil will wear unevenly and prematurely on concrete, costing you thousands in early replacements.

Load Capacity and Inflation Pressure

Load capacity isn't just some number stamped on the sidewall – it's the difference between operating safely and tempting disaster.

flowchart TD
    A[Inflation Pressure] --> B{Properly Inflated?}

    B -->|Under-inflated| C[Decreased Load Capacity]
    B -->|Over-inflated| D[Decreased Contact Patch]
    B -->|Correct PSI| E[Optimal Performance]

    C --> F[Sidewall Flexing]
    C --> G[Heat Buildup]
    C --> H[Increased Fuel Consumption]
    C --> I[Premature Wear Patterns]

    D --> J[Reduced Traction]
    D --> K[Center Tread Wear]
    D --> L[Harsh Ride Quality]
    D --> M[Increased Shock Loading]

    E --> N[Maximum Load Rating Achieved]
    E --> O[Even Wear Distribution]
    E --> P[Optimal Traction]
    E --> Q[Extended Tire Life]

    subgraph "Critical PSI Reductions"
    R[10% Under: 20% Load Capacity Loss]
    S[20% Under: 40% Load Capacity Loss]
    T[30% Under: Imminent Failure Risk]
    end

    C --- R
    R --- S
    S --- T

    subgraph "Maintenance Schedule Impact"
    U[Daily Check: Commercial Operations]
    V[Weekly Check: Light Use]
    W[Before Transport: Always Required]
    end

    E --- U
    U --- V
    V --- W

Your backhoe's weighed down differently depending on what attachments you're running and how much material you're hauling. Skimp on load capacity, and you'll be watching that sidewall flex in ways that make maintenance managers lose sleep.

Inflation pressure might be the most overlooked yet critical aspect of tire management. Show me a backhoe with premature tire wear, and I'll show you an operator who hasn't checked the air pressure since the machine was delivered.

Running 5-10 PSI below spec doesn't just accelerate wear – it changes the machine's stability, increases fuel consumption, and significantly increases your chance of downtime from flats.

Remember: that $100,000 machine is only as good as the four contact patches keeping it connected to earth.

Cost of Backhoe Tires

Let's talk money. Tire costs vary wildly based on size, construction, brand, and whether you want something that lasts beyond next Tuesday.

The old adage "you get what you pay for" definitely applies here, but that doesn't mean the most expensive option is always right for your application.

Pneumatic tires will save you upfront compared to solid cushion options but may cost more over time if you're constantly patching punctures. Here's what you can expect to shell out for various sizes:

15-19.5 tires run between $399 for budget brands up to $999 for premium rubber with extra plies and puncture resistance.

Size-specific pricing looks something like this:

• 11L-16: Around $199 (the budget-friendly front tire option)
• 14.9-24: $449 at the low end to $1,749 for premium options with maximum ply ratings
• 17.5L-24: $729 to $1,199 depending on construction and brand
• 19.5L-24: $649 to $1,199 (the most common rear size with the most options)
• 21L-24: $829 to $1,649 (heavier duty means heavier price tag)
• 21L-28: $1,369 to $1,749 (the big boys cost big money)

Remember that these prices typically don't include mounting, which can add another $75-200 per tire depending on your location and whether you're bringing just the rim or the whole machine to the tire shop.

And no, that YouTube video showing how to mount your own tire with starter fluid and a sledgehammer isn't a good idea, no matter how convincing it looks.

Performance Metrics

When evaluating tire performance, we're looking at three critical factors: durability (how many hours before replacement), puncture resistance (how often you'll be patching or replacing), and traction (whether you're digging or spinning).

The data doesn't lie – radial tires consistently outperform bias-ply options in fuel economy and tread wear, sometimes delivering up to 30% more service hours before needing replacement.

Solid cushion tires are the undisputed champions of puncture resistance and overall durability. I've seen these running in metal recycling yards where conventional tires wouldn't last a week, still performing after two years of abuse. The tradeoff? Higher initial cost and ride quality that'll have operators reaching for the ibuprofen.

Sidewall protection is the unsung hero of tire selection, particularly in environments with jagged debris or tight quarters. We've all seen those telltale bulges where the sidewall cording has been compromised – usually right before you're about to start a major project on a tight deadline.

Reinforced sidewalls aren't just marketing hype; they're insurance against the most common type of irreparable tire damage.

Usage Rates in the US

The data on which sizes are most popular isn't exactly abundant, but spend enough time at equipment auctions and dealer lots, and patterns emerge. The 19.5L-24 has become the de facto standard for rear tires across most manufacturers and applications.

Why? It hits the sweet spot of load capacity, availability, and price point, making both operators and purchasing departments happy.

The front tire situation is more fragmented, with size selection typically dependent on whether you're running a 2WD or 4WD machine. Two-wheel drive units tend toward smaller front tires since they're primarily for steering rather than traction. In comparison, 4WD machines benefit from larger front tires that can actually contribute to the pulling power of the machine.

Regional differences exist, too – spend time in the Pacific Northwest, and you'll see more aggressive tread patterns that handle constant mud, while Southwest operations lean toward harder compound tires that resist wear on abrasive, rocky soils. It's not just about geography, though; application trumps location when selecting the right rubber for your machine.

Factors Influencing Tire Selection

Choosing the right backhoe tire isn't just about buying whatever's on sale at your local tire shop.

It's a strategic decision that impacts everything from productivity to your quarterly maintenance budget. Here's what you need to consider.

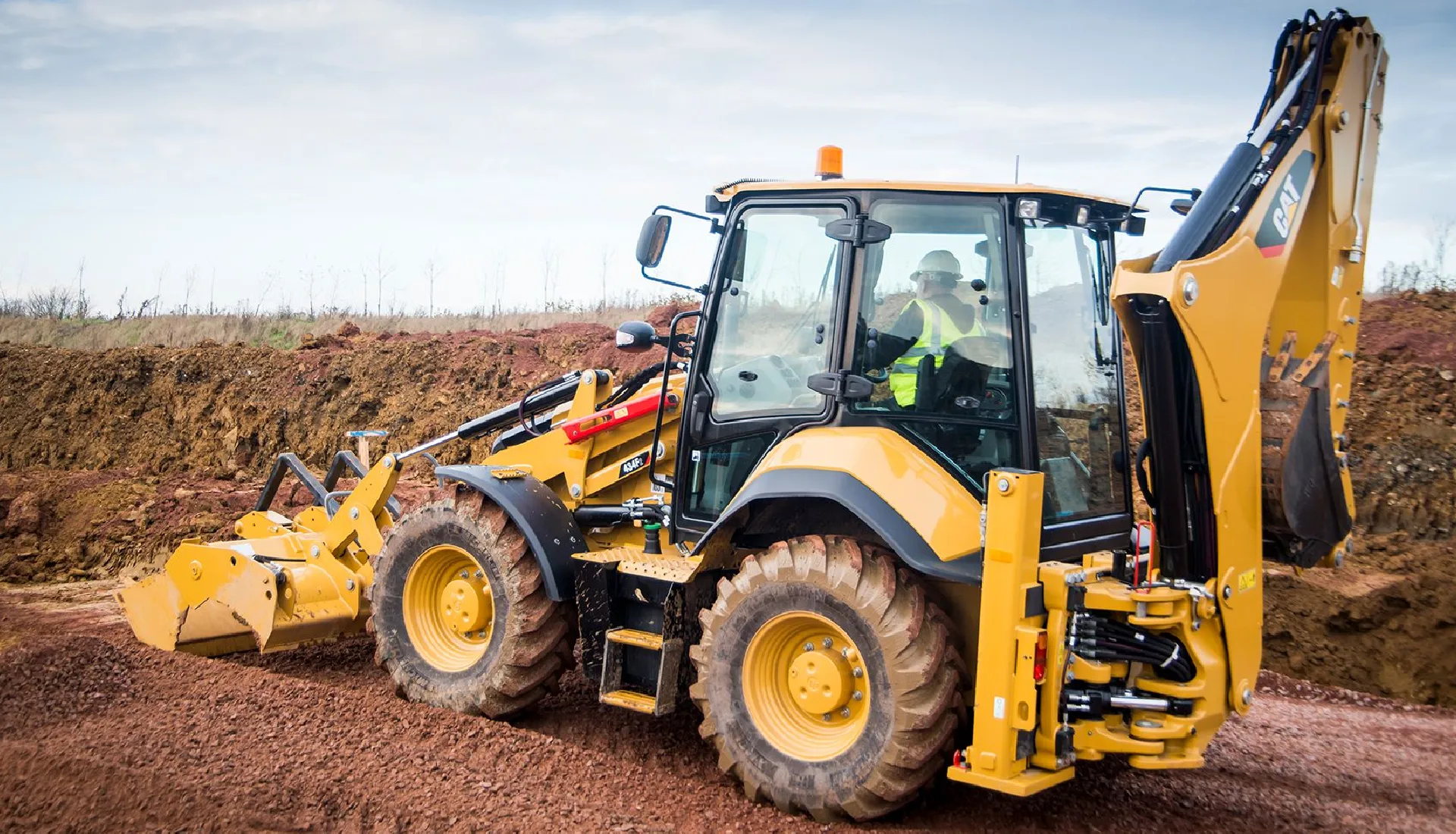

Application

What are you actually doing with this machine? Digging trenches for utilities requires tires that prioritize stability during extension, while loading operations need rubber that can handle the constant forward-backward shuttling without heating up and deteriorating.

Grading work demands tires with consistent contact patches to maintain precision. Don't be the contractor who bought aggressive mud tires for a machine that spends 90% of its time on concrete – your wallet will regret it.

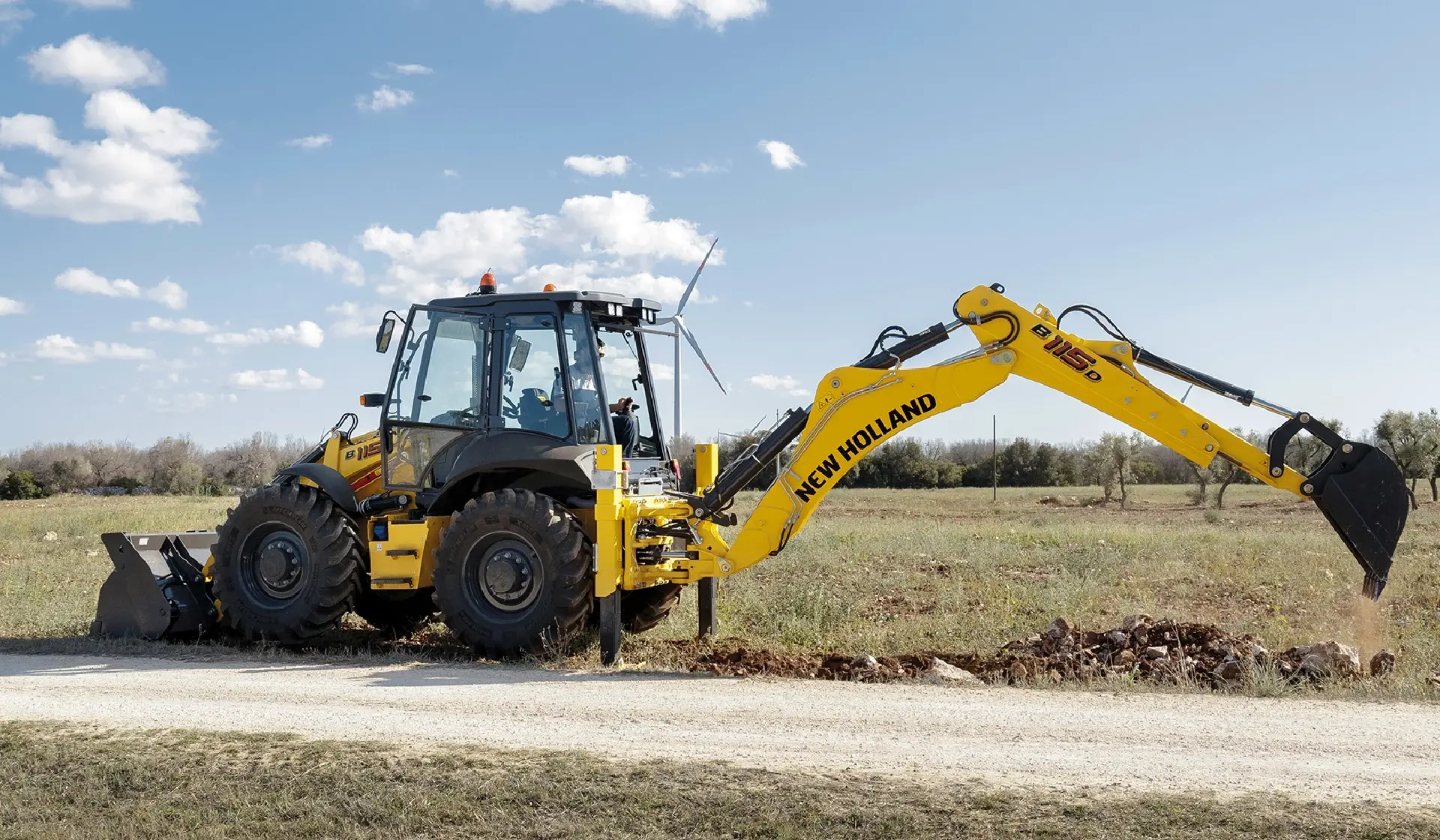

Terrain

The ground you're working on dictates the tread pattern more than any other factor. Soft, squishy sites with standing water need widely-spaced lugs that self-clean instead of becoming mud paddles. Rocky, uneven surfaces call for tires with reinforced sidewalls and chunky tread blocks that won't get chewed up.

Harder surfaces like packed gravel or asphalt work best with tires that put more rubber in contact with the ground – those aggressive mud tires will wear unevenly and prematurely when run primarily on hard surfaces.

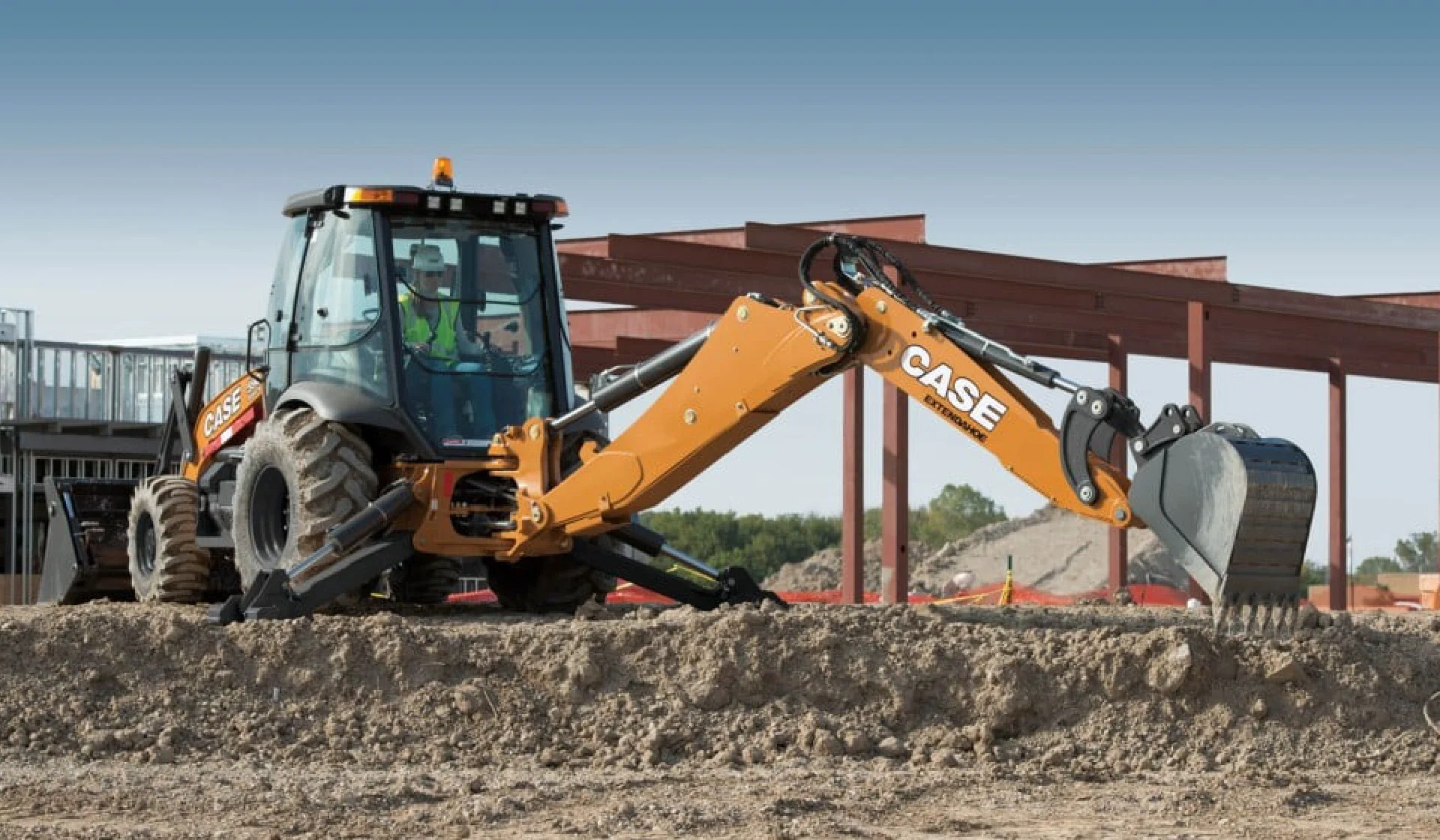

Operating conditions

This is the category most overlooked by purchasers who've never actually operated the equipment they're buying tires for. Climate matters – rubber compounds that perform beautifully in Minnesota winters can turn gummy and wear rapidly in Texas heat.

Your duty cycle affects tire selection, too – constant operation generates heat that accelerates wear, especially in bias-ply tires. If you're regularly pushing load capacity limits, you need tires with higher ply ratings, not just the standard option.

I've seen companies drop thousands on premium tires that were completely wrong for their application, while others tried saving money with budget options that cost them more in downtime within the first month.

The cheapest tire is rarely the most economical over the life of the machine, but the most expensive option isn't automatically the best either. It's about matching rubber to requirements.

Specific Tire Recommendations for Different Applications

General guidelines are fine, but let's get into the nitty-gritty of what actually works for specific jobs. I've seen enough blown sidewalls and premature wear patterns to separate marketing claims from job site reality.

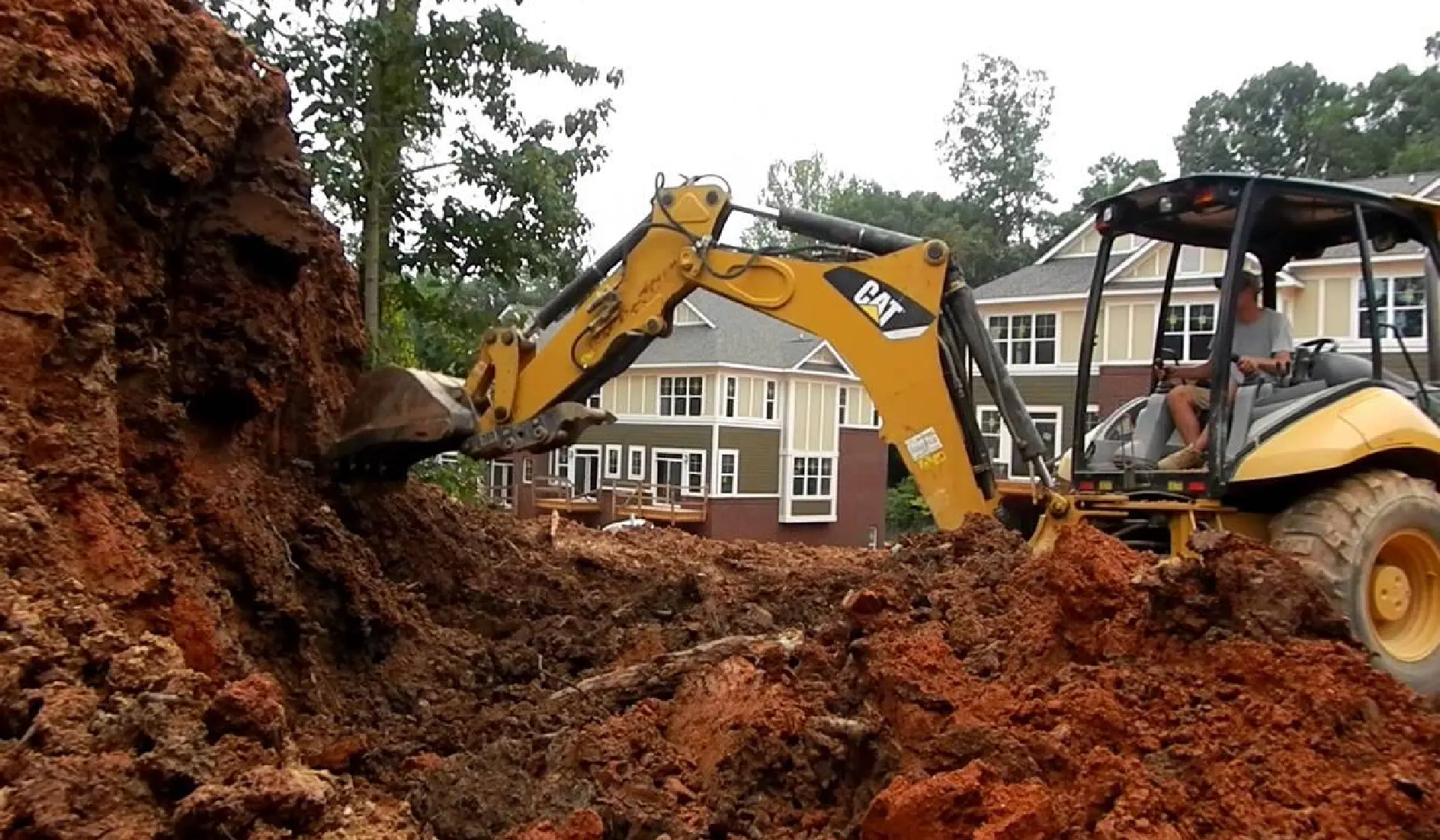

Digging

For serious excavation work, the Nokian Tyres Ground Kare deserves a look. These aren't the cheapest options on the rack, but they deliver self-cleaning properties that mean you'll spend more time digging and less time spinning.

Their road performance is surprisingly good for an aggressive tire – you won't dread transportation between sites. The lower ground pressure helps prevent that embarrassing situation where your machine becomes the exhibit in an impromptu demonstration of soil liquefaction.

These tires particularly shine on machines carrying heavy auxiliary equipment. That hammer attachment that makes your backhoe into a percussion instrument? It creates load spikes that standard tires weren't designed to handle.

The Ground Kare's construction accommodates those stresses without developing stress cracks along the sidewall.

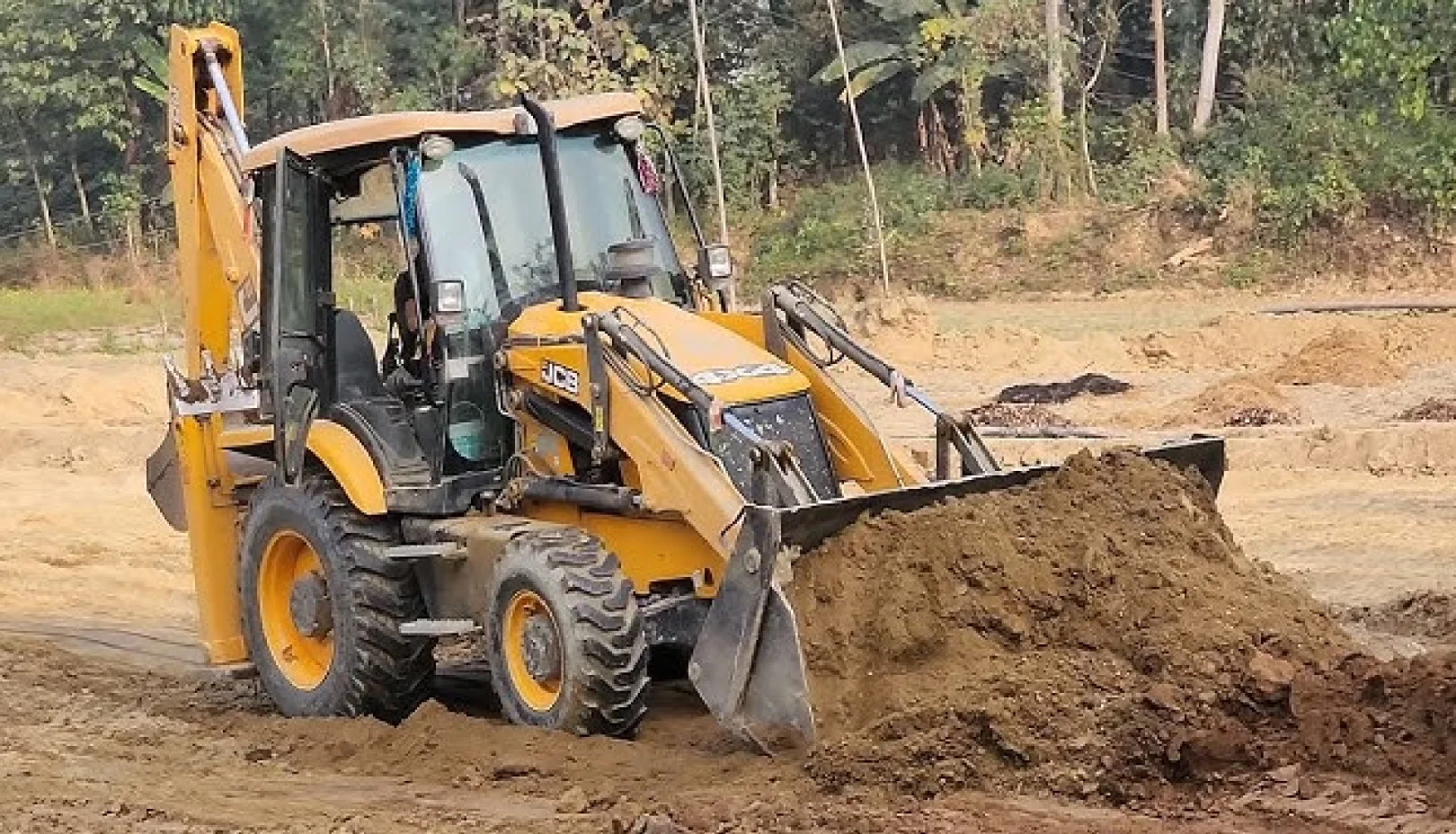

Loading

Michelin has been quietly dominating the loading application space with their purpose-built backhoe tire lineup. Their 16.9-24, 19.5-24, and 17.5x24 options are engineered specifically for the constant directional changes and thermal cycling that loading operations inflict on rubber.

What sets these apart isn't just the tread pattern – it's the carcass construction that resists the heat buildup that kills most tires in loading applications. If you've ever touched a tire after a full day of loading operations, you know they get hot enough to fry an egg.

That heat breaks down conventional rubber compounds prematurely, but these specialized designs manage thermal dissipation better.

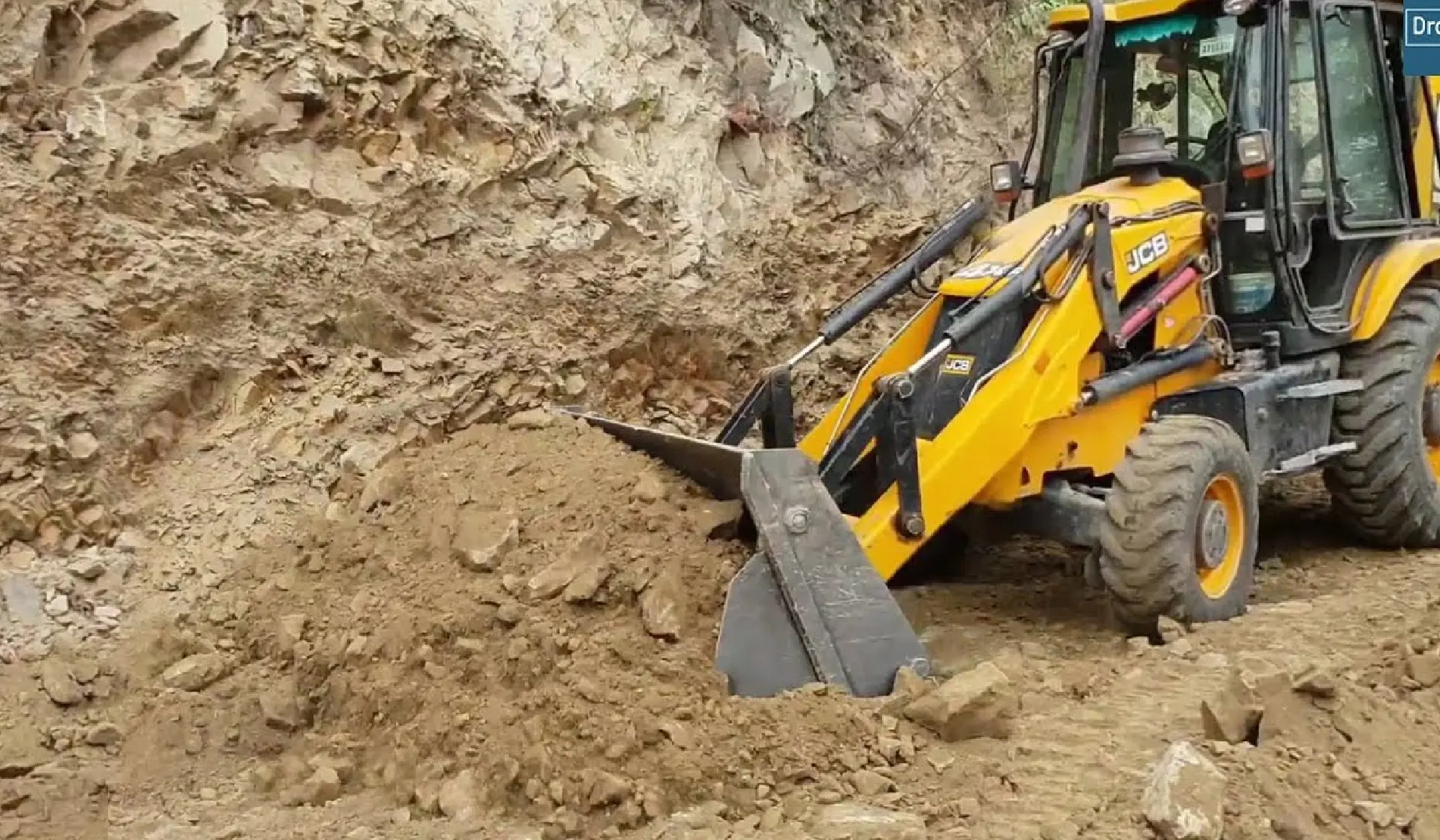

Grading

Precision grading demands consistent tire performance – any variation in compression or footprint affects your finished product. Tread pattern selection becomes critically important based on the surface you're grading.

R-4 industrial patterns hit the sweet spot for varied conditions, including mud, rock, and gravel with some compacted surfaces mixed in. They're the utility players that deliver acceptable performance across most conditions.

For dedicated asphalt or concrete work, Hard Surface (HS) patterns are the clear choice. The increased rubber-to-surface contact provides the consistent footprint needed for precision work, plus they'll last twice as long as R-4s on abrasive surfaces.

The L-4 patterns thread the needle between hard surfaces and aggressive designs. They offer longer wear life than R-4s while still providing reasonable traction in less-than-ideal conditions. They're the compromise that makes sense when your grading work spans multiple surface types.

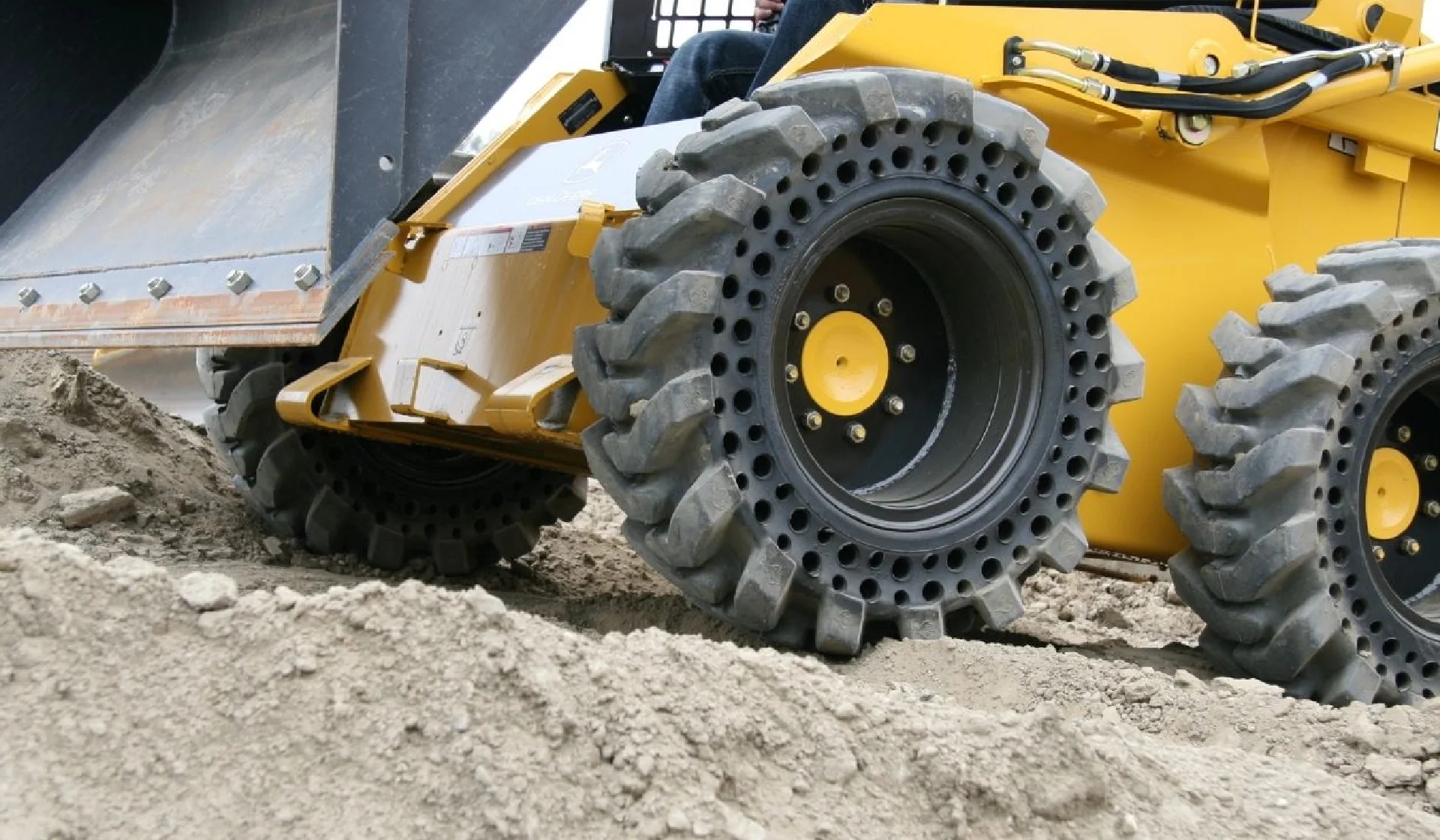

Backhoe Tire Size Comparison

Let's put some numbers to these tire options so you can make apples-to-apples comparisons.

This isn't just academic – understanding these specs helps you avoid that sinking feeling (sometimes literally) of realizing you've got the wrong rubber for the job.

Don't treat this table as gospel – manufacturers have their own secret sauce when it comes to tire construction, and these numbers can vary based on compound, internal design, and even which engineer was on duty when the specs were calculated.

Think of these as ballpark figures to get you in the right tire neighborhood.

One number that jumps out is the dramatic drop in load capacity as speed increases. That 12-16.5 can handle 5,357 pounds at crawler speed but only 3,760 pounds at 25 mph. That's not a typo – it's physics.

Higher speeds generate more heat, and heat is the mortal enemy of load capacity. This is why highway transport can kill tires that would last years in slower applications.

Weight differences between seemingly similar sizes can be substantial, too. Look at the 10.5/80-18 versus the 11L-15 – nearly double the weight for comparable dimensions.

That extra material translates to durability but also means more unsprung weight, affecting your machine's dynamics and fuel consumption.

Conclusion

The right tires maximize your backhoe’s performance and lifespan. The wrong choice? Higher fuel costs, downtime, and premature replacements. Whether trenching in clay or commuting between sites, tire selection affects stability, efficiency, and operator fatigue. Overlooking this detail can lead to unnecessary wear on your machine and increased long-term costs.

Your tire choice speaks volumes. Bias-ply suits rough terrain and budget-conscious operations, while radials boost fuel savings and comfort. Solid cushion tires? Essential for demolition sites where flats kill productivity. Each option has trade-offs, and selecting the right one can mean the difference between seamless operation and constant headaches.

As tire tech evolves, matching type to terrain, load, and application ensures peak efficiency. Even small adjustments, like proper inflation and tread selection, can extend service life and improve machine handling. In this industry, even tire selection can be a competitive edge.
