13 Backhoe Bucket Types and Sizes

Many operators assume any backhoe bucket works if it fits, but that’s like using any tire on a truck. A general-purpose bucket struggling in clay versus a heavy-duty one with proper teeth can mean thousands in labor costs and weeks of delays. From skeleton buckets for debris separation to micro-trenching buckets for minimal restoration, the right choice depends on engineering metrics and real-world needs.

This guide breaks down the details you need to make informed selections, covering backhoe bucket types and sizes.

Backhoe buckets come in types like standard digging, trenching, grading, and ditch cleaning buckets. Sizes typically range from 12 inches to 48 inches wide, with capacities from 2 to 12 cubic feet. Bucket choice depends on task type, soil conditions, and machine compatibility.

Backhoe Bucket Types and Sizes

Backhoe buckets are designed with specific tasks and soil conditions in mind. Choosing the right bucket can significantly impact the efficiency and productivity of a backhoe loader. Here are some of the most common types:

flowchart TD
    A[What are you digging?] --> B{Soil Type?}
    B -->|Soft/Medium Soil| C[General Purpose Bucket]
    B -->|Hard/Rocky Soil| D[Heavy-Duty Bucket]
    B -->|Frozen Ground| E[Frost Bucket]

    A --> F{Job Type?}
    F -->|Precision Trenching| G[Trenching Bucket]
    F -->|Utilities/Pipes| H[V-Bucket]
    F -->|Fiber Optic Cables| I[Micro Trenching Bucket]

    A --> J{Surface Finishing?}
    J -->|Grading/Leveling| K[Grading Bucket]
    J -->|Creating Slopes| L[Tilt Bucket]

    A --> M{Material Separation?}
    M -->|Debris Removal| N[Skeleton Bucket]
    M -->|Sifting/Sorting| O[Rake Riddle Bucket]

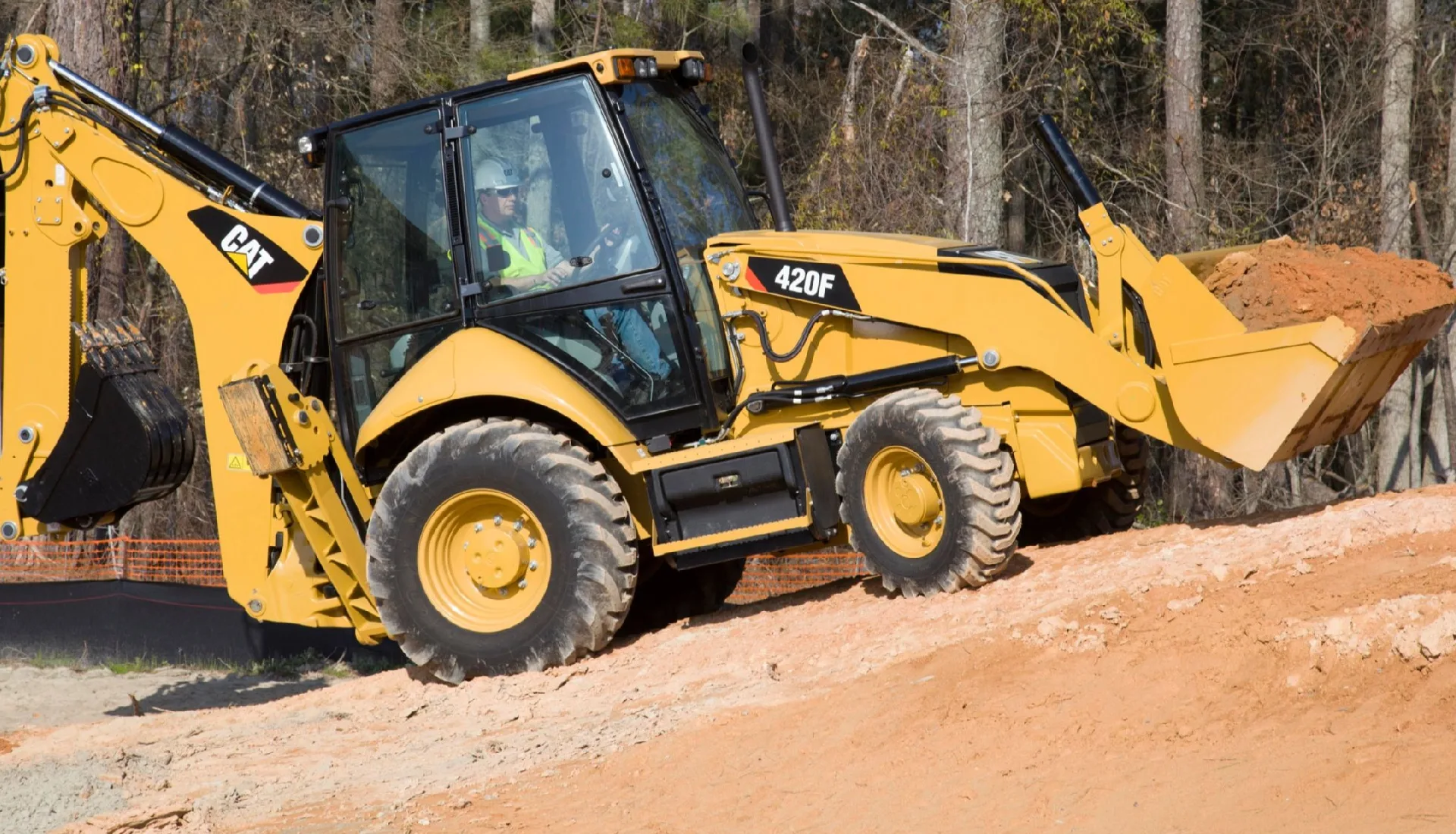

1. General Purpose Buckets

These are the most common type of backhoe bucket. They are versatile and suitable for various tasks, including digging, trenching, and material handling.

General purpose buckets typically feature a flat bottom and moderate side and back heights, making them ideal for general excavation and material handling in soft to medium-density soils. They are often made with high-strength steel for durability.

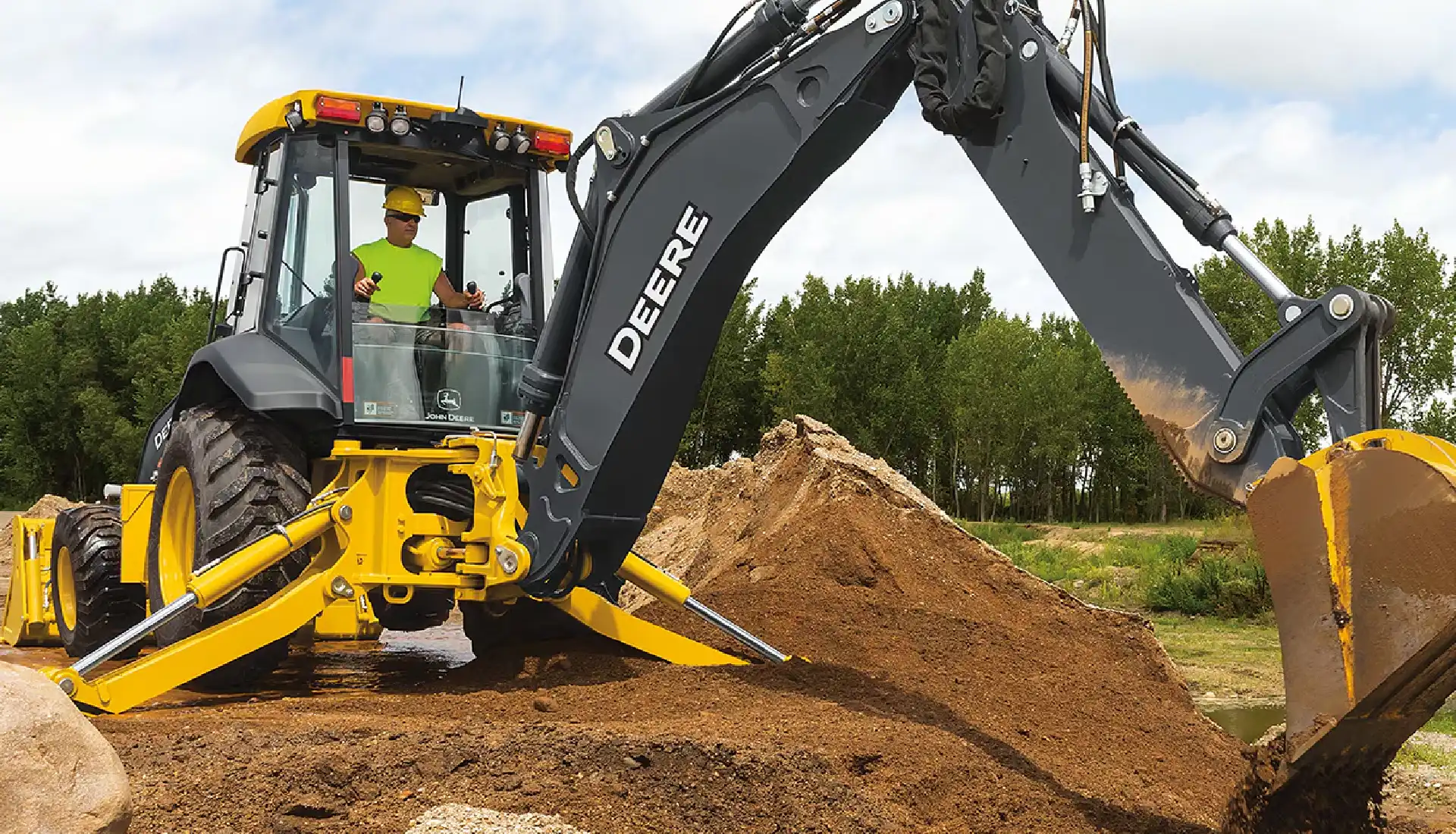

2. Digging Buckets

These buckets are designed for precision digging and have a narrower profile and sharper teeth than general-purpose buckets. They excel in excavating soil, gravel, and other materials, making them ideal for foundation work and utility installations.

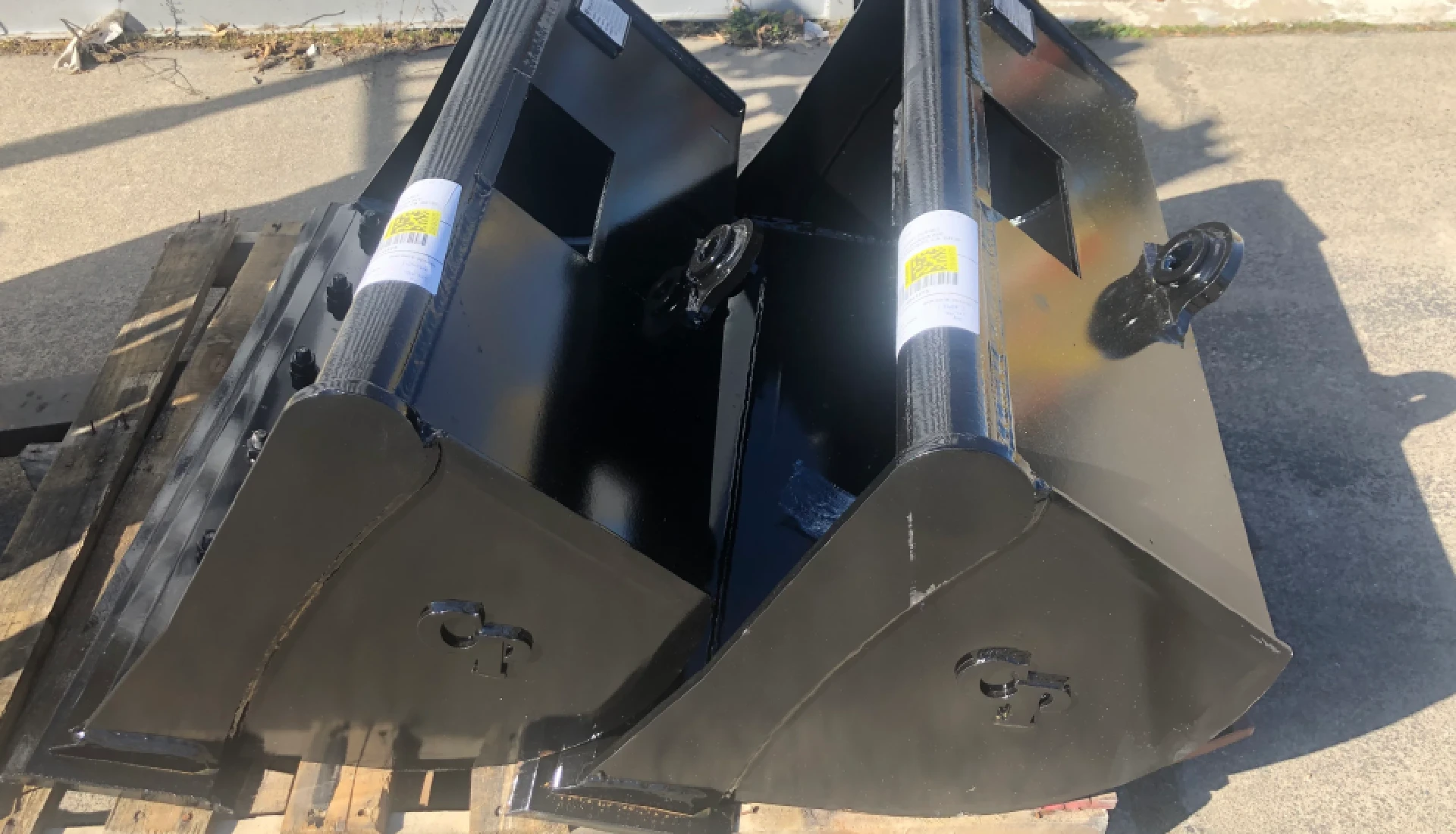

3. Grading Buckets

Also known as ditching or clean-up buckets, grading buckets have a flat bottom and a wide, shallow design, making them perfect for leveling and grading tasks. They help achieve precise grading and surface finishing in landscaping and roadwork projects.

Many grading buckets have a tilting mechanism, allowing the operator to adjust the bucket's angle for creating precise slopes and angled surfaces.

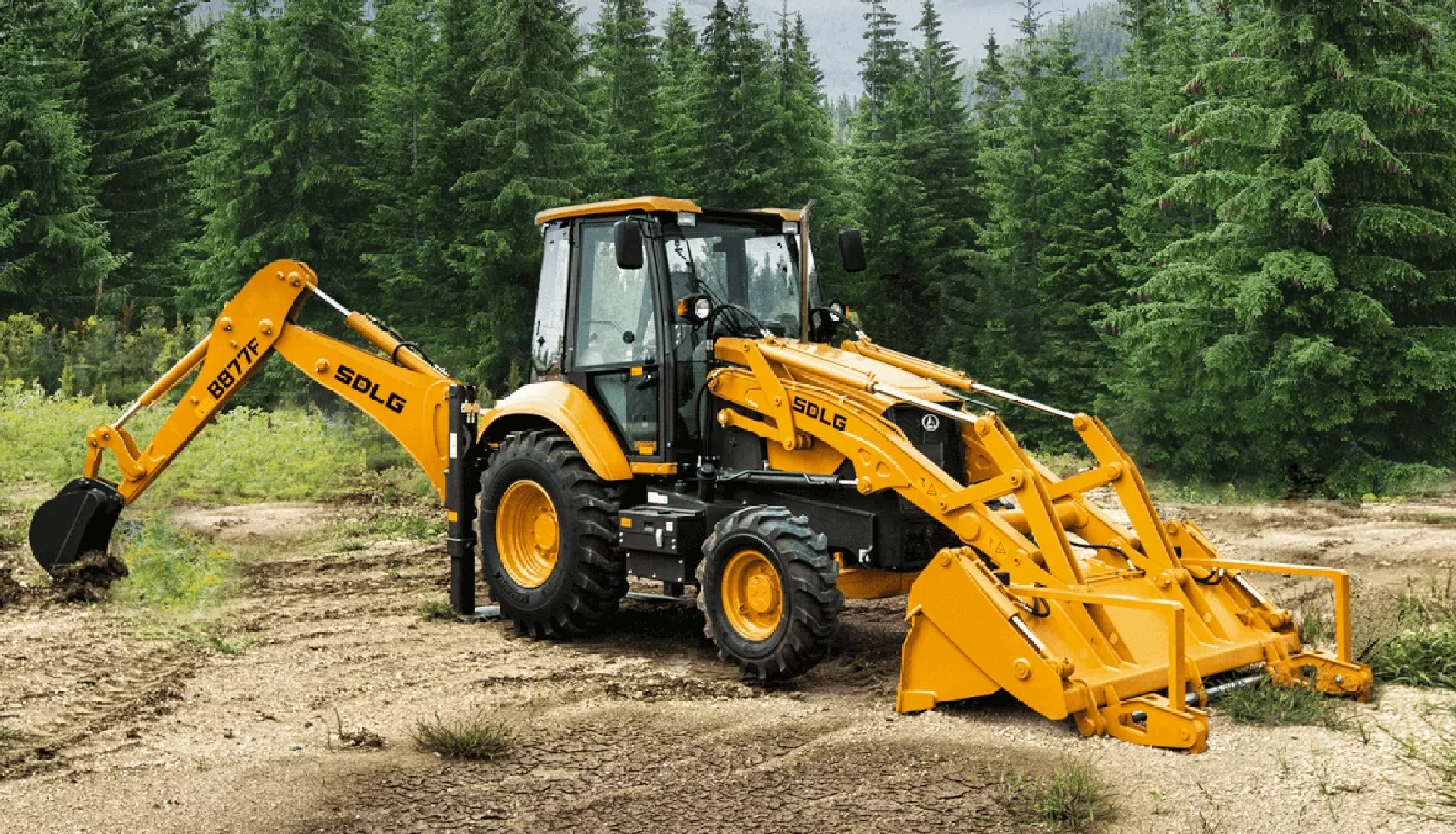

4. Heavy-Duty Buckets

These buckets are designed for heavy-duty applications and are built with robust, wear-resistant steel to withstand extreme conditions. They are ideal for excavating hard-packed clay, stone, ripped basalt, gravel, blasted rock, and other challenging materials.

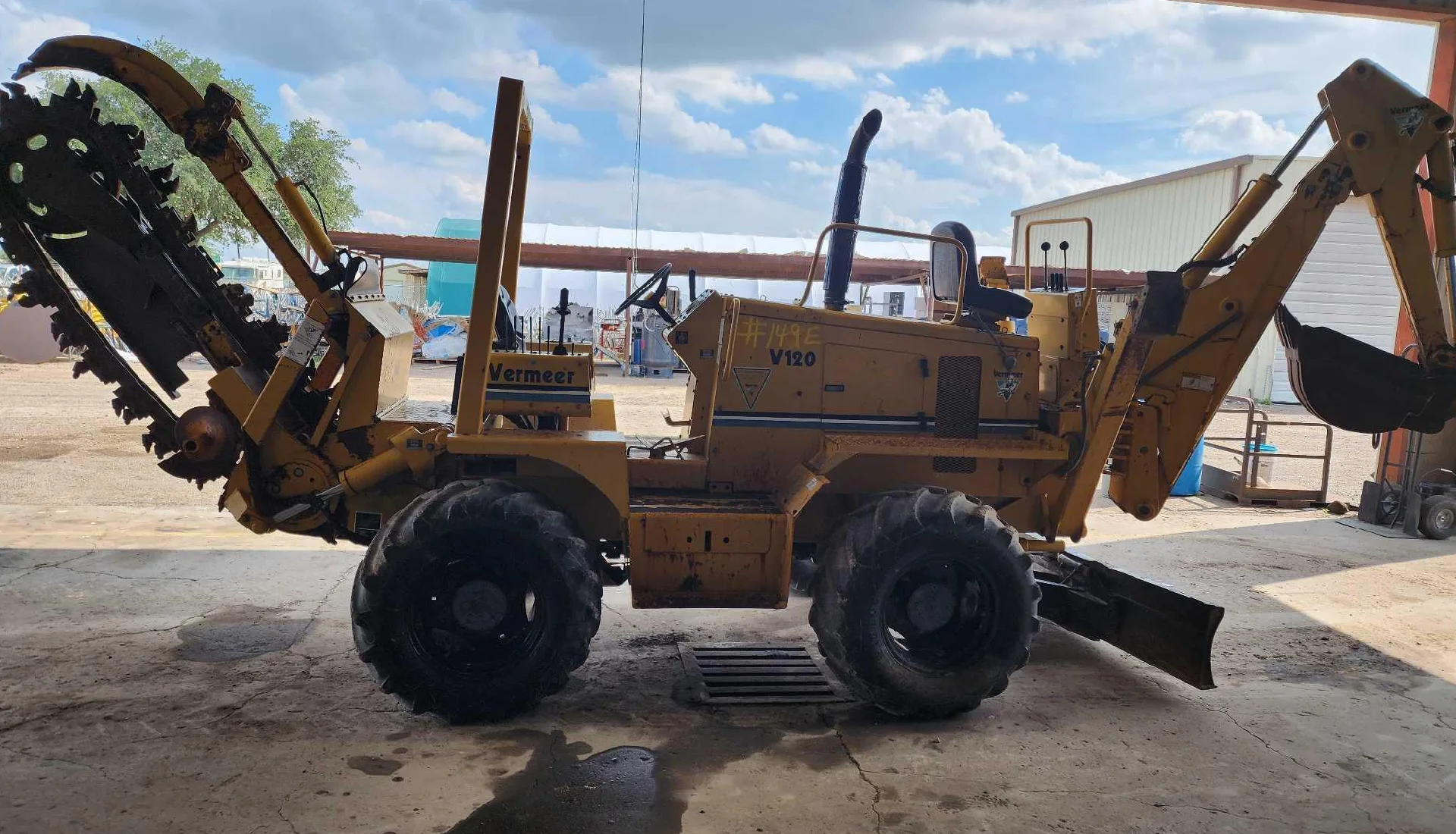

5. Trenching Buckets

These buckets are specifically designed for digging narrow, deep trenches. They are essential for utility installations, drainage systems, and pipeline work. Trenching buckets have a narrow shape, a sharp, flat blade, and an extended front section for better access.

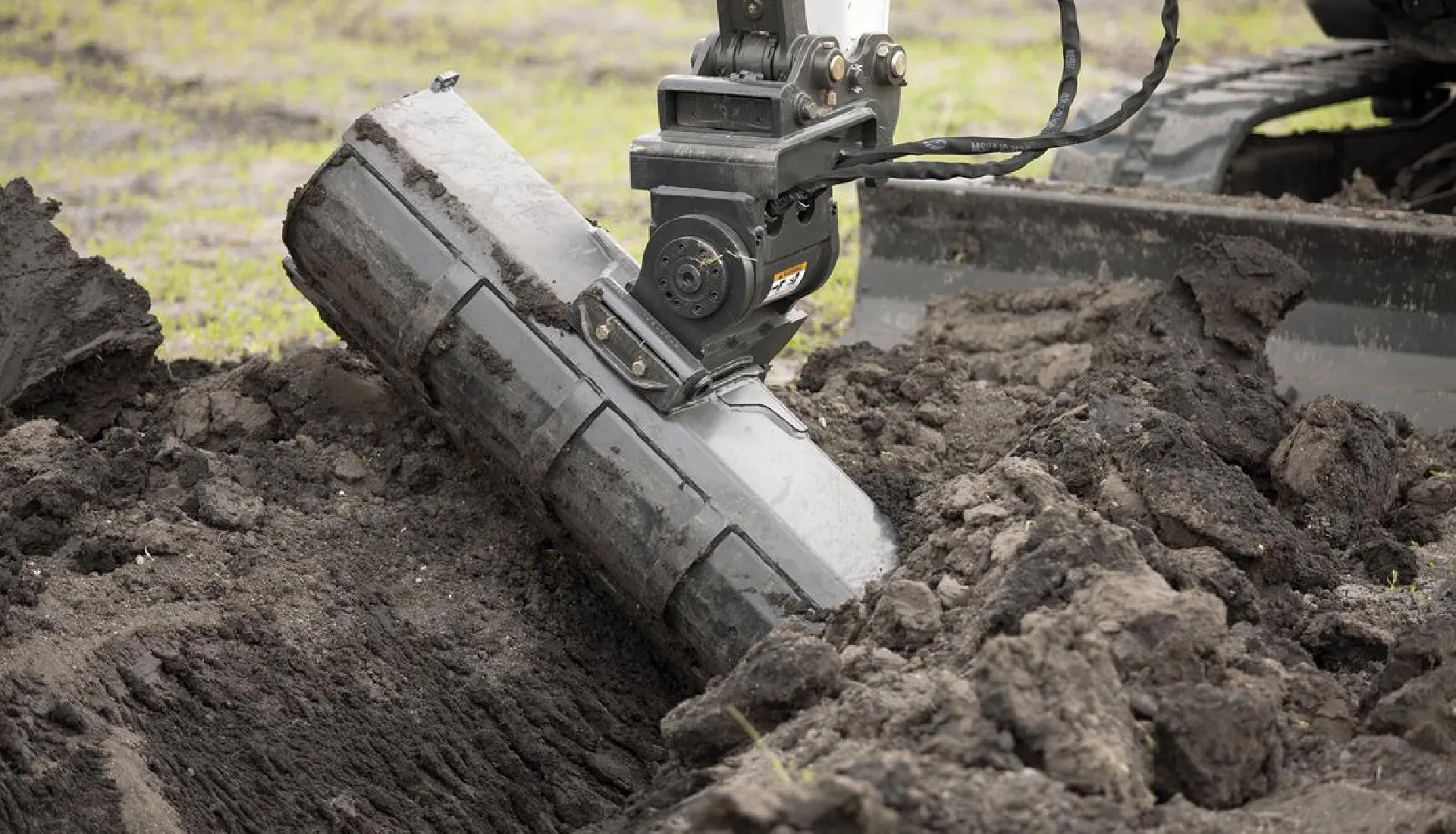

6. Tilt Buckets

Tilt buckets have a tilting mechanism, allowing them to tilt left and right up to 45 degrees. This feature provides exceptional versatility, especially in shaping and grading work. They are ideal for creating precise slopes, banks, and angled surfaces.

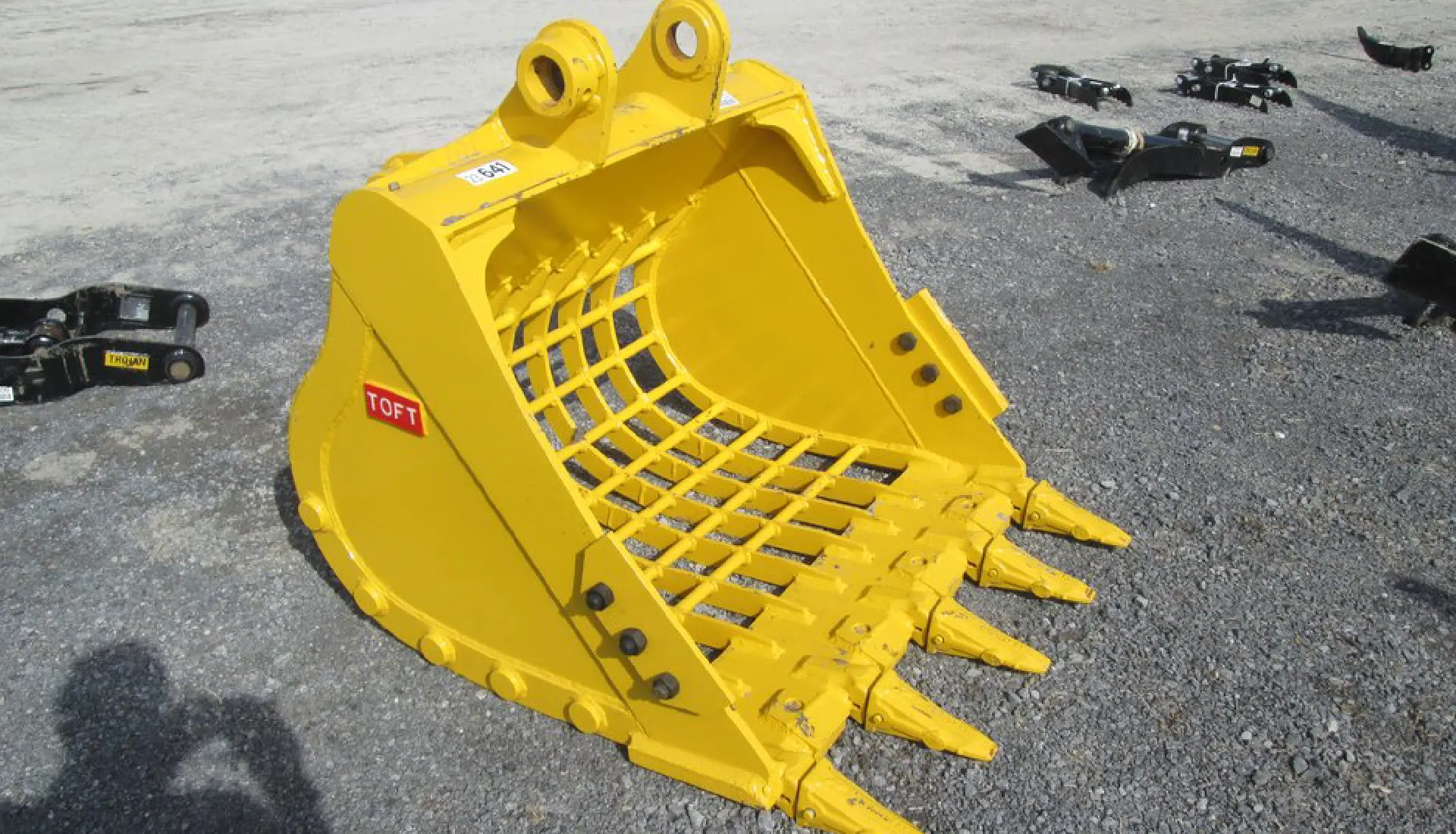

7. Skeleton Buckets

Skeleton buckets feature a grid-like structure, allowing fine materials like sand, silt, and debris to sift through while retaining larger objects. They are commonly used in landscaping and environmental cleanup. Skeleton buckets are particularly useful for separating debris from soil and rocks.

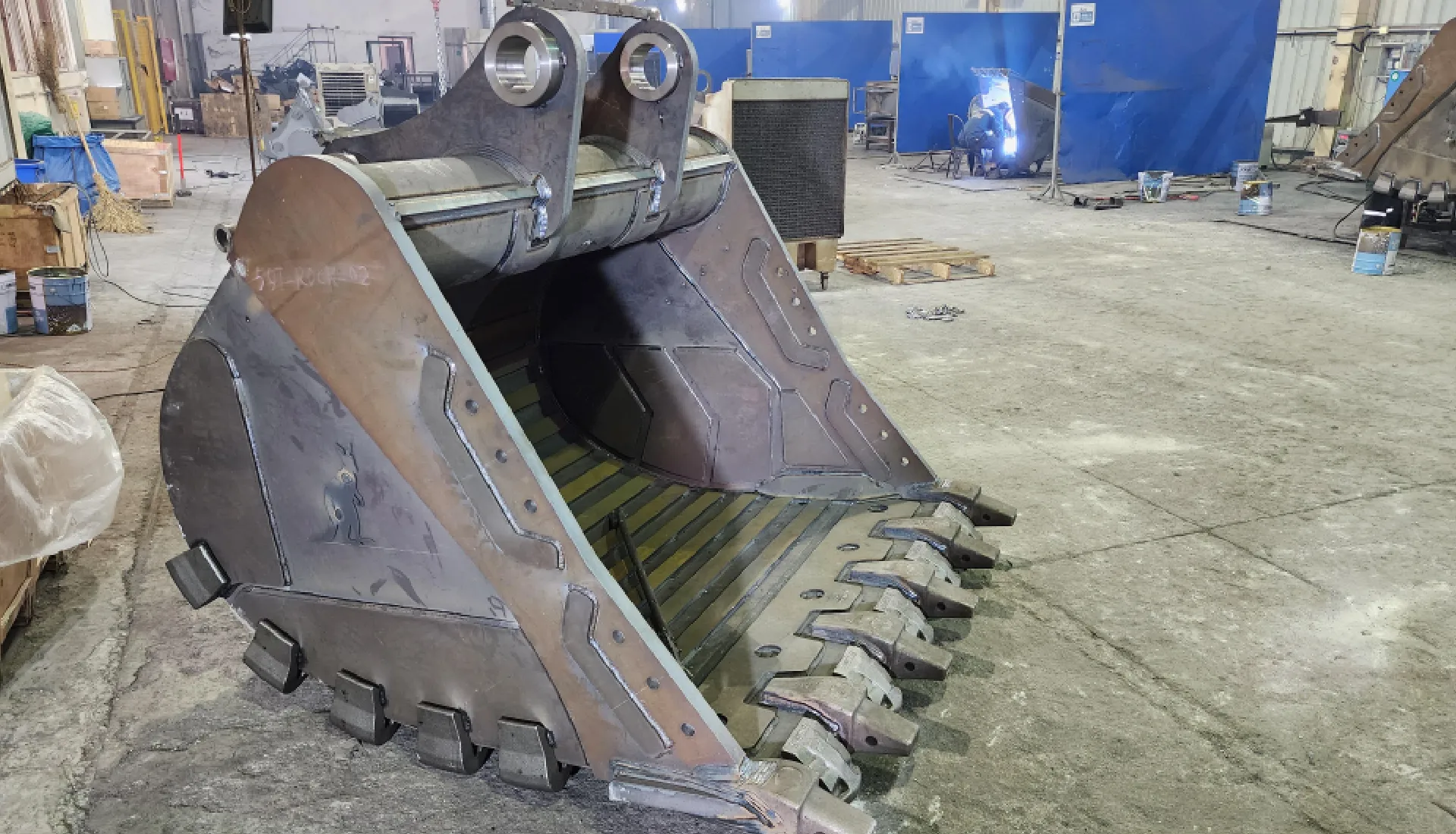

8. Rock Buckets

Rock buckets are heavy-duty buckets with reinforced construction and sharp teeth to break through hard rock and other solid surfaces like asphalt and stone. They are often used in quarries and mining operations.

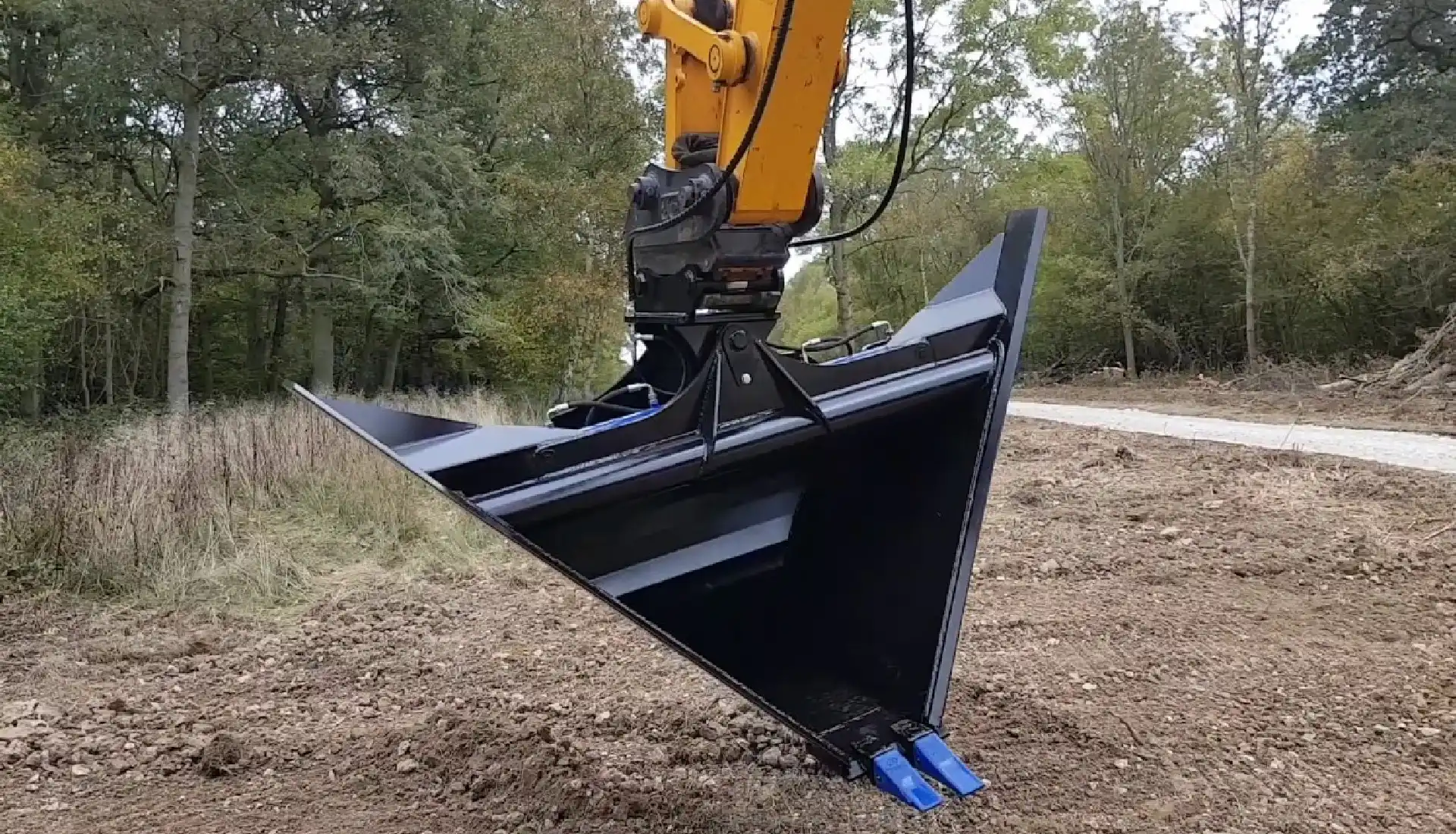

9. V-Buckets

V-buckets are a special kind of bucket for trench-digging applications. They can dig long, angular, V-shaped trenches, often used for laying pipes and utility cables.

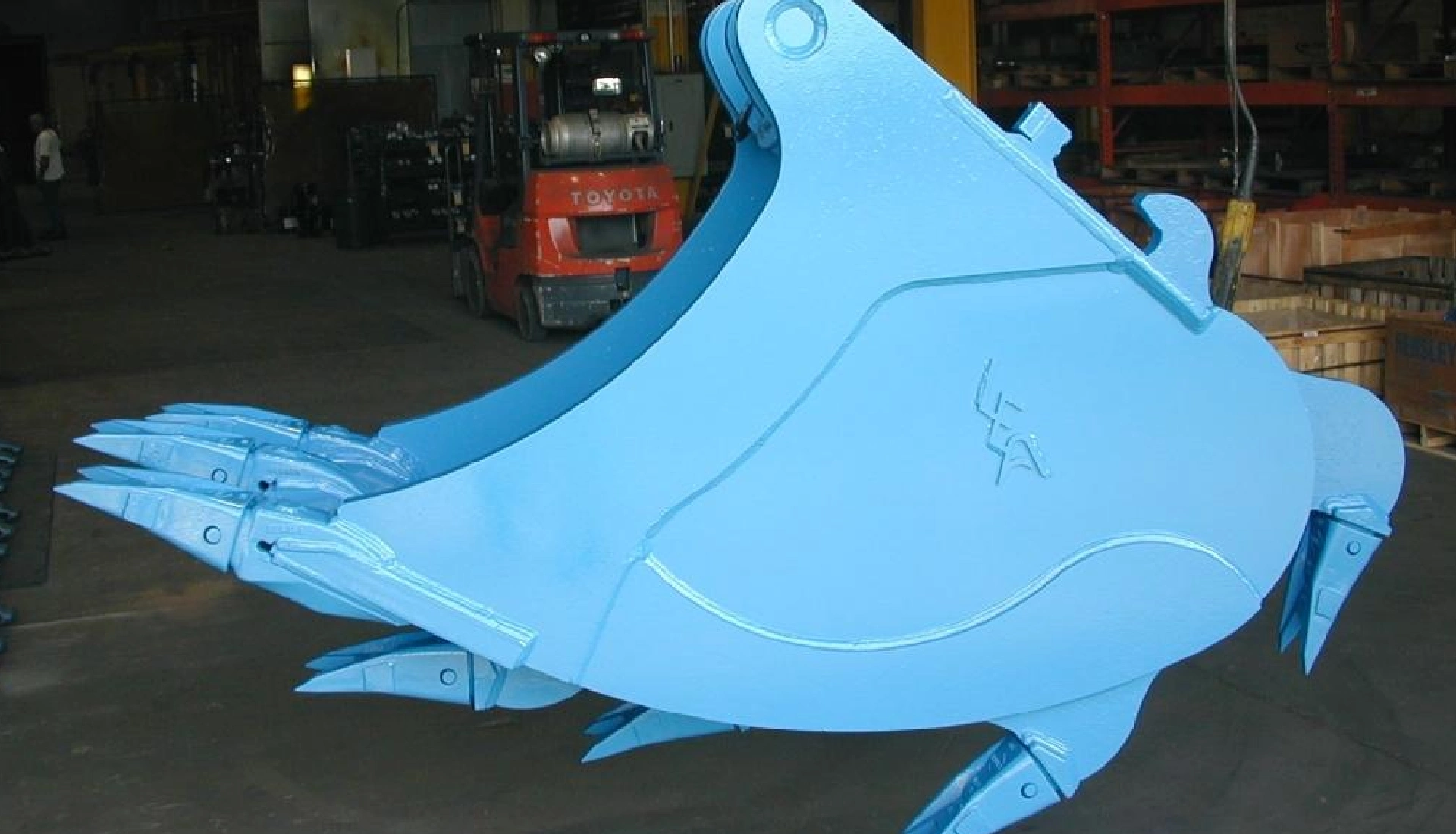

10. Frost Buckets

Frost buckets are a more specialized version of the rock bucket, equipped with more teeth to help them rip through hard surfaces, including frozen ground.

11. Micro Trenching Buckets

These buckets are designed for creating narrow trenches, typically for laying fiber optic cables, pipes, and irrigation systems. They are much narrower than standard trenching buckets, minimizing the amount of digging and backfilling required.

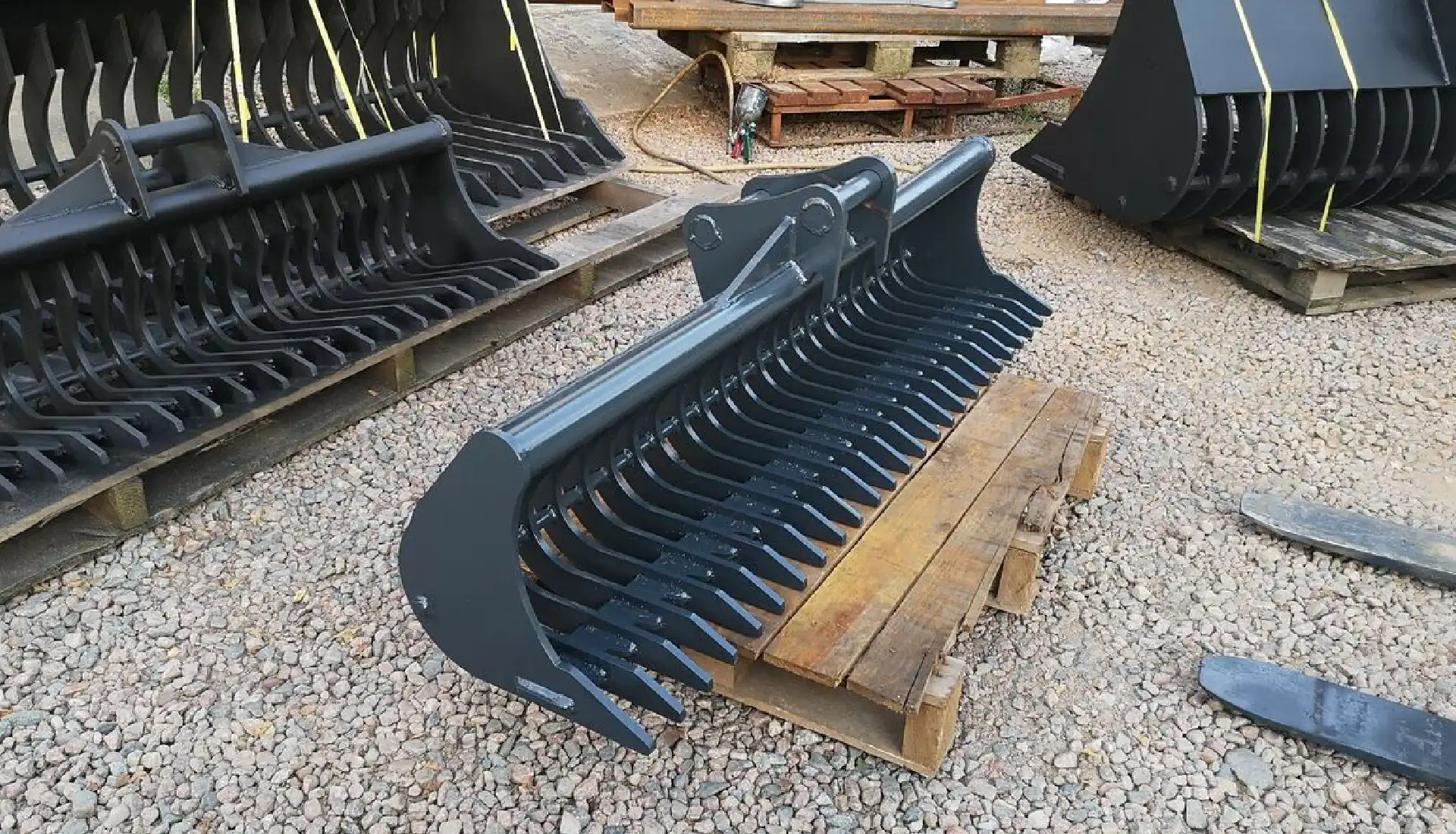

12. Rake Riddle Buckets

Similar to skeleton buckets, rake riddle buckets have slats that allow debris to fall through. However, they have longer teeth that effectively rake through dirt and soil, making them ideal for sifting and sorting materials.

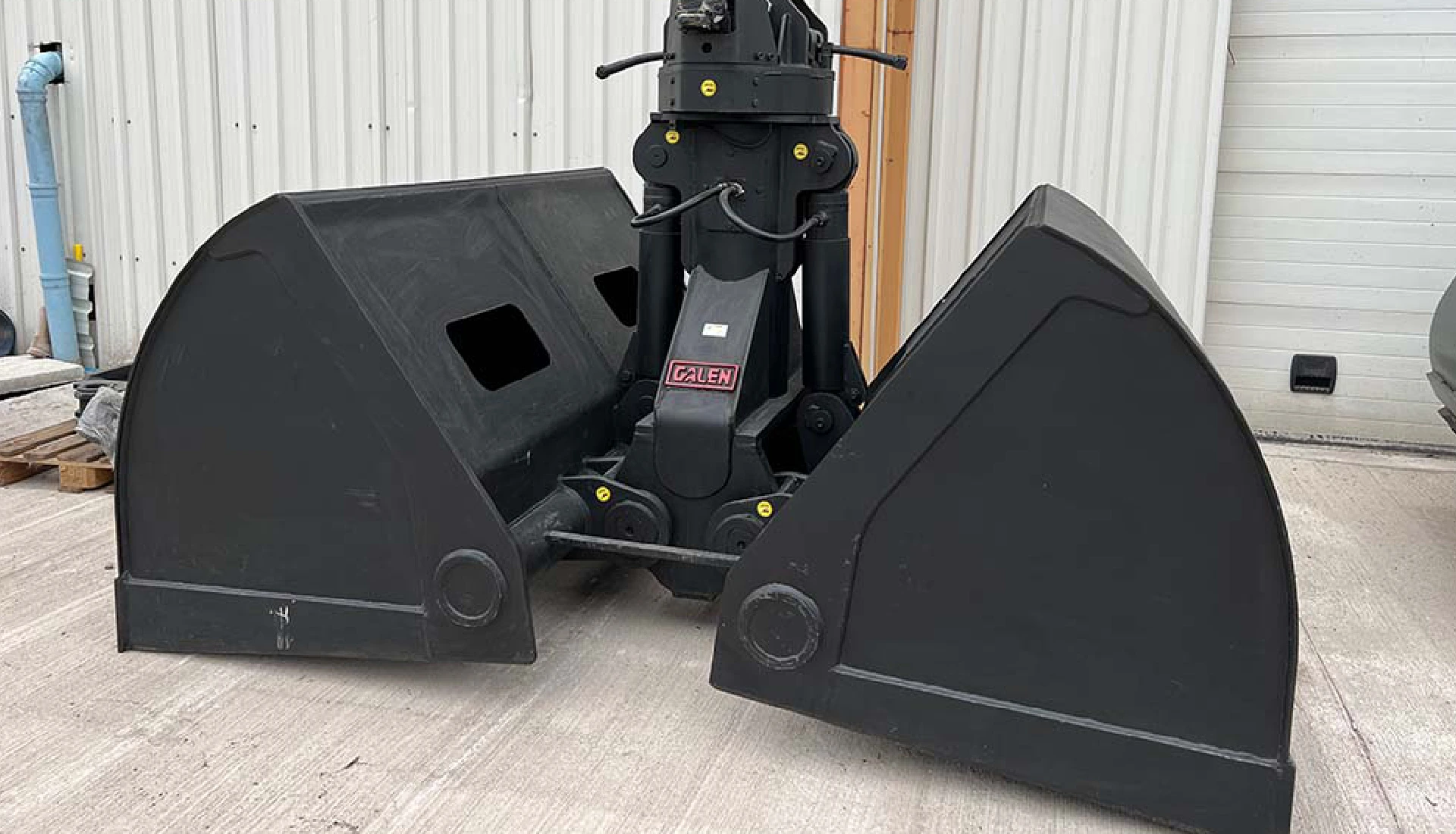

13. Clamshell Buckets

In addition to the bucket types mentioned above, clamshell buckets offer a unique solution for various applications. These buckets resemble a clamshell in shape and are ideal for dredging operations, material handling in confined spaces, and handling large, irregularly shaped objects.

They are available in rotating and non-rotating varieties and can be mounted on excavators or cranes. Clamshell buckets are particularly well-suited for:

• Dredging: Removing sediment and debris from underwater environments.
• Construction Driveways: Moving and placing large rocks and aggregates.
• Jetties and Marine Features: Constructing and maintaining marine structures.
• Land Work Projects: Handling materials in varied topographic conditions.
• Piling Projects: Clearing land and removing debris before piling.

Advantages and Disadvantages of Different Backhoe Buckets

Each type of backhoe bucket has its own set of advantages and disadvantages. Here's a breakdown:

General Purpose Buckets:

• Advantages: Versatile and suitable for a wide range of tasks, affordable.
• Disadvantages: Limited precision for delicate tasks, not ideal for breaking through dense rocks or hard materials.

Digging Buckets:

• Advantages: Designed for precision digging, suitable for various materials.
• Disadvantages: May struggle with very hard materials.

Grading Buckets:

• Advantages: Precise leveling and finishing, wider than digging buckets for efficient coverage, tilting capability for creating angles.
• Disadvantages: Limited excavation capacity, not suitable for breaking through tough materials, rocks, or debris.

Heavy-Duty Buckets:

• Advantages: Durable and able to handle tough materials.
• Disadvantages: Can be expensive, may cause surface disturbance.

Trenching Buckets:

• Advantages: Creates deep, narrow trenches efficiently.
• Disadvantages: Less effective for general digging tasks due to their specialized design, slower excavation process.

Tilt Buckets:

• Advantages: Versatile, precise sloping and grading, increases efficiency by reducing machine movement.
• Disadvantages: Can be expensive, requires auxiliary hydraulic power.

Skeleton Buckets:

• Advantages: Efficient sifting and sorting, allows for on-site material separation.
• Disadvantages: Limited excavation capacity, not designed for heavy-duty excavation tasks, potential material loss through gaps.

Rock Buckets:

• Advantages: Breaks through hard surfaces effectively.
• Disadvantages: Can be expensive, may cause surface disturbance.

V-Buckets:

• Advantages: Digs V-shaped trenches efficiently.
• Disadvantages: Less versatile, may cause surface disturbance.

Frost Buckets:

• Advantages: Digs through frozen ground effectively.
• Disadvantages: Less versatile, can be expensive.

Micro Trenching Buckets:

• Advantages: Creates narrow trenches with minimal disturbance, ideal for fiber optic cables and pipes.
• Disadvantages: Limited to narrow trenching applications.

Rake Riddle Buckets:

• Advantages: Efficiently rakes and sifts through dirt and soil, separates debris.
• Disadvantages: Lower carrying capacity compared to other buckets.

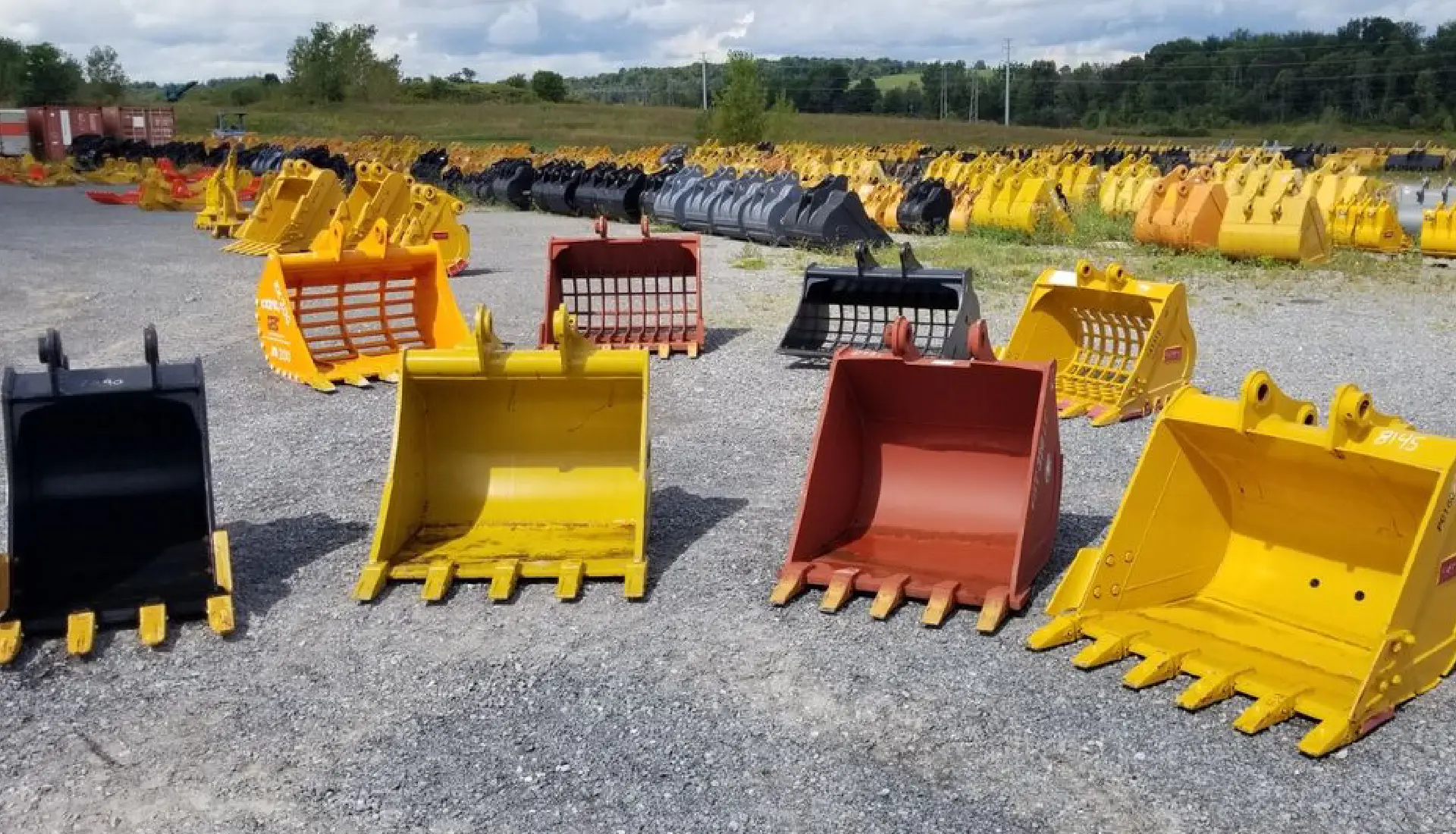

Factors Influencing Bucket Selection

Choosing the right backhoe bucket involves considering several factors that can influence its performance and suitability for the task at hand. These factors include:

Job Requirements: The specific tasks and requirements of your project should be the primary consideration. For example, if the project involves digging narrow trenches for utilities, a trenching bucket would be the most suitable choice.

Soil and Material Types: Different soil and material types require specialized buckets. For instance, a digging bucket can handle loose, sandy soils, while dense, clay-heavy soils might require a heavy-duty bucket. If the ground is frozen, a frost bucket would be necessary.

Machine Size and Compatibility: Ensure that the selected bucket is compatible with your excavator backhoe model. Smaller machines may require lighter buckets, while larger machines can handle heavier ones.

Attachment Versatility: Some projects may benefit from the versatility of a general-purpose bucket, which can handle various tasks without frequent attachment changes. However, if the project requires specialized tasks like grading or trenching, dedicated buckets would be more efficient.

Bucket Attachments and Compatibility

In addition to the bucket itself, various attachments can enhance the functionality and versatility of backhoe buckets. One such attachment is the quick coupler, which allows for swift attachment changes, enabling operators to switch between bucket types efficiently.

When considering bucket attachments, it's crucial to ensure that your excavator backhoe model supports quick coupler systems and that the attachments are compatible with the bucket and the machine.

Sizes of Backhoe Buckets

Backhoe buckets come in various sizes, typically measured by their width in inches or millimeters. The size of the bucket should be chosen based on the size of the backhoe loader, the intended application, and the material being handled.

Here's a general guideline for matching bucket size to excavator weight:

In addition to width, other factors to consider when choosing a backhoe bucket size include:

• Capacity: The volume of material the bucket can hold, typically measured in cubic yards or cubic meters.
• Depth: The depth of the bucket, which affects its ability to dig deep trenches or excavate large amounts of material.
• Weight: The weight of the bucket, which affects the lifting capacity of the backhoe loader.

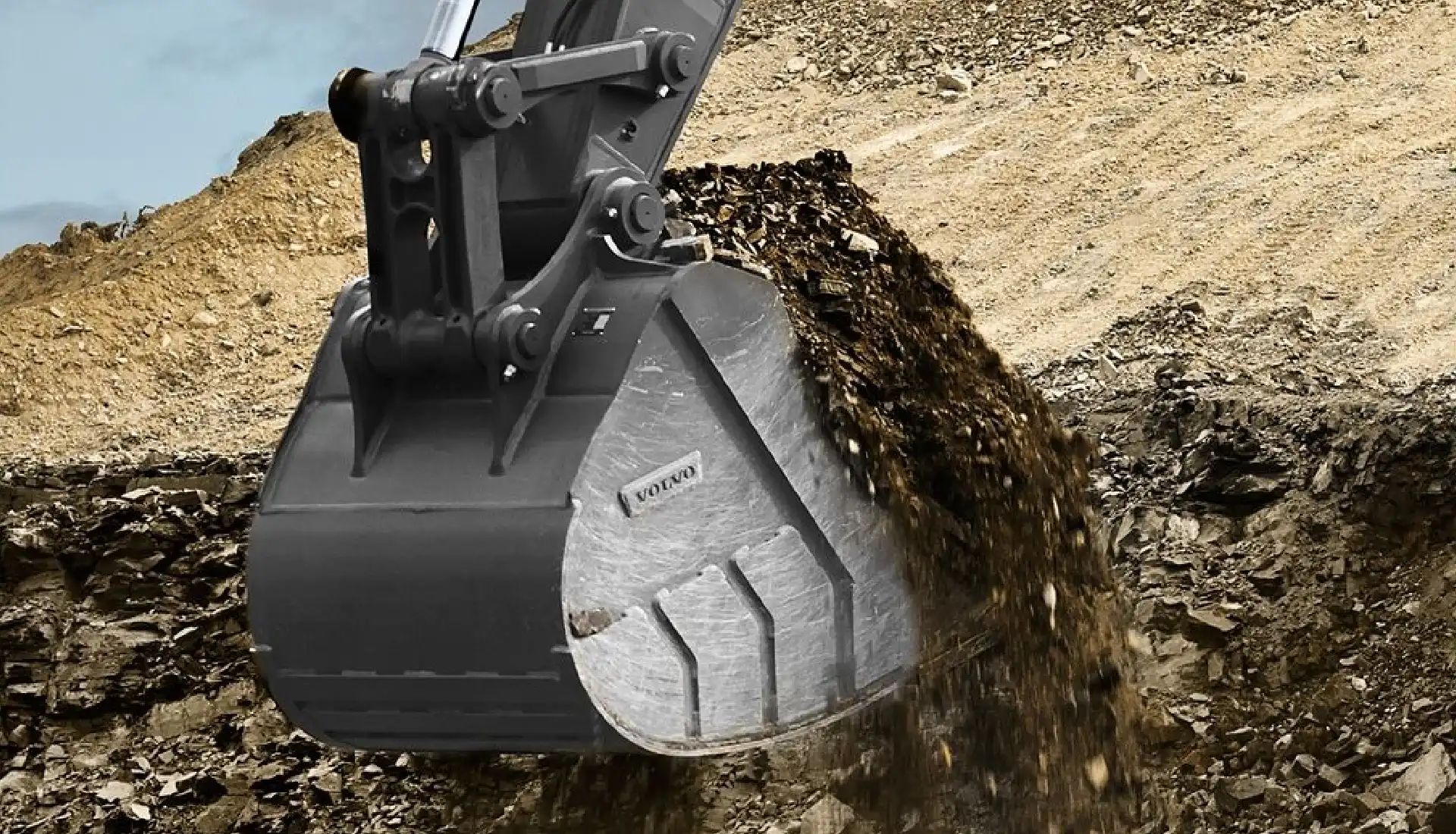

Calculating Bucket Capacity and Lift Ratio

To determine the appropriate bucket size for your excavator, it's essential to calculate the bucket capacity and lift ratio.

Bucket Capacity: The bucket capacity of an excavator varies based on factors like material density, fill factor, and production rate.

To calculate the bucket capacity, follow these steps:

1. Determine the standard weight of the material you will need to lift, using a reputable source.
2. Time the digging operation of the excavator, including the time it takes to dig, swing, dump, and return to the digging position.
3. Use the cycle time to determine an hourly production rate.
4. Divide the hourly goal weight of loaded material by the cycle time to find the required payload per cycle.
5. Divide the cycle payload amount by the material density to find the required bucket capacity.

Lift Ratio: The lift ratio helps ensure safe and efficient machine operation by considering the excavator's lift capacity and the weight of the bucket and attachments.

To calculate the lift ratio:

1. Obtain the maximum lift capacity of the excavator.
2. Add the maximum lift capacity to the weight of the bucket listed by the original equipment manufacturer (OEM).
3. Add the weight of any additional arm attachments, such as quick couplers and thumbs. This combined value is the adjusted lift capacity.
4. Multiply the bucket capacity by the material density to find the potential maximum fill weight of the bucket.
5. Add the potential maximum fill weight to the total attachment weight to determine the total lift weight.
6. Divide the total lift weight by the adjusted lift capacity to find the lift ratio. If the ratio is less than 1.0, the bucket is suitable for the job. If it is larger than 1.0, the bucket is too big.

Cost of Backhoe Buckets

The cost of backhoe buckets varies depending on the type, size, brand, and whether it is new or used.

New backhoe buckets can range from around $270 for an 8-inch bucket to over $2,700 for a heavy-duty ripper shank attachment. Factors that can influence the cost of a new bucket include:

• Size and Capacity: Larger buckets with higher capacities generally cost more.
• Material and Construction: Buckets made with more durable materials and reinforced construction are typically more expensive.
• Features and Attachments: Buckets with specialized features like teeth, side cutters, or tilt mechanisms will have a higher cost.
• Brand and Manufacturer: Reputable brands and manufacturers often have higher prices due to their quality and reliability.

Used backhoe buckets are generally less expensive than new ones, with prices starting as low as $450 for a 24-inch bucket. When considering used buckets, it's essential to factor in the condition of the bucket, potential repair costs, and remaining lifespan.

Here's a table summarizing the cost of new and used backhoe buckets based on the research material:

This table provides a general idea of the cost range for backhoe buckets. However, it's crucial to obtain quotes from suppliers and compare prices based on your specific requirements.

Performance Metrics of Backhoe Buckets

Several performance metrics are used to evaluate the capabilities of backhoe buckets, including:

graph LR
    subgraph "Performance Metrics of Backhoe Buckets"
        A[Digging Depth] --> D1[Influenced by]
        D1 --> D2[Backhoe arm length]
        D1 --> D3[Bucket design]

        B[Reach] --> R1[Influenced by]
        R1 --> R2[Swing center distance]
        R1 --> R3[Backhoe arm length]

        C[Breakout Force] --> F1[Influenced by]
        F1 --> F2[Crowd hydraulic cylinder size]
        F1 --> F3[Hydraulic pressure]
        F1 --> F4[Distance between dipper pin and cutting edge]

        D[Size Effects] --> S1[Smaller buckets]
        S1 --> S2[More digging force]
        S1 --> S3[Less capacity]

        D --> L1[Larger buckets]
        L1 --> L2[More capacity]
        L1 --> L3[Requires more power]
        L1 --> L4[Reduced maneuverability]

        E[Example] --> E1["70-74 HP backhoe with extendable dipper stick"]
        E1 --> E2["Digging depth: 17-18 feet"]
        E1 --> E3["Reach: 21-25 feet"]
    end

    style A fill:#66CCFF,stroke:#333,stroke-width:2px
    style B fill:#66CCFF,stroke:#333,stroke-width:2px
    style C fill:#66CCFF,stroke:#333,stroke-width:2px
    style D fill:#66CCFF,stroke:#333,stroke-width:2px
    style E fill:#66CCFF,stroke:#333,stroke-width:2px

Digging Depth: The maximum depth the bucket can dig, typically measured in feet or meters. This is influenced by the length of the backhoe arm and the design of the bucket.

Reach: The maximum horizontal distance the bucket can reach, measured from the swing center. This is also affected by the backhoe arm length and bucket design.

Breakout Force: The force the bucket can exert to break through hard materials, measured in pounds or kilograms. Breakout force is influenced by the size of the crowd hydraulic cylinder, hydraulic pressure, and the distance between the dipper pin and the bucket cutting edge.

These metrics vary depending on the size and type of backhoe loader and the specific bucket being used. For example, a 70-74 HP backhoe loader with an extendable dipper stick can have a digging depth of 17-18 feet and a reach of 21-25 feet.

The bucket size also affects performance. Smaller buckets generally provide more digging force but have less capacity, while larger buckets offer more capacity but may require more power and reduce maneuverability.

Usage Rates of Backhoe Buckets

The usage rates of backhoe buckets vary depending on the industry and application. However, backhoe loaders typically have a maximum service life of around 8,000 hours, with frequent issues with axles and engine components.

For 14-15-foot loaders, by 8,500 hours, approximately 50% of the components have reached their end and fail within 3,500 hours.

Factors that can affect the lifespan and usage rates of backhoe buckets include:

Operating Conditions: Harsh environments, such as extreme temperatures, abrasive materials, and irregular surfaces, can accelerate wear and tear.

Maintenance: Regular maintenance, including cleaning, inspection, and timely repairs, can significantly extend the lifespan of backhoe buckets.

Operator Skill: Skilled operators who handle the machine and bucket properly can minimize wear and tear and prolong its lifespan.

Conclusion

Choosing the right backhoe bucket is like picking the right golf club—using a general-purpose bucket for precision trenching is like putting with a driver. The bucket is where hydraulic power becomes real work, and each design impacts productivity and costs.

Your choice depends on job needs, material conditions, and machine compatibility. A bucket too heavy strains hydraulics, while one too light won’t last. Lift ratio isn’t just engineering talk—it’s the difference between smooth operation and excessive wear.

The right bucket boosts efficiency, reduces fuel use, and extends machine life. Choose wisely.
