3 Main Parts of an Excavator (and Their Functions)

Excavators make modern construction possible. Without them, we’d still be digging foundations with shovels and wondering why buildings take decades to complete. They’re the backbone of almost every major construction site you’ve ever passed, and their efficiency relies on quality excavator parts and attachments.

An excavator consists of three main sections: the undercarriage (tracks/wheels, rollers, and drive system), the house (cab, engine, and counterweight), and the attachment (boom, arm, and bucket). Each component serves a specific function, working together to deliver the power, precision, and versatility that makes excavators indispensable on job sites.

Major Excavator Components

Excavators are complex machines with several interconnected systems that work together to perform various tasks. Think of them as mechanical organisms rather than just equipment. The main components can be broadly categorized into three sections: the undercarriage, the cab, and the arm/boom.

Each section has its own ecosystem of parts that need to function in harmony for the excavator to do its job properly. And just like how you wouldn't want your mechanic confusing your car's transmission with its muffler, understanding these components is step one in proper excavator management.

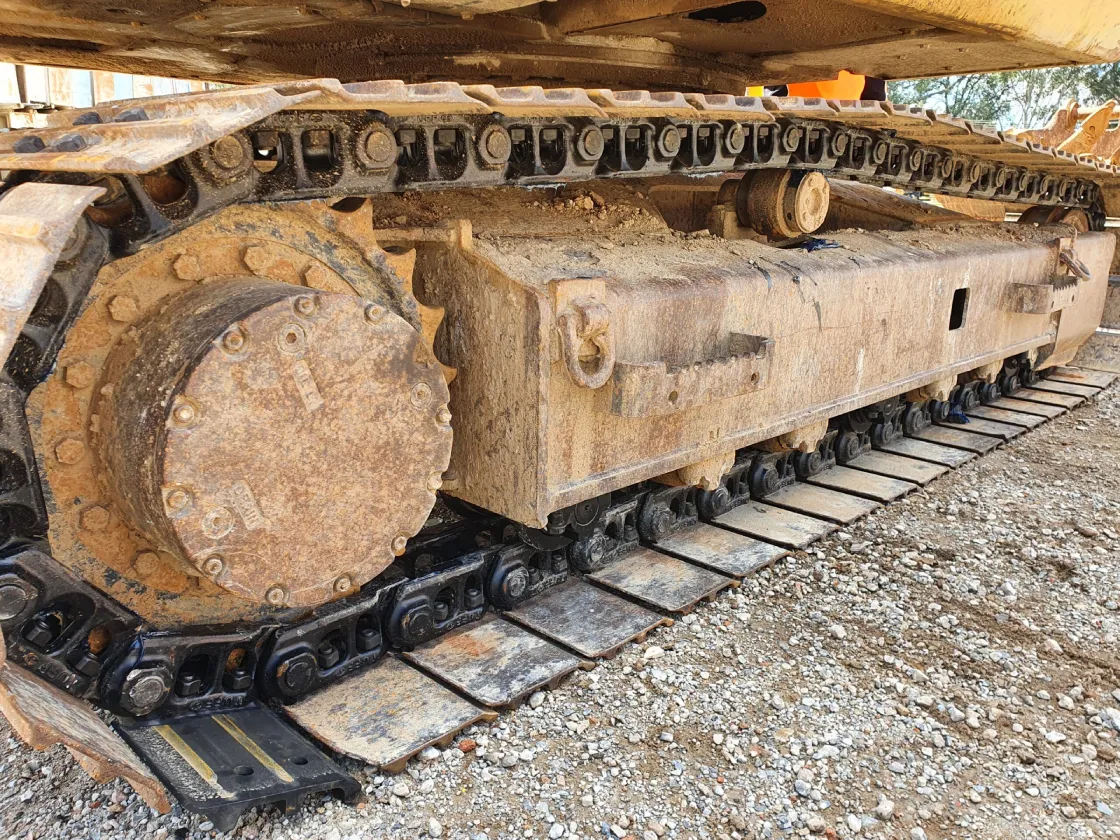

Undercarriage

The undercarriage is the foundation of the excavator, providing stability and mobility. It's essentially the excavator's legs and feet. It's responsible for supporting the machine's weight and enabling it to move across various terrains. The undercarriage typically includes the following components:

flowchart TB
    A[Undercarriage] --> B[Tracks/Wheels]
    A --> C[Track Frame]
    A --> D[Rollers]
    A --> E[Idlers]
    A --> F[Sprockets]
    A --> G[Track Tension System]

    B --> B1[Steel Tracks]
    B --> B2[Rubber Tracks]
    B --> B3[Wheeled System]

    B1 --> B1a[Heavy-duty\nRough Terrain]
    B2 --> B2a[Reduced Surface\nDamage]
    B3 --> B3a[Road Travel\nMobility]

    C --> C1[Structural Support]
    C --> C2[Connection Point\nfor Components]

    D --> D1[Upper Rollers]
    D --> D2[Lower Rollers]
    D1 --> D1a[Support Upper\nTrack Section]
    D2 --> D2a[Distribute\nMachine Weight]

    E --> E1[Front Idler]
    E --> E2[Rear Idler]
    E1 --> E1a[Guide Track\nAlignment]
    E2 --> E2a[Maintain\nTrack Tension]

    F --> F1[Drive Wheel]
    F1 --> F1a[Transfers Power\nto Tracks]

    G --> G1[Hydraulic Tensioner]
    G --> G2[Grease Tensioner]
    G1 --> G1a[Automatic\nAdjustment]
    G2 --> G2a[Manual\nAdjustment]

    classDef primary fill:#f9d423,stroke:#333,stroke-width:2px
    classDef secondary fill:#83af9b,stroke:#333,stroke-width:1px
    classDef tertiary fill:#c8c8a9,stroke:#333,stroke-width:1px
    classDef quaternary fill:#f9cdad,stroke:#333,stroke-width:1px

    class A primary
    class B,C,D,E,F,G secondary
    class B1,B2,B3,C1,C2,D1,D2,E1,E2,F1,G1,G2 tertiary
    class B1a,B2a,B3a,C1a,C2a,D1a,D2a,E1a,E2a,F1a,G1a,G2a quaternary

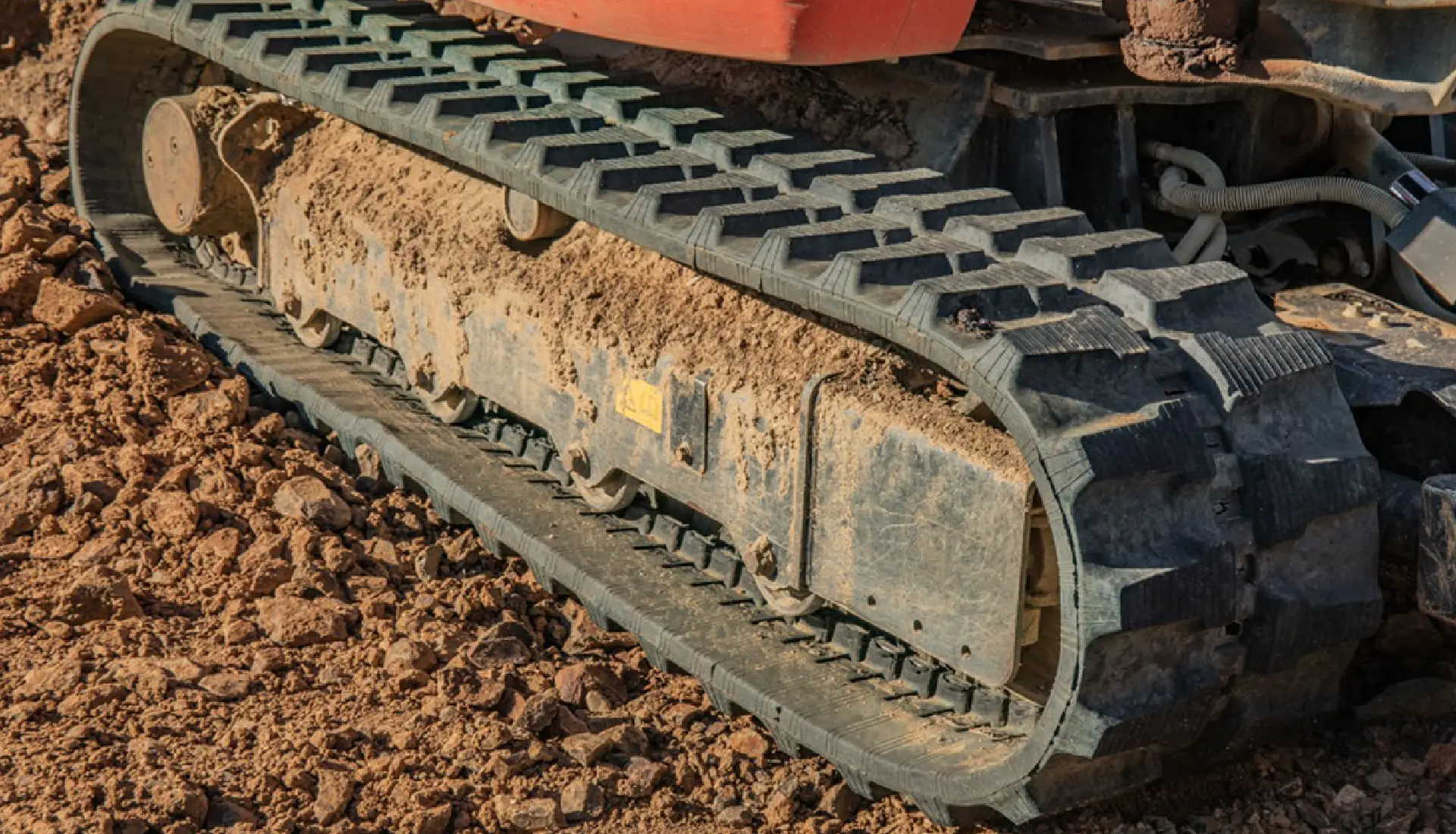

Tracks

Most excavators use tracks made of steel-reinforced rubber to move around the job site. These tracks offer excellent traction and distribute the machine's weight evenly, enabling them to navigate rough and uneven terrain. The rubber track design provides a larger surface area for contact with the ground, reducing ground pressure and minimizing damage to sensitive surfaces. The track pattern isn't just for show, either.

Different patterns are optimized for various applications and ground conditions. For example, C-pattern tracks are versatile and suitable for most terrains, while staggered block patterns offer better traction in challenging conditions like demolition sites where you're dealing with everything from concrete chunks to rebar.

Some excavators are wheeled, providing better maneuverability on paved surfaces and in urban environments. Wheeled excavators are often preferred for road construction and utility work where mobility on paved surfaces is essential and you need to scoot around without tearing up asphalt.

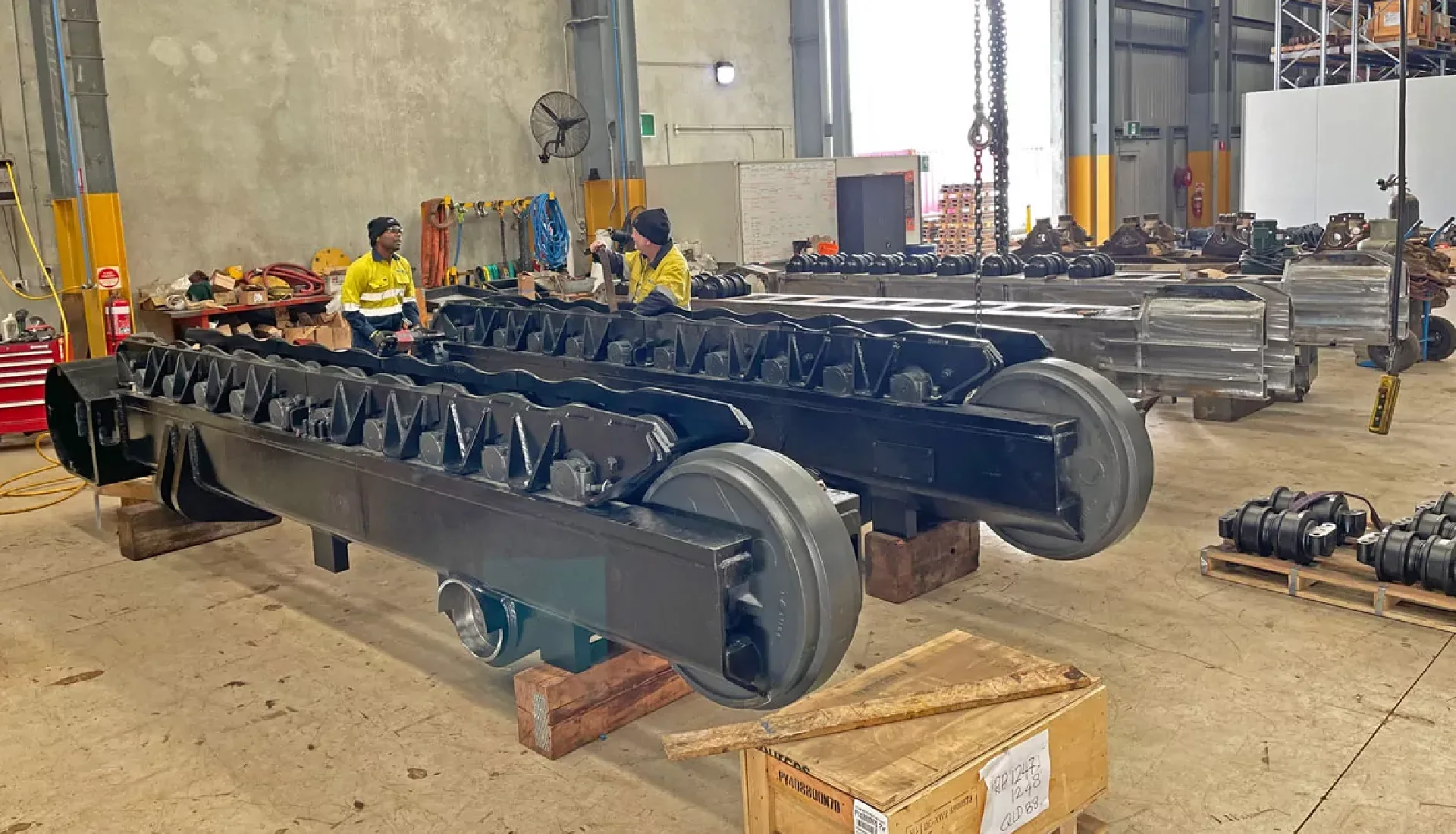

Track Frame

The track frame connects the tracks to the undercarriage and functions similarly to axles, providing a rigid structure for the track system.

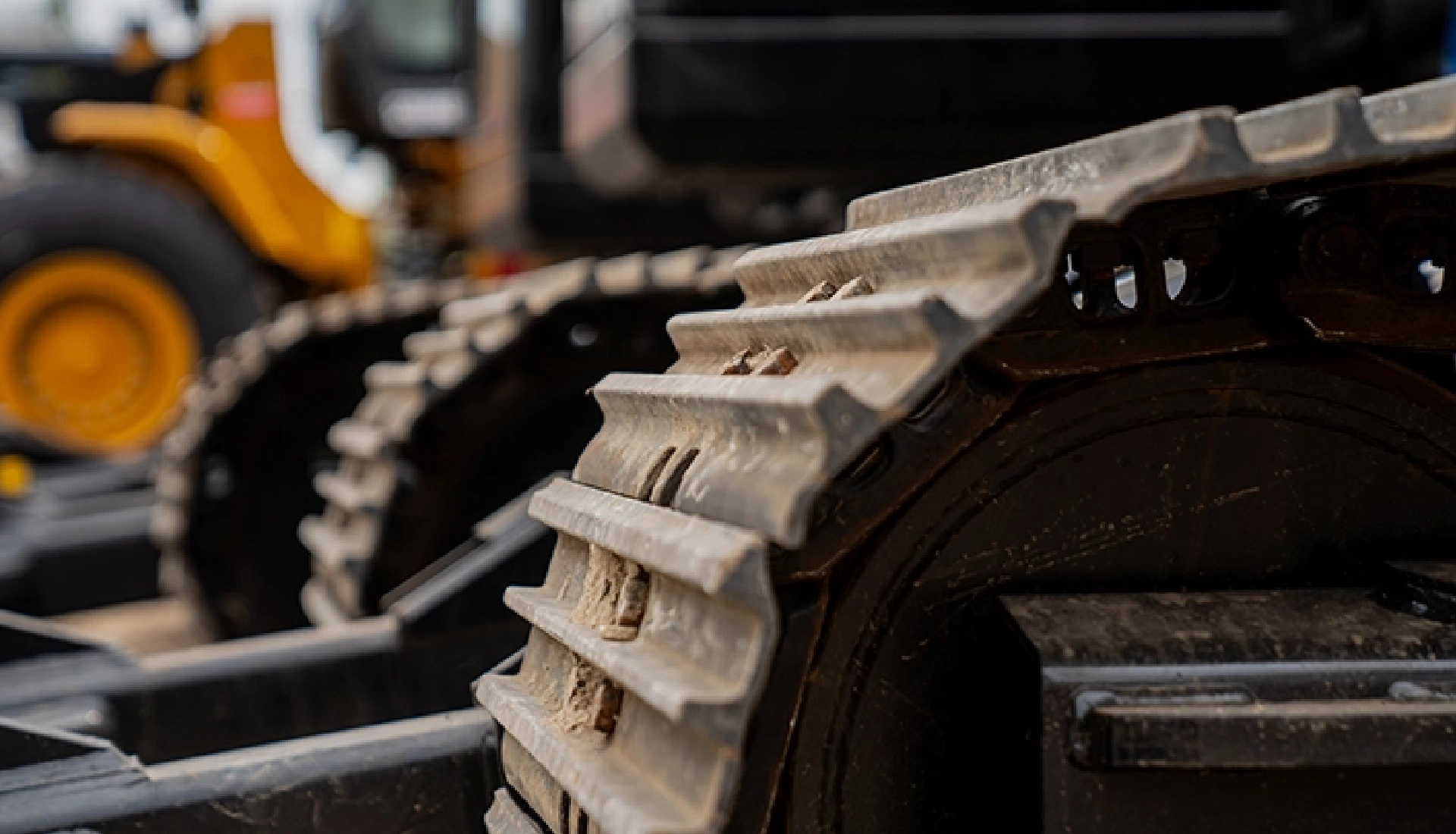

Track Chains, Shoes, and Bolts

These components work together to form the continuous track that propels the excavator. Track chains consist of interconnected metal links, while track shoes are individual plates that make contact with the ground. Track bolts secure the shoes to the chains.

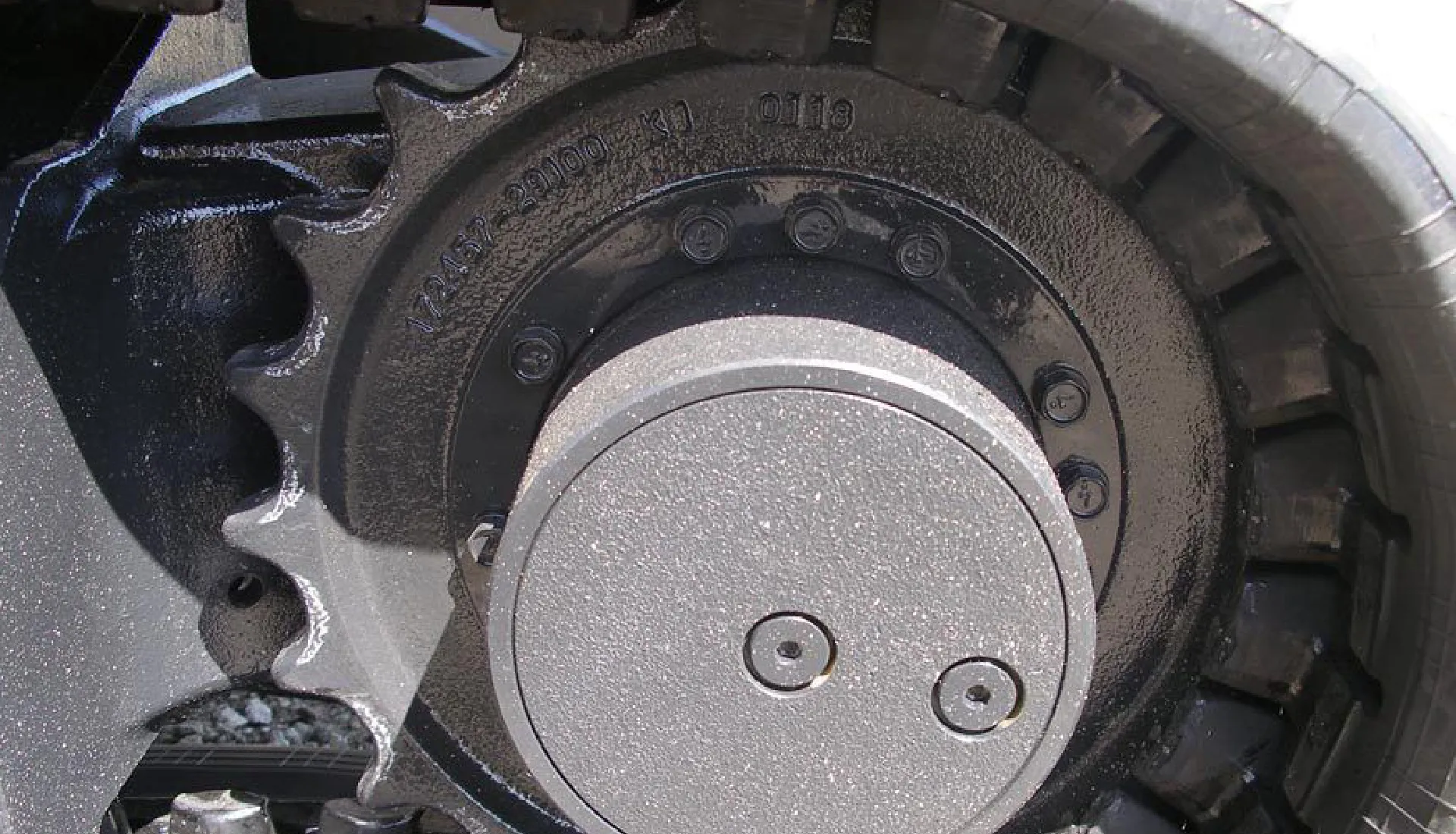

Sprockets

Sprockets are toothed wheels that engage with the track chain links, moving the chain and propelling the machine. Think of them as the gears that make the whole system move.

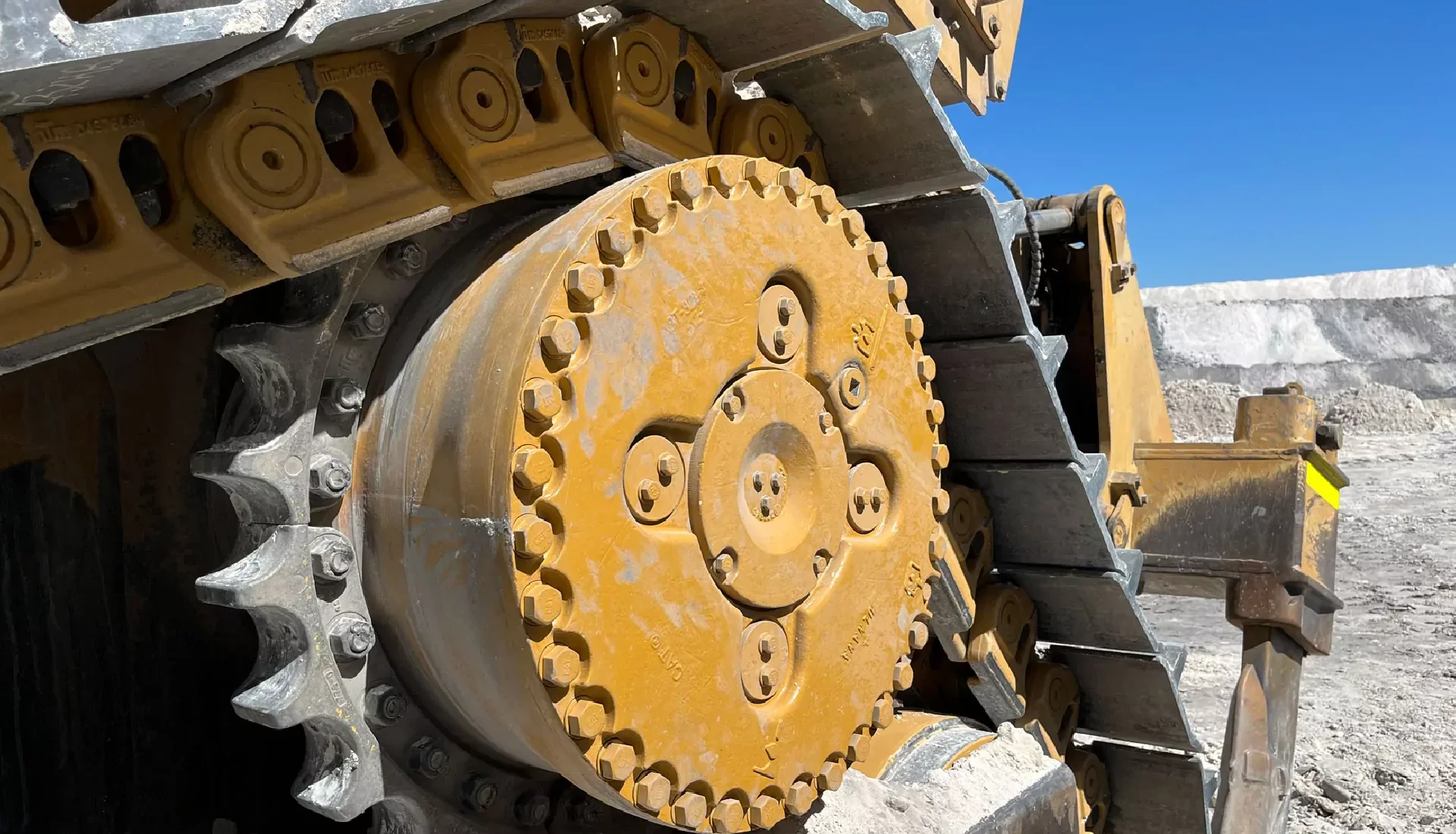

Rollers

Rollers are metal wheels that guide and support the track chains, reducing friction and ensuring smooth movement.

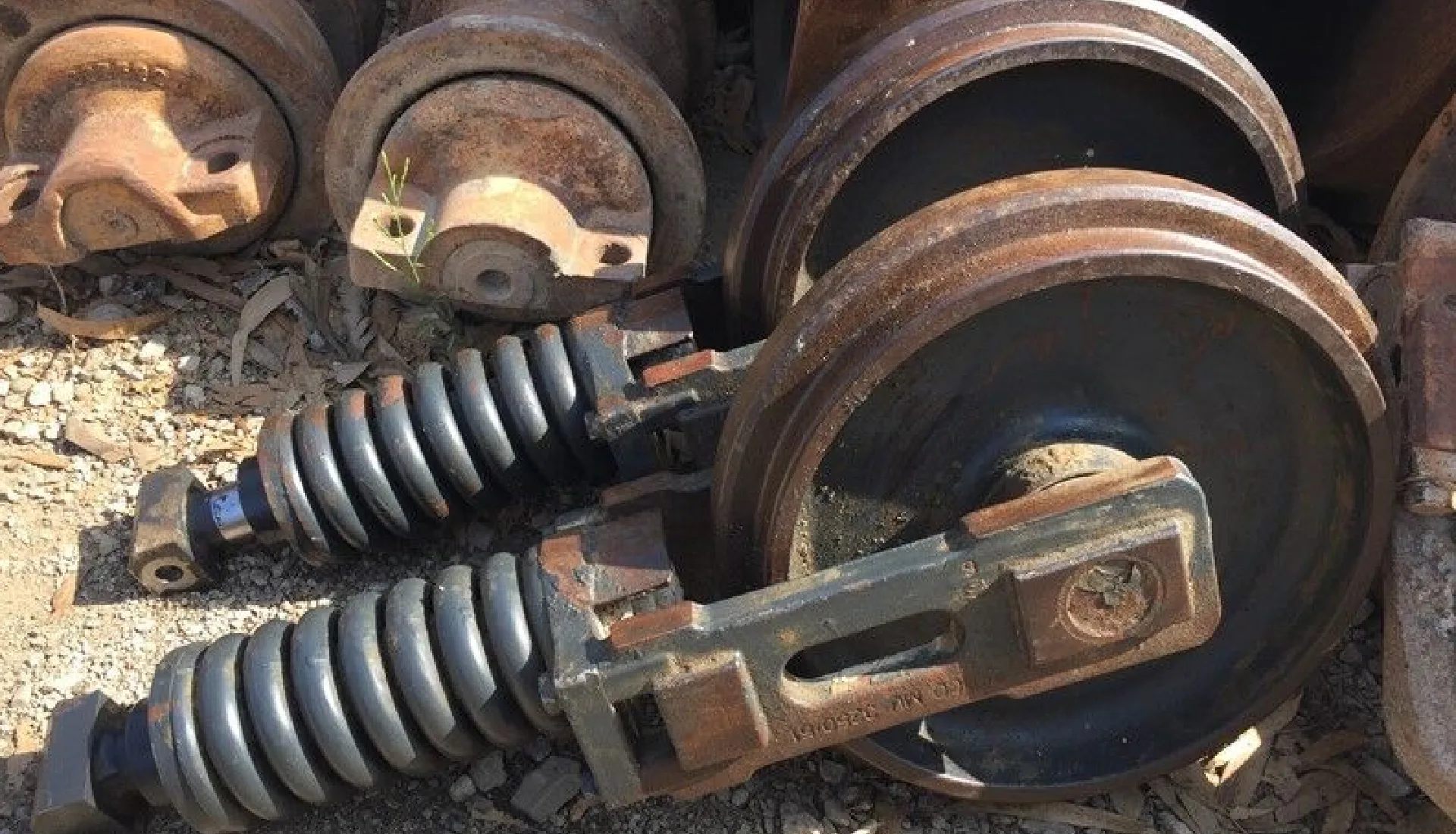

Idlers

Idlers are larger metal wheels located at the front and rear of the undercarriage. They help maintain track tension and guide the tracks, ensuring proper alignment and preventing detracking.

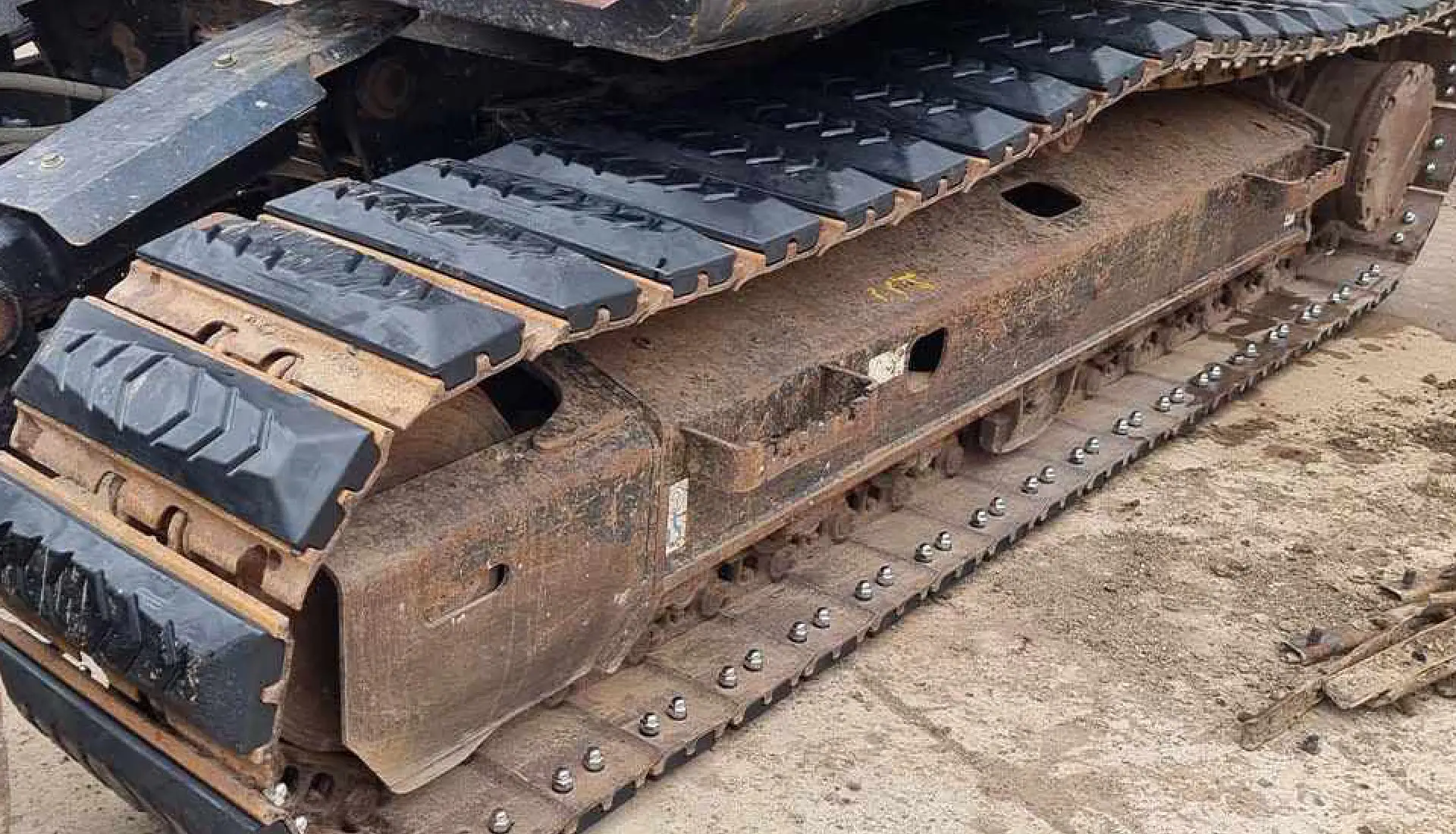

Track Pads and Rock Guards

Track pads are rubber or polyurethane pads that can be attached to the track shoes to reduce noise and vibration, especially when operating on hard surfaces. Rock guards are metal plates that protect the undercarriage from debris and damage, particularly in rocky terrain.

Undercarriage Maintenance

Proper maintenance of the undercarriage is crucial for maximizing its lifespan and minimizing operating costs. The undercarriage is subject to significant wear and tear due to constant contact with the ground and exposure to various environmental conditions. Let's be honest—neglecting undercarriage maintenance isn't just bad practice; it's throwing money away. Key maintenance tasks include:

Track Tensioning: Maintaining proper track tension is essential for preventing excessive wear on the tracks, rollers, and sprockets. Too much tension can cause accelerated wear on the components, while too little tension can lead to detracking and damage to the tracks. It's the Goldilocks principle of excavator maintenance—not too tight, not too loose.

Cleaning: Regularly cleaning the undercarriage removes dirt, debris, and corrosive materials that can accelerate wear and tear. Cleaning also makes it easier to inspect the components for signs of damage or wear. A pressure washer at the end of a muddy workday can save you thousands in premature component replacement.

Inspection: Regular inspections help identify potential issues before they escalate into major problems. Operators should check for loose bolts, damaged track shoes, worn rollers, and any signs of leaks or damage.

Operator Training: Proper operator training is crucial for minimizing undercarriage wear. Operators should be trained on proper driving techniques, such as avoiding sharp turns and minimizing operation on slopes, to reduce stress on the undercarriage components. Remember: the most expensive part of an excavator is often the person in the operator's seat—train them well.

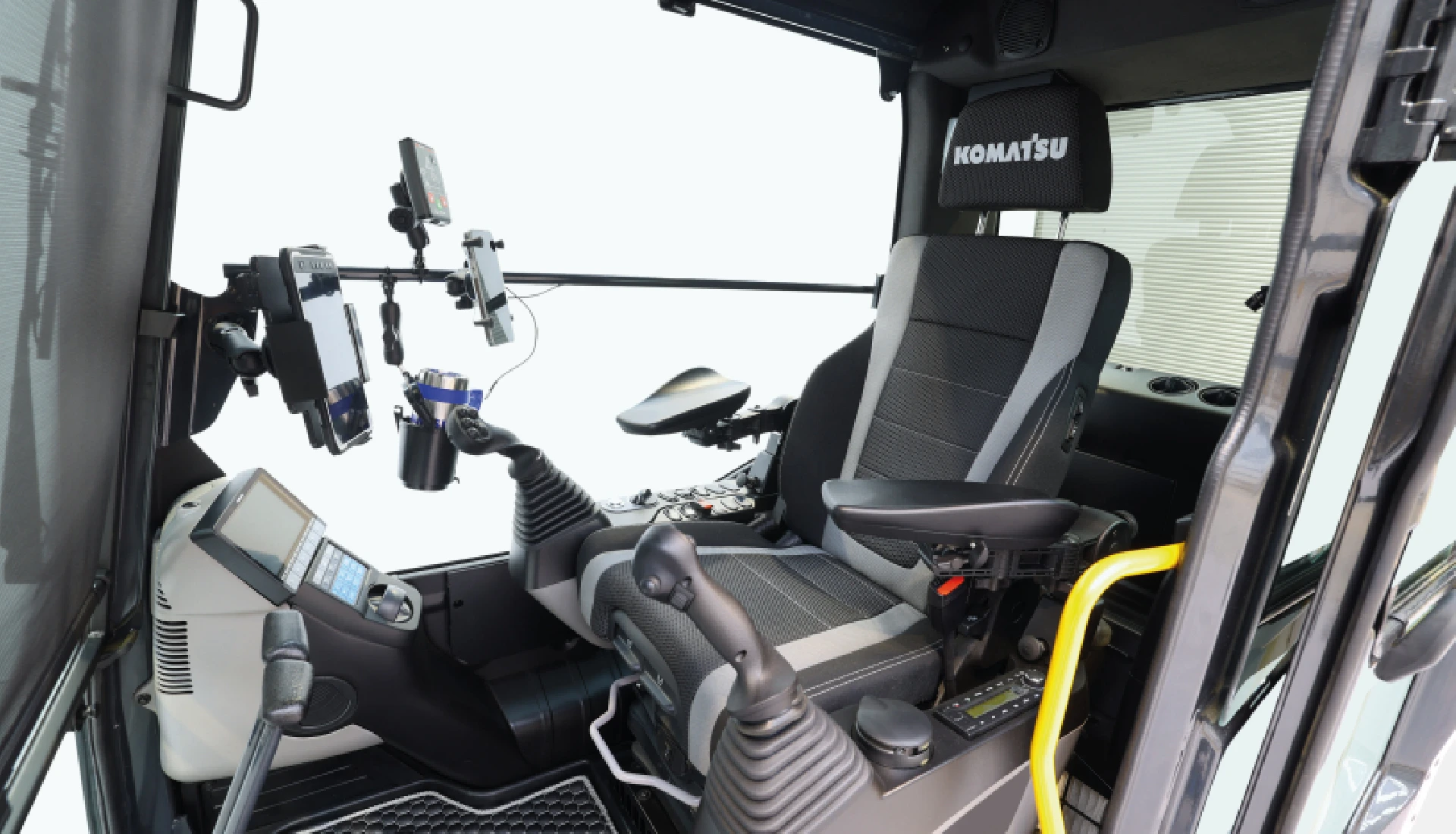

Cab

The cab is the operator's command center, providing a safe and comfortable environment to control the excavator. Modern excavator cabs are designed with ergonomics and operator comfort in mind, recognizing that a comfortable operator is a more productive operator. Key components of the cab include:

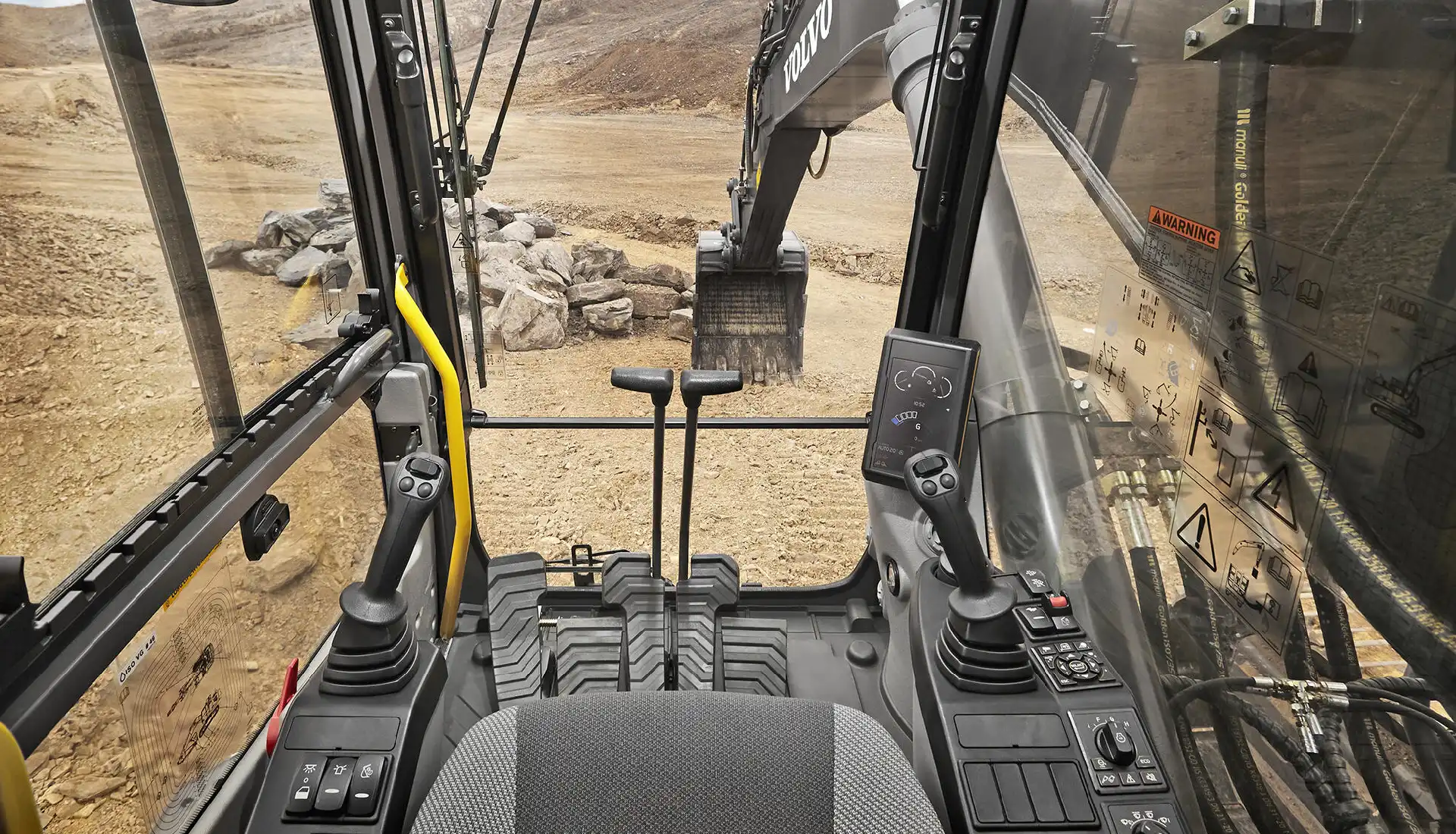

Main Controls

The cab houses the excavator's control panel, which includes joysticks, levers, pedals, and a throttle to operate the boom, arm, bucket, and other functions. The controls are designed to be intuitive and easy to use, minimizing operator fatigue and maximizing productivity. Today's controls are a far cry from the mechanical levers of yesteryear—they're more like piloting a spacecraft than operating heavy machinery.

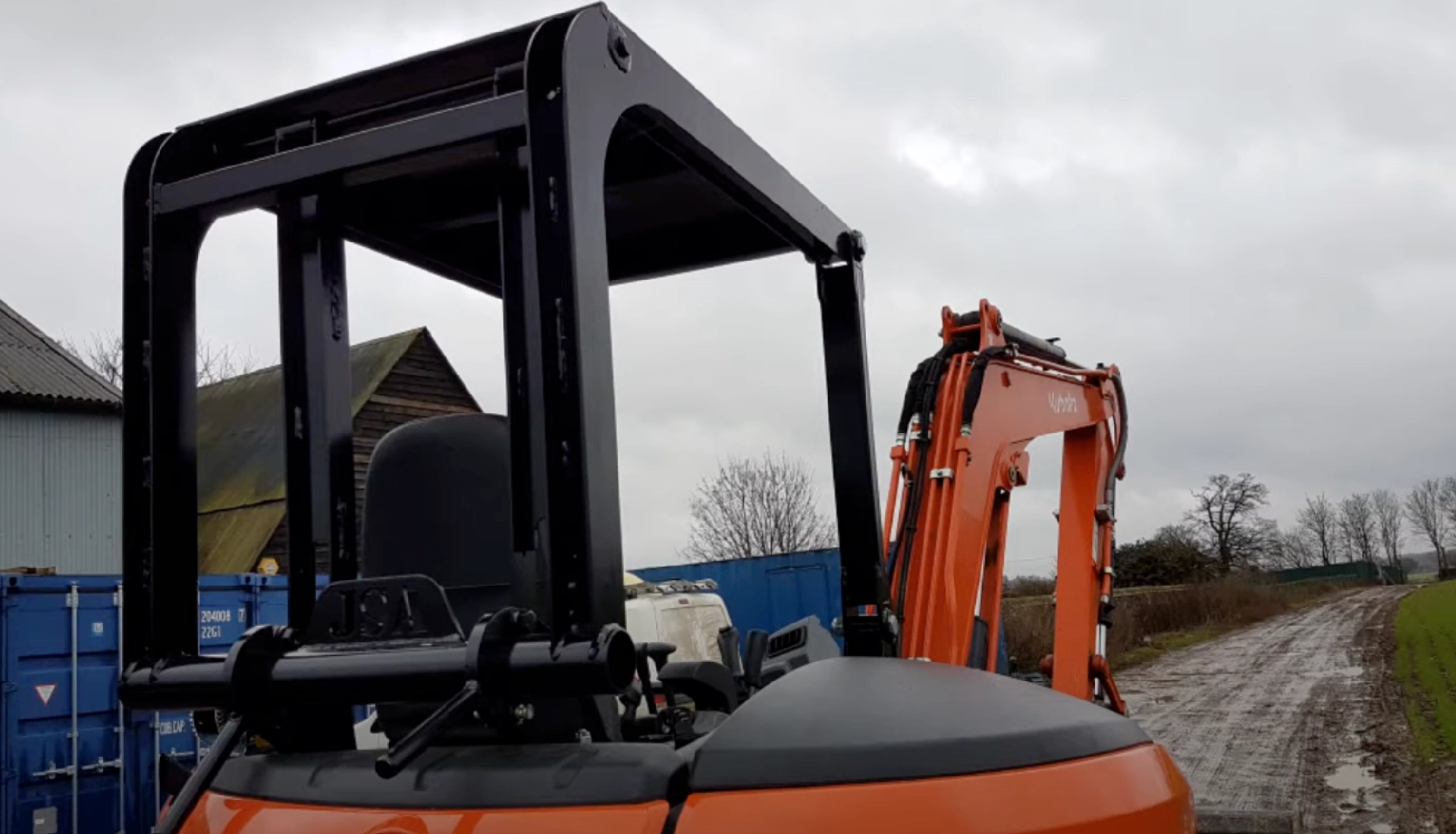

ROPS

ROPS (Rollover Protective Structure) is a reinforced structure designed to protect the operator in case of a rollover or tip-over accident. ROPS is a critical safety feature that helps prevent serious injury or death in the event of an accident. Think of it as the excavator equivalent of a roll cage in a race car.

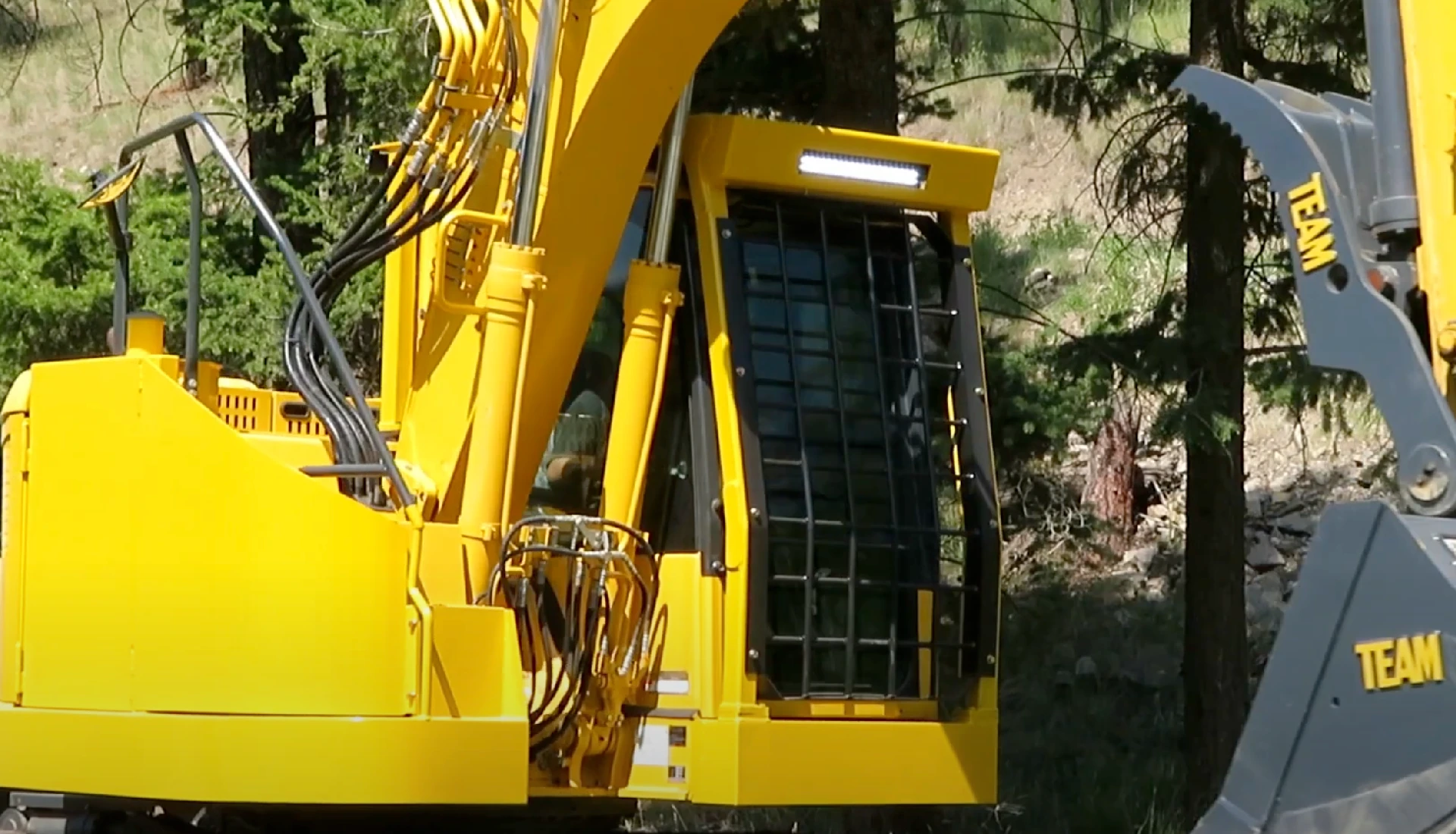

FOPS

FOPS (Falling Object Protective Structure) is another safety feature that shields the operator from falling debris or objects. It typically consists of a protective guard on top of the cab. FOPS is particularly important in demolition and forestry applications where there is a risk of falling objects. When you're knocking down buildings or working under tree canopies, this feature isn't optional—it's essential.

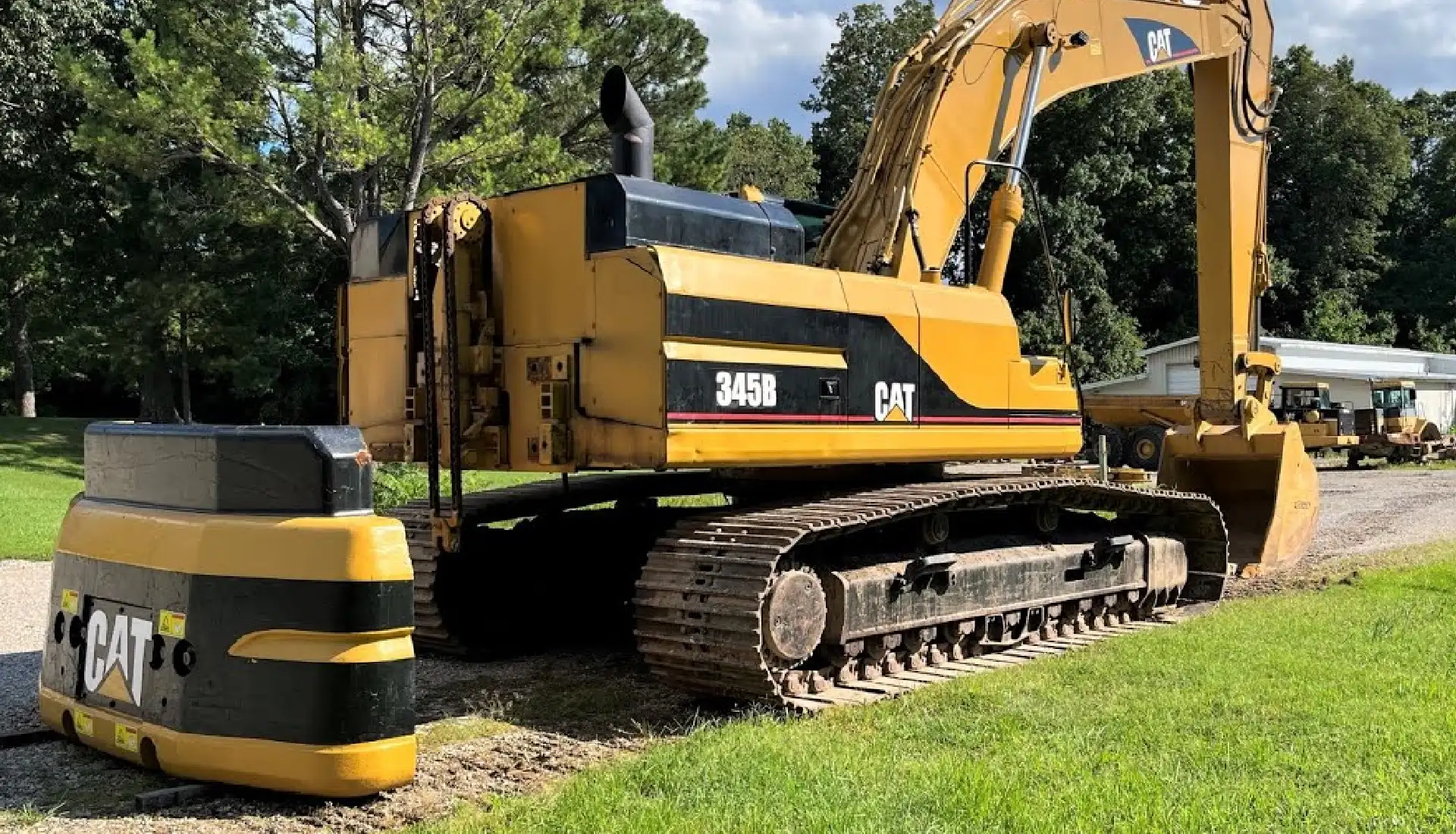

Counterweight

The counterweight, typically located at the rear of the excavator, provides balance and stability during operation. The counterweight offsets the weight of the boom, arm, and bucket, preventing the excavator from tipping over, especially when lifting heavy loads.

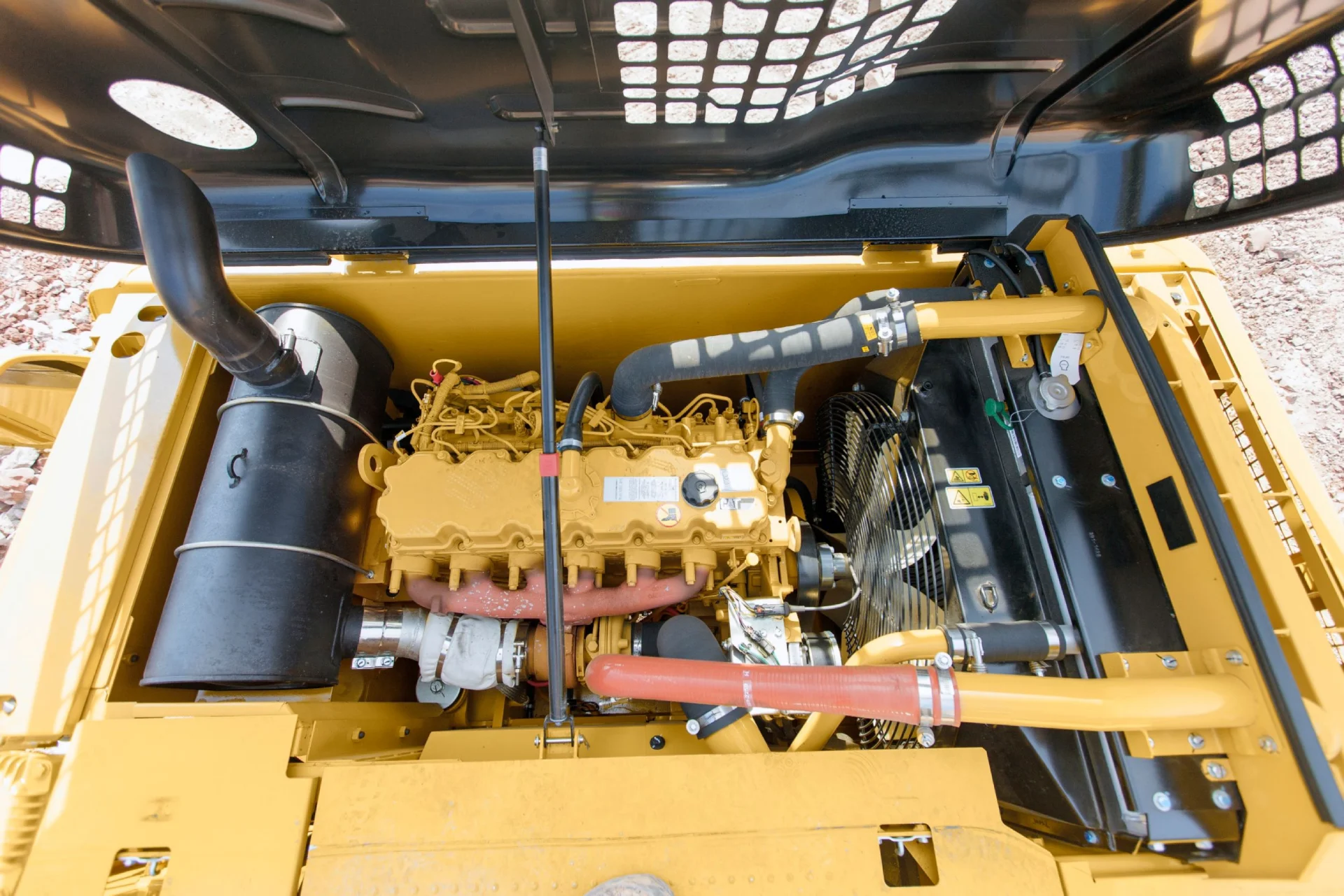

Engine

Excavator engines are usually diesel-powered and provide the energy to operate the hydraulic system and drive the tracks. Diesel engines are preferred for their high torque and fuel efficiency. They're the workhorses that make everything else possible.

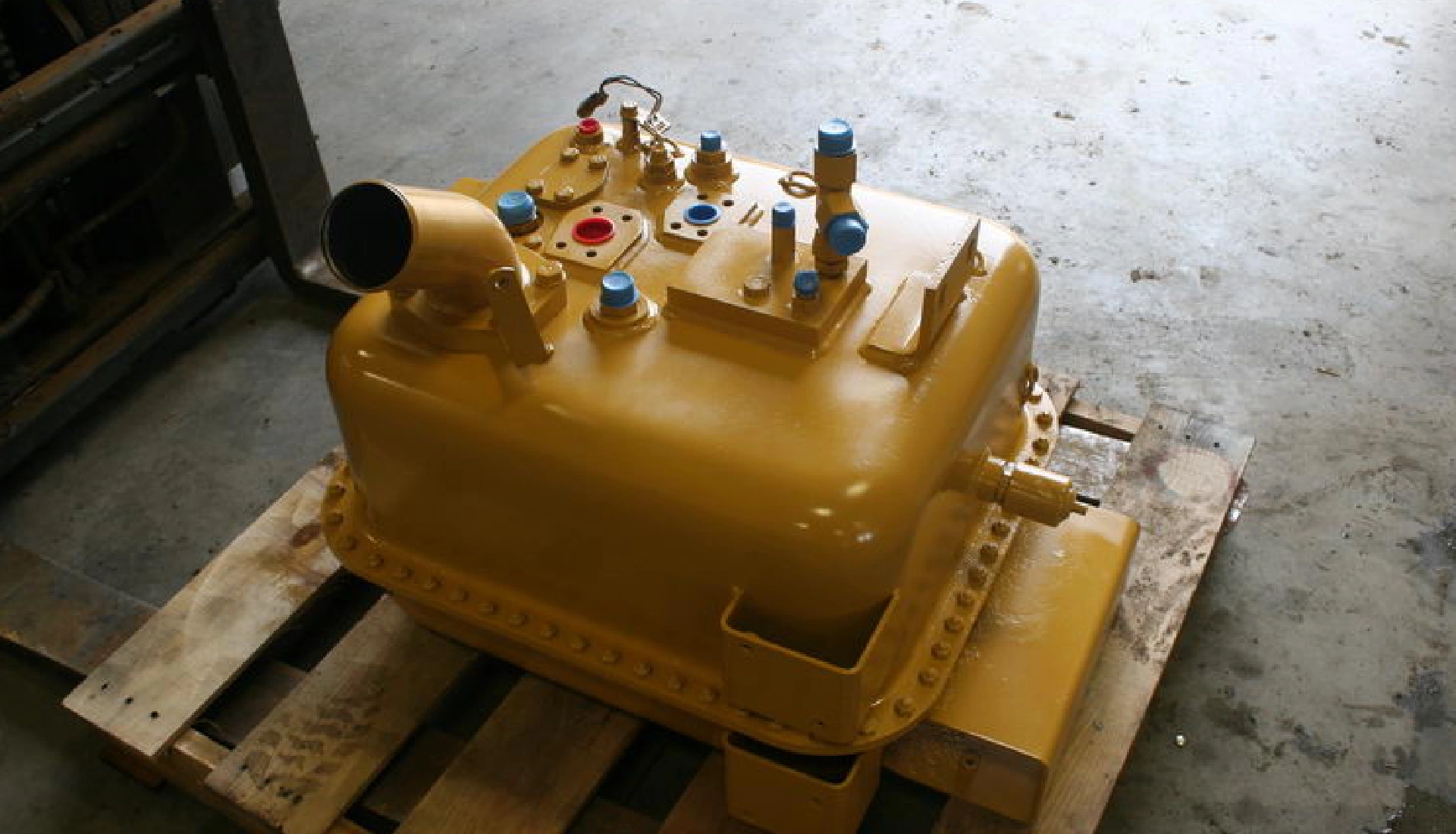

Hydraulic Fluid Tanks

These tanks store the hydraulic fluid that powers the excavator's movements.

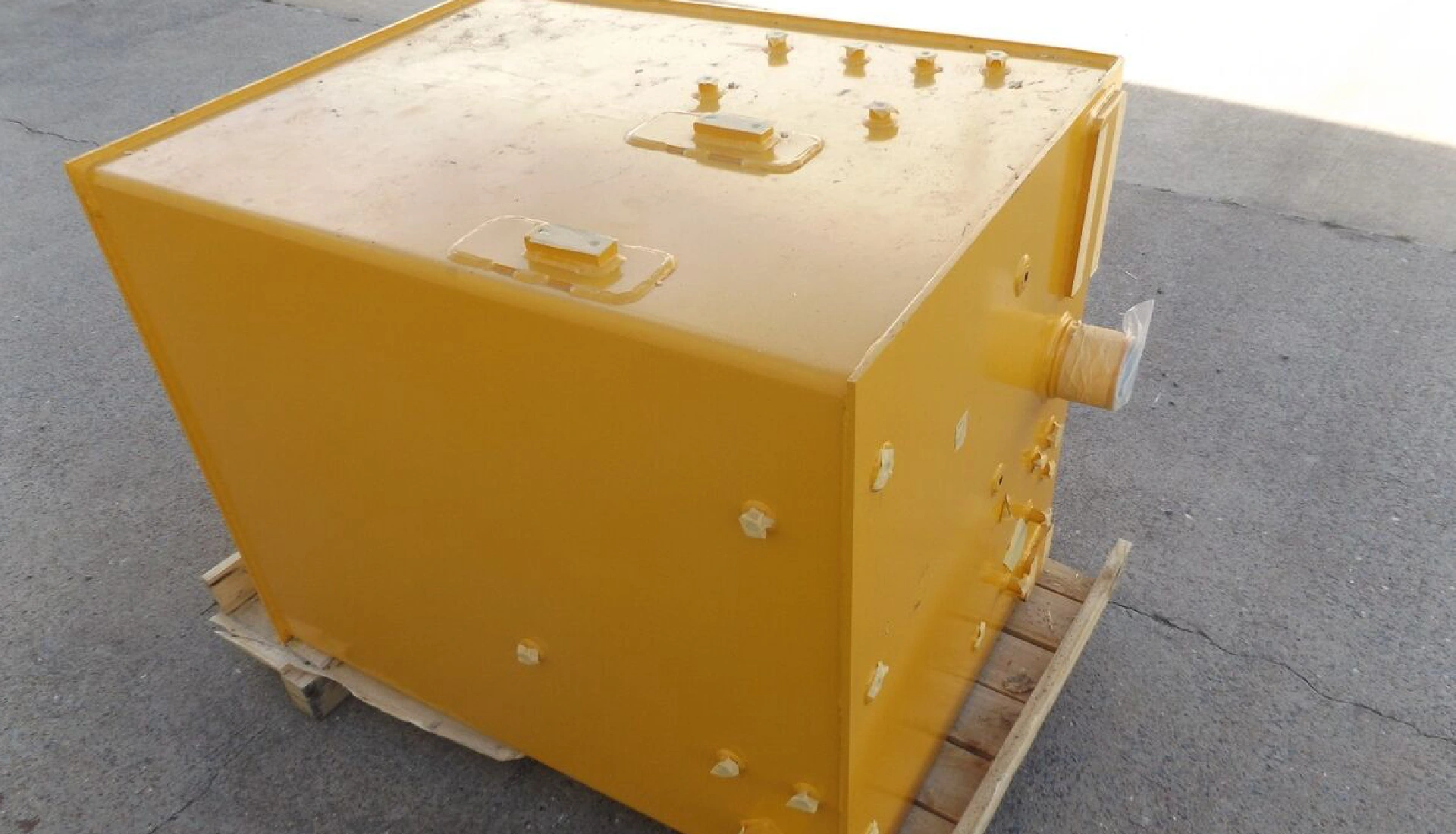

Fuel Tank

This tank stores the diesel fuel for the engine.

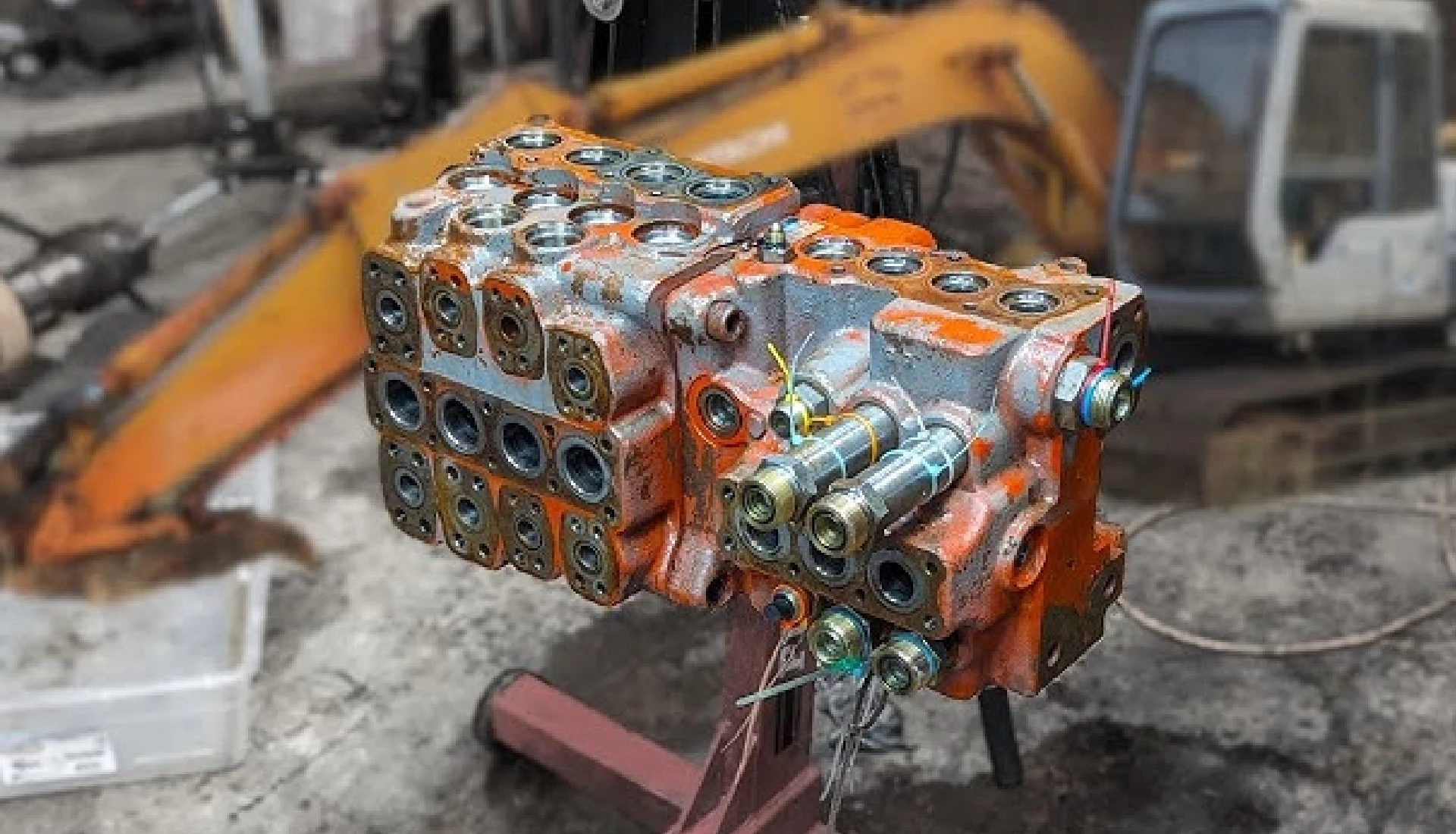

Main Control Valve

This valve connects the engine and hydraulic mechanisms, controlling oil pressure and powering hydraulic devices.

Operator Comfort and Safety

Modern excavator cabs are designed with a focus on operator comfort and safety. These aren't the bare-bones metal boxes with mechanical controls that operators endured decades ago. Features that enhance operator comfort include:

Ergonomic Seating: Adjustable seats with lumbar support and armrests help reduce operator fatigue during long working hours. An uncomfortable operator is an unproductive operator, so manufacturers have put serious thought into seat design.

Climate Control: Heating and air conditioning systems maintain a comfortable temperature inside the cab, regardless of the outside weather conditions. Working in a 95-degree cab or a freezing one isn't just uncomfortable—it impacts productivity and safety.

Reduced Vibration: Advanced cab designs and suspension systems minimize vibration, improving operator comfort and reducing fatigue. Less vibration means less operator fatigue and fewer mistakes.

Improved Visibility: Large windows and strategically placed mirrors provide excellent visibility of the work area, enhancing safety and productivity. Blind spots are the enemy of efficient operation, so cab design has evolved to minimize them.

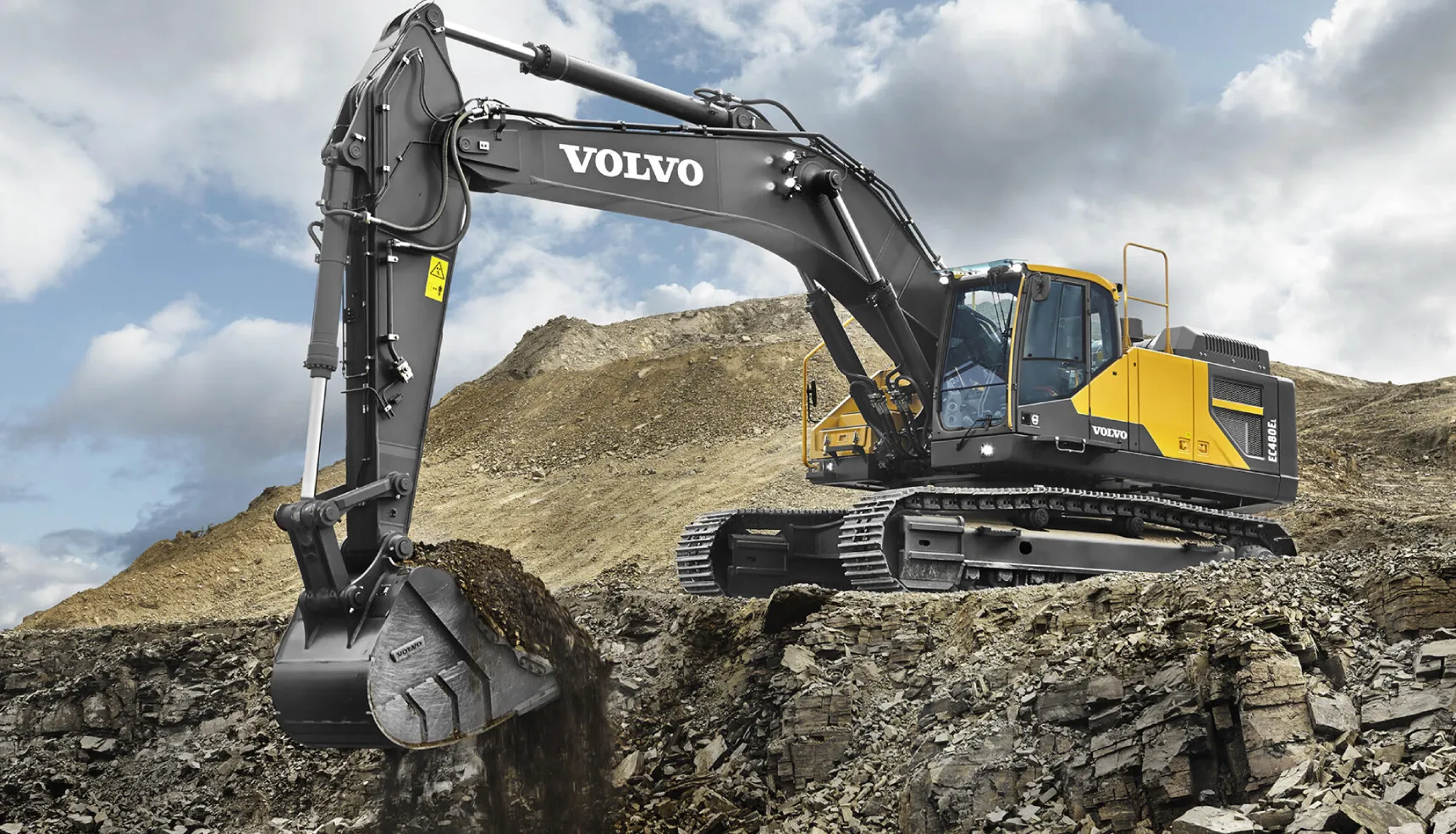

Arm/Boom

The arm/boom is the excavator's business end—the digging mechanism responsible for moving earth and materials. It consists of:

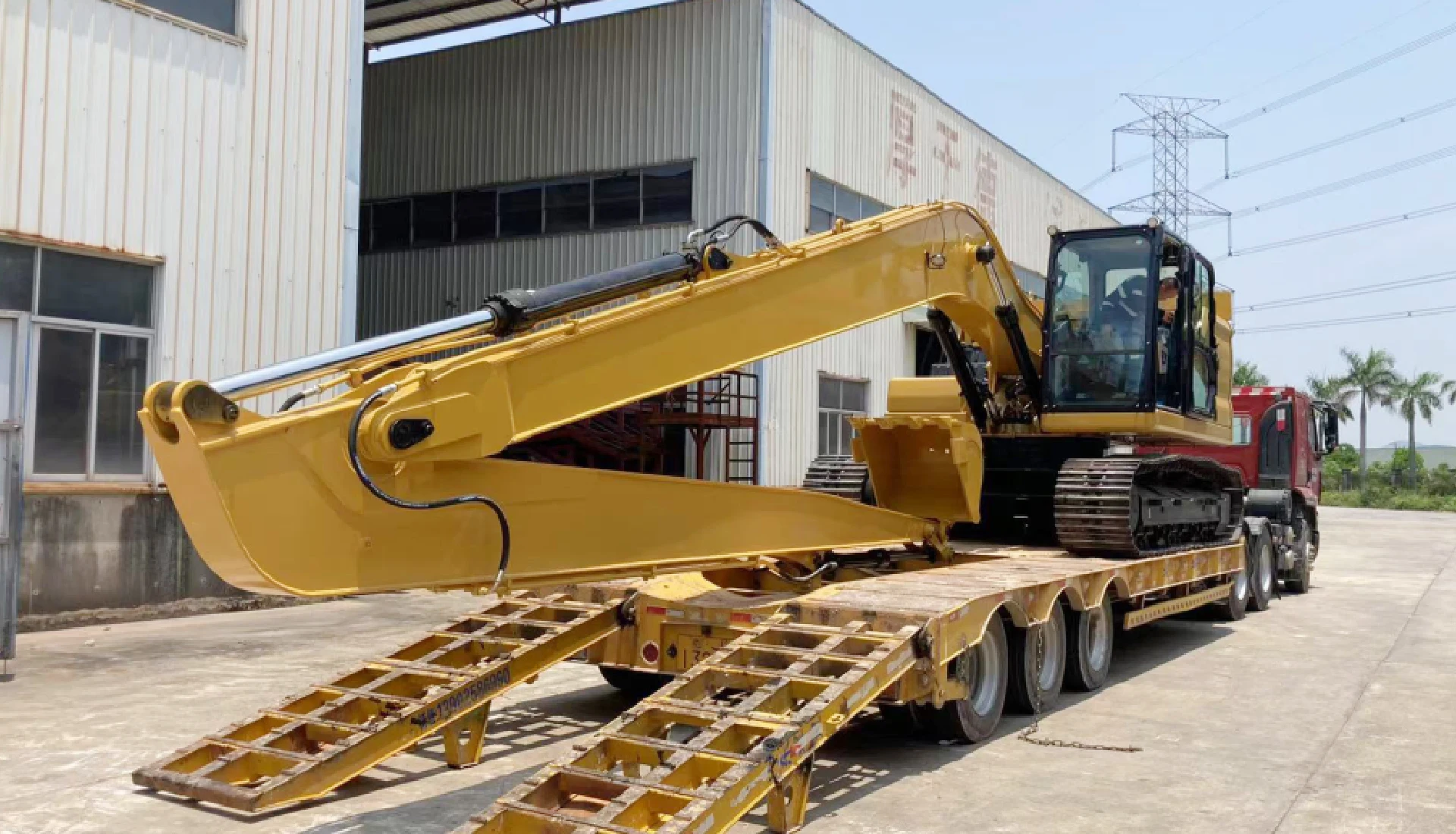

Boom

The boom is the main component of the arm, attached to the cab and providing reach and elevation. The boom's length and configuration determine the excavator's digging depth and reach. It's the excavator's "upper arm," if you want to think of it in human terms.

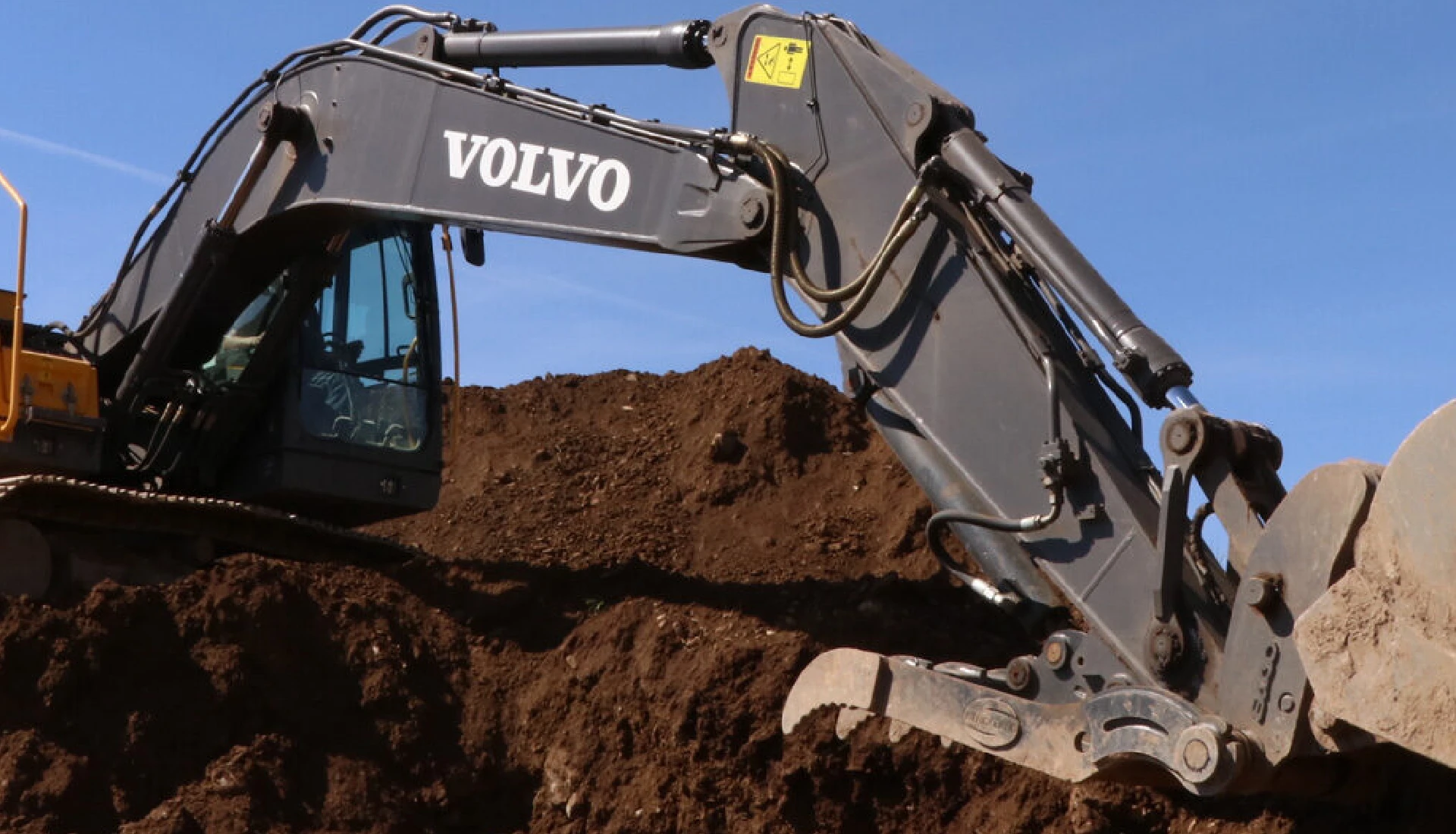

Arm (Stick or Dipper)

The arm connects to the boom and holds the bucket. The arm provides further reach and allows for precise control of the bucket's position. This is the excavator's "forearm" in our human anatomy comparison.

Dipper Arm Variations: Dipper arms can be straight or sliding. Straight arms are commonly used for general digging and loading tasks, while sliding arms offer increased reach without changing the boom length. Sliding arms are particularly useful in applications where greater reach is required, such as dredging or working in confined spaces. It's like having an extendable arm when you need it.

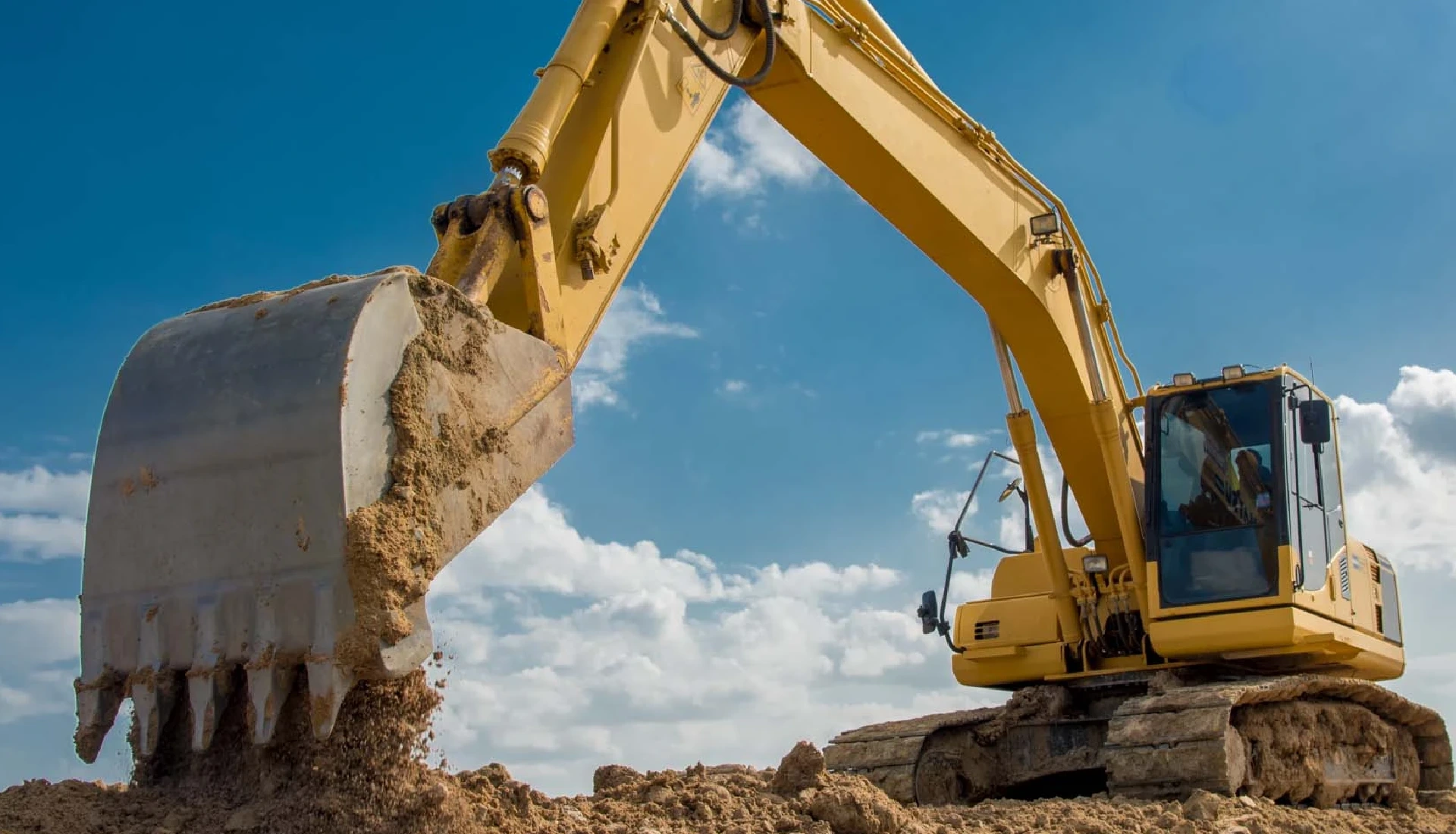

Bucket

The bucket is the attachment at the end of the arm used for digging, scooping, and carrying materials. Buckets come in various shapes and sizes, each designed for specific tasks. The bucket is essentially the excavator's "hand" that interacts with the material.

Bucket Types:

• Digging Bucket: The most common type, used for general excavation and earthmoving.
• Rock Bucket: Reinforced with teeth for digging in rocky or hard soil conditions. These aren't just beefed-up regular buckets—they're purpose-built for the abuse of rock work.
• Utility Bucket: Designed for digging around utilities and sensitive infrastructure.
• Grading Bucket: Used for leveling and finishing surfaces.
• Tilt Bucket: Allows for angled digging and precise grading.
• V Bucket: Creates V-shaped trenches for laying pipes or cables.
• Skeleton Bucket: Used for sifting and sorting materials. The gaps between the "fingers" allow material like soil to fall through while retaining larger objects.

Cylinders

Hydraulic cylinders power the movement of the boom, arm, and bucket. These cylinders use hydraulic fluid to generate force and motion, allowing the operator to control the arm's movements with precision. They're the muscles that make everything move.

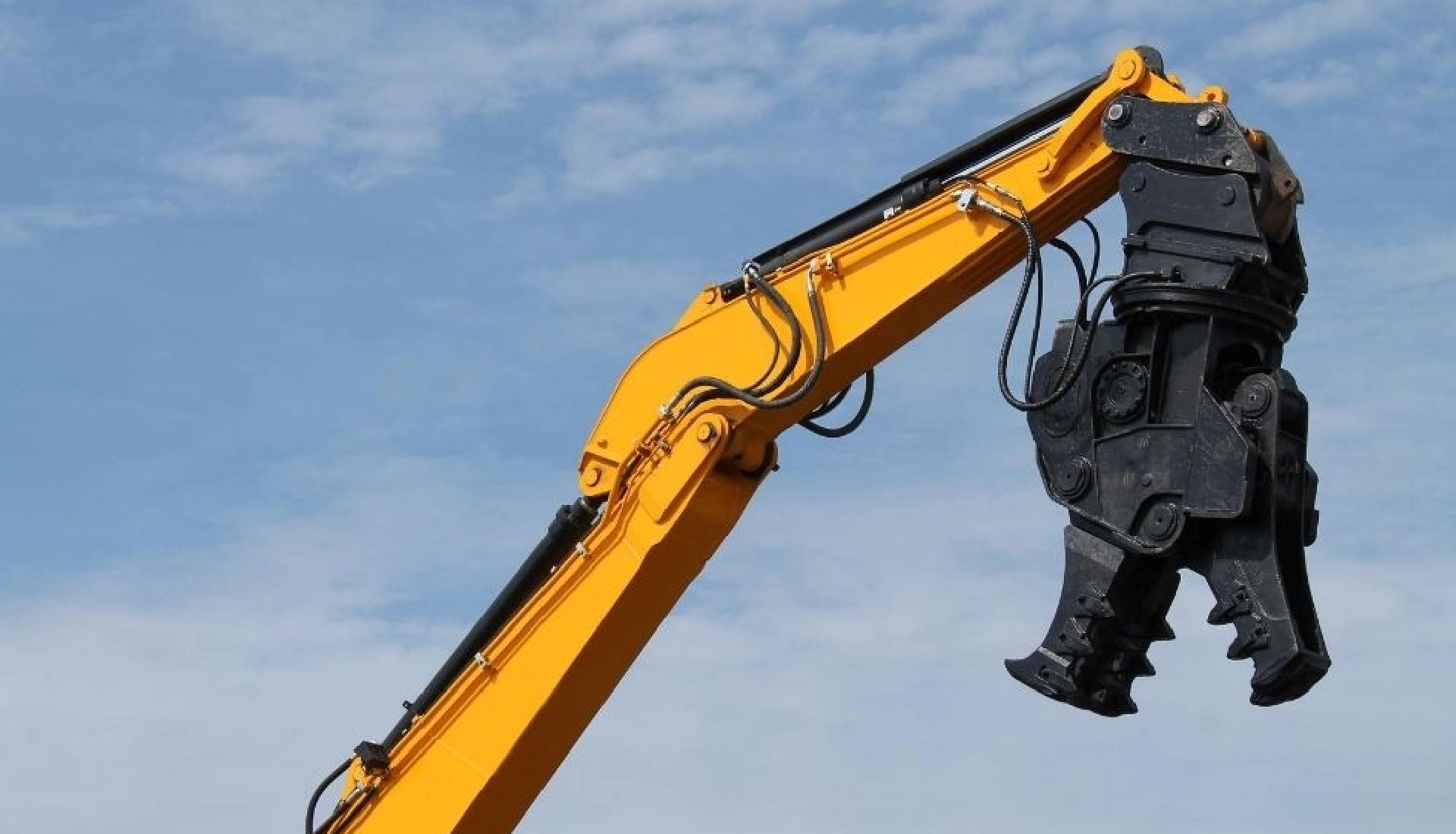

Attachments

Excavators can be equipped with various attachments, such as grapples, hammers, and augers, to enhance their versatility. Attachments are typically connected to the arm using a quick coupler system, allowing for quick and easy changes. Modern excavators are more like tool carriers than single-purpose machines.

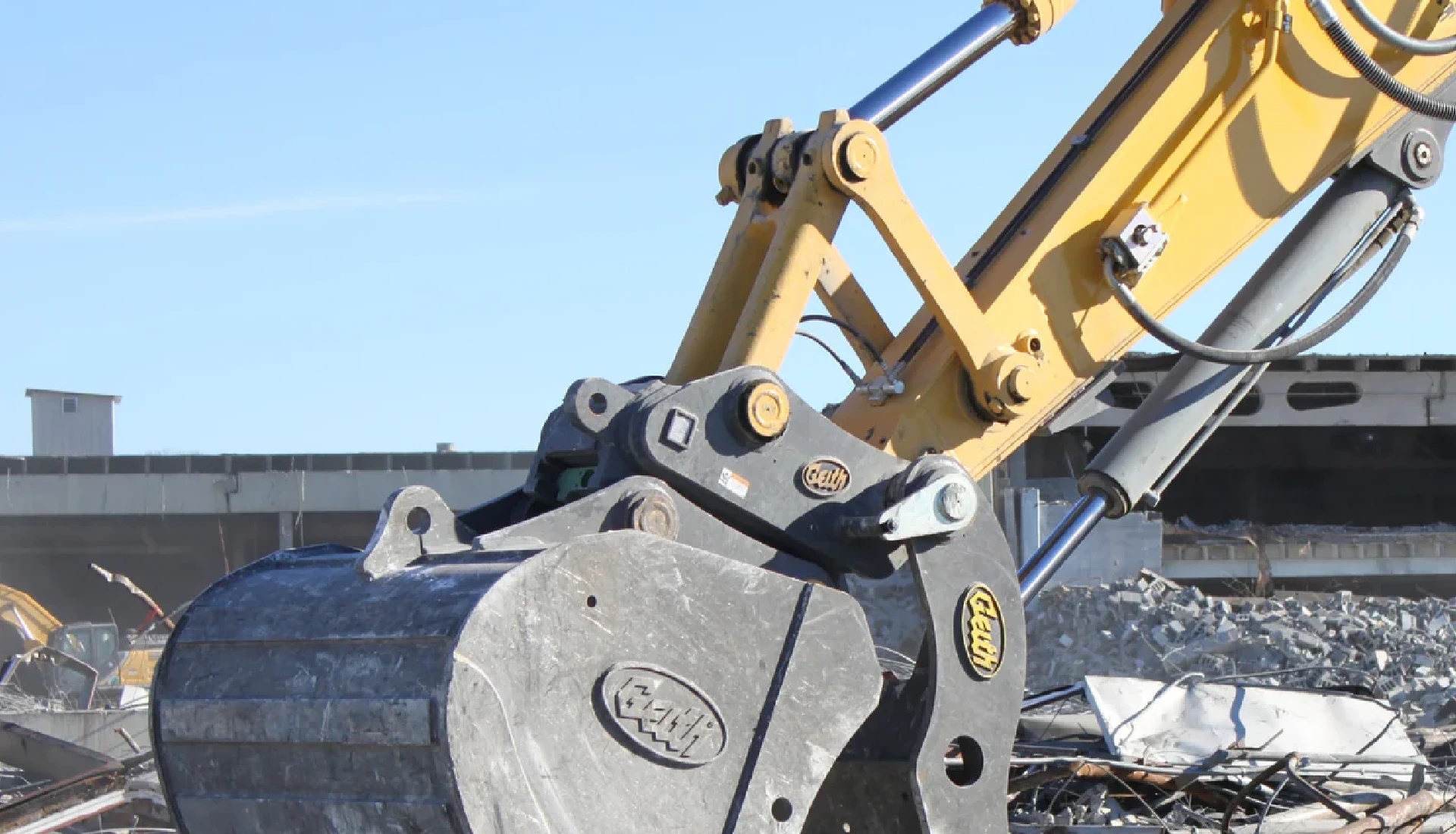

Linkage

Linkage refers to the system of pins, bushings, and connecting rods that attach the boom, arm, and bucket together. The linkage allows for the articulation and movement of the arm components, enabling the excavator to perform various digging and lifting tasks. It's the joint system that ties everything together.

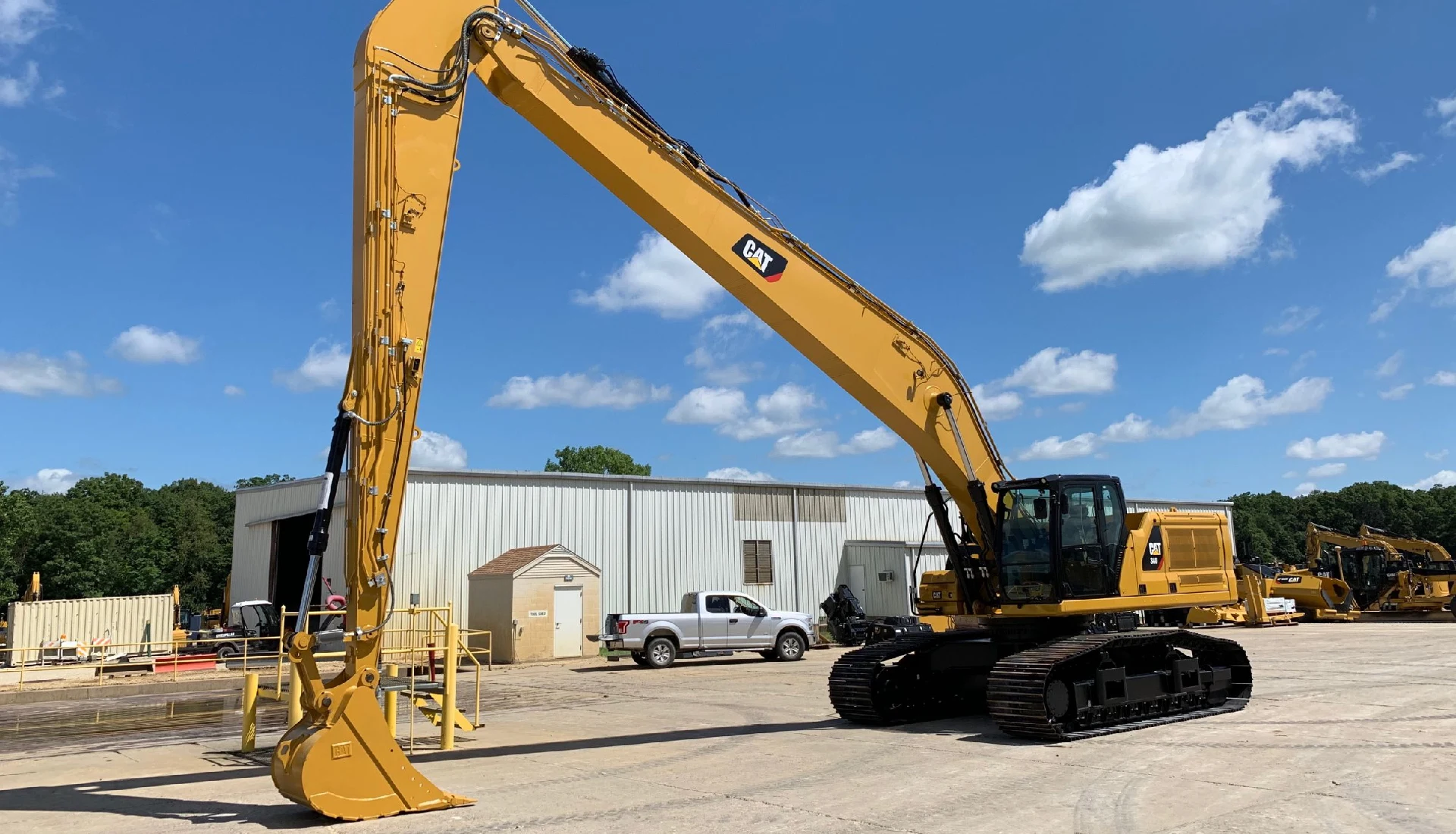

Excavator Types and Part Variations

Different types of excavators are designed for specific applications, and their parts may vary accordingly. One size definitely doesn't fit all in the excavator world. Some common types include:

Crawler Excavators: These are the most common excavator type, using tracks for mobility on various terrains. Crawler excavators are well-suited for off-road applications, construction sites, and uneven terrain. They typically have a standard mono boom configuration, providing a balance between reach and digging depth. These are your worksite workhorses—versatile and stable.

Wheeled Excavators: These excavators offer greater maneuverability on paved surfaces and are suitable for urban environments, road construction, and utility work. They often feature a two-piece boom for increased versatility in confined spaces. Need to drive between job sites without a trailer? Wheeled excavators are your answer.

Long-Reach Excavators: These have extended booms and arms for tasks like dredging, deep excavation, and working over obstacles. Long-reach excavators are commonly used in river and canal maintenance, demolition projects, and environmental remediation. When you need to reach out and touch something 60 feet away, these are your go-to machines.

Compact Excavators: These smaller excavators are ideal for confined spaces, residential projects, and landscaping. They typically have shorter booms and arms for better maneuverability in tight spaces. Don't let their size fool you—these mini-excavators pack a serious punch for their weight class.

The boom and arm configurations can also vary depending on the application. Some common boom types include:

• Standard Boom: Provides a balance between reach and digging depth, suitable for a wide range of applications.
• Long Reach Boom: Offers extended reach for deep digging or working around obstacles.
• High Reach Boom: Designed for vertical reach in demolition projects, allowing the excavator to reach greater heights for dismantling structures. These specialized booms can extend upward of 100 feet.
• Zero Tail Swing Boom: Minimizes the risk of the rear end swinging into obstacles in confined spaces, making it ideal for urban environments and tight working conditions. Perfect for when you're working alongside a building or roadway where every inch counts.
• Telescopic Boom: Offers adjustable reach for various tasks, providing flexibility in different applications.

Cost of Excavator Parts

The cost of excavator parts can vary significantly depending on the brand, model, type of part, and supplier. "How much does it cost?" might be the most common question in the industry, but it's also the hardest to answer simply. Factors that influence part costs include brand reputation, material quality, technology integration, and market demand.

For example, parts from well-known brands like Caterpillar or Komatsu may be more expensive than those from lesser-known brands, but they often come with a reputation for quality and durability.

Similarly, parts made from high-quality materials, such as wear-resistant alloys or advanced composites, may have a higher upfront cost but can offer longer service life and reduced maintenance costs in the long run.

Here's a table summarizing the cost range of some common excavator parts:

It's important to consider the cost of replacement parts when evaluating the total cost of ownership of an excavator. Anyone who's been in the business long enough knows the sticker price is just the beginning. Choosing high-quality parts and implementing a proactive maintenance strategy can help minimize downtime and reduce overall operating costs.

Maintenance of Excavator Parts

Proper maintenance is crucial for ensuring the longevity and performance of excavator parts. Neglect maintenance and you might as well set your money on fire. Regular maintenance tasks include:

• Fluid and Filter Changes: Regularly change engine oil, hydraulic fluid, coolant, and filters according to the manufacturer's recommendations. Changing fluids and filters at the recommended intervals helps prevent contamination, reduce wear and tear, and ensure optimal performance of the engine and hydraulic systems. Think of it as giving your excavator a fresh bloodstream.
• Lubrication: Grease all pivot points, including pins and bushings, to reduce friction and wear. Proper lubrication is essential for preventing premature wear and extending the life of moving parts. A $5 tube of grease can save you $5,000 in premature component replacement.
• Undercarriage Care: Clean the undercarriage regularly to remove debris and inspect for wear and tear on tracks, rollers, and idlers.
• Track Tensioning: Maintain proper track tension to prevent excessive wear and damage.
• Inspection: Regularly inspect all parts for signs of wear, damage, or leaks. Inspections should be conducted before and after each shift, as well as during scheduled maintenance intervals. The best mechanics have developed a sixth sense about when something doesn't look or sound right.

Preventive Maintenance

Preventive maintenance is a proactive approach to excavator care that focuses on identifying and addressing potential issues before they escalate into major problems. It's the difference between changing a $50 part during scheduled downtime or replacing a $5,000 component during an emergency breakdown in the middle of a critical job.

By following a preventive maintenance schedule, operators and maintenance personnel can minimize downtime, extend the life of components, and reduce overall operating costs. Key elements of preventive maintenance include:

• Daily Inspections: Conduct thorough inspections before and after each shift to check for any signs of damage, wear, or leaks.
• Scheduled Maintenance: Adhere to the manufacturer's recommended maintenance schedule for fluid and filter changes, lubrication, and other routine tasks.
• Record Keeping: Maintain detailed service records to track maintenance tasks, identify recurring issues, and anticipate future maintenance needs. Data is your friend here—it helps you spot patterns before they become problems.
• Operator Training: Train operators on proper operating procedures and maintenance practices to minimize wear and tear and prevent damage to the excavator. The person in the seat can either extend or reduce your machine's lifespan significantly.

Future of Excavator Parts

The future of excavator parts is likely to be shaped by several trends, and the pace of innovation is accelerating faster than many industry veterans expected:

Smart Technology: Integration of sensors and AI for improved performance and maintenance. Sensors can monitor various parameters, such as fluid levels, temperature, and pressure, providing real-time data that can be used to optimize performance and predict maintenance needs. AI algorithms can analyze this data to identify potential issues before they lead to breakdowns, minimizing downtime and reducing costs. Your next excavator might tell you it's going to break down before it actually does.

Eco-Friendly Materials: Use of sustainable and recyclable materials to reduce environmental impact. The excavator of tomorrow won't just move dirt—it'll do so with a significantly reduced carbon footprint.

3D Printing: On-demand production of customized parts. 3D printing allows for the creation of parts with complex geometries and customized designs, reducing lead times and enabling the production of parts that are no longer available from the original manufacturer. Need a rare part for a 20-year-old excavator? Print it instead of waiting months for a replacement.

Enhanced Durability: Development of advanced materials for longer-lasting parts. This includes using wear-resistant alloys, composite materials, and advanced coatings to increase the lifespan of components and reduce maintenance costs. The days of "they don't make 'em like they used to" might be reversed—newer parts are increasingly outperforming their predecessors.

Improved Hydraulic Systems: More efficient and reliable hydraulic components. This includes developing energy-efficient hydraulic pumps, advanced seals, and innovative hydraulic fluids to improve performance, reduce energy consumption, and minimize environmental impact. Hydraulics are the muscles of the machine, and they're getting stronger and more efficient.

Electrification: Development of electric and hybrid excavators to reduce emissions and noise pollution. Electric and hybrid excavators offer a more sustainable alternative to traditional diesel-powered machines, reducing greenhouse gas emissions, minimizing noise pollution, and improving energy efficiency. The question is no longer if electric excavators will become mainstream, but when.

Telematics: Telematics systems provide real-time data on the performance and location of excavators, enabling better fleet management, predictive maintenance, and improved overall efficiency. Fleet managers are increasingly using data to drive decisions rather than gut feelings.

Autonomous Operation: While still in the early stages of development, autonomous excavators have the potential to revolutionize the construction industry. Autonomous excavators can operate without direct human intervention, increasing efficiency, reducing labor costs, and improving safety on the job site. Don't worry—operators won't be obsolete, but their roles will evolve.

Conclusion

Excavators deliver their value through well-engineered components working in harmony. Choosing the right configuration for your specific application directly impacts productivity and profitability. Smart operators know that regular maintenance isn't an expense—it's an investment that prevents costly downtime.

The industry is evolving rapidly. Electric excavators are gaining traction in urban environments, while AI-driven systems enable predictive maintenance and performance optimization. Those who understand both the fundamentals and emerging technologies will maintain the competitive edge in an increasingly sophisticated equipment landscape.
