Parts of a Wheel Loader: The Complete Breakdown for Pros

Ask ten construction pros what makes wheel loaders essential, and you’ll get ten different answers—but they all come down to one thing: these machines handle massive loads with surgical precision. Their articulation joint allows smooth pivoting in tight spaces where other machines would be immobilized, while hydraulic systems generate up to 5,000 psi, enabling them to lift weights comparable to small houses. This balance of raw power and agility makes wheel loaders indispensable on job sites, seamlessly tackling tasks that demand both strength and control.

This analysis of the parts of a wheel loader highlights the engineering behind their unmatched versatility, demonstrating why they remain a cornerstone of modern construction.

Key parts of a wheel loader include the engine, transmission, hydraulic system, lift arms, bucket, operator cab, axles, and tires. The engine powers the machine, while the hydraulic system controls the lift arms and bucket. The cab houses controls and provides visibility for the operator.

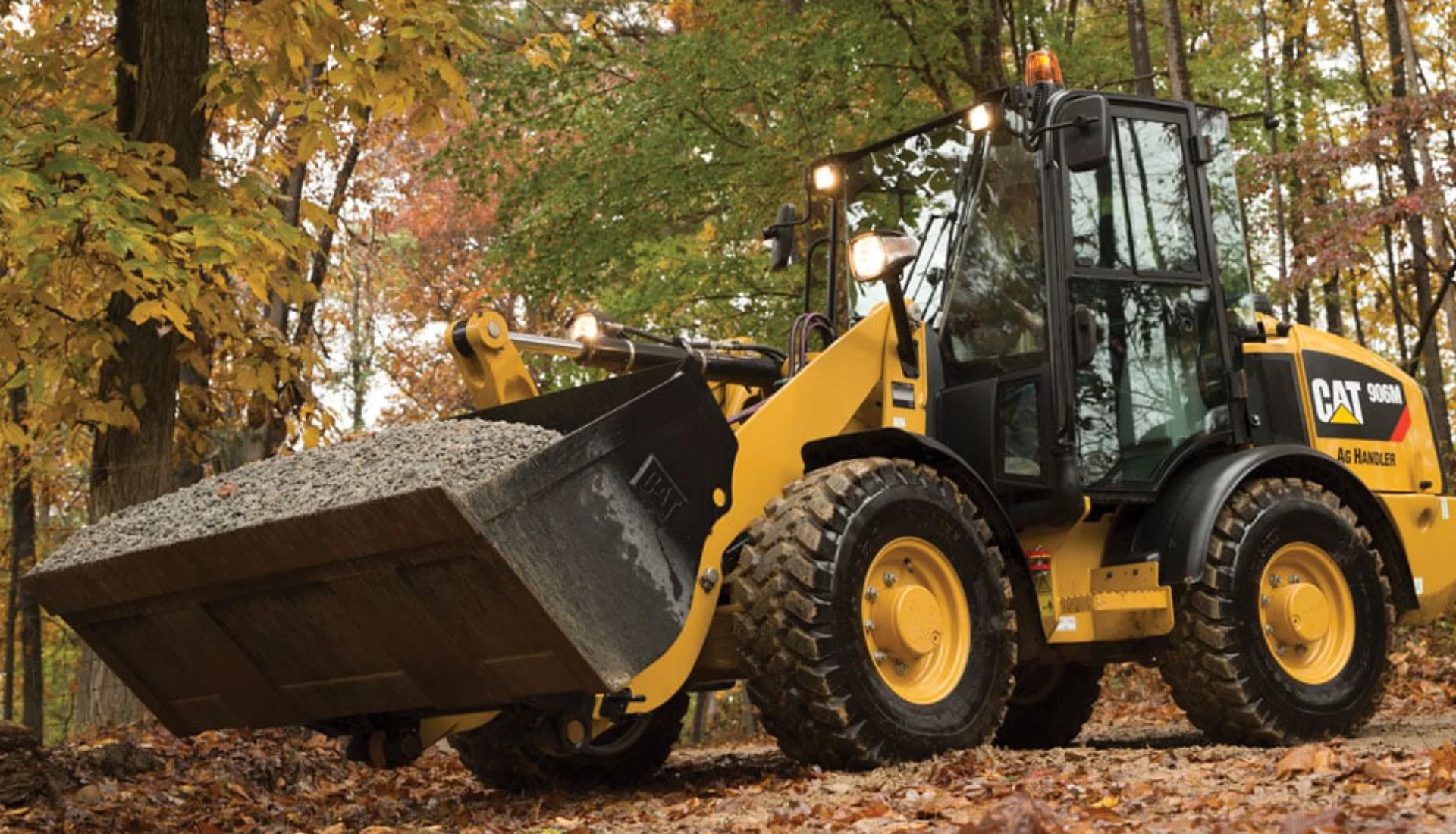

Introduction to Wheel Loaders

Think of wheel loaders as the reliable workhorses that never call in sick. These heavy-duty machines show up across construction sites, mines, and ag operations, hustling materials from point A to point B with minimal drama.

Remember those early loaders from the 60s and 70s? They were basically farm tractors with buckets bolted on as an afterthought. Fast forward to today, and we're looking at engineering marvels that can pivot on a dime while balancing tons of material.

The beauty of a modern wheel loader is how it makes the impossible look routine. Watch one in action at a busy quarry or construction site, and you'll see a ballet of productivity – scooping, lifting, turning, and dumping with precision that would make a surgeon jealous.

What makes this possible? It's the perfect marriage of components: a rock-solid chassis that won't twist under pressure, diesel power plants that deliver torque when you need it most, operator cabs designed for 12-hour shifts without sending operators to the chiropractor, and hydraulic systems that can place materials with millimeter accuracy.

When everything's working in harmony, there's nothing quite like it.

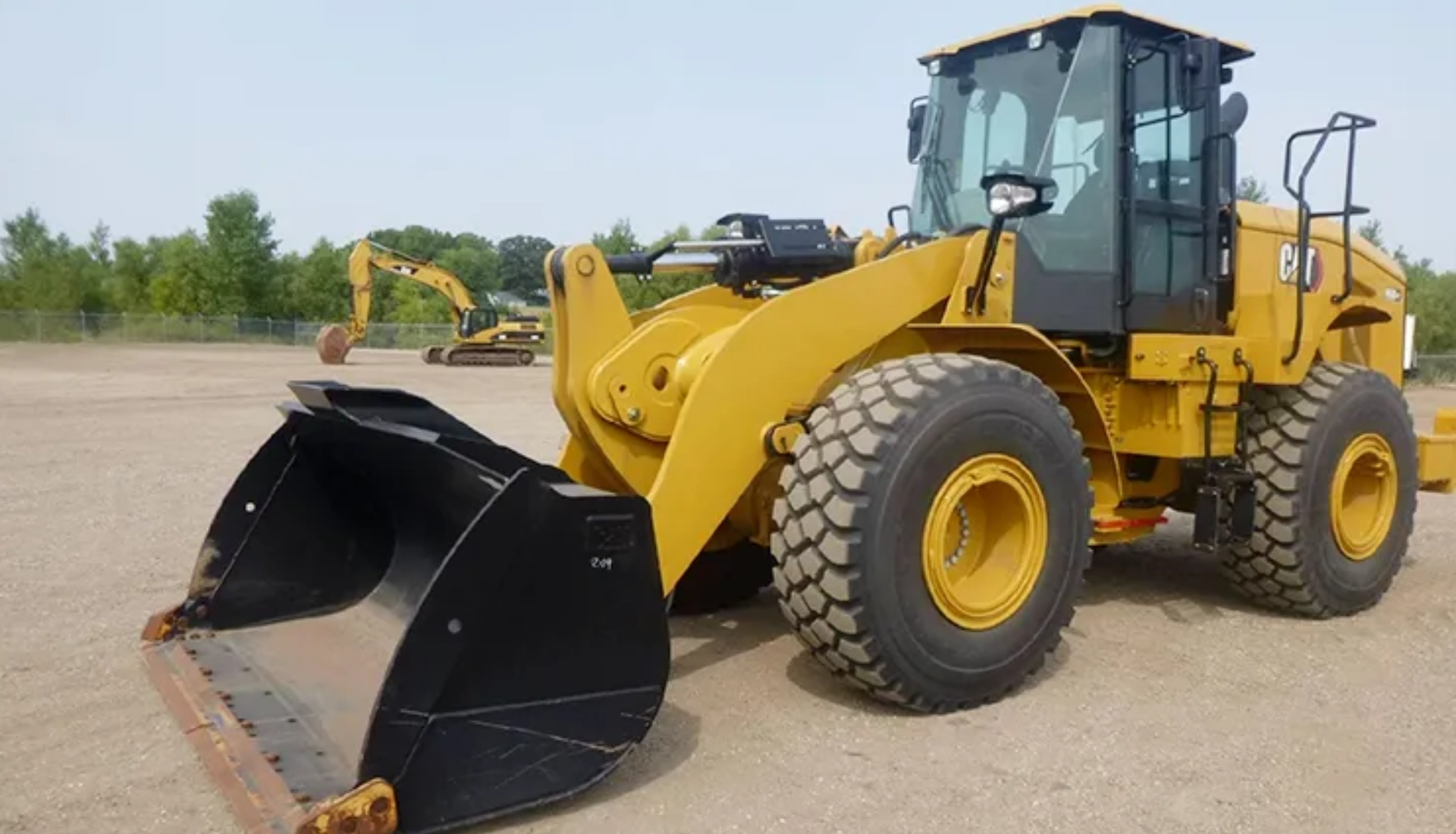

Primary Structural Components

Frame and Chassis

Ever wonder why wheel loaders cost what they do? Take a good look at the frame and chassis—that's where your money's going.

This isn't your average pickup truck frame; we're talking about structural components engineered to handle punishment that would fold lesser machines like origami.

The frame is essentially the loader's skeleton, providing the backbone that keeps everything else in line. Manufacturers don't mess around here, using high-strength steel alloys that can take a beating day in and day out.

Think about it: this structure needs to handle the stress of carrying several tons of material while the machine is twisting, turning, and bouncing over uneven terrain. A loader's frame connects the drivetrain, hydraulics, and operator cab into one cohesive unit that won't fall apart when the going gets tough.

Cut corners here, and you'll pay for it later—usually at the most inconvenient time possible.

Articulation Joint

If you've ever watched a wheel loader navigate a tight job site and wondered "How the heck did it make that turn?"—thank the articulation joint. This engineering marvel sits right in the middle of the machine, allowing it to bend in the center rather than steering like your car.

The articulation design is brilliant for a couple of reasons. First, it gives these massive machines a turning radius that seems to defy physics.

Second, it ensures the rear wheels follow exactly in the tracks of the front wheels—a game-changer when you're working on someone's pristine finished landscaping or in tight quarters.

These joints are built like tanks, using similar high-strength materials as the frame. With decent maintenance, you can expect 7,000 to 17,000 hours of operation before major issues arise.

That said, if you're constantly working in abrasive environments (I'm looking at you, silica sand operations), expect to replace pins and bushings more frequently.

One operator I know calls the articulation joint "the machine's waist"—it's where all the twisting happens, and once it wears out, the whole machine starts showing its age.

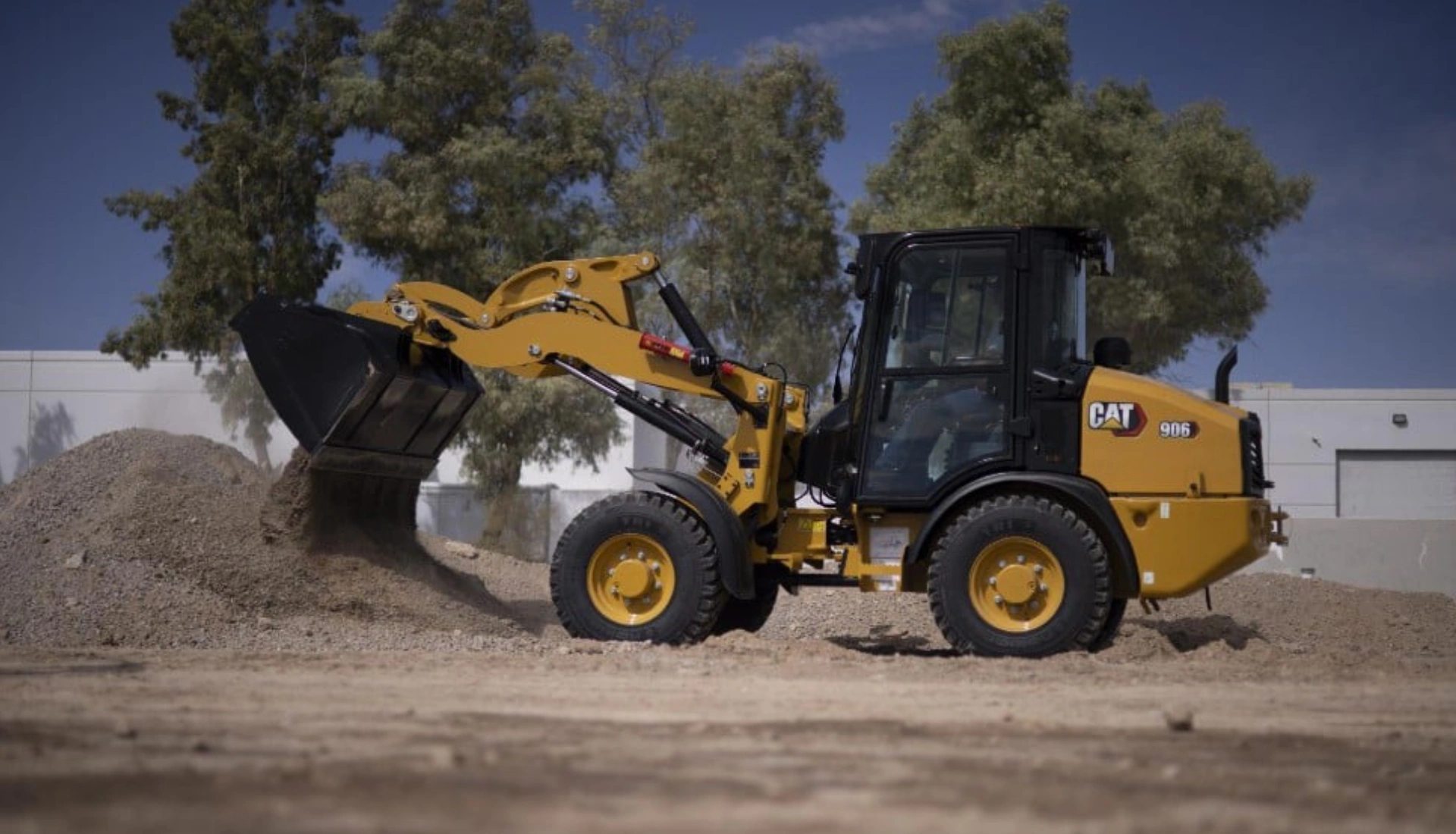

Power Train System

Engine

When it comes to wheel loaders, diesel engines rule the roost—and for good reason. These powerplants deliver the kind of low-end torque that makes moving mountains (or at least large piles of them) possible. It's all about grunt work, not speed.

The horsepower race in wheel loaders is fascinating to watch, especially when you break it down by class:

Compact loaders (the 42-124 hp range) are the nimble athletes of the bunch. They're perfect for urban jobsites where you need to squeeze between buildings or hop on and off sidewalks. Don't let their size fool you—these machines can still move impressive amounts of material relative to their footprint.

Mid-size models (packing 124-269 horses) hit the sweet spot for most construction companies. They've got enough muscle to load trucks all day but won't break the bank on fuel costs. These are the bread-and-butter machines that handle everything from site prep to material staging.

Then there are the big boys—large wheel loaders starting at 225 hp and ranging all the way past 1700 hp for mining monsters. When you see one of these giants move what looks like half a hillside in a single bucket,you understand why mining operations are willing to invest millions in their fleet.

Today's engines are a far cry from the smoke-belching beasts of yesteryear. Modern diesels are surprisingly fuel-efficient and clean-burning, with emissions systems that would have seemed like science fiction twenty years ago.

Manufacturers have had to jump through increasingly complex regulatory hoops while somehow maintaining the performance operators demand—no small feat when you think about it.

Transmission

The transmission might not get the glory, but ask any experienced operator and they'll tell you: a smooth-shifting transmission is the difference between a productive day and an exercise in frustration.

Powershift transmissions dominate the wheel loader market, especially in mid-to-large size machines. These workhorses allow operators to change gears without losing momentum—crucial when you're pushing into a pile of aggregate or carrying a heavy load up a ramp.

The ability to shift under load means you're not constantly starting and stopping, which saves wear and tear on the whole drivetrain.

Hydrostatic transmissions have carved out their own niche, particularly in smaller loaders. The beauty of hydrostatic is the infinitely variable speed control. Need to inch forward at a snail's pace for precision placement? No problem.

Need to sprint across the job site to grab another load? Just push the pedal down. Some operators swear by the responsive feel, while others prefer the more mechanical connection of traditional transmissions.

The new kid on the block is the CVT (Continuously Variable Transmission), and it's making waves. Companies like ZF are pushing these transmissions as the future, claiming fuel savings up to 30% by keeping the engine in its efficiency sweet spot regardless of speed.

That's not marketing hype—it's physics. The engine can operate at its optimal RPM while the transmission handles the variable output.

Powershift, hydrostatic, CVT—they each have their fans and detractors. The right choice depends on your application, operator preference, and yes, your budget.

But remember, a transmission isn't just about moving forward and backward—it's about controlling power delivery precisely when and where you need it.

Axles and Differential

Heavy-duty axles on wheel loaders are engineering marvels that rarely get the attention they deserve. These components transfer massive amounts of power to the wheels while simultaneously supporting loads that would crush lesser equipment.

The differential system is where things get interesting. Open differentials come standard on most loaders and work fine on solid surfaces. But throw in some mud, snow, or loose gravel, and you'll quickly learn why the optional locking differentials are worth every penny.

Here's the real-world breakdown:

Open differentials: Great for pavement and hard surfaces. They allow the wheels to turn at different speeds during turns, which is exactly what you want—until one wheel loses traction and spins uselessly while the other sits still.

Locking differentials: These are the off-road champions. Flip a switch, and both wheels on an axle are forced to turn together. Stuck in mud? Not anymore. Just don't engage them on pavement or concrete unless you enjoy the sound of tires screaming in protest (and the repair bills that follow).

Limited slip differentials: The Goldilocks option. They operate like open diffs most of the time but automatically transfer power if one wheel starts slipping. They're not quite as bombproof as lockers in severe conditions, but they're a solid compromise.

One fleet manager I know swears that differential choice has saved more stuck machines than any other single component. "You can have all the horsepower in the world," he says, "but if you can't get it to the ground effectively, you might as well be driving a golf cart."

Hydraulic System

Hydraulic Pump

If the engine is the heart of a wheel loader, then the hydraulic pump is definitely the machine's muscles. This critical component generates the fluid power that makes all the magic happen—from lifting the arms to tilting the bucket and steering the machine.

Many loaders actually run multiple pumps—it's like having specialized muscle groups rather than asking one system to do everything. Some manufacturers use a dedicated pump just for steering, while others might have separate circuits for implements and auxiliary functions.

You'll encounter two main types in the field: fixed displacement and variable displacement pumps. Fixed displacement pumps are simpler and less expensive, but they're always pumping the same volume regardless of demand—like leaving your garden hose running at full blast even when you're not watering anything.

Variable displacement pumps, on the other hand, are the smart kids in class. They adjust their output based on what the system needs at any given moment. When the operator isn't moving the controls, these pumps can essentially idle, saving fuel and reducing heat.

Ask any fleet manager who's upgraded from fixed to variable pumps, and they'll tell you the fuel savings alone often justify the higher initial cost.

Control Valves

Control valves are the traffic cops of the hydraulic system, directing fluid where it needs to go. They transform those simple joystick movements in the cab into precise bucket and boom actions.

Modern wheel loaders often feature load-sensing systems with sophisticated control valves that would make hydraulic engineers from 30 years ago weep with joy. These systems deliver power on demand rather than constantly circulating maximum pressure fluid through the system.

What does this mean in practical terms? When an operator is simply driving across the yard without moving the bucket, the system automatically reduces flow and pressure. The second they grab that joystick to curl a bucket, full power is instantly available.

It's like having a smart power grid that knows exactly when to deliver electricity to different parts of your house.

One operator I know described the difference between old and new hydraulic systems this way: "The old machines were like trying to paint with a fire hose. These new ones are like using a fine brush—but one that can still knock down walls when needed."

Cylinders (Lift and Tilt)

Hydraulic cylinders are the business end of the system—the parts that actually convert fluid pressure into the mechanical force that moves the loader arms and bucket.

Lift cylinders (also called boom cylinders) handle the heavy lifting, quite literally. These massive rams are responsible for raising and lowering the arms, often supporting several tons of material in the process.

Most loaders use a pair of these cylinders working in tandem for balanced lifting power and as a safety precaution—if one hydraulic line fails, the other cylinder can often support the load long enough for a controlled lowering.

Bucket tilt cylinders control the angle of the bucket, allowing operators to curl back to carry material securely or dump it precisely where needed. These usually work at higher pressures than lift cylinders since they need to generate significant force at the cutting edge of the bucket.

Ever noticed how smooth a skilled operator makes loading look? That's not just experience—it's also sophisticated hydraulic cylinder design that allows for precise control throughout the stroke range.

Hydraulic Fluid

Think of hydraulic fluid as the loader's lifeblood—and treat it with the same respect. Using the wrong fluid or neglecting regular changes is like deciding to put orange juice in your car's gas tank and hoping for the best.

Always stick with the manufacturer's recommended fluid type. These specifications aren't suggestions—they're based on the specific seals, valves, and operating pressures of your particular machine.

The viscosity rating is especially important since it determines how well the fluid flows in different temperatures. Use too thin a fluid, and you'll have leaks and premature component wear. Go too thick, and you'll struggle with cold starts and reduced efficiency.

Environmental regulations have also pushed the development of biodegradable hydraulic fluids, which are worth considering if you're working near waterways or in environmentally sensitive areas. They cost more upfront but can save a fortune if you avoid a spill cleanup.

Typical Operating Pressures and Flow Rates in US Applications

If you want to understand a wheel loader's capabilities, look at its hydraulic pressures and flow rates. These numbers tell you more about what a machine can actually do than almost any other spec.

pie
    title ........Hydraulic System Flow Rate Distribution (GPM)
    "Implement Hydraulics (20-100+ GPM)" : 55
    "Steering Hydraulics (30-40 GPM)" : 25
    "Standard Flow Auxiliary (11-30 GPM)" : 10
    "High Flow Auxiliary (30-50 GPM)" : 10

For implement hydraulics (the system running the lift and tilt functions), compact loaders typically deliver 20-30 gallons per minute (gpm), while the big mining machines can pump over 100 gpm. Operating pressures usually range from 3,000 to 5,000 psi, with high-performance systems pushing 6,000 psi.

Steering systems generally run their own hydraulic circuit, typically flowing 30-40 gpm at pressures around 3,000-3,500 psi. This dedicated circuit ensures that steering remains responsive even when the implement hydraulics are working hard.

Auxiliary hydraulics for powering attachments come in standard flow (11-30 gpm at 3,000-3,500 psi) and high-flow versions (30-50 gpm at up to 4,100 psi). If you're planning to run demanding attachments like cold planers or forestry mulchers, that high-flow option isn't a luxury—it's a necessity.

When you're comparing loader specs, don't just look at the engine horsepower—check out the hydraulic horsepower as well. A machine with well-designed hydraulics will often outperform a higher-horsepower machine with an inferior hydraulic system.

It's not just about generating power; it's about delivering it efficiently where it's needed.

Operator's Cab

Safety Features

Modern wheel loader cabs aren't just boxes with windows anymore—they're rolling fortresses designed to keep operators safe in environments where 50-ton accidents are just waiting to happen.

The ROPS (Roll Over Protection Structure) is non-negotiable on any legitimate machine. This reinforced frame is essentially a survival cell that gives operators a fighting chance if the unthinkable happens and the loader decides to go belly-up.

Paired with this is often a FOPS (Falling Object Protective Structure) that's particularly important in demolition and quarry applications where gravity is not your friend.

Braking systems have come a long way from the prayer-based designs of older machines. Today's wheel loaders feature multiple redundant systems: service brakes for normal stopping, parking brakes for when you're stationary, and emergency brakes for those "oh crap" moments.

Many now incorporate automatic braking systems that can engage if they detect an imminent collision—like having an invisible co-pilot ready to stomp on the brakes.

Visibility improvements have been dramatic in the past decade. The days of massive blind spots and playing peek-a-boo around structural members are (mostly) behind us. Large, panoramic windows are standard, and cameras have proliferated faster than smartphones.

Rearview cameras are now as expected as seatbelts, and 360° camera systems are increasingly common on premium models. These "bird's eye view" systems stitch together multiple camera feeds to create a virtual overhead view of the machine and its surroundings.

Proximity detection takes safety a step further, using sensors to alert operators when personnel or obstacles enter danger zones around the machine. Some systems even automatically adjust machine behavior—slowing travel speed or limiting swing radius when people are detected nearby.

One safety director I know puts it bluntly: "The best safety feature is still an alert, well-trained operator. But these new systems give even the best operators an extra set of eyes and a faster reaction time than any human could manage."

Controls

Control layouts in wheel loaders reflect a fascinating battle between tradition and innovation. While many machines still feature conventional steering wheels, the industry is increasingly embracing joystick steering systems that mount directly to the operator's seat.

These electro-hydraulic joysticks reduce arm fatigue substantially during repetitive loading cycles and provide more precise control than traditional steering wheels.

Some manufacturers have gone all-in on this approach, offering cabs with no steering wheel at all—just dual joysticks that handle both travel and implement functions.

Levers and pedals remain essential for controlling critical functions, but their placement has been refined through countless hours of ergonomic research and operator feedback. The goal is simple: controls should become an extension of the operator's body, requiring minimal thought or effort to manipulate.

Modern display systems have evolved from basic gauges to sophisticated touchscreens that provide real-time data on everything from engine temperature to hydraulic pressures.

These smart displays often integrate with telematics systems to track performance metrics and flag potential issues before they become expensive problems.

The best control layouts achieve a delicate balance—incorporating new technology without overwhelming operators who might run five different machines in a single week.

As one veteran operator told me, "I don't need a spaceship cockpit. I need something I can jump into and be productive with in the first five minutes."

Comfort Features

Let's be honest—comfort features in wheel loaders aren't luxuries; they're productivity tools. An operator who's fighting back pain or struggling to stay cool isn't going to move as much material as someone who's comfortable.

Seating has undergone a revolution, with air-suspension seats becoming standard on most models. These seats offer adjustments for height, fore/aft position, and lumbar support, with premium models adding heating, cooling, and automatic weight adjustment.

The difference between a basic seat and a premium one becomes painfully obvious around hour six of a 12-hour shift.

Climate control systems have also improved dramatically. Modern HVAC systems can maintain comfortable temperatures even when it's 105°F outside or 20° below zero. Proper pressurization systems keep dust at bay, which is not just about comfort but also about preventing respiratory issues over the long term.

The overall ergonomics of today's cabs reflect a growing recognition that operator comfort translates directly to productivity. Manufacturers have worked hard to reduce noise and vibration levels, improve sightlines, and ensure that frequently used controls fall naturally under the operator's hands.

One fleet manager summed it up perfectly: "The extra $5,000 for the premium cab package pays for itself in the first year through reduced operator fatigue and increased productivity. It's also the difference between having operators fight over who gets to run a machine versus who has to run it."

Technological Integrations

The modern wheel loader cab is more computer workstation than machine control center these days, with technological integrations that would have seemed like science fiction just 15 years ago.

Telematics and monitoring systems have revolutionized fleet management by providing real-time data on everything from fuel consumption to operator behavior. These systems can track idle time, detect aggressive operation, monitor fuel efficiency, and even predict maintenance needs before components fail.

For fleet managers, it's like having an assistant who never sleeps and remembers every detail about every machine.

Payload weighing systems have transformed loading operations by providing accurate measurement of material being moved. Operators can see exactly how much weight is in the bucket, eliminating guesswork and preventing both under-loading (inefficient) and overloading (potentially unsafe and illegal on public roads).

Advanced systems can wirelessly transmit this data to office systems, creating seamless integration with billing and inventory management.

Assistance systems continue to blur the line between operator skill and machine intelligence. Return-to-dig functions automatically position the bucket at the optimal height and angle for the next pass.

Boom kickout stops the arms at predetermined heights for consistent loading into trucks or hoppers. Auto-lift functions adjust engine RPM automatically based on hydraulic demand.

Tire pressure monitoring systems might seem like a small addition, but they address one of the most commonly overlooked maintenance items. Proper tire inflation is critical for stability, traction, and tire longevity—and now operators can monitor it without leaving the cab.

Not all technologies are created equal, though. As one skeptical site supervisor told me, "Half these gadgets are solutions looking for problems. But the other half? They're genuine game-changers that make everyone safer and more productive."

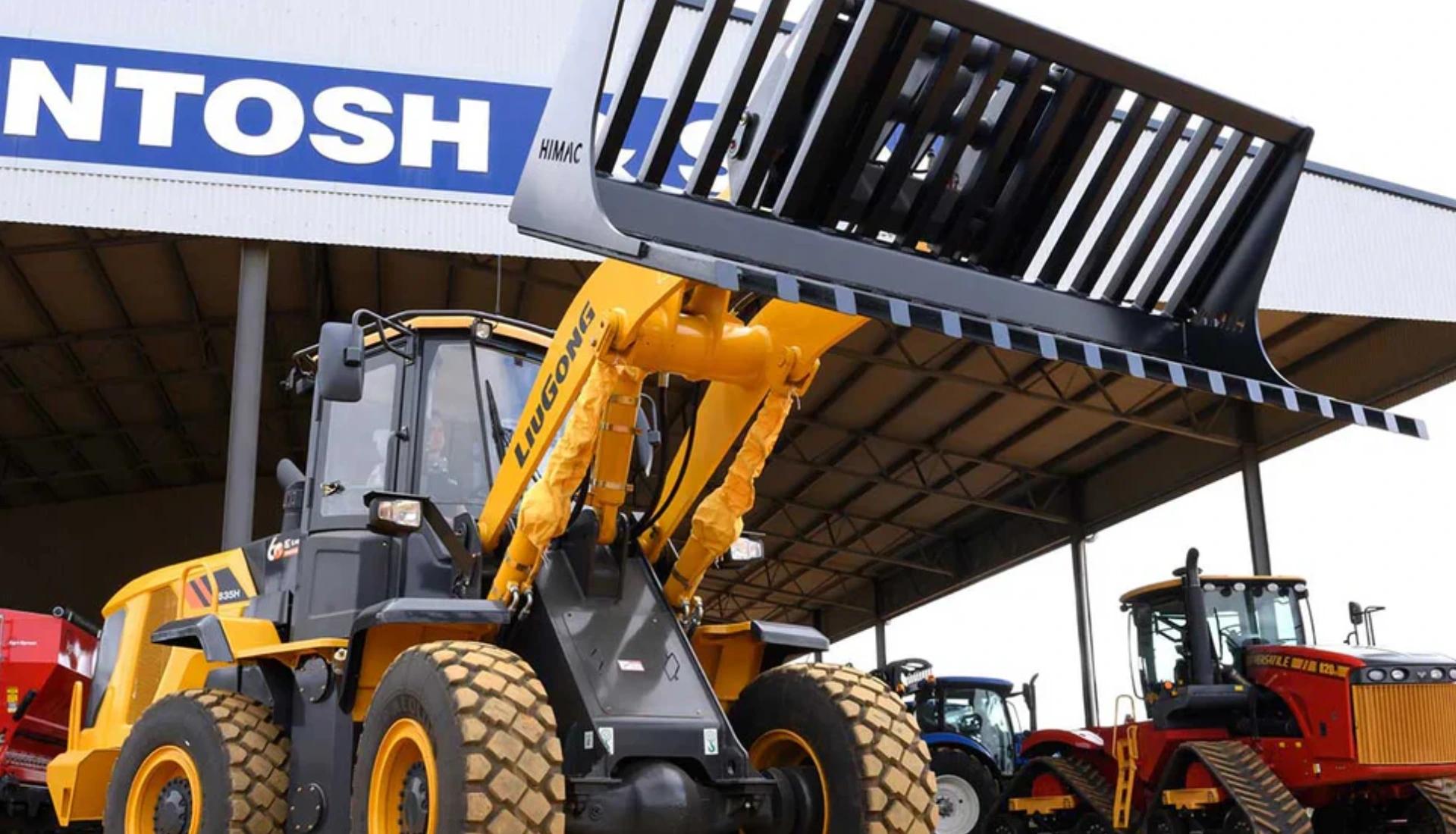

Working Attachments: Buckets

General Purpose Buckets

The general purpose bucket is the jack-of-all-trades in the wheel loader world—kind of like your favorite pair of jeans that work for both yard work and casual Friday.

They're engineered with a balanced profile featuring moderate side plates and floor angles, making them versatile enough to handle soil, gravel, sand, and most aggregates without breaking a sweat.

The cutting edge typically has a flat or slightly curved profile, which gives you clean scraping capability while still filling efficiently on forward passes. It's this versatility that makes the GP bucket the default choice for most operations.

Sizing follows predictable patterns based on the loader class:

• Small loaders typically run buckets in the 0.8 to 2.0 cubic yard range
• Medium machines step up to 1.5 to 6.5 cubic yard capacities
• Large loaders start around 3.75 cubic yards and can exceed a whopping 57 cubic yards in specialized mining applications

Ever seen one of those massive mining buckets up close? You could park a small car inside and still have room for groceries. The sheer scale is mind-boggling.

Light Material Buckets

When handling low-density materials like mulch, wood chips, or snow, standard buckets leave a lot of capacity on the table. Enter the light material bucket—designed specifically to maximize volume when weight isn't the limiting factor.

These buckets feature larger capacity than their general purpose counterparts, often with reinforced upper edges to help contain those fluffy, lightweight materials that want to spill over the top during transport. The goal is simple: move more stuff per trip.

The actual cubic yard capacity varies significantly by manufacturer and machine size, but the rule of thumb is that light material buckets typically offer 15-30% more volume than a general purpose bucket for the same machine.

This can make a massive difference in productivity when you're moving mountains of bark mulch or clearing snow from a parking lot.

One landscaping contractor I know switched from a general purpose to a light material bucket for mulch loading and increased his per-cycle volume by almost 40%. "The machine wasn't working any harder," he said, "but we were finishing jobs about an hour faster on average."

Rock Buckets

Rock buckets are the heavyweight champions of the attachment world—built for the toughest, most abrasive materials you can throw at them.

These aren't just reinforced general purpose buckets; they're completely different animals designed from the ground up for materials that would destroy standard equipment.

The construction is significantly beefier, with heavy-duty reinforcement throughout, especially on the cutting edge and wear plates. Many feature replaceable teeth that can be swapped out when worn instead of replacing the entire cutting edge.

These buckets often incorporate aggressive teeth configurations to better penetrate tightly packed or rocky material. The trade-off for this ruggedness is slightly reduced capacity compared to general purpose buckets of similar width, as the additional reinforcement adds weight that counts against the loader's lifting capacity.

Capacity figures vary widely depending on the specific application and machine size. A quarry operator running 50-ton wheel loaders told me he accepts the capacity reduction without complaint: "I'd rather move slightly less material per pass than deal with bucket repairs every other week. These rocks eat standard buckets for breakfast."

The selection of the appropriate bucket type for a wheel loader is absolutely crucial for optimizing the machine's performance and ensuring maximum efficiency for the specific tasks and materials being handled.

Using the right bucket not only improves productivity but also helps to prevent damage to the wheel loader and ensures the safe and effective movement of materials.

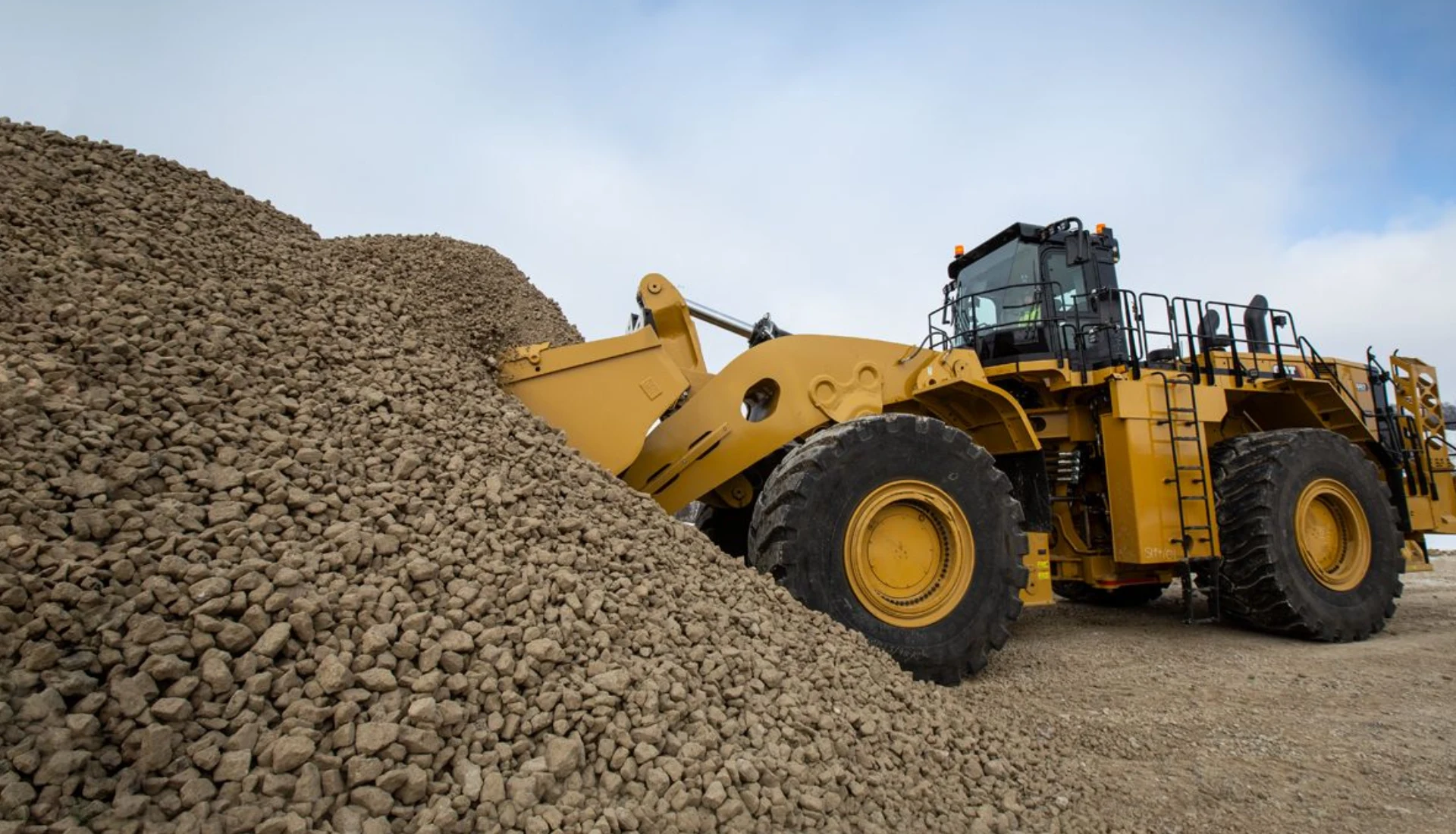

Undercarriage and Wheels/Tires

Typical Tire Types

If you think tires are just round rubber things, spend a day in a tire dealer's office watching construction companies burn through their equipment budgets replacing loader tires.

These specialized components can easily cost $5,000-$20,000 per tire for larger machines, making tire selection and management crucial for controlling operating costs.

Three main tire types dominate the wheel loader market, each with distinct advantages:

Radial tires feature rubber-coated steel cables that arc from bead to bead beneath the tread. They excel in applications involving higher speeds or longer travel distances thanks to superior heat dissipation.

The flexible sidewalls provide better traction on finished surfaces but can be more vulnerable to sidewall cuts in rough conditions. The payoff? Typically 20-30% longer tread life compared to bias tires when used in the right application.

Bias ply tires are the traditional workhorses, constructed with crisscrossed fabric layers (usually polyester and nylon). Their thicker sidewalls provide better puncture resistance and a more stable feel, making them ideal for rough terrain like quarries and demolition sites.

They're also generally easier and less expensive to repair when damaged. Many operators prefer the predictable feel of bias tires, especially in applications involving significant side-loading.

Solid tires represent the nuclear option for puncture-prone environments. Made entirely of rubber, they're completely impervious to flats but come with significant trade-offs: higher initial cost, increased machine stress due to the lack of shock absorption, and reduced traction in many conditions.

They make the most sense in scrapyards, recycling facilities, and other environments where sharp objects are a constant hazard.

Tread Patterns

Wheel loader tires typically use L-type designations, specifically designed for the unique demands these machines face—heavy loads, relatively slow speeds, and the need for stability during lifting operations.

The numerical designation that follows the L (like L-2, L-3, L-4, L-5) tells you about tread depth and application suitability. Higher numbers indicate deeper treads for more aggressive applications.

An L-2 might be perfect for finished surfaces and light-duty applications, while an L-5 is built for the most demanding, cut-prone environments like rock quarries.

You'll also see smooth tread variations marked with an 'S' (L-3S, for example). These sacrifice some traction for better wear resistance on abrasive surfaces—a worthwhile trade-off in certain applications.

The actual tread pattern matters tremendously for performance. Bar lugs offer good versatility across surface types. Block patterns excel in soft underfoot conditions. Swept designs provide a good balance of traction, self-cleaning, and wear resistance.

Each pattern represents a carefully engineered compromise among traction, wear, ride quality, and cleaning ability.

One quarry manager I spoke with switched from an L-4 block pattern to an L-5 bar lug and immediately saw tire life increase by nearly 40%. "The deeper tread was part of it," he explained, "but the pattern itself just worked better with our specific material and operating conditions."

Factors Influencing Tire Selection and Lifespan in US Conditions

Choosing the right tires for a wheel loader involves weighing numerous factors against your specific operating conditions.

Application is the starting point—a loader moving dirt around a relatively flat construction site has very different needs than one loading shot rock in a quarry. The material you're handling directly influences the required cut and impact resistance.

Terrain characteristics create different demands—soft soil, hard-packed gravel, finished concrete, or jagged rock each call for different tire characteristics. Operating on abrasive surfaces? Tread compound matters more than pattern. Working in mud? Self-cleaning ability becomes crucial.

Travel distance and speed are often overlooked but vitally important. Machines that frequently travel longer distances generate more heat in their tires, making heat dissipation a priority (advantage: radials).

Machines that rarely move more than a few hundred feet might prioritize puncture resistance instead (advantage: bias).

Proper tire pressure maintenance might be the single most important factor in maximizing tire life. Both under and over-inflation accelerate wear and can lead to catastrophic failures. Some fleets have seen 15-20% increases in tire life simply by implementing rigorous pressure checking programs.

Operator behavior profoundly influences tire longevity. Aggressive operation—spinning tires, making sharp turns at speed, or dropping loads from excessive heights—can cut tire life by half or more. The best tires in the world can't overcome an operator who treats the machine like a NASCAR driver.

Environmental factors also play a role. Extreme temperatures affect rubber compounds and inflation pressure. Exposure to oils, solvents, or corrosive materials can degrade rubber compounds prematurely. Even UV exposure from sunlight can age tires over time.

As one fleet manager told me after switching to a comprehensive tire management program: "We used to think of tires as consumables—now we treat them as assets to be managed. Our tire cost per operating hour dropped by almost 30% the first year."

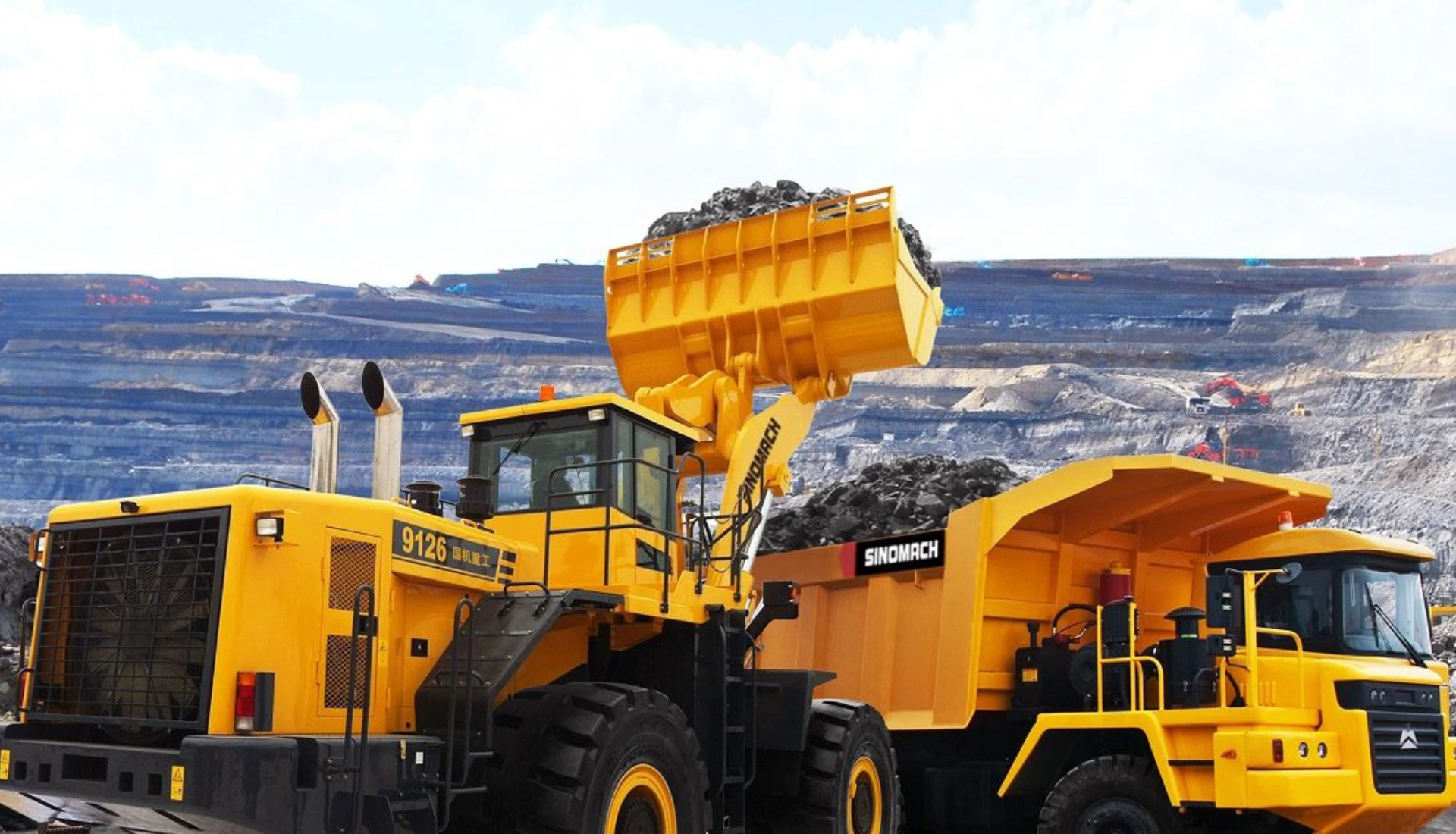

Maintenance Requirements and Schedules

Typical Maintenance for Major Components

Let's get something straight right off the bat: neglecting maintenance on a wheel loader isn't being frugal—it's writing checks your future self will have to cash, with interest. These machines demand consistent attention to their major components.

Engine maintenance is the backbone of your preventive program. Routine checks of fluid levels are the bare minimum—don't even think about skipping them. Follow the manufacturer's schedule for oil and filter changes religiously.

I've seen operations try to stretch these intervals to save a few bucks, only to end up with a $30,000 engine rebuild that could have been avoided. Air and fuel filters need regular replacement too, especially in dusty environments where they can clog faster than you'd expect.

The hydraulic system requires a similar level of vigilance. Regular fluid checks and filter replacements prevent the silent killer of hydraulic systems: contamination. A single speck of dirt can act like sandpaper inside precision hydraulic components, carving microscopic damage with each cycle until catastrophic failure occurs.

Think that's exaggerating? Ask anyone who's had to replace a $4,000 hydraulic pump because they skimped on a $50 filter.

Transmission and drivetrain components need love too. Regular fluid checks and changes keep these complex assemblies running smoothly. The differential oil often gets overlooked, but it's protecting gears that would cost a small fortune to replace.

Use the recommended oil type and change intervals—the manufacturer spent millions developing these specifications for a reason.

Brake systems are literally what stand between safe operation and potential disaster. Regular checks of fluid levels and pad wear are non-negotiable. One contractor told me, "I can live with an occasional hydraulic leak, but I lose sleep over potential brake failures."

Tire maintenance might seem simple, but it's shockingly easy to get wrong. Proper inflation is the single most important factor in maximizing tire life—too high, and you'll have premature center wear; too low, and you'll destroy sidewalls and increase fuel consumption.

Regular rotation helps ensure even wear, especially for machines that frequently operate in one direction more than another.

The articulation joint and linkages are the pivot points for the entire machine. Regular lubrication is their lifeblood. Skip this maintenance, and you'll hear the results before you see them—squeaks and groans that eventually turn into expensive repairs and downtime.

Recommended Schedules

Maintenance schedules for wheel loaders aren't suggestions—they're survival guides. Ignore them at your peril.

gantt
    title Wheel Loader Maintenance Schedule
    dateFormat  YYYY-MM-DD
    axisFormat %d

    section Daily
    Check fluids              :daily1, 2025-01-01, 1d
    Inspect tires             :daily2, after daily1, 1d
    Test brakes               :daily3, after daily2, 1d
    Check for leaks           :daily4, after daily3, 1d

    section Weekly (50 Hours)
    Check coolers             :weekly1, 2025-01-07, 1d
    Check V-belt              :weekly2, after weekly1, 1d
    Drain water separator     :weekly3, after weekly2, 1d
    Lubricate components      :weekly4, after weekly3, 1d

    section 100 Hours
    Change engine oil/filter  :100h1, 2025-01-14, 1d
    Replace fuel filter       :100h2, after 100h1, 1d
    Check connections         :100h3, after 100h2, 1d

    section 500 Hours
    Replace air filter        :500h1, 2025-02-01, 1d
    Change axle oil           :500h2, after 500h1, 1d
    Drain condensation        :500h3, after 500h2, 1d

    section 1000-1500 Hours
    Change hydraulic oil      :1500h1, 2025-03-01, 1d
    Replace breather filter   :1500h2, after 1500h1, 1d
    Clean heating filters     :1500h3, after 1500h2, 1d

    section Seasonal
    Check antifreeze          :season1, 2025-01-01, 7d
    Test heating/cooling      :season2, 2025-04-01, 7d
    Adjust tire pressures     :season3, 2025-07-01, 7d

Daily pre-shift inspections should be as automatic as your morning coffee. Check all fluid levels (engine oil, hydraulic fluid, coolant, transmission fluid), inspect tires for damage and proper pressure, test lights and signals, verify attachments are secure, and check that brakes respond properly.

Give the machine a good once-over looking for leaks, damaged hoses, or anything that looks out of place. This routine takes maybe 15 minutes but can save days of downtime.

Weekly maintenance (typically at the 50-hour mark) builds on your daily checks but digs a little deeper. Now you're looking at coolers for contamination, checking V-belt tension, draining water from fuel separators, and lubricating all those critical points—driveshaft bearings, steering cylinders, articulation joints, and lift arm linkages.

While you're at it, give the electrical system a thorough inspection. One fleet manager I know swears this 50-hour interval is "where you catch the little problems before they become big ones."

The 100-hour service is where things get serious. You're changing engine oil and filters, replacing fuel filters, and giving the brake pads a thorough inspection. This is also when you should check all those critical screw connections—vibration has a way of loosening what you thought was tight.

Pay special attention to the engine mounts, steering and hydraulic systems, loader unit pins, axle mounts, and the driveshaft. One loose bolt can cascade into catastrophic failure.

At 500 hours, you're looking at replacing the air filter insert and changing axle oils. This is also a good time to drain any condensation from the hydraulic tank, especially if you're running biodegradable oils (which tend to be more hygroscopic than conventional oils).

The 1,000-1,500 hour service is the big one—hydraulic oil changes, breather filter replacement, and a deep cleaning of the heating system's dust filters. This is preventive maintenance with a capital "P"—expensive up front but nothing compared to the cost of major component failures.

Don't forget seasonal maintenance when transitioning between temperature extremes. Antifreeze mixtures need checking before winter arrives. Cooling systems need thorough inspection before summer heat hits. Batteries that seemed fine in mild weather often reveal their weaknesses in extreme cold.

Here's the golden rule of maintenance schedules: Always, ALWAYS defer to the manufacturer's Operations and Maintenance Manual (OMM) for your specific model.

The engineers who designed your machine didn't create those schedules for their health—they created them for the health of your machine and, by extension, your bottom line.

One maintenance manager I interviewed had a sign in his shop that said it best: "The most expensive maintenance is the maintenance you skip." Truer words were never hung on a shop wall.

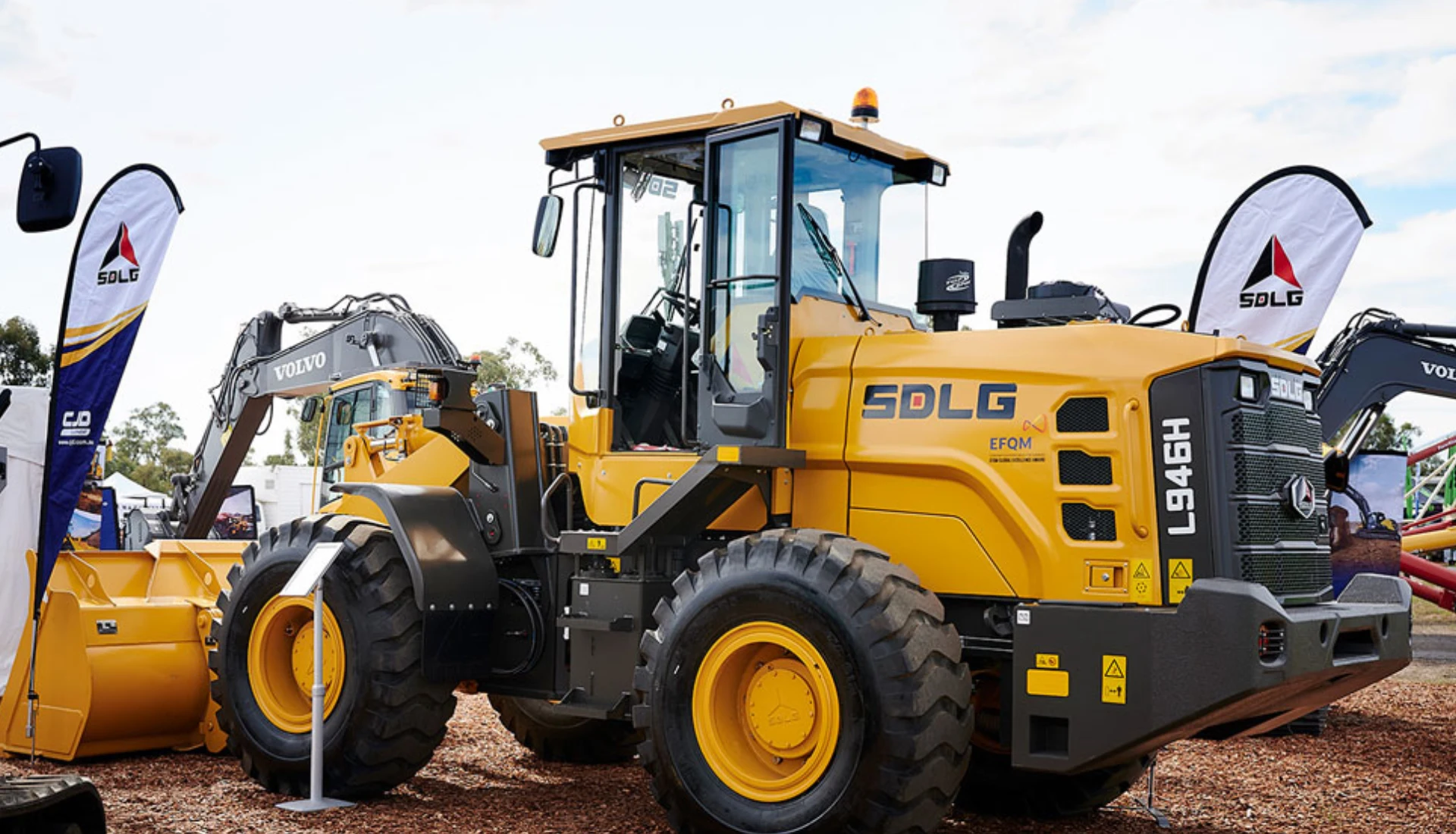

Operational Lifespan and Fuel Consumption

Typical Operational Lifespan (in hours)

When someone asks how long a wheel loader lasts, my first response is usually, "How long is a piece of string?" It's not that I'm being difficult—it's just that so many variables come into play.

The industry standard suggests a well-maintained wheel loader should deliver about 10 years or 7,000-12,000 working hours before major overhauls or replacement becomes necessary. But I've seen machines hit 20,000 hours still running strong, and others that were basket cases by 5,000 hours.

What makes the difference? Maintenance discipline tops the list. Machines that receive by-the-book preventative maintenance consistently outlast those serviced on the "run it till it breaks" plan. This isn't rocket science, but you'd be surprised how many operations still haven't gotten the memo.

Application intensity creates huge variations in longevity. A loader stacking mulch at a garden center will naturally outlast its twin working the face of a quarry or handling abrasive materials in a foundry. The harder you push a machine, the faster it accumulates wear.

Operator skill is the wildcard that maintenance managers hate to discuss but can't ignore. A skilled operator who understands machine limitations can add thousands of hours to a loader's life.

Meanwhile, the guy who treats the throttle like an on-off switch and uses the bucket as a battering ram can send a perfectly good machine to an early grave.

The operating environment plays a significant role too. Extreme temperatures, high humidity, salt exposure, and abrasive dust all accelerate wear. A machine working indoors in a climate-controlled warehouse is living the high life compared to one battling sub-zero temperatures in a salt mine.

Usage patterns matter as well. Constant short-cycle loading creates different wear patterns than machines that spend more time traveling. Cold starts are particularly hard on engines—a machine that's started once and runs all day will typically outlast one that's frequently turned on and off.

Remember that individual components have their own lifespans too. Tires might need replacement every 2,000-4,000 hours. Buckets wear out. Articulation joints need rebuilding. The engine might need an overhaul while the transmission still has plenty of life left.

One fleet manager shared his secret to maximizing loader life: "Buy quality, maintain religiously, train operators properly, and repair small issues before they become big ones. Do all that, and your machine will still be making you money when your competitors are shopping for replacements."

Average Fuel Consumption Rates

Fuel consumption in wheel loaders isn't just an environmental concern—it's a major factor in your operating costs. The numbers vary widely based on machine size, engine technology, application, and operator behavior.

Compact wheel loaders typically sip fuel at a rate of 2-5 gallons per hour (gph). These machines are the fuel economy champions of the loader world, making them ideal for operations where fuel costs are a significant concern.

Mid-size loaders generally burn 4-8 gallons per hour. The Volvo L150H, a popular mid-sizer, has been reported to run at around 4 gph in certain applications—impressive efficiency for its capability class.

Large wheel loaders show the most variation, ranging from about 7 gph to over 15 gph depending on the model and application intensity. At the extreme end, the mining-class machines can consume fuel at rates that would make a truck stop owner giddy.

The smartest operations look beyond simple gallons-per-hour metrics to evaluate efficiency. "Tons per gallon" provides a more meaningful efficiency measure—after all, you're not buying fuel to move the loader; you're buying it to move material.

Manufacturers are acutely aware that fuel represents a massive portion of lifetime operating costs. This has driven development of more efficient engines, advanced hydraulic systems that minimize wasted energy, operator coaching features that encourage efficient behavior, and automatic shutdown systems that prevent wasteful idling.

One quarry operator I spoke with installed telematics across his fleet and discovered that one of his most productive operators was also burning 20% less fuel than others moving similar material.

"We didn't realize how much operator behavior affected fuel economy until we had the data in front of us," he said. "Now we train everyone to operate more like him."

When comparing loader specs, don't fixate solely on the purchase price. A 10% difference in fuel efficiency might seem small, but multiply that across thousands of operating hours, and suddenly you're talking about tens of thousands of dollars over the machine's lifetime.

Conclusion

Let's call it like it is: wheel loaders are engineering marvels hiding in plain sight.

From the high-strength steel frame that takes a beating day after day to the sophisticated hydraulics that can place tons of material with surgical precision, these machines represent decades of practical evolution driven by real-world demands.

What makes them tick? A perfect marriage of brute strength and finesse – diesel engines providing the muscle, smart transmissions controlling the power delivery, and operators orchestrating the show from increasingly comfortable command centers.

The difference between a wheel loader that lasts 12,000 hours and one that limps to 7,000 isn't rocket science – it's consistent maintenance and skilled operation. Similarly, the gap between burning 5 gallons per hour versus 8 isn't just about engine size – it's about how efficiently the entire system works together.

As technology continues pushing forward with electrification, automation, and advanced telematics, one thing remains constant: wheel loaders will continue earning their keep as the versatile, reliable workhorses of American construction sites.

FAQ
