7 Critical Parts of a Log Splitter

Most buyers fixate on maximum tonnage when shopping for log splitters, but cycle time and hydraulic pump design often determine real-world productivity. A well-built 22-ton with a two-stage pump will outperform a cheaply constructed 28-ton that leaves you waiting on slow ram returns. Efficiency isn’t just about force—it’s about how quickly and consistently you can split without unnecessary downtime.

This guide explains hydraulic dynamics, parts of a log splitter, and key performance metrics for handling anything from pine to hickory:

Key parts of a log splitter include the engine or motor (powers the system), hydraulic pump (generates pressure), cylinder (drives the splitting ram), wedge (splits the log), beam (holds the components), and control valve (manages fluid flow). Each part enables safe and efficient log splitting.

Anatomy of a Log Splitter: Component Design and Function

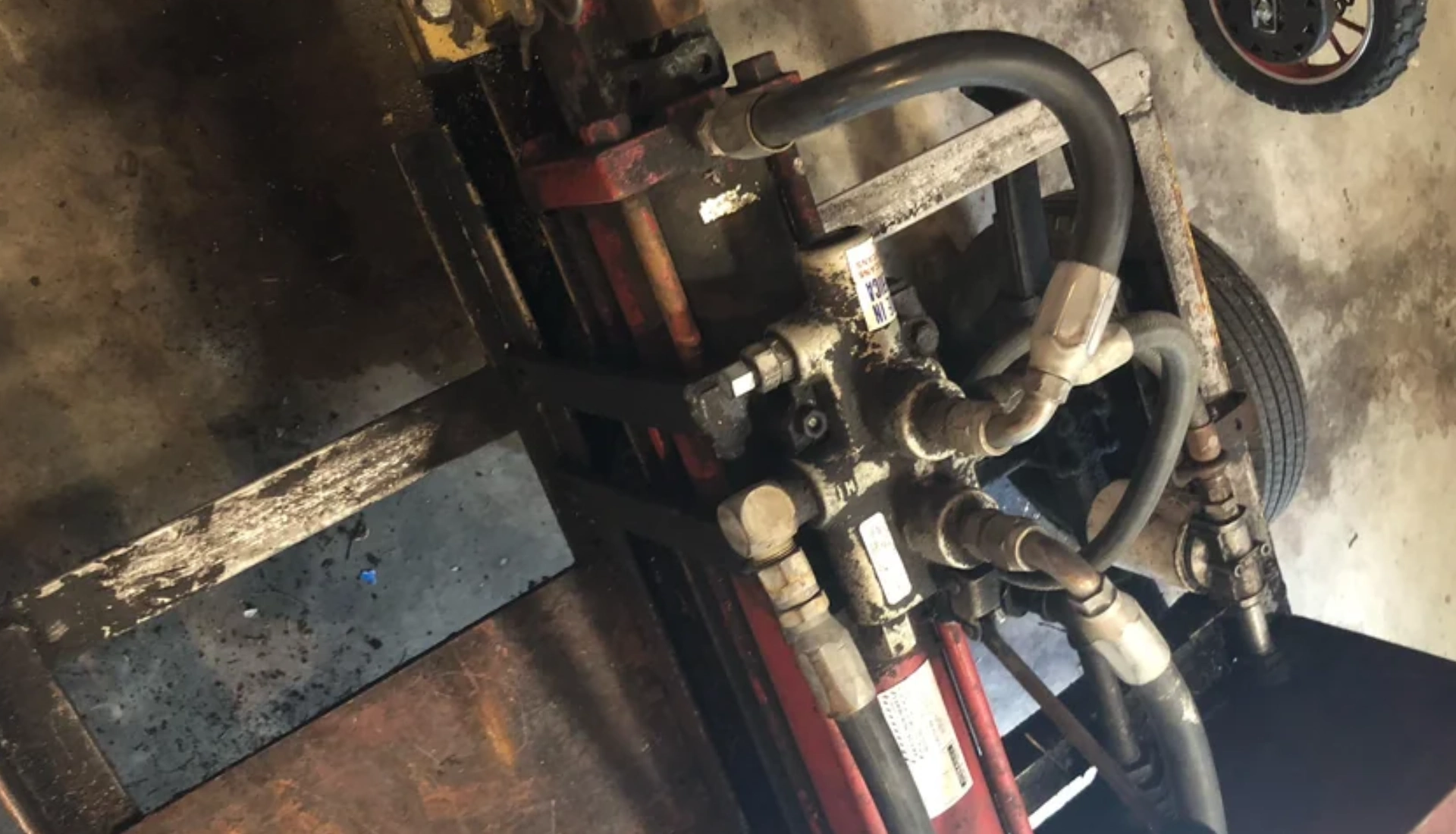

The Hydraulic System

If you want to understand log splitters, you've got to understand hydraulics. It's the beating heart of the whole operation—the system responsible for turning engine power into log-splitting force. Let's break down this liquid-powered marvel piece by piece.

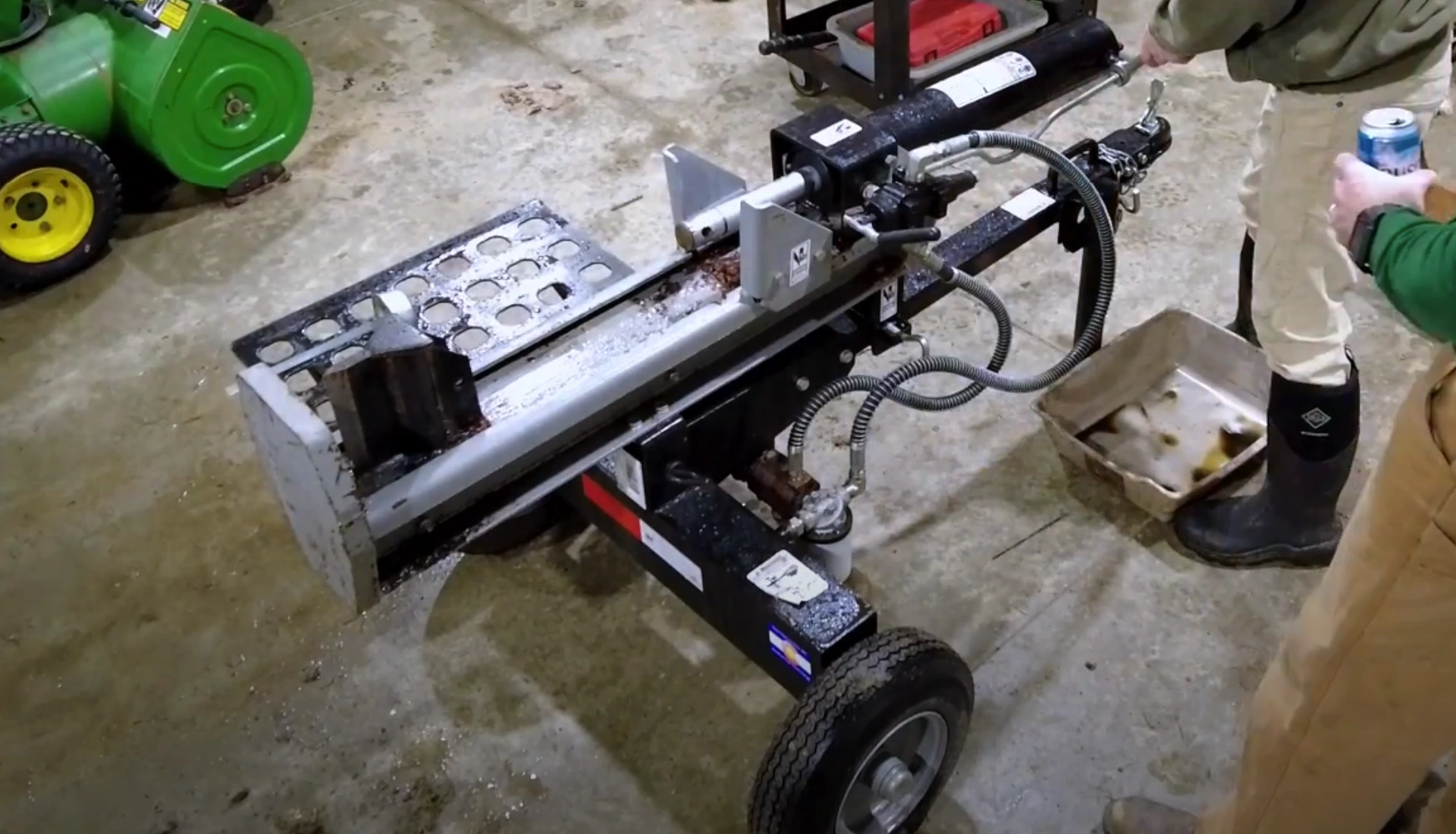

Hydraulic Cylinder

The hydraulic cylinder is where the magic happens—where fluid pressure transforms into the mechanical force that makes logs wish they'd never left the forest. It's essentially a glorified piston, but the details matter.

Bore size typically runs from 4 to 5 inches or more—and yes, size matters here. The stroke length (how far the ram travels) usually falls between 24 and 30 inches, determining how big a log you can tackle. The rod diameter affects durability and resistance to bending under load.

For perspective, a modest 4-inch bore cylinder running at 2500 PSI can generate over 31,000 pounds of force. Bump that up to a 5-inch bore, and suddenly you're looking at 49,000 pounds. That's enough to make even the most stubborn hickory reconsider its life choices.

These cylinders are built from high-grade steel because, well, they have to be. Many have protective coatings on critical components because a rusted cylinder is about as useful as screen doors on a submarine.

The real connoisseurs in the crowd might appreciate knowing the difference between double-acting and single-acting cylinders. Double-acting uses hydraulic pressure for both extending AND retracting, making everything faster and more efficient.

Single-acting cylinders only use hydraulic pressure for the extension stroke and rely on gravity or springs for the return trip—kind of like how I can run to the refrigerator but need motivation to get back to the couch.

Want more power? Get a bigger bore. Need to split longer logs? Get a longer stroke. It's really that simple.

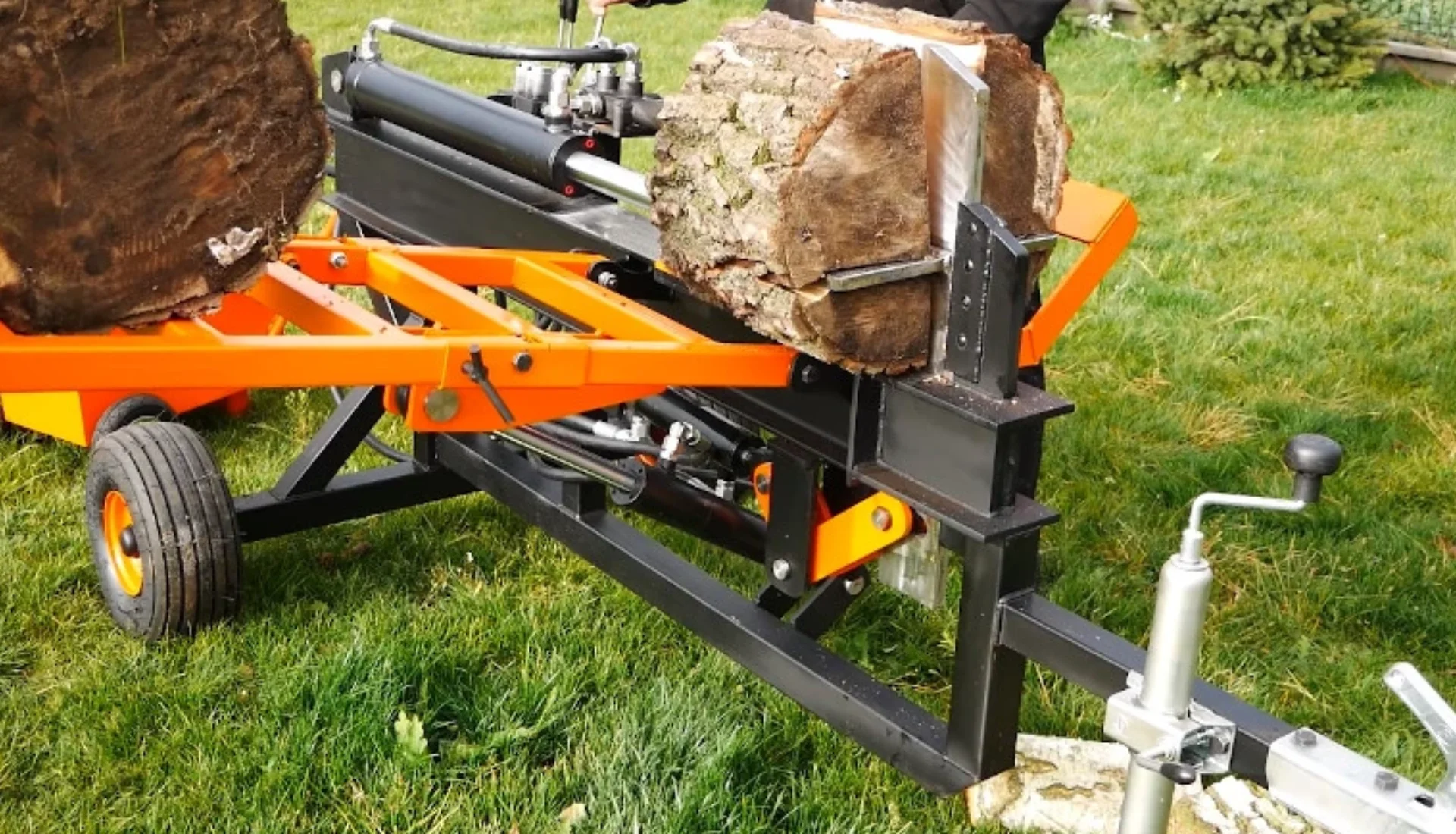

Hydraulic Pump

Think of the hydraulic pump as the power source that keeps fluid moving through the system. It's driven by either an engine or an electric motor, and comes in several flavors.

Gear pumps are the blue-collar workhorses of the splitter world—common, relatively inexpensive, and using two meshing gears to move hydraulic fluid. They're about as complicated as a pair of gears can be, which is to say, not very.

The real MVPs, though, are two-stage pumps. These clever devices offer high flow at low pressure for quick cylinder movement when there's no resistance, then automatically switch to low flow at high pressure when the cylinder meets resistance (like, you know, a log).

This is achieved by essentially cramming two gear pumps into one housing with a bypass valve. When things get tough, a pressure-sensing valve redirects the flow to maximize force where it's needed.

For the heavy-duty crowd, there are piston pumps, typically found on commercial splitters that need serious pressure. Vane pumps occupy a middle ground for moderate applications.

Performance-wise, we're looking at two key metrics: GPM (Gallons Per Minute) and PSI (Pounds per Square Inch). GPM tells you how quickly the pump moves fluid, directly affecting cycle time—higher is faster. PSI indicates maximum pressure, determining splitting force—higher means more tonnage.

Two-stage pumps are the industry's clever solution to the speed vs. power dilemma. They're like having two gears on a bicycle—high flow/low pressure for initial rapid movement, then shifting to low flow/high pressure when it's time to do the actual splitting.

The transition point between these stages is critical for balancing speed and force efficiently.

And here's something many people overlook: you need to match the pump's GPM rating to your engine's horsepower. Slap too big a pump on too small an engine, and you've got a recipe for disappointment and possibly a blown engine.

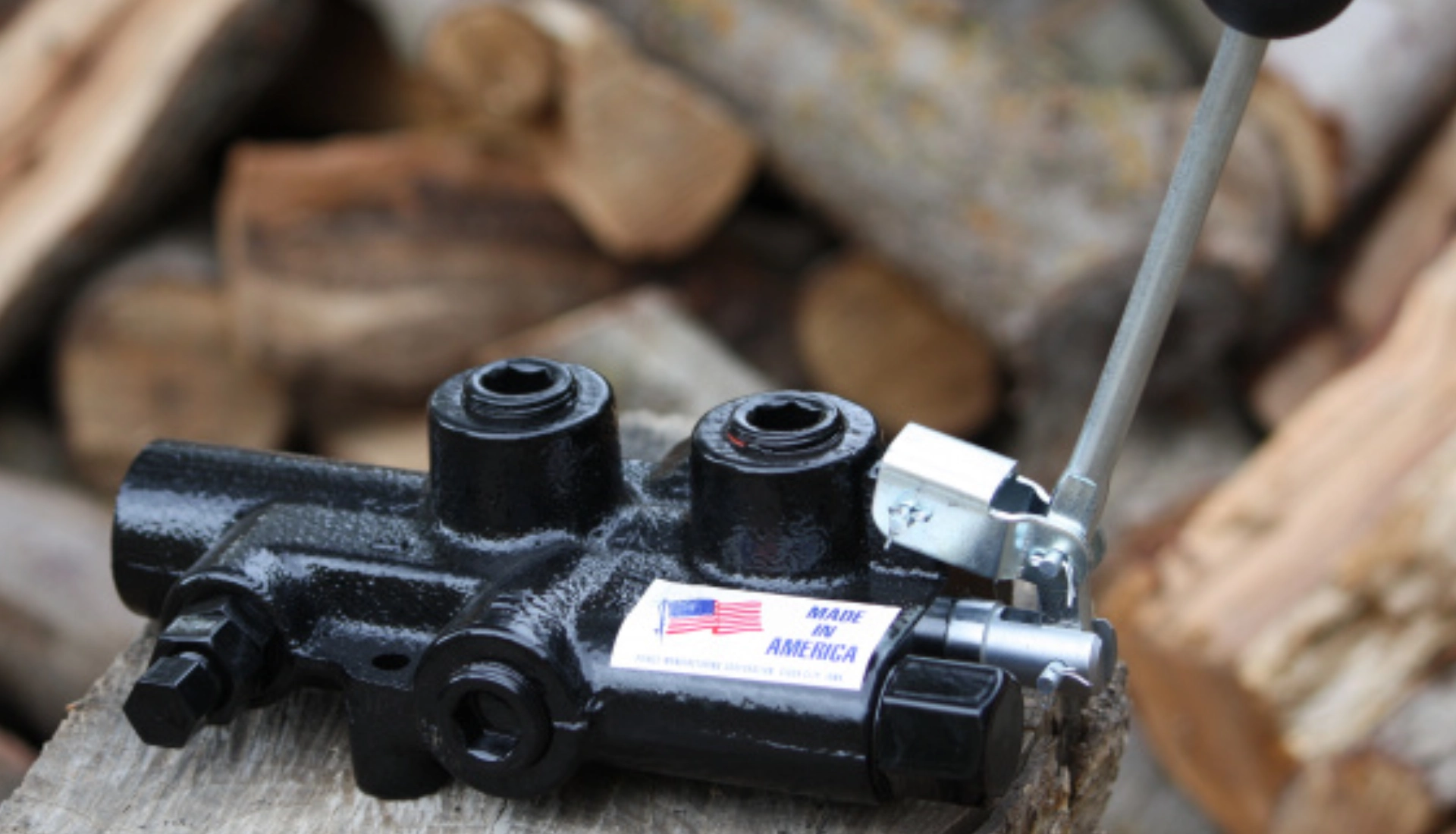

Hydraulic Control Valve

If the pump is the heart and the cylinder is the muscle, the control valve is definitely the brain of the operation. This component directs pressurized fluid where it needs to go, giving the operator control over the splitting process.

Most valves feature a manual spool that shifts between three positions: extend (send fluid to push the ram forward), retract (pull the ram back), and neutral (hold everything right where it is). It's simple but effective—the hydraulic equivalent of "stop, go, and wait."

Some valves include a pressure release detent as a safety feature, and many modern splitters incorporate two-handed operation requirements to keep your digits safely away from the business end.

Anyone who's had a close call with a splitter will tell you that's a feature worth having. Just ask my buddy Mike about his "nine-and-a-half-fingered salute" sometime.

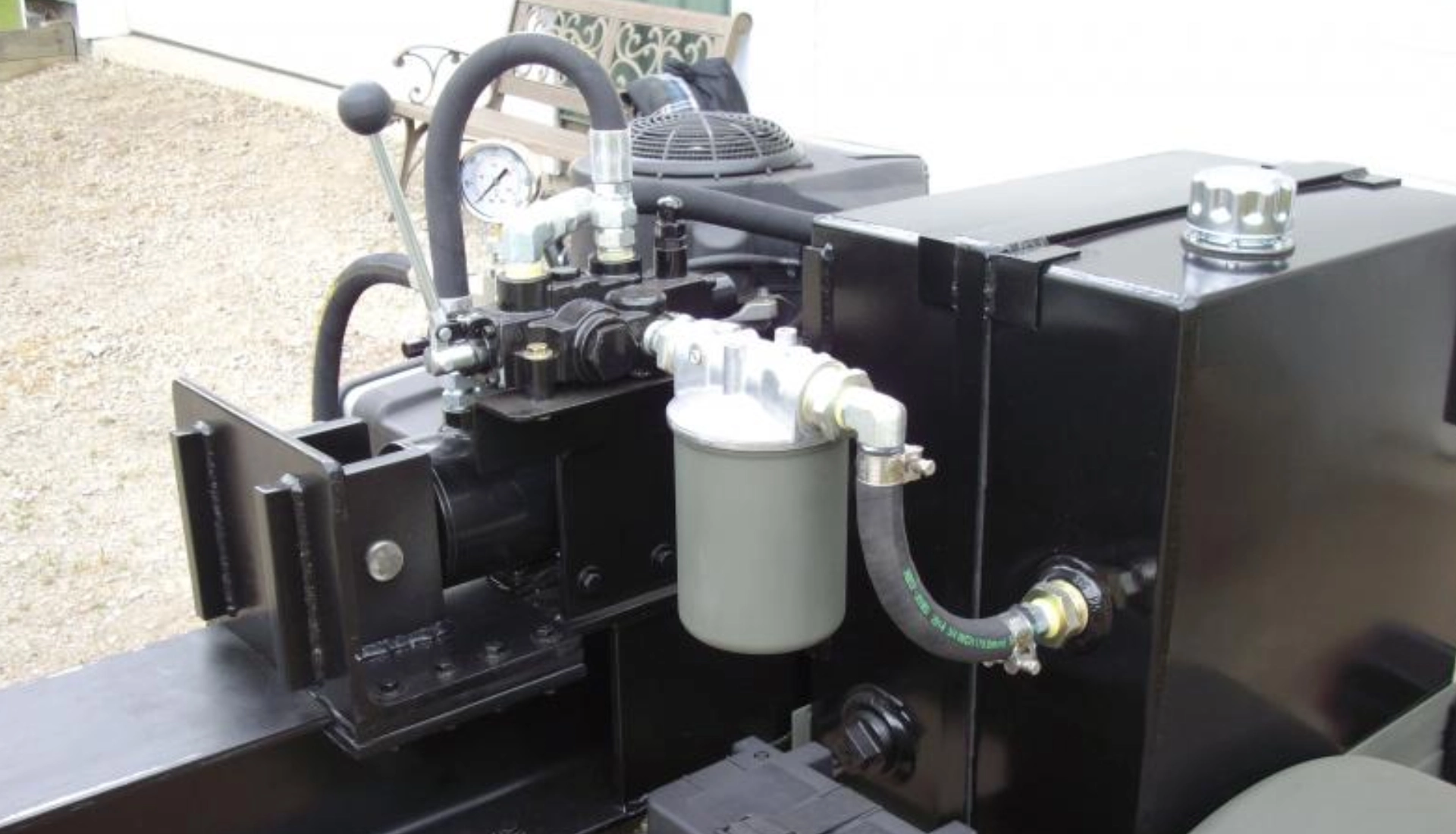

Hydraulic Fluid Reservoir

The reservoir is just a fancy name for the tank that holds your hydraulic oil, but it's doing more than just sitting there. Beyond simple storage, it gives air bubbles and contaminants a chance to settle out (much like letting a good whiskey rest) and provides cooling time for the hydraulic fluid when it's not actively circulating.

A proper reservoir has at least three ports: a suction port feeding the pump, a return port (usually with a filter) from the control valve, and a filler port with a breather cap that allows air in and out while keeping dirt and debris where they belong—outside your hydraulic system.

For optimal operation, your reservoir should hold about three times the amount of fluid used in each cycle. Bigger isn't always better in equipment, but with reservoirs, extra capacity helps maintain system health by ensuring your fluid stays cool and clean.

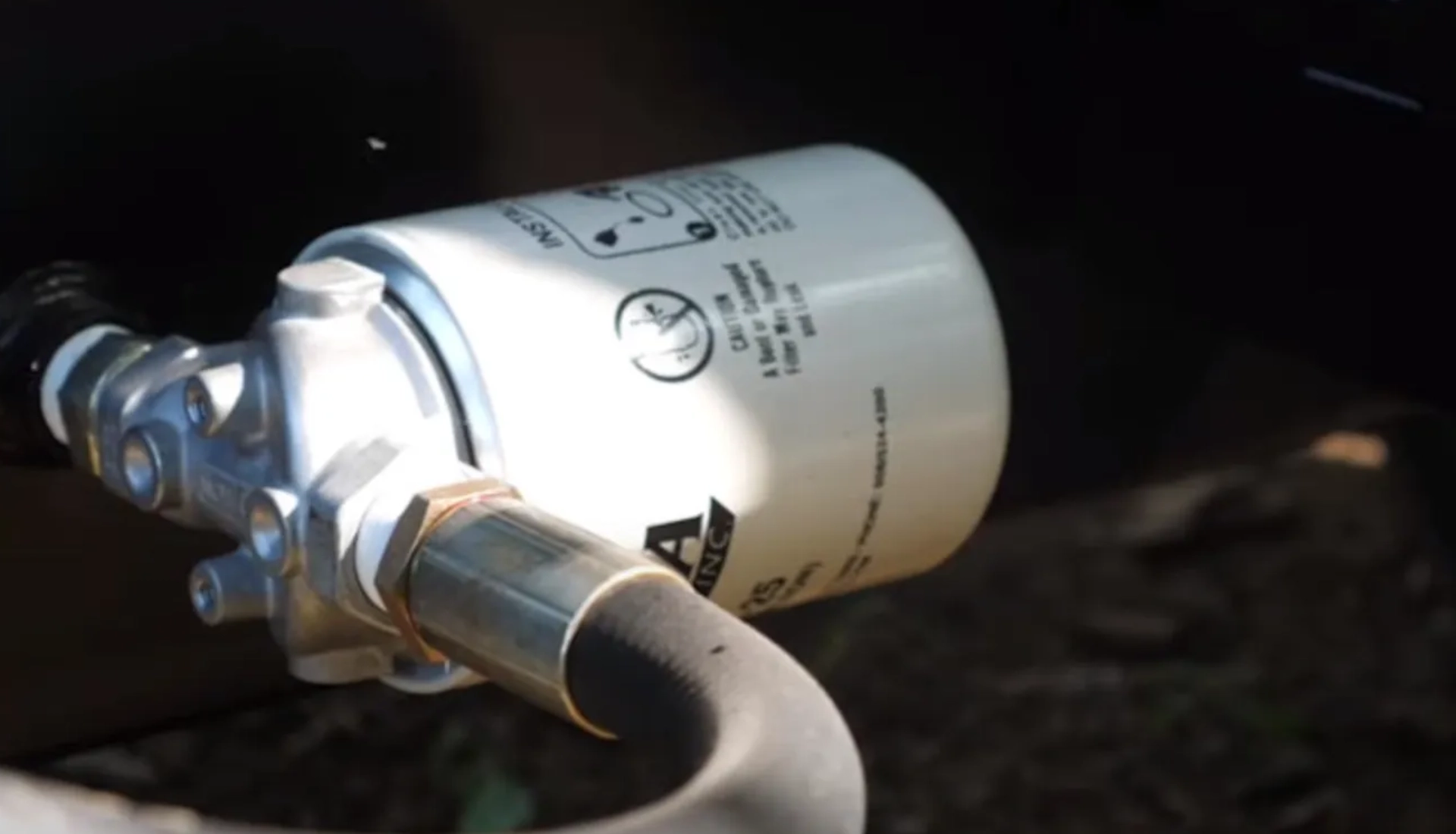

Hydraulic Fluid and Filtration

The unsung hero of the whole hydraulic system is the fluid itself. It's not just any oil—it's specially formulated with additives to resist wear, maintain viscosity across temperature ranges, prevent foaming, and fight rust and oxidation. Most splitters use AW32 hydraulic oil, roughly equivalent to SAE 10 weight.

While hydraulic oil doesn't face the extreme conditions engine oil does, it still degrades over time from contaminants and heat. That's where filtration comes in—keeping tiny particles from wreaking havoc on precision components. Most systems include return line filters that capture these damaging particles.

Pro tip: change your hydraulic filter at least once a year. It's cheap insurance against much more expensive repairs. I've seen more pumps killed by dirty oil than by actual mechanical failure—kind of like how bad tequila is more dangerous than good tequila.

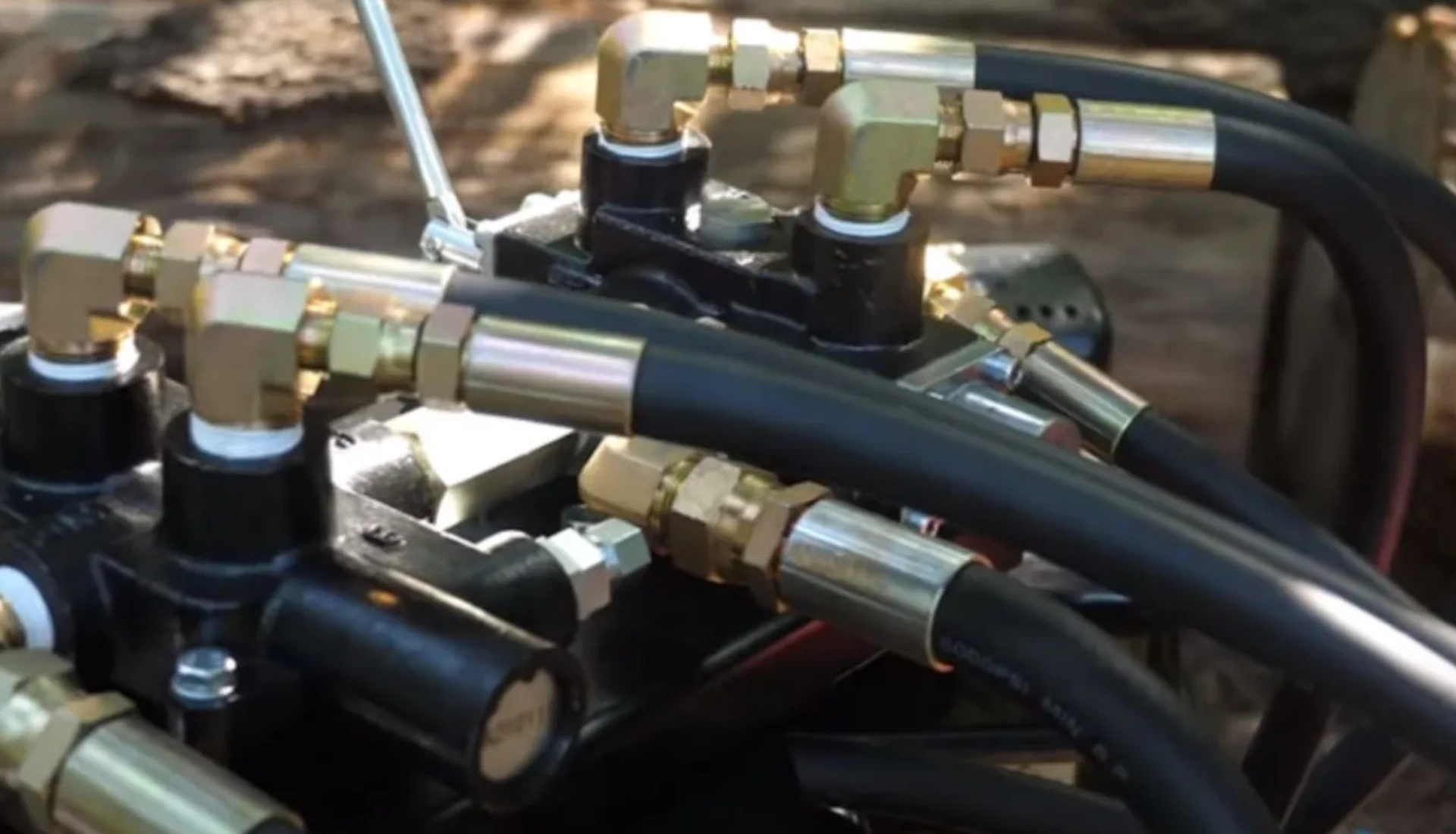

Hoses and Fittings

Hydraulic hoses are the circulatory system connecting all components, and they need to handle serious pressure—typically up to 3500 PSI in the pressure lines. Various fittings create leak-proof connections between hoses and components.

This might seem like a minor detail, but using properly rated hoses and fittings is non-negotiable for safety and reliability. A blown hydraulic line under pressure can do more than just make a mess—it can cause serious injury.

I've seen what happens when someone tries to save a few bucks with underrated components, and trust me, the emergency room visit costs a lot more than doing it right the first time.

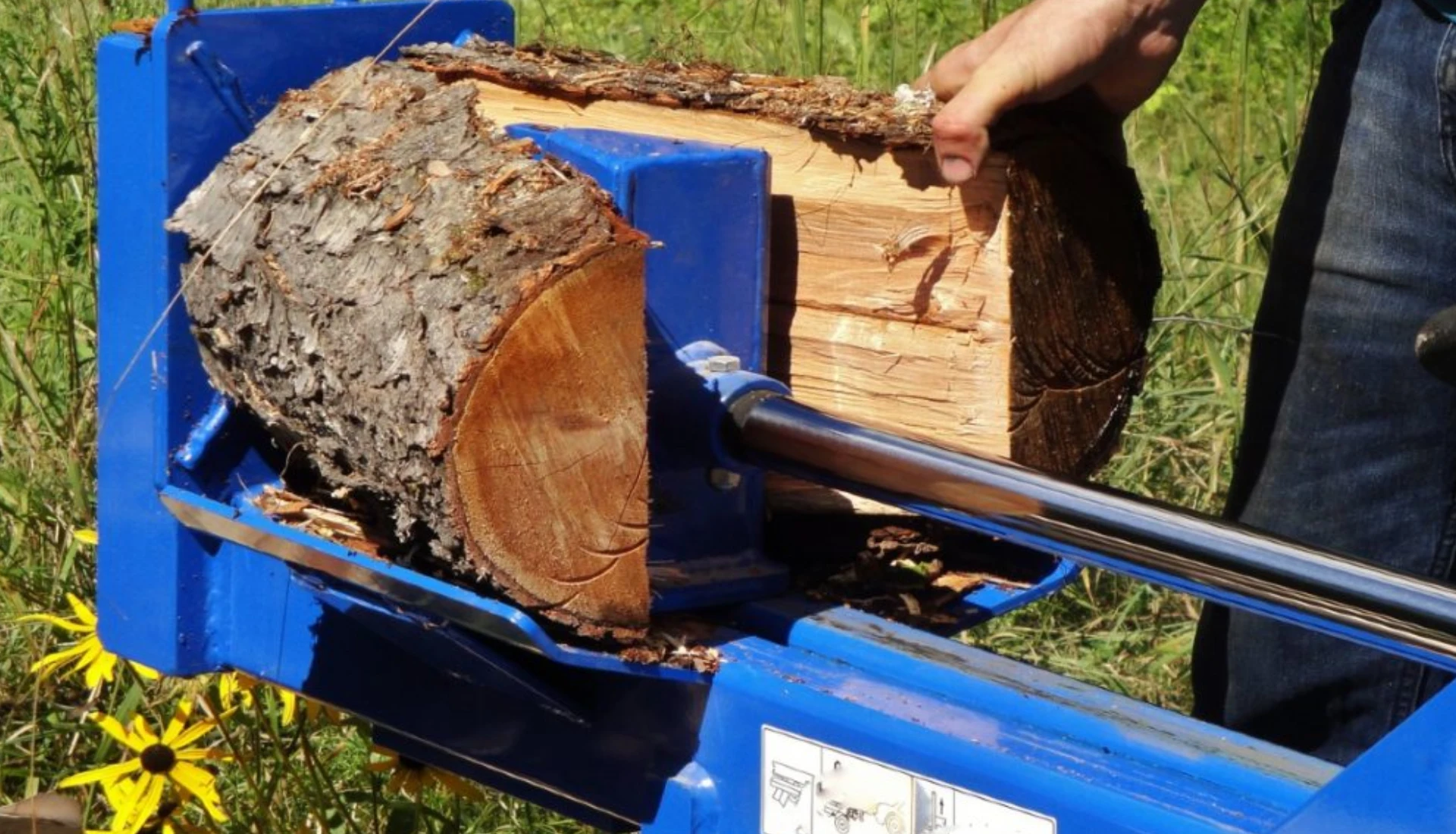

Power Source

The power source is what drives everything else—typically a gasoline engine, electric motor, or PTO system.

Gas engines are common on portable units, ranging from modest 5 HP models to beasts pushing 16+ HP. These are sized to match the hydraulic pump's requirements—undersized engines lead to underwhelming performance.

Electric motors power, well, electric log splitters. They're typically quieter and lower maintenance but usually offer less raw power and require access to electricity—not always convenient when you're splitting at the woodlot.

PTO (Power Take-Off) systems are the industrial approach, using a tractor's hydraulic system to power the splitter. These are common in commercial or agricultural settings where tractors are already part of the equipment lineup.

Each power source has its trade-offs. Gas engines offer portability but need fuel and maintenance. Electric motors are clean and quiet but limited by power availability and typically cap out at lower tonnage ratings.

PTO systems leverage existing equipment but require a tractor. Choose based on your specific needs and splitting location.

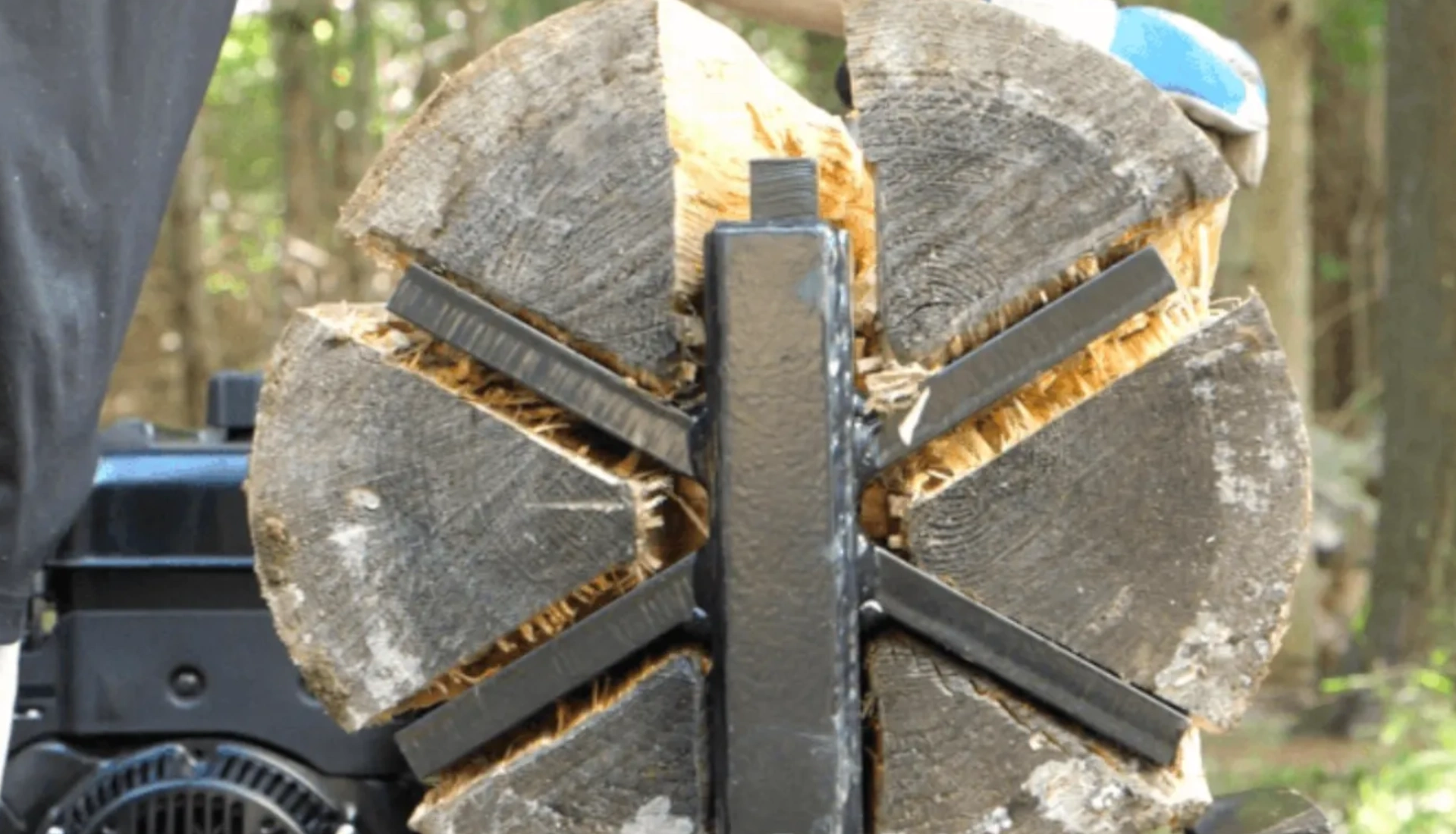

Splitting Wedge

The splitting wedge is where theory meets practice—the hardened steel blade that actually does the splitting.

While the simple two-way wedge (creating two pieces per stroke) is most common, four-way wedges that create four pieces simultaneously significantly boost productivity. For commercial operations, six-way wedges on high-end models can create half a dozen pieces in one go.

Material and angle matter tremendously here. The wedge needs to be hardened steel to withstand repeated impacts, and the angle is carefully designed to effectively cleave wood fibers rather than just compressing them.

A well-designed wedge reduces the force needed to split logs while a poorly designed one fights you every step of the way.

Your choice of wedge directly impacts productivity—the difference between filling one wood rack or three in the same amount of time. For homeowners, a standard two-way might be sufficient, but if you're processing serious volumes of firewood, a multi-way wedge is worth every penny.

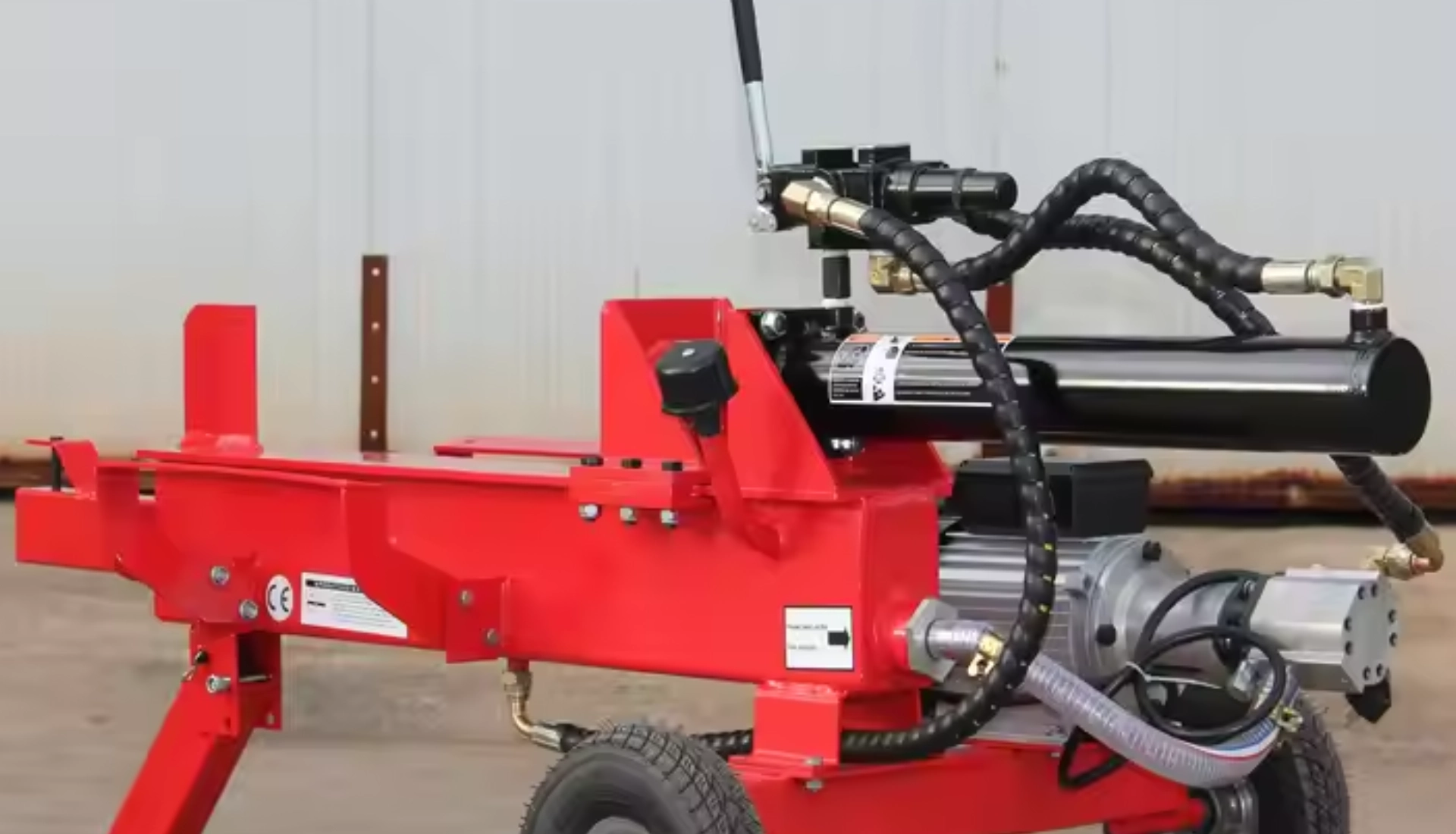

Frame and Structural Elements

The frame might not be sexy, but it's literally holding everything together. Most splitters use I-beam construction for the main beam because it offers excellent rigidity and strength to weight ratio.

Think of the frame as the skeleton—it needs to withstand not just the weight of components but also the substantial forces generated during splitting. A flexing frame leads to misalignment, premature wear, and potential component failure.

I've seen budget splitters twist under load, which is about as reassuring as a cardboard ladder.

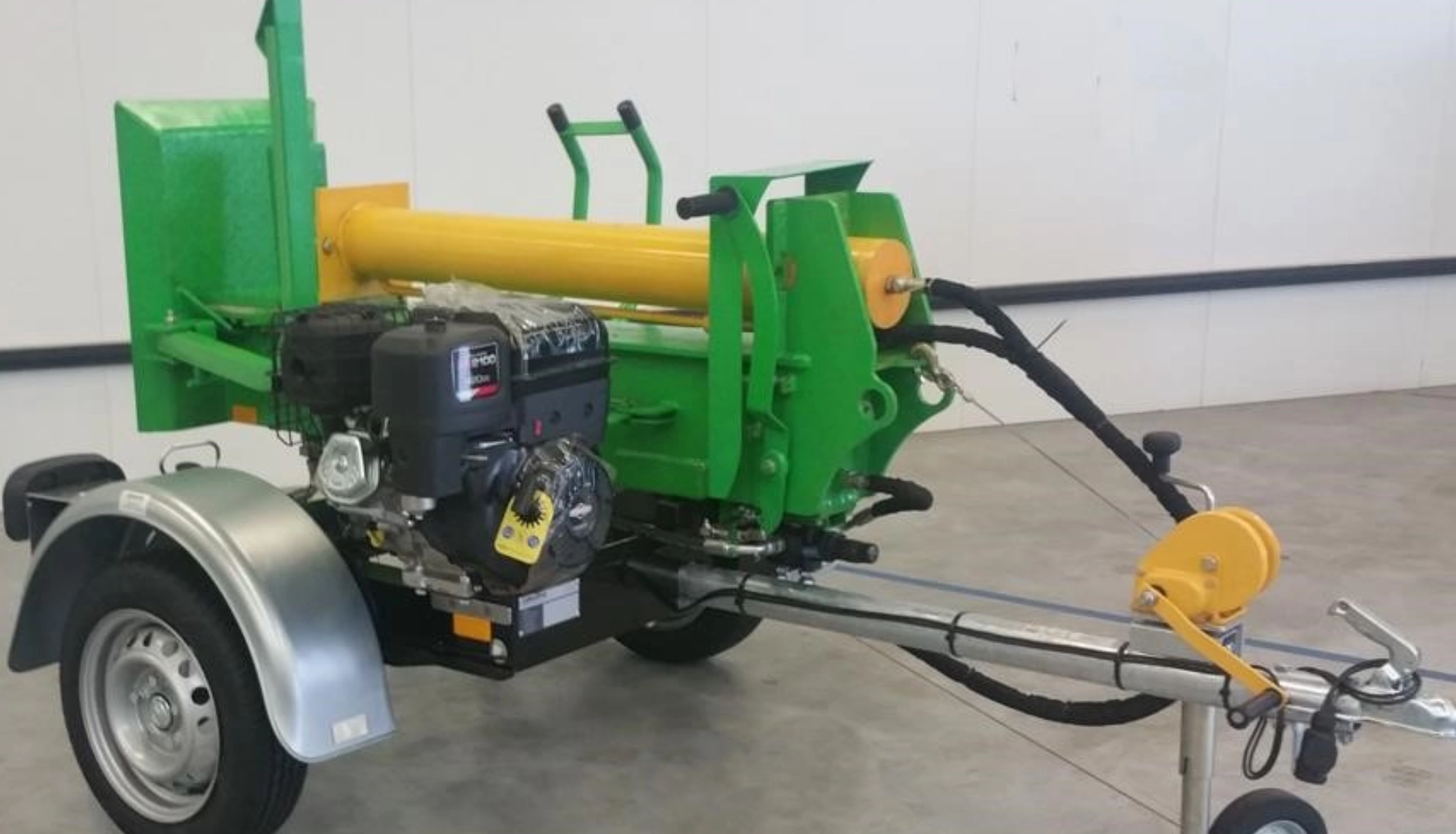

Wheels and Mobility Features

For splitters powered by gas engines, mobility features like wheels and towing hitches aren't just conveniences—they're necessities. Size and type vary dramatically depending on the unit, from hand-toted models to highway-towable rigs with DOT-approved tires.

These features determine whether your splitter comes to the logs or the logs come to your splitter—a critical consideration when you're processing several cords of wood that might be scattered across your property.

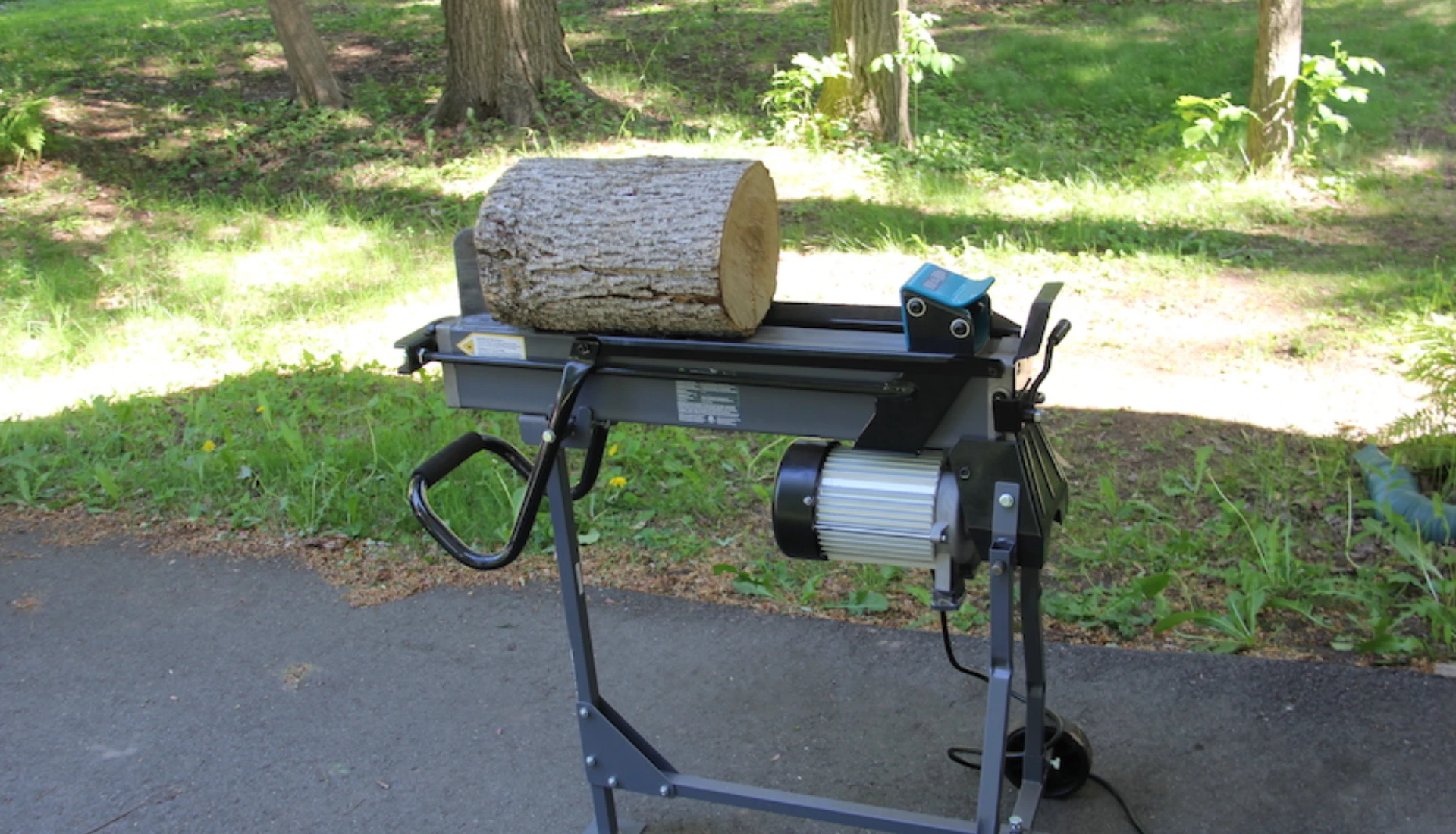

Operational Principles and Performance Metrics

The Hydraulic Cycle

So how does this whole hydraulic symphony actually play out when you're standing there with a log waiting to be split? Let's walk through the cycle.

flowchart TD
    A[Engine/Motor] -->|Powers| B[Hydraulic Pump]
    B -->|Pressurizes Fluid| C[Control Valve]
    C -->|Extend Position| D[Cylinder Base]
    C -->|Retract Position| E[Cylinder Rod End]
    D -->|Pushes| F[Ram Forward]
    E -->|Pulls| G[Ram Back]
    F -->|Splits| H[Log]
    G -->|Reset for Next Log| I[Starting Position]
    J[Hydraulic Reservoir] -->|Supplies Fluid| B
    C -->|Returns Fluid| K[Filter]
    K -->|Cleaned Fluid| J

    style B fill:#e6f7ff,stroke:#0099cc
    style C fill:#ffe6e6,stroke:#cc0000
    style D,E fill:#d9f2d9,stroke:#009900
    style J fill:#ffe6cc,stroke:#ff9900

First, your engine or motor fires up and starts driving the hydraulic pump. The pump sucks fluid from the reservoir and pressurizes it—nothing fancy yet, just getting the lifeblood of the system moving. You, the operator, then tell the control valve where to send all that pressurized fluid.

Push the lever to "extend," and fluid rushes to the base end of the cylinder, pushing the piston rod forward. This drives either the ram toward a stationary wedge or the wedge itself toward a stationary plate, depending on your splitter design. Either way, the log caught in between is about to have a very bad day.

Once the log splits (or the cylinder reaches full extension), you flip the valve to "retract." This redirects fluid to the opposite end of the cylinder, pulling everything back to the starting position.

During this return trip, fluid gets pushed back to the reservoir, usually through a filter that catches any particles that could damage your system down the road.

Rinse and repeat until your log pile is transformed into a neat stack of firewood and you're ready for a cold one.

The beauty of this system is its simplicity—it's basically the same hydraulic principle that powers everything from backhoes to brake systems, just purpose-built for making logs surrender to your will.

Splitting Force (Tonnage)

When someone asks "how powerful is your splitter?" they're talking about tonnage—the amount of force the machine can generate to split wood. This is hands-down the most important performance metric for log splitters.

The math behind the tonnage rating is straightforward: Force (lbs) = Pressure (PSI) × Piston Area (square inches). Divide by 2000, and you've got your tonnage. A typical 4.5-inch bore cylinder has about 15.9 square inches of piston area. Run that at 3000 PSI, and you're looking at 47,700 pounds of force, or roughly 23.85 tons.

Is bigger always better? Not necessarily. Matching your tonnage to your actual needs saves money and can result in faster operation. For softer woods like pine, 10-15 tons is usually plenty.

For seasoned oak or maple, you might want 20-25 tons. And for those gnarly, knotty pieces of hickory that seem determined to break your spirit? You might appreciate the 30+ ton commercial models.

I've watched plenty of homeowners overbuy on tonnage while underspending on quality components. A well-built 22-ton will outperform and outlast a cheaply constructed 28-ton any day of the week. Remember, it's not just about the raw numbers—it's about how well the entire system works together.

Common Log Splitter Hydraulic Cylinder Specifications and Corresponding Force

Note: Splitting force is calculated using the formula: Force (lbs) = Pressure (PSI) x π x (Bore Diameter / 2)^2, and Tonnage = Force (lbs) / 2000.

Cycle Time

If tonnage is about power, cycle time is all about speed—how quickly your splitter can extend, split a log, and return to the starting position, ready for the next victim. This is measured in seconds and directly impacts how much wood you can process in a given timeframe.

What determines cycle time? Primarily the flow rate (GPM) of your hydraulic pump and the horsepower pushing it. This is where two-stage pumps prove their worth.

They provide high flow rates at low pressure for fast cylinder movement during the "no resistance" portions of travel, then automatically downshift to deliver high pressure (but slower movement) when encountering the resistance of actual splitting.

The cycle time sweet spot depends on your operation. For casual weekend wood splitting, a 15-20 second cycle might be perfectly fine. For someone processing multiple cords for a wood-selling business, those seconds add up fast, making 8-12 second cycles much more attractive.

I've watched commercial operations where operators are literally standing waiting for the ram to return—that's money left on the table with every cycle.

Two-stage pumps are the industry's elegant solution to this speed/power trade-off, ensuring the ram moves quickly when it can and powerfully when it must, significantly improving overall productivity. It's like having both a sports car and a tow truck in one vehicle—using the right mode at the right time.

Pressure and Flow Rate Dynamics

There's an inverse relationship between pressure and flow rate that's crucial to understand if you want to grasp how hydraulic systems truly operate. At a given power input, when pressure goes up, flow rate goes down, and vice versa.

What does this mean in practical terms? When your ram first starts extending with no load, the system operates at low pressure and high flow rate, moving quickly. When it hits a log and resistance increases, pressure builds and flow rate decreases, slowing the ram's movement but increasing force.

It's physically impossible to have both maximum speed and maximum power simultaneously—a fundamental limitation in hydraulics.

Two-stage pumps handle this relationship brilliantly. They provide high flow (speed) when pressure requirements are low, then automatically transition to providing high pressure (force) with lower flow when needed for splitting.

The transition point between these stages is finely calibrated to optimize the balance between speed and force.

The entire hydraulic system design aims to navigate this trade-off effectively, providing enough splitting force while maintaining reasonable cycle times. It's like balancing horsepower and fuel economy in a truck—you need enough of both for the system to be practical.

Wood Hardness and Splitting Requirements

Not all wood is created equal when it comes to splitting difficulty. The Janka hardness test gives us a standardized way to quantify just how stubborn different wood species can be, with higher numbers indicating harder wood that typically requires more splitting force.

Soft woods like pine, with Janka ratings of 400-870, might split with just 10-15 tons of force. Move up to maple (950-1450) or oak (1000-1500), and you're looking at 15-30 tons.

Tackle something like hickory or pecan, with ratings potentially exceeding 2000, and you'll be grateful for every ton your splitter can muster.

But it's not just about species. Log diameter, moisture content, knot density, and grain pattern all impact splitting difficulty. A straight-grained 8-inch ash log might split easily with 15 tons, while a 24-inch gnarly elm round with three major branch intersections might challenge even a 35-ton commercial unit.

Matching your splitter's tonnage rating to your typical wood types is crucial for efficiency and preventing unnecessary strain on your equipment. I've watched people try to split fresh elm on undersized splitters—it's like watching someone try to tow a fifth wheel with a Honda Civic.

Technically possible in some cases, but painful to witness and hard on the equipment.

Typical Log Splitter Tonnage Requirements by Wood Type (Based on Janka Hardness)

Note: These are general recommendations, and the required tonnage can also depend on the diameter and knot density of the logs.

Cost Analysis and Market Overview

Cost Breakdown of Key Components

"How much does a log splitter cost?" Well, that's like asking how long a piece of string is. Let's break down the components first, since understanding them gives you leverage whether you're buying, building, or just trying to sound smart at the hardware store.

Hydraulic cylinders—the muscle of the operation—vary widely based on specifications. A 4" bore × 24" stroke cylinder (think of this as your entry-level option) typically runs $260-$360. Step up to a beefier 5" bore × 24" stroke, and you're looking at $330-$450.

That extra inch of bore diameter adds significant force capability, but also hits your wallet accordingly.

Two-stage hydraulic pumps, those clever devices that handle both speed and power, generally fall between $170 and $300+, with price closely tracking GPM rating. Higher flow rates cost more, but save you time with every split.

Control valves aren't where manufacturers tend to cut corners, thankfully. Most quality valves run $180-$200. They're not exactly exciting to look at, but they're the component your hands interact with most, so quality matters here.

Power sources vary enormously. Electric motors for smaller splitters might cost a couple hundred dollars, while larger gas engines can easily exceed $1,000 depending on horsepower.

I've seen too many DIY splitter builds where someone paired a premium cylinder with the cheapest Harbor Freight engine they could find. Five hours of operation later, they're wondering why their investment is making alarming noises.

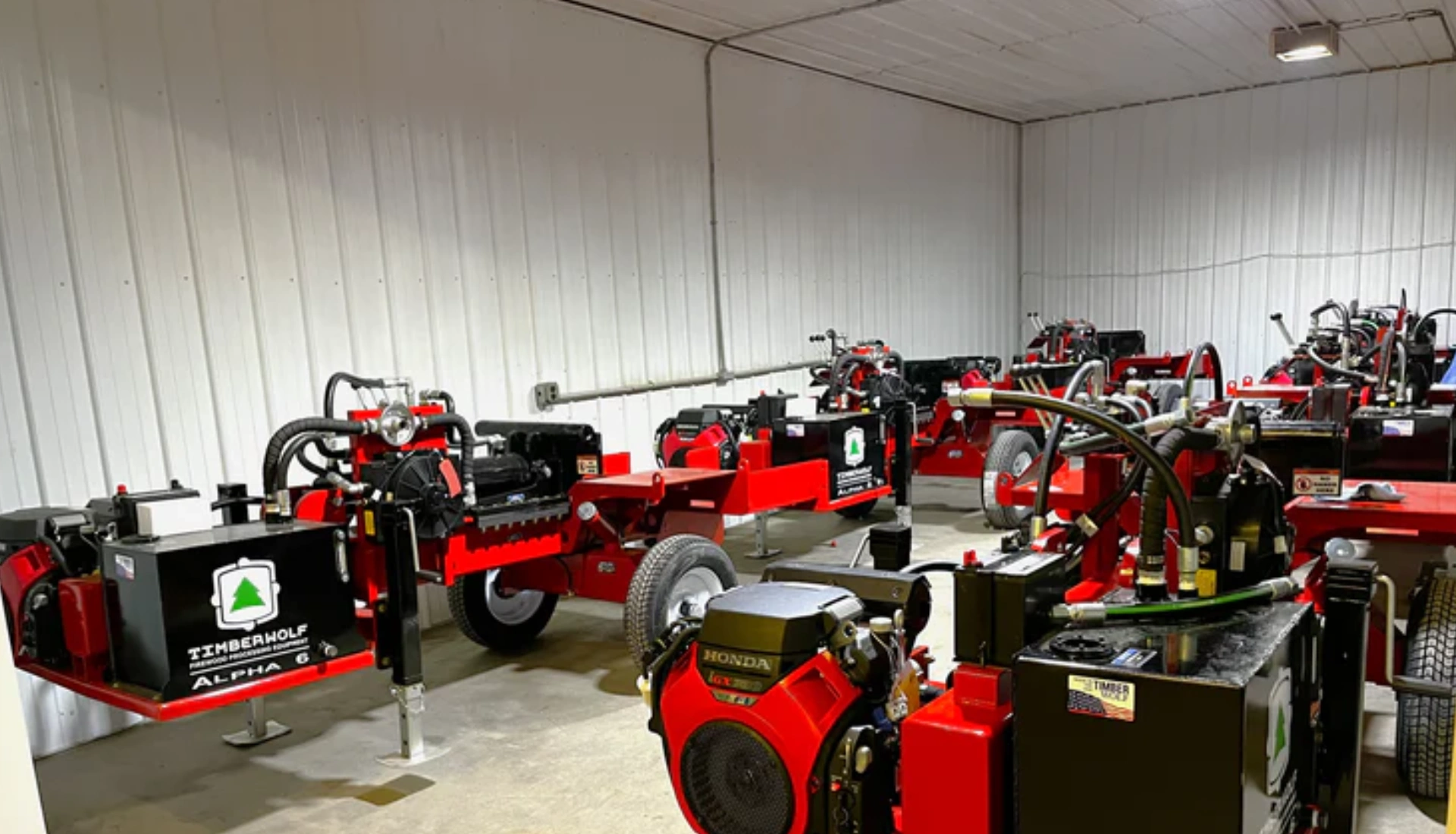

Pricing of Complete Log Splitter Units

Complete splitter pricing falls into distinct tiers based primarily on tonnage rating and features. Residential models with 10-20 ton ratings typically cost between $1,000 and $3,000, with electric models generally at the lower end of that range and gas-powered ones toward the higher end.

Commercial and heavy-duty models with 25+ tons of splitting force start around $3,000 and can easily reach $7,000 or more when you add features like log lifts, multi-way wedges, and work tables. At the commercial level, these aren't luxuries—they're productivity enhancements that pay for themselves in time saved.

The difference between a $1,200 splitter and a $2,500 one isn't just tonnage—it's build quality, component selection, warranty coverage, and thoughtful design features.

I've seen budget splitters that required two people to move the machine into position for every log, while better-designed units let a single operator work efficiently all day.

Aftermarket Hydraulic Cylinder Costs

Need to replace that cylinder or building your own splitter? The aftermarket has you covered with hydraulic cylinders that roughly match the prices of OEM components. A 4" bore × 24" stroke aftermarket cylinder typically runs $260-$400, while 5" bore × 24" stroke models fall between $330-$500.

Price variations depend on factors beyond just dimensions—brand reputation (Prince cylinders typically command premium prices), construction type (welded versus tie-rod), mount style, rod diameter, and protective coatings all influence cost.

The good news is that hydraulic cylinders are somewhat standardized, so replacements are readily available when needed.

Estimated Cost Ranges for Key Log Splitter Components

Note: These are estimated ranges and actual prices may vary based on brand, quality, and supplier.

Usage Rates and Market Trends

The log splitter market doesn't exactly make headlines like cryptocurrency or electric vehicles, but it follows its own predictable patterns. Demand ebbs and flows primarily with two factors: alternative heating costs and firewood availability.

When natural gas, propane, or heating oil prices spike, suddenly wood heat looks mighty attractive again, and splitter sales follow. We saw this during the 2008 energy price surge, again in certain regions during polar vortex events, and any time global energy markets hiccup.

Regional factors play a huge role too. Areas with abundant forests and established firewood markets naturally see higher usage rates. The Pacific Northwest, Northeast, and Upper Midwest represent the strongest markets for these machines, while demand is predictably lower in regions where trees are scarce or air quality regulations limit wood burning.

Wood-burning appliances continue to influence the market significantly. Modern high-efficiency wood stoves and outdoor wood boilers have helped sustain demand for processed firewood despite increasing environmental regulations.

Meanwhile, the continued popularity of wood as both primary and supplemental heat, plus recreational uses like camping and backyard fire pits, ensures a baseline market that's unlikely to disappear.

Current trends point toward more user-friendly designs with features that were once considered premium now becoming standard: faster cycle times through improved hydraulic systems, greater splitting force in more compact packages, and enhanced portability options. Manufacturers are increasingly recognizing that while the basic concept hasn't changed much, the details of implementation continue to evolve. I've watched splitters go from being purely functional to incorporating genuine ergonomic considerations—a welcome development for anyone who's spent a full day processing wood.

Conclusion

Hydraulic log splitters have earned their place by turning an age-old chore into a manageable weekend task. They dominate the market because they strike the right balance of brute force and user-friendliness, making wood processing faster and less grueling.

Tonnage and cycle time remain the key metrics. The best machines balance power and speed—strong enough to handle tough logs but fast enough to keep work moving. Over time, manufacturers have refined the core hydraulic design with better components, safety features, and efficiency without changing what already worked.

In a world obsessed with complexity, a well-built log splitter stands out for its simplicity. It does exactly what it promises, turning logs into firewood with a satisfying chunk, connecting us to generations past—just with fewer blisters and backaches.
