Parts of a Backhoe Loader: 7 Critical Components Explained

While many operators see the backhoe loader as a “compromise machine,” its integrated design—combining a tractor unit, a front loader, and a rear-mounted backhoe assembly—offers efficiencies unmatched by dedicated excavators or wheel loaders. With a 180-200 degree swing radius and a hydraulic system powering both ends via a single diesel engine, it’s a cost-effective choice for medium-duty work like utility trenching and site prep.

This guide covers parts of a backhoe, mechanical insights, and comparative specs to help you choose the right machine, whether buying, renting, or exploring alternatives.

A backhoe consists of several main parts: the boom, dipper (or dipper stick), bucket, stabilizers, cab, and loader. The boom and dipper control digging motion, the bucket handles material, stabilizers provide balance, the cab houses the operator, and the front loader handles loading tasks.

The Anatomy of a Backhoe Loader: Identifying Key Components

A backhoe loader consists of key components working together for its versatile performance. Understanding these parts is essential to grasping the machine’s functionality.

flowchart TD
    BL[Backhoe Loader] --> TU[Tractor Unit]
    BL --> OC[Operator Cab]
    BL --> FL[Front Loader]
    BL --> BA[Backhoe Assembly]
    BL --> SL[Stabilizer Legs]
    BL --> HS[Hydraulic System]
    BL --> EC[Engine Compartment]

    TU --> TU1[Foundation structure]
    TU --> TU2[Engine & transmission]
    TU --> TU3[Heavy-duty tires]
    TU --> TU4[Four-wheel drive option]

    OC --> OC1[Control levers & displays]
    OC --> OC2[Safety glass enclosure]
    OC --> OC3[ROPS & FOPS protection]
    OC --> OC4[Rotating operator seat]

    FL --> FL1[Hydraulic front arm]
    FL --> FL2[Front bucket attachment]
    FL --> FL3[Material handling capability]
    FL --> FL4[Various attachments available]

    BA --> BO[Boom]
    BA --> DS[Dipper Stick]
    BA --> BU[Bucket]

    BO --> BO1[Main reach component]
    BO --> BO2[180-200° swing capability]

    DS --> DS1[Secondary articulated arm]
    DS --> DS2[Extendable option available]

    BU --> BU1[Digging & scooping tool]
    BU --> BU2[Various bucket types available]
    BU --> BU3[4-50 inch bucket lengths]
    BU --> BU4[Up to 32ft digging depth]

    SL --> SL1[Hydraulically operated]
    SL --> SL2[Prevents tipping during operation]
    SL --> SL3[Various pad/shoe options]

    HS --> HS1[Hydraulic pump]
    HS --> HS2[Control valves]
    HS --> HS3[Hydraulic cylinders]
    HS --> HS4[Hydraulic hoses]

    EC --> EC1[Diesel engine]
    EC --> EC2[40-150+ horsepower range]
    EC --> EC3[Powers hydraulic pump]
    EC --> EC4[Transmission & cooling systems]

Let’s break it down—knowing their names will keep you from just calling it “that thingy on the back.”

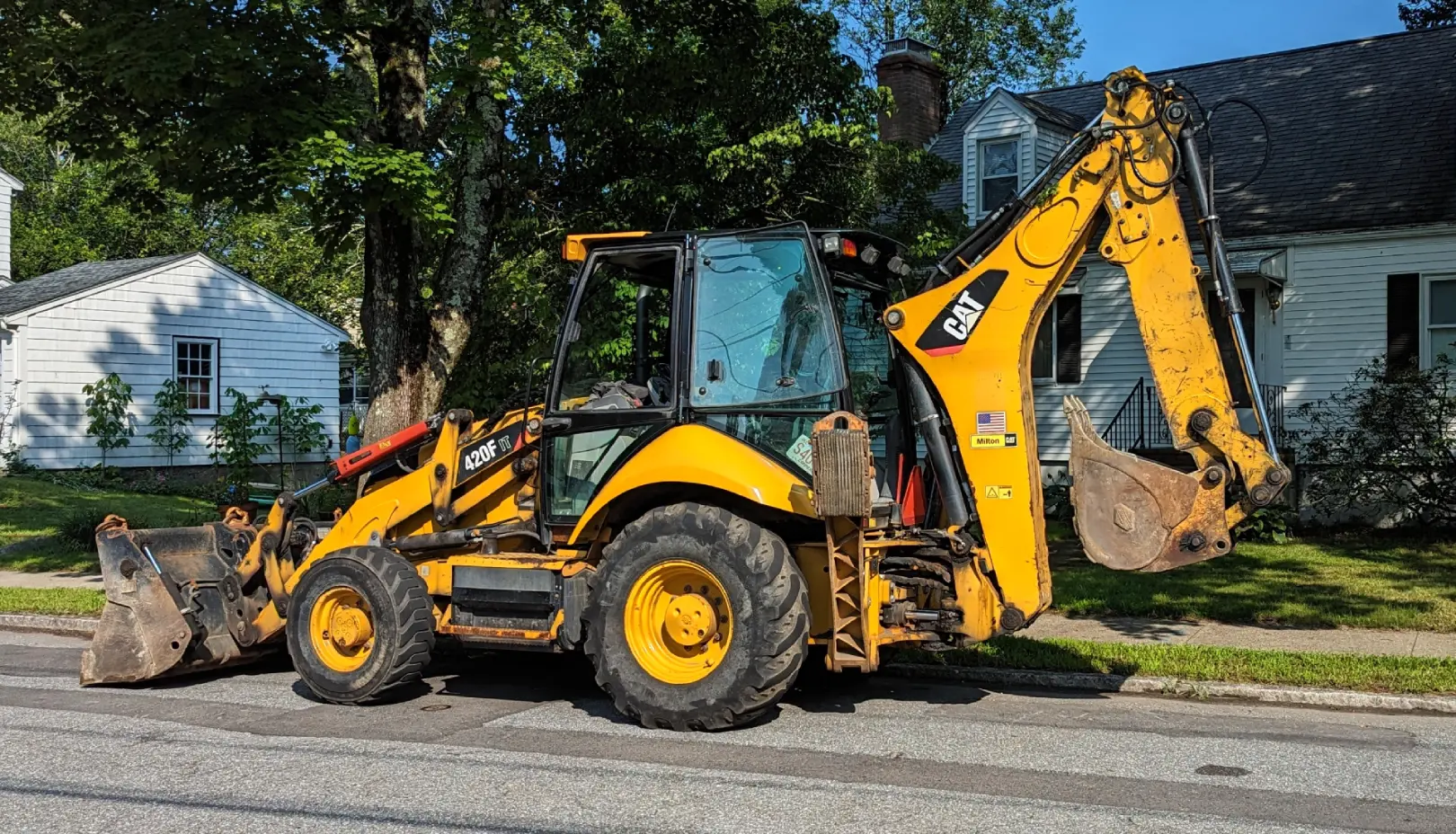

The Tractor Unit: Foundation and Mobility

Think of the tractor unit as the backbone of the backhoe loader, supporting the operator cab, front loader, and backhoe assembly. It houses the engine and transmission, providing power and control for movement and operation.

Its heavy-duty tires ensure traction on uneven, unpaved surfaces—essential for navigating job sites. Many models offer four-wheel drive for better performance in mud or loose soil, preventing frustrating downtime.

The tractor unit’s dual role is crucial: enabling mobility and providing a stable base for safe, effective digging and material handling. Without it, tipping over would be inevitable.

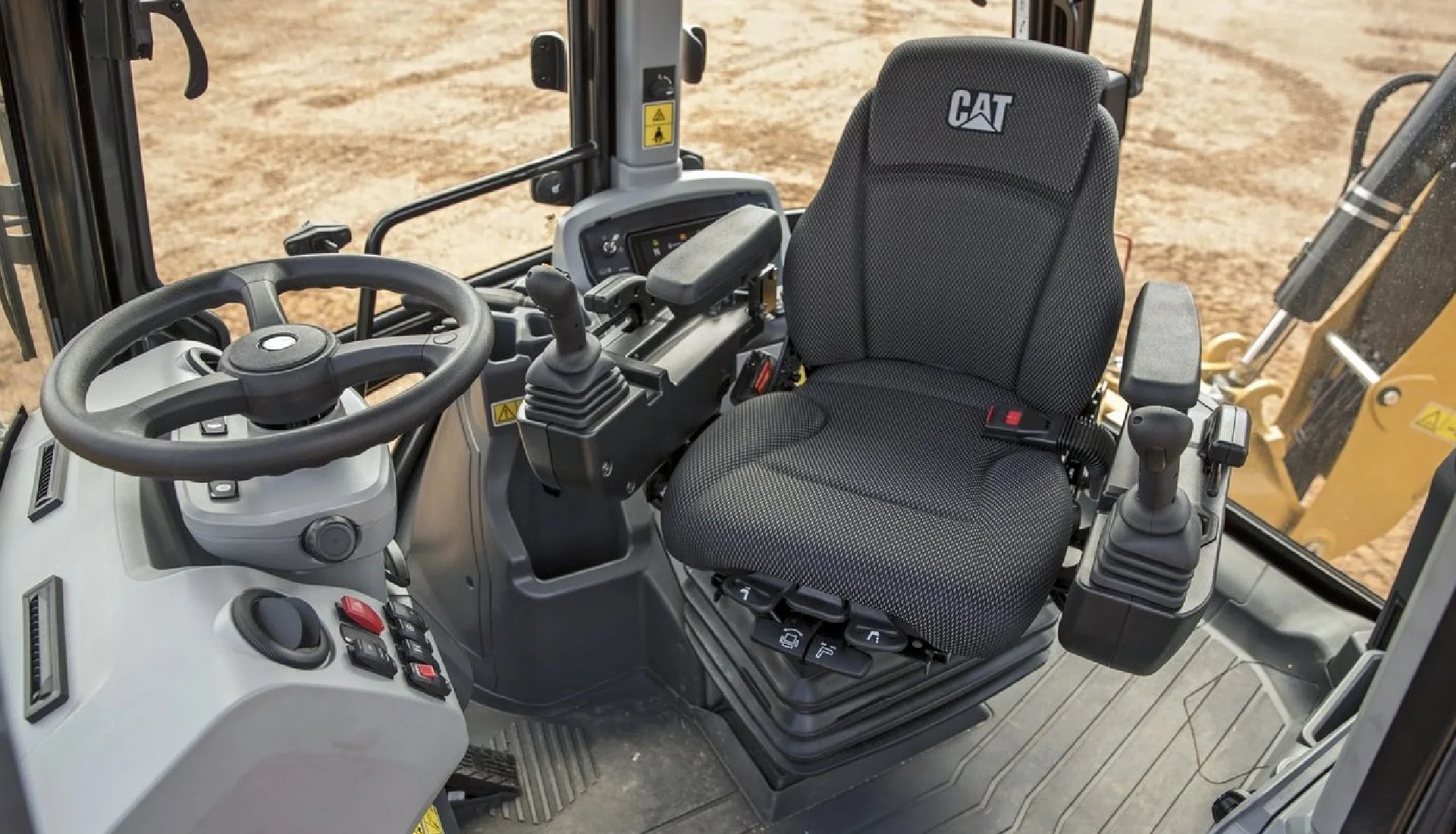

The Operator Cab: Command Center and Safety

Perched atop the tractor unit like a captain’s bridge, the operator cab is the control center of the backhoe loader. From here, operators manage the front loader and backhoe using levers, joysticks, pedals, a steering wheel, and essential gauges.

Safety is key when handling tons of metal and hydraulic power. Most cabs are enclosed with safety glass, while some feature open canopies. Modern models also include ROPS and FOPS for added protection against rollovers and falling debris—critical safeguards that no operator should overlook.

A standout feature is the rotating seat, allowing operators to switch seamlessly between loader and backhoe controls without repositioning the machine. This simple yet effective design boosts efficiency and reduces fatigue, making long shifts far more manageable.

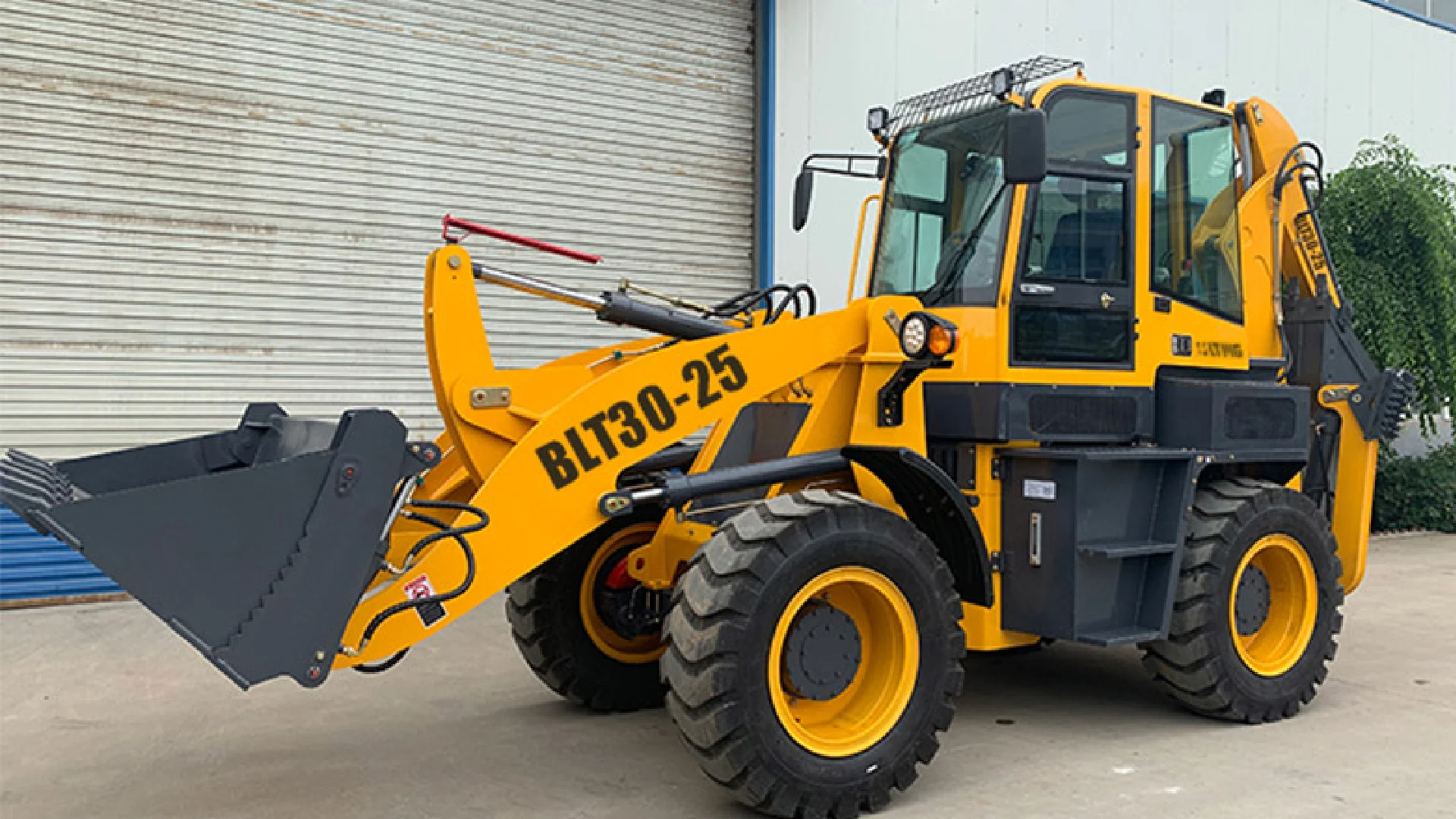

The Front Loader: Lifting and Material Handling

Up front is where the action starts—the front loader, a hydraulically operated arm with a large bucket. More than just a scoop, it’s a precision tool in skilled hands, capable of lifting, loading, lugging, and laying materials like earth, snow, and debris.

Beyond loading, the front loader smooths surfaces for rough grading and shines in versatility. It accommodates attachments like specialized buckets, brooms, forks, grapples, and snowplows, adapting to diverse tasks. Many operators maximize efficiency by using one machine with multiple attachments instead of maintaining a fleet of specialized equipment.

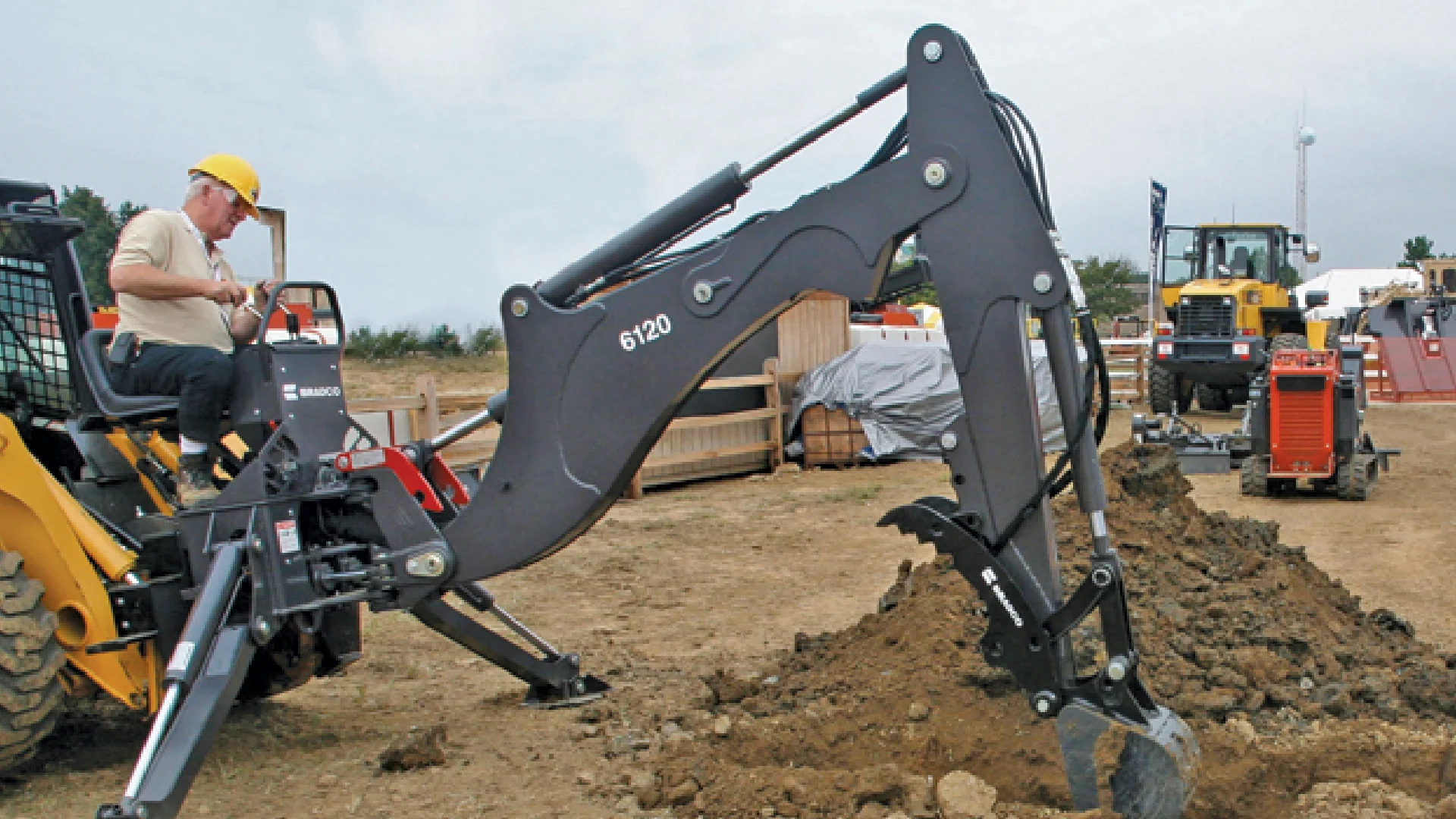

The Backhoe Assembly: Digging and Excavation

Now to the business end that gives this machine its name—the backhoe assembly at the rear. This primary digging component consists of three key parts: the boom, dipper stick (arm), and bucket. Designed for excavation, trenching, and lifting, the backhoe functions as the machine’s strong arm, delivering precision in digging, grabbing, and heavy lifting.

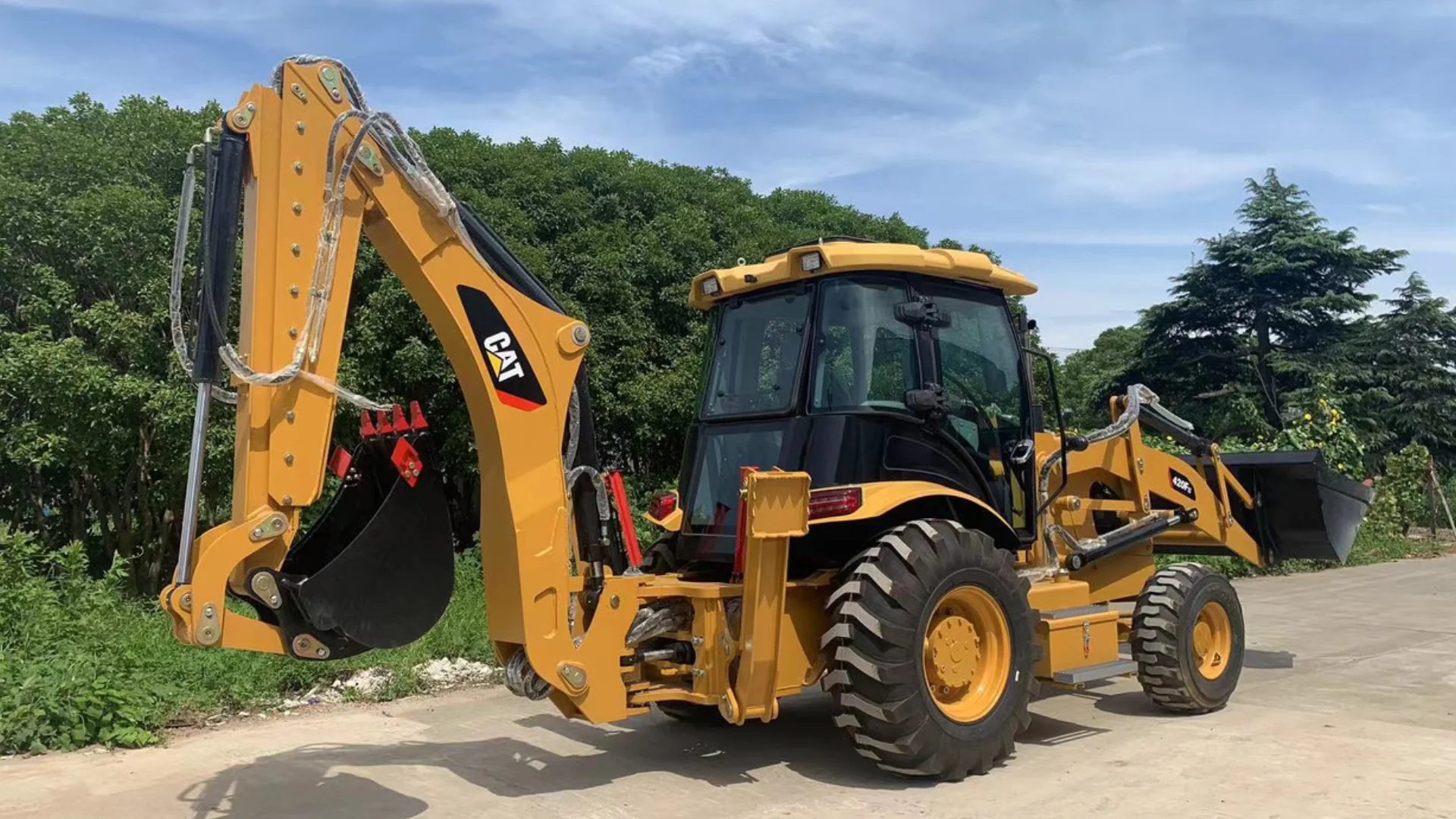

The Boom: Reach and Vertical Movement

The boom is the primary structural component of the backhoe arm, connected to the tractor unit via a pivot point called the king-post. It provides the main reach, enabling operators to dig and deposit material without repositioning the machine.

Unlike an excavator’s full 360-degree rotation, the backhoe’s boom swings 180-200 degrees, allowing material to be placed to the sides. This motion, controlled by hydraulic cylinders, delivers smooth, powerful movement—plenty for most applications.

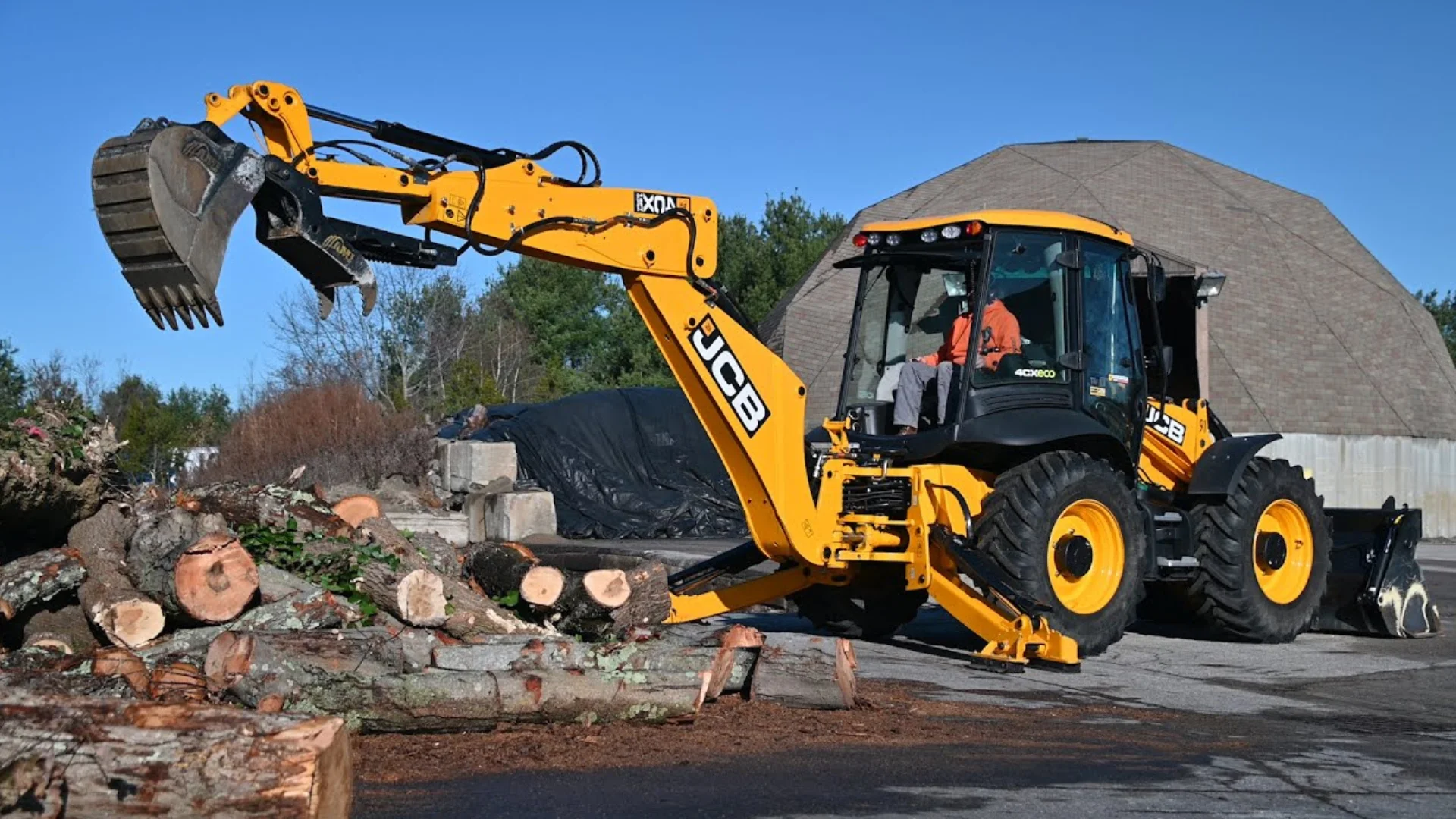

The Dipper Stick (or Arm): Extension and Control

Attached to the boom, the dipper stick is a secondary articulated arm that provides precision by extending and retracting the bucket. It controls digging depth and reach, allowing operators to extract buried objects with finesse.

Beyond precision, the dipper stick stabilizes heavy loads, ensuring smooth movement when lifting dense materials. Some models feature an extendable dipper stick with a telescopic mechanism, adding 3-4 feet of reach—an invaluable advantage when extra range is needed without repositioning the machine.

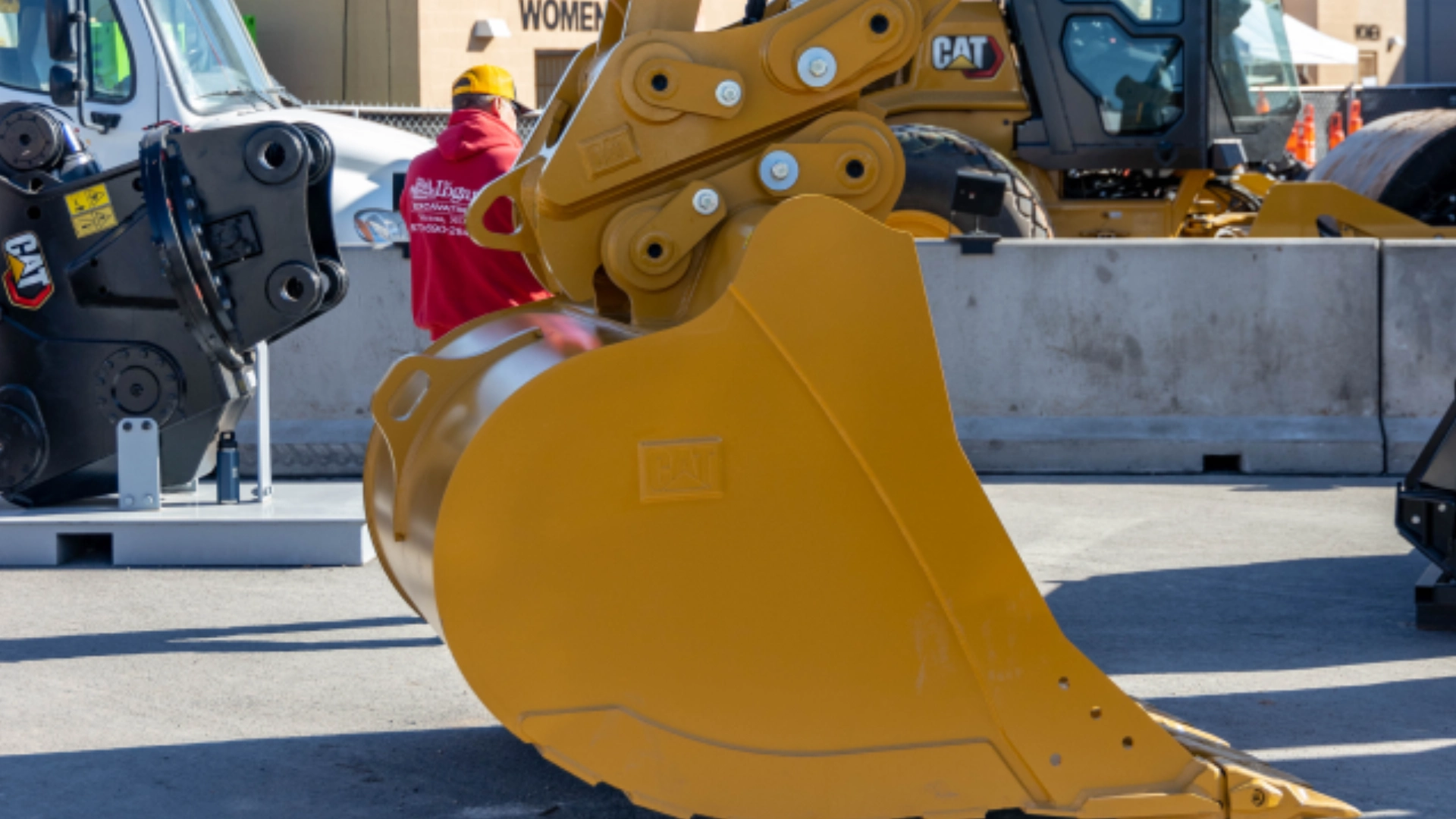

The Bucket: Digging, Scooping, and Material Transport

At the end of the dipper stick is the backhoe bucket, the primary tool for excavation and material handling. With its sharp, often toothed edge, it cuts through soil, rock, and debris, lifting and transporting materials with ease.

Backhoe buckets come in various types for specific tasks: standard digging buckets for general excavation, narrow trenching buckets for pipes and cables, heavy-duty and rock buckets for tougher materials, ditch cleaning buckets for grading, and skeleton buckets for sifting.

Digging depth varies by bucket size and machine power, reaching up to 32 feet. Selecting the right combination of depth, width, and breakout force is key to maximizing efficiency.

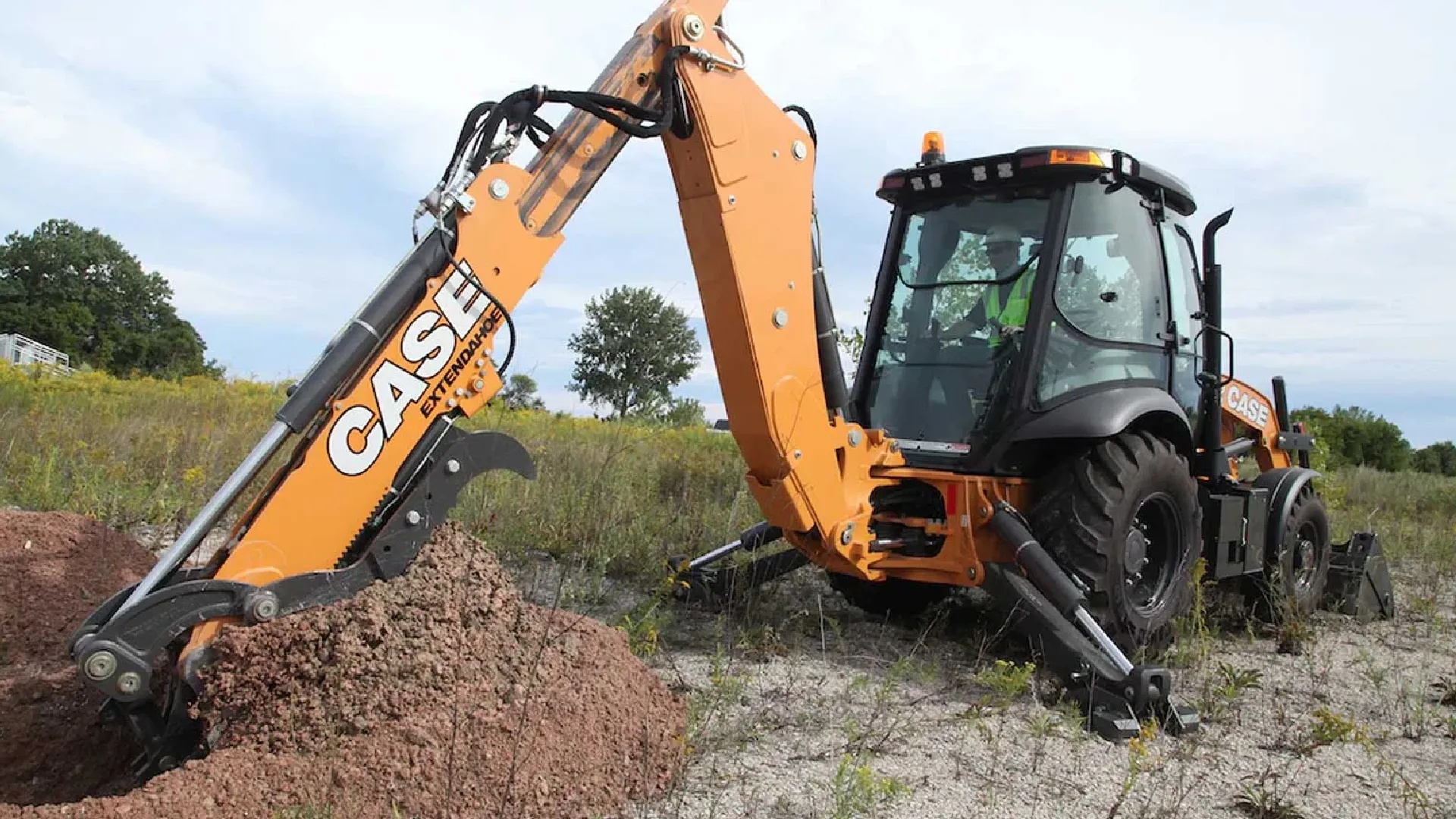

Stabilizer Legs (Outriggers): Ensuring Stability

Stabilizer legs, or outriggers, are essential safety features that prevent a backhoe loader from tipping during excavation and heavy lifting. These hydraulically operated supports extend downward on either side of the backhoe assembly, creating a stable base by transferring the machine’s load directly to the ground.

Different stabilizer foot options suit various surfaces—grouser shoes provide traction on loose soil, while rubber pads prevent damage on paved areas. Some operators add outrigger pads for extra stability, especially on soft ground, ensuring safer and more efficient operation.

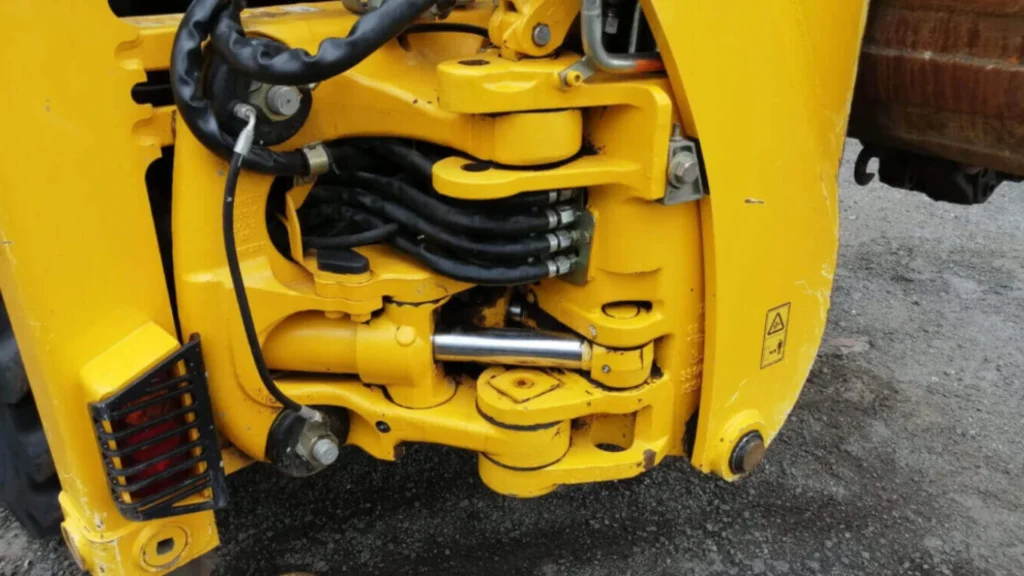

The Hydraulic System: Powering the Operations

If the engine is the heart of a backhoe loader, the hydraulic system is its circulatory system, delivering power to drive its movement and functionality.

Ever wonder how these machines lift tons with such precision? It’s all in the hydraulics. By transmitting engine power through pressurized hydraulic fluid, this system powers the cylinders and motors that control the boom, dipper stick, bucket, loader arms, and stabilizer legs—plus rotary motion for attachments.

Let's break down the key components of this system - and trust me, if you're going to be around these machines, knowing how hydraulics work will save you a lot of headaches:

Hydraulic Pump: The powerhouse of the system. Driven by the engine, it converts mechanical energy into hydraulic energy by drawing fluid from a reservoir and generating high-pressure flow. This pressure—often exceeding 3,000 psi—powers all hydraulic functions, from lifting tons of material to breaking through tough ground. Ignore pressure issues, and you’re looking at costly repairs.

Control Valves: The traffic controllers of the hydraulic system. These valves regulate the flow and direction of pressurized fluid to cylinders and motors, responding to the operator’s input through levers and pedals. Different types—directional, pressure, and flow control valves—ensure smooth, precise operation. Their finesse lets operators perform delicate tasks, like lifting a pipe without crushing it.

Hydraulic Cylinders: The muscles of the system. These convert hydraulic pressure into linear motion, powering the boom, dipper stick, bucket, loader arms, and stabilizer legs. Most use double-acting cylinders for force in both directions, ensuring precise control. When they fail, it’s not subtle—leaks tend to turn into a full-blown hydraulic fluid spectacle.

Hydraulic Hoses: The machine’s vascular system. These reinforced, high-pressure tubes transport hydraulic fluid between the pump, control valves, and cylinders, enduring extreme pressure and constant movement. A blown hose can halt operations instantly—and always seems to fail at the worst time.

Hydraulic systems combine elegant simplicity with immense power, transmitting force around corners and through tight spaces while allowing precise operator control. Without hydraulics, modern construction equipment wouldn’t exist.

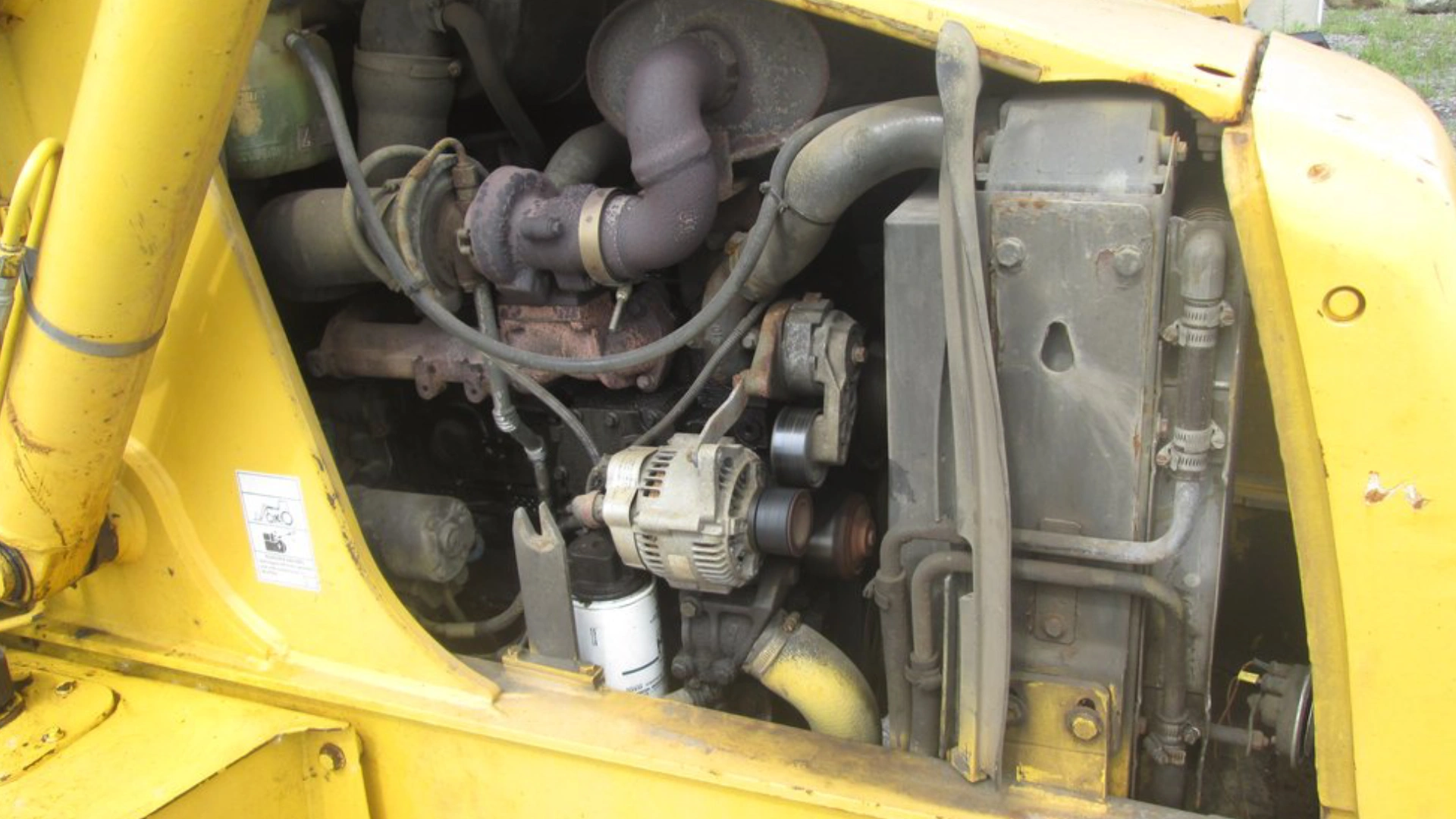

The Engine Compartment: Power Source

Pop the hood on a backhoe loader, and you’ll find its power center—the engine compartment. Most backhoes in the U.S. run on diesel engines, prized for their high torque, fuel efficiency, and durability in heavy-duty work.

Horsepower (hp) varies widely, from 40 hp in compact models (barely more than a garden tractor) to over 150 hp in larger machines. More power means greater digging force, lifting capacity, and efficiency. The engine not only moves the machine but also drives the hydraulic pump—an underpowered engine makes for a sluggish, inefficient operation.

Beyond the engine, this compartment houses key components: the transmission (controls speed and direction), axles (transfer power to the wheels), radiator (prevents overheating), air filters (essential in dusty conditions), and the fuel tank.

Overlooking engine power and cooling capacity can lead to poor performance, especially in hot environments. The engine compartment may not be flashy, but it’s critical for keeping the backhoe running strong.

How a Backhoe Loader Functions: The Mechanics of Versatility

Ever watched a backhoe in action and wondered how one operator controls so many functions? Its versatility comes from the seamless interaction between the engine, hydraulic system, and mechanical components—all orchestrated by a skilled operator.

It starts with the engine powering the hydraulic pump, which generates pressurized fluid (2,500-3,500 psi) to drive hydraulic cylinders. The operator, using levers, joysticks, and pedals, directs this fluid to control the boom, dipper stick, bucket, and loader arms. A novice moves one function at a time; an expert combines movements for efficiency.

The front loader follows the same principle, with hydraulic cylinders controlling lifting, lowering, and tilting. Skilled operators can handle delicate tasks—though picking up an egg with a loader isn’t advised.

Stabilizer legs are crucial when digging. Lowering them prevents tipping and ensures stability. Neglecting this step? A quick way to end up in trouble.

What sets the backhoe apart is its ability to switch seamlessly between loader and backhoe functions, often with a simple seat rotation. This dual-function efficiency saves time, labor, and equipment costs—making it indispensable on job sites.

Diverse Applications: Utilizing Backhoe Loaders Across Industries

Ask ten contractors what they use their backhoe for, and you’ll get fifteen different answers. Its versatility makes it indispensable across industries, seamlessly handling both digging and loading. This efficiency translates to a cost-effective solution for countless projects.

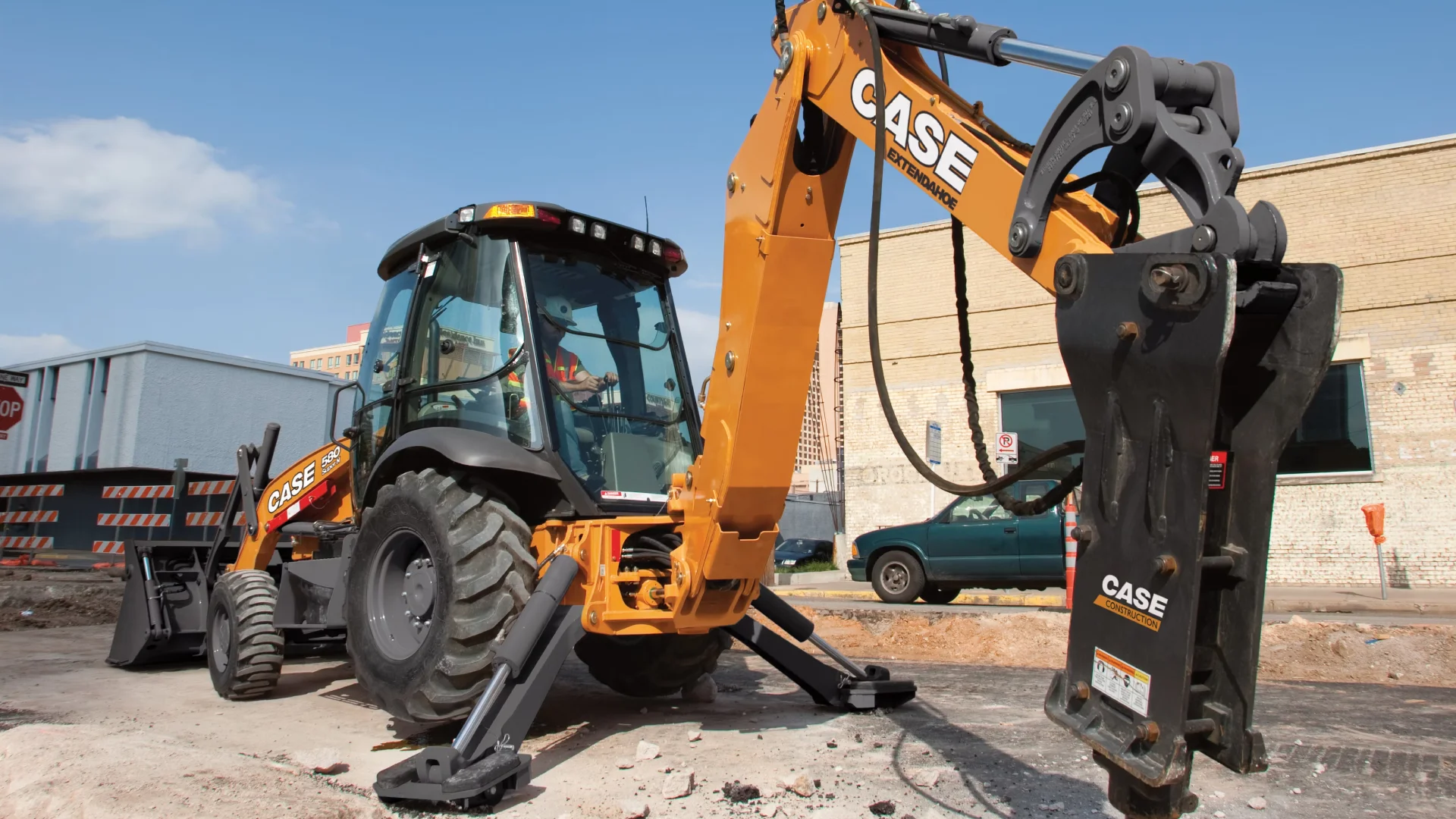

Construction and Infrastructure Development

On construction sites, backhoe loaders are everywhere, tackling trenching for utilities, excavating foundations, and moving materials like soil and gravel. They’re key for backfilling, site cleanup, and even light demolition with the right attachments. More than just diggers, they’re essential for grading and site prep.

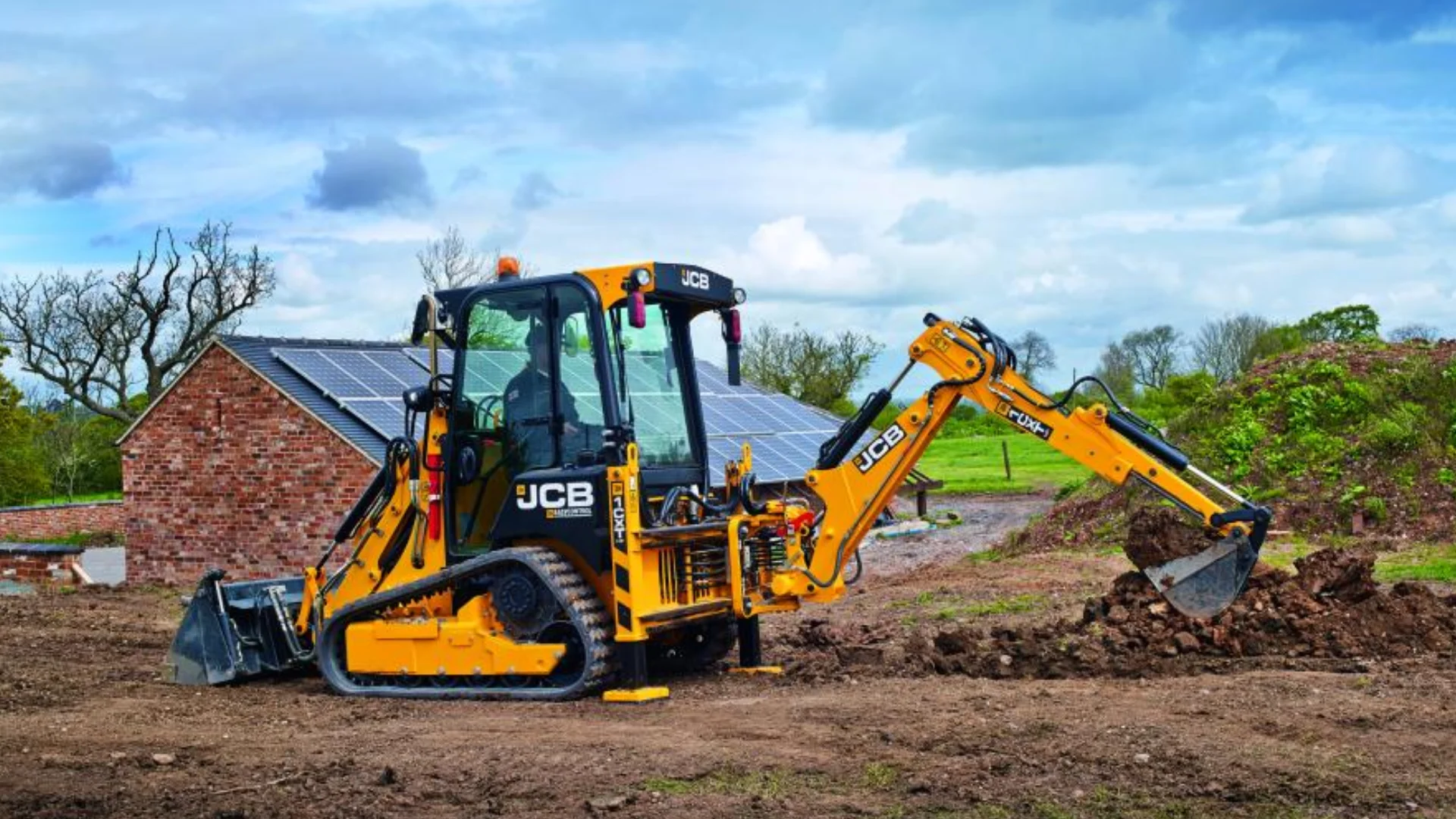

Landscaping and Site Preparation

Backhoe loaders aren’t just for construction—they’re landscaping powerhouses. From clearing trees to shaping ponds, they handle heavy materials like topsoil and boulders with ease. Their grading precision makes them essential for creating smooth, natural-looking landscapes.

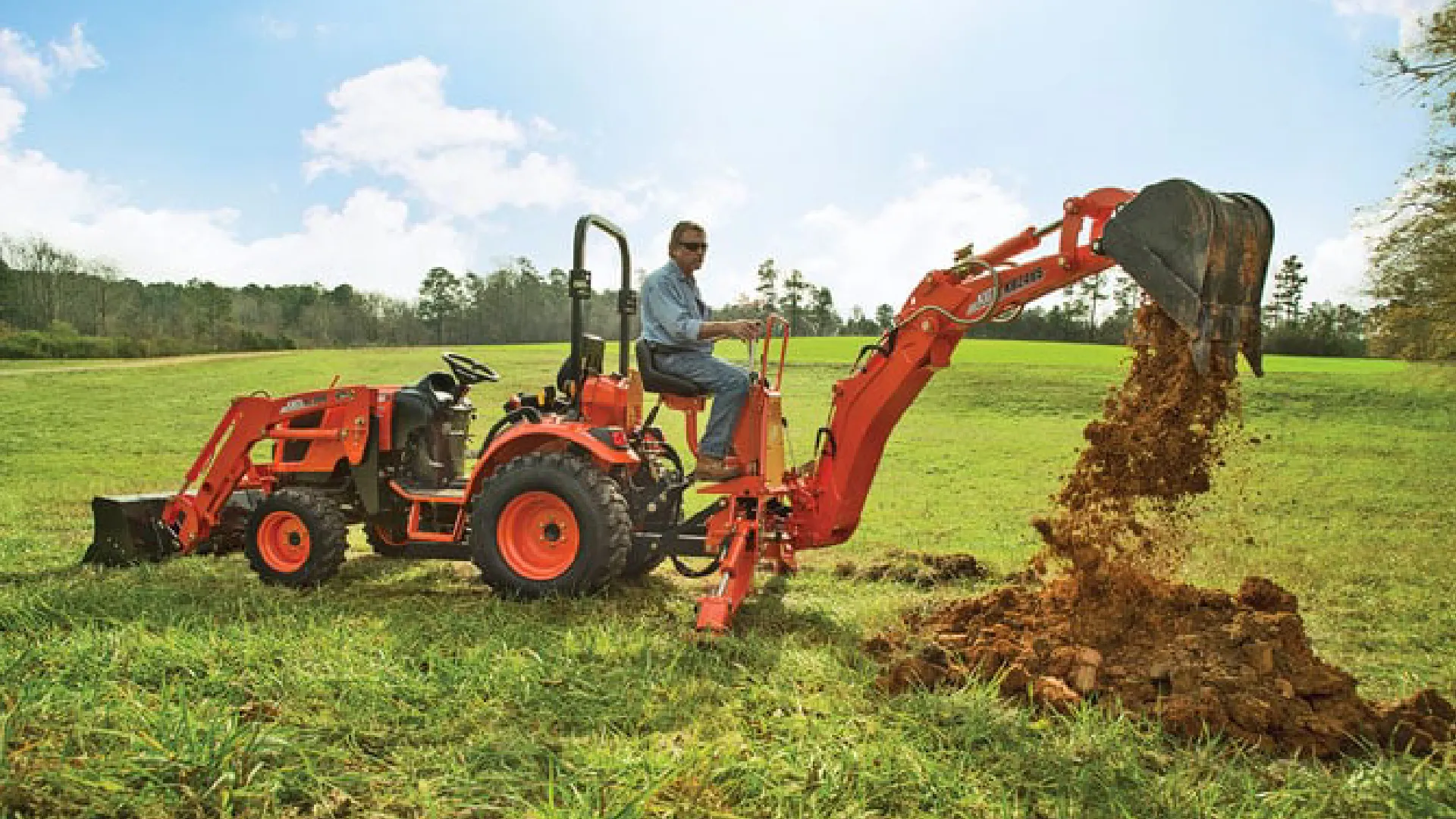

Agriculture and Farming Operations

Backhoe loaders have been a game-changer in farming, tackling irrigation, land clearing, and material transport with ease. From digging ditches to maintaining roads, their versatility makes them indispensable—especially for small farms needing multi-purpose equipment.

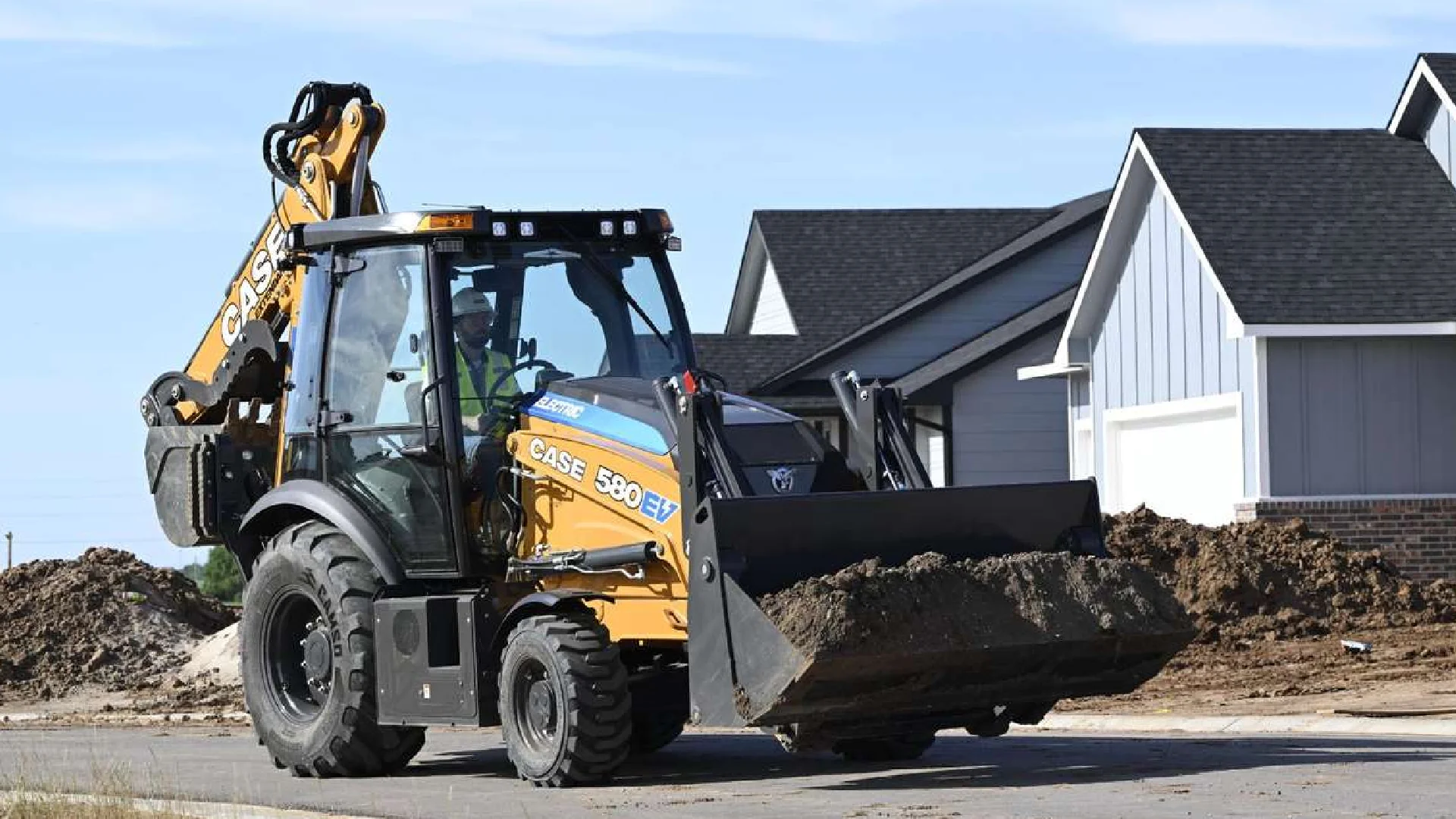

Utility and Municipal Services

Municipalities depend on backhoe loaders for infrastructure maintenance, from repairing water lines to installing utility poles. In winter, they double as snowplows, making them a cost-effective, multi-purpose asset for public works departments.

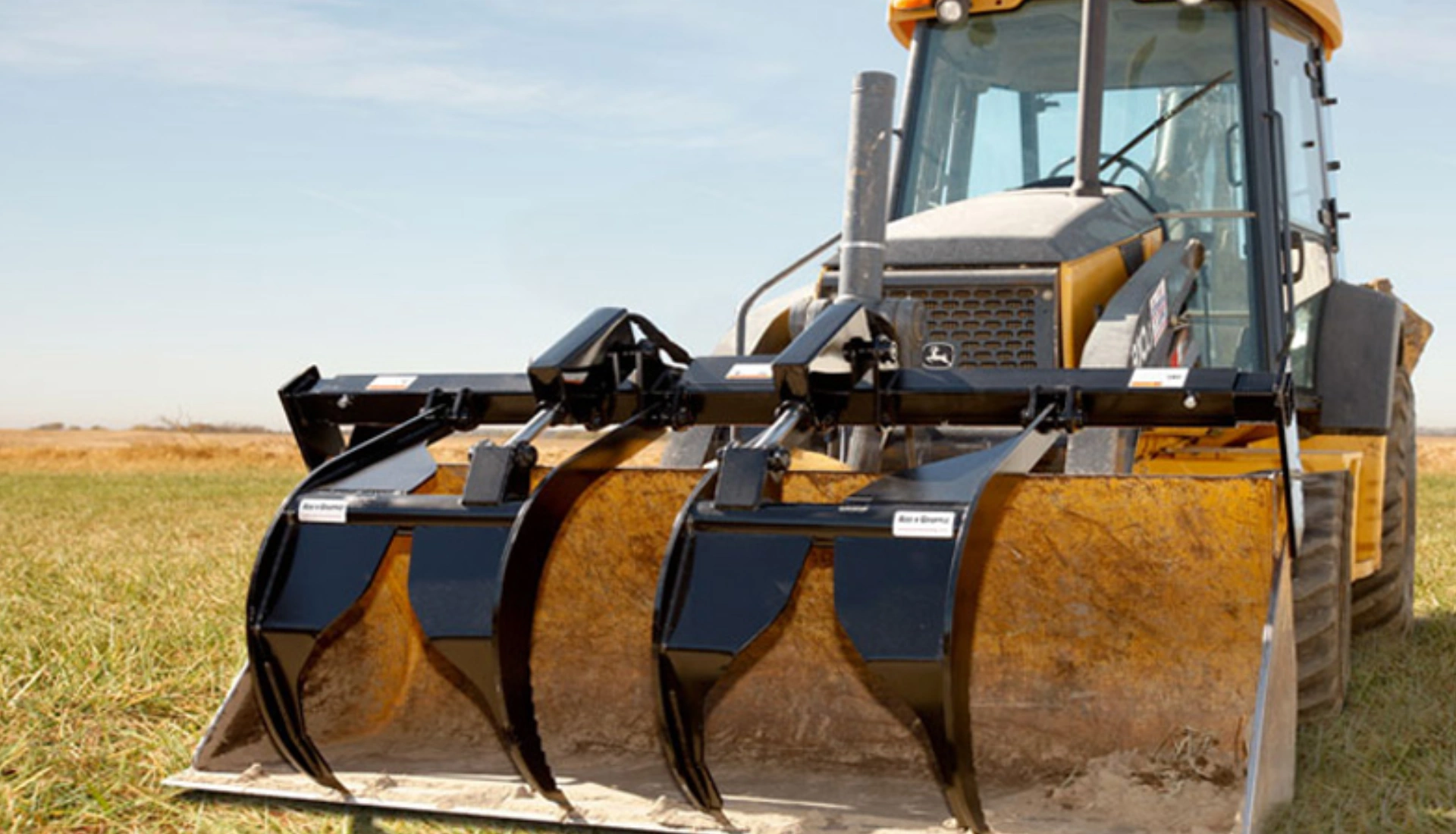

Other Notable Applications

Their versatility also makes backhoe loaders a popular choice for rental companies, where contractors, municipalities, and independent operators can access them for short-term projects. This accessibility allows smaller businesses and individuals to complete excavation, loading, or site preparation work without the long-term financial commitment of purchasing heavy equipment.

With the ability to swap out attachments such as augers, hydraulic breakers, and grapples, a single backhoe loader can serve multiple functions across different job sites, maximizing efficiency and reducing the need for additional machinery.

Performance and Specifications: Understanding Capabilities

Let’s talk numbers. To compare backhoe loaders effectively, you need to understand their key performance metrics. These define their capabilities and suitability for different jobs.

Ignore them, and you might end up with a machine that can’t handle your workload—an expensive mistake I’ve seen too many times.

Key Performance Metrics

Several key metrics are used to evaluate the performance of a backhoe loader:

Digging Depth: The maximum depth a backhoe can excavate from its resting surface. Compact models typically dig 6-8 feet, while larger ones reach 14-20 feet or more. Extendable dipper sticks add extra reach. Buy a machine with insufficient depth, and you’ll waste time constantly repositioning—not great for productivity.

Reach: This includes both the horizontal extension from the swing pivot and the maximum vertical height of the bucket. Crucial for loading trucks or working around obstacles. Try loading a tri-axle dump truck with a backhoe that can’t reach the center—you won’t make that mistake twice.

Loader Lift Capacity: The maximum weight the front loader can lift to full height, typically from 1,000 lbs on smaller models to over 4,000 lbs on larger machines. But max ratings aren’t everything—try lifting a full load at max extension, and you’ll get a quick lesson in tip load versus operating load.

Backhoe Lift Capacity: The weight the backhoe can lift at a specific reach and height, varying by model and boom/dipper stick configuration. It’s the spec everyone forgets—until they’re stuck trying to lift a concrete manhole section that’s too heavy for their machine.

Bucket Capacity: Measured in cubic yards or cubic feet, this defines the volume of material the loader and backhoe buckets can hold. Loader buckets are typically larger. A bigger bucket isn’t always better—try precision trenching in hard clay with an oversized bucket, and you’ll see why.

Breakout Force: Measured in pounds or kilograms, this indicates the digging or lifting force the loader and backhoe buckets can exert. A higher breakout force allows penetration into denser materials. This spec determines whether you’ll power through tough soil or just scratch the surface.

Operating Weight: The total weight of the backhoe loader, typically ranging from 9,000 pounds for compact models to over 25,000 pounds for larger units. Crucial for transport and surface impact—drive a 20,000-pound backhoe over fresh sod or concrete, and you’ll see why weight matters.

Engine Horsepower: A key factor in overall performance, typically ranging from 40 to 150+ horsepower. But don’t get too hung up on this number—hydraulic efficiency often matters more than raw horsepower when it comes to real digging capability.

Fuel Efficiency and Consumption

In today's world of $4+ diesel, fuel efficiency is an increasingly important consideration for backhoe loader owners and operators due to rising fuel costs and environmental concerns.

Fuel Type: The vast majority of backhoe loaders in the US market utilize diesel fuel. Many modern diesel engines are required to use ultra-low sulfur diesel (ULSD) fuel. Try using the wrong fuel, and you'll learn expensive lessons about emissions system repairs.

Fuel Consumption: Varies by model, workload, operator skill, and machine efficiency, typically ranging from 1.5 to over 8 gallons per hour. I’ve seen identical machines with different operators show a 30% difference—technique matters as much as specs.

Comparative Specifications of Popular US Models

To give a clearer picture of how different backhoe loader models stack up, the table below compares key specs from major manufacturers. Knowing these details can help you pick the right machine for the job.

Note: Specifications may vary based on configuration and model year. Data compiled from manufacturer specifications.

This table isn’t just a collection of numbers—it’s a real-world performance guide. See how the New Holland B75D gives nearly 4 extra feet of digging depth over similar models? That means fewer repositioning stops and more efficient work.

Or check out the breakout force variation—over 4,000 pounds between the highest and lowest models. If you’re dealing with compacted soil or rocky terrain, that difference is huge.

These specs highlight the range of capabilities among different backhoe loaders in the US market. While this data is invaluable for choosing the right machine, don’t forget that factors like dealer support, parts availability, and operator comfort matter just as much on the job site.

Conclusion: The Enduring Utility of the Backhoe Loader

The backhoe loader remains a construction staple because it efficiently handles multiple tasks without requiring a fleet of specialized machines. Its 3-in-1 design—tractor mobility, front loading, and rear excavation—lets contractors tackle everything from trenching to material handling with a single unit. When budget or space constraints limit the use of multiple machines, a backhoe’s versatility more than offsets its compromises in raw performance.

Success with a backhoe isn’t about horsepower—it’s about operator skill and application fit. I’ve seen contractors struggle with a 110hp model while others maximize a 75hp machine simply by understanding its strengths. Its wheeled mobility, 180-200° swing for tight spaces, and quick-coupler attachments create efficiencies that specialized machines can’t match on varied job sites.

From Wain-Roy’s early tractor attachments to today’s climate-controlled, joystick-operated models with telematics, the backhoe’s evolution proves its staying power. Excavators dig deeper, and wheel loaders move more material, but the backhoe thrives in the middle ground. It’s the utility player of construction—maybe not the superstar, but often the most valuable asset on a job where adaptability is key.
