Mini Excavator Weight Guide: What Contractors Actually Need to Know

Mini excavators have revolutionized job sites by packing serious power into compact packages. Their popularity has exploded across construction, landscaping, and utility work because they get in where the big boys can’t. So, how much does a mini excavator weigh?

Mini excavators typically weigh between 1,500 and 20,000 pounds (0.75-10 tons). Small models range from 2,000-10,000 pounds, medium units from 10,000-18,000 pounds, and large mini excavators exceed 18,000 pounds while still maintaining their “mini” classification.

Typical Weight Range of Mini Excavators

Mini excavators are designed to be compact and lightweight, but their weight can vary significantly depending on the model, size, and other factors.

Generally, mini excavators weigh between 1,500 pounds (approximately 680 kilograms) and 20,000 pounds (approximately 9,072 kilograms). This weight range allows for diverse applications, from small residential projects to larger construction sites.

To further categorize mini excavators, they are often classified into three size classes:

• Small: These mini excavators have operating weights ranging from 2,000 to 10,000 pounds.
• Medium: These excavators range between 10,000 and 18,000 pounds.
• Large: These mini excavators exceed 18,000 pounds.

To determine the exact weight of a mini excavator, it's essential to consult the manufacturer's instruction manual or data plate. This information is usually stated in the manual or on the data plate attached to the machine.

And trust me on this one - don't just eyeball it when you're deciding if your pickup and trailer can handle that rental. The number of operators I've seen stranded with overloaded trailers because "it didn't look that heavy" would surprise you.

Factors Affecting Mini Excavator Weight

flowchart TD
    A[Mini Excavator Weight] --> B[Size and Model]
    A --> C[Attachments]
    A --> D[Materials]
    A --> E[Engine & Hydraulic System]
    A --> F[Cab & Operator]
    A --> G[Zero Tail Swing]
    A --> H[Main Structural Components]

    B --> B1[Larger models have heavier components]
    C --> C1[Buckets: 50-200 lbs]
    C --> C2[Hydraulic hammers: 150-1000 lbs]
    C --> C3[Impacts stability & transport]
    D --> D1[Steel vs lightweight alloys]
    E --> E1[Larger engines add weight]
    E --> E2[More powerful hydraulics add weight]
    F --> F1[Operator weight]
    F --> F2[Tools & equipment]
    G --> G1[Design affects weight distribution]
    H --> H1[Working device - buckets, cylinders]
    H --> H2[Travel device - tracks, motors]
    H --> H3[Power system - engine]

    style A fill:#4b77be,stroke:#333,stroke-width:2px,color:white,font-weight:bold
    style B1,C1,C2,C3,D1,E1,E2,F1,F2,G1,H1,H2,H3 fill:#f5f5f5,stroke:#ddd,stroke-width:1px
    style B,C,D,E,F,G,H fill:#7cb9e8,stroke:#333,stroke-width:1px

Several factors contribute to the overall weight of a mini excavator. These factors are summarized in the table below:

Ever notice how some mini-ex models feel more substantial than others in the same class? Manufacturers have gotten pretty creative with materials and design. Some have started using high-strength steel alloys that maintain rigidity while shedding pounds - kind of like how athletes pack on muscle while cutting fat. The difference might not show up in the spec sheet, but you'll feel it when you're working.

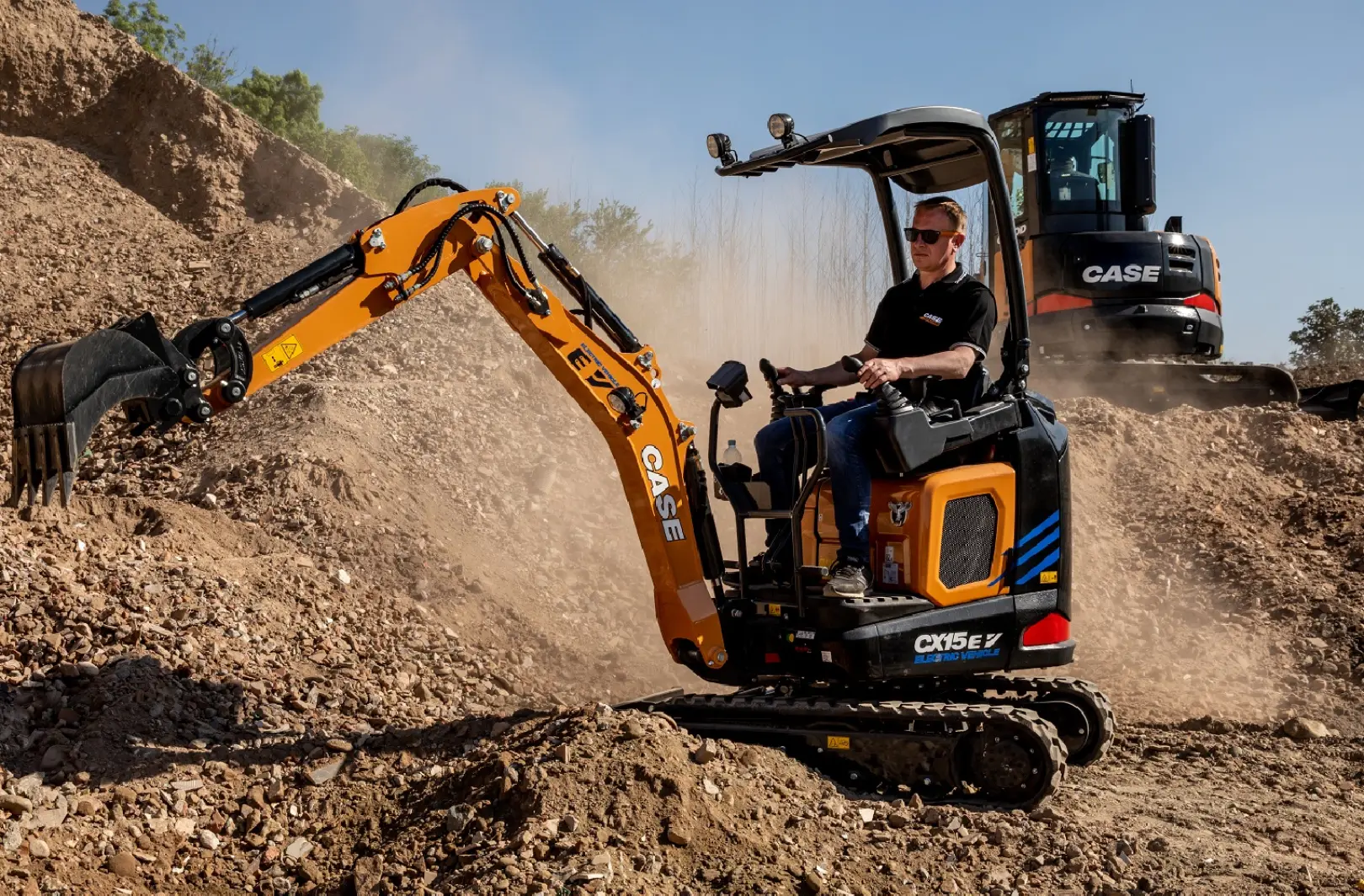

Implications of Mini Excavator Weight for Performance and Applications

The weight of a mini excavator has several implications for its performance and suitability for different applications:

Stability: Heavier mini excavators tend to be more stable, especially when lifting heavy loads or working on uneven terrain. For example, a heavier excavator would be more stable when digging a trench on a slope or lifting a heavy load of debris. This stability is crucial for safety and efficient operation.

Ground Pressure: Lighter mini excavators exert less pressure on the ground, making them suitable for delicate surfaces like lawns or areas with underground utilities. This is important for landscaping projects or when working near underground pipes or cables to minimize the risk of damage. However, heavier mini excavators may require additional measures to mitigate ground disruption or damage when working on sensitive terrain.

Transportability: Lighter mini excavators are easier to transport, often requiring smaller trailers or trucks, making them a practical choice for contractors who need to move equipment frequently. Their compact size allows for easier maneuvering on roadways and job sites, reducing the need for special permits or heavy-duty towing vehicles. This ease of transportation can save both time and costs, especially for short-term or multi-site projects where quick relocation is essential. Additionally, some models are designed with retractable tracks or lifting points, further enhancing their portability and adaptability.

Lifting Capacity: The weight of the mini excavator influences its lifting capacity. Heavier models generally have a higher lifting capacity due to their increased stability and stronger hydraulic systems. This is important to consider when choosing an excavator for tasks that involve lifting heavy objects, such as moving large rocks or construction materials.

Digging Depth and Reach: While weight isn't the sole determinant of digging depth and reach, heavier mini excavators often have greater digging capabilities due to their more powerful engines and hydraulic systems. This is important for tasks that require deep excavation, such as digging foundations or utility trenches.

Maximum Unload Top refers to the highest point an excavator’s arm can reach when dumping material from its bucket. This specification is crucial for tasks such as loading trucks, bins, or hoppers, as it determines whether the excavator can efficiently transfer materials without spillage or requiring additional adjustments. A machine with a higher unload top is ideal for working with large dump trucks, while smaller models may be better suited for lower-profile containers. Understanding this measurement helps operators choose the right excavator for their specific loading needs, improving job site efficiency and safety.

Loaded Weight vs. Unloaded Weight: Unloaded weight is the weight of the machine itself, while loaded weight includes the weight of the operator, attachments, and any materials being carried. It's crucial to adhere to loaded weight limits to avoid damaging the machine and ensure safe operation. Exceeding these limits can strain the excavator's components, increase the risk of tipping over, and potentially lead to accidents.

Carrying Capacity, Transportation, and Regulations: The weight of a mini excavator directly impacts the carrying capacity of transportation vehicles, transportation costs and efficiency, and compliance with regulations. Heavier excavators may require larger and sturdier vehicles for transportation, increasing costs. Additionally, excessive weight may reduce the loading capacity of transportation vehicles, lowering efficiency. In many regions, there are strict regulations governing the load capacity of transportation vehicles, and ensuring the mini excavator's weight falls within these limits is essential to avoid legal issues.

Wind Resistance and Operational Efficiency: The weight of a mini excavator also affects its wind resistance and operational efficiency and safety. Heavier excavators have better wind resistance, maintaining stability in strong winds and avoiding accidents. The weight also influences operational efficiency and safety. Lighter excavators may exhibit instability during excavation or loading, affecting efficiency. Conversely, heavier excavators may increase the labor intensity of operators and pose safety hazards.

I once watched a contractor try to use a 2-ton mini-ex to lift a concrete vault that was clearly too heavy. Know what happened? The machine started to tip forward, tracks coming off the ground. Luckily, the operator was experienced enough to lower the load immediately. Had he been using a 5-ton machine with proper counterweight, it would have been a non-issue. Weight matters more than marketing brochures might lead you to believe.

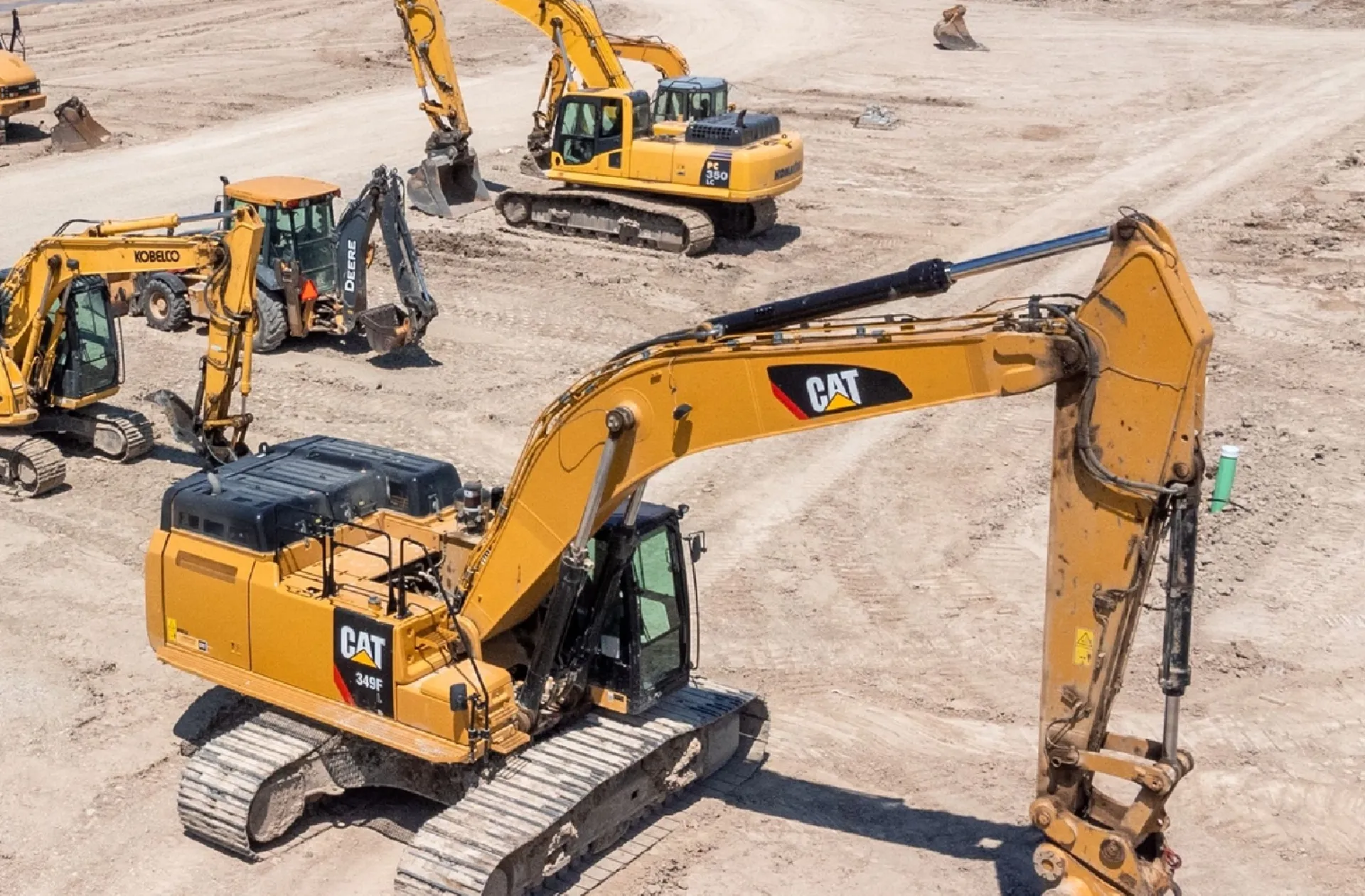

Comparison of Mini Excavator Weight with Other Types of Excavators

Mini excavators are significantly lighter than standard excavators, which typically weigh between 7 and 45 metric tons (15,432 to 99,208 pounds). This weight difference highlights the compact nature of mini excavators and their suitability for projects where space is limited or ground disturbance needs to be minimized. Larger excavators, used primarily in industrial applications, weigh more than 90,000 lbs.

While mini excavators are generally lighter than their standard and large counterparts, their diverse weight range allows them to be used in a wide variety of applications across different industries.

It's worth noting that the line between "mini" and "standard" excavators has started to blur in recent years. What used to be considered a standard excavator in the 80s might fall into the large mini-ex category today. Manufacturers have responded to the demand for more powerful compact machines by essentially creating micro versions of their bigger models. The result? Today's 8-ton mini excavator might have the performance capabilities that used to require a 15-ton standard machine just a decade ago.

Real-World Applications of Mini Excavators of Different Weights

Mini excavators find applications in a wide range of industries and projects:

Landscaping: Smaller mini excavators are ideal for landscaping tasks like planting trees, digging trenches for irrigation, and removing debris. Their lighter weight minimizes damage to lawns and delicate landscapes. They can also be used for installing pools, lawn care and maintenance, mulching, and removing structures like old fences, decks, and sheds.

Construction: Mini excavators are used in construction for digging foundations, excavating trenches for utilities, and backfilling. Larger models can handle more demanding tasks like demolition and site preparation. Specific construction applications include excavating for foundations and footings, trenching for utilities and drainage systems, backfilling and grading, and site preparation and clearing.

Utility Work: Mini excavators are essential for utility work, including digging trenches for pipes and cables, installing septic systems, and maintaining waterways. They are also used for road construction and maintenance, mining and extraction, and septic system installation and maintenance.

Agriculture: Farmers use mini excavators for tasks like digging ditches, moving hay bales, and installing fences. They can also be used for tilling soil and lifting farm equipment and materials like compost and animal feed.

Demolition: Mini excavators, especially those with hydraulic breaker attachments, can be used for demolishing small structures and removing debris. They are also useful for sorting and separating materials during demolition for recycling and disposal.

Other Applications: Mini excavators are also used in residential and commercial construction projects, demolition work, utility and infrastructure work, agricultural applications, road and path construction, snow removal, site preparation for pools and water features, and forestry and land clearing.

Want to know where smaller machines really shine? I watched a residential contractor fit a 1.5-ton mini-ex through a standard 36" gate to access a backyard for a pool excavation.

Try doing that with a standard excavator!

The neighbor's pristine landscaping remained untouched, and the contractor saved thousands by not having to remove and rebuild fencing. Sometimes the "mini" in mini excavator is exactly what makes it the right tool for the job.

Cost of Renting Mini Excavators

The cost of renting a mini excavator can vary depending on its weight class and rental duration.

2–4 tons:

• 4000–5999 lb mini excavator. Day: $210. Week: $670. Month: $1,719.

4–6 tons:

• 8000–9999 lb mini excavator. Day: $282. Week: $888. Month: $2,167.
• 10000–11999 lb mini excavator. Day: $310. Week: $935. Month: $2,502.
• 12000–13999 lb mini excavator. Day: $303. Week: $872. Month: $2,661.

These costs are approximate and can vary depending on factors such as location, rental company, and specific excavator model.

Here’s a pro tip that rental companies like United Rentals, Sunbelt Rentals, and Herc Rentals won’t advertise: if you need a machine for 3-4 days, always opt for the weekly rate. The break-even point is typically around 3 days at most rental yards. And if your project timeline is flexible, ask about “off-season” rates—you might score a 20-30% discount by scheduling your excavation work during slower months. Just don’t expect any deals during the spring construction boom when everyone and their brother is trying to get a mini-ex for the weekend.

Conclusion

Look, here's what nobody at the rental counter wants to tell you: mini excavator weight isn't just some spec - it's your profit margin on treads.

The 3.5-5 ton range is popular because it hits the jobsite sweet spot without CDL headaches. But that's like saying a 3/4-ton truck works for "most people" - irrelevant if you're hauling horses or just grabbing groceries.

Four questions that'll save you more than that fancy fuel calculator:

1. What are you digging in? (Golf course turf or demolition rubble?)
2. How are you moving it? (F-250 with standard trailer or dedicated equipment hauler?)
3. Can you get it there? (Open construction site or that backyard with the 36" gate?)
4. What are you lifting? (Landscape boulders or precast concrete?)

Remember that hydraulic hammer you're eyeing? It's not just an attachment - it's 1,000 pounds that might be the difference between stability and an insurance claim when you're working a slope.

Time to ditch the brochure fantasy. The perfect mini-ex is the one that makes you money Monday through Friday, not the one that looks impressive parked at the yard.
