16 Forklift Attachments for Lifting (That Actually Deliver ROI)

Standard forklifts are just the starting point. Many focus on lift capacity and mast height while overlooking load centers and load moments—critical factors that determine whether forklift attachments for lifting solve problems or create them.

This guide cuts through marketing to reveal which attachments deliver ROI, what regulations actually require, and how operator capabilities factor into the equation.

Forklift attachments for lifting include fork extensions, lifting hooks, drum handlers, and jib booms. Fork extensions increase load stability, while lifting hooks enable vertical lifting. Drum handlers secure cylindrical objects, and jib booms extend reach for heavy lifting. These attachments enhance forklift versatility for different lifting tasks.

Types of Forklift Attachments for Lifting

Different forklift attachment types are designed to address diverse load types and operational needs. They can be broadly categorized into those that modify the forks, those that clamp, and those with specialized functions.

flowchart TD
    A[Forklift Attachments] --> B[Fork-Modifying Attachments]
    A --> C[Clamping Attachments]
    A --> D[Specialized Attachments]

    B --> B1[Fork Extensions]
    B --> B2[Fork Positioners]
    B --> B3[Side Shifters]
    B --> B4[Mast Extensions]

    C --> C1[Bale Clamps]
    C --> C2[Carton Clamps]
    C --> C3[Paper Roll Clamps]
    C --> C4[Fork Clamps]
    C --> C5[Push-Pull Clamps]

    D --> D1[Multiple Load Handlers]
    D --> D2[Rotators]
    D --> D3[Jib Booms]
    D --> D4[Carpet Poles]
    D --> D5[Drum/Cylinder Handlers]
    D --> D6[Hoppers & Buckets]
    D --> D7[Rollerforks]

    style A fill:#f96,stroke:#333,stroke-width:2px
    style B fill:#bbf,stroke:#333
    style C fill:#bbf,stroke:#333
    style D fill:#bbf,stroke:#333

1. Fork-Modifying Attachments

Fork Extensions

These slide over your existing forks, essentially giving them a growth spurt to handle longer loads like lumber, pipes, or lengthy pallets. They're the go-to solution for accessing materials in awkward spots, making them common in small warehouses, construction, and lumber yards.

Word of caution though—those extensions add weight and shift your load center. Ignore this physics lesson and you might have a tip-over situation on your hands.

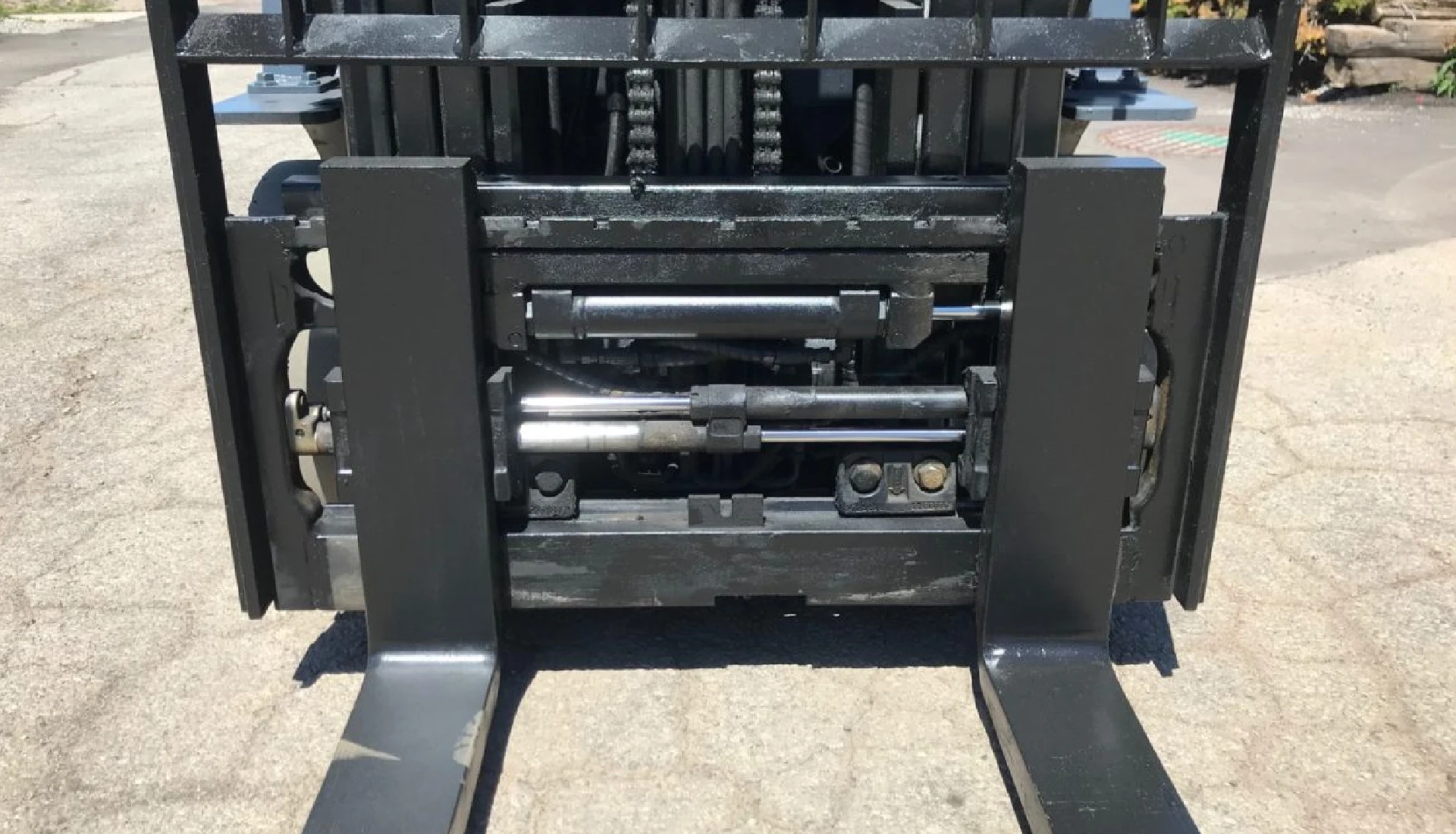

Fork Positioners

Ever watched an operator manually adjusting forks? Takes forever, right? Fork positioners provide hydraulic adjustment of fork spacing, letting operators handle pallets of various sizes without the get-off-get-on dance.

Distribution centers, warehouses, and food manufacturing facilities love these for handling diverse pallet sizes.

Beyond the obvious time savings, they reduce pallet damage and boost overall productivity by eliminating manual adjustments.

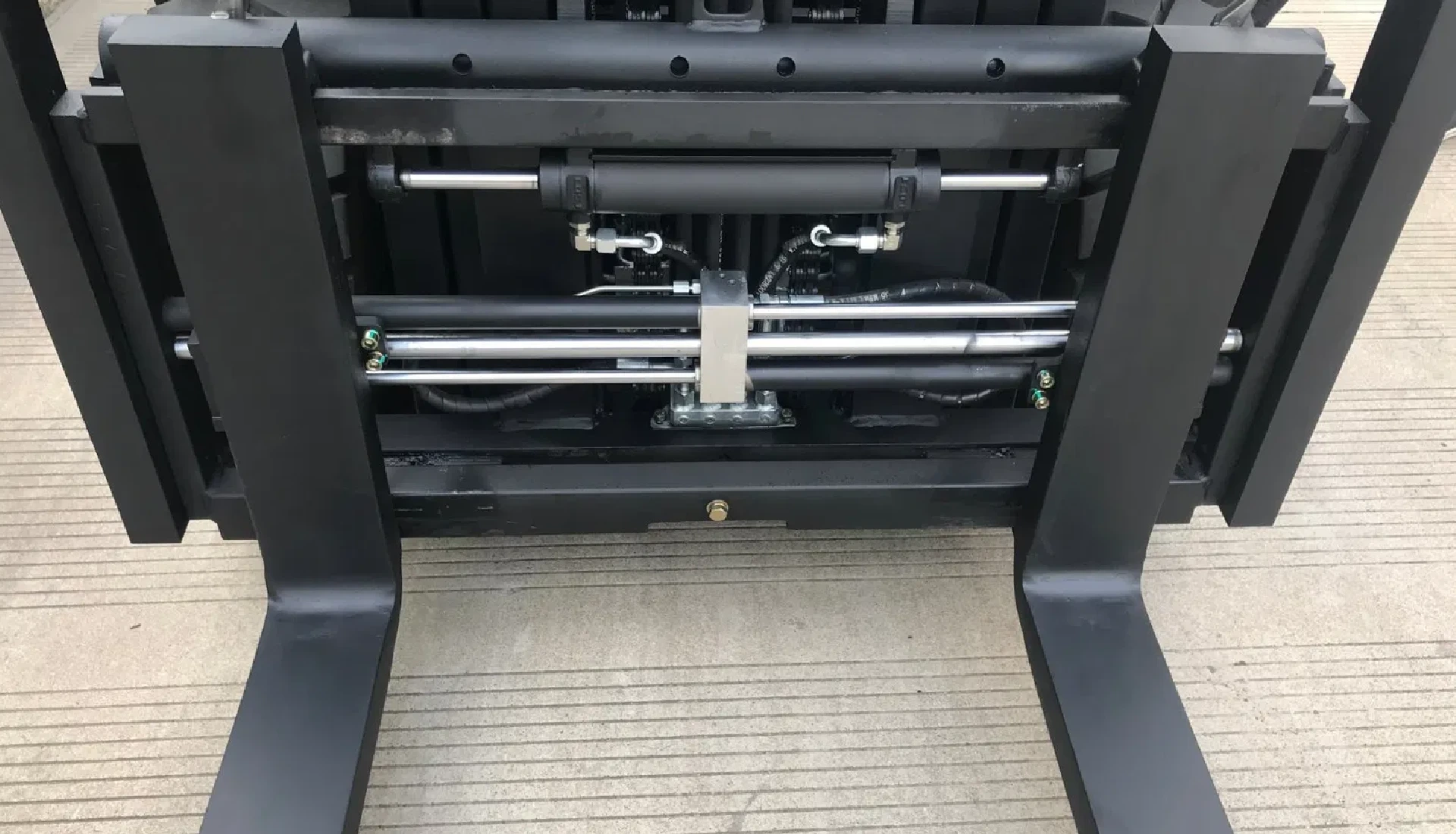

Side Shifters

Side shifters allow forks to move laterally, making precise positioning possible without performing a 15-point turn with the forklift itself. This capability shines in tight spaces and narrow aisles, improving efficiency, cutting fuel consumption, and reducing the chance of damaging pallets or products.

You'll find them across industries from agriculture and paper handling to construction and food processing.

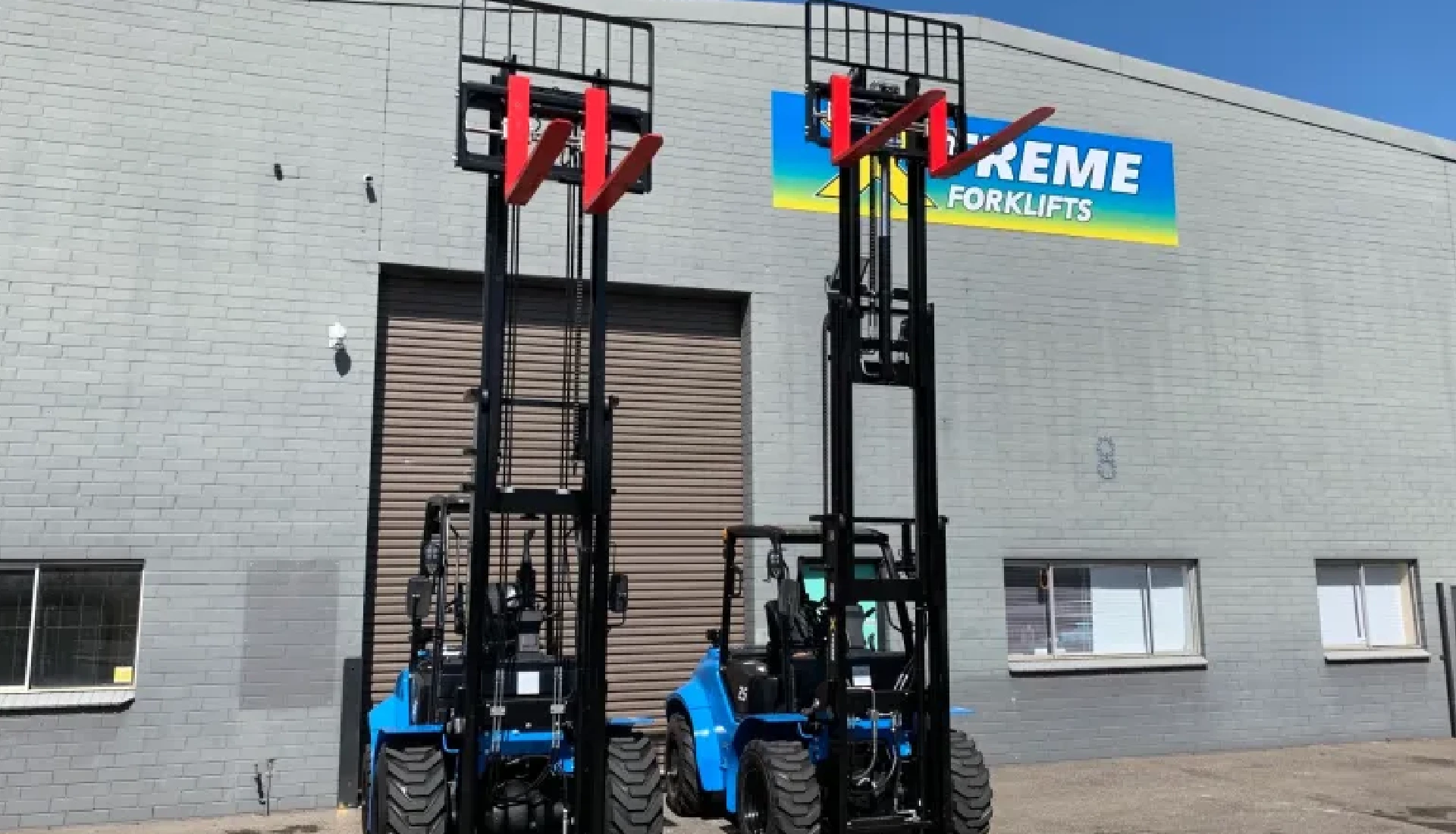

Mast Extensions

Need more height without investing in a taller forklift? Mast extensions increase vertical reach without the capital expense of a whole new machine. They're the cost-effective answer for those occasional needs to reach higher racking or stacking heights.

Think of them as the forklift equivalent of standing on tiptoes – not a permanent solution, but perfect for those occasional high-shelf needs.

2. Clamping Attachments

Clamps

These versatile attachments come in various configurations to handle specific load types. Some common types include:

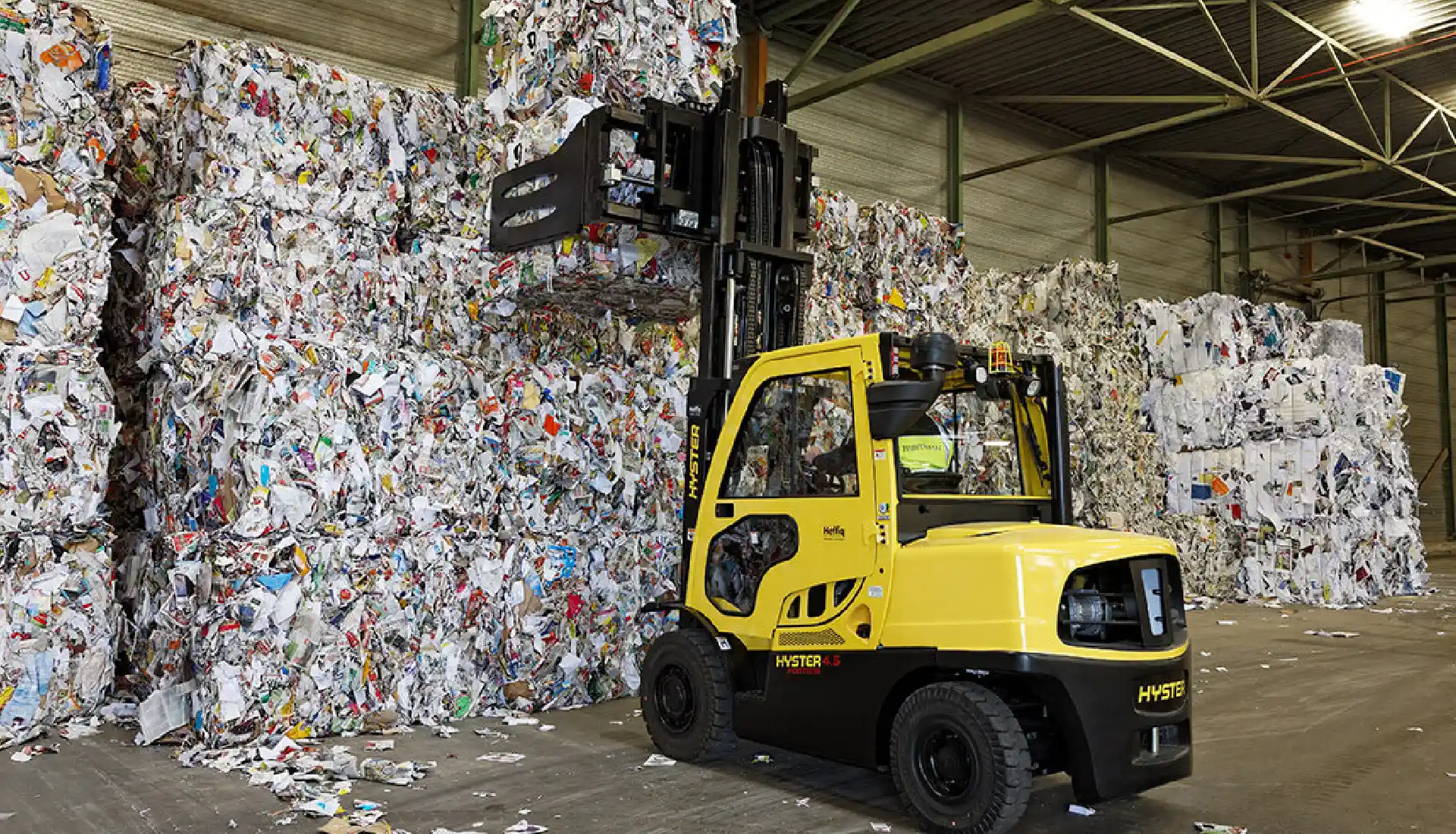

• Bale clamps: Designed for handling baled products like hay, cotton, or wool without the need for pallets. The agriculture and manufacturing folks can't get enough of these, especially when handling materials that don't play nice with standard forks.
• Carton clamps: Ideal for lifting and moving pallet-less containers, such as cartons of goods or large appliances. They provide a secure grip without crushing what's inside—a pretty important feature when you're moving a truckload of 4K televisions.

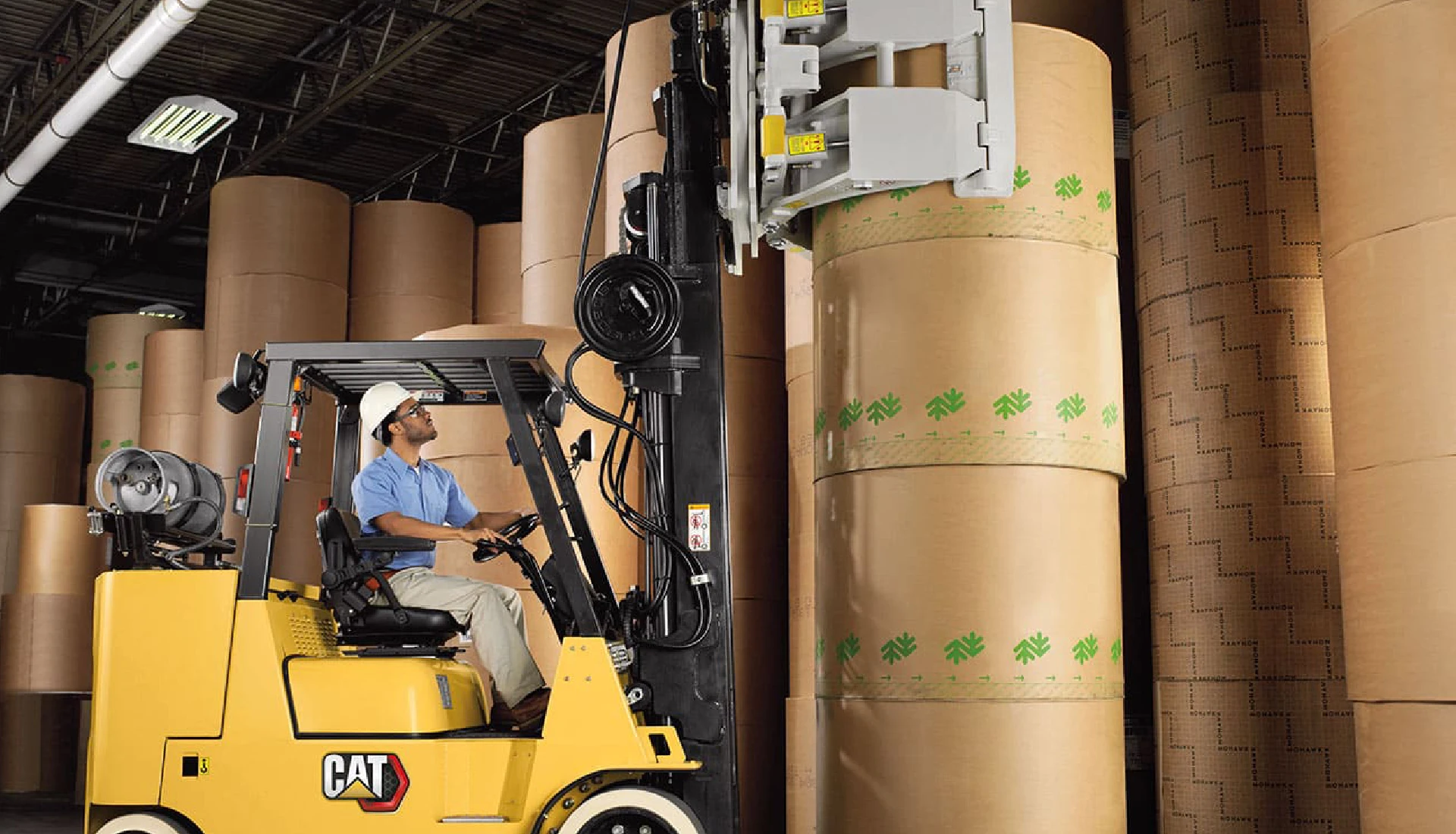

• Paper roll clamps: Specifically engineered to handle large rolls of paper without causing damage. These are the unsung heroes of the paper and printing industry, where a damaged roll can mean thousands in wasted materials.
• Fork clamps: The problem-solvers for awkwardly shaped loads that would make other attachments throw in the towel—think tires, odd-shaped crates, or anything else that makes operators scratch their heads.
• Push-pull clamps: These eliminate pallets entirely by using slip sheets instead. The clamp extends forward, gripping the load between a faceplate and gripper. This approach is gold for industries like beverage and food production, where pallet costs and space constraints are always headaches worth solving.

3. Specialized Attachments

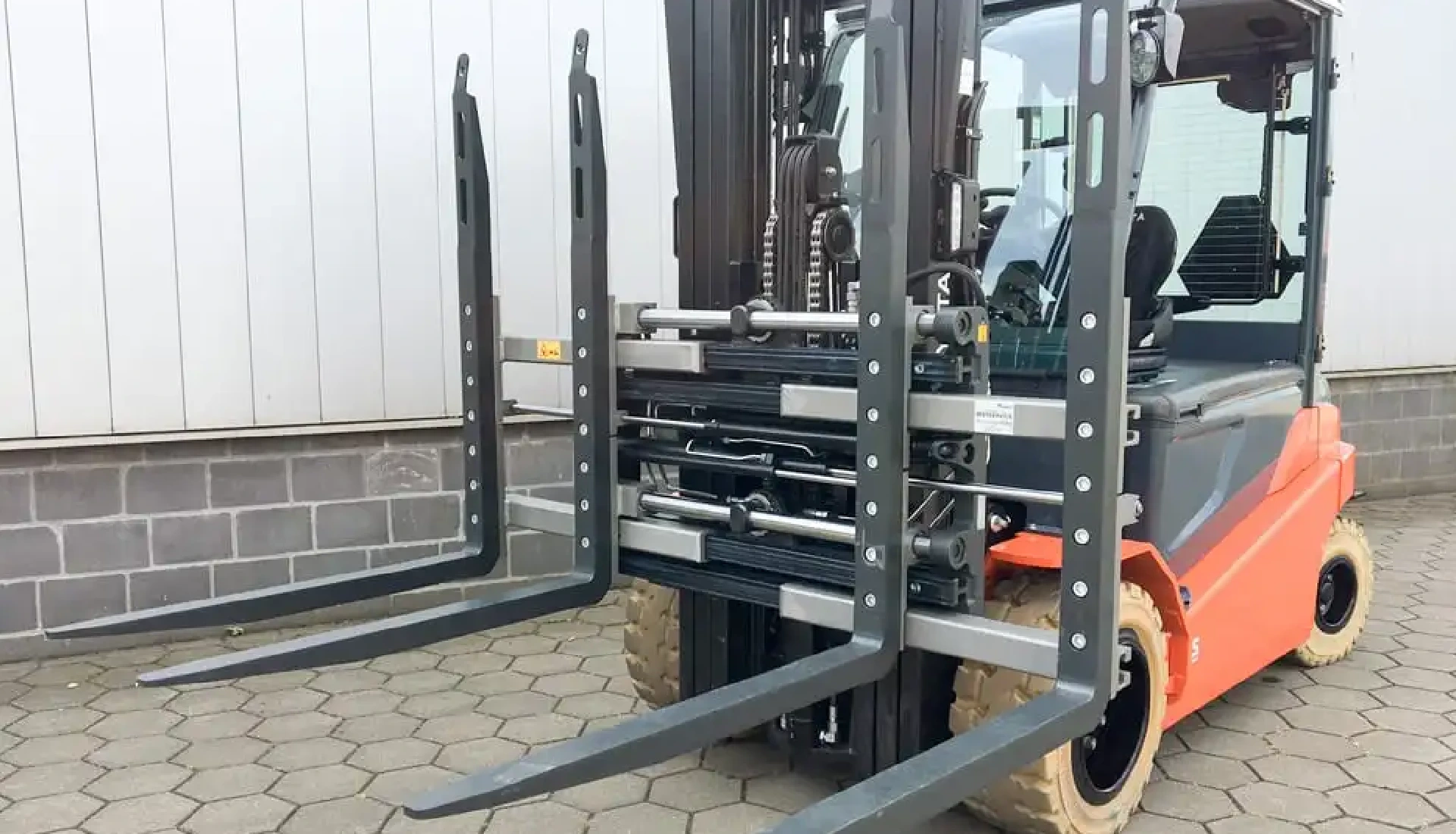

Multiple Load Handlers

Think of these as the multitaskers of the attachment world. By adding extra forks, they enable handling two or even three pallets side-by-side. The math is simple: fewer trips equals major time savings in high-volume operations like production, warehousing, shipping, and bottling/brewing.

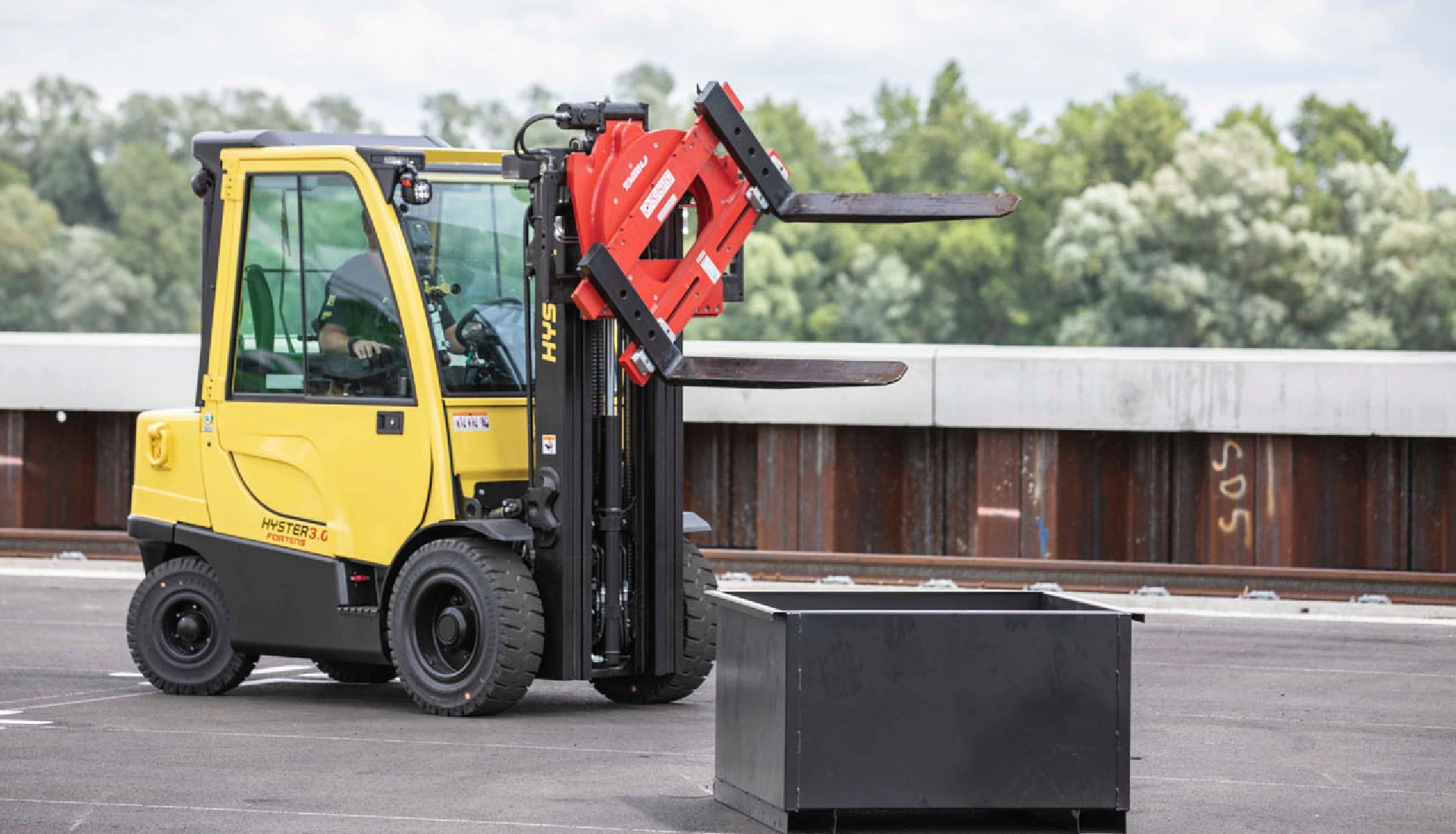

Rotators

Want to flip a load completely upside down? Rotators let forklift forks rotate 360 degrees, providing the capability to dump loads into containers or invert them entirely. Waste management, recycling, food processing, and agriculture operations rely on these for controlled dumping or tilting of loads.

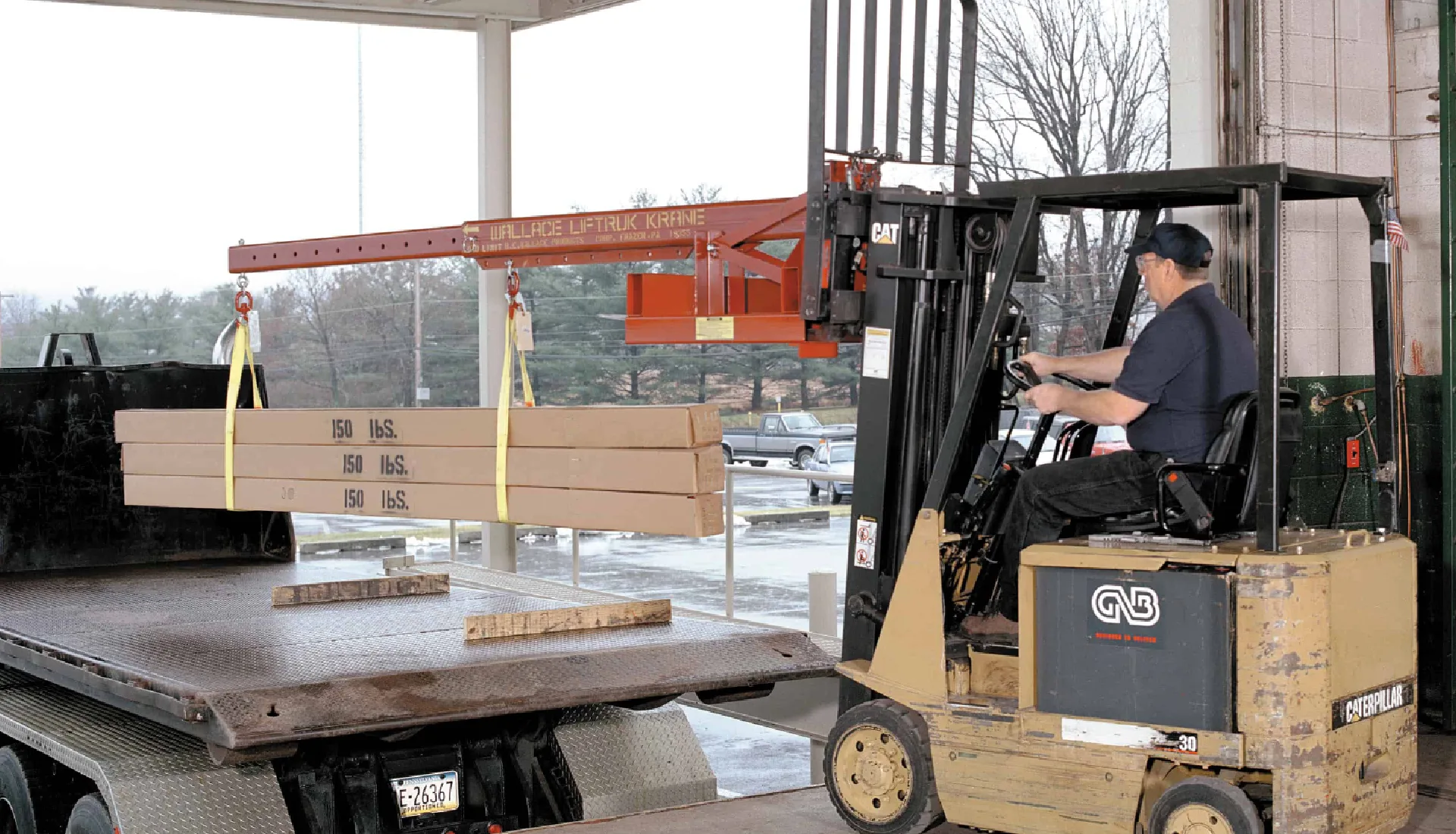

Jib Booms

Ever wish your forklift could moonlight as a crane? Jib booms make it happen, transforming forklifts into mini-cranes for lifting and moving suspended loads. Some models offer hydraulic adjustability for precise positioning, similar to overhead cranes.

But here's the catch—a forklift has a relatively small footprint, so using jib booms for pulling or swinging loads is asking for trouble. Stability issues and tip-overs aren't just possible; they're likely if you push these too far.

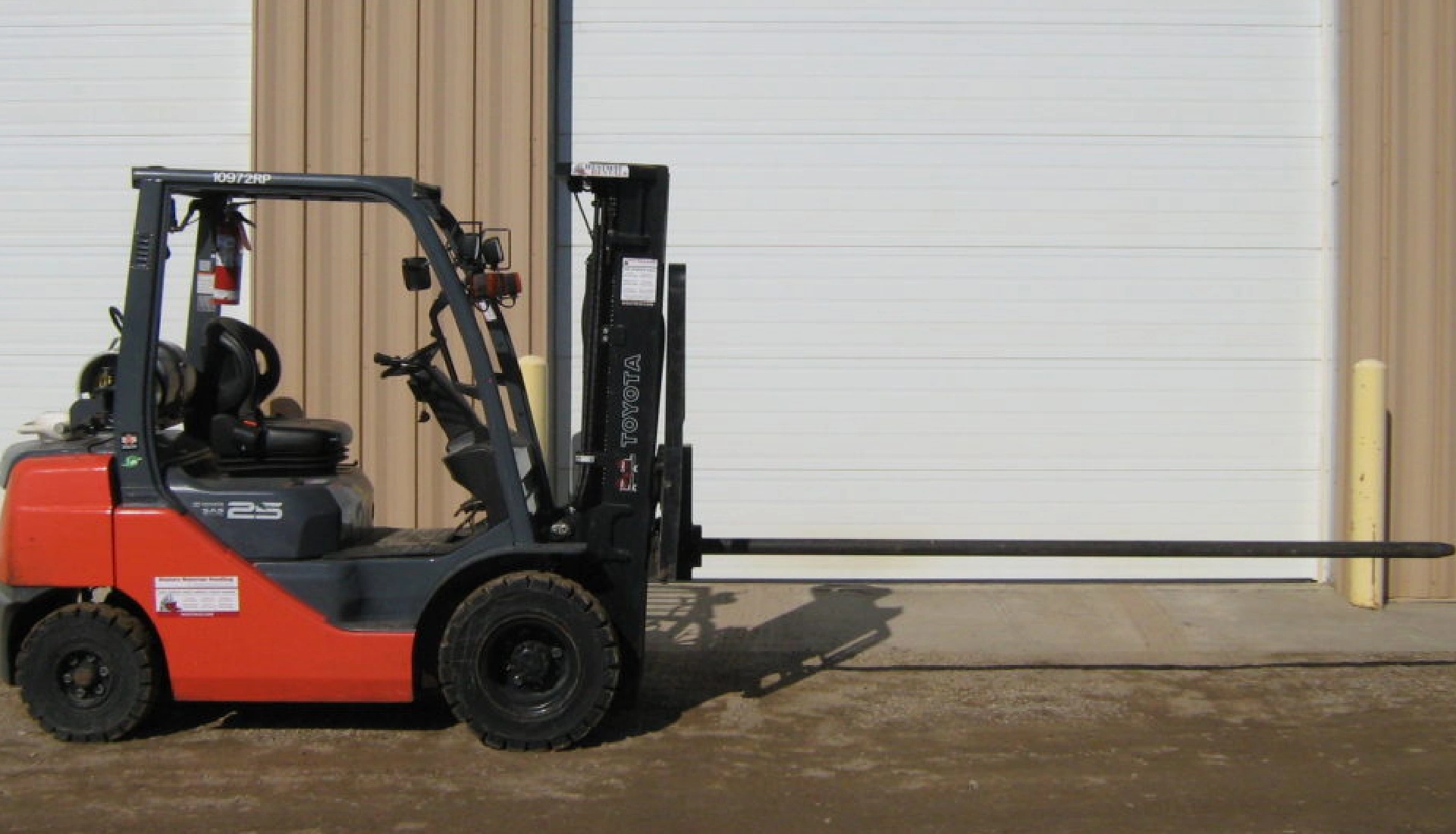

Carpet Poles

These poles (also called rug poles) extend outward from the forklift, allowing operators to slide them into the center core of rolled carpets or similar materials. Beyond the obvious carpet application, they handle fabrics, turf, paper products, and cable drums with equal aplomb.

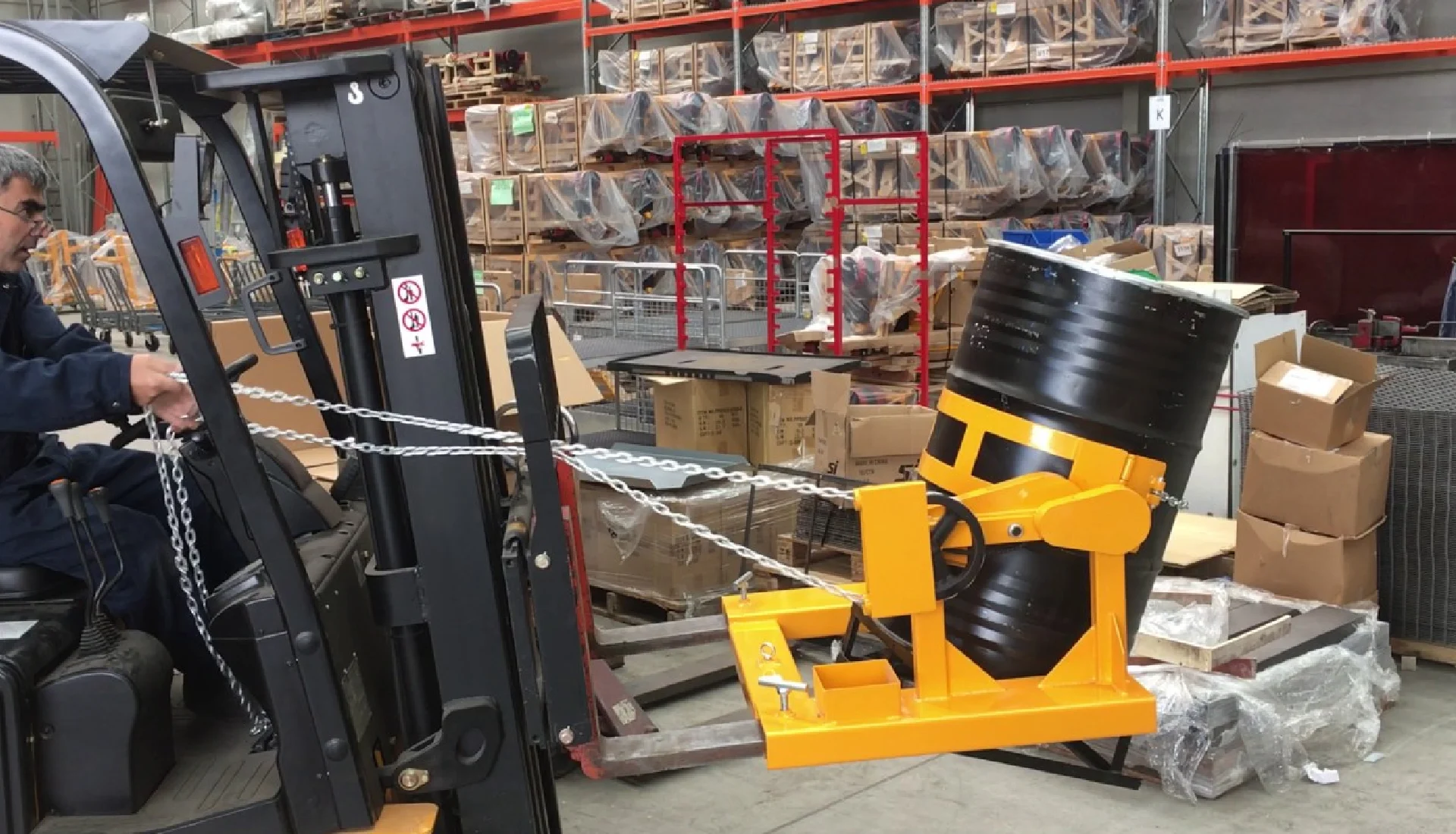

Drum Handling Attachments

Designed specifically for the safe and efficient handling of drums, these typically feature arched clamps that grip the drum securely. They come in various configurations—grabbers, lifters, carriers—to accommodate different drum sizes and handling requirements.

Cylinder Handling Attachments

Similar to their drum-handling cousins, these attachments are purpose-built for lifting, rotating, and moving gas and liquid cylinders. They provide the secure grip and controlled movement needed when handling potentially hazardous materials.

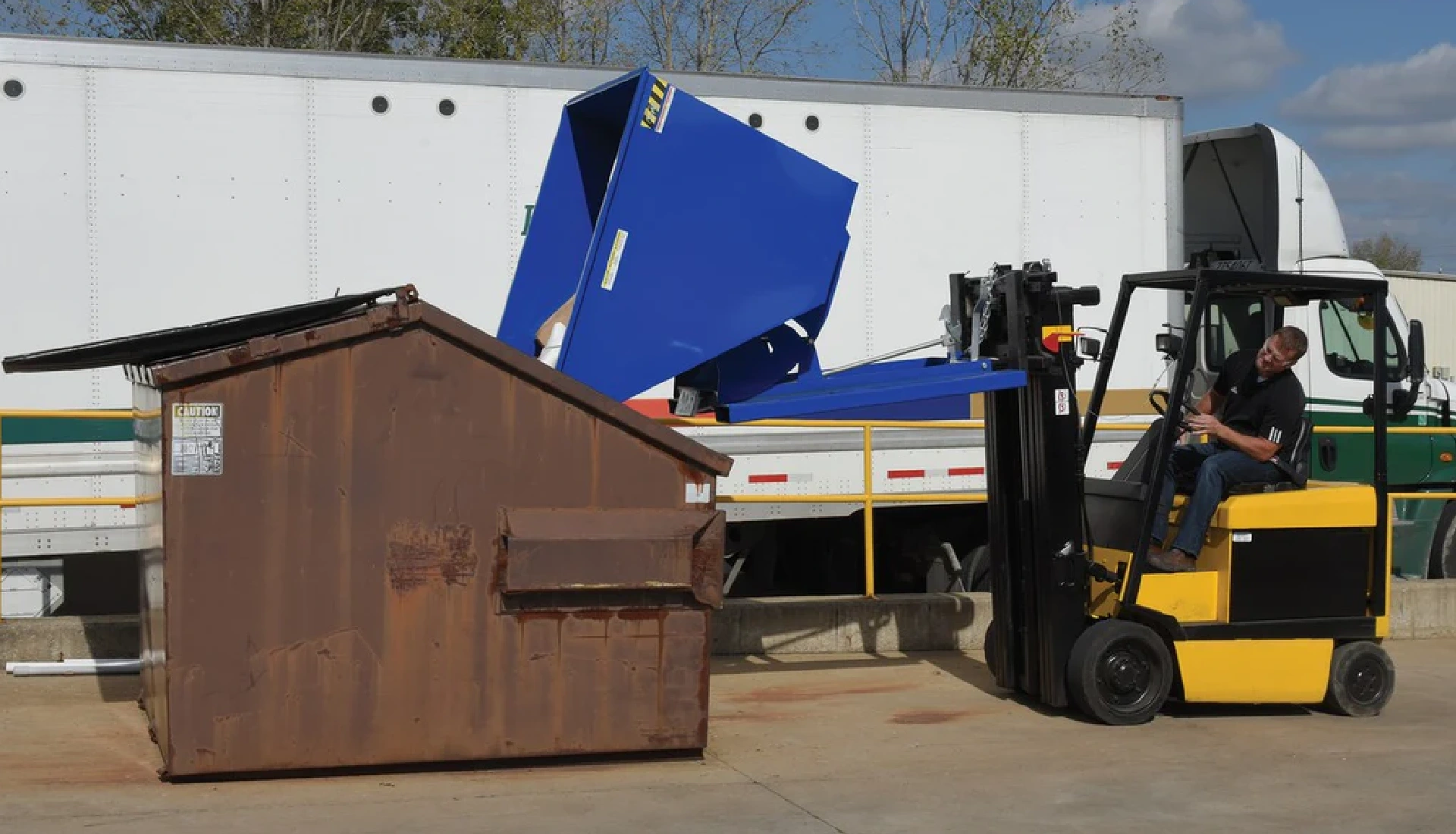

Self-dumping hoppers

Perfect for collecting, moving, and disposing of waste materials like concrete, plaster, brick, and other construction debris. The self-dumping feature makes emptying as straightforward as the loading.

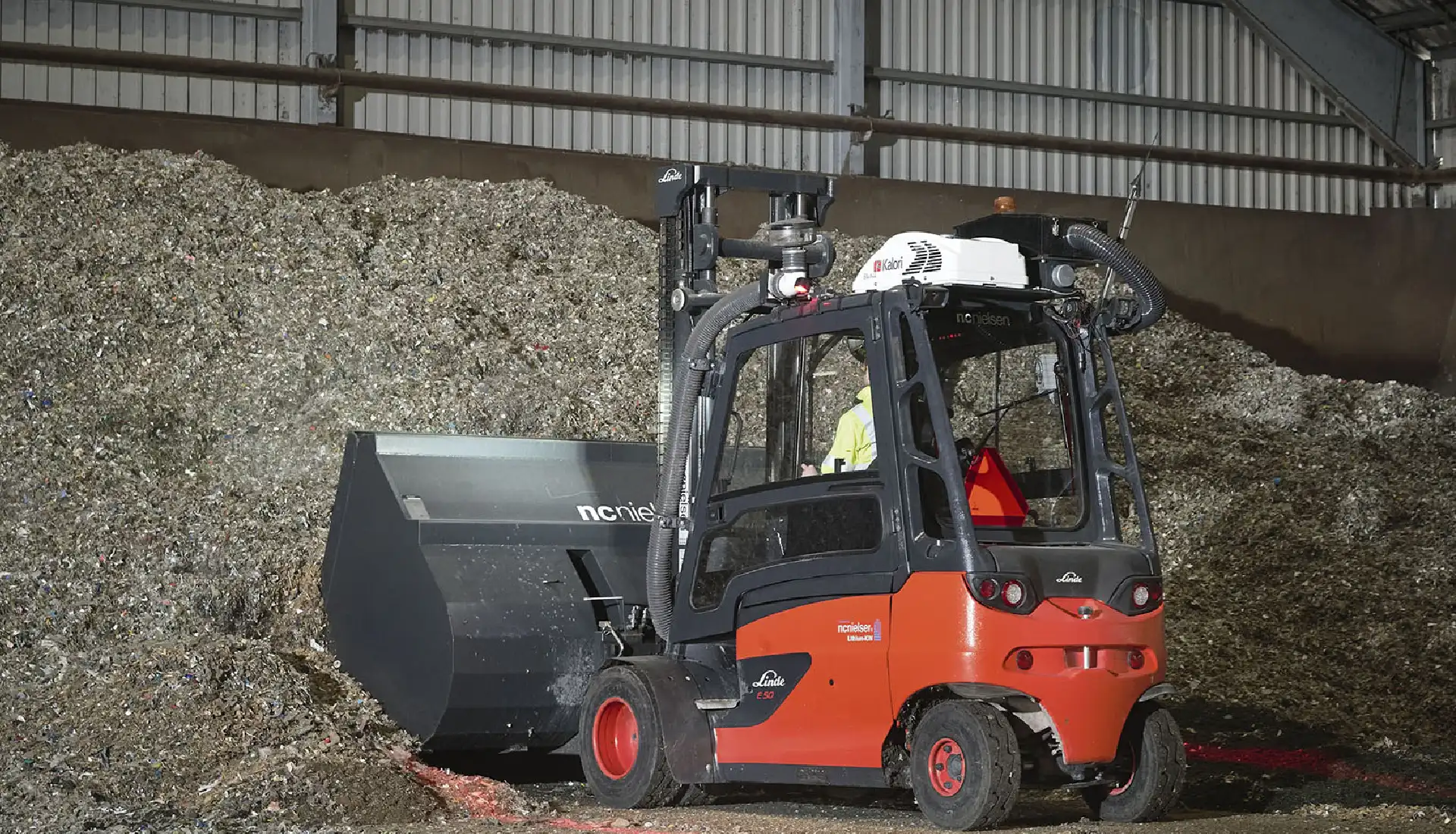

Forklift buckets

These transform your forklift into a loader, enabling scooping and transporting of loose materials like sand, gravel, or aggregates. Construction and landscaping crews particularly appreciate these versatile additions.

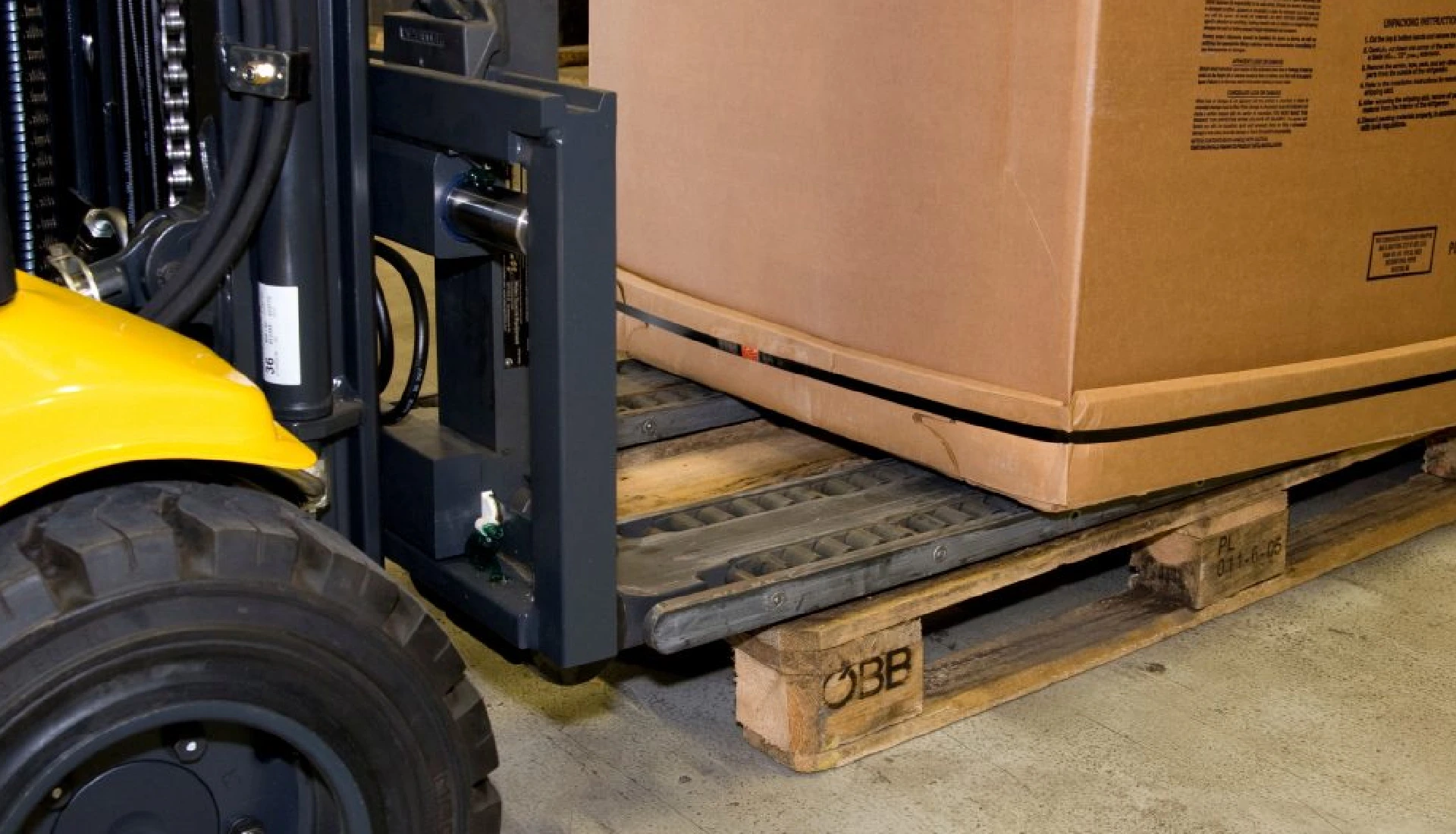

Rollerforks

These ingenious attachments eliminate the need for pallets by using two layers of rollers. The lower layer moves forward while the upper layer moves backward, creating a secure grip on the load. They're particularly useful for handling items with irregular shapes or those that resist easy palletizing.

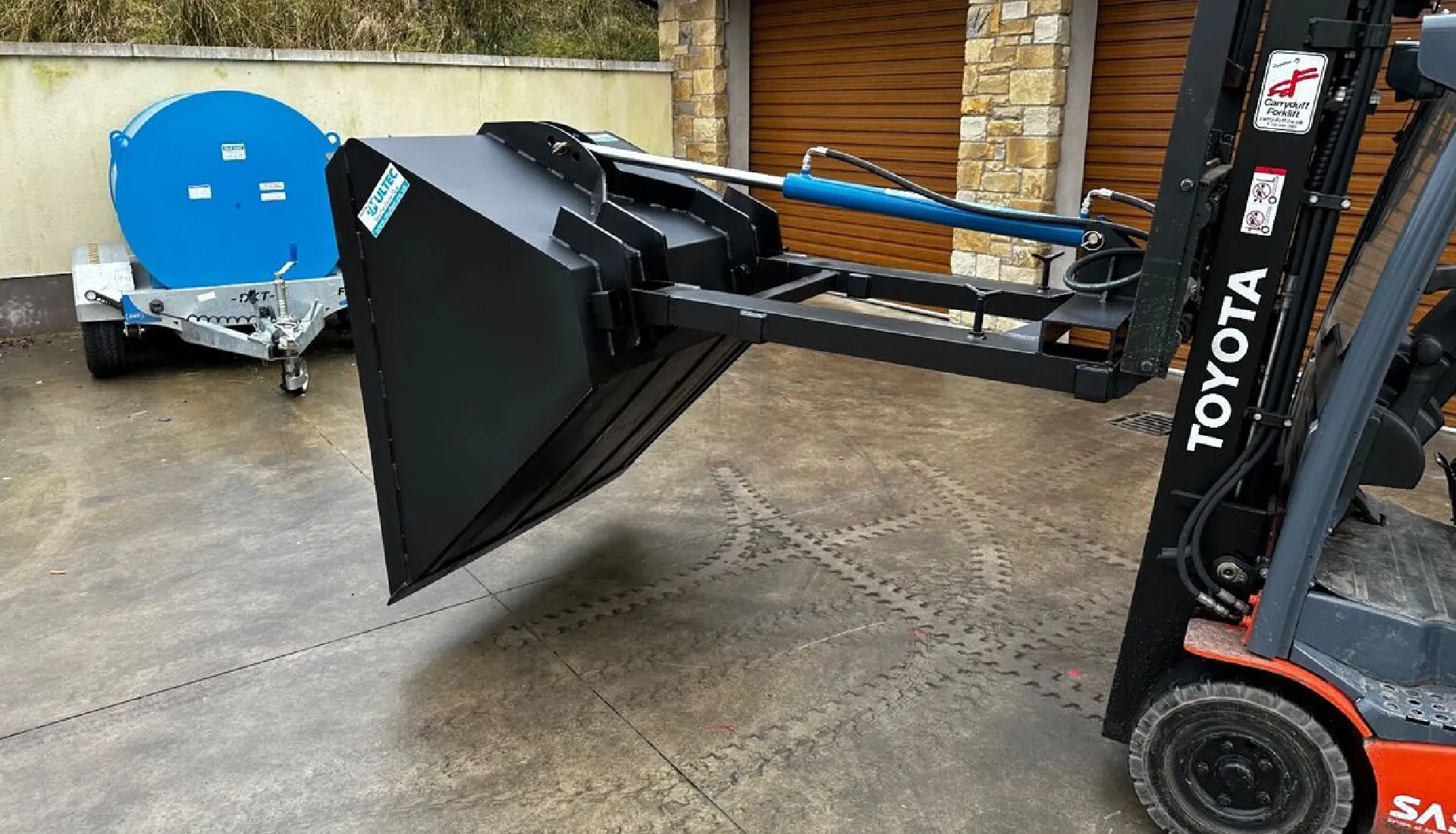

Lift Truck Scoop Attachments

Purpose-built for handling loose materials like sand, aggregate, or gravel, these attachments come in various designs. Options range from compact buckets for heavier loads to long-reach scoops for unloading into trucks or other containers.

Metrics for Evaluating Forklift Attachments

Selecting the right forklift attachment isn't just about finding something that fits. It's about understanding the nuanced metrics that determine whether that attachment will help or hinder your operation. Let's break down what actually matters:

Lifting Capacity: This is the maximum weight an attachment can safely handle. Sounds straightforward, right? But here's where people get into trouble: you need to match this with both your forklift's capacity and the weight of your typical loads.

Exceeding the lifting capacity isn't just inefficient—it's a one-way ticket to accidents, equipment damage, and potential injuries.

Reach: How far can the attachment extend horizontally? Greater reach helps with larger items and accessing loads in tight spaces, but there's a tradeoff. The farther out you extend, the more you're challenging your forklift's stability and load center. It's like holding a weight at arm's length versus close to your body—physics always wins this argument.

Load Center: This is the horizontal distance from the vertical face of the forks to the center of gravity of your load. It's probably the most overlooked yet critical factor in maintaining stability. Attachments can dramatically impact the load center by pushing it further from the forklift. This shift doesn't just affect stability—it directly reduces your forklift's effective lifting capacity.

Load Moment: Calculate this by multiplying the weight of the load by its distance from the fulcrum (typically the front wheels' axle). This represents the overturning force applied to your forklift. Different attachments can drastically alter this equation, potentially turning a stable operation into a tipping hazard if you're not paying attention.

Factors Affecting Lifting Capacity: Several elements can influence your forklift's ability to lift safely:

• Lifting height: As you go higher, your lifting capacity decreases. It's not just a suggestion—it's physics.
• Attachments: The weight and design of attachments themselves eat into your overall lifting capacity.
• Load length: Longer loads create leverage issues that reduce capacity.
• Load distribution: Uneven loads shift the center of gravity, compromising stability.
• Wheel and tire type: Different tires affect stability and load-bearing capacity significantly.
• Battery weight (for electric forklifts): The battery's weight contributes to counterbalance and directly affects lifting capacity.
• Fork wear: Those worn or damaged forks aren't just an aesthetic issue—they compromise strength and reduce lifting capacity.

Load Positioning Considerations: The clean, uniform products shown in equipment brochures rarely match reality. Most operations deal with non-uniform products and unevenly distributed pallet weights, making load center calculations more art than science.

When evaluating attachments that affect load centers, consider the real-world size and shape of your materials—extensions or modifications might reduce your load capacity even more than initial calculations suggest.

Usage Rates of Forklift Attachments

Not all attachments get equal play time across industries. Usage patterns reveal which attachments deliver the most value in specific operational contexts. Here's what we're seeing in the field:

Side Shifters: These are practically standard equipment nowadays. Their versatility in positioning loads precisely makes them ubiquitous across warehousing, manufacturing, and logistics operations. If you're still manually positioning loads by repositioning the entire forklift, you're living in the past century.

Fork Positioners: Distribution centers, warehouses, and manufacturing facilities that juggle different pallet sizes throughout the day swear by these time-savers. The hydraulic adjustment capability eliminates the manual repositioning that creates bottlenecks in busy operations.

Clamps: Different industries gravitate toward specialized clamps that match their material handling challenges:

• Bale clamps dominate in agriculture and textile manufacturing, where handling loose materials efficiently is critical
• Carton clamps are workhorses in consumer goods and appliance sectors
• Paper roll clamps are non-negotiable in printing and paper industries where product damage directly impacts the bottom line

Multiple Load Handlers: High-volume operations that prioritize throughput efficiency—think warehousing, distribution centers, and manufacturing plants—leverage these attachments to significantly reduce transport cycles and increase productivity per operator hour.

Telescopic Handlers: These versatile machines with extending booms find application across diverse industries:

• Construction: Moving everything from concrete and steel to scaffolding materials
• Agriculture: Handling hay bales, feed, and other farm necessities
• Warehousing and Logistics: Maneuvering large containers and pallets in complex spaces
• Manufacturing: Transporting heavy components and finished products
• Mining: Moving equipment and materials in and out of confined mining operations

The trend across all sectors is clear: specialized attachments that address industry-specific material handling challenges deliver ROI that makes their adoption a competitive necessity rather than a luxury. Operations that match attachments to their specific workflow requirements consistently outperform those using general-purpose equipment for specialized tasks.

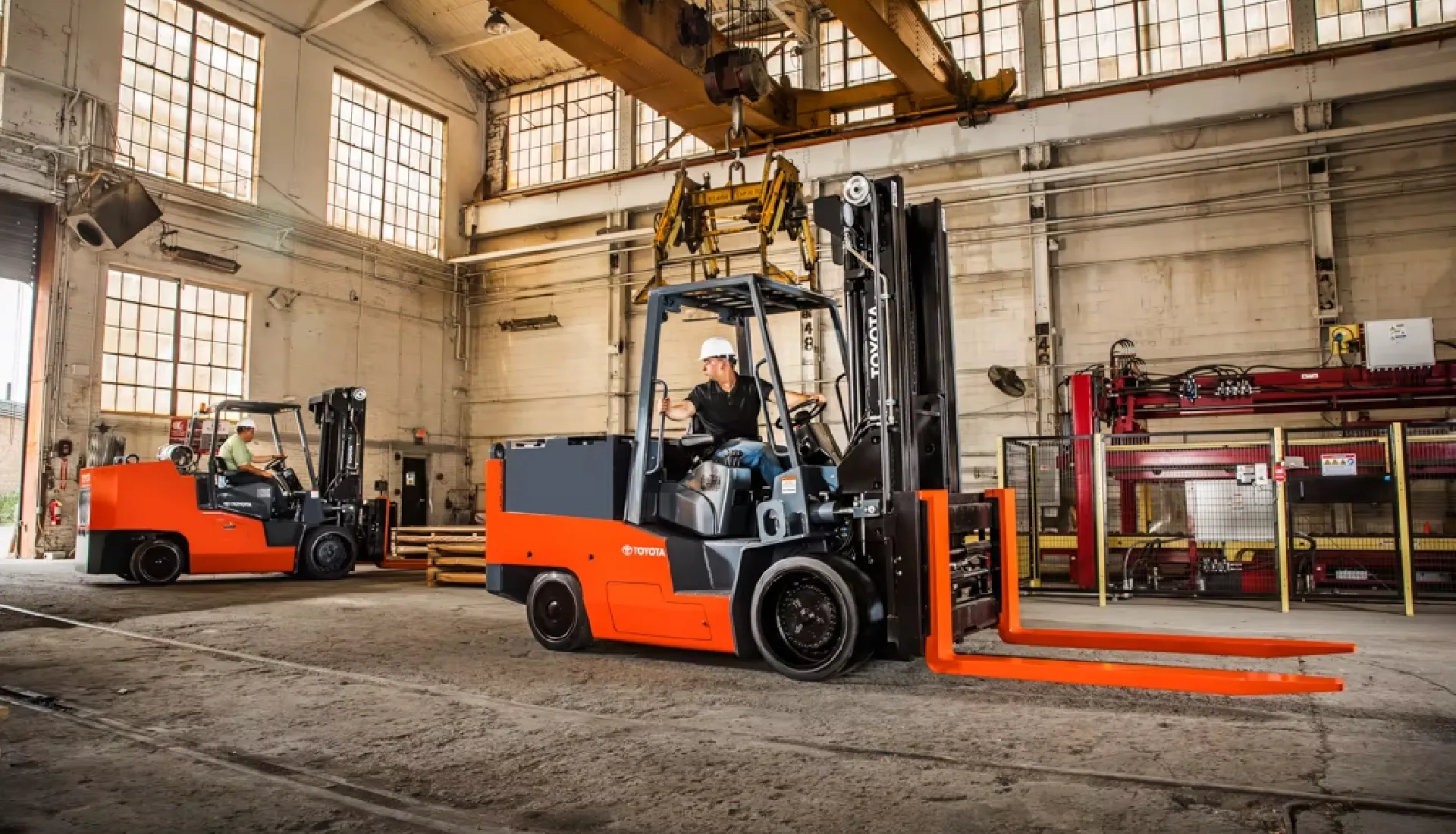

Historical Data on Forklift Attachments

The forklift industry has evolved dramatically over the past decade, driven by industrial growth, stricter emission regulations, and technological advancements. Understanding these trends provides context for current attachment selection and future planning.

Market Growth: The global forklift market has been on a serious upswing, jumping from USD 60 billion in 2022 to a projected USD 194 billion by 2032. This isn't just inflation at work—it reflects genuine increased demand for sophisticated material handling solutions across sectors. As operations become more complex, standard forklifts alone just don't cut it anymore.

Electric Forklifts: The shift toward electric models continues to accelerate, driven by environmental concerns and the economic reality of lower operating costs compared to internal combustion engines. These electric workhorses deliver reduced emissions while offering long-term savings through lower fuel and maintenance expenses.

The attachment market has adapted accordingly, with many newer designs optimized for the torque characteristics and energy efficiency demands of electric power systems.

Hydrogen Fuel Cells: Looking forward, hydrogen fuel cell-powered forklifts are gaining serious momentum. These units offer compelling advantages: improved performance, dramatically reduced emissions, and refueling times measured in minutes rather than the hours required for battery charging.

The attachment ecosystem is already preparing for this transition, developing solutions that maximize the unique capabilities of hydrogen power.

Fleet Trends: Recent data from 2024 shows interesting shifts in how companies manage their lift truck fleets. About 41% operate a core fleet of regularly used trucks—a percentage that's been gradually declining, suggesting more flexible fleet management approaches are gaining ground.

When it comes to acquisition, most companies (64%) still prefer outright purchase, while 16% lease, and 21% use a hybrid approach. The average expected spending on lift trucks in 2024 was $174,379 per company, up from previous years—a reflection of both inflation and the increasing sophistication of the equipment being purchased.

These historical patterns provide valuable context for attachment selection. As the industry continues its technological evolution, attachment compatibility with newer power systems and control technologies becomes increasingly important for future-proofing material handling investments.

Conclusion

Forklift attachments transform standard equipment into problem-solvers, but physics always wins. Ignoring load centers, capacity ratings, and stability can turn the right attachment into the wrong investment. The biggest mistake isn’t buying the wrong tool—it’s using the right one incorrectly.

Smart operations look beyond upfront costs, considering long-term ROI. A bargain-bin attachment may save $2,000 but cost $10,000 in maintenance and downtime. Premium attachments from trusted manufacturers often pay off with reliability and efficiency over time.

The real value isn’t just moving more product—it’s boosting productivity and safety together. Well-trained operators with the right attachments work faster and with fewer incidents. Choosing wisely, training thoroughly, and maintaining diligently ensures a forklift fleet that keeps both operators and accountants happy.
