Excavator Sizes Explained: From Backyard Minis to Monsters

Excavator sizes are mind boggling, from backyard-friendly minis to behemoths that need assembly on-site. Your project success hinges on matching the right machine to your specific digging requirements.

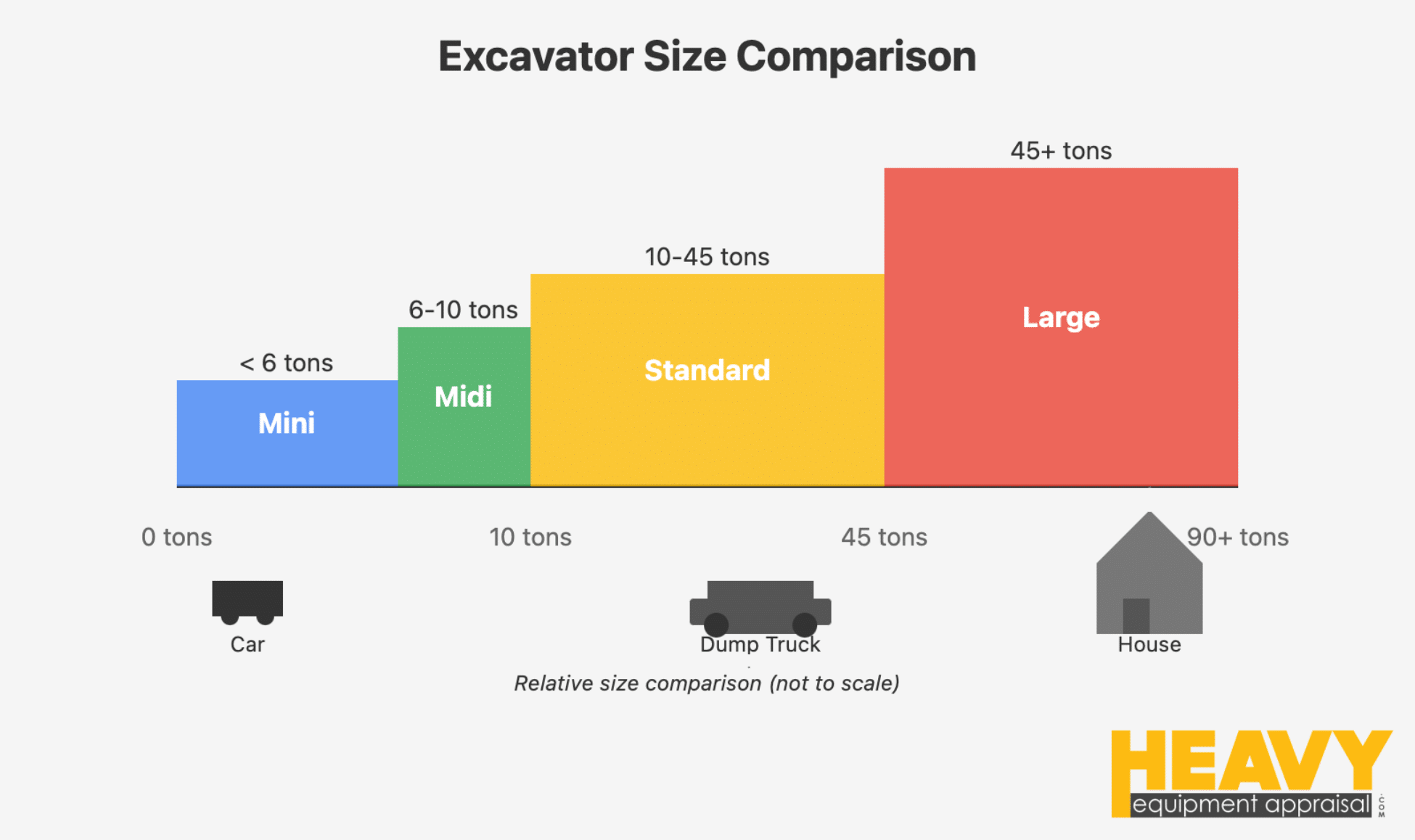

Excavators fall into four primary size categories: mini (under 6 tons), midi (6-10 tons), standard (10-45 tons), and large (over 45 tons). Each category serves specific applications based on working environment, required digging depth, and material volume needs.

Here’s what most buyers overlook: size isn’t just about lifting capacity – it’s about total cost of ownership. The difference between a perfectly-sized excavator and one that’s slightly off spec can translate to thousands in fuel, transport, and labor expenses over a single season.

Excavator Types and Sizes

When it comes to categorizing these digging machines, weight is king. Your excavator's tonnage doesn't just tell you how many trucks you'll need to transport it—it's a direct indicator of power, capability, and what jobs it can realistically handle. Let's break down the weight classes:

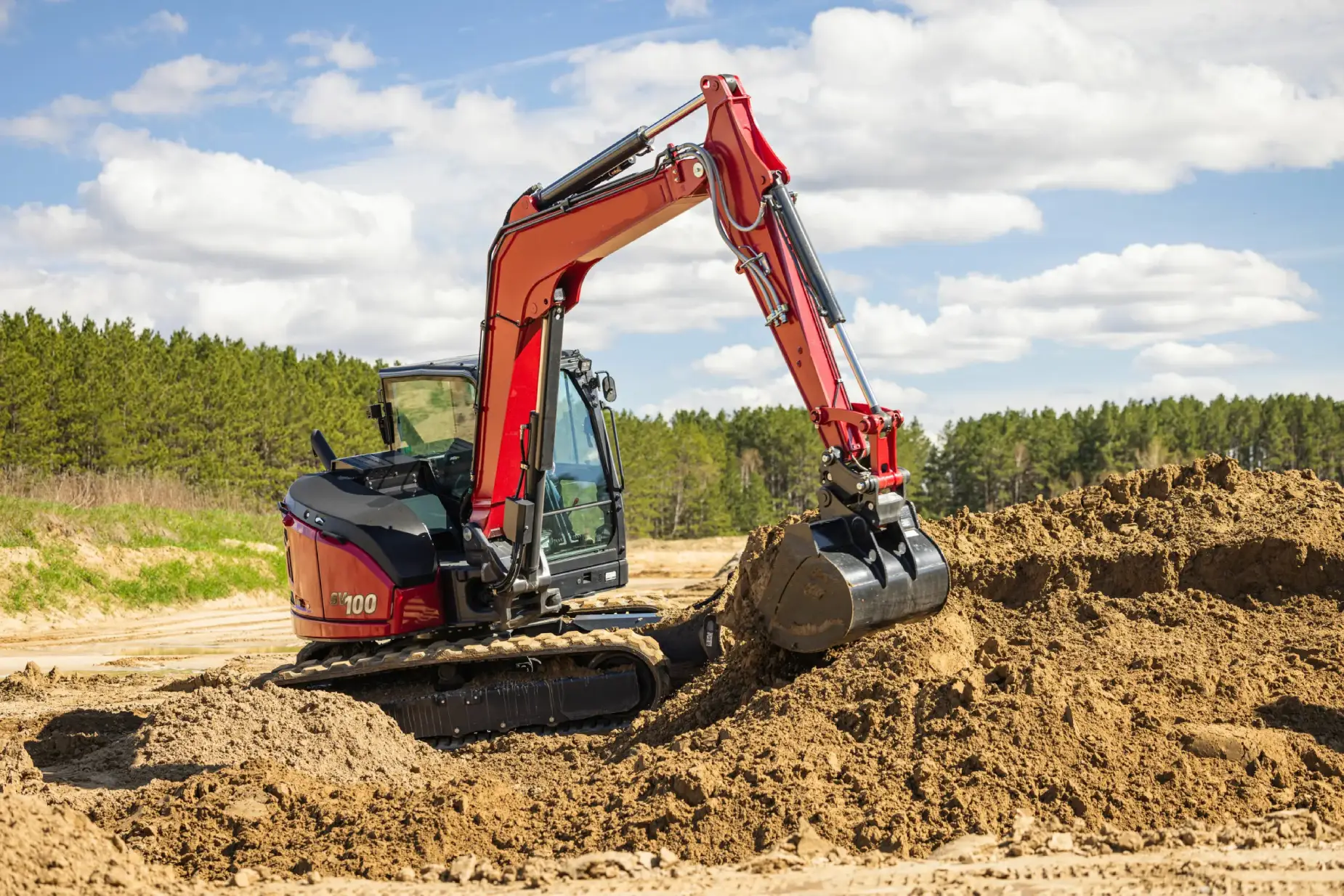

Mini or Compact Excavators

These little giants typically weigh less than 6 tons and are the go-to machines when space is at a premium or when you need to tread lightly (literally—they have lower ground pressure). They're the darlings of landscapers, residential contractors, and utility crews working in established neighborhoods.

Think of machines like the Caterpillar 301.5 that can squeeze through a backyard gate, or the Bobcat E20 that won't destroy existing landscaping while installing that new pool.

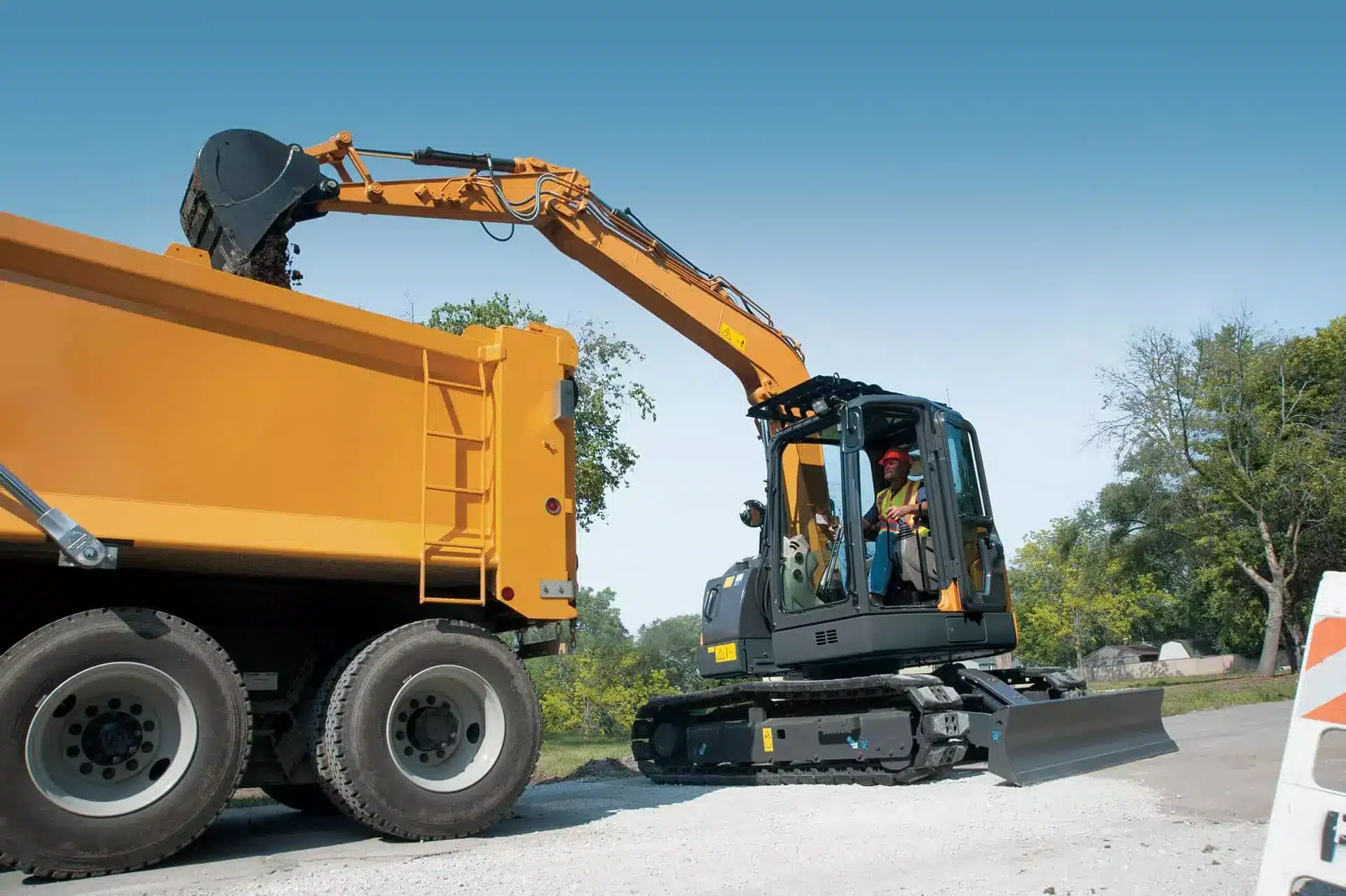

Midi Excavators

Not quite mini, not quite full-sized—midi excavators fill that 6-10 ton sweet spot. They deliver noticeably more muscle and reach than their mini counterparts while still being compact enough to navigate tighter job sites.

These machines have found their niche in building construction, commercial landscaping, and roadwork where you need more digging power but can't bring in the big guns. The Volvo ECR88D and Hitachi ZX85USB-5 exemplify this "Goldilocks" class—not too big, not too small.

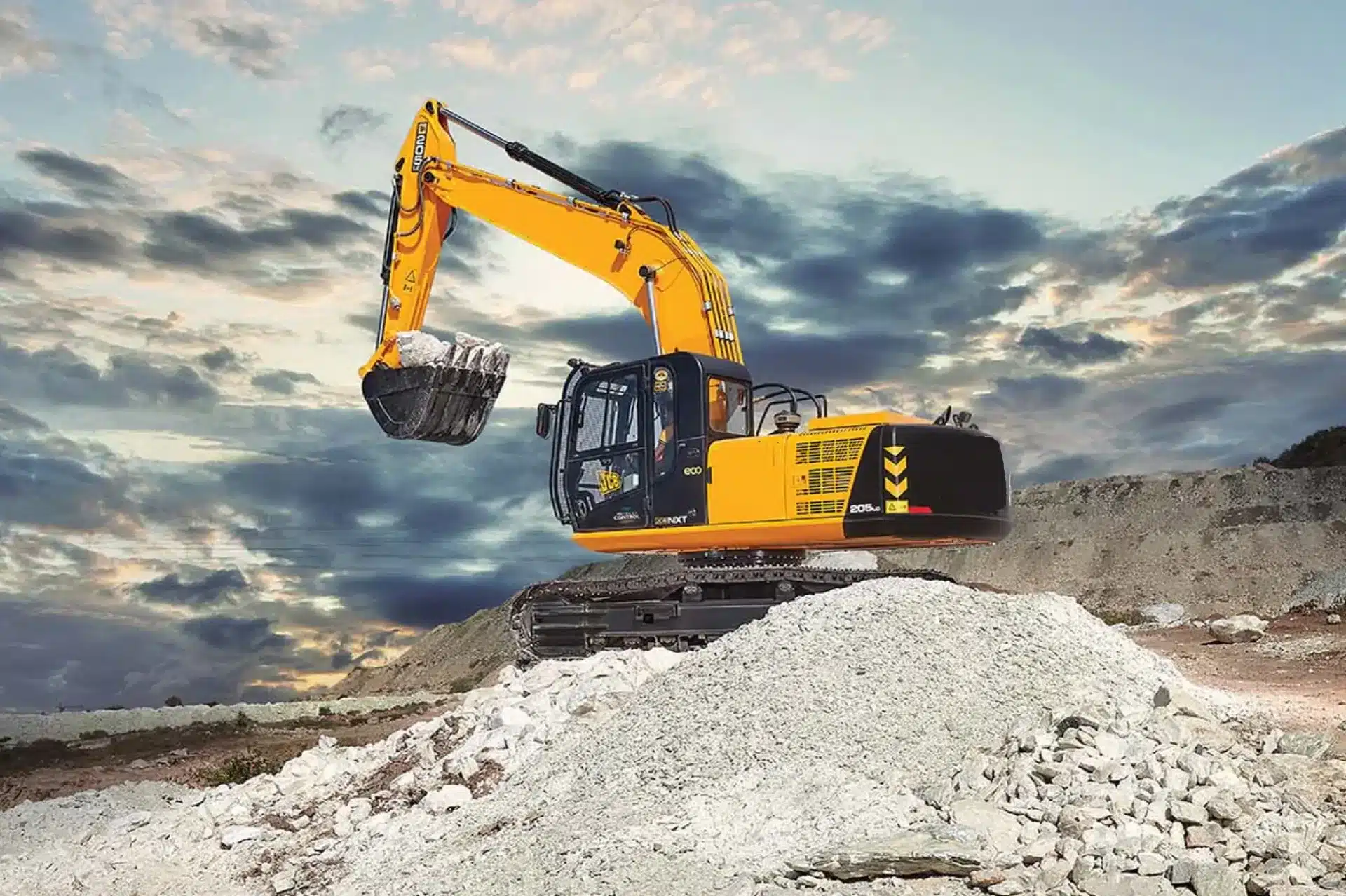

Standard Excavators

Also known as crawler excavators, this 10-90 metric ton category represents what most people picture when someone says "excavator." These workhorses are the backbone of construction sites worldwide.

Versatility is their calling card—they'll handle everything from foundation work and trenching to demolition with equal enthusiasm. Popular models like the Komatsu PC210LC-11 and Caterpillar 336F have become jobsite standards for good reason.

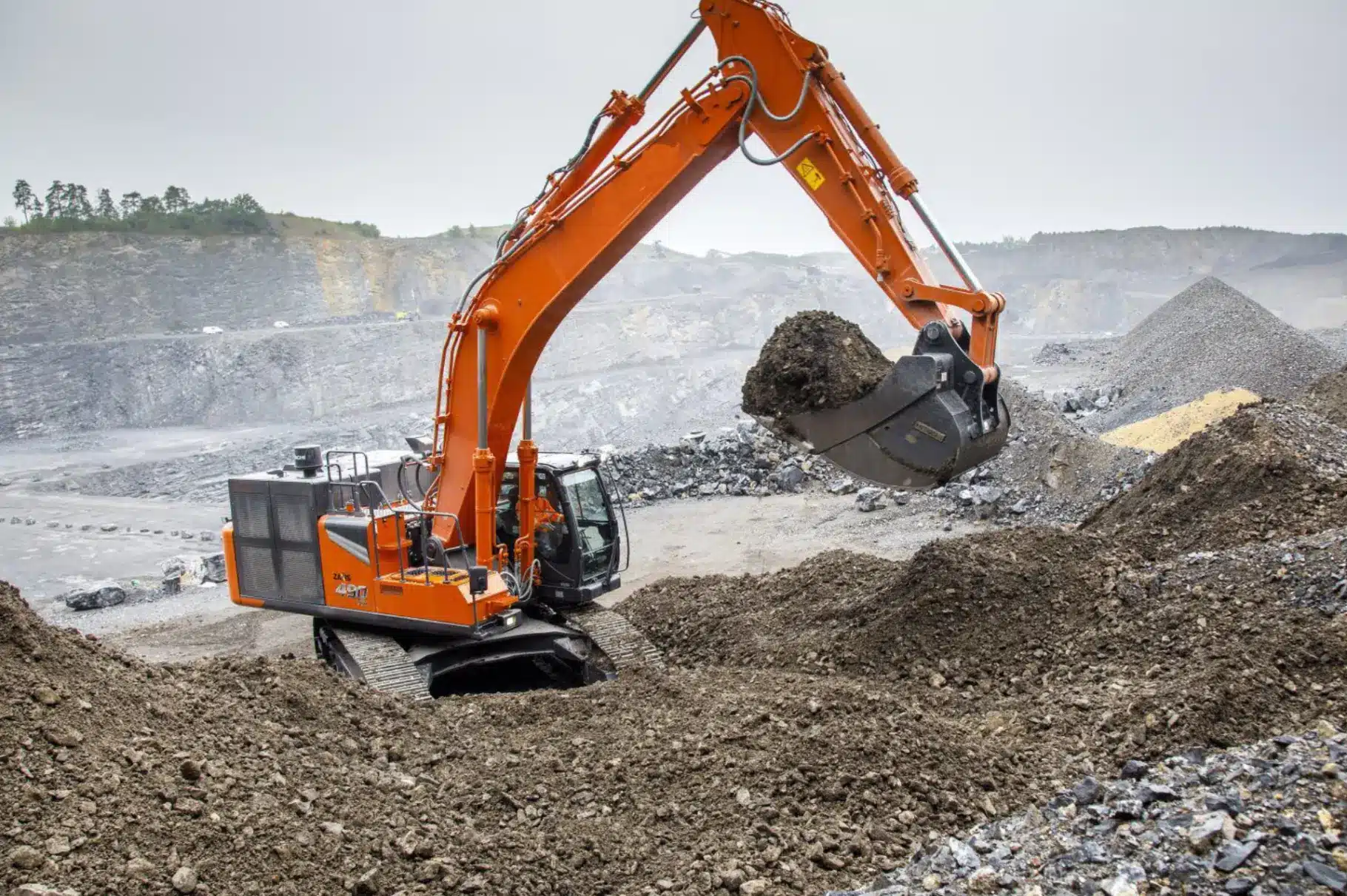

Large Excavators

When you need to move mountains (sometimes literally), these 45+ ton beasts are your answer. They're the specialized heavy lifters designed for major construction projects, mining operations, and demolition of substantial structures.

The Liebherr R 9800, tipping the scales at over 800 tons, shows just how massive these machines can get. The Komatsu PC8000-6 is another titan that combines raw power with surprisingly manageable operating costs considering its size.

Specialized Excavators

Beyond the standard size categories, several specialized designs exist for specific applications:

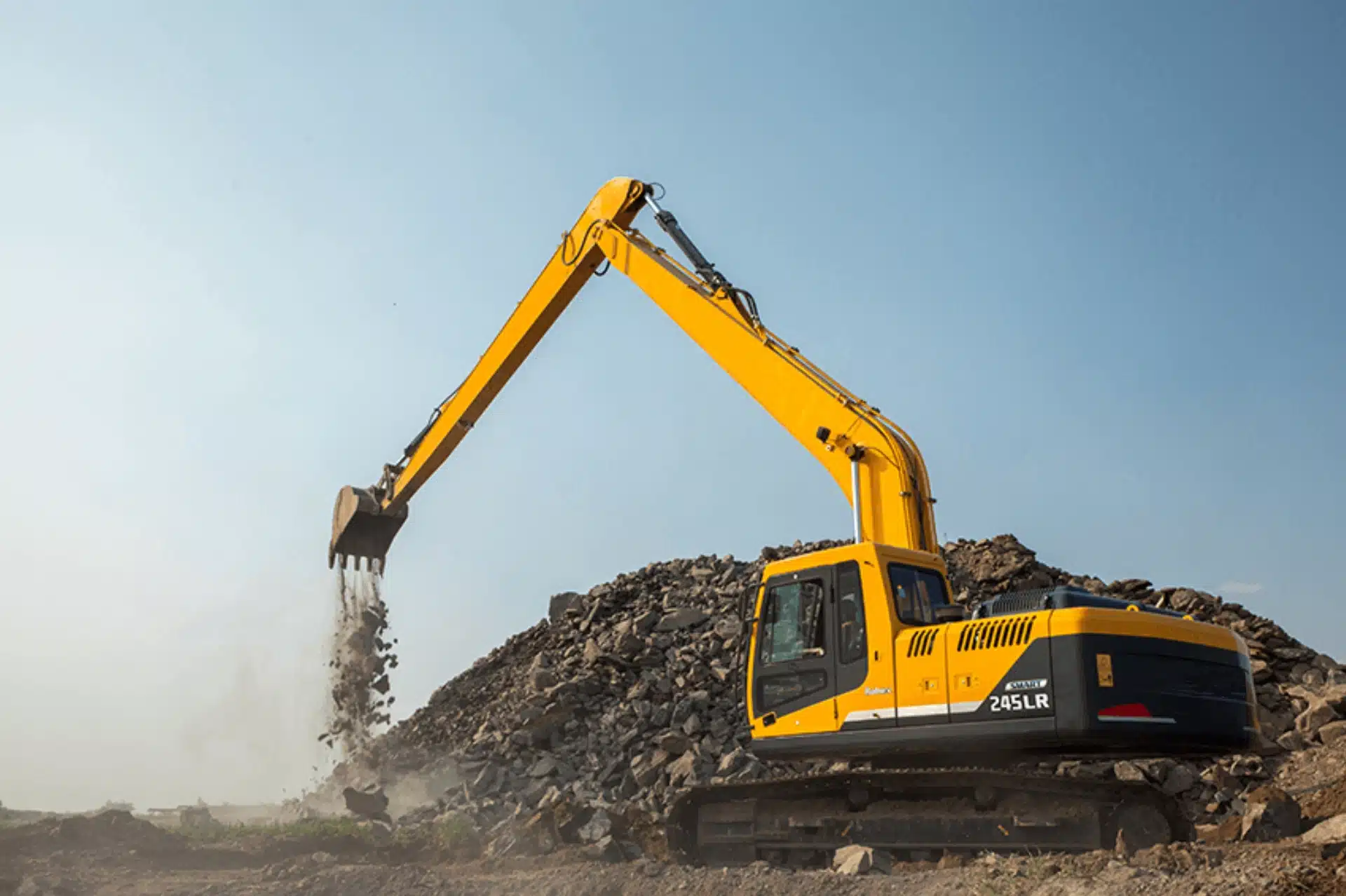

Long-Reach Excavators: Picture a standard excavator with an extended arm and boom that can reach up to 100 feet. These specialists handle the jobs where distance or depth is the challenge—think riverbank restoration or demolition where getting too close isn't an option.

Dragline Excavators: These monsters use a fundamentally different approach with a bucket system that drags along the surface using chains and wire rope. They're the heavy-hitters in large-scale applications like harbor construction, canal dredging, and strip mining. Most are so massive they're assembled right where they'll work.

Suction Excavators: Also called vacuum excavators, these unique machines use a high-pressure suction pipe to remove soil or debris. They're the surgical tools of the excavation world, perfect for working around buried utilities where traditional digging methods might cause catastrophic damage. The narrow pipe is their limitation—great for precision work but impractical for moving serious volume.

Technical Metrics

When you're choosing an excavator, the spec sheet can look like alphabet soup if you don't know what matters. Let's decode the metrics that actually impact your productivity and bottom line:

graph TD
    A[Excavator Selection Guide]
    A --> B[Size Classes]

    B --> B1[Mini: < 6 tons]
    B --> B2[Midi: 6-10 tons]
    B --> B3[Standard: 10-45 tons]
    B --> B4[Large: > 45 tons]

    B1 --> C1[Specs:<br/>• 20-60 HP<br/>• 0.05-0.13 cu yd bucket<br/>• 7-11 ft dig depth<br/>• $20k-$100k]
    B2 --> C2[Specs:<br/>• 50-100 HP<br/>• 13-18 ft dig depth<br/>• $75k-$150k]
    B3 --> C3[Specs:<br/>• 100-300 HP<br/>• 0.5-1.5 cu yd bucket<br/>• 18-22 ft dig depth<br/>• $200k-$600k]
    B4 --> C4[Specs:<br/>• > 300 HP<br/>• > 40 ft dig depth<br/>• $800k-$1.5M+]

    C1 --> D1[Best For:<br/>Landscaping<br/>Residential]
    C2 --> D2[Best For:<br/>Residential<br/>Light Commercial]
    C3 --> D3[Best For:<br/>Commercial<br/>Infrastructure]
    C4 --> D4[Best For:<br/>Infrastructure<br/>Mining]

Engine Power

Measured in horsepower (hp), this is your machine's muscle. But not all horsepower ratings are created equal—manufacturers list both gross and net power.

What's the difference? Gross power is what the engine produces in ideal lab conditions without powering any accessories. Net power is what's actually available when the engine is running everything it needs to operate—silencers, fans, alternators, air filters, and all those power-hungry systems. Net power is the number you should care about.

Mini excavators typically pack engines in the 20-60 hp range, while the biggest machines can exceed 500 hp. That difference isn't just about bragging rights—it directly impacts how much material you can move and how quickly.

Bucket Capacity

This tells you how much material your machine can grab in a single bite, measured in cubic yards. Manufacturers typically list two numbers: stacked capacity (material heaped up) and leveled capacity (material level with the bucket edges).

Most industry professionals use stacked capacity as the standard reference. When selecting bucket size, consider what you're digging (clay behaves differently than loose gravel), the size of your hauler trucks, job conditions, and the specific application.

Reach

How far can your excavator extend its arm horizontally? This determines your working radius—the area you can access without repositioning the machine.

Standard excavators typically reach up to 40 feet, while purpose-built long-reach models can extend to 100 feet. For context, standard mini excavators reach about 12-20 feet along the ground, medium-sized machines span 20-30 feet (with 25 feet being the average), and specialized long-reach excavators can stretch from 30 to over 100 feet.

Dig Depth

How deep can you go? This critical measurement depends primarily on the length of your machine's arm and boom. It's one of the first specs to check when matching an excavator to your project requirements.

Dump Height

This measures how high the machine can raise its bucket to dump material—critical when loading trucks or clearing high berms. Get this wrong, and you'll be creating extra work for yourself with every cycle.

Other meaningful specs include operating weight, transportation dimensions (will it fit on your trailer?), slewing speed and torque (how quickly and powerfully it rotates), travel speed, traction force, hill-climbing ability, ground pressure, and lifting capacity.

Here's how these specs typically compare across excavator classes:

Cost of Excavators

Let's talk money—because in this business, the sticker price is just the beginning of your relationship with an excavator.

The range in excavator pricing is as vast as their size differences. New mini excavators can run anywhere from $20,000 for a basic model to $100,000 for a feature-loaded machine from a premium brand. Jump up to the big leagues, and those large excavators will set you back more than $1,500,000—before you start adding specialized attachments.

Used machines offer significant savings, with prices varying based on age, operating hours (the excavator equivalent of mileage), and condition. And yes, brand matters—expect to pay more for that Bobcat logo versus some lesser-known competitors.

Here's what you might expect to pay for popular models:

• Caterpillar 320: $230,000 – $270,000
• Komatsu PC210LC-11: $220,000 – $260,000
• John Deere 210G LC: $210,000 – $250,000
• Bobcat mini excavators: $30,000 – $90,000

But the purchase price is just the down payment on your total cost of ownership. Operating costs add up quickly:

• Fuel: Most excavators burn through 3-4 gallons of diesel per hour
• Maintenance: Budget $8,000-$15,000 annually
• Insurance: Varies based on machine value and usage scenarios

Not ready to commit? Renting provides flexibility, with rates varying by machine size and duration:

• Daily Rates: $200-$3,500
• Weekly Rates: $800-$9,000
• Monthly Rates: $2,000-$22,000

For specific examples, here's what you might pay to rent Caterpillar mini excavators:

• Cat® 300.9D: Daily: $330, Weekly: $820, Monthly: $2,050
• Cat® 301.5: Daily: $350, Weekly: $960, Monthly: $2,400
• Cat® 308 CR: Daily: $875, Weekly: $2,300, Monthly: $5,900

When deciding whether to buy, rent, or hire, consider these factors:

Usage Rates

How hard do these machines actually work in the real world? It depends on the size class and application.

Mini excavators typically log around 350-400 hours annually—think weekend warriors and seasonal projects. Meanwhile, their standard-sized siblings often clock more than 1,000 hours per year, earning their keep day in and day out on busy job sites.

The mini excavator market is booming right now, driven by several factors. Urbanization means more work in tight spaces. Infrastructure projects are picking up worldwide. And landscapers have discovered that these machines can replace a whole crew of workers with shovels while still fitting through a standard gate.

Want to know what really drives excavator productivity? Look at the bucket. Typical bucket capacities range from 0.5 to 1.5 cubic yards on standard machines. Here's a real-world example: an excavator with a 1 cubic yard bucket, operated by someone who knows what they're doing (120 cycles per hour), working a 6-hour productive day (not counting breaks, setup, etc.) can move approximately 720 cubic yards of material daily.

That's enough to fill about 45 standard dump trucks—not bad for a day's work with a single machine.

Performance Metrics

When evaluating excavator performance, three metrics rise above the rest:

Fuel Efficiency

This is where your operating budget meets reality. Modern excavators have made impressive strides in fuel economy with technologies like turbocharging and direct injection systems. The difference between an efficient machine and a gas-guzzler can translate to thousands of dollars annually, especially on machines running 40+ hours weekly.

Productivity

The money metric—how much material can this machine move per hour? Productivity combines bucket capacity, cycle time, and operator skill into a single performance measure.

For perspective, small excavators (1-5 tons) typically move 10-20 cubic meters per hour, while large excavators (11-50 tons) can handle 40-100 cubic meters in the same time. The difference is like comparing a garden hose to a fire hose.

Uptime

The best excavator in the world isn't worth much if it's sitting idle waiting for repairs. Uptime—the percentage of scheduled work time that a machine is actually operational—separates premium machines from the rest.

To calculate uptime, divide your productive hours by total scheduled hours. Downtime comes in two flavors: planned (routine maintenance) and unplanned (breakdowns). Modern excavators and proactive maintenance programs aim to minimize the latter, which is far more costly in terms of project delays and emergency repair premiums.

Historical Timelines

Today's excavators didn't just appear overnight—they're the result of nearly two centuries of engineering evolution. Here's the highlight reel:

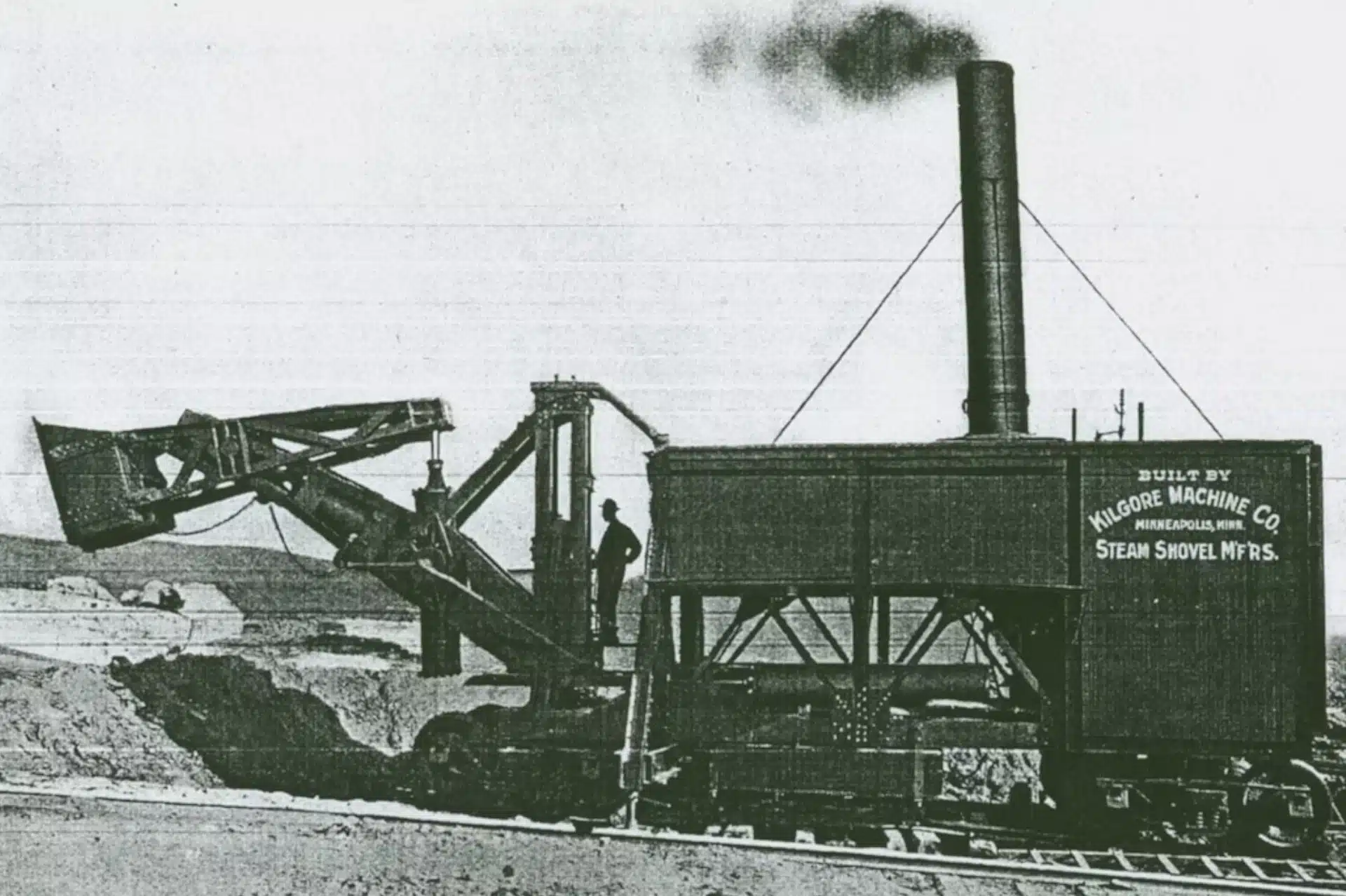

• 1835: William Otis invents the steam shovel, changing earthmoving forever. Before this, major excavation projects required armies of laborers with picks and shovels.
• 1882: Sir W.G. Armstrong & Company develops the first hydraulic excavator, introducing fluid power principles that still drive today's machines.
• 1897: Kilgore Machine Company takes hydraulics to the next level with the first all-hydraulic excavator design.
• 1960s: Yanmar Construction Company creates the world's first mini excavator, bringing mechanized digging to spaces where larger machines couldn't operate.
• 1998: Yanmar disrupts the market again with the first zero tail swing excavator, allowing operation in even tighter quarters without sacrificing stability.
• 2010s: Hybrid technology becomes mainstream in excavators, reflecting the industry's growing focus on fuel efficiency and environmental impact.

The innovation hasn't stopped there. Recent developments include fully electric excavators (zero emissions), autonomous digging technology (reducing operator fatigue while increasing precision), and advanced GPS/geolocation systems that integrate with project plans for unprecedented accuracy.

What once required an operator's instinct and years of experience can now be guided by centimeter-precise 3D modeling—though the best results still come from combining that technology with skilled hands at the controls.

Conclusion

Choosing the right excavator isn't about engine specs or brand names—it's about matching machine to mission.

That seemingly trivial 2-ton difference between models can mean finishing on schedule or blowing your budget. Consider not just what you're digging, but where you're digging it.

Modern excavators deliver more than raw power—they bring fuel efficiency that drops operating costs, operator comfort that maintains productivity, and precision controls that reduce rework.

Electric and hybrid models aren't just environmental choices. They deliver lower operating costs, qualify for incentives, and open doors to emissions-restricted projects. The quieter operation alone makes them worth considering for urban work.

Remember: the right excavator isn't the biggest—it's the one that fits your specific job requirements.
