Dragline excavators dominate the world of heavy mining equipment. These colossal machines can move mountains of overburden with a single sweep of their massive buckets.

Draglines are specialized excavators that use a cable-suspended bucket system to remove massive volumes of material in open-pit mining operations. They range from standard mobile units for construction to behemoths weighing over 13,000 tonnes that must be assembled on-site for large-scale mining projects.

Here’s what most buyers overlook: operating costs dwarf the initial $50-100 million investment over a dragline’s lifespan. Understanding the real efficiency differences between models could save you millions in fuel, maintenance and productivity – long after the purchase price is forgotten.

Historical Development

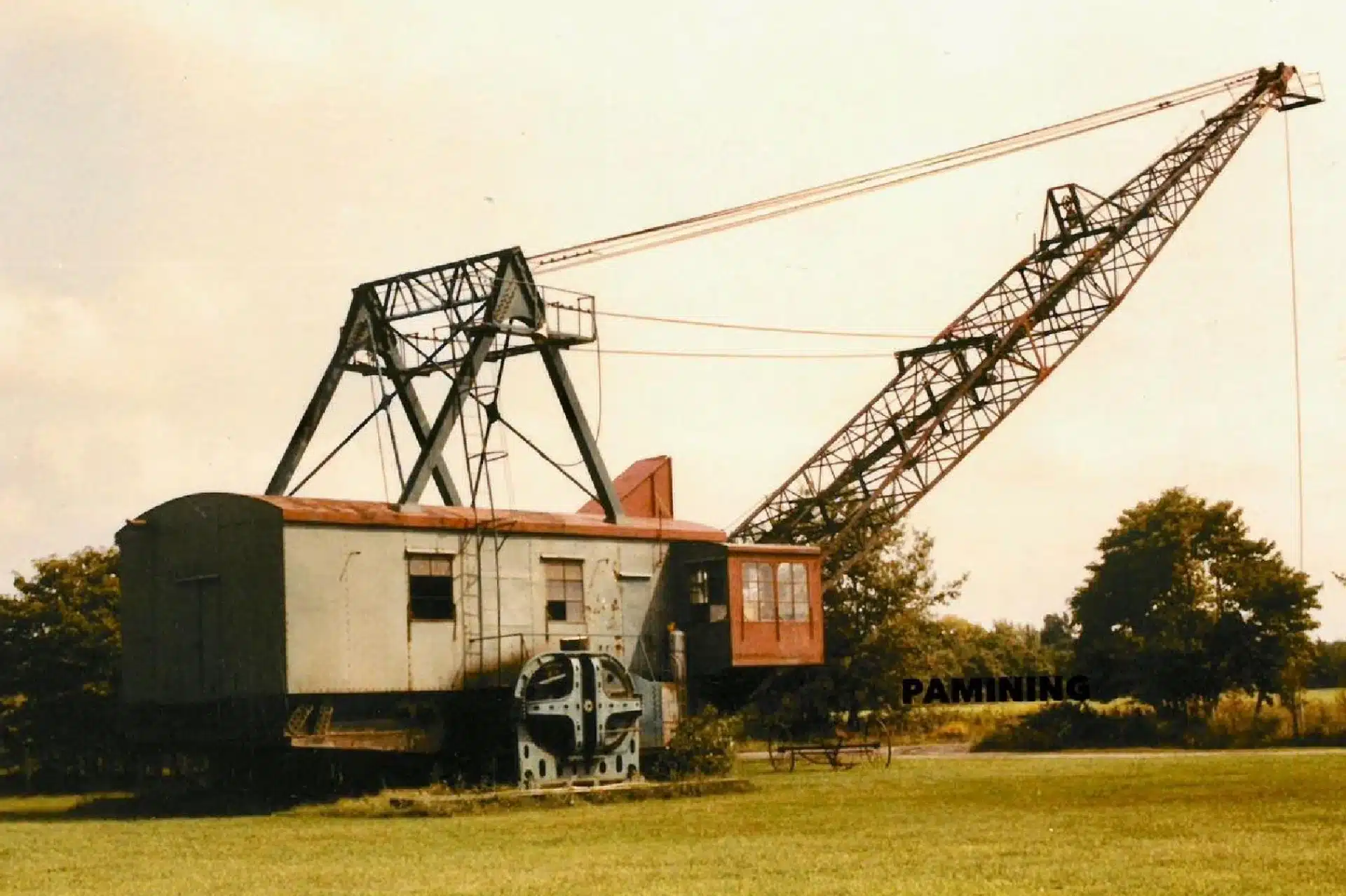

The earliest dragline excavators popped up in the late 19th and early 20th centuries. Nothing like what we see today, though - these early machines were relatively small (by dragline standards) and relied on steam or gasoline engines for power.

Ever wonder how these massive machines actually move around?

Back in 1913, a clever engineer named Oscar Martinson at Monighan Machine Company invented the first walking mechanism for a dragline. Yes, walking - these machines don't roll on tracks like your typical excavator. This innovation was a game-changer, allowing draglines to "walk" across mining sites, dramatically increasing their efficiency and versatility.

Another breakthrough came with the aptly named "miracle hitch," developed in the early 20th century. It might not sound exciting, but this innovation significantly improved dragline efficiency by optimizing bucket movement and reducing strain on the cables. Companies like Page Engineering and Bucyrus-Erie (names that still carry weight in heavy equipment circles) were at the forefront of walking dragline development, continuously pushing the envelope to create increasingly larger and more powerful machines.

The history of draglines is full of stories that highlight just how enormous these machines really are. In 1974, the Mountaineer power shovel (similar in size to a large dragline) had to cross Interstate 70 - at midnight, of course. Can you imagine driving down the highway and seeing that beast crossing overhead? The operation required meticulous planning and coordination. Another milestone came in 1940 when the first walking dragline excavator in the United Kingdom started work at the Wellingborough iron quarry - a significant step in the adoption of this technology across the pond.

Types of Dragline Excavators

Dragline excavators generally fall into two main categories:

Standard Lift Crane: Think of these as the more reasonable cousins in the dragline family. They're typically smaller, more mobile, and can actually be transported to job sites (rather than being built on-site). These are what you'll see working on civil engineering projects - road construction, port development, canal dredging, and the like.

Onsite Excavator: Now we're talking about the true giants. These draglines are so massive and heavy that you have to assemble them right where they'll be working. Trying to transport one fully assembled? Good luck with that. These monsters are primarily deployed for large-scale mining operations - think coal mining and oil sands extraction, where moving mountains of material is just another day at the office.

Key Metrics of Dragline Excavators

When operators and mining engineers talk draglines, here are the metrics that matter:

Bucket Capacity: How much material can this beast move in a single bite? Measured in cubic yards, bucket capacities typically range from 40 to 80 cubic yards, with some models exceeding 100 cubic yards. For perspective, the Ursa Major (yes, they name these things like battleships) has a bucket capacity of 160 cubic yards. That's enough to move a small house in one scoop. The maximum bucket size for a dragline isn't arbitrary - it depends on factors like machine power, boom length, and material density. Anyone worth their salt will consult the manufacturer's dragline capacity chart before selecting a bucket size for a specific application.

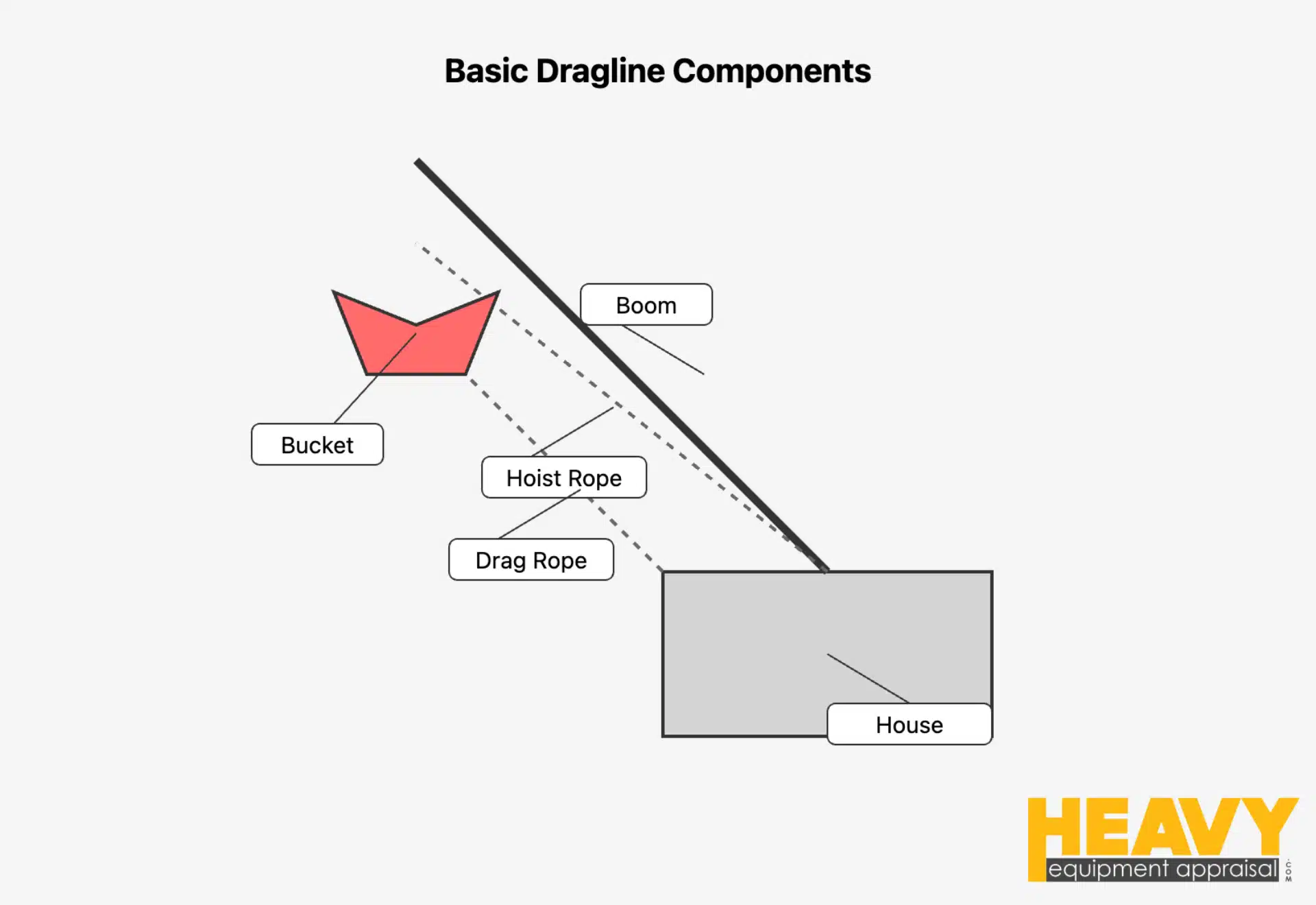

Boom Length: The boom is essentially the dragline's arm, and its length determines both reach and digging depth. We're talking anywhere from 45 to 100 meters. Longer booms let you reach farther and dig deeper, which means more versatility on-site. But remember - longer isn't always better. With increased length comes increased complexity and maintenance considerations.

Operating Weight: This is what the entire machine weighs when it's ready to work, measured in tonnes. Large draglines tip the scales at thousands of tonnes, with some models exceeding 13,000 tonnes. That's about the weight of 2,000 elephants, if you're wondering. This immense weight isn't just for show - it provides the stability and counterbalance needed during operation.

Digging Depth: How deep can the machine dig? This is limited by both the hoist rope length and the boom length. Operators need to know this metric inside and out to plan efficient excavation strategies.

Dump Height: How high can the machine lift and dump material? Like digging depth, this is constrained by the boom length and the hoist and drag ropes. Critical for planning material movement and placement.

Cost: Ready for some sticker shock? A large dragline system used in open-pit mining typically runs between US$50 million and US$100 million. Yes, that's million with an M. This eye-watering price tag reflects the complex engineering and sheer scale of these machines. But when you consider their production capacity over a lifetime, many mining operations find the investment well worth it.

Applications of Large Dragline Excavators

Large dragline excavators earn their keep primarily in surface mining operations. When you need to move earth by the thousands of cubic yards, these are your go-to machines. Their ability to shift massive volumes quickly and efficiently makes them indispensable for certain operations.

flowchart TD
    A[Start Position] -->|Lower Bucket| B[Position Bucket]
    B -->|Drag Bucket| C[Fill Bucket with Material]
    C -->|Hoist Bucket| D[Lift Loaded Bucket]
    D -->|Swing Boom| E[Move to Dump Location]
    E -->|Release Drag Cable| F[Dump Material]
    F -->|Swing Back| A

    style A fill:#d4f1f9,stroke:#333
    style B fill:#d4f1f9,stroke:#333
    style C fill:#d4f1f9,stroke:#333
    style D fill:#d4f1f9,stroke:#333
    style E fill:#d4f1f9,stroke:#333
    style F fill:#d4f1f9,stroke:#333

    classDef default font-size:14px;

Here's where you'll find these giants hard at work:

Coal Mining: This is where draglines really shine. They excel at stripping away overburden to expose coal seams in strip mining operations. When you're dealing with seams that can run for miles, efficiency is everything.

Oil Sands Mining: Those massive open-pit mines in Alberta? Yep, draglines are key players there, extracting oil sands material that will eventually be processed into crude oil.

Mineral Extraction: From copper to iron ore to phosphates, if it's a mineral that requires removing massive amounts of overburden, chances are draglines are involved.

Civil Engineering: While less common, draglines can tackle large-scale civil projects like major road construction, port development, and canal dredging. When the scale gets big enough, draglines start to make economic sense.

What's the big selling point for draglines in mining? Cost-effectiveness for waste removal. Compared to other excavation methods, draglines can move large volumes of overburden at a lower cost per cubic yard of material. In an industry where margins matter and efficiency is king, that's a compelling advantage.

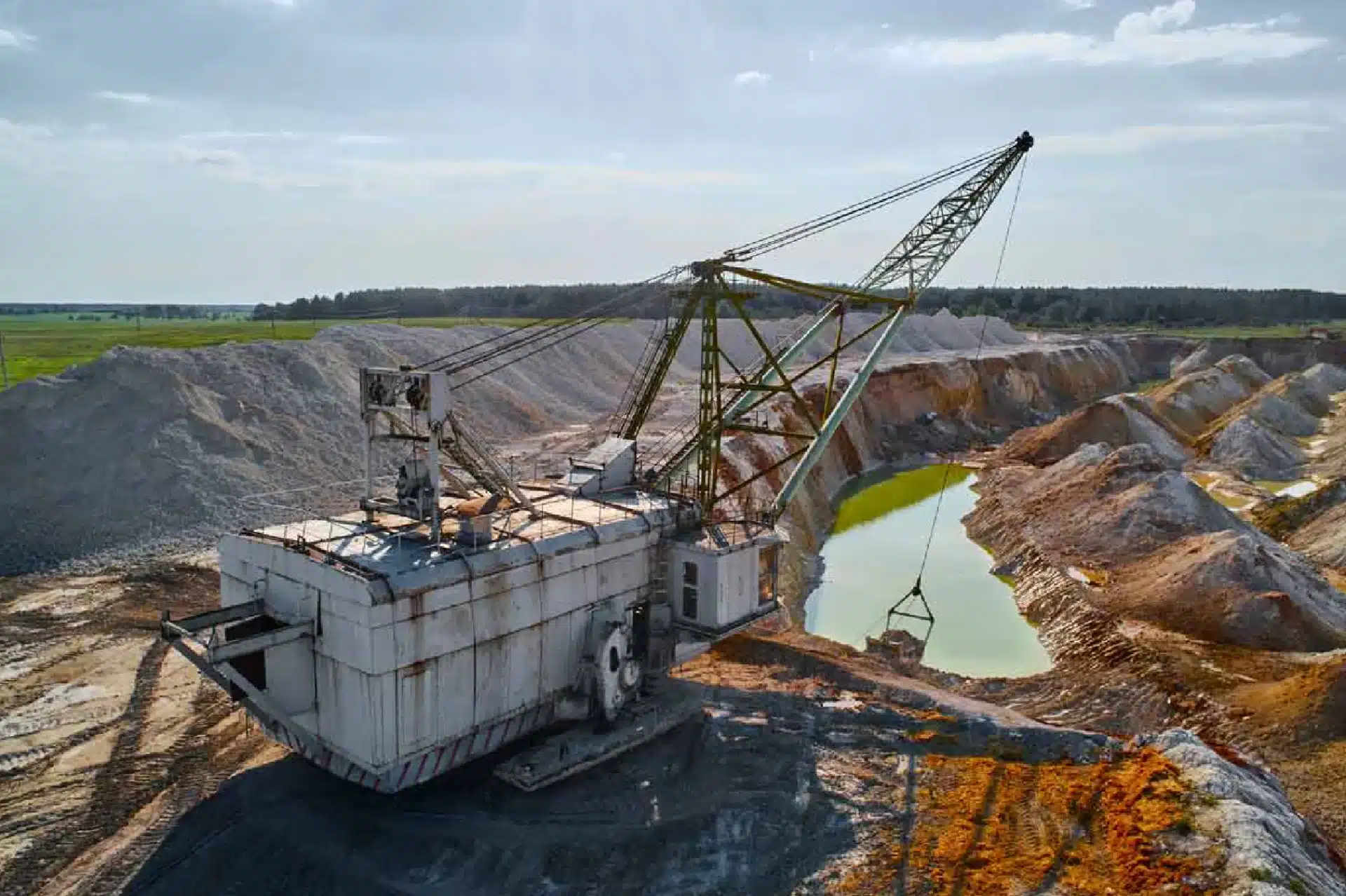

Environmental Impact of Large Dragline Excavators

Let's not sugarcoat it - while dragline excavators are workhorses for mining and construction, they come with significant environmental considerations. When you're moving earth on this scale, there's no way around some impact.

The main environmental concerns include:

Habitat Destruction: Large-scale mining operations often require clearing forests and natural habitats. When the draglines roll in (or walk in, technically), wildlife gets displaced and ecosystems disrupted. It's the nature of the beast when you're extracting resources at scale.

Soil Erosion: Remove the overburden, and what happens? You've got exposed soil that's now vulnerable to erosion from both wind and water. Without proper management, this can lead to significant downstream issues.

Water Pollution: Mining operations generate wastewater and runoff that can contaminate nearby water sources if not properly contained and treated. This isn't unique to dragline operations, but the scale makes it particularly challenging.

Air Pollution: Most dragline excavators run on diesel engines, pumping out nitrogen oxides and particulate matter. When you're burning fuel by the tanker-load, emissions add up quickly.

Noise Pollution: Ever been near one of these machines in operation? The noise is impressive - and by impressive, I mean loud enough to make you reach for your earplugs. This noise can disturb both nearby communities and wildlife.

Now for the good news - the industry isn't ignoring these issues. Technological advancements are helping to mitigate these environmental impacts. Hybrid and electric dragline excavators are being developed to reduce fuel consumption and emissions. Automation and remote operation can minimize the need for on-site personnel, reducing the overall environmental footprint of mining operations.

It's worth noting that modern draglines are actually designed with some environmental considerations built in. They minimize soil compaction compared to traditional excavation methods, which helps reduce disturbance to the surrounding environment. This becomes particularly important in ecologically sensitive areas where minimizing ground disturbance is crucial.

The Future of Large Dragline Excavators

What's on the horizon for these earth-moving behemoths? Several key factors will shape their evolution:

Technological Advancements: The push toward automation, remote operation, and energy efficiency isn't slowing down. We're already seeing "cruise control" and "Digital Terrain Mapping" systems being implemented to enhance precision and efficiency. Think of it as going from a manual transmission to an automatic - but for machines that move mountains. Simulation software is increasingly being used for operator training, improving safety and reducing the learning curve. When mistakes can cost millions, virtual practice makes perfect sense.

Environmental Regulations: As regulations continue to tighten globally, manufacturers are developing more eco-friendly dragline excavators. Hybrid and electric models are no longer just concepts - they're becoming realities. Mining companies are recognizing that staying ahead of environmental requirements isn't just good citizenship; it's good business.

Demand for Minerals: The global appetite for minerals and metals keeps growing, especially those used in renewable energy technologies. Ironically, the green energy revolution requires massive mining operations to extract the materials needed for batteries, solar panels, and wind turbines. This increasing demand will continue to support dragline excavator use in mining operations.

While draglines will likely remain staples in mining for the foreseeable future, they may eventually face competition from even more efficient and sustainable technologies. Potential challengers include:

Bucket Wheel Excavators: Already deployed in some large-scale operations, these machines offer continuous excavation capabilities. However, they're less versatile than draglines and aren't suitable for all terrain types or mining applications. They excel in soft, homogeneous materials but struggle with harder, varied geology.

Autonomous Haulage Systems: Self-driving trucks for material transport might reduce the need for draglines in certain applications. While these systems offer potential safety and efficiency benefits, they require significant investment in infrastructure and technology - we're talking completely redesigned mine layouts and communication networks.

Another technological advancement worth watching is the UDD (universal dig-dump) system. Unlike traditional draglines that manipulate the bucket with two ropes, UDD machines use four ropes, offering greater control and flexibility during excavation. The trade-off? While UDD machines generally boast higher productivity, they also tend to experience more mechanical issues. It's the classic reliability versus performance question.

The choice between draglines, bucket wheel excavators, and autonomous haulage systems ultimately depends on specific factors: mining application, material type, site conditions, and environmental considerations. There's no one-size-fits-all answer in this industry.

Notable Dragline Excavators

Currently in Operation

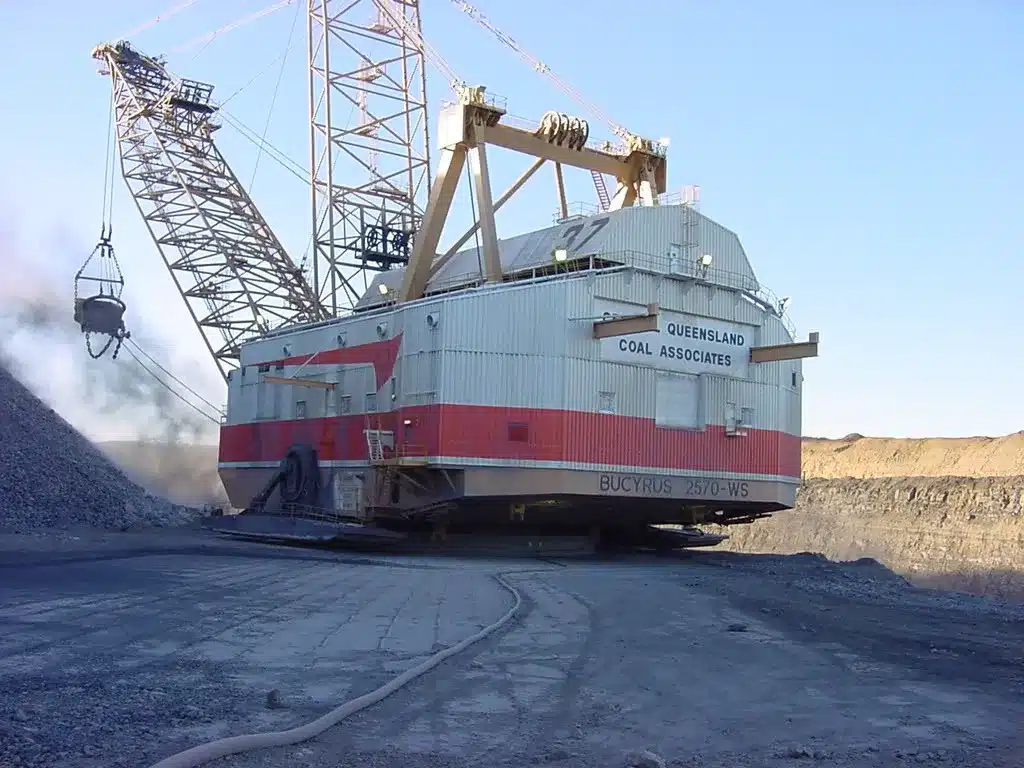

The reigning champion of operational draglines is the Bucyrus 2570WS, currently hard at work at the Peak Downs mine in Queensland, Australia. This monster tips the scales at 7,271 tonnes and sports a boom length of 109.7 meters, swinging a 120 cubic meter bucket. If you're trying to picture it, think of a 30-story building that can move.

Another impressive specimen is the Ursa Major, operating at the Black Thunder Coal Mine in Wyoming. This Bucyrus-Erie 2570WS model holds the title of largest in North America and third largest ever built. Weighing in at 6,700 tonnes with a 110-meter boom and 160 cubic yard bucket, it's a sight to behold. Want to know what a logistical nightmare looks like? Transporting the Ursa Major's 165,000-pound bucket required special permits for an overweight and oversized load. When your equipment needs its own parade permit, you know you're dealing with serious machinery.

Historical Giants

The crown for the largest dragline excavator ever built belongs to Big Muskie, a Bucyrus-Erie 4250-W that operated in Ohio from 1969 to 1991. This true colossus weighed 13,500 tons and wielded a 220 cubic yard bucket. To put that in perspective, you could park two Greyhound buses side by side inside its bucket with room to spare. Unfortunately, Big Muskie was scrapped in 1999, a victim of rising electricity costs and tightening environmental regulations. Sometimes even giants fall.

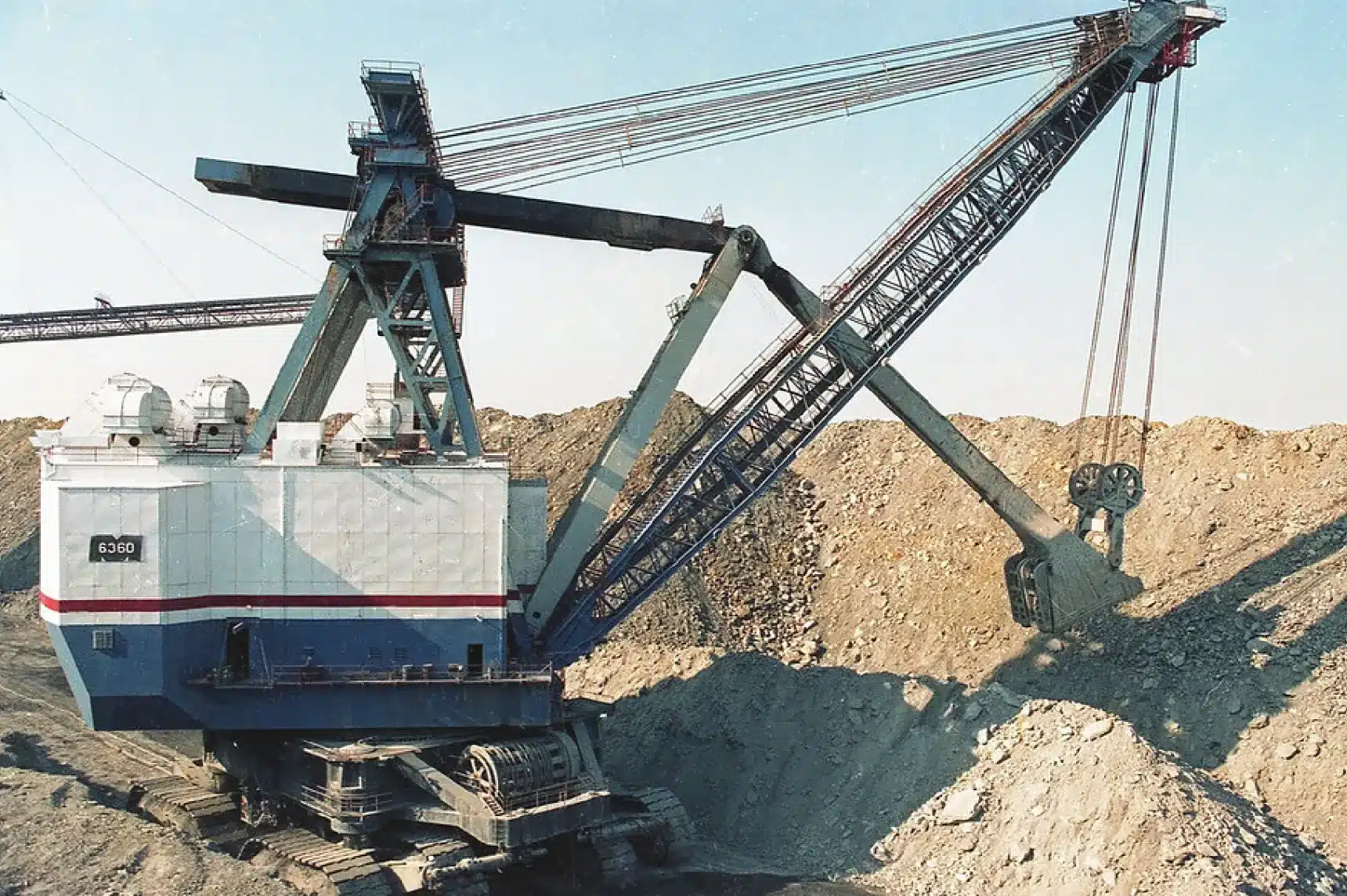

Other historically significant draglines include the Marion 6360 "The Captain" (another legendary power shovel) and the German bucket wheel excavators Bagger 288 and Bagger 293. These machines weren't just equipment - they were engineering milestones that pushed the boundaries of what was possible in excavation technology. They demonstrated just how massive earth-moving machines could become when necessity, engineering prowess, and industrial ambition combined.

Dragline Comparison Table

Conclusion

Let's cut to the chase - draglines aren't just big machines, they're engineering marvels that have literally moved mountains for mining and construction. When you need to shift earth by the thousands of cubic yards, nothing else really compares.

Are they perfect? Not by a long shot. Their environmental footprint is substantial - like bringing a bulldozer to a garden party. But the industry's not sitting on its hands. Automated draglines have boosted efficiency by up to 30%, while GPS-guided systems cut fuel consumption by up to 15%. When you're burning diesel by the tanker load, that adds up fast.

Here's the irony nobody talks about enough: these massive diesel-guzzling beasts are extracting the very materials needed for our green energy revolution. The cobalt, lithium, and copper that go into those EV batteries and solar panels? Draglines are helping dig them up. It's like using a sledgehammer to build a watch - strange but necessary.

As demand for these critical minerals continues climbing, draglines aren't going anywhere. They'll just get smarter, cleaner, and even more efficient. The dragline's story isn't over - the next chapter just has more computers and fewer emissions.
