14 Crane Types You Might Spot From Your Window (& What They Do)
Years of experience in the equipment industry have shown me the critical role cranes play in various sectors. Their specialized designs and capabilities are essential for completing projects safely and efficiently. Here are the construction crane types you’ll encounter in the field:
- Tower Cranes: Ideal for high-rise construction, reaching great heights.
- Overhead Cranes: Perfect for indoor material handling, maximizing space efficiency.
- Mobile Cranes: Versatile and portable, suitable for various terrains and projects.
- Crawler Cranes: Offer power and stability on challenging grounds.
- Truck-Mounted Cranes: Road-ready lifting equipment for easy transport between sites.
- Rough Terrain Cranes: Navigate uneven surfaces, perfect for off-road work.
- All-Terrain Cranes: Combine on-road and off-road capabilities for diverse projects.
- Floating Cranes: Essential for marine operations like construction and salvage.
- Rail-Mounted Cranes: Designed for railway maintenance and construction tasks.
- Aerial Cranes: Helicopter-based, provide access to remote or inaccessible areas.
You’ve seen the construction cranes list, now grasp the nuances. From the precision of level luffing cranes in bustling shipyards to the brute force of crawler cranes conquering challenging terrains, there’s a fascinating story behind each type.
Introduction to Crane Types and Their Importance in Construction
Cranes are key in construction, offering vital lifting solutions for many projects. They range from small carry deck cranes to huge crawler cranes that can lift over 2500 tons. It’s important to know the different crane types to pick the right one for the job.
The history of cranes goes back to ancient Greece, with records of their use since 515 B.C. Today, cranes have modern parts like the boom, jib, outriggers, and reinforced-steel cable. These parts work together for safe and efficient lifting in various construction tasks.
In the construction world, you’ll find mobile cranes, tower cranes, and rough terrain cranes. Each type has its own role, making construction sites safer, more efficient, and productive. For instance, tower cranes are great for tall buildings, while rough terrain cranes handle uneven ground well.
| Crane Type | Key Features | Primary Applications |
|---|---|---|
| Mobile Cranes | Versatile, portable | Short-term activities, various terrains |
| Tower Cranes | Tall, fixed structure | High-rise construction |
| Rough Terrain Cranes | Large tires, outriggers | Uneven surfaces, off-road work |
The construction world is seeing new crane technology, like electric cranes. These eco-friendly cranes are expected to become the norm in a decade. They will change construction for the better, making it more efficient.
Static Cranes: Fixed Solutions for Long-Term Projects
Static cranes are key in construction and industry. They are made for long-term use, providing stability and power for big projects. Let’s look at the main types of static cranes and their special uses.

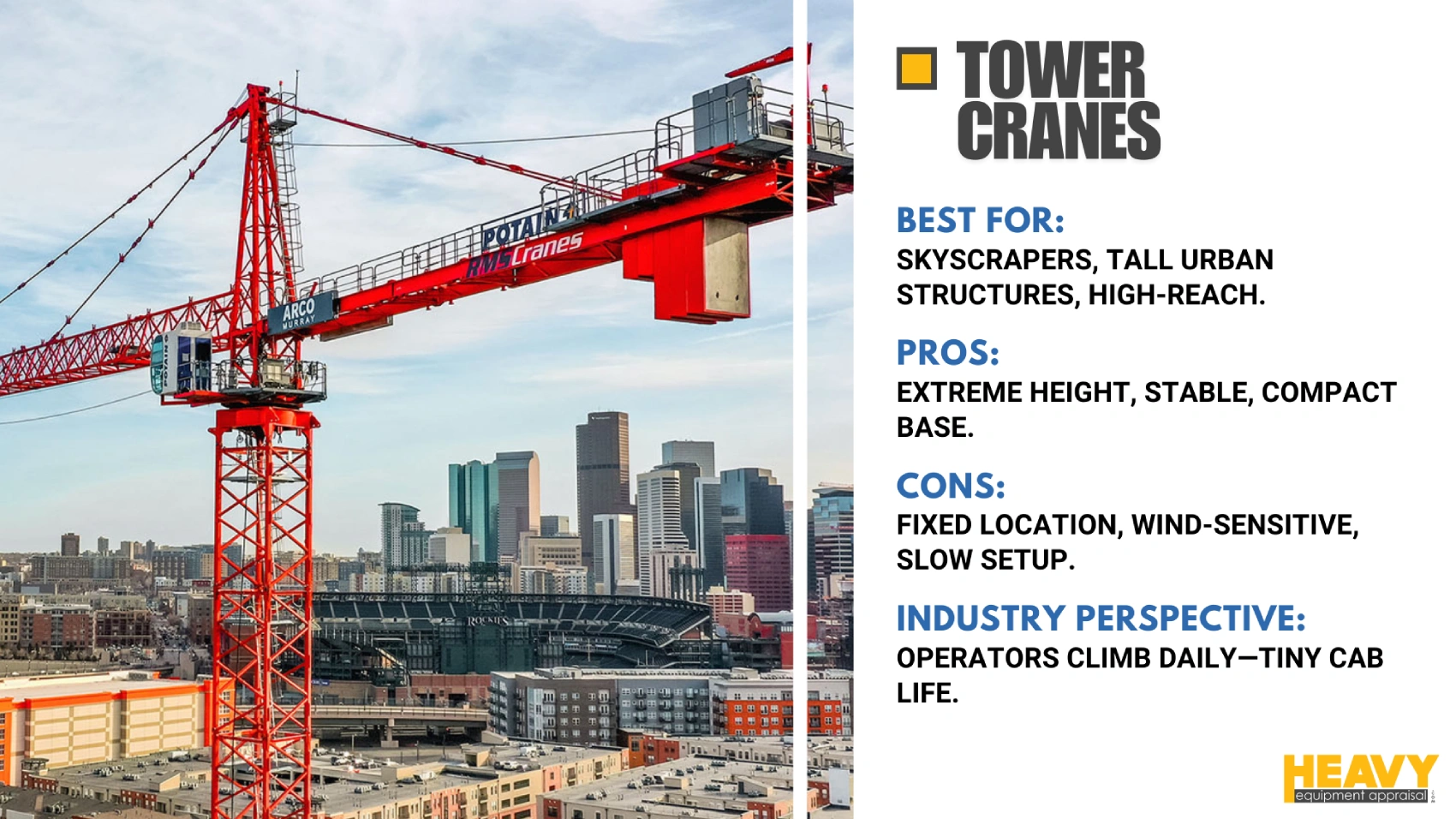

Tower Cranes: Reaching New Heights
Tower cranes are seen in high-rise buildings. They have three main types: hammerhead, luffing tower, and self-erecting. These cranes lift heavy loads high, making them vital for tall buildings and large projects.

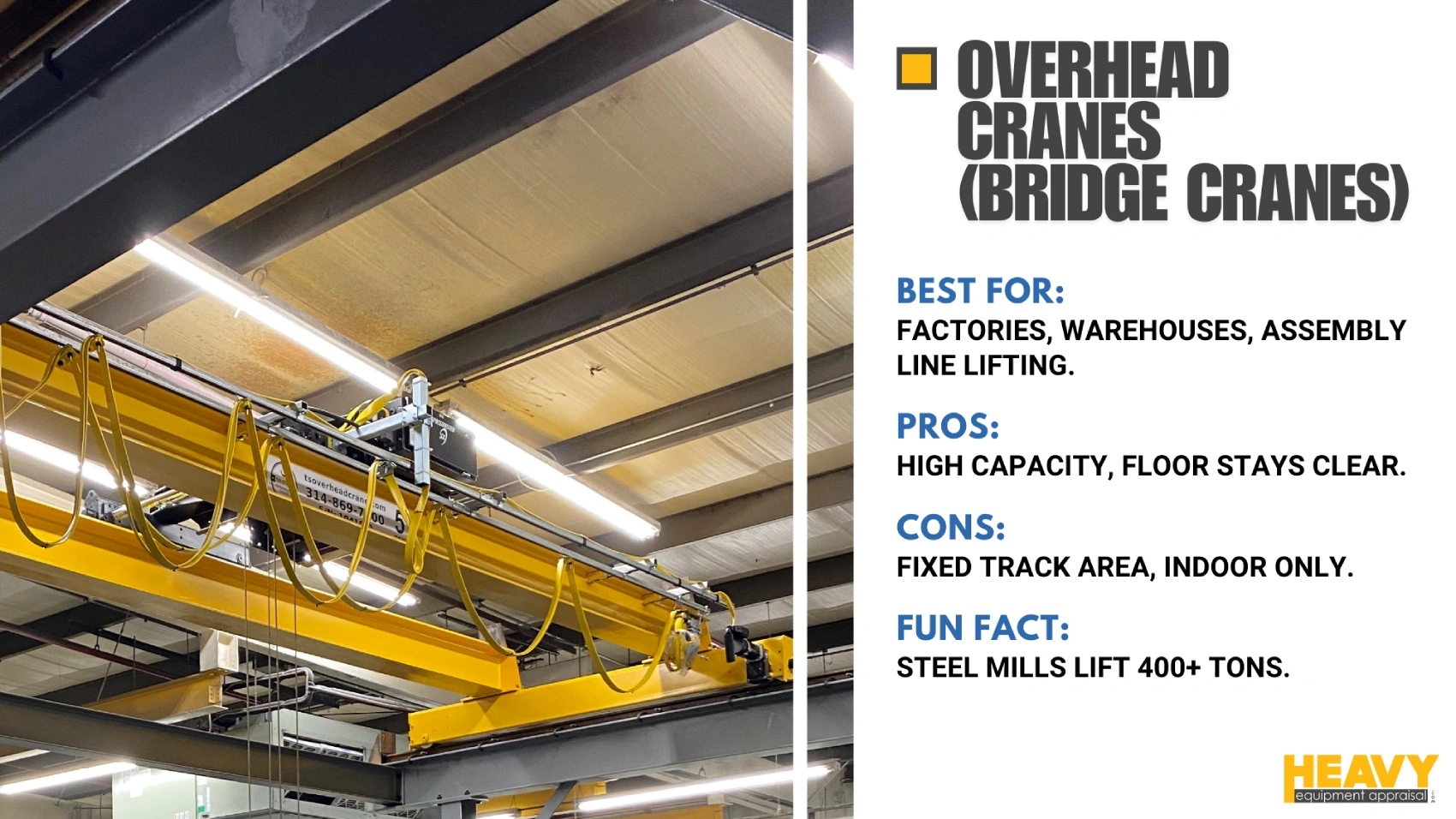

Overhead Cranes: Efficiency in Indoor Spaces

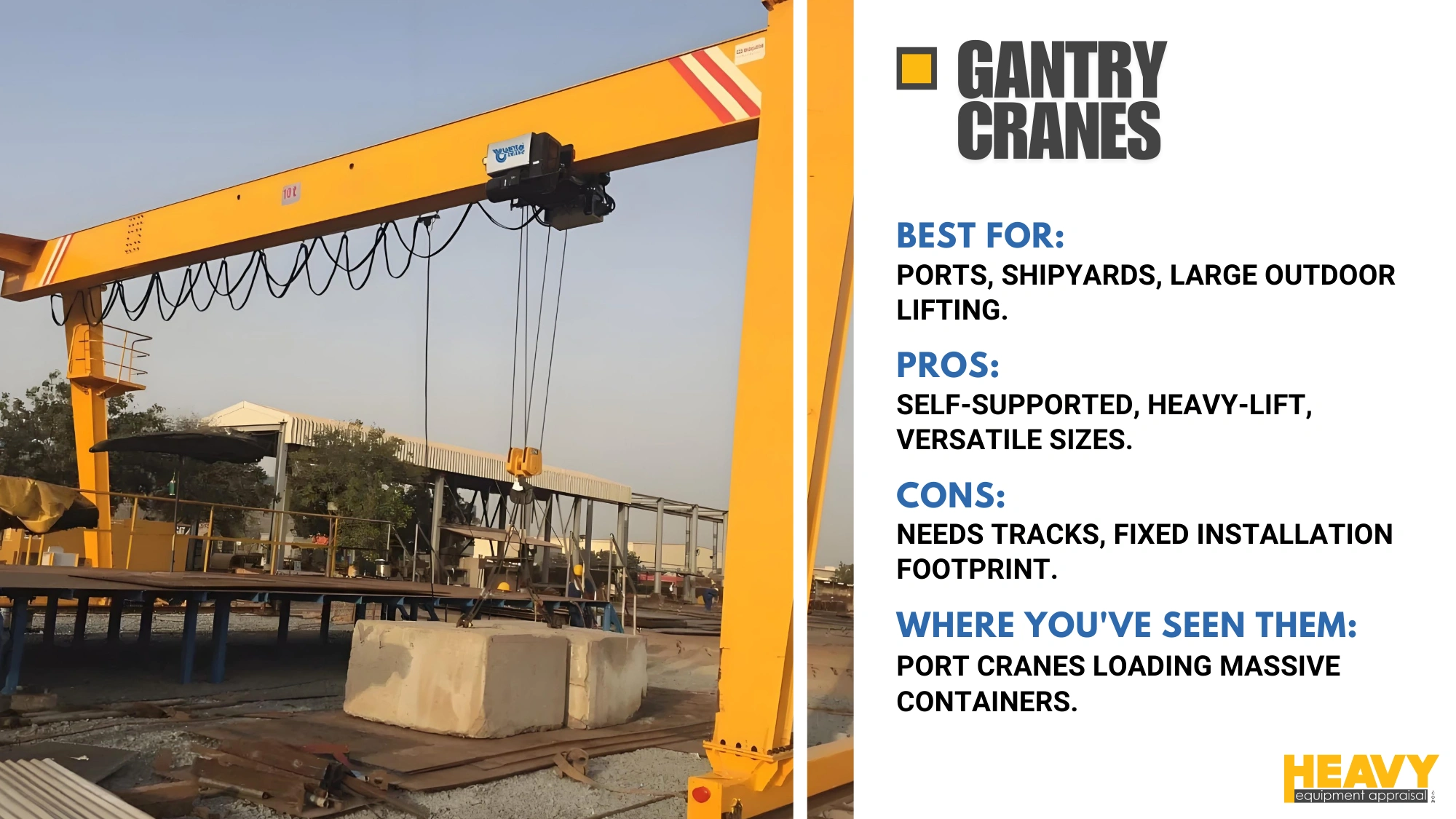

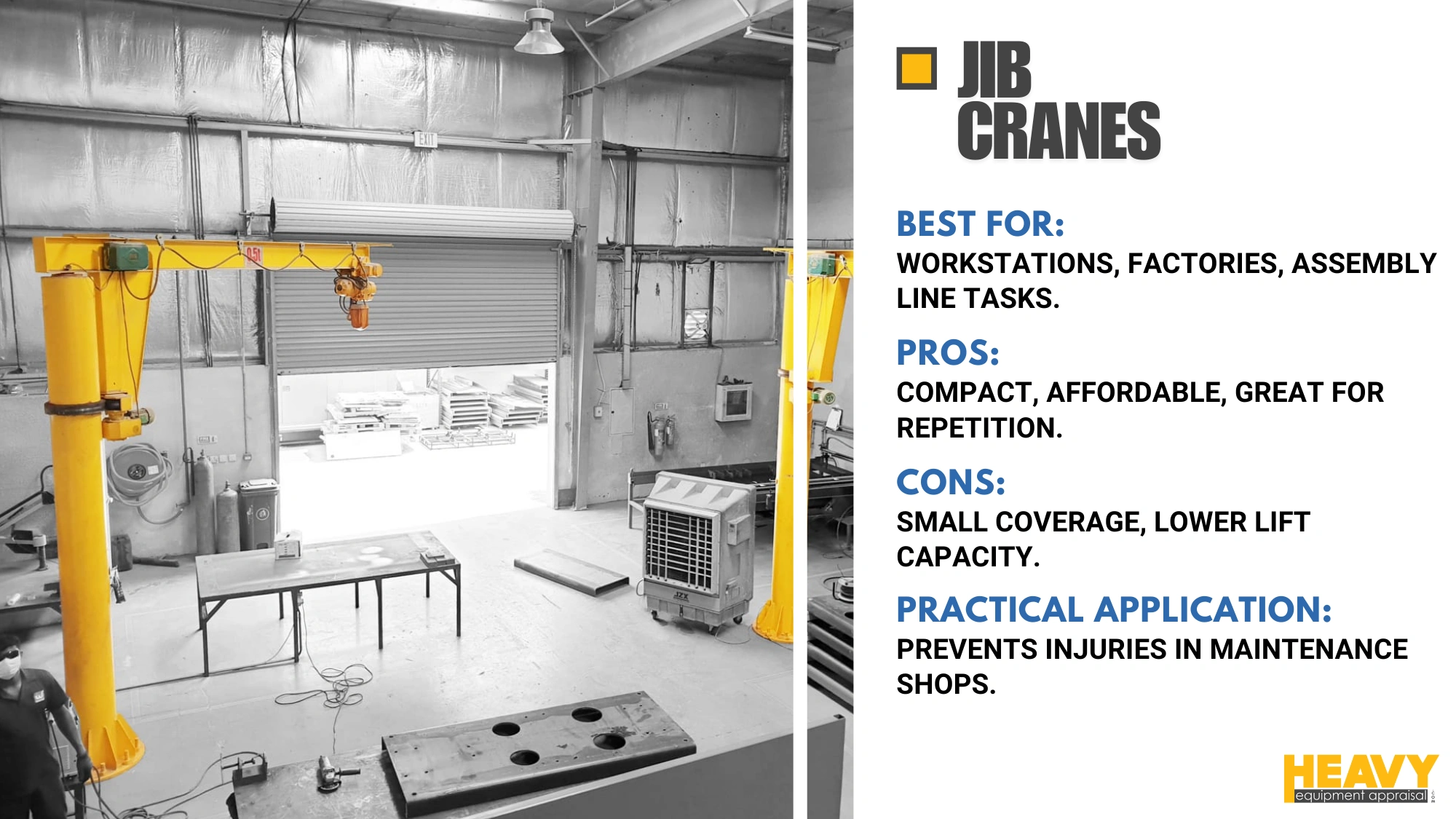

Overhead cranes make warehouses and factories safer and more efficient. They include gantry and jib cranes. These cranes move on rails, helping with precise handling in tight spaces.
Level Luffing Cranes: Precision in Shipyards and Ports
Level luffing cranes are made for shipbuilding and moving freight. Their design keeps the hook level while moving the jib. This ensures accurate placement in maritime settings.
| Crane Type | Main Application | Key Feature |
|---|---|---|
| Tower Cranes | High-rise Construction | Great height and reach |
| Overhead Cranes | Indoor Material Handling | Efficient use of space |
| Level Luffing Cranes | Shipyards and Ports | Level load movement |
Mobile Cranes: Versatile Lifting Solutions for Various Terrains
Mobile cranes are key for lifting operations on different job sites. They sit on trucks, treads, or wheels, making them easy to move around. Their ability to move easily makes them perfect for projects needing versatile lifting gear.
These cranes stand out with their extendable boom that turns up to 360 degrees. This lets them handle a variety of lifting tasks well. Some mobile cranes can lift over 500 US tons and reach more than 250 feet high.
- All-terrain cranes can lift over 500 US tons and reach heights exceeding 250 feet
- Crawler cranes have the capacity to lift thousands of US tons
- Boom truck cranes offer lifting capacities from 10 to 60+ US tons

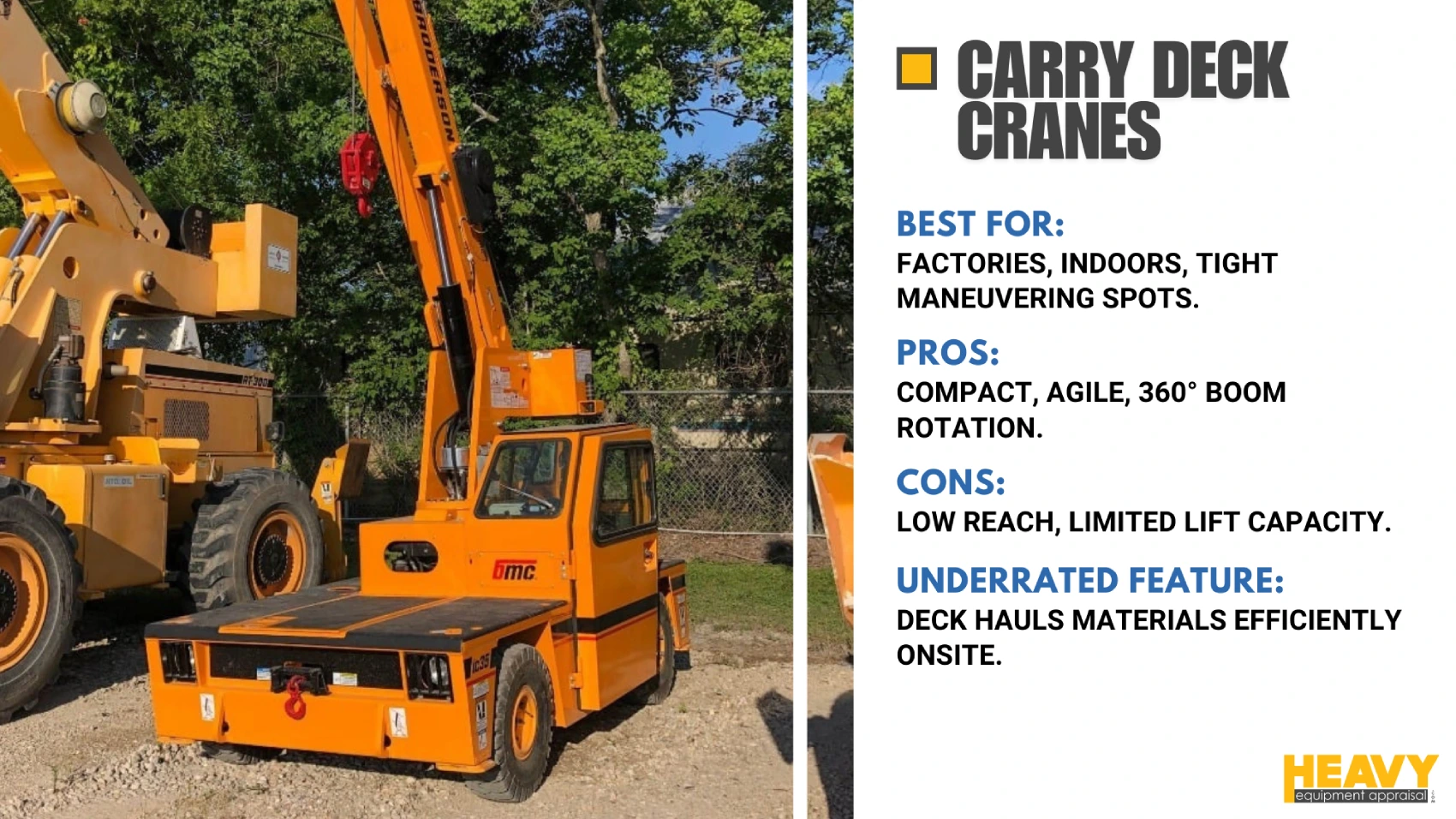

There are many types of mobile cranes for different needs. Carry deck cranes have four wheels and can turn fully. Rough terrain cranes are great for tough places with their four-wheel drive and steering. All-terrain cranes are the best for both on-road and off-road use.
For stability, many mobile cranes need outriggers or counterweights. Some models must be put together on-site to work their best. This makes mobile cranes vital in building, shipping, and industrial work.

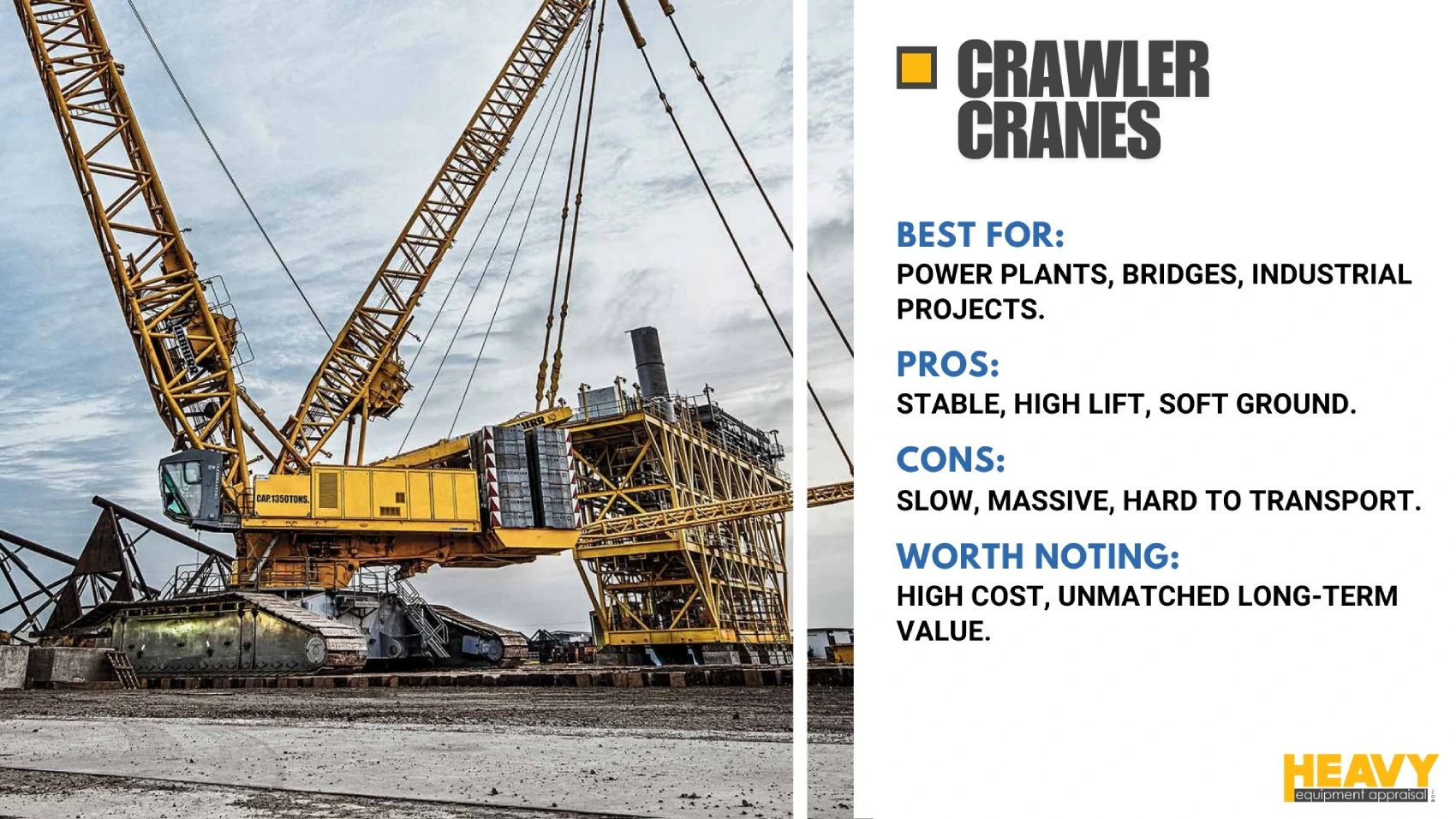

Crawler Cranes: Power and Stability on Challenging Grounds
Crawler cranes are known for their great mobility and heavy lifting on soft grounds. They are perfect for construction projects on uneven surfaces. Their tank-like treads give them stability and spread out their weight evenly. This makes them safe to use in different conditions.
Lattice Boom Crawlers: High Capacity Lifting
Lattice cranes are the heavy-duty cranes in the crawler family. They can lift over 2500 tons, making them great for big construction projects. Their long booms let them place heavy loads at great heights and distances with precision.
Telescopic Crawlers: Flexibility in Confined Spaces
Telescopic crawlers are powerful and versatile. They have adjustable booms that can extend or retract. This flexibility is great for urban construction sites or areas with limited space.
Choosing the right crane is key to a project’s success. You need to think about how long the project will take, the site conditions, the weight of the materials, and the space available. Load charts are important for figuring out a crane’s lifting capacity and matching it to the project’s needs.
| Crane Type | Lifting Capacity | Best Suited For |
|---|---|---|
| Lattice Boom Crawlers | Over 2500 tons | Large-scale construction, energy plants |
| Telescopic Crawlers | Up to 1000 tons | Urban construction, confined spaces |

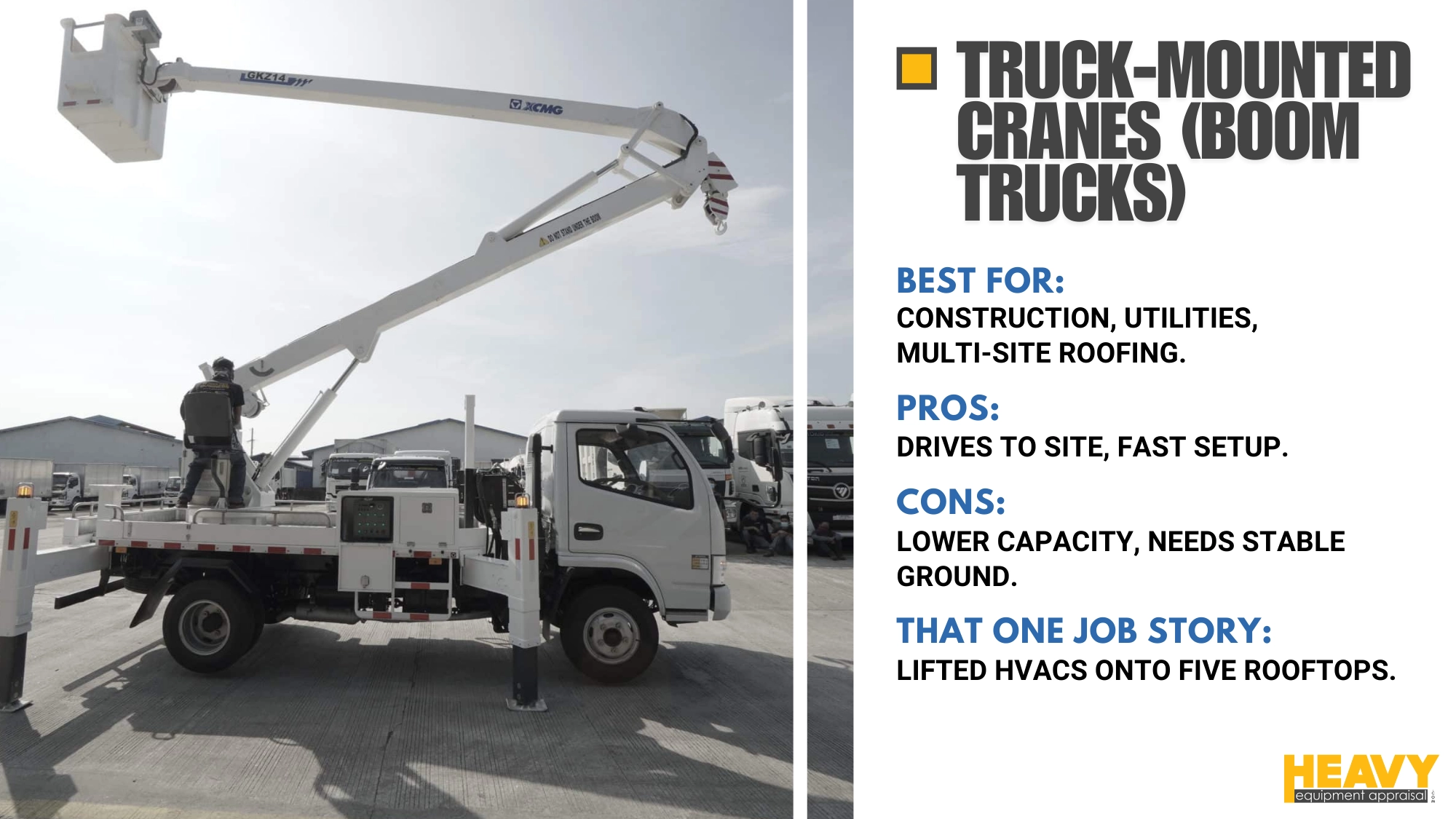

Truck-Mounted Cranes: Road-Ready Lifting Equipment
Truck-mounted cranes, also known as boom trucks or truck cranes, are key in lifting equipment. They mix the ease of a truck with a crane’s power. This makes them vital for construction companies with many project sites.
Boom trucks are great for moving easily between job sites. Once there, they turn into strong lifting machines quickly. Hydraulic truck-mounted cranes can lift from 50 to 110 tons. This makes them perfect for many construction and industrial tasks.
Truck cranes are fast to set up and start working. A 45-ton crane is ready to lift right away, unlike big crawler cranes that take days. This speed is crucial for projects with tight deadlines or many lifting spots.
| Crane Type | Lifting Capacity (tons) | Key Feature |
|---|---|---|
| Boom Truck Cranes | 23 – 45 | High mobility |
| Hydraulic Truck-Mounted Cranes | 50 – 110 | Versatile lifting power |
| Telescopic Boom Cranes (Large-scale) | Up to 800 | Extensive reach |
Truck cranes are essential in many situations, like moving materials or lifting at different spots. They can quickly move between job sites, boosting efficiency and cutting downtime. Their ability to move and lift makes them a vital tool in modern construction and industry.

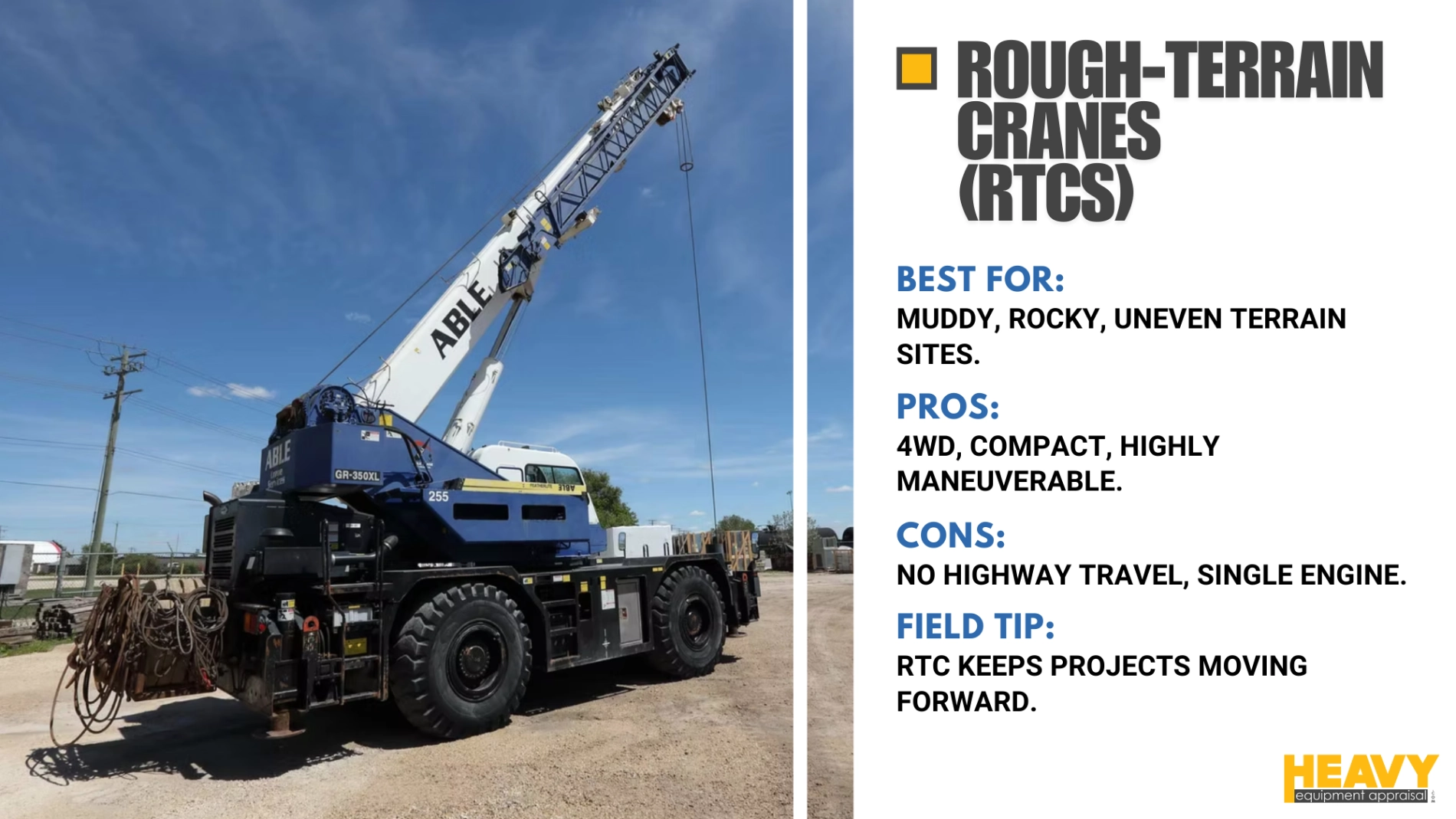

Rough Terrain Cranes: Navigating Uneven Surfaces
Rough terrain cranes are key in tough environments. They are vital for off-road work. These machines move easily over rough surfaces, offering big benefits in building and industrial tasks.
Key Features of Rough Terrain Cranes
RT cranes stand out with their strong features. They can lift from 30 to 150 tons, ideal for heavy tasks off-road. The SR-700L model, for example, lifts 70 tons at a 2.5m radius, with a boom that stretches from 10m to 44.5m in six parts.
These cranes have load sensing devices that drop loads over the max capacity. This boosts safety and efficiency on the job. RT cranes are also lighter, with a single engine and four-wheel design.
Applications in Construction and Industrial Settings
Rough terrain cranes are widely used in building, mining, marine, and oil sectors. They’re great at moving heavy stuff on-site, cutting down on labor costs and prep work. Their flexibility makes them perfect for lifting in tight spots.
| Crane Type | Load Capacity | Key Advantage |
|---|---|---|
| Rough Terrain | 30-150 tons | Off-road mobility |
| All-Terrain | 40-1000 tons | Versatile operation |

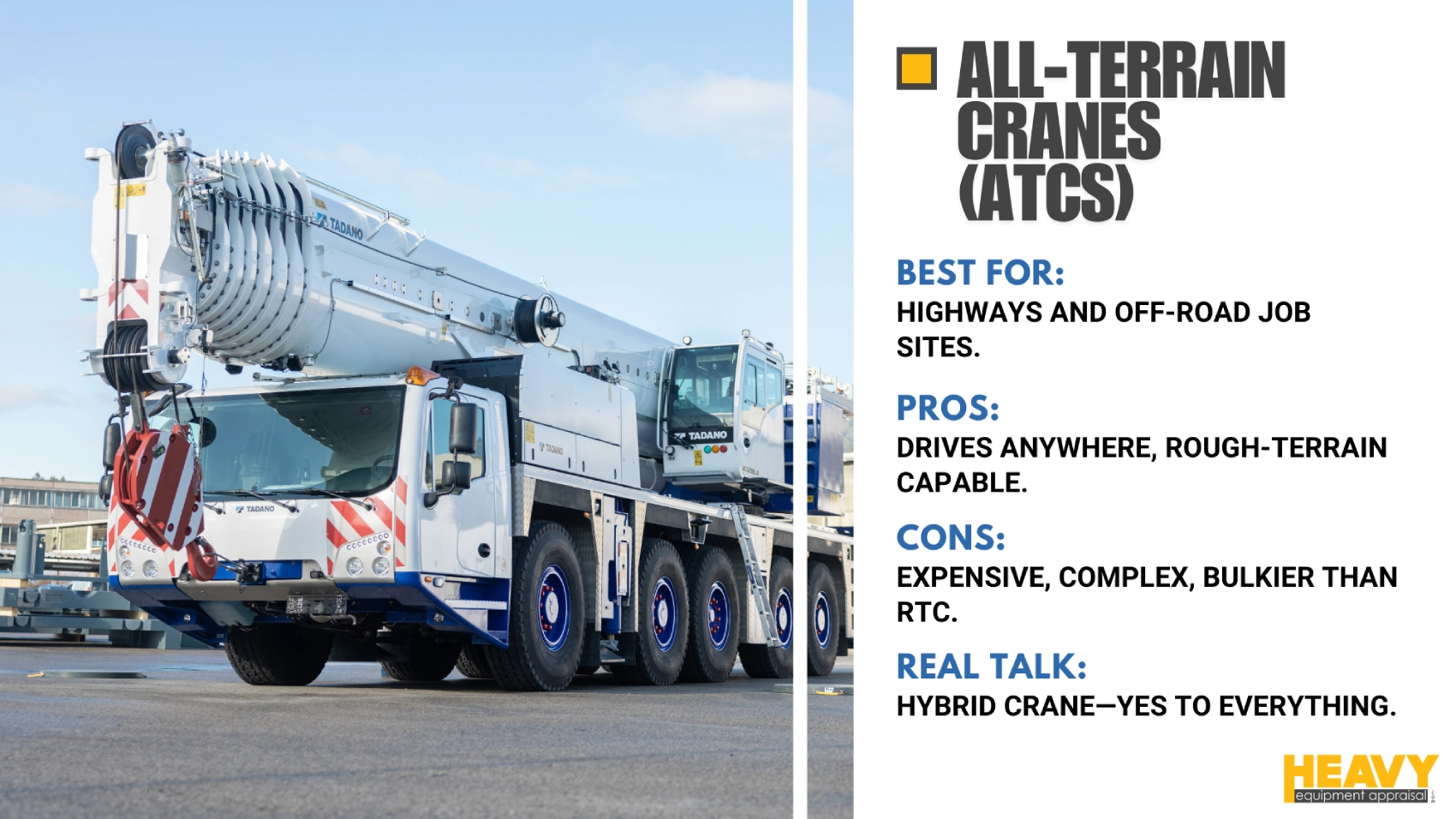

All-Terrain Cranes: Combining On-Road and Off-Road Capabilities
All-terrain cranes are great for both on-road and off-road tasks. They can lift heavy items for projects like setting up wind turbines or installing pipelines. These cranes have many axles, which means they can move easily on different surfaces.
These cranes can lift a lot, from a few tons to hundreds of tons. They can reach up to 150 meters high, perfect for tall jobs. On highways, they can move at 80 km/hr, getting to work sites fast.
All-terrain cranes are known for being tough and adaptable. They need less upkeep, saving money over time. You can add special parts like luffer jibs to increase their reach and lifting power. This makes them a smart pick for builders.
When picking between all-terrain and rough-terrain cranes, think about the terrain, how fast you need to work, and moving costs. All-terrain cranes are more flexible and can lift more, but they need some extra setup. They’re great for projects that need to handle tough terrain and work quickly.
Types of Cranes in Construction: Specialized Equipment for Specific Industries
Specialized cranes are key in many industries. They are made to tackle unique challenges. Let’s look at some important types of specialized cranes.

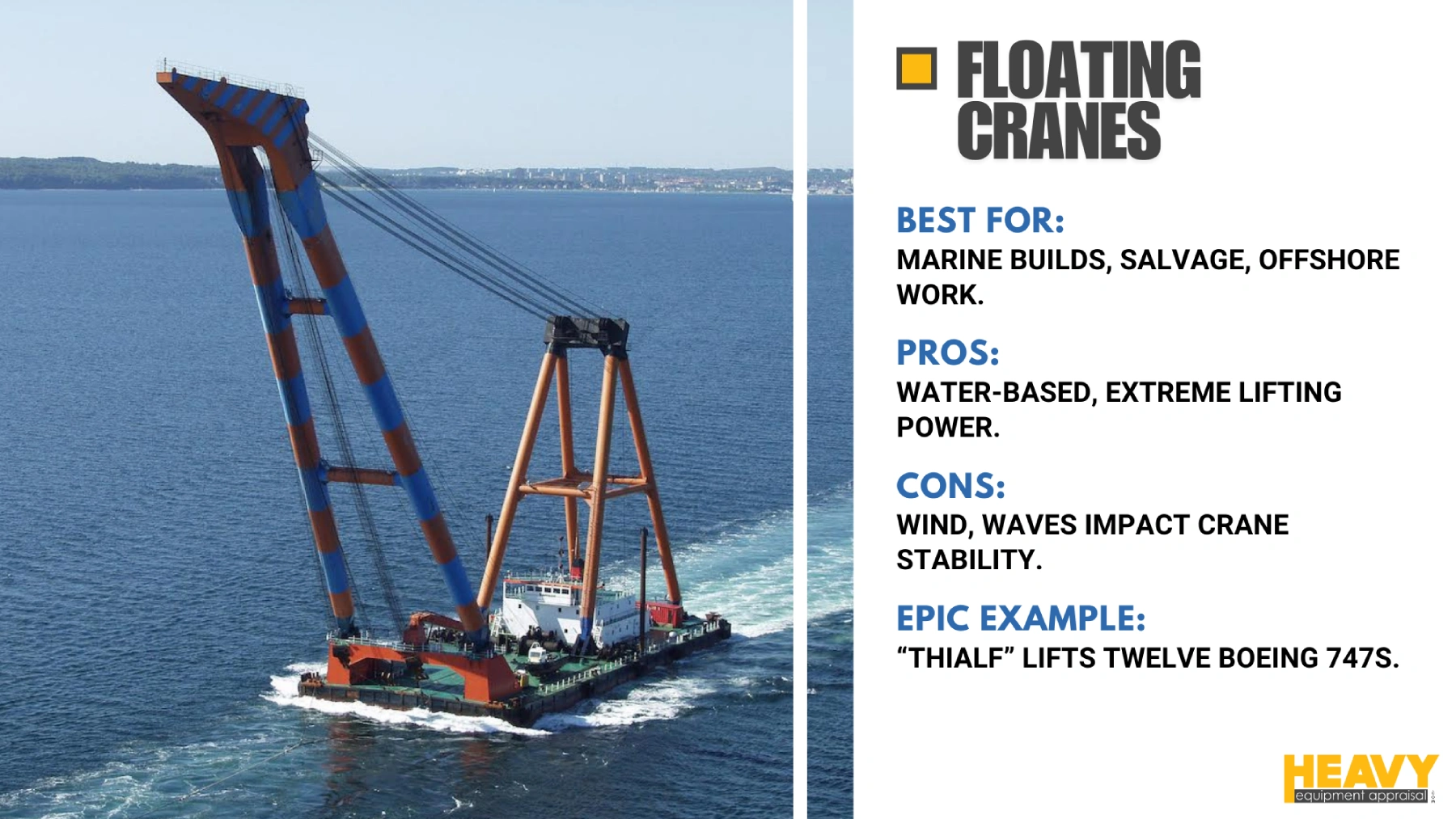

Floating Cranes for Marine Applications
Floating cranes are vital for marine work like building and salvaging. They can lift heavy loads, from a few tons to over a thousand tons. They have systems to keep them steady on the water.
Rail-Mounted Cranes for Railway Operations
Rail cranes work on railways for upkeep and building. They are stable and precise in these settings. These cranes are essential for tasks like fixing tracks, building bridges, and moving cargo at rail yards.
Aerial Cranes for Logging and Remote Access
Aerial cranes, like helicopters with lifting gear, are used in logging and hard-to-reach places. They can go where regular cranes can’t. These cranes are crucial for work in mountains or dense forests.
| Crane Type | Industry | Key Features |
|---|---|---|
| Floating Cranes | Marine | Water-based operations, high lift capacity |
| Rail Cranes | Railway | Track-mounted, precise movements |
| Aerial Cranes | Logging, Remote Access | Helicopter-based, reaches inaccessible areas |
Factors to Consider When Choosing the Right Crane Type
Choosing the right crane means looking at several key factors for the best performance and safety. The weight of what you’re lifting is crucial in picking the right crane. You also need to think about how high and how far you’ll be lifting.
What the site is like is very important too. Weather, especially wind, can affect how well a crane works. You should also consider how stable the ground is and how much space you have. If you need to move the crane a lot, a mobile crane might be best. But if it will stay in one place, a rail-mounted crane could work better.
The Crane Manufacturers Association of America (CMAA) has six service categories for cranes. These range from Class A for standby use to Class F for constant heavy use. Knowing these categories helps pick the right crane for your project.
| Factor | Consideration |
|---|---|
| Load Weight | Determines required crane capacity |
| Lift Height | Influences boom length selection |
| Horizontal Movement | Affects crane type choice (mobile vs. fixed) |
| Site Conditions | Impacts crane stability and performance |
| Usage Frequency | Guides service class selection |
Talking to crane experts can really help you make good choices. They can look at your project and suggest the best crane type for both safety and efficiency.
Safety Considerations and Regulations for Different Crane Types
Crane safety is crucial in construction and industrial settings. OSHA sets rules for lifting and operating cranes. These rules help prevent accidents and keep workers safe.
Crane operators must have a certification for the type of crane they work with. This rule started in November 2018. It helps lower the risk of crane accidents and raises safety standards.
Checking cranes every day is key to safety. Operators should inspect their equipment before using it. This helps spot problems early, avoiding accidents and breakdowns.
Good communication is crucial in crane work. If the operator can’t see clearly, a trained signal person must guide the lift. This teamwork makes the job safer and more efficient.
| Safety Measure | Description | Importance |
|---|---|---|
| Load Charts | Essential for planning safe lifts | Prevents crane failure and tip-overs |
| Outriggers | Stabilize cranes during operation | Prevents tipping and accidents |
| Power Line Awareness | Avoid contact with electrical lines | Prevents electrocution hazards |
Crane operators need to watch out for load limits and power lines. Overloading can cause crane failures. Contact with power lines is a big risk. By following OSHA rules and best practices, crane work can be safe and efficient.
Innovations and Future Trends in Crane Technology
The crane industry is going through a big change thanks to new technology. Smart cranes with computerized controls are leading this change. They use automated systems to lift loads safely and efficiently.
Artificial intelligence and machine learning are making cranes smarter. They help cranes move loads better and work more efficiently. This means safer and more productive work sites.
Eco-friendly cranes are now more common. They use electric or hybrid engines to cut down on pollution. Some cranes are made with materials that can be recycled and use less energy.
They also have features like energy-saving drives and systems that capture energy. This makes them more efficient and reduces the need for big changes to buildings.
Safety is a big focus in crane technology. Cranes can now be monitored remotely, which is great for dangerous jobsites. They have systems to avoid collisions and can quickly find and fix problems.
Tools like virtual and augmented reality are also being used to train crane operators. This makes the job safer for everyone.
The Internet of Things (IoT) will change how cranes work in the future. It lets cranes send and receive data in real time. This means they can fix problems before they turn into big issues.
We can expect to see more automated and remote-controlled cranes. This could change how we build and lift things in the future.
FAQ
How many types of cranes are there?
There are many types of cranes, but they can be broadly classified into two main categories: fixed cranes and mobile cranes. Fixed cranes are further classified into overhead cranes, gantry cranes, jib cranes, and tower cranes. Mobile cranes are further classified into truck cranes, rough terrain cranes, crawler cranes, and floating cranes.
What are the different types of crane hoists?
There are three main types of crane hoists: chain hoists, wire rope hoists, and electric hoists. Chain hoists are the simplest type of hoist and are typically used for light-duty applications. Wire rope hoists are more durable than chain hoists and can be used for heavier loads. Electric hoists are the most powerful type of hoist and can be used for very heavy loads.
What are the different types of crane girders?
There are three main types of crane girders: I-beam girders, box girders, and lattice girders. I-beam girders are the most common type of girder and are used for a wide range of applications. Box girders are more rigid than I-beam girders and are often used for heavier loads. Lattice girders are the most lightweight type of girder and are typically used for long-span applications.
What is crane classification?
Crane classification is the process of dividing cranes into different categories based on their design, function, and application. Cranes can be classified by their type of boom, their method of movement, their load capacity, and their power source.
