5 Bulldozer Types & Blade Uses – Specs Guide

When every hour on the job site affects your bottom line, choosing the right bulldozer type isn’t just a technical decision—it’s a strategic one. From high-torque crawler dozers that dominate rough terrain to agile mini dozers perfect for tight access zones, each machine serves a unique operational role.

In this guide, we cut through the clutter to deliver clear, actionable insights on the most common bulldozer types, their performance strengths, and best-use scenarios.

The main types of bulldozers include crawler bulldozers, wheel bulldozers, mini bulldozers, and swamp bulldozers. Crawler bulldozers offer high traction for rough terrain. Wheel bulldozers are faster and used on hard surfaces. Mini bulldozers handle tight spaces, while swamp bulldozers operate in wet or marshy areas.

What Makes a Bulldozer a Bulldozer?

At its core, a bulldozer is essentially a powerful tractor with a substantial metal plate (the blade) mounted up front. While that might sound simple, it’s the combination of raw pushing power, traction system, and specialized blade design that gives bulldozers their unmatched ability to move soil, sand, rock, and debris on construction sites.

flowchart TD
    A[What Makes a Bulldozer a Bulldozer?]

    A --> B[Bulldozer = Powerful Tractor + Front Blade]
    B --> C[Key Features]
    C --> C1[Raw Pushing Power]
    C --> C2[Traction System]
    C --> C3[Specialized Blade Design]

    A --> D[Primary Function: Pushing Material]
    D --> D1[Moves Soil, Sand, Rock, Debris]
    D --> D2[Clears Land & Grades Surfaces]
    D --> D3[Spreads Material]
    D --> D4[Tackles Shallow Digs]

    A --> E[Common Confusions]
    E --> E1[Not a Front-End Loader → Scoops & Carries]
    E --> E2[Not an Excavator → Digs with Boom/Stick/Bucket]

Don’t confuse bulldozers with their earthmoving cousins, though. Front-end loaders are built for scooping and carrying material in their buckets, while excavators are designed primarily for digging and lifting with their boom, stick, and bucket setup. Bulldozers are pushing specialists, excelling at clearing land, grading surfaces, spreading materials, and tackling shallow digging operations.

The Big Decision: Tracks vs. Wheels

The first major choice you’ll face when selecting a bulldozer is the undercarriage system – crawler (tracks) or wheels. This decision fundamentally affects where and how the machine can operate effectively.

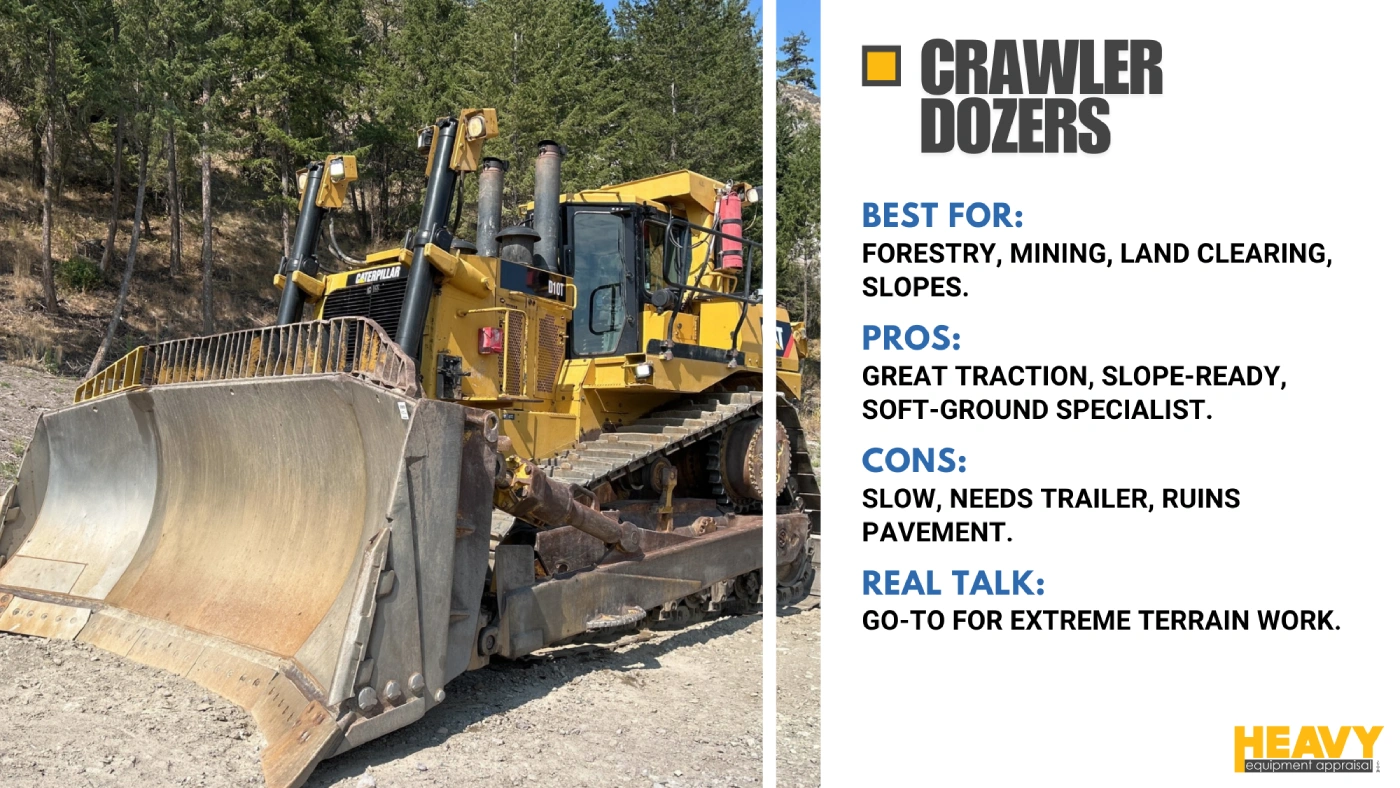

Crawler Dozers: The All-Terrain Workhorses

These track-equipped machines distribute their weight over a large surface area, giving them exceptional traction on challenging surfaces. Think of them as the off-road specialists of the dozer world.

Advantages:

• Can work effectively in mud, sand, loose soil, and on steep slopes
• Superior stability and pushing power due to excellent ground grip
• Available with specialized tracks for extremely soft conditions

Limitations:

• Lower travel speeds compared to wheel dozers
• Can damage paved surfaces with their steel tracks
• Require transportation via trailers between job sites

If your project involves rough, uneven terrain or slippery conditions, crawler dozers are typically your go-to option. They excel in heavy construction, extensive land clearing, mining, forestry operations, and road building in difficult environments.

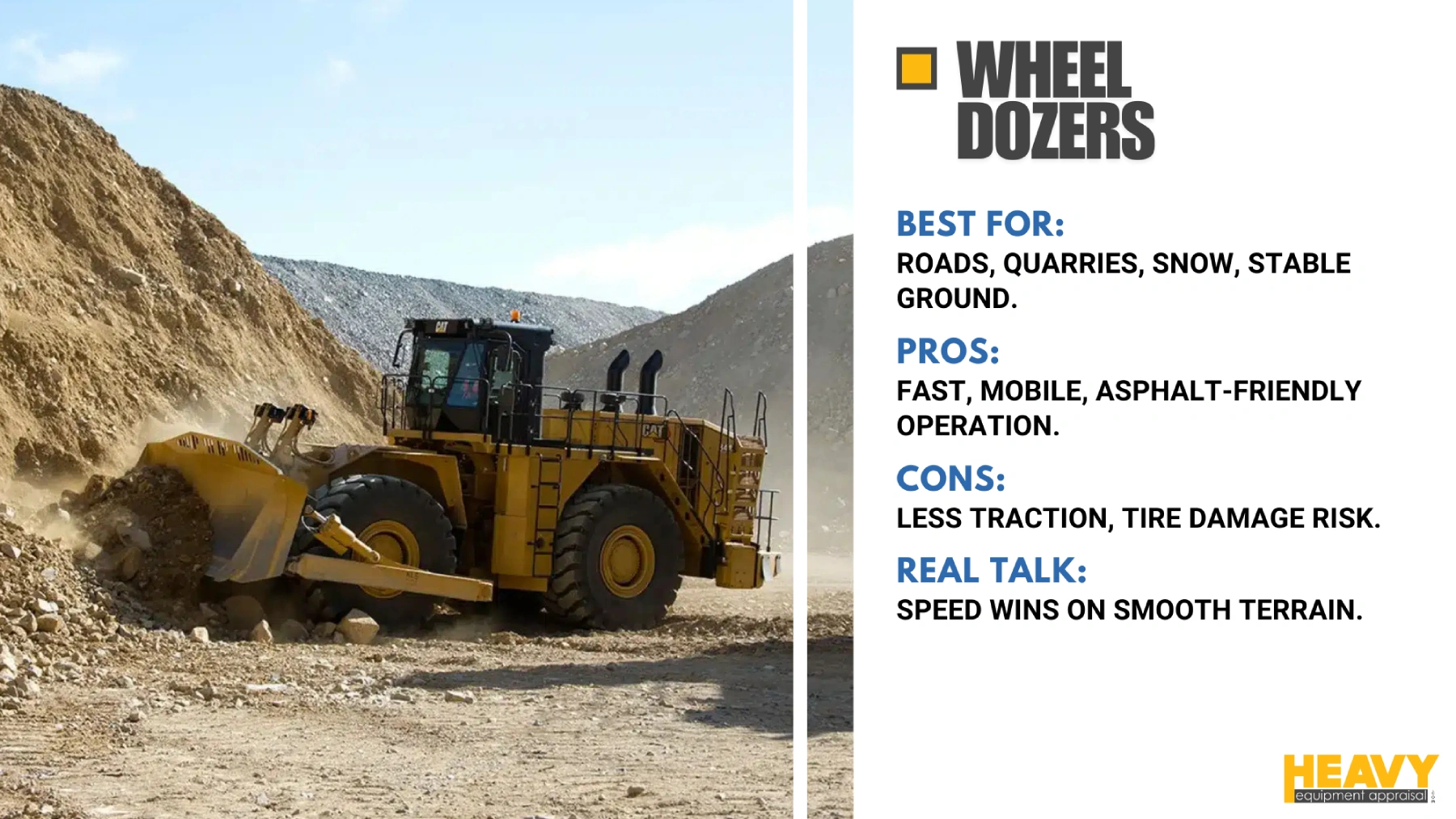

Wheel Dozers: Built for Speed and Mobility

Equipped with four large rubber tires and often featuring hydraulic articulated steering, wheel dozers prioritize mobility and speed on stable surfaces.

Advantages:

• Higher travel speeds and greater mobility
• Can travel directly on paved roads without need for transport trailers
• Gentler on finished surfaces like compacted soil or asphalt

Limitations:

• Less traction than crawlers in soft conditions or on steep slopes
• Tires vulnerable to punctures from sharp rocks or debris
• Generally higher initial cost compared to similar-sized crawler models

Wheel dozers shine on relatively flat, stable surfaces where their speed becomes an advantage. They’re particularly effective for road maintenance, large-scale leveling on stable ground, quarry work, managing stockpiles, and large-volume snow removal.

The tracks vs. wheels decision ultimately comes down to a fundamental trade-off: Do you need the terrain adaptability and traction of tracks, or the mobility, speed, and surface sensitivity of wheels? The answer lies in your specific ground conditions and overall project logistics.

Size Matters: Finding the Right Fit

The size of your bulldozer directly correlates with its power, pushing capacity, and operational capabilities. While manufacturers may have slightly different classification systems, dozers typically fall into these categories:

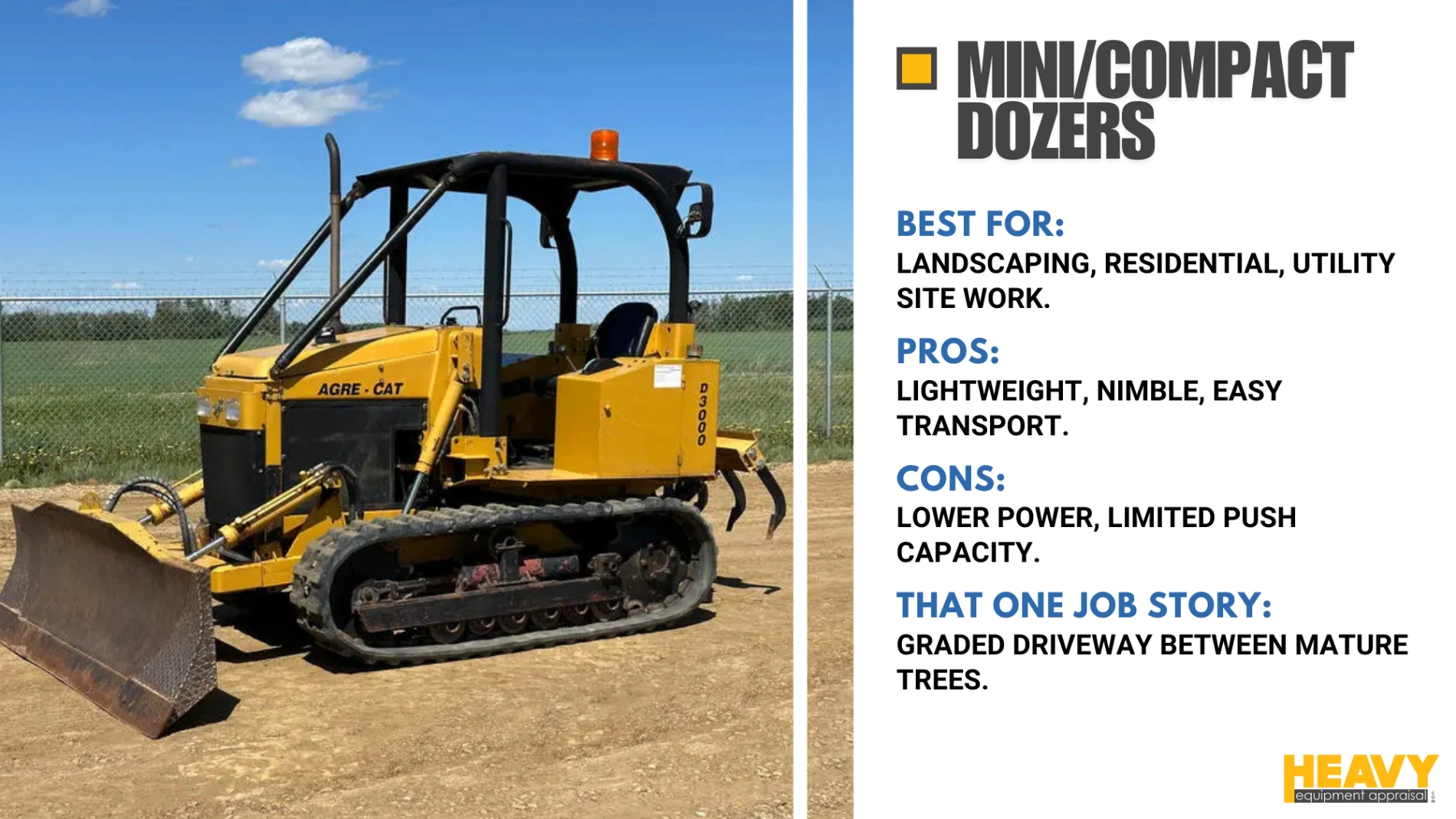

Mini/Compact Dozers

• Weight: Under 30,000 pounds (approximately 8-14 tons)
• Horsepower: Generally under 130 HP
• Examples: Cat D1-D3, CASE 650M-850M

These nimble machines excel at working in tight spaces where larger equipment simply won’t fit. They’re relatively easy to transport and exert lower ground pressure on sensitive terrain. Mini dozers are the go-to choice for residential construction, landscaping, light site clearing, and utility work.

I recently watched a contractor maneuver a compact dozer between mature trees on a residential lot, performing precise grading for a new driveway – something that would have been impossible with a larger machine.

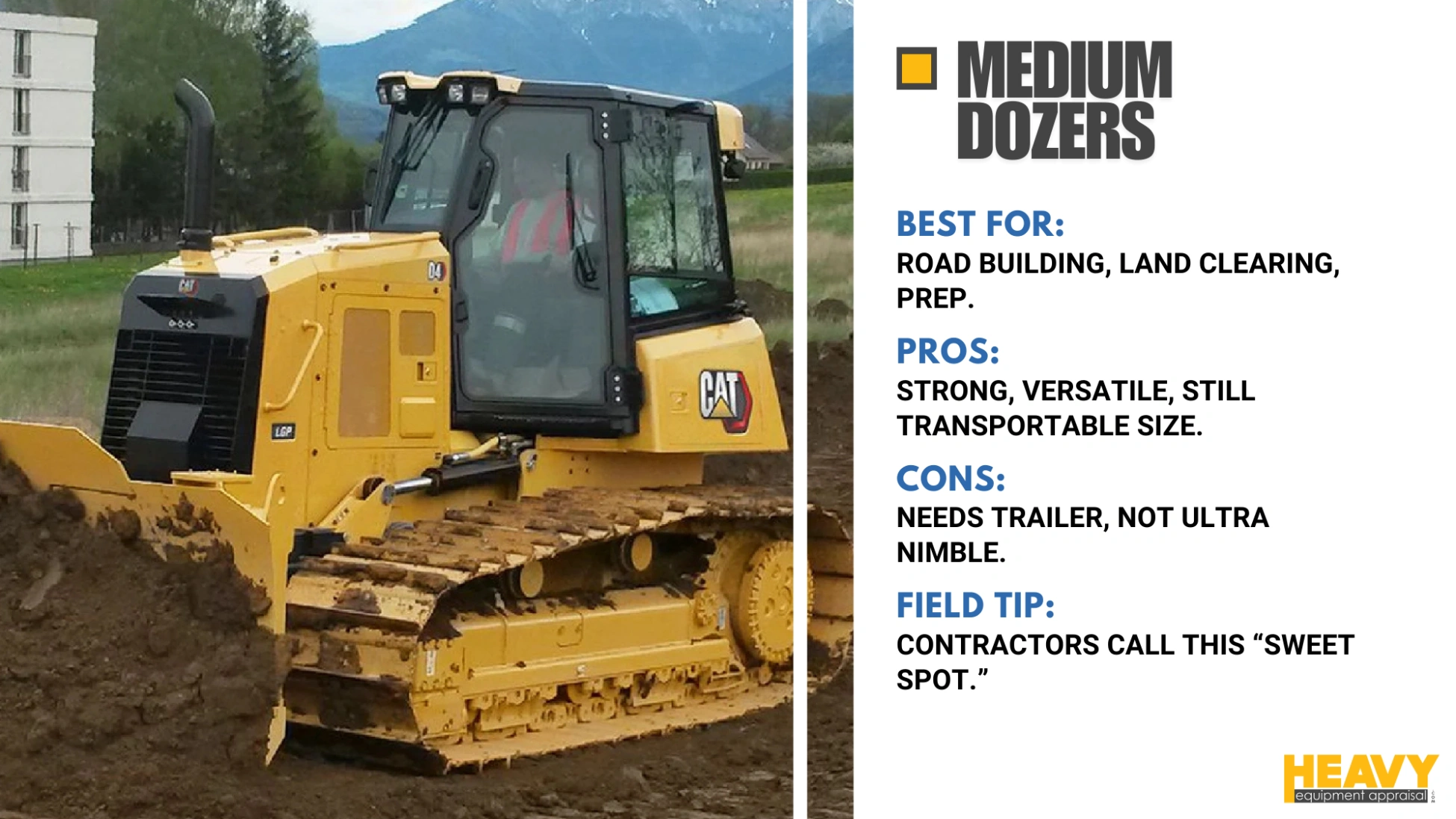

Medium Dozers

• Weight: 30,000-100,000 pounds (approximately 14-45 tons)
• Horsepower: 130-400 HP
• Examples: Cat D4-D8, John Deere 700L, Komatsu D65PX

Many contractors consider this the “sweet spot” size class – substantial earthmoving capability while remaining relatively efficient and transportable. Medium dozers handle a broad spectrum of tasks, from road construction and commercial site preparation to large-scale landscaping and significant land clearing operations.

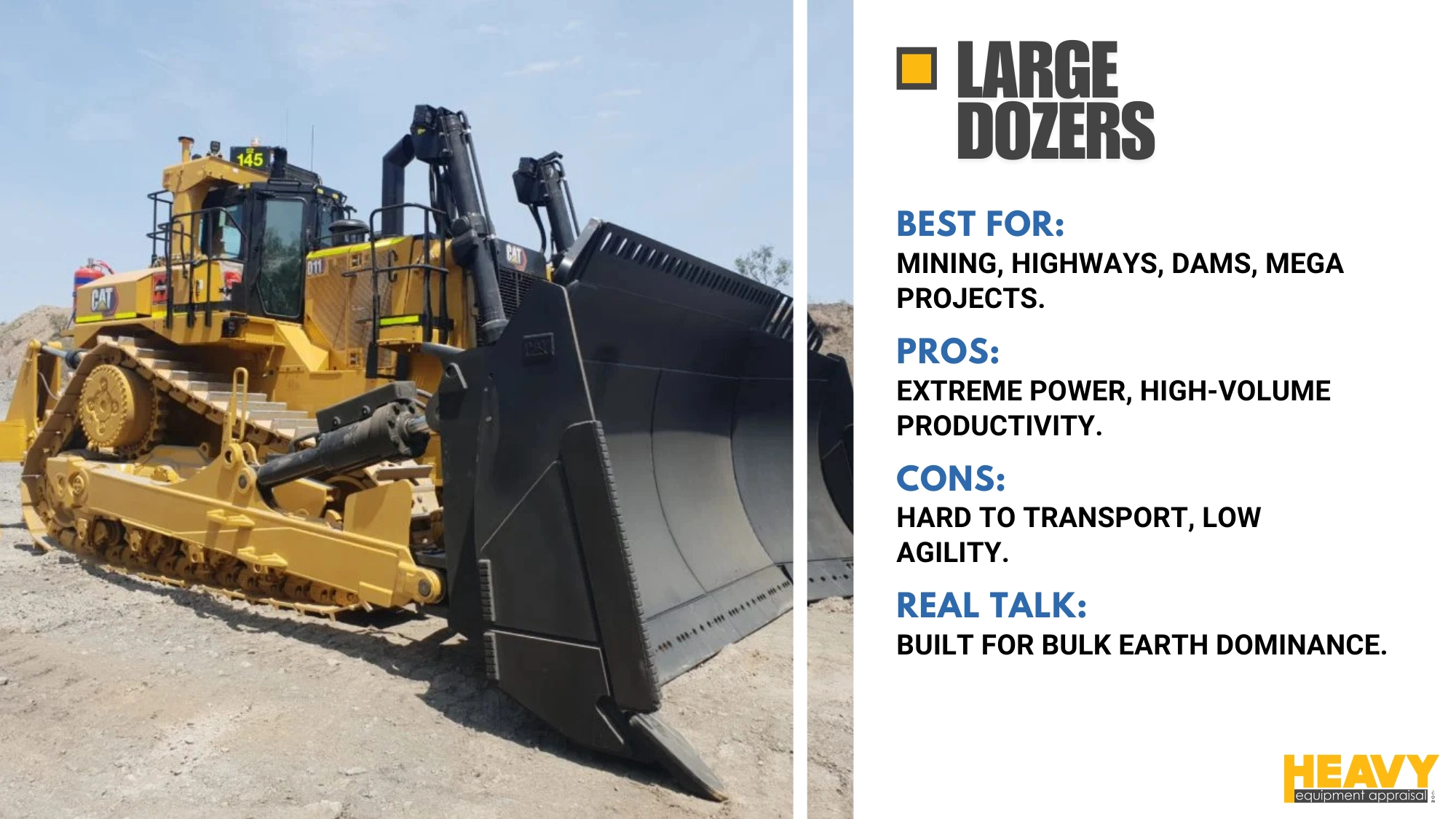

Large Dozers

• Weight: Over 100,000 pounds (45+ tons)
• Horsepower: 400+ HP (some exceeding 1,000 HP)
• Examples: Cat D9-D11, Komatsu D375A and D475A

These giants represent the pinnacle of bulldozer power and capacity. While immensely powerful, they require significant logistical planning for transport and are less maneuverable than their smaller counterparts. Large dozers are purpose-built for maximum productivity in high-volume, heavy-duty applications like major highway construction, airport development, dam building, and large-scale mining operations.

The jump from medium to large dozers represents a shift from versatility toward specialized, high-production roles. The dramatic increase in weight and power means these machines are selected primarily when economies of scale in bulk earthmoving are the driving factor, not for general site work.

Blade Types: The Right Tool for the Job

The blade is your bulldozer’s primary tool, and its design significantly influences performance on specific tasks. As you’ll learn in this detailed guide to bulldozer blade types, different shapes offer varying balances of penetration, material carrying capacity, and control.

S-Blade (Straight)

This blade features the shortest profile with a straight cutting edge and no side wings. It’s effective for handling fine-grained materials and medium-to-hard density soils. S-blades excel at precision tasks like fine grading, leveling surfaces, backfilling, and initial ground penetration.

The downside? Without side wings, material tends to spill off the ends during transport, limiting its carrying capacity over distances.

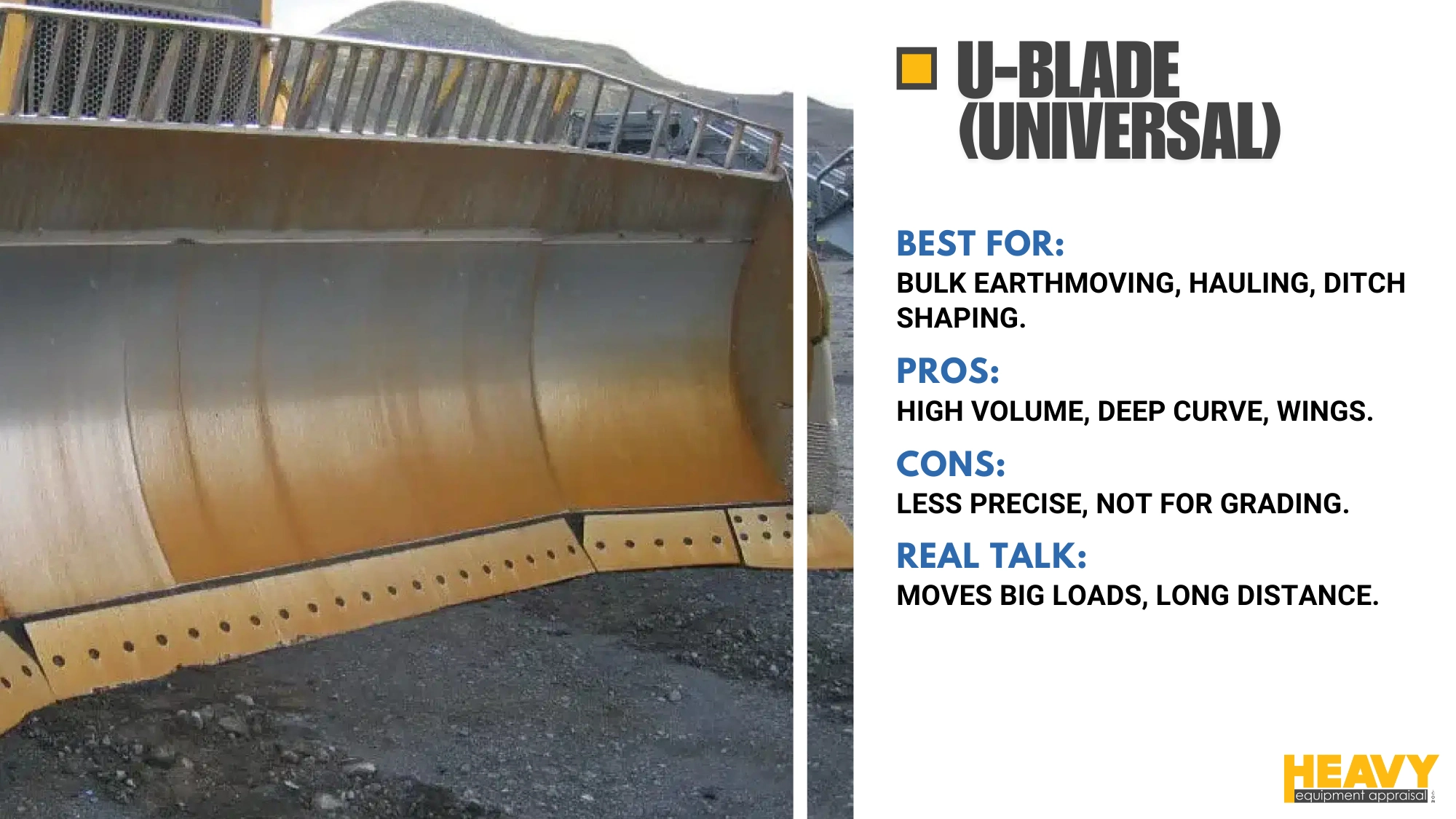

U-Blade (Universal)

Designed for maximum capacity, the U-blade has a tall, deeply curved profile with large side wings that effectively contain material during transport. This design minimizes spillage and allows for pushing large volumes of loose or soft-to-medium density materials like soil, coal, or woodchips.

U-blades are ideal for moving material over long distances, making them suitable for bulk earthmoving, ditching, hauling, and handling overburden in mining operations.

S-U Blade (Semi-Universal)

As the name suggests, this hybrid design combines characteristics of both Straight and Universal blades. Generally narrower with a less pronounced curve than a full U-blade, the S-U features smaller side wings that provide a balance between ground penetration and material carrying capacity.

This versatile all-around performer excels at pushing soft-to-medium density materials, crowning roads, moving heavy materials, stumping, ditching, and general land clearing.

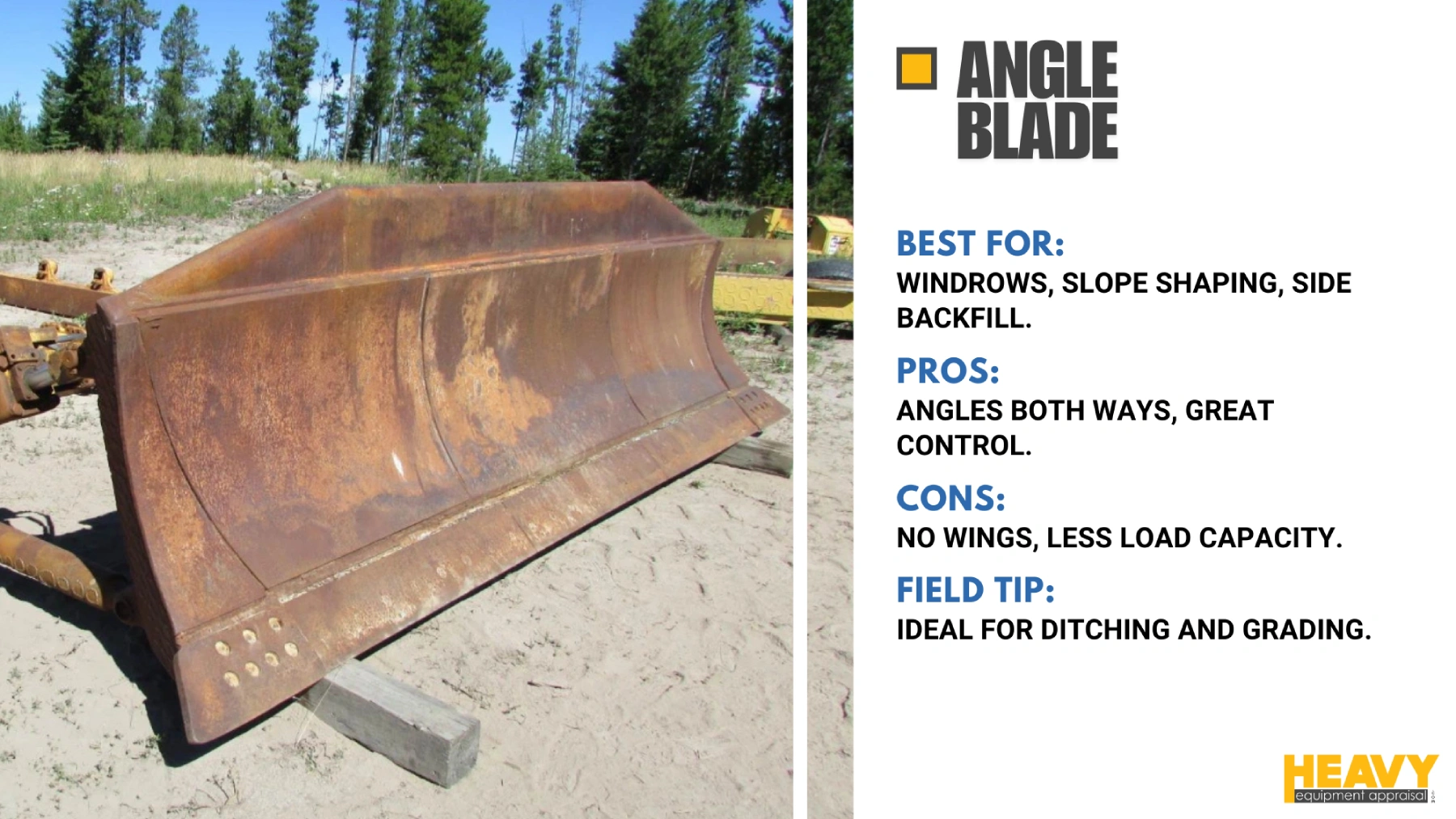

Angle Blade

Unlike the forward-pushing designs above, the Angle blade is designed for side-casting. It mounts to the center of the dozer’s push frame and can be hydraulically angled up to 25-30 degrees to either left or right. Angle blades are effective for creating windrows, backfilling trenches from the side, digging drainage ditches, grading roads, shaping slopes, and clearing snow.

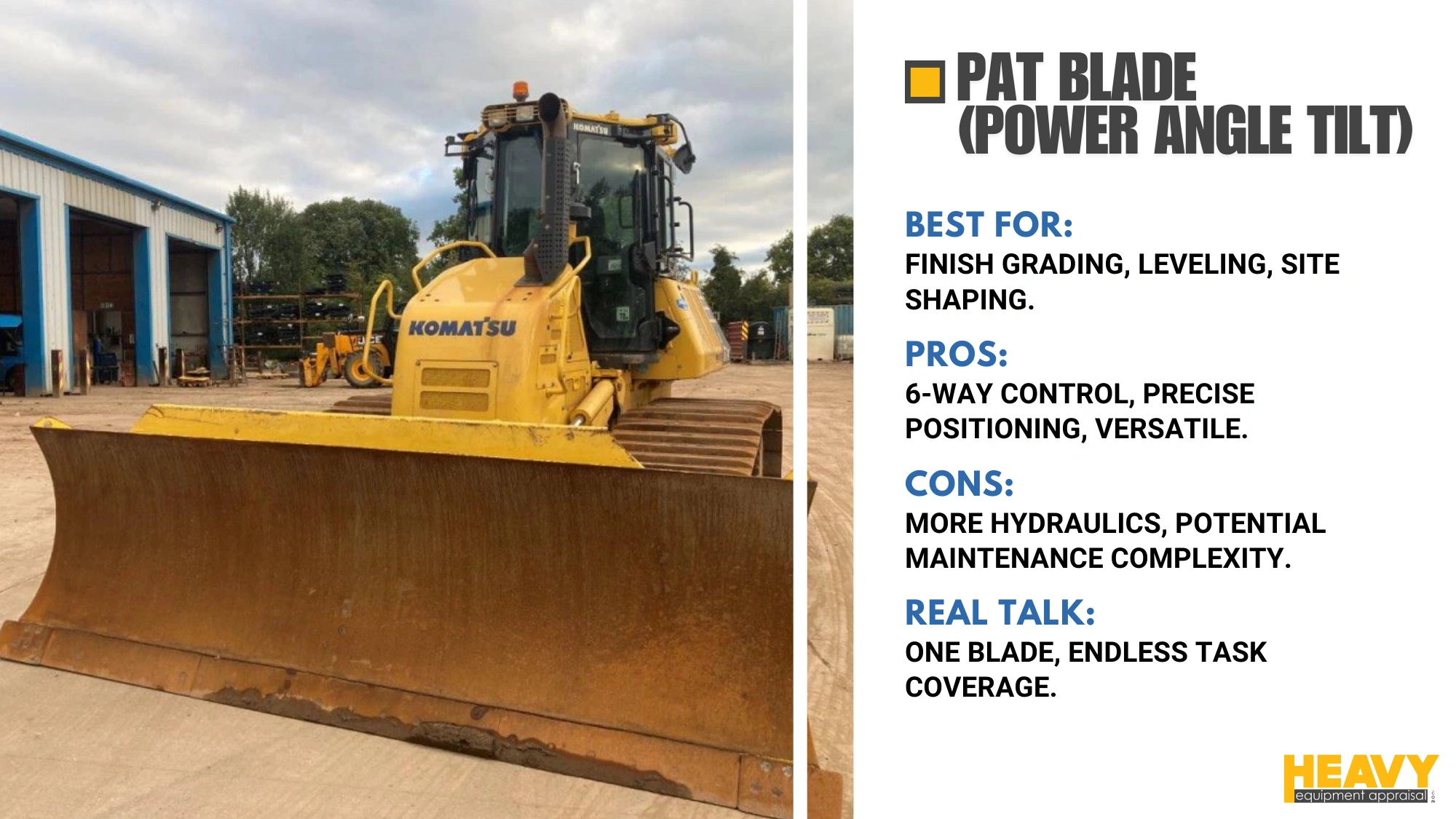

PAT Blade (Power Angle Tilt)

The PAT blade represents the pinnacle of bulldozer blade versatility. It offers full hydraulic control over angling left and right, tilting side-to-side, and lifting/lowering – providing “6-way” movement that allows precise positioning in almost any orientation.

PAT blades excel at complex shaping and finishing tasks like finish grading, leveling, spreading fill material, backfilling, and land clearing. Their versatility has made them increasingly common on small and medium-sized dozers, often replacing standard S-blades.

The evolution toward PAT blades reflects a trend toward increased machine versatility – a PAT-equipped dozer can handle a wider range of tasks, potentially reducing the need for multiple specialized machines on certain job sites.

Key Decision Factors: Beyond the Basics

flowchart TD
    A[Start: Need a Bulldozer] --> B{What terrain will\nyou operate on?}
    B -->|Soft, muddy, steep, or\nuneven terrain| C[Crawler/Track Dozer]
    B -->|Firm, stable surfaces\nor road travel needed| D[Wheel Dozer]

    C --> E{What is your\nprimary task?}
    D --> F{What is your\nprimary task?}

    E -->|Bulk earthmoving\nover distances| G[Medium-Large Crawler\nwith U-Blade or SU-Blade]
    E -->|Fine grading\nor precision work| H[Small-Medium Crawler\nwith PAT Blade]
    E -->|Hard ground penetration\nor stumping| I[Medium-Large Crawler\nwith S-Blade + Ripper]
    E -->|Complex contouring\nor limited space| J[Mini/Small Crawler\nwith PAT Blade]

    F -->|Road maintenance\nor large open areas| K[Medium-Large Wheel Dozer\nwith SU-Blade]
    F -->|Snow removal| L[Wheel Dozer\nwith Angle Blade]
    F -->|Push-loading scrapers| M[Large Wheel Dozer\nwith Cushion Blade]

    G --> N{Project Size?}
    H --> O{Project Size?}
    I --> P{Material Hardness?}
    J --> Q[Consider Cat D1-D3\nor equivalent]

    K --> R[Consider Cat 814-854\nor equivalent]
    L --> S[Consider models with\nsnow-specific attachments]
    M --> T[Ensure dozer has\npush block attachment]

    N -->|Very large projects\nMining/Heavy Infrastructure| U[Large: Cat D9-D11\nor equivalent]
    N -->|Medium-large projects| V[Medium: Cat D6-D8\nor equivalent]

    O -->|Larger commercial\nor industrial sites| W[Medium: Cat D4-D6\nor equivalent]
    O -->|Residential or\nsmall commercial| X[Small: Cat D1-D3\nor equivalent]

    P -->|Extremely hard rock| Y[Consider specialized\nripping attachments]
    P -->|Medium-hard material| Z[Standard ripper\nsufficient]

When it’s time to select the right bulldozer, whether for purchase or rental, you need to consider these critical factors:

1. Define Your Primary Application

Clearly identify the main tasks the bulldozer will perform. Will it primarily handle bulk earthmoving, fine grading, land clearing, or ripping? This fundamental question should drive your size, power, and blade type decisions.

2. Analyze Your Site Conditions

Evaluate the terrain (flat vs. sloped), ground material (soil type, rock content, moisture), and any spatial constraints. This dictates the tracks versus wheels decision and influences appropriate sizing.

3. Determine Required Production Rate

Estimate the volume of material you need to move per hour or day to meet project deadlines. As a general rule, moving up one size class can yield roughly a 20% productivity increase – but comes with corresponding cost increases.

4. Consider Transport Logistics

How will you move the bulldozer to and from the job site? Factor in the costs of lowboy trailers, permits, and potential road restrictions, particularly for heavier crawler models. This is where wheel dozers can offer significant advantages.

5. Assess Operator Availability and Skill

Do you have qualified operators familiar with the specific size and controls of the machine you’re considering? While technology can assist less experienced operators, proper training remains essential.

6. Evaluate Your Budget Strategy

Analyze your project duration, frequency of bulldozer use, and available capital versus operating budgets. Compare total costs including not just acquisition/rental price but also fuel consumption, maintenance, insurance, and transportation.

Making the right selection requires viewing these factors not in isolation but as part of a holistic decision matrix. Overemphasizing one aspect, like minimizing initial purchase or rental price, without adequately considering terrain suitability or required productivity, often leads to a suboptimal choice that costs more in the long run.

Safety: Non-Negotiable for Any Bulldozer

Regardless of type or size, operating bulldozers safely requires strict protocols:

• Training and Qualification: Only properly trained, certified personnel should operate bulldozers. This isn’t just good practice – it’s an OSHA requirement.
• Daily Inspections: A thorough walk-around inspection before starting work is mandatory, checking fluids, tracks/tires, blade condition, safety features, and control functionality.
• Proper PPE: Appropriate personal protective equipment includes hard hats, high-visibility clothing, safety glasses, steel-toed boots, and sometimes hearing protection.
• Work Area Safety: Before starting work, ensure the operating area is clear of unauthorized personnel and obstacles. Always identify underground utilities before digging (that 811 call is essential) and maintain safe distances from overhead power lines.
• During Operation: Always wear seatbelts, maintain situation awareness, operate at appropriate speeds, and avoid overloading the blade.

Effective bulldozer safety transcends individual compliance – it requires a robust safety culture embedded within the entire operation.

Value Retention: The Hidden Factor in Bulldozer Selection

While everyone obsesses over pushing power and productivity specs, we’ve seen thousands of dozers cross our appraisal desk, and let me tell you – that fancy machine that’s crushing it on the job site today might be crushing your balance sheet tomorrow.

Here’s what nobody tells you at the dealership: PAT blades aren’t just about versatility. Our valuation data shows they’re financial assets. Those fancy 6-way blades typically command 5-8% better resale values after five years compared to fixed-blade models. That $15K upcharge starts looking pretty smart when trade-in time rolls around.

Size matters for your wallet too. We’ve tracked medium dozers like the Cat D6-D8 series holding steady at only 40-45% depreciation after 5,000 hours. Compare that to those cute compact models hemorrhaging 55-60% of their value in the same timeframe. Sometimes bigger really is better – at least for your CFO.

And don’t get me started on maintenance documentation. I’ve watched identical D8s with identical hours sell for $30,000 difference at auction – all because one owner kept meticulous undercarriage records and the other didn’t. That filing cabinet might be your most valuable piece of equipment.

Sure, that massive D11 might move mountains today, but our market intelligence might reveal that a well-equipped D8 delivers substantially better return on investment over five years. When you’re signing that purchase order, remember you’re not just buying a machine – you’re making an investment decision that echoes long after the dust settles.

Conclusion

There’s no “ultimate winner” in the bulldozer world. The right machine is the one that actually fits your project, not the one with the shiniest paint or biggest numbers on the spec sheet.

I’ve seen plenty of contractors get sweet-talked into the wrong dozer only to watch their profits erode with every unproductive hour. That fancy machine gathering dust because it can’t fit through your site entrance? That’s an expensive lesson.

Remember the fundamentals: Crawlers for tough terrain, wheels for mobility. Size for your production needs, not your ego. And match that blade to what you’re actually pushing.

Talk to dealers who ask about your project before showing you a machine. Prioritize training your operators properly. And never skimp on safety protocols—because the only thing more expensive than the right dozer is an accident with the wrong one.

Choose wisely, and that bulldozer won’t just move earth—it’ll move your project forward efficiently, safely, and profitably. And isn’t that the whole point?
