Are Skid Steer Attachments Universal? The Truth Beyond the Mount

The Bob-Tach quick attach system transformed skid steers from single-use machines into versatile equipment capable of switching between trenchers, augers, and snow blowers in under a minute. Originally Bobcat’s competitive advantage in 1970, the system became the industry’s standard after its patent expired and was further solidified by the SAE J2513 standard. While Bob-Tach remains the dominant interface, some manufacturers, like John Deere with their Quik-Tatch system, continue to offer proprietary alternatives.

This analysis highlights the evolution of attachment systems and raises the question: are skid steer attachments universal?

Most skid steer attachments are universal due to the industry-standard quick attach system, also known as the “Bobcat-style” mount. This allows compatibility across many brands. However, hydraulic flow requirements and attachment size may vary, so checking machine specs is essential before use.

Decoding the Universal Standard: Specifications of the SSL Quick Attach System

Ever wonder why you can slap a brush cutter from Brand X onto your Brand Y skid steer without so much as a hiccup? Thank the Universal Skid Steer Quick Attach (SSL) system.

Also called Universal Quick Attach (UQA) or the "Bobcat-style" quick attach, this interface has become the de facto standard across the industry.

The SSL system's origin story leads back to Bobcat, who developed it under the name Bob-Tach. It was such a genius piece of engineering that everyone and their brother started copying it. Now it's not just the primary connection method for skid steers but has also invaded the tractor loader world.

Let's get into the nuts and bolts of how this thing actually works. Each attachment has a mounting plate on its back side designed to fit within a 44-inch wide connector on the front of the skid steer's loader arms.

This plate needs at least 18½ inches of height clearance to properly engage with the machine's coupler. The mechanical connection happens through two robust pins that stick out from the lower part of the skid steer's coupler and lock into corresponding holes on the attachment plate.

These crucial holes are roughly 4½ inches wide and spaced about 31⅝ inches apart (center to center).

While the SSL got famous through widespread copying after Bobcat's patent expired, it's not just an informal standard. SAE International formalized the specifications in SAE J2513, which lays out precise dimensional requirements for both sides of the equation - the loader bracket on the skid steer and the attachment interface.

This standard applies specifically to skid steer loaders with an operating mass of 4,500 kilograms (about 9,920 pounds) or less.

The purpose of SAE J2513 is straightforward: ensure that attachments made anywhere in the world will connect properly to compatible loaders.

The standard defines critical width dimensions of 698 mm (27.48 inches), 902 mm (35.51 inches), and 1131 mm (44.52 inches), along with numerous other precise measurements that guarantee proper fit and secure connection between the skid steer and whatever you're hanging on the front of it.

Beyond Universal: Examining Manufacturer Variations and Proprietary Systems

"Universal" sounds great in theory, but let's be real - equipment manufacturers just can't help themselves when it comes to creating their own special systems.

While most modern skid steers in the US come equipped with the SSL system (thank goodness), several major players still march to the beat of their own attachment drums.

The good news is that if you've got attachments with a universal skid steer plate, they'll typically work with machines from the major brands like Caterpillar, Bobcat, Case, Gehl, Kubota, and John Deere. But here's where things get interesting.

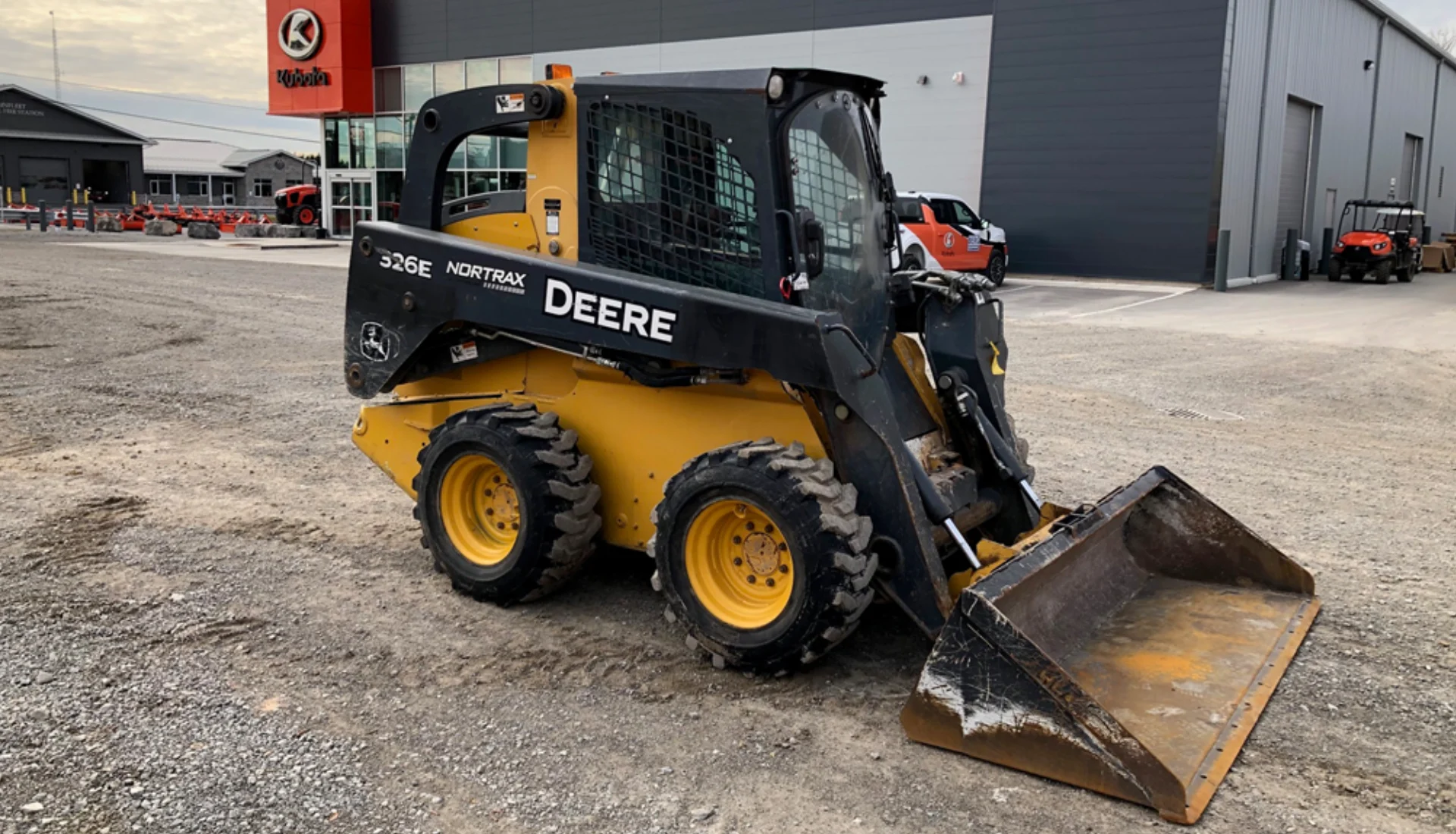

John Deere, for instance, loves their Quik-Tatch system. Is it quick? Yes. Is it the SSL standard? Not exactly. It's universal within the John Deere ecosystem, but it's definitely its own animal.

Deere knows this causes headaches, so they offer a Skid Steer Carrier Adapter that lets owners of their smaller loaders (the ones with the hook and pin Quick Attach carrier) use attachments designed for the universal system.

And just to keep things extra confusing, some John Deere compact tractors use a completely different 3-point hitch system that follows ASABE standard S278.6.

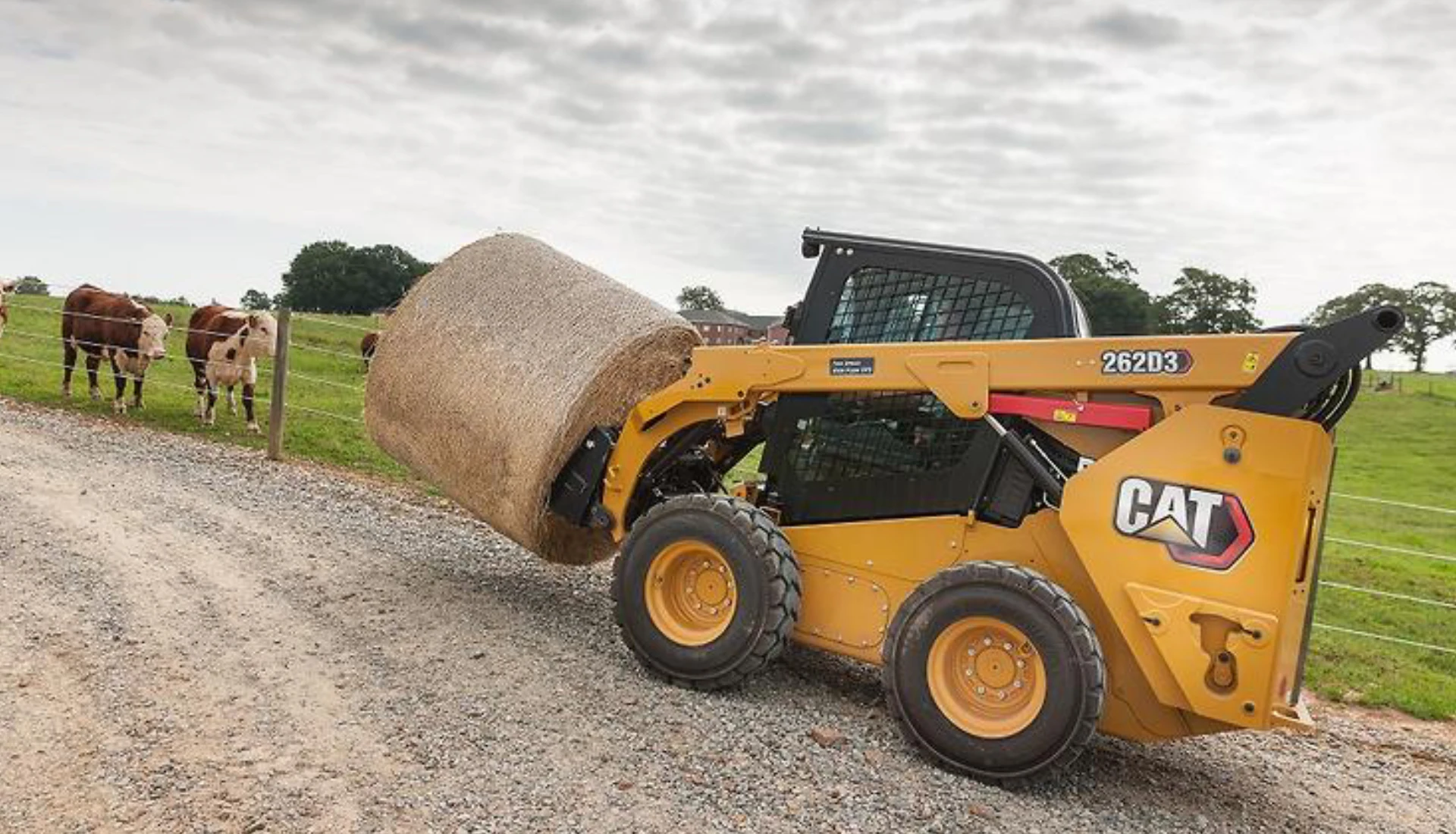

Caterpillar, never one to be outdone in the innovation department, has introduced "Smart Attachments" specifically for their D3 series skid steers and compact track loaders. These fancy attachments talk to the machine through plug-and-play technology, allowing the machine to recognize what's connected and adjust controls automatically.

While these Smart Attachments often work with standard hydraulic systems, they represent a step beyond basic mechanical compatibility. For folks still running older Cat D and D2 series machines, the company offers an external control kit for backward compatibility.

Ironically, even Bobcat - the originator of the Bob-Tach system that became the SSL standard - uses a different system on some machines. Most of their mini skid steers come with a "Bobcat MT" attachment plate that won't work with the Universal Skid Steer mounting system found on full-size machines.

They're catching on though, and now offer some mini skid steer models with an optional Mini Universal plate. Similarly, ASV (now Yanmar Compact Equipment) and Terex have historically used their own proprietary ASV mini skid steer attachment plate on smaller models that isn't SSL compatible.

The aftermarket has stepped in with solutions, like adapters that convert an ASV RC30 compact track loader to work with universal attachments.

These proprietary systems create obvious compatibility challenges. If your machine has a non-standard system, you'll either need attachments specifically designed for that system or adapter plates to make SSL attachments work.

The takeaway? Always verify what attachment system your machine has before assuming that "universal" attachment will just plug and play.

A Timeline of Standardization: The Evolution of the SSL in the US Market

The path to skid steer attachment standardization has more plot twists than you might expect. It all kicked off in 1970 when Bobcat - tired of operators wasting time with pin-on attachments - invented the first quick-change system for skid steer loaders.

timeline
    title Evolution of the Universal Skid Steer Quick Attach (SSL) System
    section Origins
        1970 : Bobcat invents Bob-Tach system
        1972 : Bobcat patents Bob-Tach
    section Industry Adoption
        1989 : Bob-Tach patent expires
        1990s : Widespread adoption by other manufacturers
    section Standardization
        2000 : SAE J2513 standard approved
        Present : SSL system dominates US market

This game-changer, dubbed the Bob-Tach, made its debut on the Bobcat M970 "Big Bob" loader. Suddenly, what used to take 30 minutes and two frustrated operators could be done in seconds by one person without leaving the cab.

Bobcat wasn't about to let this innovation slip through their fingers, so they patented the Bob-Tach system in 1972. For the next 17 years, if you wanted this technology, you were buying it from Bobcat. The company integrated it across their lineup, establishing it as the gold standard for attachment connections.

Then came 1989 - the year the patent expired and all hell broke loose (in a good way for consumers). With the patent protection gone, other manufacturers started churning out copycat systems faster than you could say "intellectual property."

Why reinvent the wheel when Bobcat had already created the perfect mousetrap? By the late 1990s, the Bob-Tach design had become so widespread that it was essentially the de facto global standard. What started as Bobcat's competitive advantage had transformed into the industry's baseline expectation.

To bring some order to this wild west of almost-but-not-quite-identical systems, SAE International stepped in. The first version of SAE J2513 was approved in June 2000, providing precise dimensional requirements for both sides of the attachment interface.

By establishing these clear guidelines for skid steer loaders under 4,500 kg, SAE J2513 helped cement the "universal" in the universal quick attach system. Manufacturers could now design attachments with confidence that they'd fit most skid steers on the market.

The standardization timeline for skid steer attachments showcases a common pattern in equipment evolution: proprietary innovation → patent expiration → widespread adoption → formal standardization.

What began as one company's competitive edge ultimately transformed the entire industry's approach to attachment versatility.

Market Landscape: Prevalence of the Universal Quick Attach System in the US

How dominant is the universal quick attach system in today's market? While we don't have statisticians following every skid steer sold with clipboards, the evidence points to overwhelming market penetration.

pie title ....US Skid Steer Market by Attachment System Type
    "Universal SSL System" : 75
    "Bobcat Proprietary" : 10
    "John Deere Quik-Tatch" : 7
    "Caterpillar Smart Attachments" : 5
    "Other Proprietary Systems" : 3

The majority of new skid steers hitting dealer lots across America come standard with the SSL system or offer it as an easy option. This isn't surprising - contractors demand versatility, and manufacturers know that limiting attachment compatibility is a quick way to send potential buyers to the competition.

Bobcat, the company that started this whole standardization party, still commands between 30% and 40% of the global skid loader market. Since their Bob-Tach system essentially is the SSL standard, this large market share naturally drives universal adoption.

Other major players like Caterpillar and John Deere might call their systems by proprietary names (looking at you, Quik-Tatch), but they largely follow the same dimensional and functional principles as the SSL, or at least offer easy conversion options.

The US skid steer market moves tens of thousands of units annually, and based on current manufacturer offerings and historical adoption trends, it's safe to say that the vast majority of these machines play nice with universal attachments.

In the used equipment market, the prevalence is also substantial - the SSL standard has been the dominant connection method for decades. You might occasionally stumble across an older machine with a proprietary attachment system, but they're increasingly rare specimens.

What does this mean for equipment owners and operators? Simply put, you can generally expect that a randomly selected skid steer and a randomly selected attachment will connect without issue - at least mechanically.

The ubiquity of the SSL system has created a massive ecosystem of compatible attachments, driving innovation, competition, and ultimately better options for end users.

Of course, "universal" doesn't mean "universal in all aspects," which brings us to our next point - the nuances and limitations that can trip up even experienced operators when it comes to attachment compatibility.

The Nuances of Compatibility: Unveiling Common Issues and Limitations

Here's where the rubber meets the road - or where the attachment meets the coupler. Despite the name, "universal" doesn't mean "guaranteed to work flawlessly in every situation."

The mechanical connection might be standardized, but that's just the beginning of true compatibility. Let's dive into the gotchas that can turn your quick-attach dreams into jobsite nightmares.

First up: hydraulics - the lifeblood of your attachments. Your fancy new mulcher might click into place perfectly, but if your skid steer can't deliver the hydraulic flow it's hungry for, you're in for disappointment.

Skid steers typically come with standard-flow hydraulic systems pushing 18-25 gallons per minute (GPM). That's plenty for basic attachments like buckets, forks, and grapples. But high-performance attachments like mulchers, cold planers, and some snow blowers need 26-40+ GPM from high-flow systems.

Try running a high-flow attachment on a standard-flow machine, and you'll get performance that makes a sloth look speedy. Conversely (though less common), running a standard-flow attachment on a high-flow system without proper setup could potentially damage components not designed for that much hydraulic juice.

And don't get me started on pressure build-up and inconsistent flow issues - they'll have your attachment performing like it's had a few too many at the company picnic. Always match your attachment's hydraulic appetite with your skid steer's hydraulic menu.

Next compatibility headache: electrical connections. More complex attachments need electrical power for controls, and surprise - not all skid steers use the same connectors. The 14-pin connector is common across manufacturers like Cat, Case, and Kubota, but you'll find 8-pin connectors on some ASV and Terex machines and 7-pin connectors on Bobcat.

Mismatched electrical connections mean limited or non-existent functionality for attachments with electric controls. In some cases, you won't even have an electrical connection - many base model skid steers come without any electrical attachment provisions, requiring aftermarket switch controllers for even basic electrical functions.

Finally, there's the simple matter of physical fit. An attachment might use the universal quick attach system and have compatible hydraulics and electrics, but still be a poor match for your particular machine. An oversized attachment on an undersized skid steer is asking for trouble - instability, poor performance, and potentially structural damage.

Similarly, an attachment that's too small won't efficiently utilize a larger machine's capabilities. Always check that the attachment weight (especially when loaded) doesn't exceed your skid steer's rated operating capacity (ROC).

And ensure adequate clearance throughout the attachment's full range of motion to prevent collisions with the frame, couplers, or other components.

Remember - just because you can connect an attachment doesn't mean you should. True compatibility goes far beyond the universal mount.

Bridging the Gaps: The Role of Adapter Plates and Conversion Kits

When manufacturers insist on marching to the beat of their own attachment drums, the aftermarket comes to the rescue with adapter plates and conversion kits. These mechanical translators let you connect attachments to machines they were never designed for - like a universal translator for heavy equipment.

Got an older tractor with a pin-on bucket system but eyeing that sweet skid steer-style brush cutter? There's a conversion kit for that. These kits transform your loader to work with the entire universe of skid steer attachments. Suddenly your aging tractor becomes relevant again - like giving grandpa a smartphone.

Even the big manufacturers acknowledge the frustration of proprietary systems. John Deere offers a Skid Steer Carrier Adapter that lets owners of their hook-and-pin Quik-Tatch loaders use universal skid steer attachments.

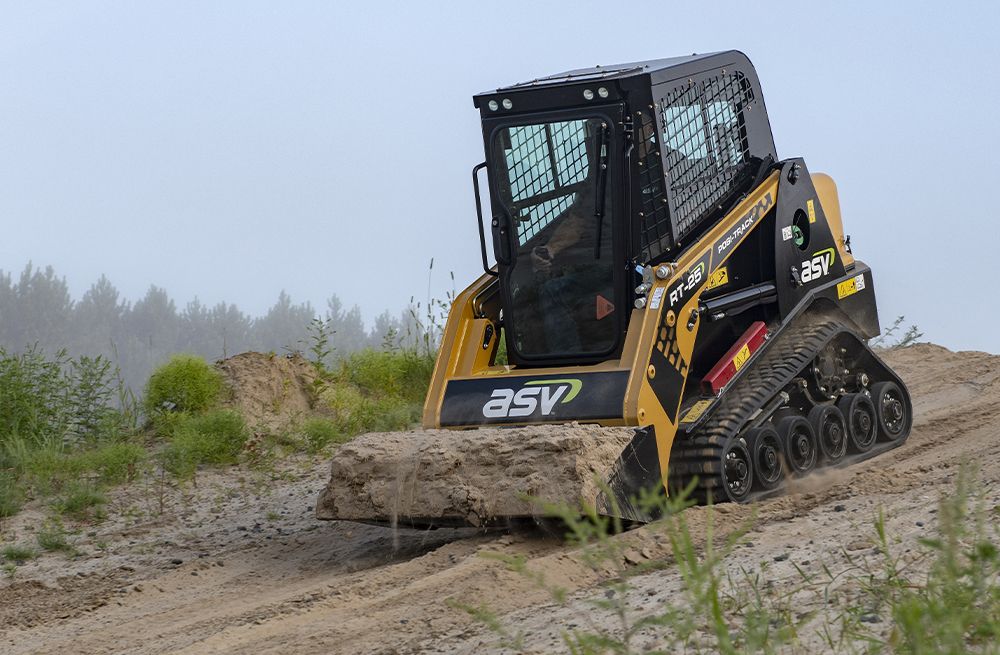

ASV mini skid steer owners can find adapters to convert their proprietary mounts to the more common universal interface. And if you've got a Bobcat mini with the MT system rather than the Mini Universal standard, there's an adapter plate with your name on it.

For attachments that lack any quick-attach system at all, weld-on plates provide a universal interface for connection to a skid steer's coupler. Some adapters even feature adjustable components for a better fit when dimensions are slightly off - because in the real world, "universal" sometimes means "close enough if you squint."

Of course, these compatibility solutions aren't free. A basic weld-on latch plate adapter might set you back around $87. More specialized adapters - like those converting between proprietary systems or offering hydraulic tilting - can run into the thousands.

A universal quick tach mount plate for welding onto an attachment typically costs around $134, while a skid steer to 3-point attachment adapter (letting you use tractor implements on a skid steer) might cost about $455.

When considering these adapters, you're essentially paying for the privilege of ignoring manufacturer compatibility boundaries. For many operators, that freedom is well worth the investment - especially when the alternative is buying all new attachments or an additional machine.

Just remember that adding adapter plates introduces another potential failure point and may affect performance slightly compared to direct connections.

Guardians of Standards: Key Industry Associations and Organizations

Who's keeping the chaos of attachment compatibility in check? Several industry groups and standards organizations work behind the scenes to make sure your skid steer attachments actually attach to your skid steer. Let's meet the unsung heroes of equipment standardization.

SAE International stands as the heavyweight champion in mobility standards development. Their SAE J2513 standard is the Bible for skid steer attachment dimensions and compatibility.

Without these technical specifications, manufacturers would be free to interpret "universal" however they pleased - which would be about as universal as regional dialects.

The American Society of Agricultural and Biological Engineers (ASABE) might sound like they're more concerned with tractors and combines, but they develop consensus documents and standards that matter for skid steer attachments with agricultural applications.

Their standards ensure that when you connect that manure fork to your skid steer, it doesn't just fit - it works safely.

Then there's the Association of Equipment Manufacturers (AEM), the collective voice for the off-road equipment industry. Within AEM, the Attachment Manufacturers and Compact Loader/Compact Excavator Manufacturers committee (AMC/CLCEC) focuses specifically on technical standards and regulations for these types of equipment.

This committee is where manufacturers actually talk to each other about compatibility issues instead of just trying to outdo one another. They work toward harmonizing international standards and making life easier for customers - novel concept, right?

The American National Standards Institute (ANSI) rounds out our standards dream team. While they don't directly develop skid steer attachment standards, they accredit standards from other organizations and ensure they meet critical safety and performance criteria.

Think of them as the standards police, making sure everyone plays by the rules.

These organizations might not make for exciting dinner conversation, but they're the reason you can confidently buy attachments without bringing your skid steer to the equipment dealer for a "will they, won't they" compatibility check.

Their work translates to lower costs, better interoperability, and fewer headaches for everyone in the equipment ecosystem.

Owner and Operator Perspectives: Benefits and Drawbacks of Universal Compatibility

So what does all this standardization actually mean for the folks with dirt under their fingernails and equipment payments to make? Let's break down the real-world pros and cons of the universal skid steer attachment system.

flowchart TD
    A[Equipment Owner Decision] --> B{Need Multiple Attachment Types?}
    B -->|Yes| C[Consider Universal SSL System]
    B -->|No| D[Consider Specialized Equipment]

    C --> E{Have Multiple Machine Brands?}
    E -->|Yes| F[Major Benefit: Cross-Brand Compatibility]
    E -->|No| G[Some Benefit: Future Flexibility]

    F --> H{Consider Compatibility Factors}
    G --> H

    H --> I[Hydraulic Flow Requirements]
    H --> J[Weight/Size Compatibility]
    H --> K[Electrical Connections]

    I --> L[Potential Limitation]
    J --> L
    K --> L

    L --> M{Need Non-SSL Attachments?}
    M -->|Yes| N[Consider Adapter Plates]
    M -->|No| O[Full SSL Compatibility]

    N --> P[Additional Cost: $87-$455]
    O --> Q[Maximum Flexibility]

    P --> R[Final Decision: Cost vs. Versatility]
    Q --> R

On the plus side, that "universal" label translates to serious versatility. Need to switch from a bucket to an auger to a broom in one day? No problem. Want to use attachments across different machines in your fleet? Go for it.

The standardized interface means you're not locked into a single manufacturer's ecosystem - a welcome breath of fresh air in an industry where proprietary systems are often the norm.

The financial benefits are substantial too. When adding a new skid steer to your fleet, you can usually keep using your existing attachments even if you switch brands. This interchangeability also makes renting attachments straightforward - no need to worry whether that specialized attachment from the rental yard will fit your machine.

The quick-change capability means less downtime on the job, and we all know time equals money. Perhaps most importantly, the widespread adoption of the SSL standard has created a competitive market for attachments, giving you more options at better prices.

But let's not kid ourselves - "universal" doesn't mean "foolproof." The mechanical connection might be standardized, but that's just one piece of the compatibility puzzle. Using an attachment that's too heavy for your skid steer is asking for trouble - instability, tipping risk, and potential machine damage.

Hydraulic requirements are another common gotcha - that high-performance mulcher won't do much mulching if your skid steer can't deliver the hydraulic flow it needs. And electrical connections? They're about as standardized as phone chargers were before USB-C.

Older machines and specialty models like mini skid steers often use non-SSL mounting systems, limiting your attachment options without adapters. And even with the right adapters, there's always a risk of using attachments that aren't ideally suited for your specific model.

Using an attachment beyond your machine's capacity is like asking a marathon runner to compete in a strongman competition - technically possible, but not recommended and likely to end badly.

The universal system has dramatically improved skid steer versatility and reduced costs, but it's not a magic compatibility wand. Smart operators know that true compatibility requires looking beyond the quick-attach interface to ensure the entire machine-attachment relationship works as intended.

Conclusion: Are Skid Steer Attachments Universal?

The “Universal” Skid Steer Quick Attach system has certainly revolutionized the industry, but it’s not as “universal” as it seems. While it allows for quick attachment swaps—from post-hole drills to snow plows—it’s not a perfect fit for everyone.

The system has expanded skid steers’ capabilities, turning them into versatile tools that can take on a wide range of tasks. Thanks to this flexibility, attachments have flourished, and machines from different brands can often share equipment. But here’s the catch: mechanical compatibility is just the start.

A new attachment might snap into place, but if your machine’s hydraulics can’t provide the necessary flow or the weight doesn’t match, you could be left with a costly, non-functional tool. Similarly, electrical mismatches or clearance issues can make it seem like you’re all set, only to find out you’re not.

To avoid costly downtime and repairs, always take time to check the hydraulics, weight ratings, electrical compatibility, and clearance before you buy or swap out attachments. The SSL system opened the door to unmatched flexibility, but as every seasoned operator knows, just because it fits doesn’t mean it’s going to work smoothly.
