Upgrade Your Towing Setup with These 8 Trailer Plug Types
When upgrading your towing setup or adding new accessories, matching the correct electrical connector is crucial for functionality and safety. Compatibility between your vehicle and trailer systems ensures seamless operation.
The following are the different trailer plug types to consider for your equipment:
- 4-Way Flat Connector: Standard for light-duty trailers; handles basic lighting—tail lights, brake lights, and turn signals.
- 5-Way Flat Connector: Adds a wire for reverse lights or surge brakes; ideal for boat trailers needing extra functions.
- 6-Way Round/Square Connector: Supports electric brakes and 12V power; commonly used on horse trailers and campers.
- 7-Way RV Blade Connector: Industry standard; manages all lighting, electric brakes, auxiliary power, and backup lights—common on RVs and large trailers.
- 7-Way Round Pin Connector: Similar to the 7-way blade but with round pins; used on older or heavy-duty trailers.
- SAE J560 Connector: Heavy-duty 7-pin connector for commercial trucks; supports advanced functions like ABS power and auxiliary systems.
Understanding specifics like wiring diagrams, pin configurations, and amperage ratings can significantly enhance the reliability of your towing setup. Choosing the correct connector ensures seamless communication between your vehicle’s electrical system and trailer components like brake controllers and lighting circuits.
Continue reading for an in-depth analysis of each trailer plug type to optimize your equipment compatibility…
Introduction to Trailer Plug Types
Trailer plug types are crucial for safe and efficient towing. They connect your vehicle’s electrical system to your trailer. This powers important functions like brake lights and turn signals. Knowing the different plug types is essential for safe wiring and electrical safety.
Importance of Proper Electrical Connections
Right trailer wiring is key for road safety and following the law. It makes sure your trailer’s lights work with your vehicle. This alerts other drivers to your actions. Custom wiring solutions give you the best setup, avoiding splices and fitting your vehicle perfectly.
Overview of Trailer Lighting Functions
Trailer lights are important for being seen and signaling. Different plugs support various functions:
- Running lights for nighttime visibility
- Brake lights for stopping indication
- Turn signals for directional changes
- Reverse lights (in some configurations)
Electrical safety in trailer wiring is a top priority. Use the right connectors and follow local towing laws. Know your vehicle’s towing limits and trailer weight before towing. Keeping your trailer’s electrical system in good shape prevents problems and keeps you safe.
Safety Considerations for Trailer Wiring
| Connector Type | Common Use | Key Features |
|---|---|---|
| 4-Way Flat | Utility Trailers | Basic lighting functions |
| 5-Way Flat | Boat Trailers | Includes reverse lights |
| 7-Way RV Blade | RVs, 5th Wheels | Full functionality, auxiliary power |

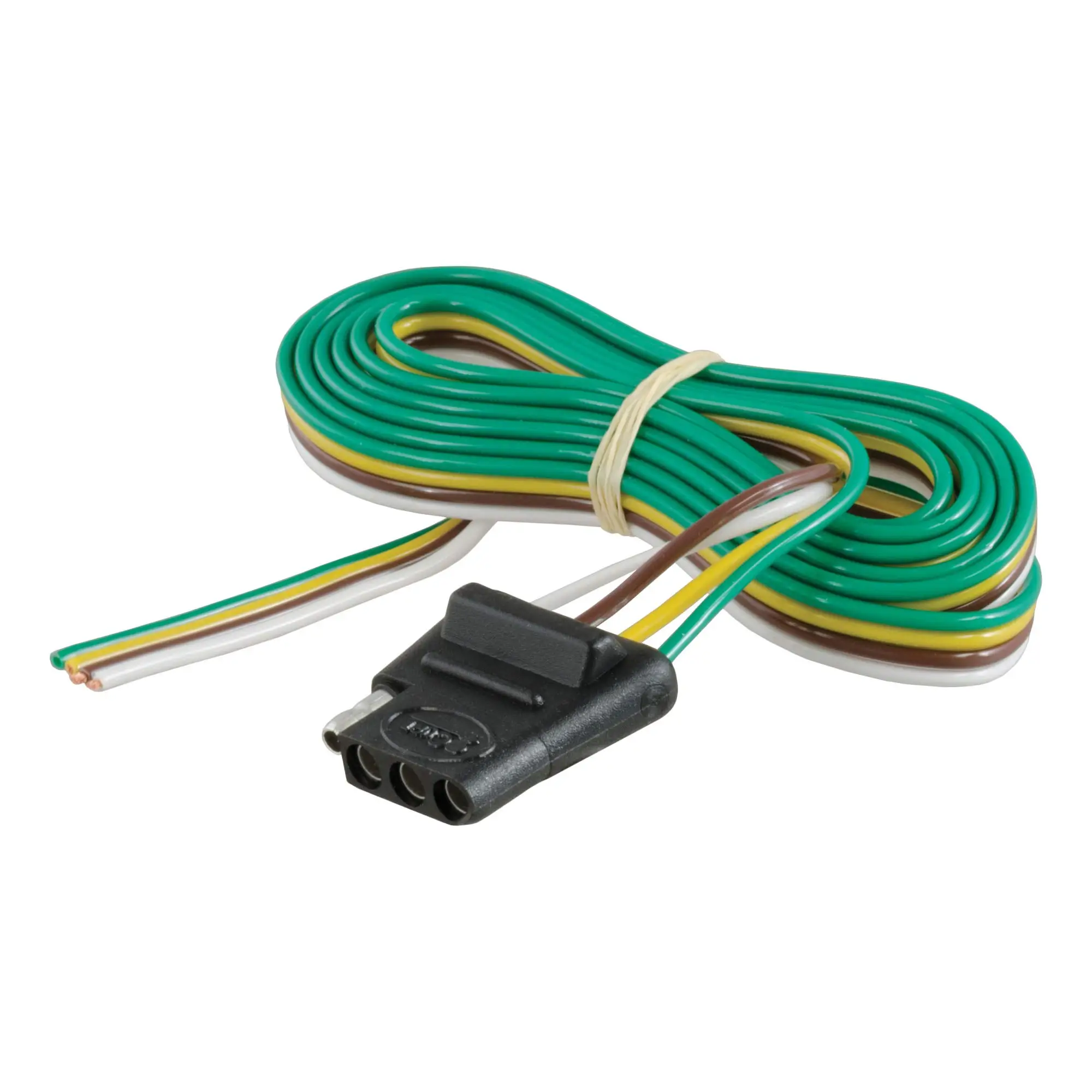

The 4-Way Flat Connector: Most Common Light-Duty Option
The 4-pin flat plug is the top choice for light-duty trailers. It meets basic wiring needs and is great for utility trailers, boat trailers, and small campers without brakes.
This plug has four wires. They handle tail lights, brake lights, and turn signals. The white wire is the ground, which is important for LED lights.
The 4-way flat connector is known for its simplicity. It fits most vehicles made for light towing. It’s a favorite among many trailer owners, especially for trailers under 3,000 pounds.
It’s easy for beginners to use. The plug connects quickly, making towing less complicated. It’s also weather-resistant, which is great for tough conditions.
- Common on utility trailers
- Used for basic trailer wiring
- Ideal for light-duty towing
- Simple to connect and disconnect
Remember, proper wiring is key for safety. Always check your lights before you go. This makes sure your trailer signals work right, keeping everyone safe while towing.
5-Way Connectors: Enhanced Functionality for Trailers
5-way connectors are great for trailers that need more than just basic lighting. They come in two types: the 5-pin flat plug and the 5-pin round plug. These designs add an extra wire to the 4-way setup for more features.
Additional Features of 5-Way Plugs
The fifth wire in 5-way connectors adds new functions. It can power reverse lights or control surge brakes. The 5-pin flat plug has four pins and one socket in a row. The round version uses all socket connectors.
Common Applications for 5-Way Connectors
5-way connectors are perfect for medium-duty trailers needing more than basic lighting. They’re great for trailers that require reverse lights or surge brake control. This makes them a top pick for boat trailers, large utility trailers, and some RVs.
When adding a 5-way connector to a trailer, follow a step-by-step guide. This includes routing new wires, using cable sleeves for protection, and making sure connections are correct. It’s also key to ground the system right and test everything before use.
6-Way Round and Square Connectors
6-way connectors are great for trailers with more electrical needs. They come as 6-pin round and square plugs. These plugs have two extra wires, making them more versatile.
These extra wires are perfect for electric brakes and a 12V power lead. They’re great for big trailers needing more power. Horse trailers often use 6-pin round plugs, while campers prefer 6-pin square plugs.
Choosing between round and square 6-way connectors depends on your trailer type. Round plugs are tough and good for horse trailers. Square plugs are better for campers because they’re easy to use.
Both types support electric brakes and 12V power, important for big trailers.
6-way connectors are versatile and popular for many uses. They offer more than the basic 4-way but are not as complex as 7-way systems. This makes them perfect for most medium-sized trailers.
| Connector Type | Common Use | Price Range |
|---|---|---|
| 6-Pin Round Plug | Horse Trailers | $5.93 – $6.53 |
| 6-Pin Square Plug | Campers | $5.93 – $6.53 |
6-way connectors have different prices, with heavy-duty ones around $5.93. Adapters for changing plug types, like 7-way RV to 6-pole, cost between $6.43 and $6.53. This makes them a budget-friendly choice for trailer wiring upgrades.
7-Way Connectors: The Industry Standard for Modern Trailers
7-way connectors are now the top choice for modern trailers, like RVs and big units. They have many functions to meet the needs of today’s towing setups.
Flat Blade vs. Round Pin 7-Way Connectors
There are two main types of 7-way connectors: flat blade and round pin. The flat blade is common on newer vehicles with tow packages. Round pin connectors are used on older setups.
Functions Supported by 7-Way Plugs
These connectors handle basic lighting and more. They power electric trailer brakes, auxiliary power, and backup lights. This makes them great for many towing needs.
| Function | Flat Blade | Round Pin |
|---|---|---|
| Tail Lights | Yes | Yes |
| Turn Signals | Yes | Yes |
| Brake Lights | Yes | Yes |
| Electric Brakes | Yes | Yes |
| Auxiliary Power | Yes | Yes |
| Backup Lights | Yes | Yes |
| Ground | Yes | Yes |
Advantages of 7-Way Wiring Systems
7-way systems are very versatile for modern trailers. They work with many vehicles and can manage complex electrical needs. This makes them ideal for RVs, horse trailers, and big units needing multiple electrical functions.
Trailer Plug Types: Understanding the Differences
There are many types of trailer plugs, each with its own purpose. The most common is the 7-way connector, used for RVs and big cargo trailers. Then, there’s the 5-way plug for smaller cargo and utility trailers. Lastly, the 4-way connector is for boat and snowmobile trailers.
It’s key to match the plug type with the vehicle and trailer. Connectors come in shapes like flat, round, and square. They have 4 to 7 pins or sockets, each with a different function. Wiring color codes help, but always check to make sure they match.
What a connector can do depends on its pins. A 4-way flat connector gives you basic lights and ground wiring. A 5-way adds electric brake support. A 6-way includes a 12-volt power line. And a 7-way has the most features, like backup lights.
| Connector Type | Common Uses | Key Features |
|---|---|---|
| 4-Way Flat | Small utility trailers, campers | 3 lighting functions, 1 ground pin |
| 5-Way Flat | Utility trailers with brakes | Basic lighting, ground, electric brake |
| 6-Way Round | Horse trailers, towed vehicles | Lighting, ground, 12V power, brakes |
| 7-Way | RVs, late-model SUVs, trucks | All functions + backup lights |
Knowing the differences helps with safe and proper electrical connections. If connectors don’t match, adapters can help. This lets you use trailers with different vehicles.
Heavy-Duty Trailer Connectors: SAE J560 Standard
The SAE J560 connector is the top choice for heavy-duty trailers in commercial trucking. It was first introduced in 1951 and has been updated, with the latest changes in 2020. It meets the electrical needs of today’s trucking operations.
Physical Design and Specifications
SAE J560 connectors come in two types: Primary and Auxiliary. Primary connectors power devices that follow safety standards. Auxiliary (AUX) connectors, marked in yellow, support extra equipment like lift gates. These connectors are not the same because of their different pin layouts.
Pin Configuration and Functions
The 7-pin trailer socket supports various functions:
- Ground return
- Signaling systems
- ABS power
- Auxiliary power
Each pin has a specific wire gauge and color code. The standard covers a voltage range of 6 to 28 volts. This is suitable for most heavy-duty trailer applications.
Compatibility with ISO 1185
While similar to ISO 1185, the SAE J560 connector is made for 12V systems common in North American commercial trucking. This makes it not work with 24V ISO 1185 systems without special equipment. The SAE standard ensures reliable connections for heavy-duty trailers. It supports critical functions like ABS power and auxiliary systems.
Adapters and Converters for Different Plug Types
Trailer wiring adapters are key for connecting vehicles and trailers with different plug types. They make sure the electrical connection is safe and right. Let’s look at the different adapters and their uses.
Choosing the right adapter means making sure it fits. The most common adapter is the 7-way to 4-way adapter. It lets vehicles with 7-pin connectors tow trailers with 4-pin plugs. This is vital for many light-duty towing needs.
CURT is a top maker of towing gear. They have a variety of electrical adapters for different needs:
- 2-way adapters for basic lighting
- 4-way adapters for standard trailers
- 6-way adapters for trailers with complex wiring
Factory harness adapters connect a vehicle’s towing package to a trailer. They make sure the electrical systems work together well. This means lights, turn signals, and brake lights work right.
| Adapter Type | Common Use | Features |
|---|---|---|
| 4-way adapter | Most common for light-duty trailers | Connects basic lighting functions |
| 6-way adapter | Advanced trailers | Supports complex wiring systems |
| 7-way to 4-way adapter | Connecting 7-pin vehicles to 4-pin trailers | Versatile for mixed setups |
When picking a trailer wiring adapter, think about your vehicle’s electrical setup and your trailer’s needs. This makes sure everything works right and safely on the road. You can find adapters at auto parts stores, hardware shops, and online sellers of towing gear.
Choosing the Right Connector for Your Trailer
Choosing the right connector for your trailer is key for safe towing. It depends on your specific needs and how well it fits with your electrical system. Let’s look at what to think about when picking a trailer connector.
Factors to Consider When Selecting a Plug Type
Think about your trailer’s size and electrical needs when picking a trailer plug. Small trailers usually need 4-way flat connectors for lights. Bigger trailers with brakes need 5-way or 7-way connectors. The type of tow package your vehicle has might also affect the connector type, as newer cars often have wiring for certain plugs.
| Connector Type | Common Uses | Key Features |
|---|---|---|
| 4-Way Flat | Small utility trailers, campers | Basic lighting functions |
| 5-Way Flat | Utility trailers with brakes | Lighting + electric brake connection |
| 7-Way RV Blade | Large trailers, RVs | Extended functions, auxiliary power |
Matching Vehicle and Trailer Connectors
Make sure your vehicle and trailer connectors match. Many SUVs and trucks have 7-way connectors for different trailers. If your vehicle doesn’t have a tow package, you might need extra wiring or an adapter. For complex setups or electric brake installations, getting professional help is wise to ensure everything works right.
The right connector does more than just meet your current needs. It also lets you upgrade in the future. By thinking about your towing needs and trailer size, you can pick a connector for safe and reliable towing.
Installation and Maintenance of Trailer Plugs
Installing trailer wiring correctly is key for safety and reliability. It means connecting wires to specific functions with color codes. In Australia, the 12 Pin Flat Plug standard (AS4177.5-2004) is used. It has special wire colors for turn signals, brake lights, and extra power.
Keeping connectors in good shape is important for their long life. Clean them often and use dielectric grease to stop corrosion. For trailers used near water, make sure connections are weatherproof. Use waterproof connectors and seal wires that are exposed.
Stopping corrosion starts with correct installation. Make sure all connections are secure and use heat shrink tubing to cover wires. For extra safety, spray metal parts with a corrosion-resistant spray.
Sometimes, you might need to fix wiring due to damage or wear. Issues like loose connections, damaged wires, or corroded terminals can happen. Regular checks can help spot these problems early. If you’re not sure about electrical work, it’s wise to get a professional for big repairs or upgrades.
- Check connections before each trip
- Clean plugs and sockets regularly
- Replace damaged wires quickly
- Use the right tools for crimping and splicing
By following these tips, you can keep your trailer’s electrical system in great shape. This ensures safety and reliability on the road.
Future Trends in Trailer Connector Technology
The trailer connector industry is on the verge of a big change. Smart trailer systems are leading the way with new tech. The Ark Smart Connector, for example, turns on trailer lights in just 20 seconds and connects with mobile devices for remote checks.
LED indicators are changing the game in trailer checks. Pollak’s ProSecure™ LED line uses LED lights to check connections. Their ProSecure™ Light Connectors light up to show if connections are secure. This makes towing safer by quickly spotting any lighting problems.
Wireless connectivity is a big step in trailer tech. The Ark Smart Hub App lets users check signal status and connections in real-time. We’ll see more digital controls and smart sensors in the future, making towing better.
The global Trailer Wire Connector market was worth $99.2 million in 2023 and is expected to hit $131.4 million by 2030. This growth is thanks to new tech and changing what people want. We’ll see more safety features in trailer connectors, making towing safer and more efficient for everyone.
FAQ
Are all 7-pin trailer plugs the same?
No, 7-pin trailer plugs can have different pin configurations and wiring. Some may have dedicated pins for brake lights, turn signals, reverse lights, and running lights, while others may share pins for these functions.
What is the difference between a 12 and 7-pin trailer plug?
A 12-pin trailer plug has more pins than a 7-pin plug, allowing for additional functions like electric brakes and battery charging.
What is a 7-pin trailer connector used for?
A 7-pin trailer connector is used to connect a trailer to a vehicle, providing power and signals for the trailer’s lights, brakes, and other functions.
