5+ Tractor Implements and Their Uses in Modern Farming

Tractor implements aren’t just generic “attachments”—they’re specialized field transformers that turn a basic power unit into a soil-sculpting, seed-placing, crop-harvesting machine. The fanciest disc harrow with hydraulic adjustments won’t necessarily outperform a well-setup spring-tooth harrow in the right conditions.

This analysis of tractor implements and their uses provides a practical guide to selecting equipment that truly enhances efficiency and productivity in the field.

Common tractor implements include plows for turning soil, harrows for soil leveling, cultivators for weed control, seed drills for planting, rotary tillers for soil preparation, and loaders for lifting materials. Each implement attaches to the tractor to perform a specific agricultural task efficiently and increase productivity.

Defining Tractor Implements in US Agriculture

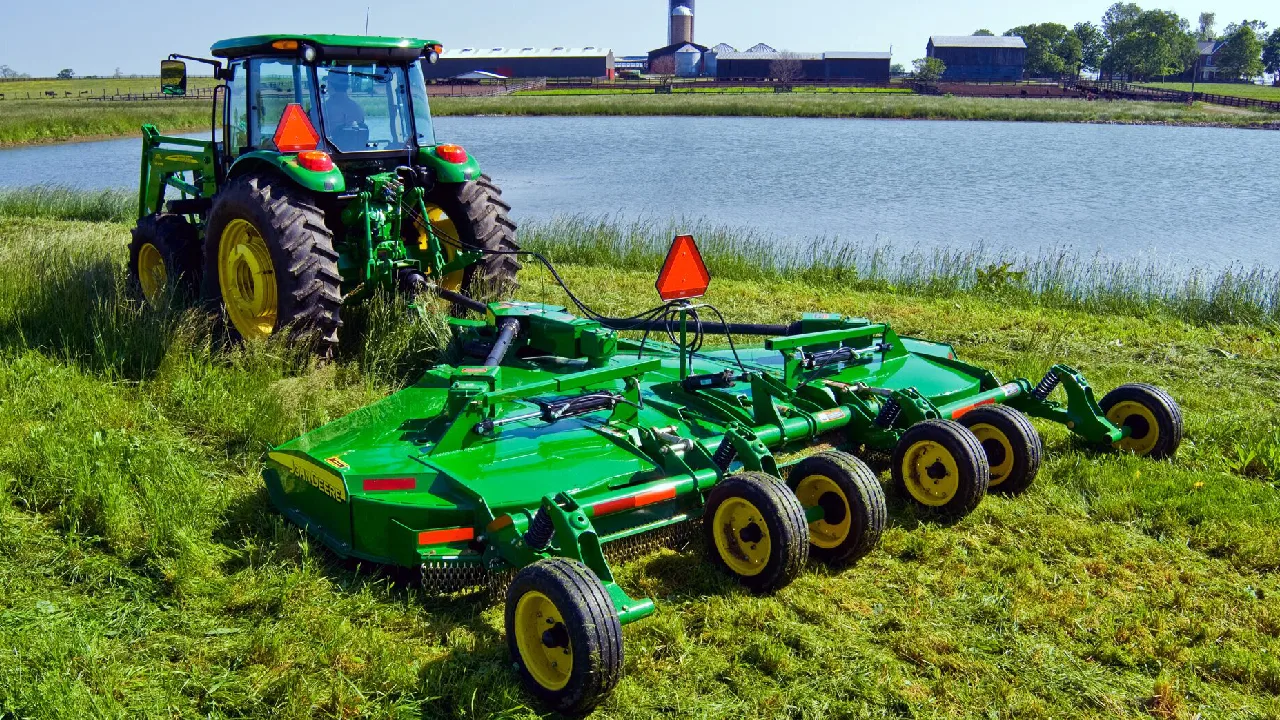

Core Definition

So what exactly makes something a "tractor implement" rather than just another piece of farm equipment? In the simplest terms, we're talking about tools specifically designed to hitch up to your tractor to perform actual fieldwork.

Think blades, spreaders, and specialized tools that transform your tractor from a glorified lawn ornament into a field-working machine.

Here's where it gets interesting - there's a distinction between implements and attachments that even seasoned farmers sometimes blur. Implements work the land, while attachments enhance the tractor itself.

That cushy aftermarket seat? Attachment. The fancy sound system? Definitely an attachment. Front loader or backhoe? Those technically fall into the attachment category too, though you'll hear plenty of old-timers use the terms interchangeably.

The legal eagles have their own take on this. The Mississippi Secretary of State defines a farm implement as "a complete unit performing a specialized mechanical function clearly identifiable as equipment ordinarily used on a farm."

Pretty straightforward, right? SEC filings add another layer, specifying these are machines designed exclusively for agricultural, horticultural, or livestock operations - explicitly excluding anything meant primarily for highway transportation. In other words, if it's built to haul stuff down the interstate, it's not an implement, no matter how many farmers use it.

Richmond Brothers Equipment offers a contrasting view, suggesting "farming implements" refers to handheld or manual tools, while "farming equipment" covers the bigger powered machinery. That's not how most folks in the industry use these terms, though.

For our purposes, we're focusing on the tractor-mounted tools that make modern farming possible - the stuff that multiplies what a single operator can accomplish in a day.

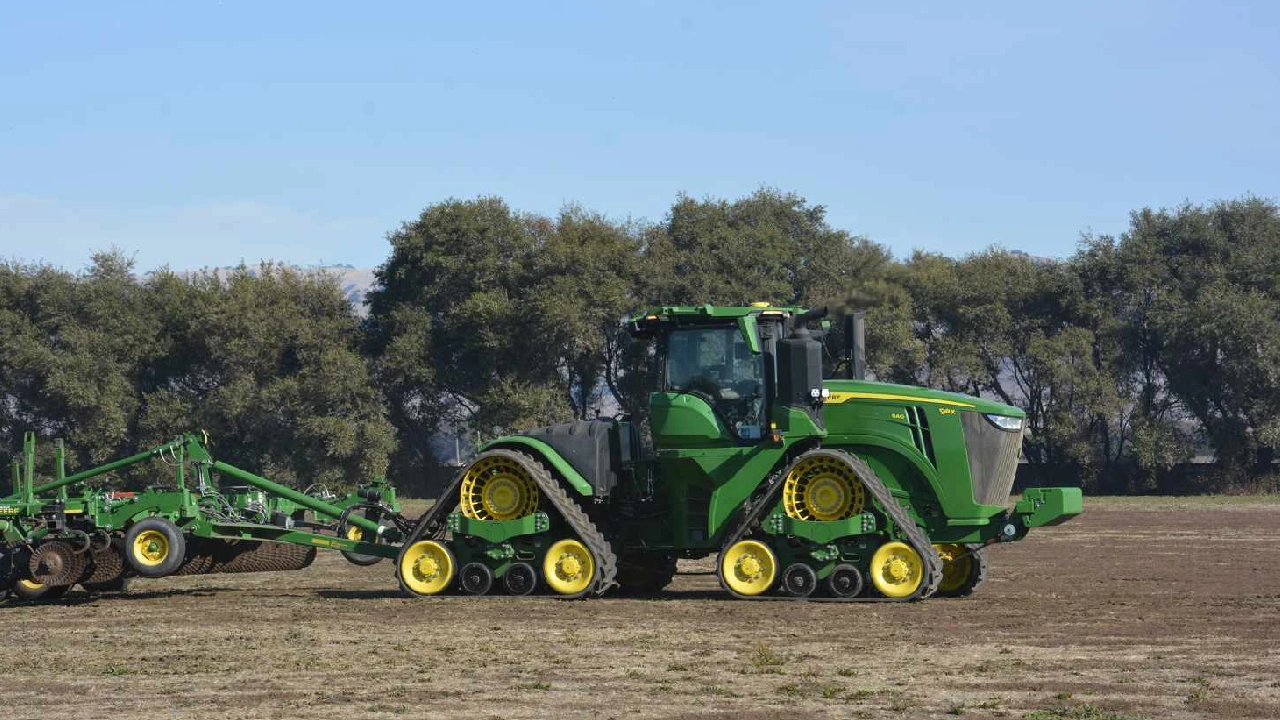

Power Sources for Implements

When we talk implement power, we're looking at two main categories: those that need external juice to function and those that don't.

Powered implements require mechanical or electrical input to do their thing, and they're generally more effective than their unpowered cousins. No surprise that American farmers have been snatching these up like hotcakes.

Where does that power come from? Three main sources:

• Hydraulics: Using the tractor's fluid power system, these implements can lift, lower, tilt, and perform all sorts of movements.
• PTO (Power Take-Off): That spinning shaft that transfers engine power directly to the implement - the workhouse that powers everything from brush hogs to balers.
• Electric: The new kid on the block, gaining traction as ag-tech advances. Your grandfather probably didn't have these, but your kids definitely will.

As farming gets more tech-heavy, these power systems have become increasingly sophisticated, allowing for precise control of on-field processes that would have seemed like science fiction a generation ago.

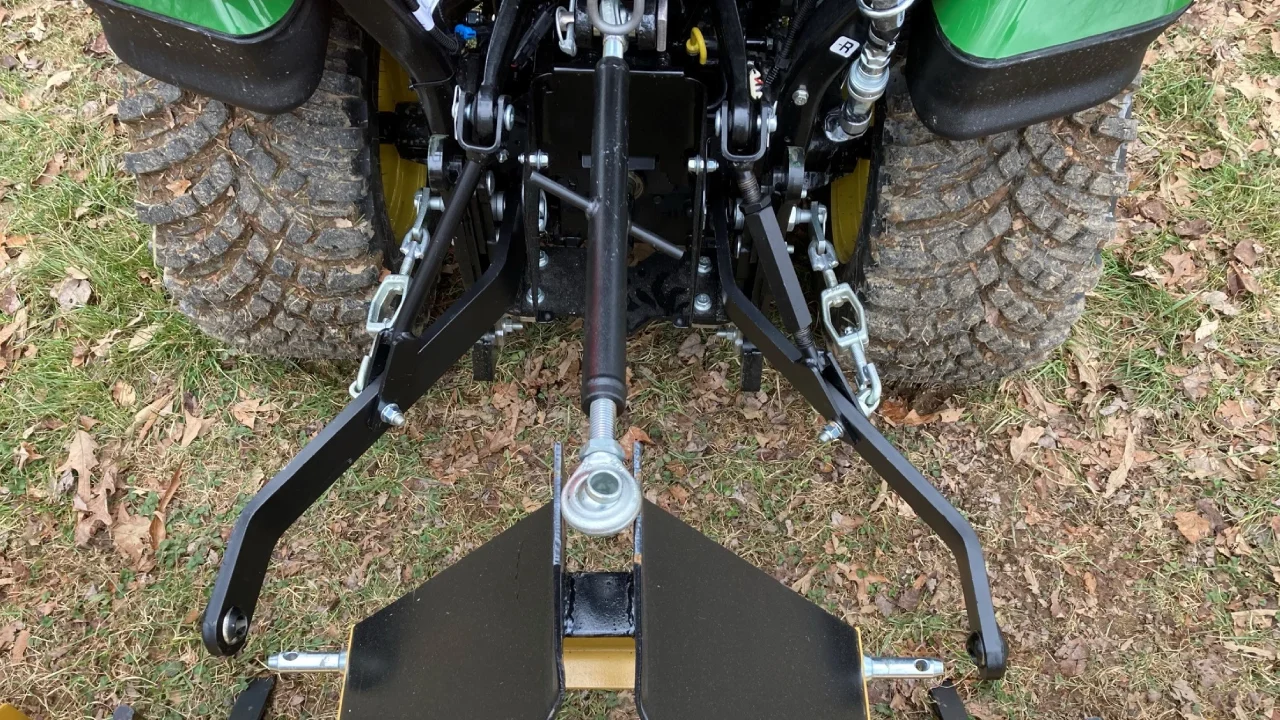

Connection Mechanisms

How these implements actually hook up to your tractor makes a world of difference. According to New South Tractor, there are three main mounting positions:

Front-mounted implements (like loaders) typically attach to the sides of your tractor's engine and run off hydraulics. They're great for anything you need to see while operating.

Mid-mounted connections are the awkward middle child - less common because they're a pain to mount and dismount. Your classic example is a mower deck, essentially turning your tractor into a riding lawn mower on steroids.

Rear-mounted is where the action happens for most serious fieldwork. You've got two options here: the simple drawbar (basically a glorified hitch point) or the far more popular three-point hitch.

Ask any farmer why they prefer the three-point, and they'll tell you it's all about control - being able to raise and lower implements with precision makes everything from tillers to post-hole diggers far more effective.

This standardized system is why you can hook up implements from different manufacturers to the same tractor - something we take for granted now but was revolutionary when it became standardized.

Common Classifications of Tractor Implements

Let's break down the tractor implement world by what these tools actually do in the field.

flowchart TD
    A[Tractor Implements] --> B[Tillage]
    A --> C[Planting & Seeding]
    A --> D[Fertilizing & Crop Protection]
    A --> E[Harvesting]
    A --> F[Material Handling]

    B --> B1[Plows]
    B --> B2[Harrows]
    B --> B3[Cultivators]
    B --> B4[Rotary Tillers]

    C --> C1[Planters]
    C --> C2[Seed Drills]
    C --> C3[Broadcasters]

    D --> D1[Sprayers]
    D --> D2[Fertilizer Spreaders]
    D --> D3[Ammonia Applicators]

    E --> E1[Combines]
    E --> E2[Balers]

    F --> F1[Front Loaders]
    F --> F2[Backhoes]
    F --> F3[Utility Trailers]

Think of this as your agricultural family tree - each branch serves a distinct purpose in the farming lifecycle.

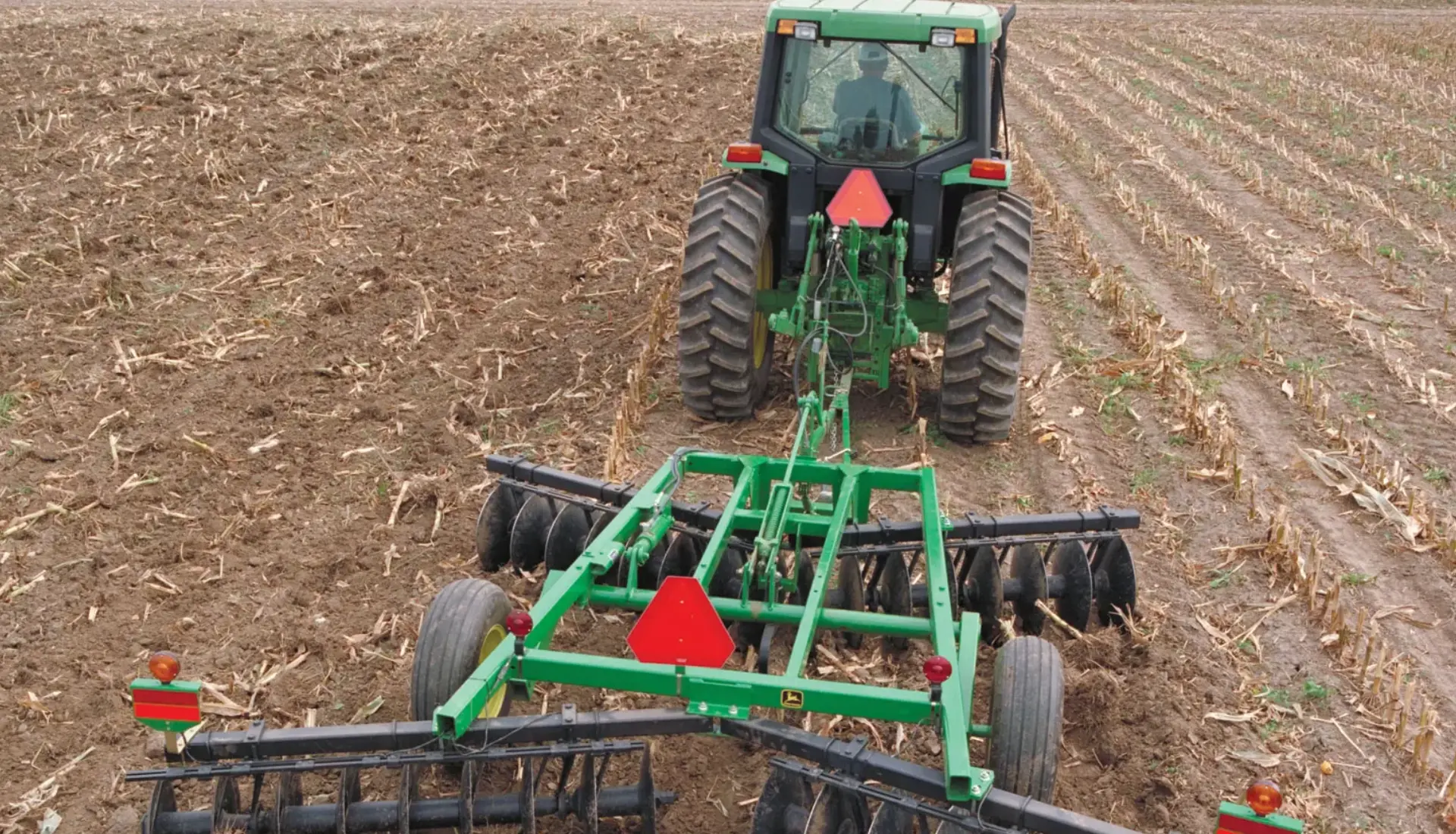

Tillage Implements

Ever watched a farmer turn a rock-hard field into something resembling good planting soil? That's tillage implements doing the heavy lifting. This category includes the big guns of soil preparation:

Plows handle the initial breaking and turning of soil - the first assault on virgin ground or last year's crop residue. Harrows follow behind, breaking down those softball-sized dirt clods and leveling everything out.

Then come cultivators, versatile tools that can either prepare a smooth seedbed before planting or handle weed control between rows after your crops are up. For intensive soil preparation, rotary tillers bring their spinning blades to the party, chopping and aerating soil into a garden-ready consistency.

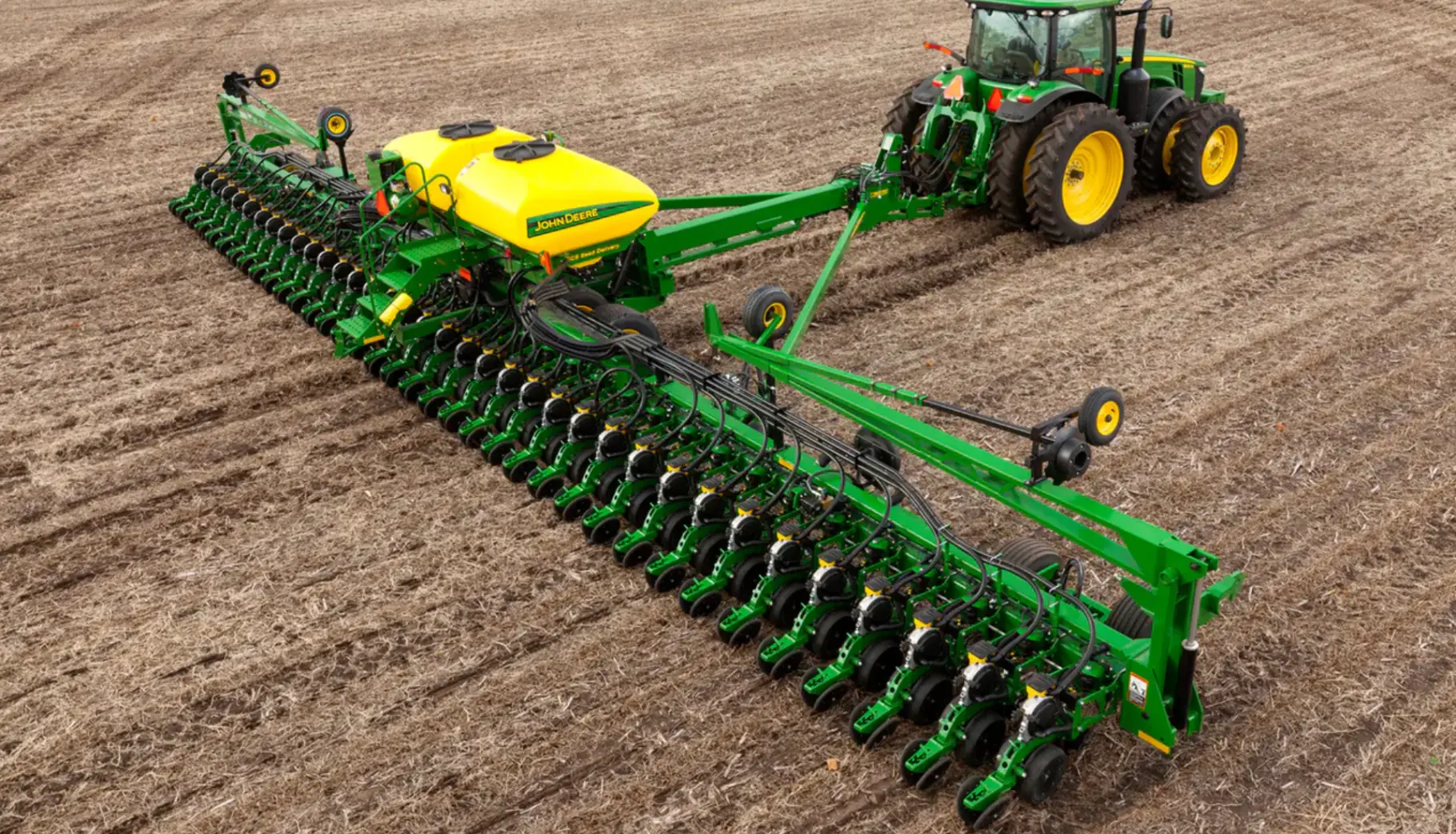

Planting and Seeding Implements

Once you've got that perfect seedbed, these tools put seeds in the ground where they can actually grow.

Planters handle precision placement of larger seeds like corn and soybeans, ensuring each seed is exactly where it needs to be for optimal spacing. Think of them as the surgical instruments of farming.

Seed drills take a different approach, distributing smaller seeds like wheat and other grains in neat rows at consistent depths. For cover crops or pastures, seed broadcasters spread seeds over larger areas without the precise spacing requirements of row crops.

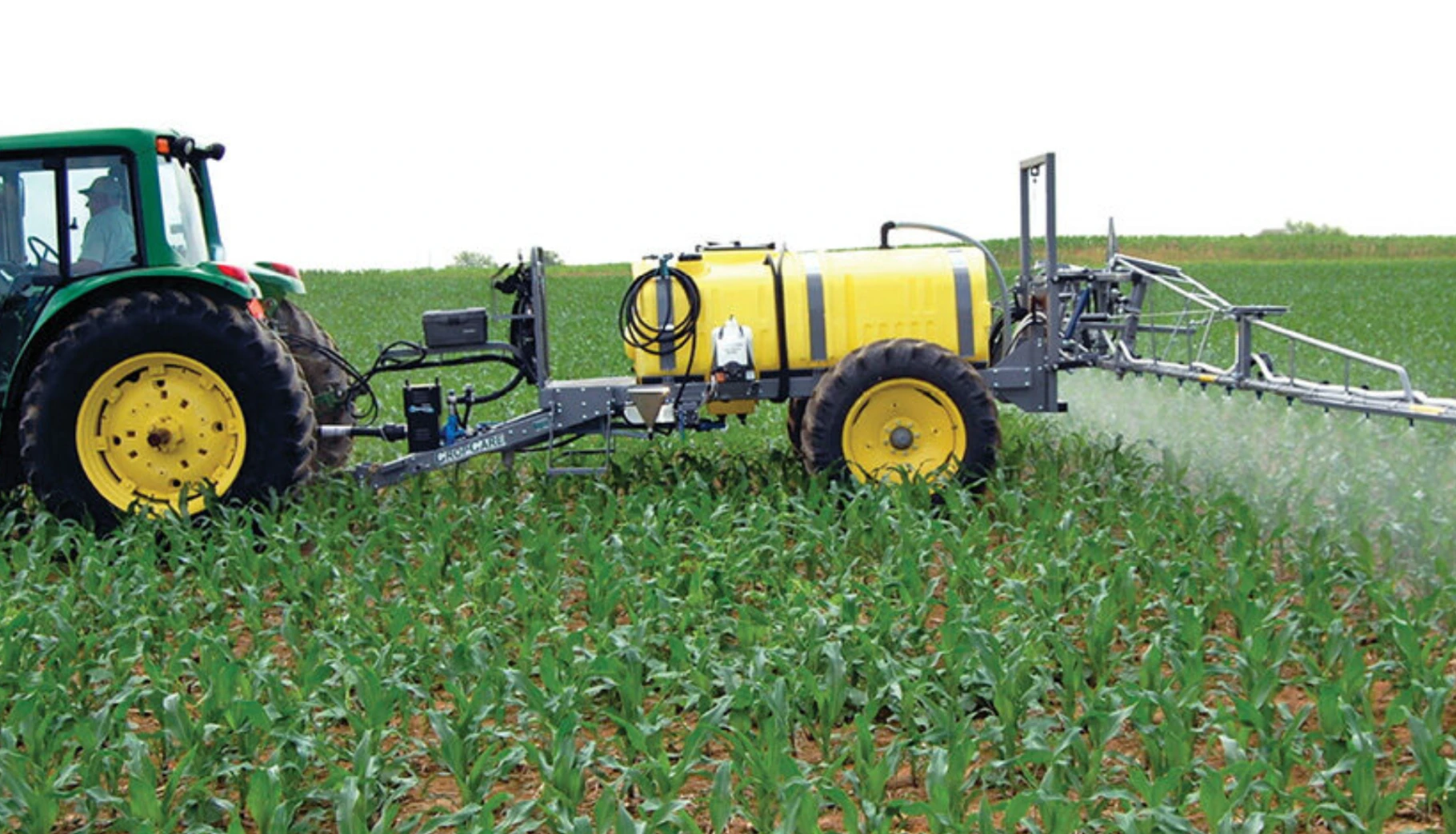

Fertilizing and Crop Protection Implements

Your seeds are in the ground - now you need to keep them alive and thriving. That's where these implements come in.

Sprayers apply liquid treatments - whether it's herbicides to knock back weeds, pesticides to handle bugs, or liquid fertilizers to feed your crops. Some of these rigs span 120 feet or more, covering massive swaths with each pass.

Fertilizer spreaders handle the dry stuff, flinging granular fertilizer across your fields with surprising precision. For serious nitrogen application, ammonia applicators inject anhydrous ammonia directly into the soil - powerful stuff that requires careful handling but delivers results.

Harvesting and Post-Harvest Implements

All the work so far has led to this moment - getting the crop out of the field and ready for storage or market.

Harvesters come in all shapes and sizes depending on what you're growing - combines for grains, specialized harvesters for potatoes or cotton, forage harvesters for silage. Balers transform loose hay or straw into manageable packages - whether that's small square bales, large rounds, or massive square bales depending on your operation's needs.

Some setups even include bale throwers that can chuck those bales right onto a trailing wagon - a back-saving innovation if there ever was one.

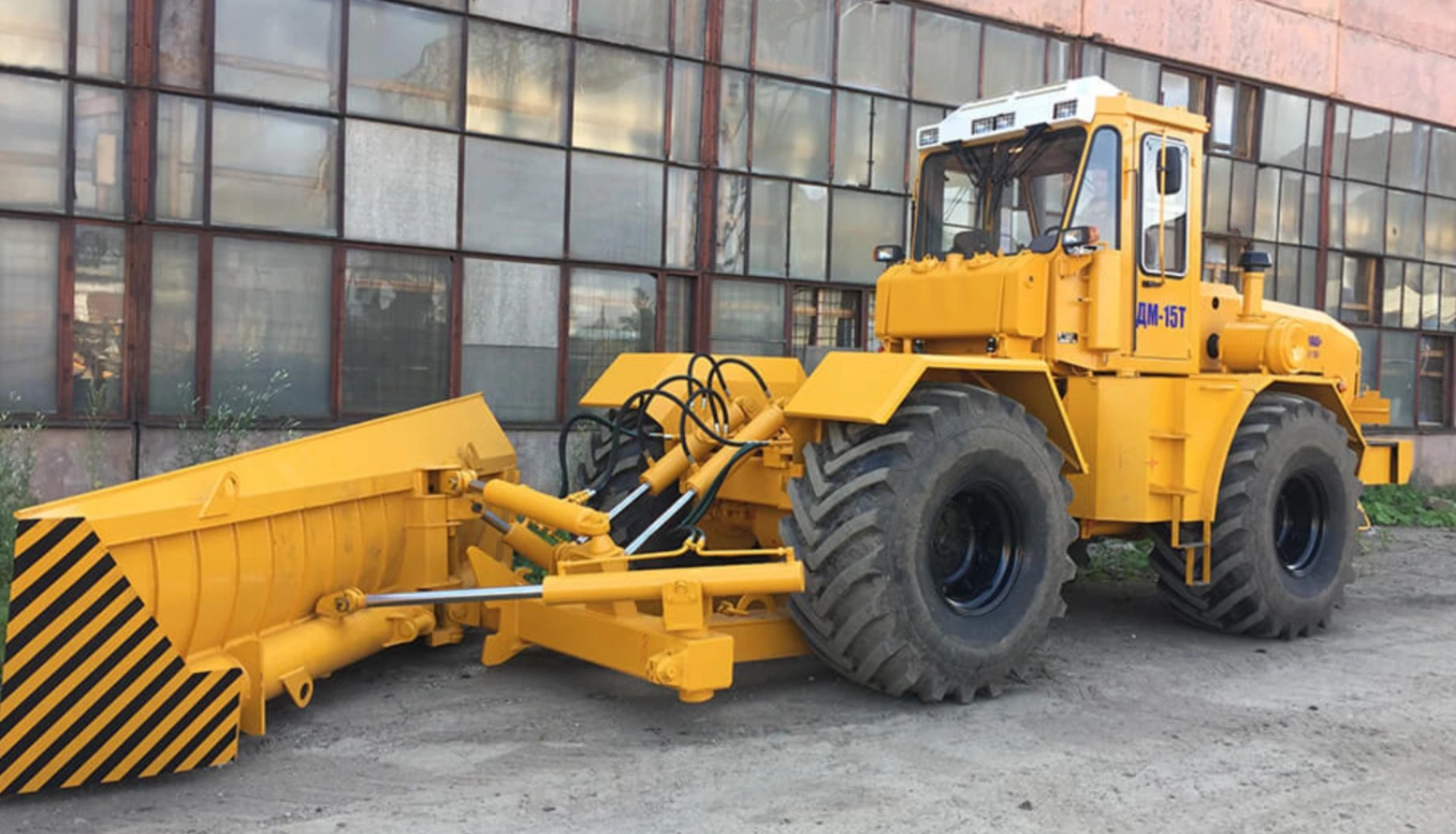

Material Handling and Other Implements

This is the catchall category for everything else that makes farm life possible.

Front loaders turn your tractor into a lifting machine, moving everything from feed to manure to soil. Backhoes transform it into a digging machine, perfect for drainage ditches or utility work. Utility trailers and wagons handle transportation around the farm.

Then there's the specialty tools - post hole diggers for fence work, brush cutters for clearing vegetation, box blades for grading roads, and dozens more implements designed for specific tasks.

The sheer diversity of these tools explains why you'll see equipment sheds bursting at the seams on well-established farms. OSHA's Standard Industrial Classification manual lists hundreds of implements under "Farm Machinery and Equipment" (SIC code 3523), from the basics everyone recognizes to specialized equipment you might see once in a lifetime.

This extensive mechanization is what allows modern farming to function at its current scale and efficiency.

Prevalent Tractor Implements and Their Uses in U.S. Farming

Let's get into the nitty-gritty of the implements you'll actually see working American fields.

The diversity of our agricultural landscape means farmers need a versatile arsenal to handle everything from Iowa corn to California vegetables.

Plows

Plows are where serious fieldwork begins - they're the first tools that transform last season's stubble into this season's seedbed. Their primary job is breaking and turning soil, improving its structure while burying weeds and crop residue. D

ifferent soil conditions call for different plows, which is why you'll see several varieties in action across the country.

Moldboard plows are the classics - those wing-shaped blades that slice into soil and flip it completely over. They're unmatched when you need to bury surface residue entirely, which is why they're still the go-to for virgin ground or fields that have been out of production.

A basic moldboard might have just one bottom (farming lingo for the actual cutting blade), while larger operations might run 5, 6, or even 10-bottom rigs behind high-horsepower tractors.

When you need to create furrows, specialized double-moldboard designs like listers and middlebusters throw dirt in both directions simultaneously - perfect for potato fields or traditional row cropping.

Disc plows bring a different approach to the table with their rotating steel discs. Where moldboards struggle with sticky or rocky conditions, disc plows shine. They're the tool of choice for hard, dry soils or fields with brush and small woody debris.

They won't completely invert the soil like a moldboard, but that's actually advantageous in some situations. If you've ever driven by a freshly worked field and seen a rough, chunky surface rather than clean furrows, chances are good you were looking at disc plow work.

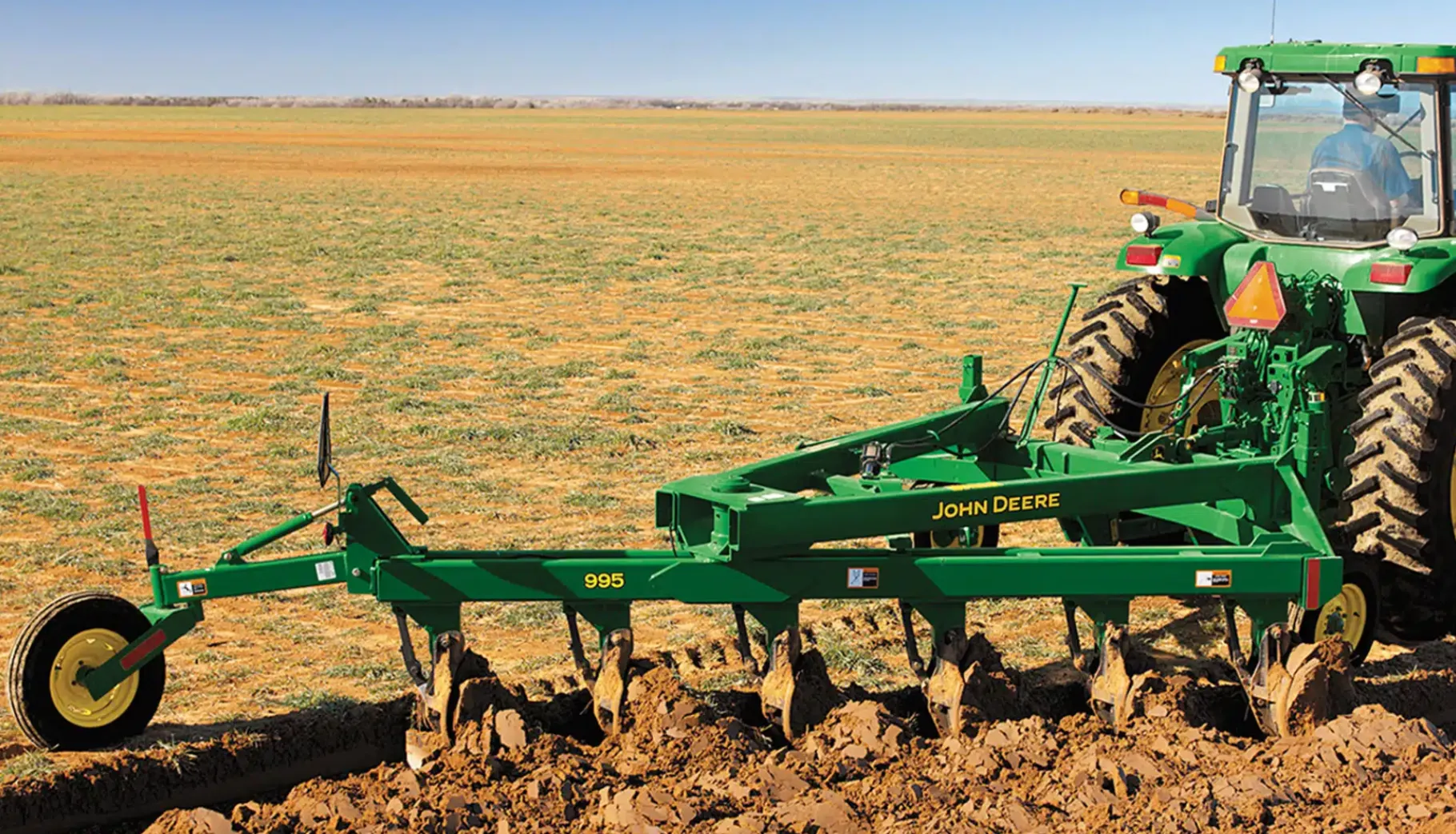

Chisel plows are the deep thinkers of the plow world, with long shanks that penetrate well below normal tillage depth. Farmers struggling with hardpan - that compacted layer that forms beneath the normal till zone - swear by these tools.

Unlike moldboards that flip everything upside down, chisels crack and loosen soil while leaving some crop residue on the surface. This makes them darlings of conservation tillage advocates who want to minimize erosion while still getting good soil preparation.

Next time you see a field that looks "scratched" rather than turned over, you're probably seeing chisel plow work.

Rotary plows (often called tillers or rototillers) take a completely different approach with power-driven horizontal shafts spinning curved knives through the soil. They create the finest seedbed of any primary tillage tool, pulverizing soil into garden-like consistency.

You'll see them more commonly on smaller operations or specialty crop production where that ultra-fine soil preparation pays dividends. They're also the most fuel-hungry of the bunch, so there' a tradeoff for that perfect tilth.

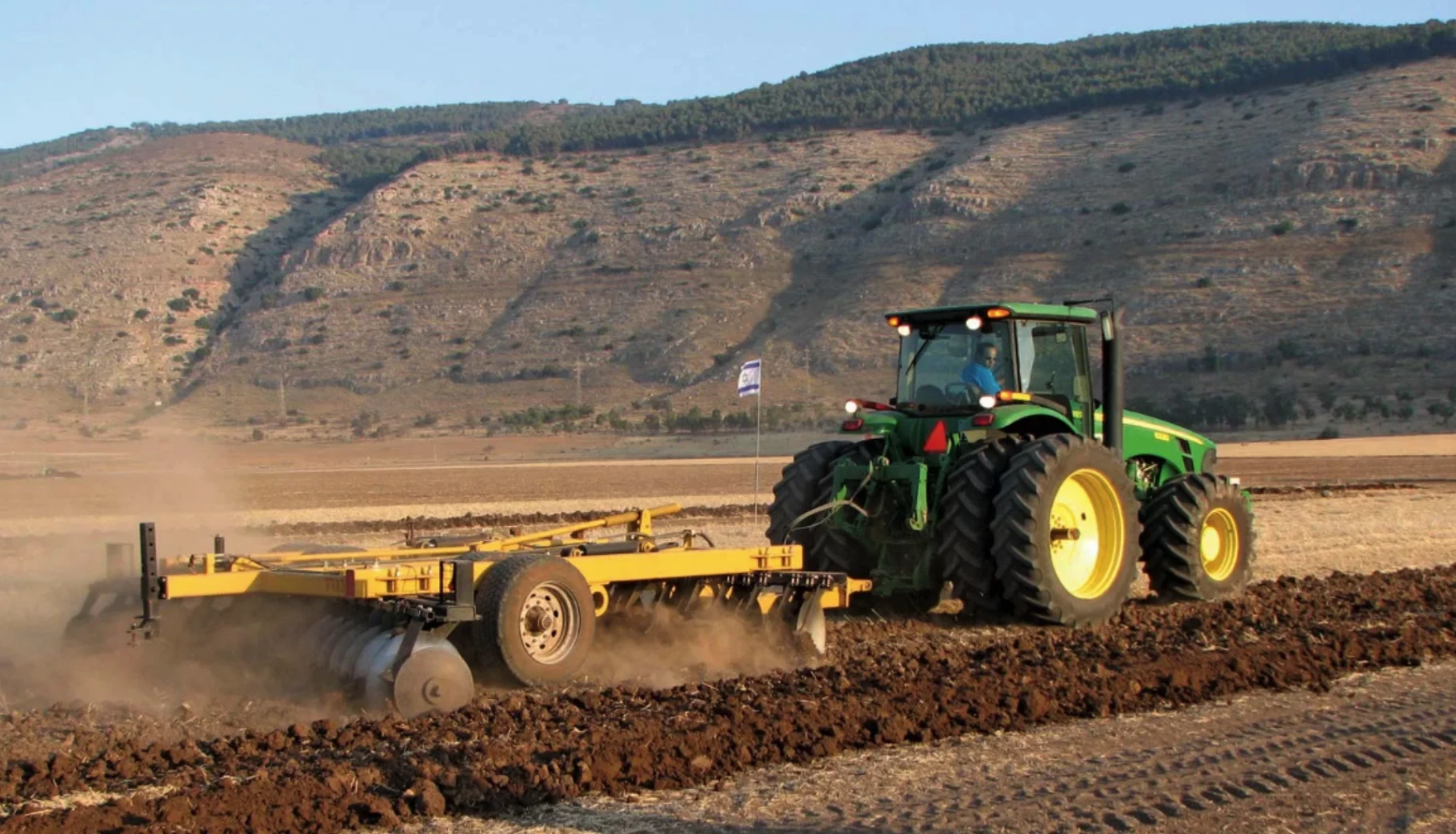

Harrows

After plowing comes harrowing - the process of refining that rough-broken soil into something that actually resembles a seedbed. Harrows break down clods, level the surface, and redistribute residue. Think of them as the smoothing tools that follow the breaking tools.

Disc harrows are what most farmers reach for after primary tillage. They're essentially gangs of concave discs mounted on axles, and they've largely replaced the older spring-tooth designs our grandfathers used. Why? They're simply more effective at chopping up residue while creating a decent seedbed.

You'll see different configurations depending on the job - single-action models for lighter work, tandem or double-action designs with opposing disc gangs for more thorough mixing, and offset monsters for heavier-duty applications.

Ever notice how some freshly worked fields look almost combed, with neat parallel lines? That's disc harrow work you're seeing.

They excel in heavier soils where other tools might bog down, and they're particularly good at incorporating crop residue - a key consideration in today's higher-yield farming where there's simply more plant material to deal with after harvest.

Spring harrows are the old-school option that refuses to disappear entirely. These flexible-toothed implements might look like oversized bed springs dragged through the dirt, but they're remarkably effective for specific jobs.

They excel at breaking up soil crusts without disturbing newly emerging crops and are ideal for incorporating broadcast seeds. Their flexibility means each tooth moves independently over the ground, reducing soil compaction and the risk of damage to young plants.

Though they've lost ground to disc harrows for primary seedbed prep, you'll still see them working across the country, especially in lighter soils and organic operations.

Roller harrows look like medieval torture devices - spiked drums rolled across the field to crush clods and firm the seedbed. They're often the final pass before planting when you need that "just right" soil consistency.

Chain harrows resemble giant chain-link mats dragged across the field. They're lightweight and perfect for spreading manure on pastures or performing light cultivation. Many small livestock operations keep one around for pasture maintenance.

Power harrows bring mechanical muscle to the harrowing process. Unlike traditional drag harrows, these PTO-driven implements use rotating tines to actively stir the soil while maintaining a level surface.

They're popular with market gardeners and specialty crop producers who need precision seedbeds without disturbing the overall soil profile.

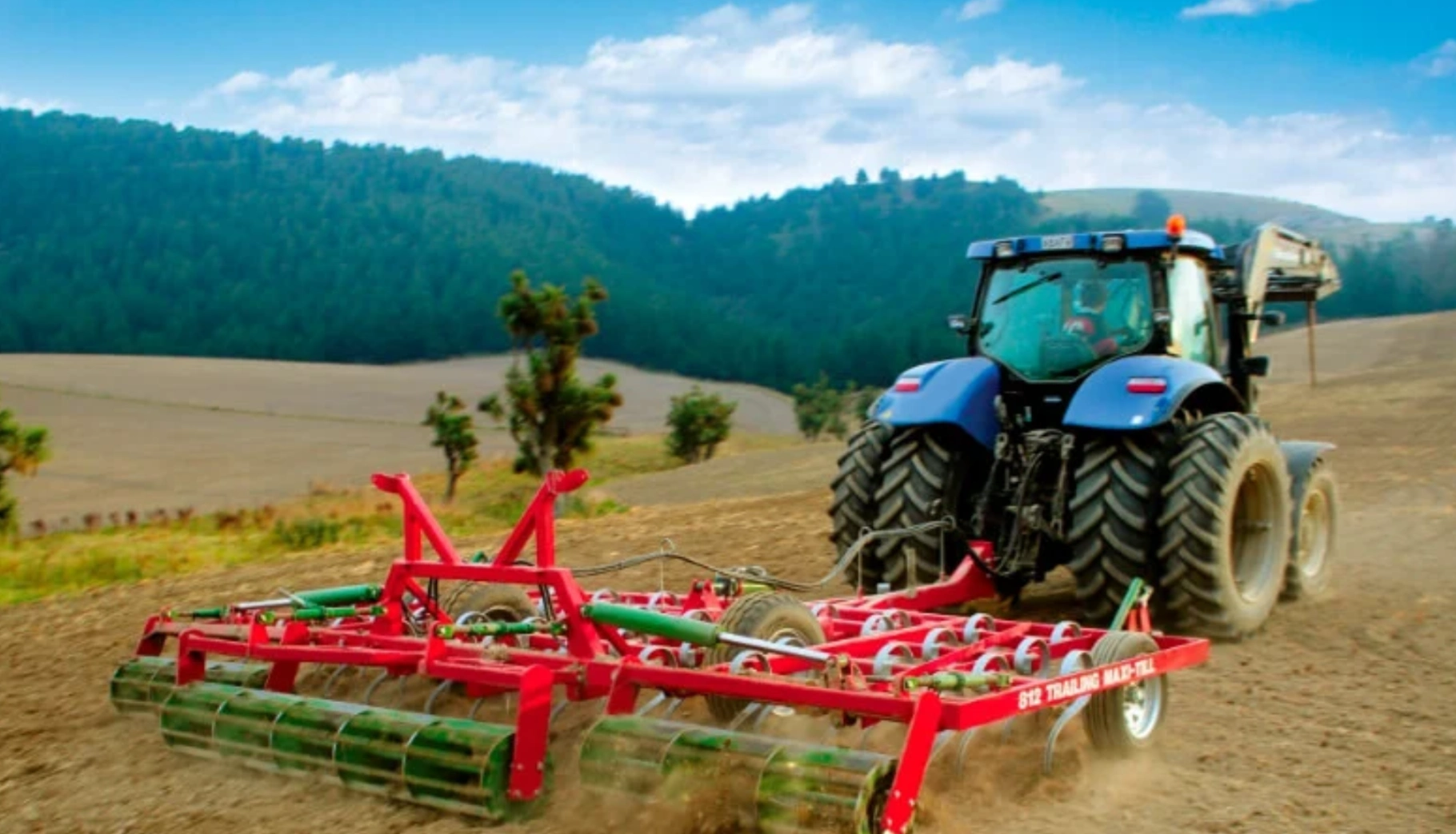

Cultivators

While their name suggests they handle all cultivation, these implements specifically excel at aerating soil between crop rows and managing weeds after planting. Unlike harrows that work the entire surface, cultivators disturb soil in precise patterns, targeting weeds while staying clear of your valuable crops.

Tine cultivators (often called field cultivators) feature spring-loaded teeth or shanks that pierce and stir the soil. They're the lightweight champions of weed control, working the top few inches of soil to disrupt weed growth without bringing up new weed seeds from deeper down.

You'll see them in everything from massive 80-foot-wide rigs covering hundreds of acres daily to smaller 3-point models behind compact tractors. Their genius lies in versatility – adjustable tine patterns can adapt to different row spacings and crop types.

Rotary cultivators bring powered blades into the equation, spinning through soil between rows for intensive cultivation. They're essentially scaled-down versions of rotary tillers, configured to work between crop rows rather than across the entire field.

When weeds threaten to overtake your crops and you need aggressive intervention, these are the tools farmers reach for. The PTO-driven spinning tines make short work of even established weeds, though they demand more power and slower ground speeds than traditional cultivators.

Planters

Now we're getting to the good stuff - the moment when all that tillage prep pays off and seeds actually hit the dirt. Planters are the precision instruments of row crop agriculture, and they've come a long way from the old days of dropping kernels by hand.

Today's planters are engineering marvels designed to place seeds at exactly the right depth and spacing - critical for crops like corn and soybeans where plant population can make or break your season.

The big boys are running 24, 36, even 48-row units behind their tractors these days, planting more acreage before lunch than your great-grandfather managed in an entire season.

What makes modern planters special? It's all about the metering systems. Early planters used simple mechanical "finger pickup" systems - literally metal fingers that grabbed individual seeds from a hopper. They worked... sort of.

But today's vacuum and pneumatic systems deliver accuracy that would have seemed like science fiction just a generation ago.

I was talking with a farmer in western Illinois who switched from his dad's old plate planter to a new vacuum system. "First year I could actually count on 32,000 plants per acre instead of 'somewhere between 28 and 36 thousand' depending on which row you checked," he told me. That kind of precision matters when you're pushing for maximum yields.

The really fancy units now adjust seed population on-the-fly based on GPS mapping and soil data. Planting fewer seeds in the sandy hilltop soil and ramping up the population in those fertile bottomlands – all automatically while you drive.

Your grandfather would have thought you were pulling his leg if you described that capability back in his day.

Seeders (Drills, Broadcasters)

While planters handle the big row crops, seeders tackle everything else - wheat, oats, barley, rye, alfalfa, clover, you name it. These tools are less about precise spacing of individual seeds and more about controlled distribution across a field.

Seed drills are the workhorses here, dropping seeds into furrows at predetermined rates and depths. They're essentially mechanical versions of what farmers did by hand for millennia.

The key innovation? Seeds go exactly where they need to be - in the ground at a consistent depth, protected from birds and wind. None of that "throwing it out there and hoping for the best" business.

I remember watching an old-timer demonstrate broadcast seeding by hand - pure art, the way he'd fan those seeds out with a practiced swing. But even he admitted the drill produces more consistent stands. "Course, drilling takes longer," he grumbled. "But I can't argue with the results."

Modern air seeders represent the high-tech evolution of this concept. They use air to literally blow seeds through hoses to the openers, allowing for massive working widths and exceptional efficiency over large areas. If you're covering thousands of acres in wheat country, air seeders are your best friend.

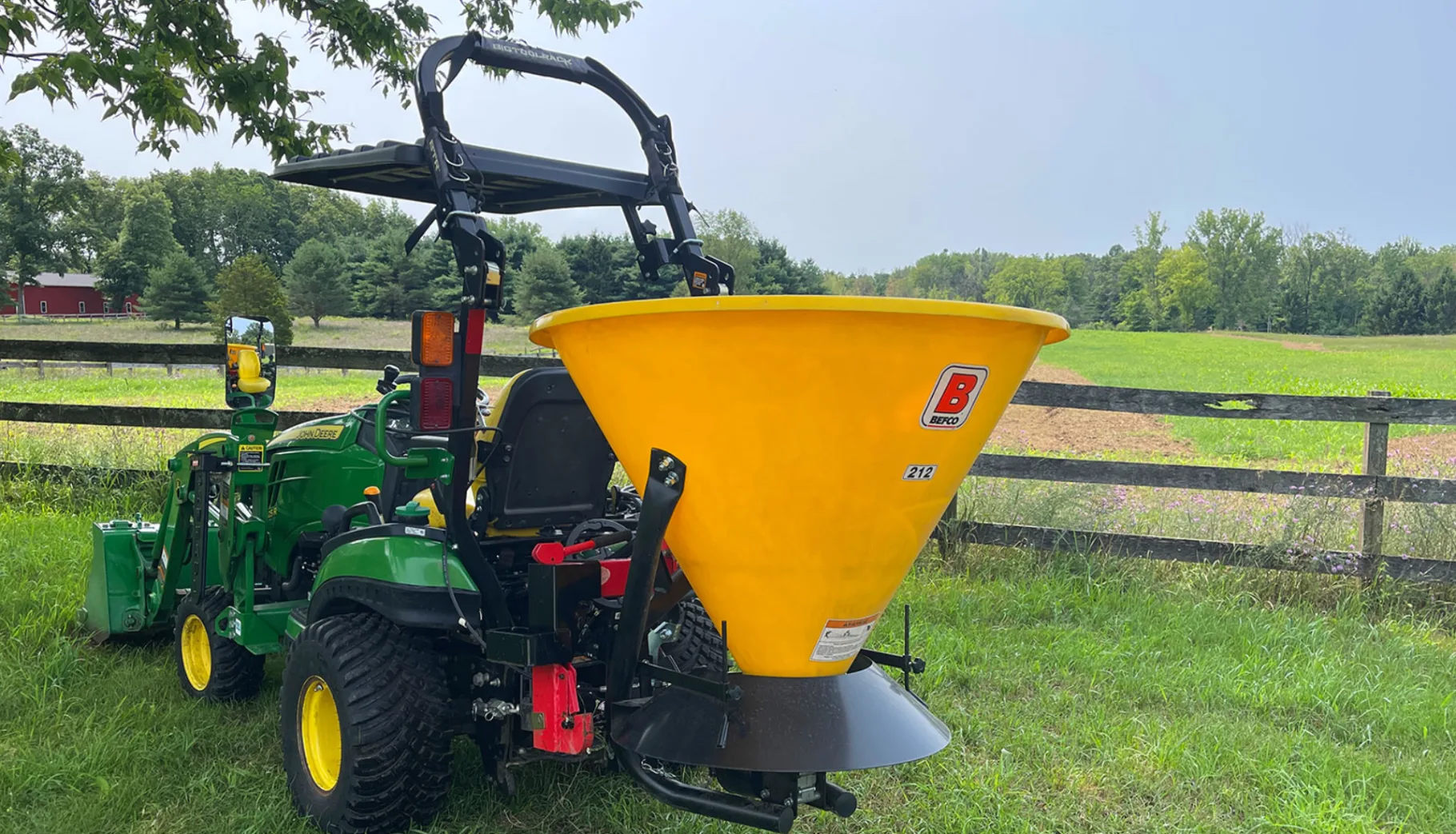

Then there are broadcasters - the simple solution when you need to spread seed (or sometimes fertilizer) across the surface. They're less precise but perfectly suited for establishing cover crops or overseeding pastures. You'll often see ATV-mounted versions zipping around smaller operations where a full-sized drill would be overkill.

The real game-changer has been the development of no-till drills capable of planting directly into the residue of previous crops without plowing first. This technology has transformed agriculture across the country, reducing erosion and preserving soil moisture while cutting fuel costs.

That's the kind of innovation that changes not just how we farm, but the fundamental relationship between agriculture and the land itself.

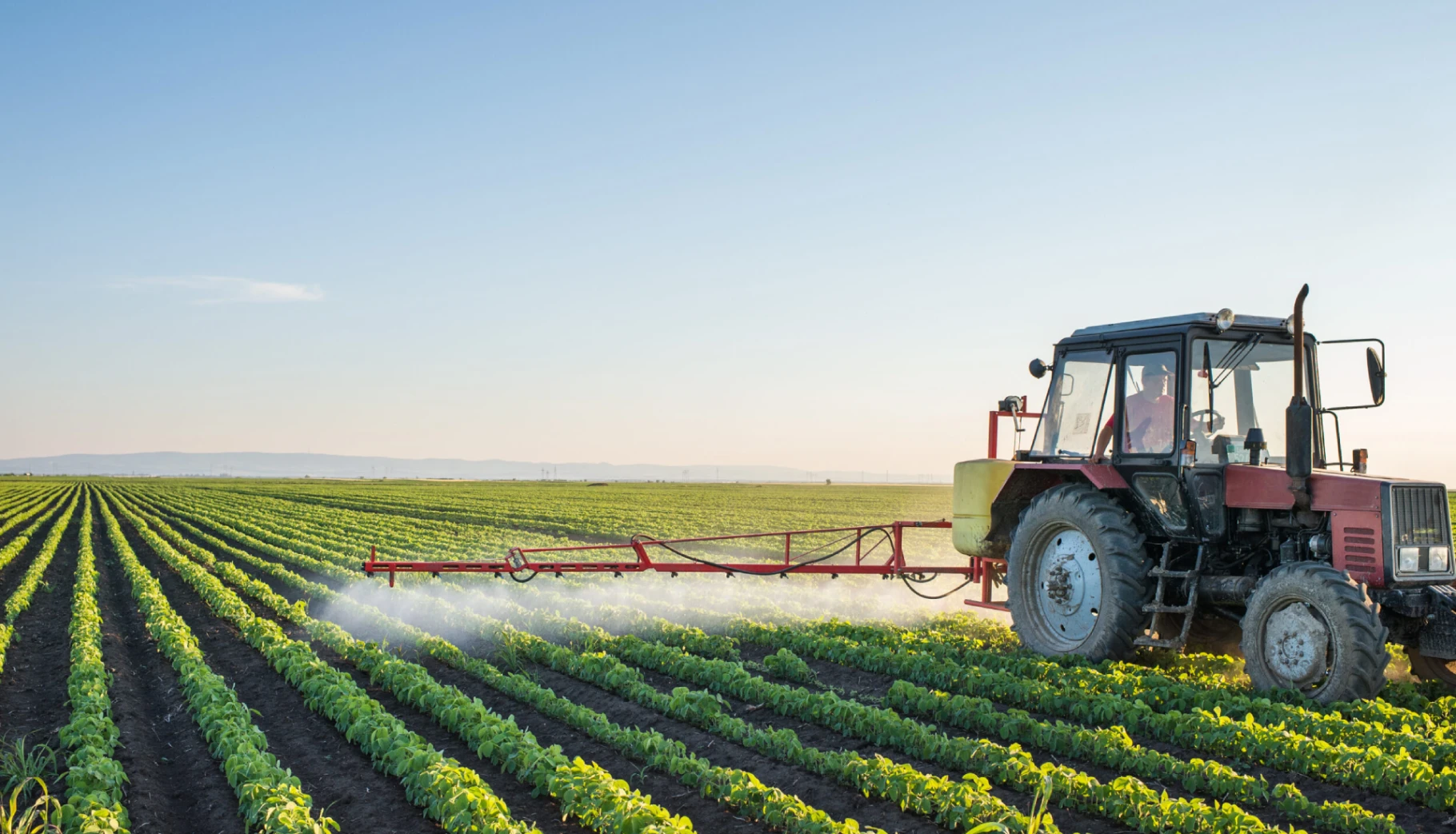

Sprayers

If you've driven rural highways in summer, you've seen these rigs cruising fields with their wide booms extended like mechanical wings.

Sprayers are the tools that deliver liquid inputs - pesticides, herbicides, fungicides, liquid fertilizers - directly to your crops throughout the growing season.

Performance Metrics of Key Tractor Implements

Ever wonder how farmers decide which implement actually performs better? They're not just going by the paint color or which sales rep bought the better lunch.

There's real data behind these decisions, and understanding the metrics helps make sense of why different operations choose different tools.

Plows

Moldboard Plows: These old-school soil flippers get measured by some pretty straightforward metrics. Working width? That's basically how much dirt you're turning over in a single pass - usually described by the number of bottoms (those wing-shaped blades) on the plow.

A 10-bottom plow obviously covers more ground than a 4-bottom unit. Each bottom typically cuts about 10-12 inches wide, so a 4-bottom plow covers roughly 40-48 inches per pass.

Operating depth is another key spec, typically ranging from 6-16 inches. Though I met a farmer in the Delta who swore his grandfather's plow could "turn soil all the way to China" (it couldn't). For really deep work, subsoilers can reach down to 3 feet, breaking up that hardpan layer that restricts root growth.

Forward speed matters too - most moldboards run efficiently around 5 mph. Go faster and you're just burning extra diesel while doing a worse job. The draft force (the pull required to drag this thing through soil) can range from 5.6 to 17.7 kN depending on soil conditions. Translation: you need plenty of horsepower, especially in heavy clay soils.

Disc Plows: The working width here depends on how many concave discs you're running and how they're spaced. Unlike moldboards, disc plows shine in hard soil conditions. Most operators aim for a cutting depth around 25% of the disc diameter - go deeper and you're just asking for trouble.

Speed sweet spot? About 4-6 mph for most conditions, though you can push to 8 mph in sandy soils if you're feeling frisky. The draft requirements are generally less than moldboards in tough conditions, which explains why many operators switched to discs when working particularly challenging ground.

Chisel Plows: These deep-diggers typically have shanks spaced 1-3 feet apart, determining the overall working width. They're designed to operate anywhere from a few inches deep to around 18 inches, with some heavy-duty models capable of reaching even deeper.

Optimal operating speed falls around 4-6 mph. Move too fast and you'll see those shanks starting to bounce, losing penetration and creating an uneven job.

Draft force increases dramatically with depth - double your working depth and you might triple your power requirements. No free lunch in physics, folks.

Harrows

Disc Harrows: Working widths range from modest 4-foot models for small tractors up to commercial 20-foot behemoths. They typically work the top 6 inches or so of soil, though adding weight can increase penetration.

Most operators run disc harrows between 7-9 mph - faster than plowing operations because you're generally working looser, previously-tilled soil. Field capacity (acres covered per hour) naturally increases with speed, but push too hard and quality suffers.

Ever seen a field that looks like it was harrow-disco-danced across instead of properly worked? That's what happens when you prioritize speed over quality.

Spring Harrows: These normally come in sections around 3-5 feet wide, with multiple sections hitched together for wider coverage - commercial units can span up to 45 feet or more. They're shallow workers, typically penetrating just 2-3 cm into the soil for weed control.

Speed is where spring harrows really shine - capable of working at 8-15 mph in good conditions. This makes them extremely efficient for covering large acreage when doing light tillage or weed control passes.

Power Harrows: These PTO-driven soil surgeons typically work at blade rotation speeds between 50-300 rpm, depending on the model and conditions. They're precision instruments compared to drag harrows, creating that garden-ready seedbed commercial vegetable growers dream about.

They demand more power than passive harrows but deliver results that justify the fuel consumption for operations where seedbed quality directly impacts profitability.

Cultivators

Tine Cultivators: Working widths vary dramatically, from modest 6-foot models behind compact tractors to massive 80-foot flex-wing monsters for commercial operations. Operating depths typically range from 10-30 cm, depending on whether you're doing primary tillage or just knocking back weeds.

Field speed varies widely based on conditions, but generally falls between 3-10 mph. As with most implements, there's an inverse relationship between speed and quality - the faster you go, the rougher the job. But sometimes when weeds are racing ahead of you, speed trumps perfection.

Rotary Cultivators: These typically range from 4-7 feet in working width, with forward speeds considerably slower than their non-powered cousins - usually 2-4 mph. The PTO typically spins the blades at 200-300 rpm, with the tractor crawling along at a deliberate pace to allow those powered tines time to do their work.

What makes rotary cultivators interesting from a physics perspective? They can actually generate a negative draft force, essentially pulling the tractor forward rather than dragging behind it. This happens because the spinning tines are literally throwing soil backward, creating a forward thrust. Science!

Typical Performance Metrics of Key Tractor Implements

Want the quick reference version? Here's what you can expect from various implements when they're properly matched to your tractor:

Remember, these are ballpark figures - the kind that work great in sales brochures but get a hearty chuckle from the folks who actually run this equipment day in and day out.

Your actual mileage will vary based on soil type, moisture conditions, terrain, and about a dozen other factors that manufacturers conveniently gloss over in their literature. But it's a solid starting point for comparing different options before you write that big check.

Planters and Seeders

When it comes to performance metrics for these seed-delivering machines, we're moving beyond simple measurements like width and into the realm of precision agriculture.

What really matters here is accuracy - are seeds landing exactly where they should, at consistent depths, with the right spacing between them?

For row crop planters, the gold standard is singulation rate - essentially, how consistently the planter drops exactly one seed at a time. Top-end vacuum planters regularly hit 99%+ singulation in ideal conditions, meaning for every 100 seeds that should drop, 99+ actually drop as single seeds rather than skips or doubles.

That last 1% might not sound like much, but spread across thousands of acres, it represents real yield impact.

Seed spacing deviation is another critical metric - are those seeds landing at consistent intervals? Modern planters aim for spacing accuracy within 5-10% of the target, meaning if you're shooting for 6-inch spacing, seeds should land within about half an inch of that target.

As for depth control, consistency is king. If you set a 1.5-inch planting depth, you want the vast majority of your seeds within 1/4 inch of that target depth. Too shallow? Germination issues. Too deep? Emergence problems. It's a game of millimeters that translates directly to dollars.

These metrics matter less for broadcast seeders and small grain drills, where the focus shifts to uniform distribution across the entire width rather than precise individual seed placement.

Here, calibration accuracy becomes paramount - is the machine actually delivering the 120 pounds per acre of wheat you programmed, or is it overshooting by 10%? That's seed money quite literally scattered to the wind.

Sprayers

If you want to start an argument at the equipment dealer, just ask a group of farmers what nozzle type and pressure they run on their sprayers. Then step back and watch the fireworks.

Why so passionate? Because application accuracy directly impacts both effectiveness and input costs. Spray coverage is typically measured in gallons per acre (GPA), with rates varying dramatically based on the product being applied and the target pest or crop condition.

Droplet size is another crucial metric, usually measured in microns. Smaller droplets provide better coverage but are more prone to drift in windy conditions. Larger droplets resist drift but might not provide adequate coverage for certain applications.

Most operators aim for that elusive "medium" classification (around 250-350 microns) that balances coverage and drift control, but it's as much art as science.

Boom height plays into this as well - most manufacturers recommend operating the boom 18-24 inches above the target (crop canopy or soil surface), but watch farmers in the real world and you'll see everything from 12 to 36 inches depending on conditions and personal preference.

The real game-changer has been the introduction of pulse-width modulation systems that can maintain droplet size even as ground speed changes - allowing for consistent application at speeds from 5 to 15+ mph. That translates to more acres covered when those narrow application windows open up.

Harvesters

For combines, the primary metric that matters is grain loss - how much of your crop stays in the field instead of making it into the tank? Most manufacturers target loss rates under 1-2%, but real-world conditions can push those numbers significantly higher.

Throughput capacity - measured in bushels per hour or tons per hour - dictates how quickly you can get through harvest. Modern class 8-9 combines can process upwards of 5,000+ bushels of corn per hour in ideal conditions, but slow to half that in tough going.

Fuel efficiency is becoming increasingly important as diesel prices climb. Expect usage anywhere from 0.8 to 2+ gallons per acre depending on crop, conditions, and machine settings.

For balers, density is the name of the game - how tightly can you pack that material? Round bales typically range from 9-12 pounds per cubic foot for dry hay, while large square balers can achieve 15+ pounds per cubic foot. Denser bales mean more efficient storage and transport, plus better weathering characteristics for outdoor storage.

Production rate varies widely, but a decent round baler should produce 25-35 bales per hour in average conditions. Large square balers might hit 40-50 bales per hour when everything's running smoothly.

Estimated Cost Range for Different Types of Tractor Implements in the U.S. Market

Let's talk money - because at the end of the day, that shiny implement in the dealer's lot has to make financial sense for your operation.

The price tags on farm implements can range from "impulse purchase" to "second mortgage" depending on what you're looking at.

Moldboard Plows

The humble moldboard remains a staple in many regions despite the shift toward conservation tillage. Single-bottom models for compact tractors might run you as little as $300, while going up to a double-bottom setup typically pushes into the $500-$2,000 range depending on build quality and features.

Want to get serious with a 5+ bottom plow for your big tractor? Now we're talking real investment - anywhere from $5,000 for a decent used unit to north of $20,000 for a new heavy-duty model with all the bells and whistles. Remember when plows were just simple hunks of metal? Those days are long gone.

Disc Harrows

The price spectrum here is particularly wide. Those little ATV-pulled disc harrows you see in the rural supply catalogs? Under $400 will get you rolling. But they're toys compared to serious agricultural models.

For actual field work, plan on spending $1,200-$3,700 for a decent 4-9 foot model suitable for a utility tractor. When you start looking at the heavy-hitting 12-16 foot tandem disc harrows from major manufacturers, the price jumps to $10,000-$30,000 range.

And those massive 20+ foot flex-frame units the big operations run? If you have to ask, you probably can't afford it. But since you did ask: $30,000-$75,000 depending on brand, build quality, and features.

I've seen farmers practically stroke out when dealers quote these prices, but then they calculate what field prep costs by the acre and somehow find the money.

Chisel Plows

Simple single-shank subsoilers for breaking up hardpan behind your compact tractor can be had for around $250. Used 7-shank models in decent shape might run $650-$1,500 if you're patient and watch auction listings.

New, larger chisel plows, especially from the major color brands (you know who I mean), can range from $8,000 for entry-level models to a heart-stopping $60,000+ for the widest heavy-duty units with hydraulic adjustments and fancy shank protection systems.

That's right - what used to be a simple drag-behind implement now costs more than many Americans' homes did a generation ago.

Spring Harrows

The good news is these traditional implements remain relatively affordable compared to some of the high-tech options. Basic 3-point spring tooth drag harrows might run $80-$180 per section.

Larger pull-type spring harrows suitable for decent acreage start around $2,000 and climb into the $5,000-$12,000 range as the working width increases. The really serious units, like commercial 40-foot tine weeders for organic operations, can command $17,000-$40,000.

A friend who runs an organic vegetable operation paid about $2,900 for a 6.5-foot tine harrow specifically designed for his ATV. "Seemed ridiculous expensive for what it is," he told me, "until I calculated how many hours of hand weeding it saves us. Paid for itself in one season."

Rotary Tillers

The range here starts with those walk-behind units you can pick up at the home center for under $100 (though I wouldn't expect much from those), up through compact tractor-mounted units.

Light-duty 4-5 foot tillers typically run $1,300-$2,000, while stepping up to medium-duty 6-foot models pushes you into the $2,000-$4,000 range. The heavy-hitters - commercial-grade 7+ foot models capable of primary tillage in tough conditions - can easily exceed $6,600.

I remember a vineyard manager telling me he "about choked" when he saw the $5,800 price tag on a reverse-rotation tiller, but after trying conventional models that couldn't handle his rocky soil, he bit the bullet.

"Most expensive implement in my barn, dollar for inch of working width," he said, "but also the one I'd replace first if something happened to it."

Cultivators

Small tine cultivators for garden use can be had for under $50, but don't confuse these with serious agricultural implements. Tractor-mounted 3-point hitch cultivators start around $370 for basic models and climb rapidly as you add features and working width.

A solid 8-row cultivator with all the guidance goodies for precision weed control might set you back $2,500 or more. Heavy-duty field cultivators for primary or secondary tillage? Now we're back in second-mortgage territory - $15,000 to $50,000+ depending on width and build quality.

Worth noting - these prices fluctuate significantly based on steel prices, which have been on a roller coaster ride in recent years. That dealer quote from last season? Might be ancient history by now.

Tractor Implement Adoption & Usage Trends in U.S. Farming

If you're wondering which implements are gaining traction (pun absolutely intended) across different farming regions, you're asking a surprisingly complex question. The agricultural equipment landscape is as diverse as American agriculture itself.

Getting specific usage data by implement type across different regions is like trying to nail jello to a wall - it's messy and ultimately unsatisfying. But we can piece together the broader picture from various industry reports and surveys.

The overall US agricultural equipment market is massive - we're talking $38.1 billion as of 2025. That's billion with a B. Of course, this figure includes everything from massive combines down to the smallest hand tools, but it illustrates the scale of investment happening in the sector.

According to Arizton's research, the US agricultural equipment market should hit 950,260 units by 2029, growing at a respectable 3.62% annually from 2023. Tractors remain the dominant segment, which makes sense since they're the power units that make all these implements functional in the first place.

Breaking it down regionally, the Northeast and Midwest are driving demand for advanced agricultural equipment. No surprise there - the Midwest remains the powerhouse of conventional row crop production where efficiency at scale is the name of the game.

Meanwhile, the Northeast's smaller but intensive farming operations are increasingly adopting specialized equipment to remain competitive.

The tractor implements market specifically was valued at about $62.9 billion in 2023 and is projected to grow at 4.3% annually through 2030. What's driving this growth? Increased focus on irrigation and crop protection, plus the rising availability of specialized machinery for different farming phases.

When you add in government initiatives and subsidies promoting mechanization, you've got a recipe for continued implement adoption.

Where things get really interesting is in the precision agriculture space. Adoption of technologies like guidance and autosteering systems has exploded over the past 20 years. As of 2023, 52% of midsize farms and a whopping 70% of large-scale crop operations are using these systems.

Remember when steering your own tractor was just... normal farming? Those days are disappearing fast.

This trend toward precision extends to implements as well. GPS-guided sprayers that can control individual nozzles, planters capable of variable-rate seeding, and combines that create detailed yield maps - all of these were exotic technologies a generation ago but are increasingly standard equipment today.

Not surprisingly, adoption rates for advanced technologies correlate strongly with farm size. The big operations adopt first, followed by midsize farms, with small family farms typically having the lowest adoption rates.

The constraints are obvious - advanced equipment requires significant capital investment, technical knowledge, and typically offers the biggest returns when deployed at scale.

When farmers are asked why they're investing in these technologies, their answers are refreshingly practical: increased yields, labor savings, reduced input costs, decreased operator fatigue, and environmental benefits.

Notice how "because it's cool tech" doesn't make the top five? Farmers remain some of the most pragmatic technology adopters you'll find.

While detailed statistics on specific implement usage by region and crop type remain elusive in the snippets provided, the overall trends paint a clear picture: American agriculture continues to mechanize, precision technologies are becoming mainstream rather than exotic, and the implements themselves are evolving from simple mechanical tools to sophisticated systems that integrate seamlessly with digital agriculture platforms.

The fundamental drivers behind implement adoption haven't changed much - farmers still need to prepare soil, plant crops, manage inputs, and harvest efficiently. What has changed dramatically is the technology embedded in the implements that perform these age-old tasks, and the rate at which that technology continues to evolve.

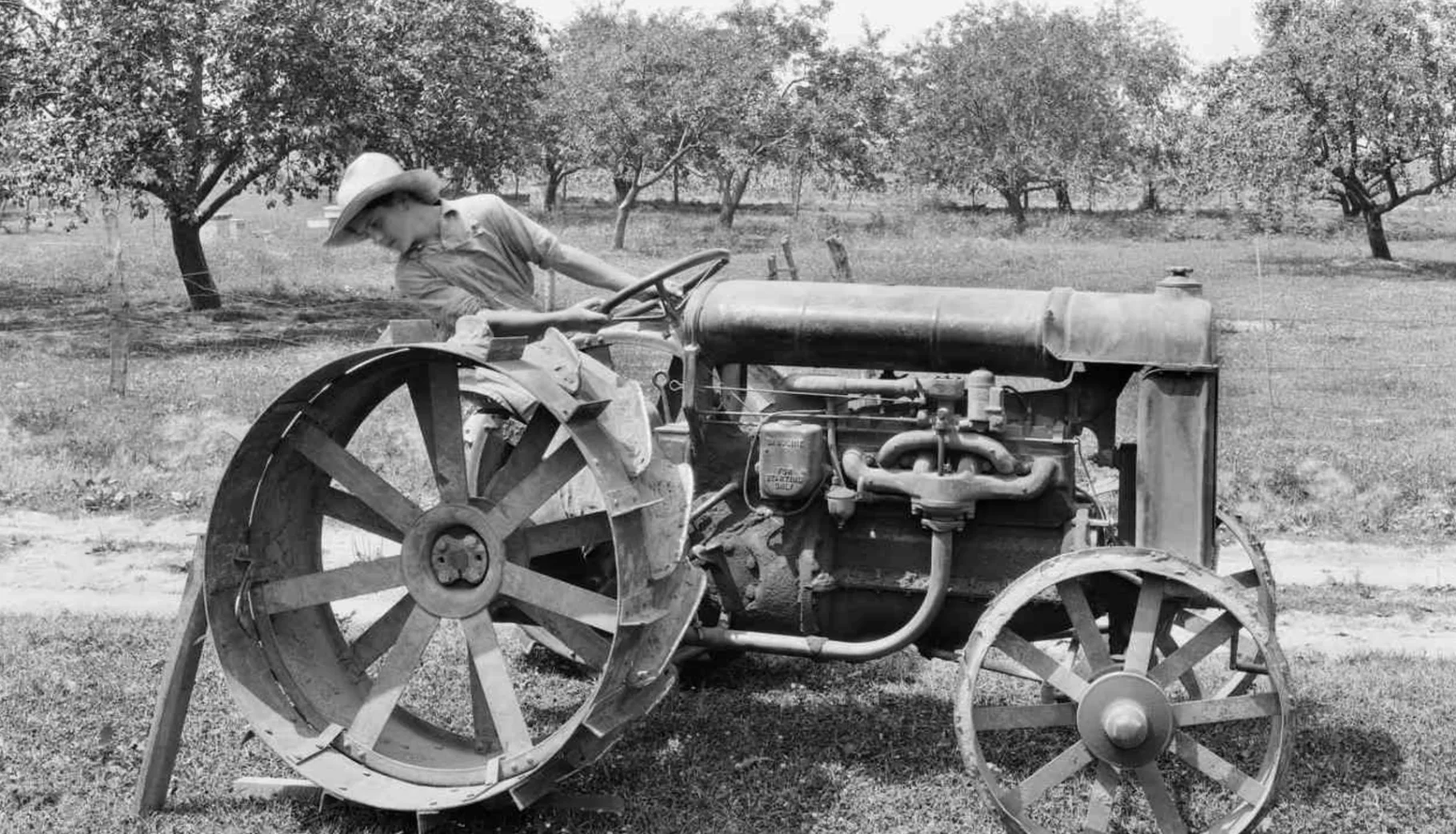

Evolution of Key Tractor Implement Technologies in the U.S.

The story of tractor implements in America is basically the story of agriculture itself - a continuous push to do more with less. Less manual labor, less time, less waste. Let's take a walk through how these tools evolved from simple wooden contraptions to the computer-controlled marvels rumbling across fields today.

Plows might be the oldest agricultural tool we've got. The earliest versions were just pointed sticks dragged through soil - a far cry from today's hydraulically-adjusted multi-bottom behemoths.

The real game-changer came in 1837 when a blacksmith named John Deere created a self-scouring steel plow that could handle the sticky prairie soils of the Midwest without clogging up every few feet.

"That doesn't sound revolutionary now," an equipment historian once told me, "but imagine trying to farm when your plow gets completely gummed up every hundred yards. It's like trying to spread peanut butter with a knife that needs cleaning after every slice of bread." Deere's innovation quite literally opened up America's heartland to productive agriculture.

The late 19th and early 20th centuries brought disc plows into the mix, better suited for hard and rocky soils where traditional moldboards struggled. Chisel plows followed, going deeper without completely inverting the soil profile - a concept that would later become crucial in conservation tillage practices.

The Dust Bowl of the 1930s was an environmental catastrophe, but it sparked innovation in tillage implements. The Graham-Hoeme plow (a type of chisel plow) was developed specifically to leave crop residues on the surface as protection against wind erosion.

This marked one of the first major shifts from "plow everything under" thinking toward what we'd now recognize as conservation tillage.

Seed planting tech followed its own fascinating evolution path. For thousands of years, farmers literally scattered seeds by hand - not exactly the pinnacle of efficiency.

The mechanical seed drill, invented by Jethro Tull in 1701 (yes, the rock band borrowed the name), was revolutionary, but it took until the mid-19th century for horse-drawn seed drills to really catch on in America.

For row crops like corn, innovation came in stages. Hand planters appeared around 1850, followed by horse-drawn riding planters. By the 1870s, we had check-row attachments that created perfect grid patterns of corn - critical when cultivation happened with horse-drawn equipment that needed to run in both directions.

"My grandfather could spot a crooked corn row from a quarter mile away," an Iowa farmer once told me. "Not because he was obsessive, but because with mechanical cultivation, a straight row was the difference between feeding your crop and chopping it up."

The mid-20th century brought tractor-drawn multi-row planters, but the real leap came with advances in seed metering. Modern vacuum and air-pressure systems deliver accuracy that would have seemed like science fiction to earlier generations.

Today's planters with variable-rate seeding technology adjust population on-the-fly based on soil conditions - planting more seeds in fertile areas and backing off in poor spots, all automatically.

Harvesting technology might show the most dramatic transformation of all. We went from hand-cutting grain with sickles to mechanical reapers (thank you, Cyrus McCormick, 1831) that at least mechanized the cutting process. The first American combine harvester was patented in 1835 by Hiram Moore, but early models were massive beasts pulled by 20+ horses.

Steam power eventually replaced horses, followed by tractor-drawn combines, and finally the self-propelled machines that define modern grain harvesting. Today's combines with GPS mapping, automatic header height control, and real-time yield monitoring would be utterly incomprehensible to the farmers who thought Moore's original horse-drawn combine was cutting-edge technology.

Haymaking followed a similar trajectory - from manual raking and stacking to mechanical balers that transformed loose hay into manageable packages. The development of the round baler in particular revolutionized one-person hay operations, eliminating the need for the community hay-making events that were once social fixtures in rural America.

"Sometimes I wonder if we lost something there," a multi-generation rancher in Montana reflected. "Used to be haying brought the whole community together. Now I can put up 200 acres by myself while listening to podcasts in my air-conditioned tractor. It's progress, but there's a social cost."

The mid-20th century was transformative for implement power systems. Diesel tractors became the norm, offering serious advantages in torque and fuel efficiency compared to gasoline engines. This era also brought the widespread adoption of standardized PTO systems and hydraulics - two innovations that completely revolutionized what implements could do.

"Before standardized PTOs, every manufacturer had their own system," an equipment historian explained to me. "Imagine buying a printer today and finding out it only works with one specific brand of computer. That's essentially how farm equipment used to be."

The standardization of the 540/1000 RPM PTO system meant farmers could finally mix and match implements from different manufacturers with their tractors.

Hydraulic systems added another dimension, allowing operators to adjust implements on-the-fly from the tractor seat. What used to require stopping, getting off the tractor, and manually adjusting pins or levers became as simple as moving a lever in the cab.

Today's electrohydraulic systems take this even further, with computerized controls and presets that make implement adjustment nearly automatic.

The sustainable agriculture movement has pushed implement evolution in new directions over the past few decades. No-till and reduced-till farming practices demanded completely new approaches to planting and nutrient management.

Specialized no-till drills capable of cutting through heavy residue and placing seeds at precise depths have transformed how millions of acres are farmed.

One Oklahoma farmer who switched to no-till described the shift: "My dad would roll over in his grave seeing me plant directly into last year's wheat stubble. But my soil organic matter has doubled, my input costs are down 30%, and I haven't had to buy a new moldboard plow. Took some getting used to - those first couple years were terrifying - but now I wouldn't go back."

The precision agriculture revolution is redefining implements yet again. GPS-guided equipment that can work to centimeter accuracy, variable-rate technology that adjusts inputs based on soil needs, and implements that create and use detailed field maps are becoming increasingly common.

"Ten years ago, only the biggest operations had this stuff," a precision ag consultant told me. "Now I've got clients with 500 acres running guidance systems and variable rate controllers. The technology cost curve is making this accessible to operations that couldn't have dreamed of it before."

The integration of electronics, sensors, and automation continues at a breakneck pace. Modern implements collect vast amounts of data that feed back into farm management decisions. Soil sensors, optical crop sensors, and yield monitors create a continuous feedback loop, allowing for increasingly precise management.

What's next? The autonomous revolution is already beginning, with driverless tractors and implements moving from experimental to commercial reality. Swarm technology - multiple smaller machines working in coordination rather than one large machine - is showing promise for certain applications.

"The really interesting thing about implement evolution," a long-time equipment dealer reflected, "is that the basic jobs haven't changed that much. We still need to prepare soil, plant seeds, manage weeds, and harvest crops.

What's changed is the precision, efficiency, and data integration with which we do those jobs. And that's made all the difference."

Comparison of Tractor Implements for Similar Agricultural Tasks

When it comes to getting a specific job done in the field, you've often got multiple implement options.

Let's break down how different tools stack up for the same basic jobs - because despite what that dealer who's trying to clear last year's inventory might tell you, there really is more than one way to work dirt.

Primary Tillage Face-Off: Moldboard vs. Disc Plows

Both moldboard and disc plows handle primary tillage, but they take fundamentally different approaches to turning soil.

Moldboard plows are the soil-flipping champions. They excel at completely inverting the soil profile, burying weeds and residue deep where they won't cause trouble. This complete burial makes them particularly effective in wet or marshy ground where drainage is an issue.

The clean slate they create is perfect for conventional tillage systems where you want to start with a completely residue-free seedbed.

I watched a farmer in the Mississippi Delta demonstrate his moldboard against a neighbor's disc plow in gumbo soil that most implements would have surrendered to immediately. "Sometimes there's just no substitute for a good moldboard," he grinned as his plow carved clean furrows while the disc struggled.

But that superiority comes at a cost - moldboards are notorious fuel hogs, potentially increasing erosion on slopes, and may contribute to long-term soil structure degradation.

Disc plows, meanwhile, shine in conditions that would make a moldboard weep. Hard, dry soil? No problem. Fields with stumps or rocks that would snap a moldboard shank? Disc plows just bounce over and keep going.

They require less draft power than moldboards and handle residue better. The tradeoff? They don't invert soil as completely, often leaving some crop residue visible on the surface. This incomplete burial can be either a bug or a feature depending on your farming philosophy - conservation-minded farmers often prefer it.

A Colorado dryland farmer put it succinctly: "Moldboard is like erasing the whiteboard completely. Disc is more like smudging it so you can still see traces of what was there before. Sometimes you want a clean slate, sometimes you want to remember what came before."

Secondary Tillage Showdown: Disc Harrows vs. Spring Harrows

After primary tillage, you need something to break down those clods and level the field. Enter harrows - but which style works best?

Disc harrows bring aggressive cutting power to the secondary tillage game. They're masters at chopping up remaining residue and incorporating it into the soil, excelling in heavier soils where other tools might struggle.

They're particularly effective when dealing with significant crop residue from high-yielding fields. The downside? Multiple passes are sometimes needed for a finished seedbed, and they can bury too much residue if conservation is your goal.

A custom operator in Kansas told me he prefers disc harrows for pretty much everything: "They're like the Swiss Army knife of tillage - not always the absolute best tool for every job, but versatile enough to handle almost anything you throw at them."

Spring harrows take a gentler approach with their flexible teeth designed to vibrate through the soil. They create a fine tilth ideal for seedbeds and are particularly good at breaking up crusts without disturbing the entire soil profile.

They improve soil aeration without aggressive mixing, making them favorites for lighter touch operations. Their flexibility allows them to follow ground contours without gouging, reducing the risk of erosion. However, they struggle in heavy residue situations and may not have enough muscle for compacted soils.

An organic vegetable producer swears by his spring harrow: "For us, it's all about maintaining soil biology. The spring harrow stirs rather than flips, and that makes all the difference for the microorganisms we're trying to nurture."

Seed Placement Standoff: Planters vs. Seeders

When it comes to getting seeds in the ground, planters and seeders (drills) approach the task with completely different philosophies.

Planters are precision instruments designed for row crops where exact seed placement matters. They excel at consistent depth control and precise spacing between individual seeds - critical for crops like corn where ideal plant spacing directly impacts yield. With the advent of vacuum metering systems, they achieve singulation rates approaching 100% in good conditions.

The drawback? They typically require well-prepared seedbeds and are less adaptable to tough planting conditions compared to drills.

"With modern planters, I can tell you within half an inch where every seed went in the ground," boasted an Indiana corn grower. "That kind of precision adds up to serious bushels at harvest."

Seeders or drills take a higher-volume, less precise approach better suited for smaller-seeded crops like wheat, oats, and grasses. While they still place seeds in rows, they're less concerned with the exact spacing between individual seeds within those rows.

Their real strength lies in versatility - many modern air seeders can handle no-till conditions that would completely stymie a conventional planter. This direct drilling capability makes them stars of conservation farming systems.

A Montana grain farmer who runs both planters and air seeders explained the difference: "My planter places each corn seed like it's planting a prize rose bush. My air seeder is more like efficiently getting the lawn seed spread before a rainstorm. Both have their place."

Conclusions

Tractor implements turn farming plans into action—where rubber meets dirt and intentions meet reality. Each piece of steel is the result of generations of farmer frustration, engineering breakthroughs, and relentless competition to solve agriculture’s toughest challenges.

The right implement isn’t just convenient—it defines success. A 10,000-acre wheat farm in Kansas needs vastly different equipment than a 50-acre vegetable farm in Vermont, yet both share the same goal: convincing soil to produce food. And as history shows, technology evolves in cycles—what’s cutting-edge today might be obsolete tomorrow, only to make a comeback when conditions shift.

A fourth-generation corn farmer put it best while upgrading his planter: “My great-grandfather wouldn’t recognize our tools, but he’d understand why we use them.” The mission—growing food efficiently while preserving soil—never changes. Understanding today’s implements isn’t just practical; it’s a window into agriculture’s constant reinvention.

FAQ
