Can You Unscrew an Excavator? A Field Guide to Disassembly

The industry perpetuates the myth that excavators are either operational or scrap, but reality sits in between—these machines are designed for strategic disassembly when their components still hold value. Understanding the difference between removable fastened assemblies and permanent welded structures transforms a retiring $200K asset into a goldmine of recoverable parts that can yield 30-40% return on your initial investment.

So, can you unscrew an excavator?

An excavator cannot be fully unscrewed, but its components can be disassembled. Bolted parts like the bucket, boom, and hydraulic cylinders can be removed for maintenance or transport. However, major structural components, such as the mainframe and undercarriage, are welded and cannot be unscrewed.

Excavator Construction and Assembly

Understanding the anatomy of an excavator is crucial for effective disassembly. Ever tried taking apart something without knowing how it goes together first? Yeah, that rarely ends well. Excavators comprise several interconnected components:

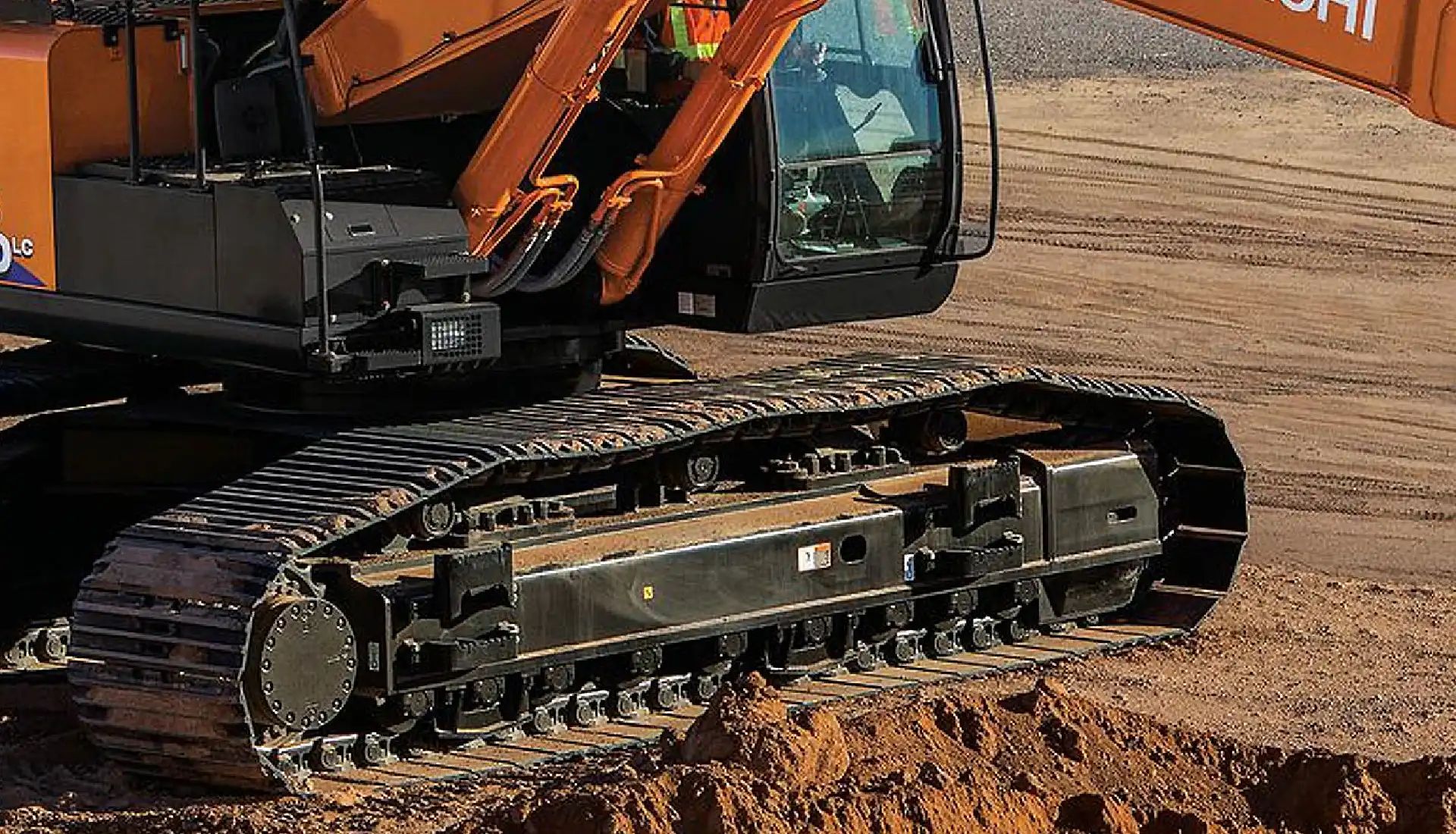

Undercarriage

Forms the excavator's foundation, housing tracks, drive train, and hydraulic components. This rugged base includes the track system (shoes, sprockets, idlers, rollers) that distributes weight and provides traction, along with final drives and travel motors sealed in oil baths. Accounts for 30-40% of lifetime maintenance costs, with track tension being critical—too loose causes derailment, too tight accelerates wear.

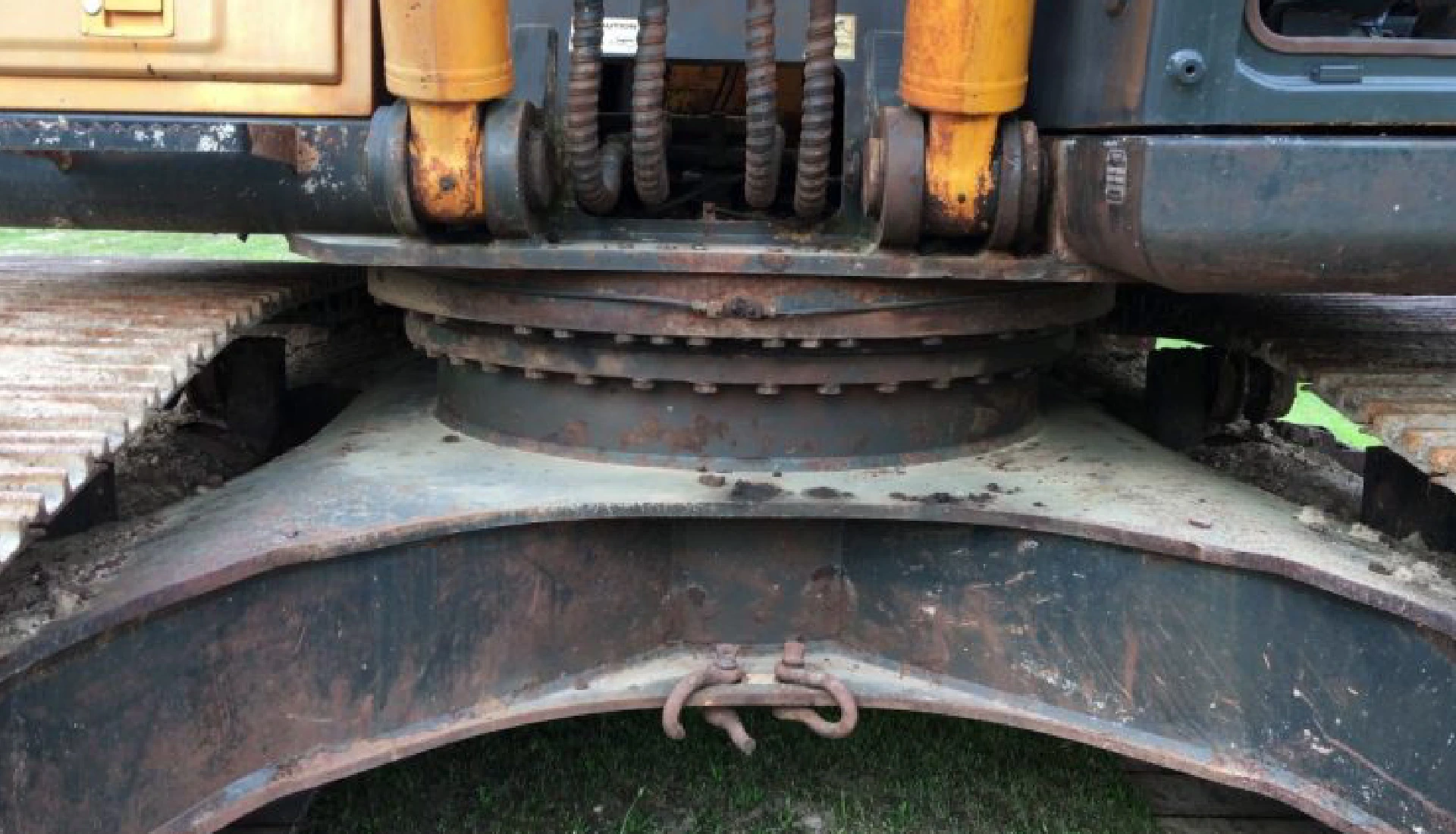

Slew Ring

The critical rotation bearing between the stationary undercarriage and rotating superstructure. This large-diameter bearing handles both vertical loads (machine weight plus lifting capacity) and horizontal forces during operation. Features precision-cut gear teeth for 360-degree rotation and specialized rotary joints for hydraulic and electrical connections. With proper greasing, can deliver 10,000+ hours before replacement.

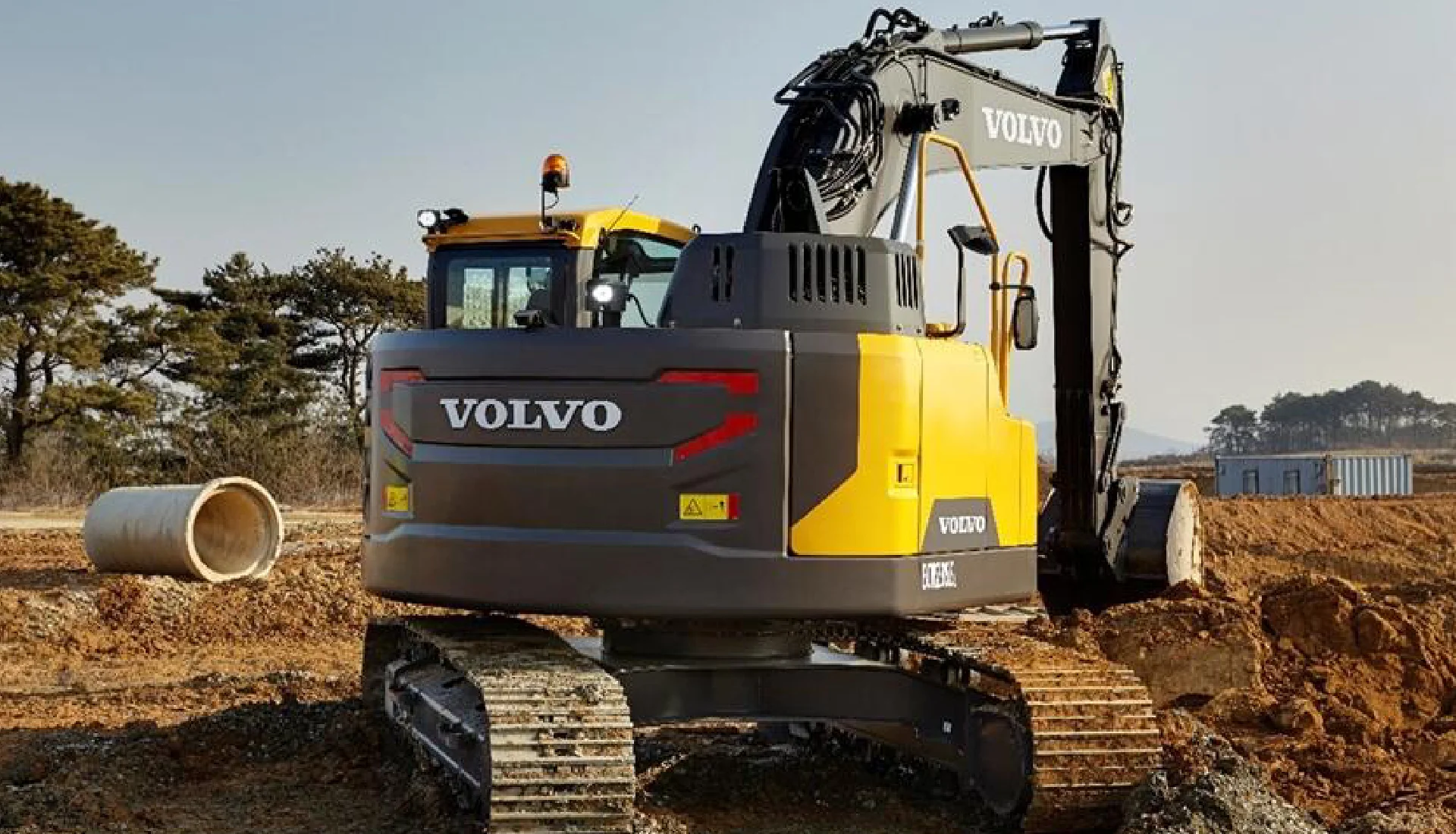

Superstructure

Houses the operational heart of the machine including the diesel engine, cooling system, operator's cab, and primary hydraulic pumps operating at 5,000+ psi. Contains 70-80% of component value, with sophisticated control systems managing everything from engine performance to implement functions. A massive counterweight at the rear balances the machine during digging operations.

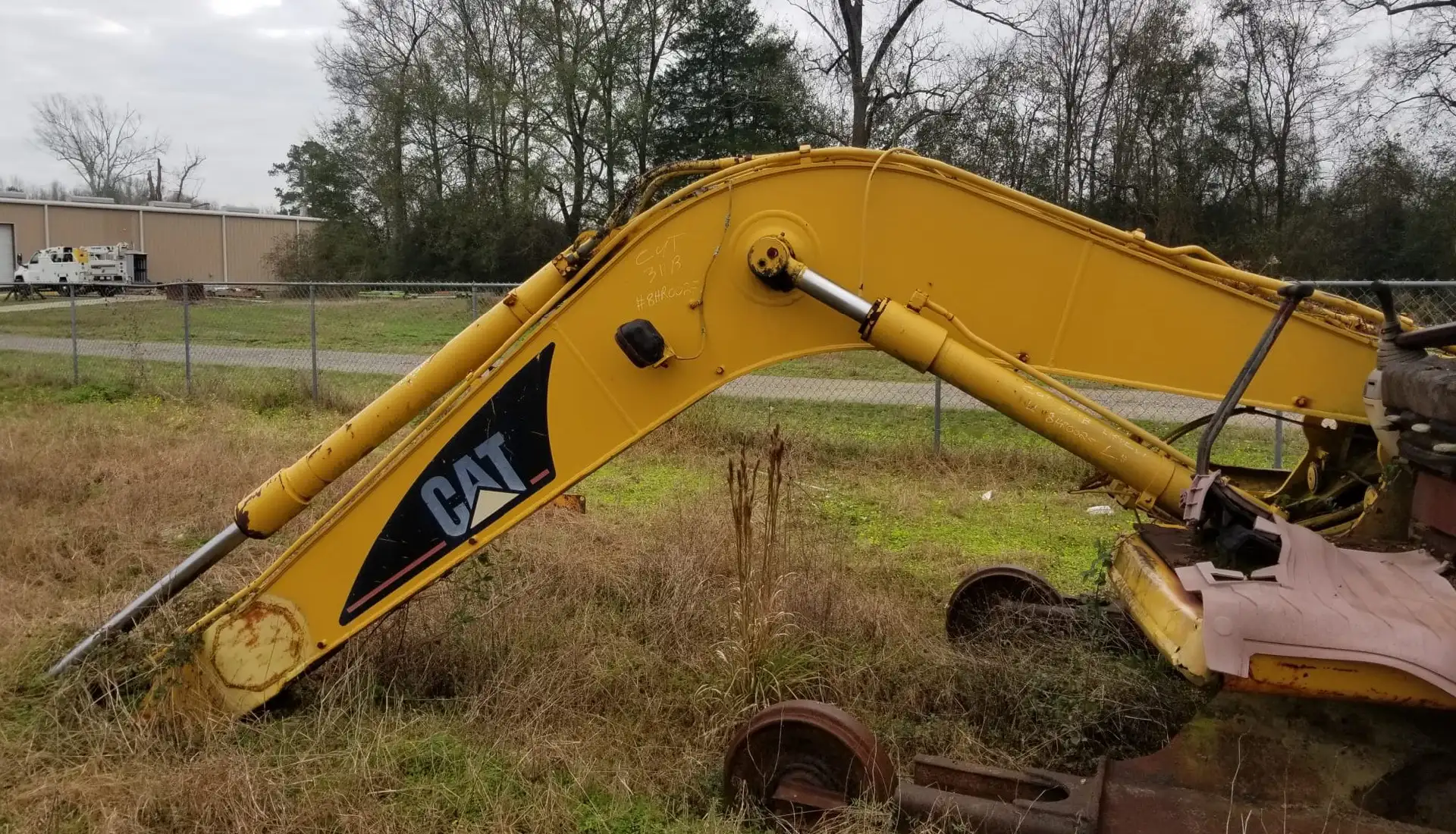

Boom Assembly

The working arm of the excavator where forces concentrate (up to 50 tons on larger machines). Consists of the main boom extending from the superstructure, the stick connecting to attachments, and the bucket or tool interface. Massive hydraulic cylinders provide movement force, while high-stress pins and bushings allow articulation. During disassembly, always release cylinder pressure before disconnection to prevent accidents.

Fasteners

During assembly, these components are meticulously joined using a variety of fasteners. The table below provides a summary of the common fasteners used in excavators:

In addition to bolts, various types of nuts are used to secure the bolts and provide a locking mechanism. These include:

• Hex Nuts: Standard hexagonal nuts for general purpose use.
• Flange Nuts: Nuts with a wider flange to distribute the load over a larger area.
• Lock Washers: Washers that help prevent nuts from loosening due to vibration.

Finally, welding is employed to join critical structural components, ensuring rigidity and durability. When manufacturers really don't want something coming apart, they weld it. Keep that in mind before you fire up the cutting torch.

Tools and Techniques for Disassembly

Disassembling an excavator requires specialized tools and techniques to ensure safety and efficiency. Ever seen someone try to remove a track pin with a regular socket wrench? Spoiler alert: it doesn't end well. Some of the commonly used tools include:

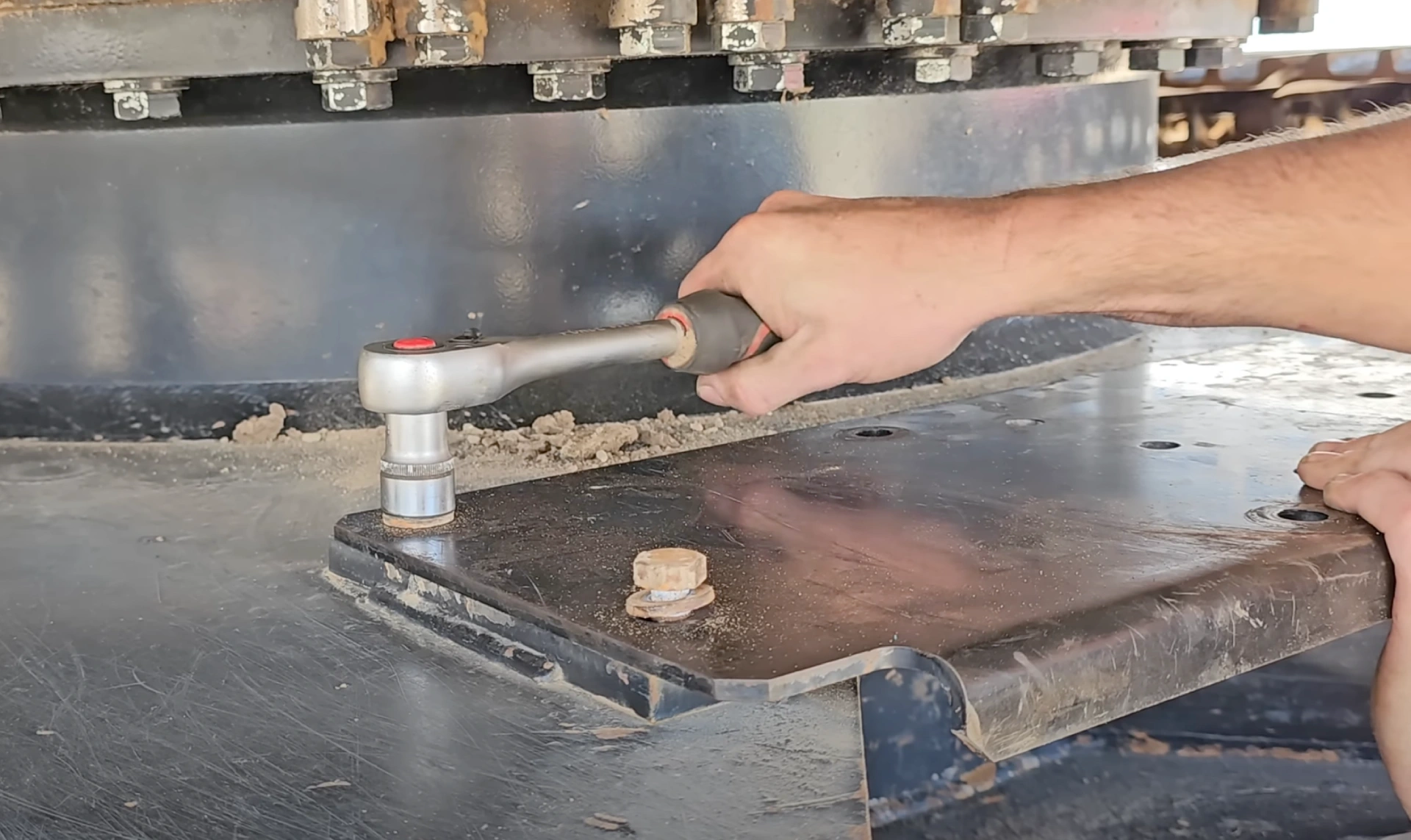

Wrenches and Sockets

For loosening and tightening bolts and nuts of various sizes. And we're not talking about the set you got from the local hardware store - these are industrial-grade tools that can handle serious torque. Impact wrenches with 1" drives are often needed for stubborn undercarriage bolts that have been torqued to over 1,000 ft-lbs.

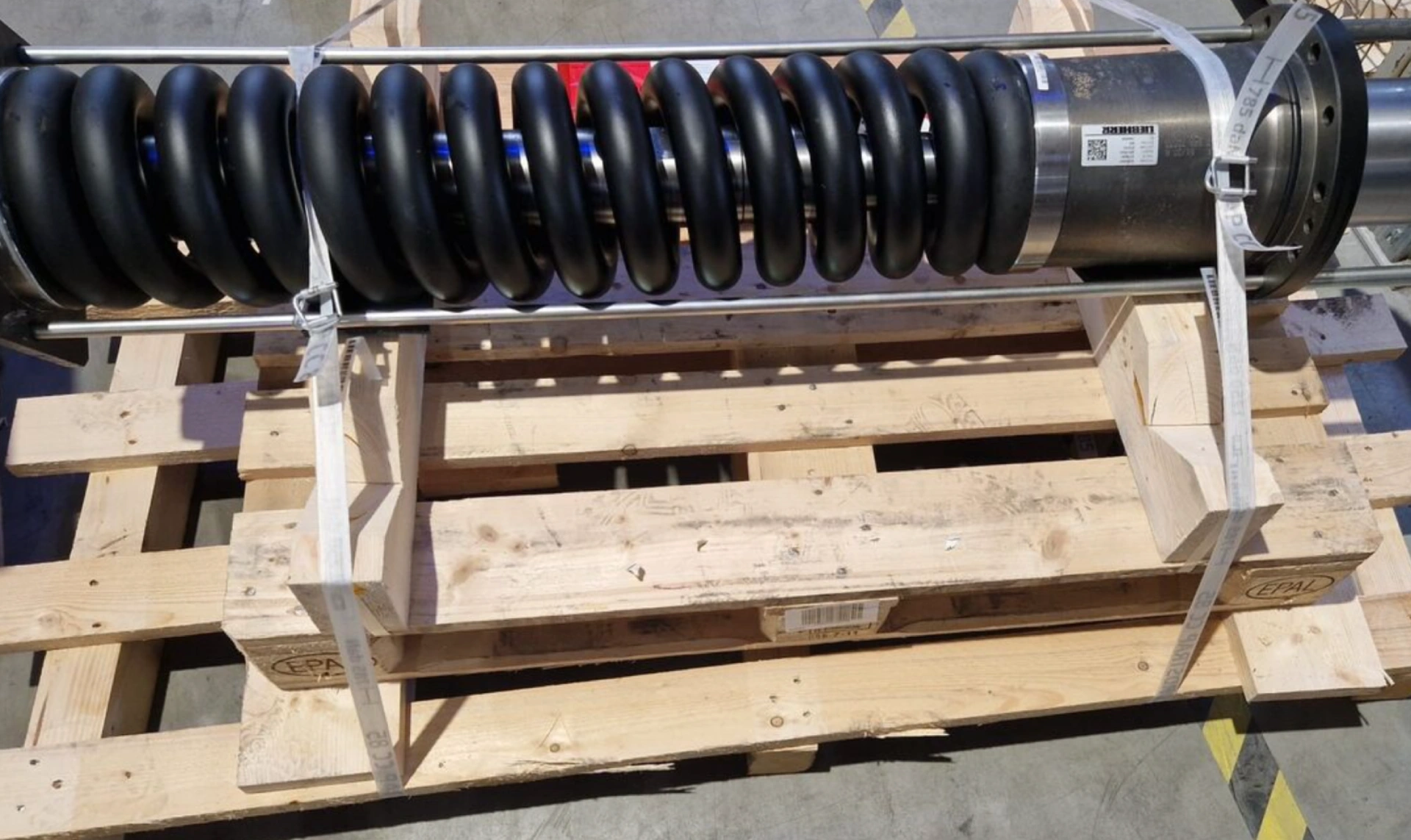

Hydraulic Tensioners

Essential for safely removing and installing highly-tensioned track components and slew ring bolts. These tools apply controlled force to prevent thread damage and component distortion during disassembly of critical stress points.

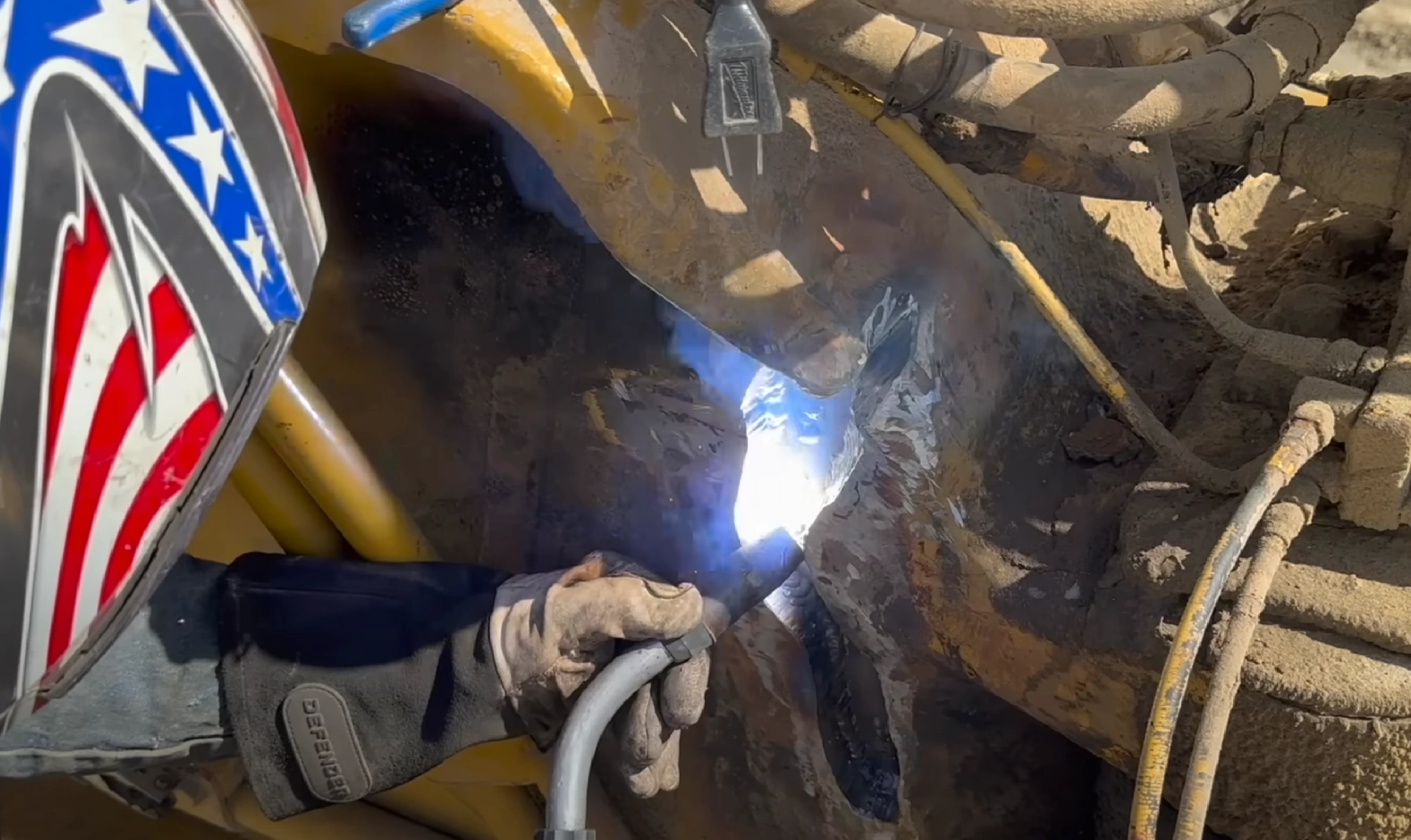

Torches

Employed for cutting through welded joints and dismantling large metal components. Sometimes the only language some seized bolts understand is the hot language of an acetylene torch. When a 10-year-old bolt has essentially become one with the frame, cutting is often your only option.

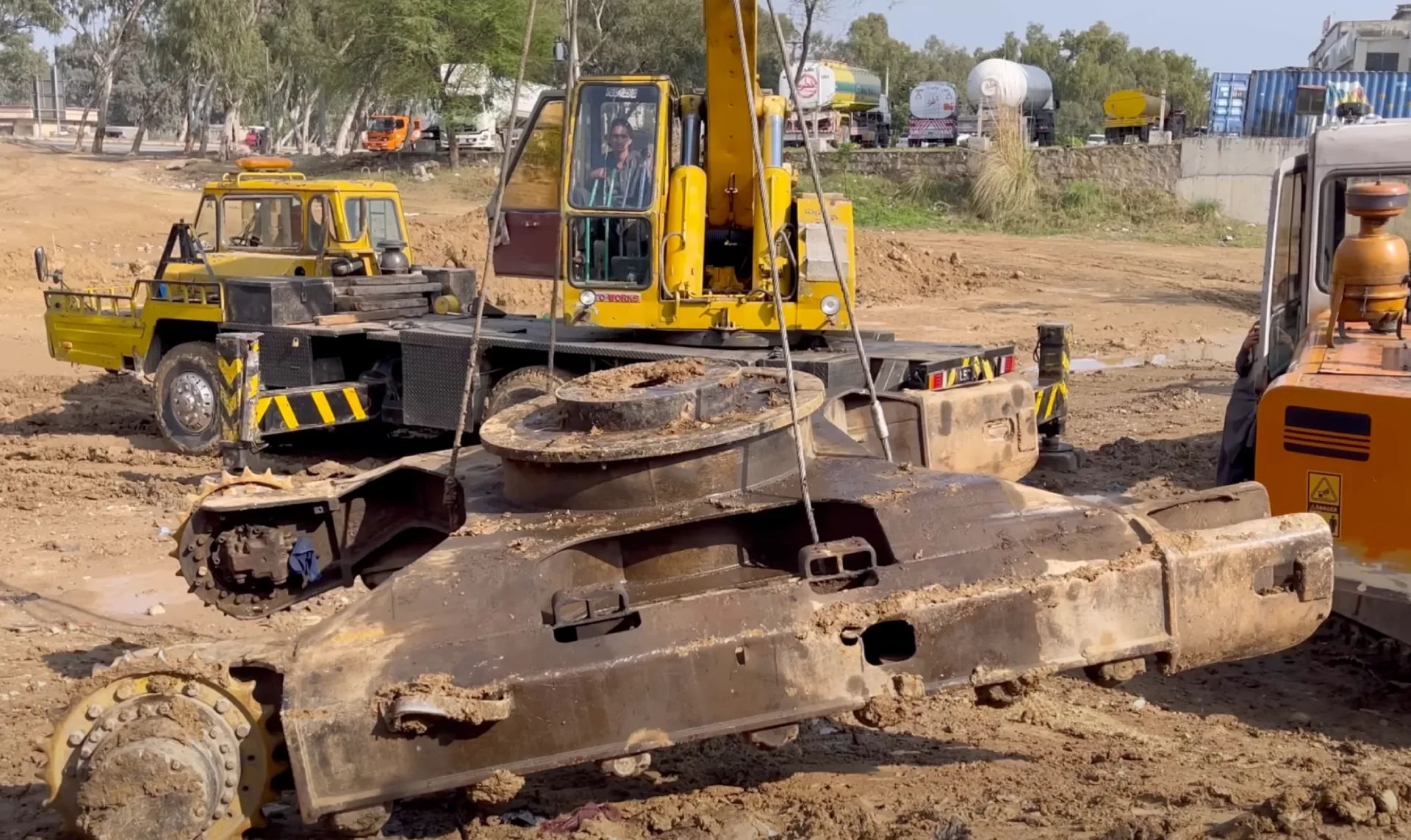

Lifting Equipment

Cranes and hoists are essential for lifting and moving heavy components during disassembly. Because nobody's deadlifting an excavator boom without ending up in traction. A medium-sized excavator's boom assembly alone can weigh 3-5 tons and requires precise control during removal.

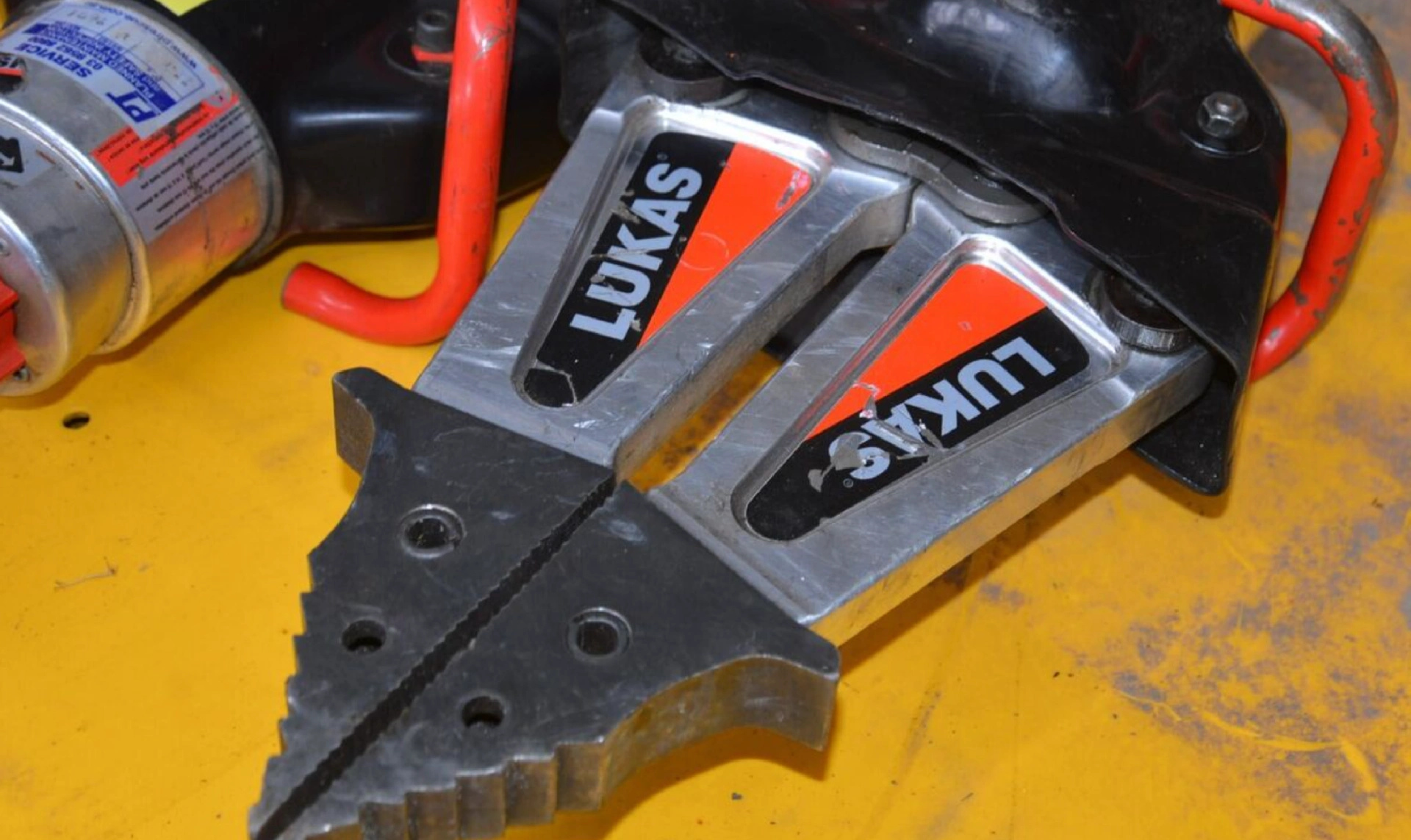

Hydraulic Spreaders

Used to create separation between components that have become compressed or seized together over years of operation. These tools provide controlled force to break friction bonds without damaging salvageable parts.

Quick Couplers

Specialized tools that allow for fast attachment and detachment of hydraulic lines during disassembly. They prevent fluid loss, reduce contamination risks, and dramatically speed up the separation of hydraulic systems that can have dozens of connection points.

Disassembly Sequence

The disassembly process typically involves the following steps:

flowchart TD
    subgraph "Excavator Disassembly Sequence"
    A("Step 1: Secure the Excavator") --> B("Step 2: Disconnect Power Sources")
    B --> C("Step 3: Remove Attachments")
    C --> D("Step 4: Dismantle Superstructure")
    D --> E("Step 5: Separate Undercarriage")
    E --> F("Step 6: Disassemble Undercarriage")

    style A fill:#4472c4,color:#fff,stroke:#333,stroke-width:1px
    style B fill:#4472c4,color:#fff,stroke:#333,stroke-width:1px
    style C fill:#4472c4,color:#fff,stroke:#333,stroke-width:1px
    style D fill:#4472c4,color:#fff,stroke:#333,stroke-width:1px
    style E fill:#4472c4,color:#fff,stroke:#333,stroke-width:1px
    style F fill:#4472c4,color:#fff,stroke:#333,stroke-width:1px
    end

    A -.-> A1["Ensure stable, level ground<br>Block tracks<br>Remove ignition key"]
    B -.-> B1["Disconnect batteries<br>Relieve hydraulic pressure<br>Lock out energy sources"]
    C -.-> C1["Remove bucket and pins<br>Detach arm from boom<br>Separate boom from superstructure"]
    D -.-> D1["Remove engine<br>Extract operator's cab<br>Disconnect hydraulic pumps<br>Detach counterweight"]
    E -.-> E1["Remove slew ring bolts (40+)<br>Separate upper and lower assemblies<br>Support both sections independently"]
    F -.-> F1["Release track tension<br>Remove track links<br>Detach drive motors<br>Extract rollers and idlers"]

    style A1 fill:#f8f9fa,color:#333,stroke:#ccc,stroke-width:1px
    style B1 fill:#f8f9fa,color:#333,stroke:#ccc,stroke-width:1px
    style C1 fill:#f8f9fa,color:#333,stroke:#ccc,stroke-width:1px
    style D1 fill:#f8f9fa,color:#333,stroke:#ccc,stroke-width:1px
    style E1 fill:#f8f9fa,color:#333,stroke:#ccc,stroke-width:1px
    style F1 fill:#f8f9fa,color:#333,stroke:#ccc,stroke-width:1px

1. Securing the Excavator: Ensuring the machine is stable and immobilized before starting the disassembly process. Always block the tracks and place the machine on level, solid ground - an unstable excavator becomes exponentially more dangerous as you remove components that affect its center of gravity.
2. Disconnecting Power Sources: Deactivating electrical, hydraulic, and pneumatic systems to prevent accidental activation. Always assume every line is pressurized until proven otherwise - hydraulic fluid under pressure can penetrate skin and cause serious injury.
3. Removing Attachments: Detaching the bucket, arm, and boom assembly using appropriate tools and techniques. This often requires systematically removing pins that can weigh over 100 pounds each and may be seized after years of operation.
4. Dismantling the Superstructure: Removing the engine, operator's cab, and other components from the superstructure. This phase typically yields the highest value recoverable parts and requires careful documentation to preserve resale potential.
5. Separating the Undercarriage: Detaching the slew ring and separating the undercarriage from the superstructure. This critical juncture involves managing a connection point designed to handle massive operational forces.
6. Disassembling the Undercarriage: Removing tracks, drive train components, and hydraulic systems. The most labor-intensive phase due to the robust design of these components and their exposure to harsh operating conditions.

Maintenance

When installing new components, such as pile drivers, it's important to follow the manufacturer's recommendations for break-in periods and maintenance.

For example, new pile drivers require a break-in period during which the gear oil should be changed frequently to ensure optimal performance and longevity. Skip this step and you might as well throw your warranty in the shredder.

The disassembly process typically involves the following steps:

• Securing the Excavator: Ensuring the machine is stable and immobilized before starting the disassembly process. Nothing ruins your day faster than a 25-ton machine deciding to shift while you're underneath it.
• Disconnecting Power Sources: Deactivating electrical, hydraulic, and pneumatic systems to prevent accidental activation. Always assume every line is pressurized until proven otherwise.
• Removing Attachments: Detaching the bucket, arm, and boom assembly using appropriate tools and techniques.
• Dismantling the Superstructure: Removing the engine, operator's cab, and other components from the superstructure.
• Separating the Undercarriage: Detaching the slew ring and separating the undercarriage from the superstructure.
• Disassembling the Undercarriage: Removing tracks, drive train components, and hydraulic systems.

Safety Procedures and Regulations

Disassembling heavy equipment like excavators involves inherent risks. Adhering to strict safety procedures and regulations is paramount to prevent accidents and injuries. Key safety measures include:

Risk Assessment: Identifying potential hazards and implementing appropriate control measures. That gut feeling that something could go wrong? Listen to it and address it before proceeding.

Lockout/Tagout Procedures: Ensuring energy sources are isolated and locked out to prevent accidental activation. Nothing says "bad day" like a hydraulic system suddenly coming to life while you're working on it.

Personal Protective Equipment (PPE): Using appropriate PPE such as helmets, safety glasses, gloves, and safety shoes. Your standard PPE isn't just a suggestion - it's the difference between going home with stories or going home with stitches.

Fall Protection: Implementing fall protection systems when working at heights. Gravity doesn't care about your experience level.

Safe Lifting Practices: Following safe lifting practices when handling heavy components. Your back will thank you in twenty years.

Trained Personnel: Ensuring only trained and qualified personnel are involved in the disassembly process. This isn't the time to let the new guy "figure it out."

Three-Point Contact: When mounting and dismounting the excavator, always maintain three points of contact (two hands and one foot, or two feet and one hand) to ensure stability and prevent falls. The old "one-handed cowboy dismount" looks cool until you're explaining to HR why you need three months off.

Cost and Time Considerations

The cost and time required to disassemble an excavator vary depending on factors such as the size and model of the machine, the complexity of the disassembly process, and labor costs.

Excavator Parts: Cost Comparison

Replacement Part

SANY Cost

Leading Brand Cost

Set of Tracks

$2,040

$3,089

Front Glass Assembly

$420

$1,588

Stick Bushings and Seals

$31

$86

SANY Cost

Leading Brand Cost

Note: Bar widths represent relative cost differences. SANY components average 40-70% less than leading brands.

While specific data is limited, industry estimates suggest that disassembly can take several hours to several days. The cost can range from a few thousand dollars for smaller excavators to tens of thousands of dollars for larger models. Anyone who tells you they can quote you an exact price without seeing the machine first probably has a bridge to sell you too.

The cost of replacement parts can also be a significant factor. The table below shows the cost of some common replacement parts for a SANY SY35U mini excavator:

Replacement Part	SANY Cost	Leading Brand Cost
Set of Tracks	$2040	$3089
Front Glass Assembly	$420	$1588
Stick Bushings and Seals	$31	$86

That price difference isn't just marketing - it's why many operators are increasingly looking at alternative brands for their fleets. The performance gap isn't what it used to be, but the price gap certainly still is.

Risks and Challenges of Disassembly

Disassembling an excavator presents various risks and challenges that must be carefully managed to ensure safety and efficiency. Some of the potential hazards include:

Tip-overs: Excavators can tip over if the ground is unstable or if the machine is not operated correctly. Ever seen a 30-ton machine do a slow-motion somersault? It's both impressive and terrifying.

Hitting Power Lines: Contact with overhead power lines can result in electrocution. Electricity doesn't give second chances.

Hydraulic System Failures: Leaks, bursts, or malfunctions in the hydraulic system can cause injuries or equipment damage. Hydraulic fluid under pressure can penetrate skin - and that's a hospital trip, not a band-aid situation.

Corrosion: Exposure to moisture and environmental factors can lead to corrosion of excavator components, weakening the structure and potentially causing failures. What looks solid on the outside might be paper-thin where it matters.

Strain on Components: Improper disassembly techniques or excessive force can strain or damage excavator components. That "one last try" with the bigger wrench is often the one you regret.

Falling Debris: During disassembly, there is a risk of components or debris falling and causing injury. Hard hats exist for a reason.

Structural Collapse: When dismantling larger structures, there is a risk of partial or complete collapse, endangering workers and the surrounding environment. Physics doesn't care about your schedule or budget.

To mitigate these risks, it is crucial to:

• Conduct a thorough risk assessment before starting the disassembly process.
• Ensure the excavator is stable and secured before any dismantling begins.
• Use appropriate tools and techniques for each step of the disassembly.
• Follow safe lifting practices and use appropriate lifting equipment.
• Wear appropriate PPE and implement fall protection measures when working at heights.
• Deactivate all power sources and follow lockout/tagout procedures.
• Be aware of the surroundings and potential hazards, such as overhead power lines and underground utilities.
• Have a qualified and experienced person supervise the disassembly process.

Reasons for Disassembly

Several reasons may necessitate excavator disassembly:

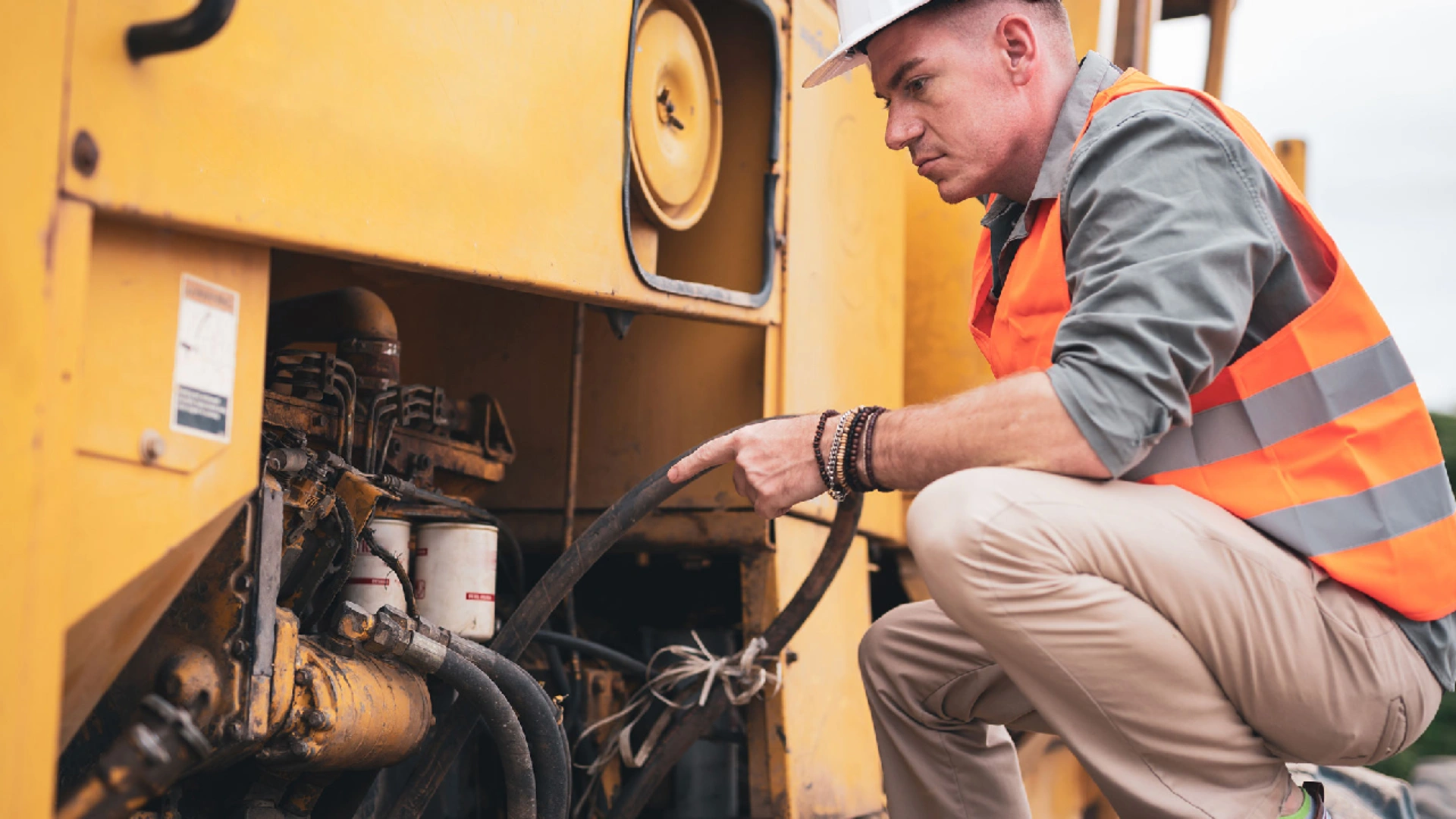

Repair and Maintenance: Accessing internal components for major repairs or overhauls. Rebuilding an excavator can be a cost-effective alternative to purchasing a new machine, especially when considering the high cost of new equipment. When a new mid-size excavator costs north of $200K, that rebuild starts looking pretty attractive.

Transportation: Dismantling the excavator for transportation to a different location, especially for larger models or when access is restricted. Some job sites are like threading a needle - you're not getting that full-size excavator down that narrow access road in one piece.

Recycling and Repurposing: Recovering valuable materials and components for recycling or repurposing. One machine's retirement is another's rebirth through parts.

End-of-Life Management: Properly disposing of the excavator at the end of its operational life. All good things must come to an end, even 25-ton digging machines.

Conclusion

Excavator disassembly isn't just "unscrewing"—it's precision work requiring specialized tools and safety protocols. When facing a quarter-million for a new machine versus thirty grand for a rebuild, the economics become compelling.

Success hinges on proper tooling, safety awareness, environmental compliance, and strategic decision-making. Complete teardown isn't always necessary; the used equipment market offers alternatives for machines reaching end-of-life.

Every excavator eventually faces its final dig. Your job is extracting maximum value when that time comes—through careful disassembly, repurposing, or finding it a new home with an owner who values function over perfection.

FAQ

Can an excavator unscrew itself?

An excavator cannot unscrew itself. Excavators are designed with fixed components and do not have the ability to disassemble or "unscrew" their own parts. The term "unscrew" is not applicable to the operation or maintenance of excavators.

How to take apart an excavator track?

To disassemble an excavator track, first remove the grease valve using an open-ended wrench to release tension. Use a pry bar or crowbar to lift the track off the sprocket teeth, manually moving the track forward if necessary to retract the idler. Ensure safety by supporting the machine with jack stands before working under it.

Can you unscrew an excavator from its tracks?

Yes, excavators can be separated from their tracks by first releasing tension via the track adjuster or grease valve. Remove track pins and bolts from the sprocket and idler using tools like a hammer, chisel, or pry bar. The process involves manually lifting the track off the sprocket teeth, often requiring mechanical leverage or hydraulic assistance.

How do you loosen an excavator track?

To loosen an excavator track, first locate the grease fitting on the track adjuster and use a bleed tool to release pressure by turning the valve counterclockwise, allowing grease to flow out. For manual adjustment, insert a pry bar or timber block between the track and sprocket teeth to lift the track while rotating it forward. Ensure the machine is safely supported with jack stands before working under it.
